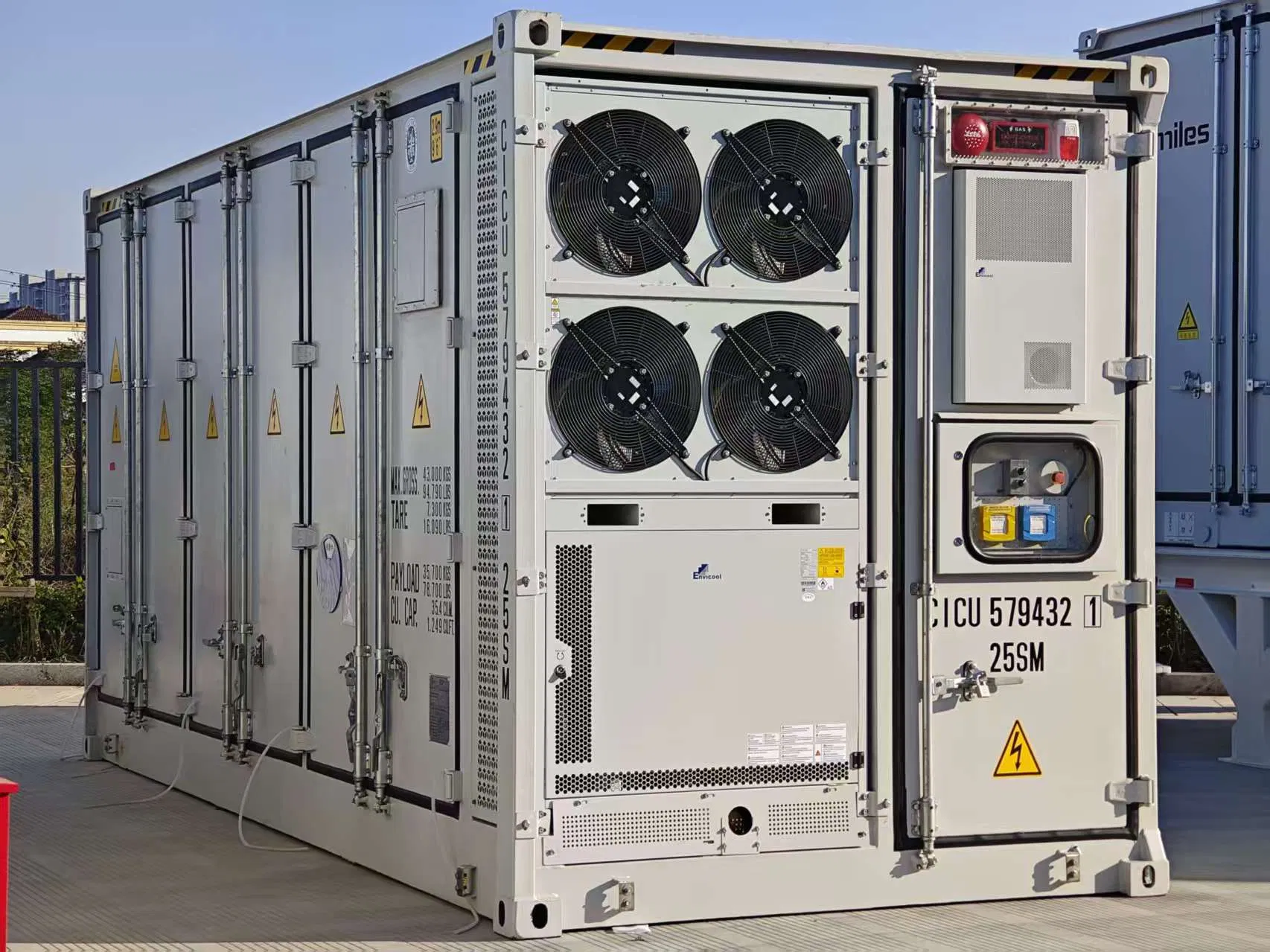

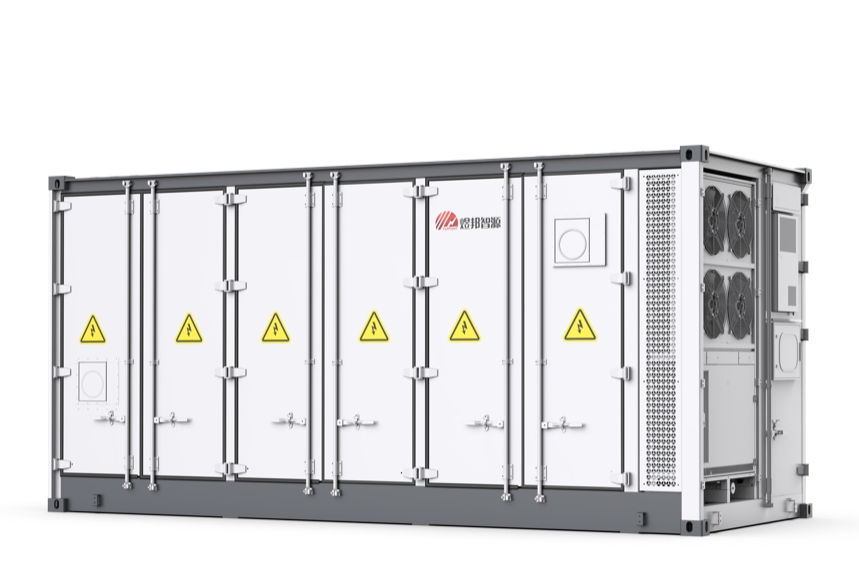

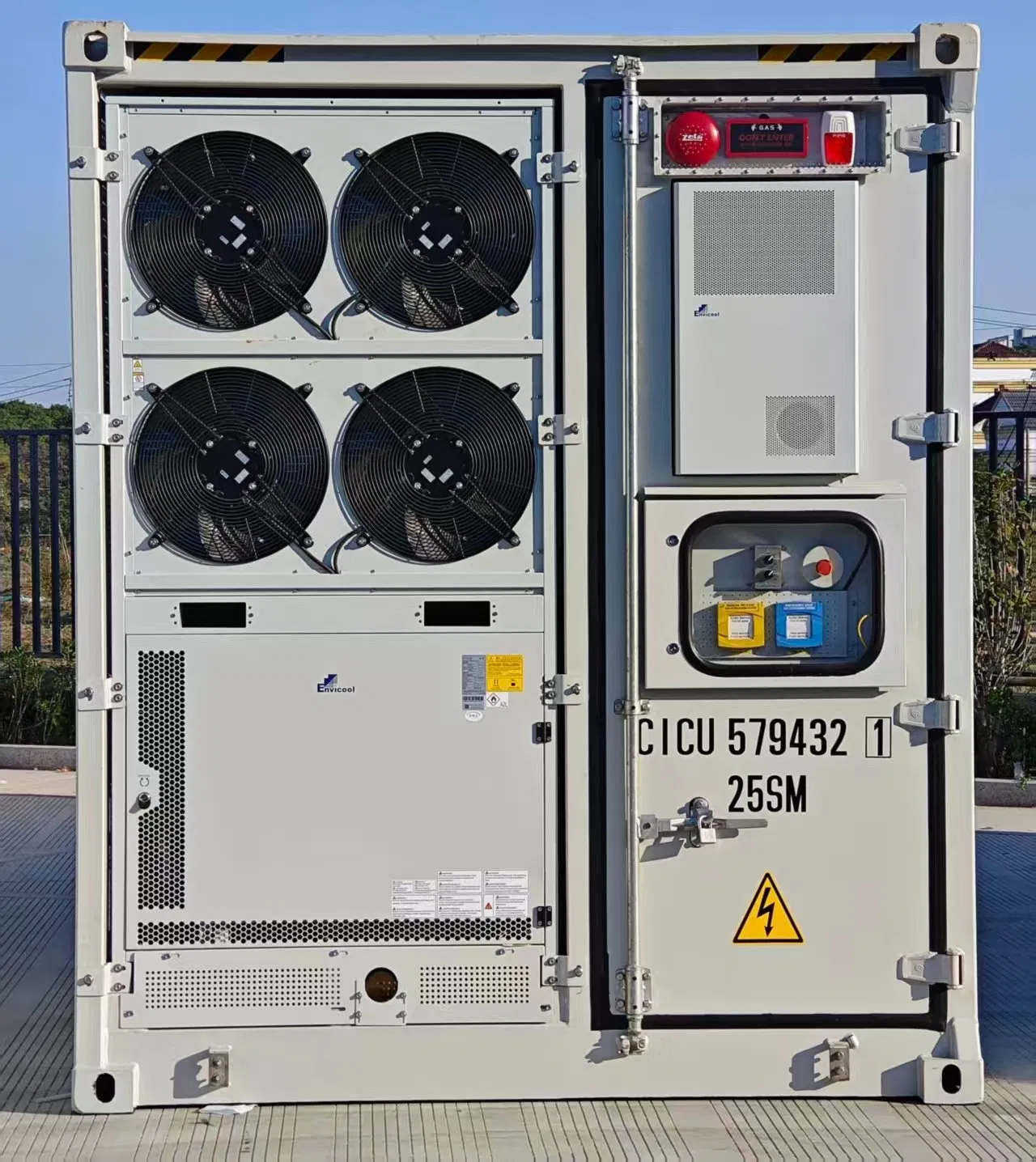

This expansive energy storage product includes systems for energy storage, cooling, fire protection, air conditioning, BMS, and auxiliary power. With a high capacity of 3.76 MWh, it's designed for utility-scale efficiency.

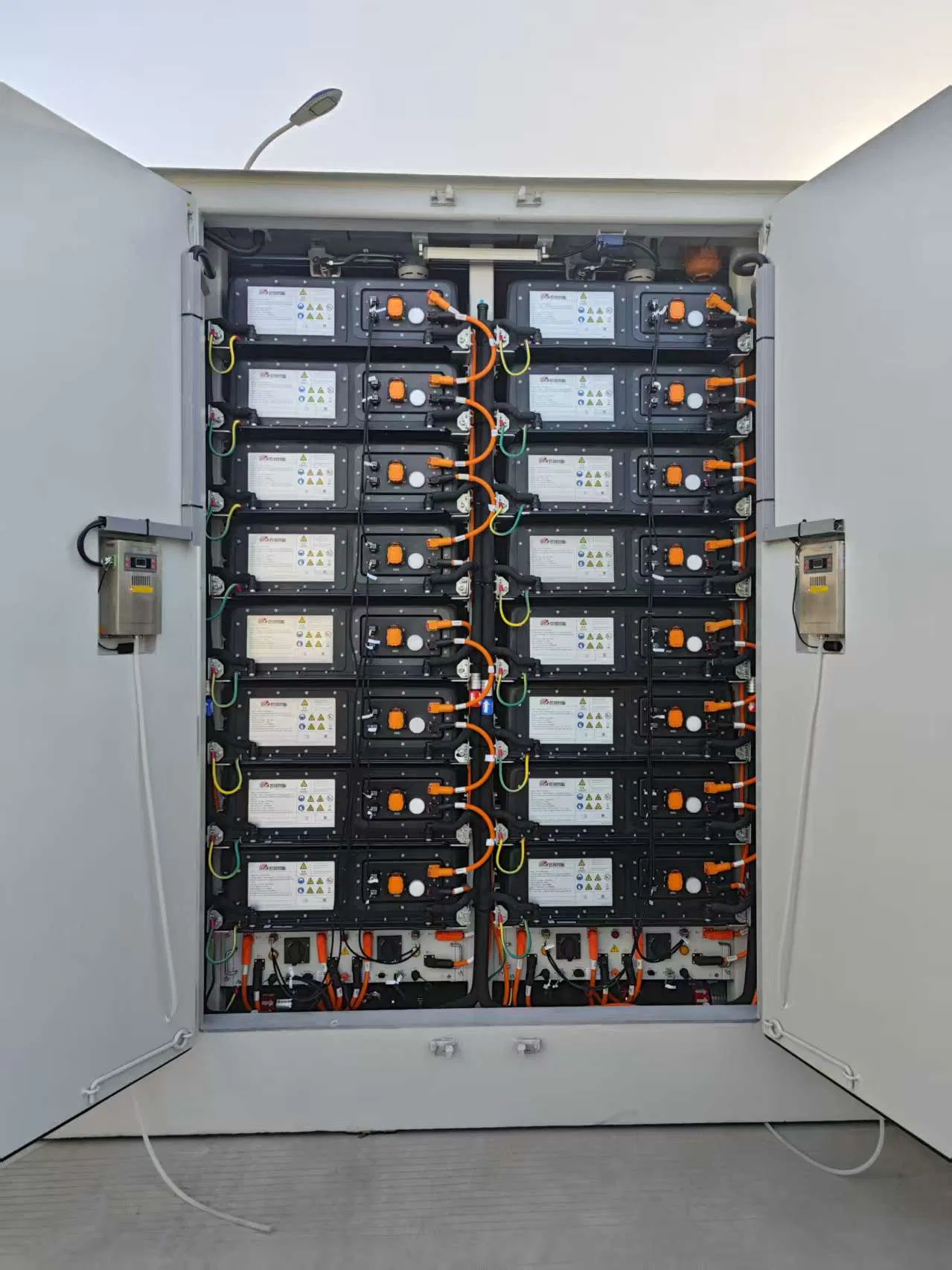

Features safe, long-life lithium iron phosphate (LFP) batteries with an intelligent BMS. Advanced thermal management ensures uniform temperature across the system. Includes independent grounding for safety and an advanced fire system for hazard prevention. Big data algorithms enhance security while the outward door design ensures easy maintenance.

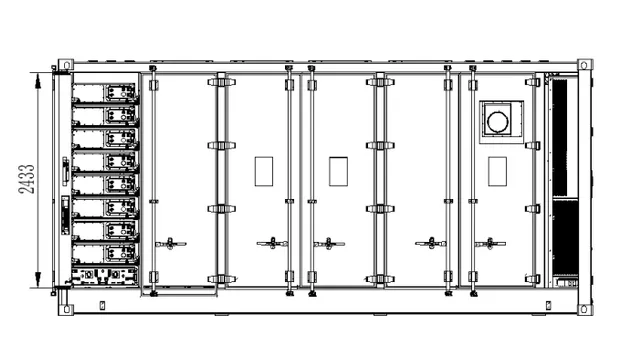

Front Elevation

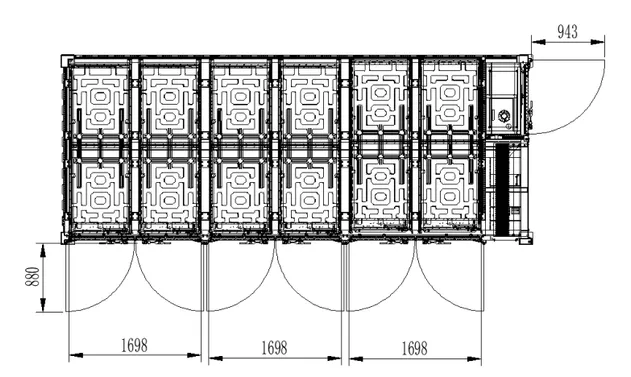

Back Elevation

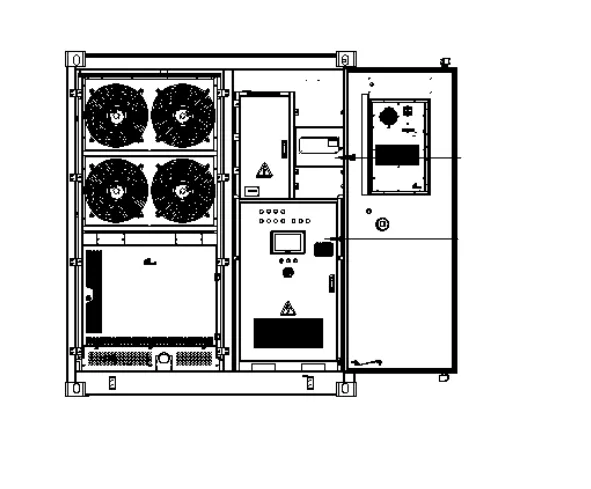

Left Elevation
(Custom configurations available upon request)
| Model | 3.76MWh | 4.59MWh | 5MWh |
|---|---|---|---|
| Operating Weight (kg) | 37,080 | 42,360 | 45,000 |
| Nominal Capacity (kWh) | 3761.971 | 4597.964 | 5015.961 |
| Cell Type | LFP 3.2V/314Ah | ||
| String Configuration | 9*1P416S | 11*1P416S | 12*1P416S |
| Communication | RS485, Ethernet, CAN, Modbus RTU/TCP, IEC 61850 | ||
| Protection Grade | IP54/IP55 | ||
| Temperature Range | -30~55℃ | ||

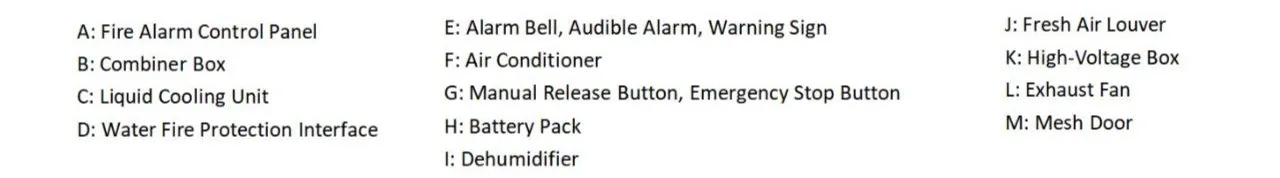

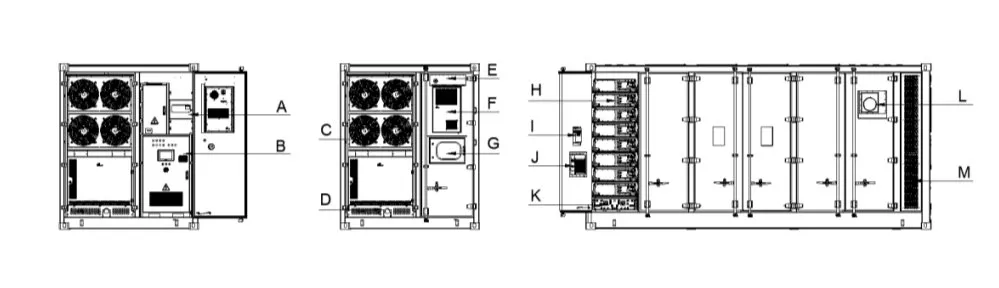

Download detailed CAD drawings and dimensions or inquire for tailored designs to meet specific project needs.
Standard Warranty: 12 months or 2,000 hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical support and parts supply.
Training: On-site or remote operation and maintenance training.

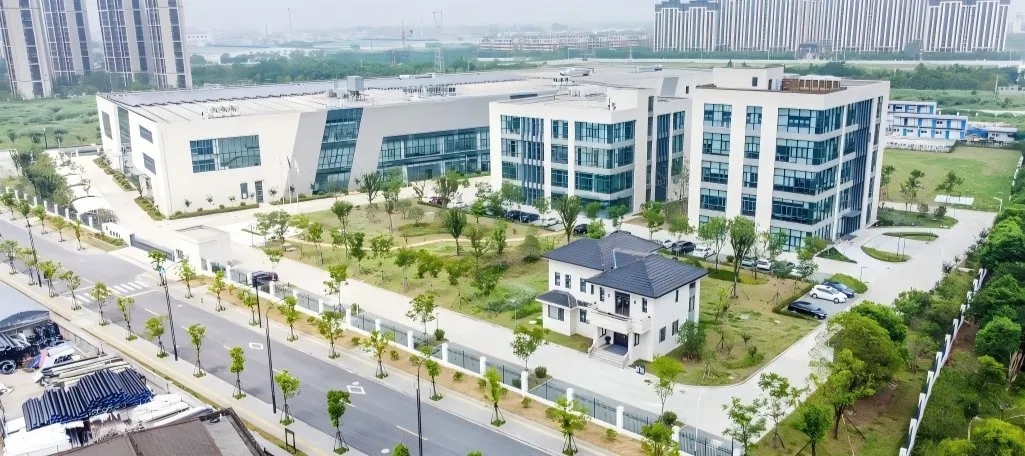

Specializing in R&D, manufacturing, and sales of large-scale grid-side and industrial/commercial distributed energy storage equipment. We maintain a standardized, efficient business system to provide core tech solutions globally.
