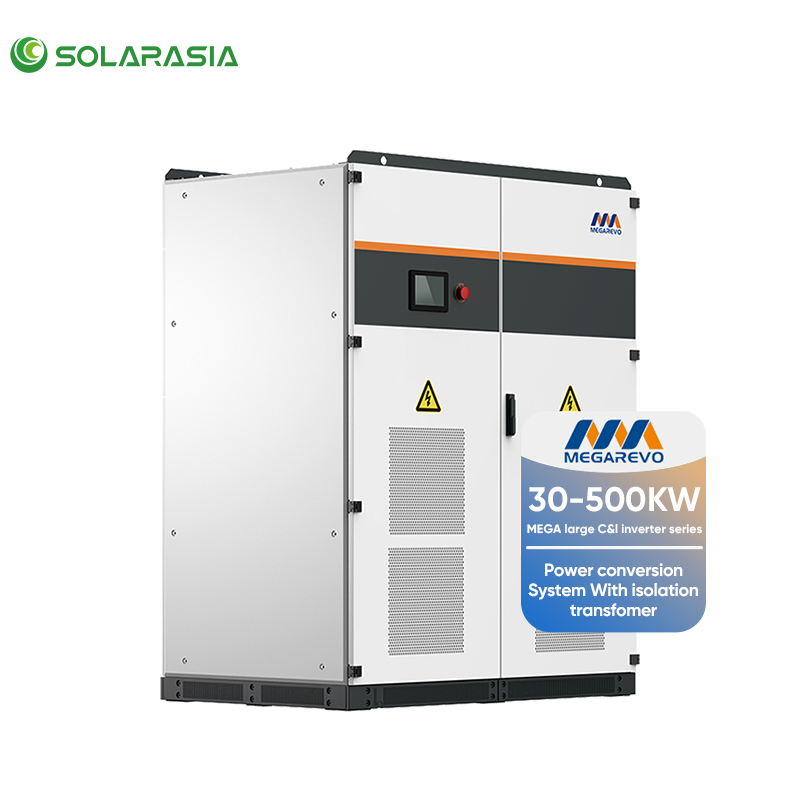

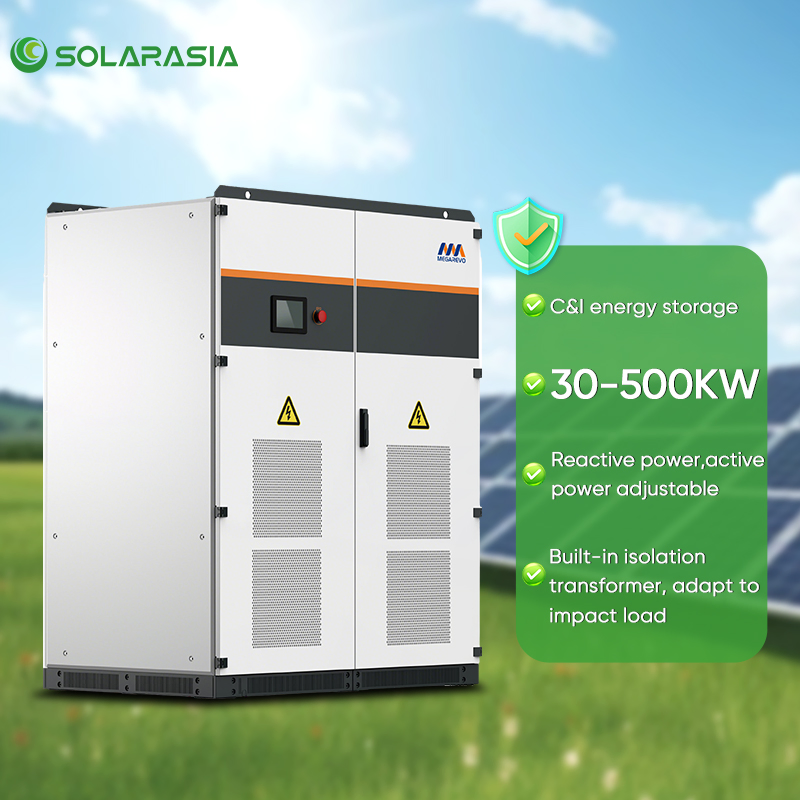

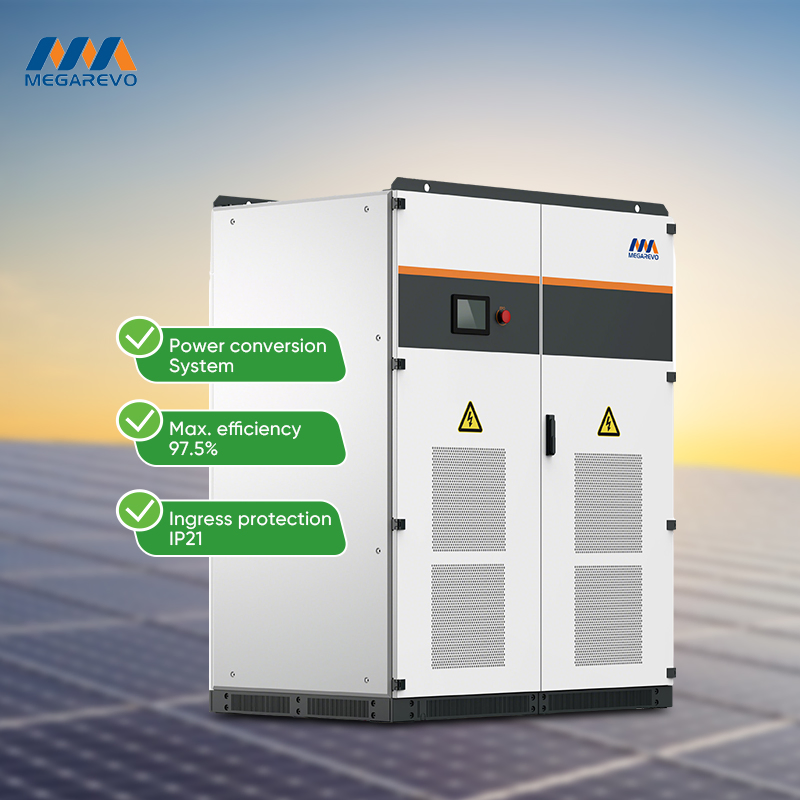

Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
1 / 5
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects
Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects

Megarevo Utility Scale Power Conversion System 30kw 50kw 100kw 250kw 500kw Bidirectional Inverter for Energy Storage Projects

Customization: Available
Weight: 621kg
Warranty: 10 Years
Send Inquiry

Product Description

!

Basic Information

Model NO.
MEGA-N-TS
Cycle Life
Yes
Nominal Capacity
Yes
Communication
CAN, RS485
Protection Class
IP21
Application
Commercial Solar Power System
Grid Type
3W+N+PE
Specification
800X800X1900mm
Origin
China
Production Capacity
2000PCS/Week
✓

Product Description

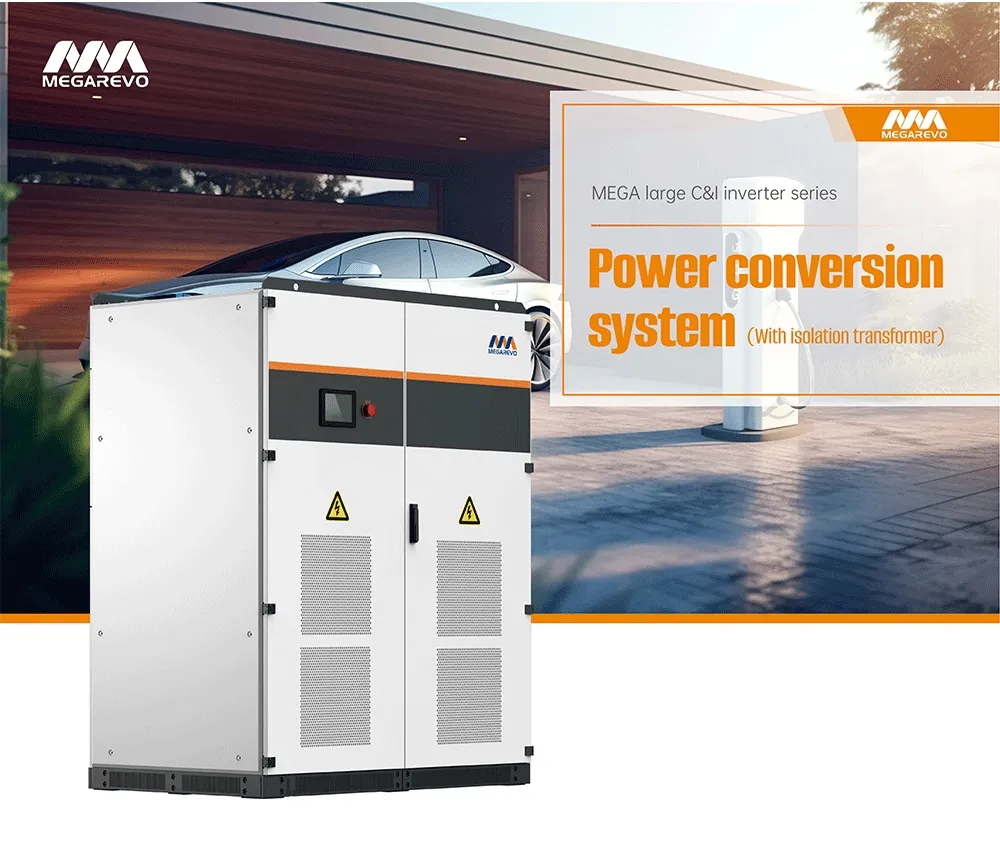

Utility Scale Power Conversion System
⚙

Product Parameters

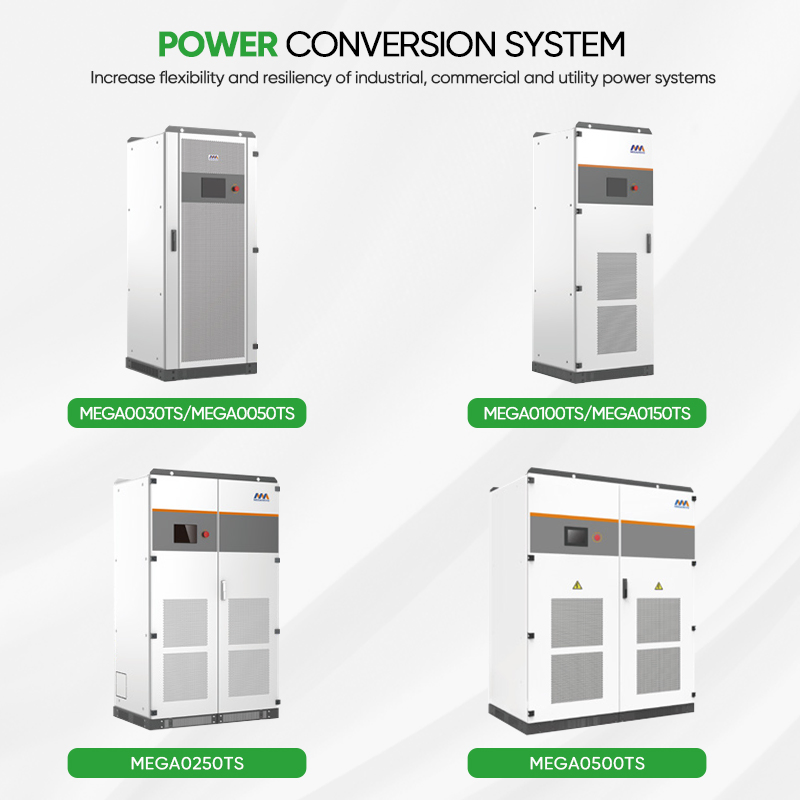

Model 0030TS 0050TS 0100TS 0150TS 0250TS 0500TS
DC (Battery)
Voltage range (V)250~850320~850420~850420~850420~850500~850
Max. Current (A)1371782704056731,128
AC (On-Grid)
Rate output power(kW)3050100150250500
Rated voltage(V)400
Rated frequency (Hz)50/60
AC connection3W+N+PE
General Data
Max.efficiency96.3%96.5%97.1%97.1%97.3%97.5%
Dimension W*D*H (mm)800*800*1900800*800*1900800*800*1900800*800*19001200*800*20501600*1050*2050
Net Weight(kg)6217129361,0571,5822,665
DisplayLCD touch-screen
★

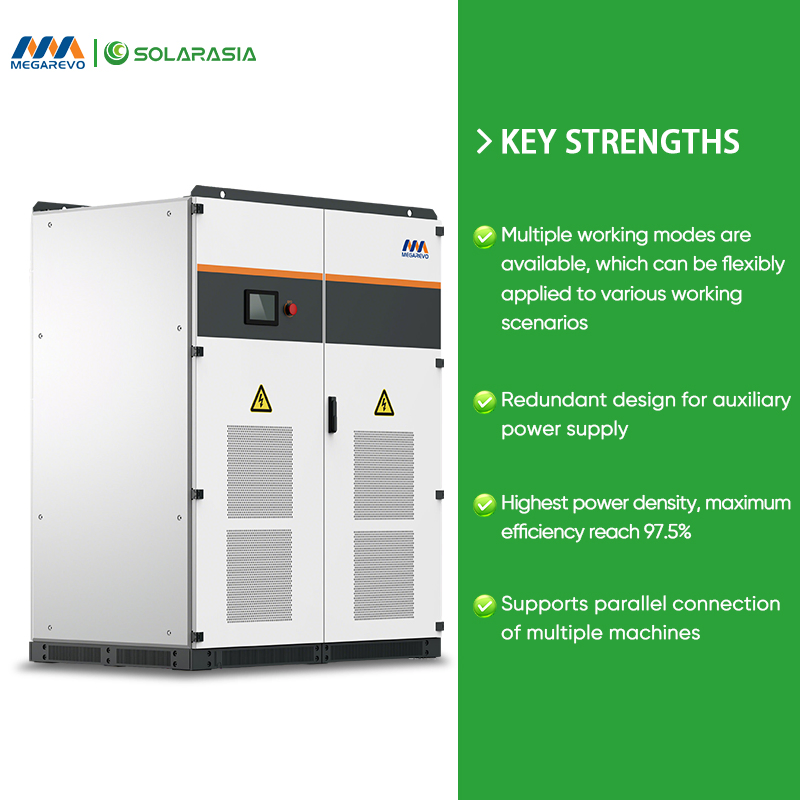

Core Features

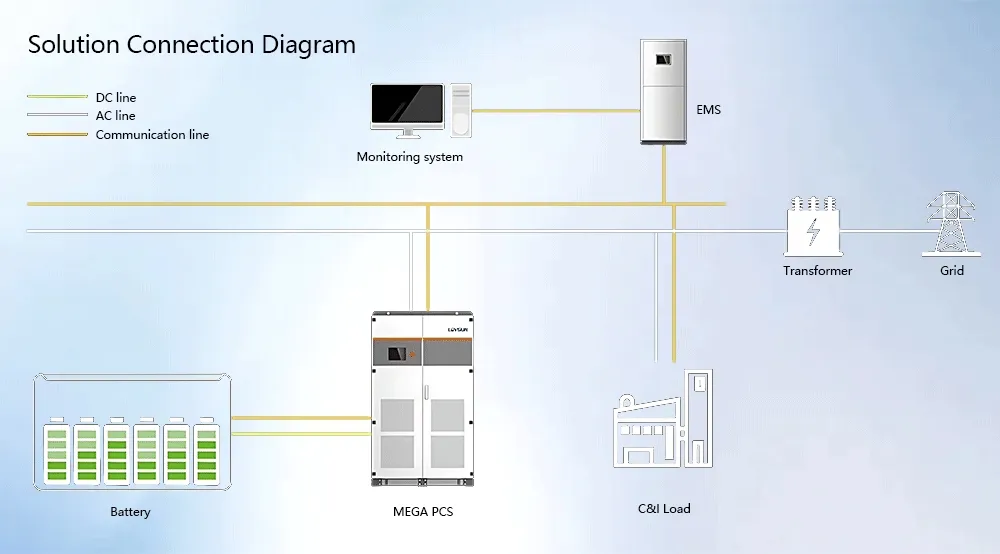

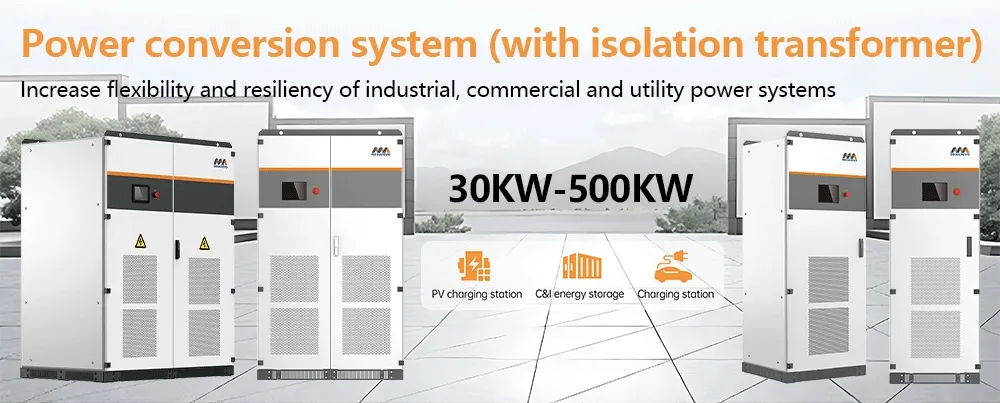

Feature 1 Feature 2 Feature 3
📜

Certifications

Certification 1 Certification 2
🏢

Industry Presence

Factory Profile 1 Factory Profile 2
?

Frequently Asked Questions

How to choose the right system?
Please provide details regarding your energy storage requirements, PV project installation capacity, scenario of the installation, and the arrangement of components for a tailored recommendation.
What is the estimated delivery time?
Delivery typically takes 7 to 20 days for bulk orders.
What kind of warranty is provided?
Warranty varies by component: Solar panels are covered for 25 years, on-grid and hybrid inverters for 5 years, and off-grid inverters for 2 years.
How is the technical support handled?
We have a professional engineering team to provide support. We offer 24-hour online service to resolve issues within 1 hour during active usage.
What communication interfaces are supported?
The system supports RS485 and CAN protocols for BMS communication, and RS485 or TCP/IP for EMS communication.
Are the products certified for international use?
Yes, the products meet various standards including IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, and IEC/EN 61000-6-4.
