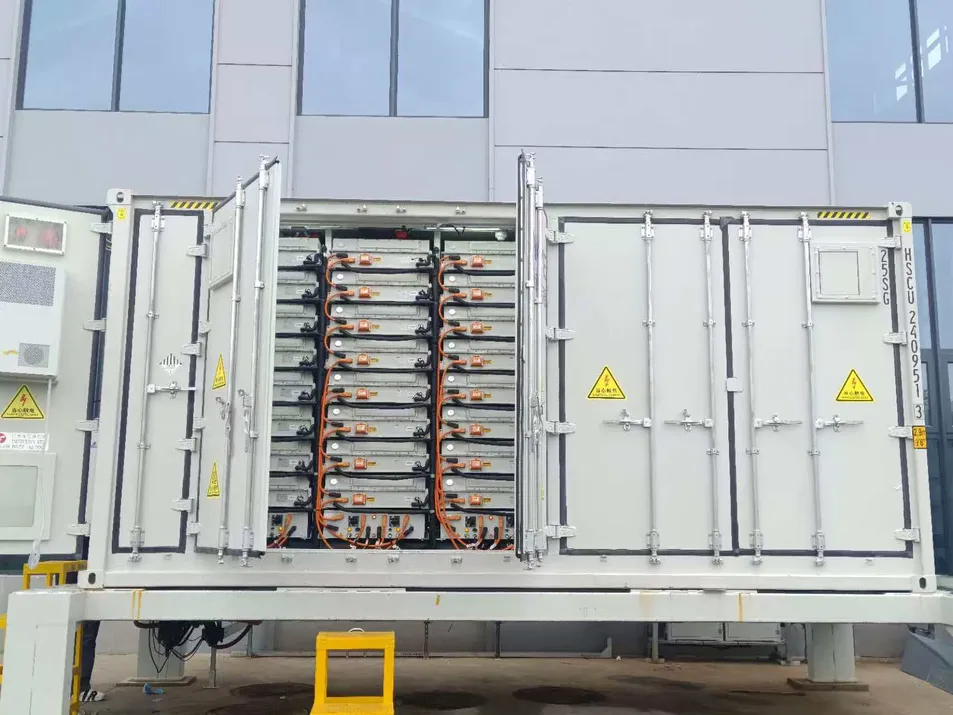

Energy Storage Containerized System

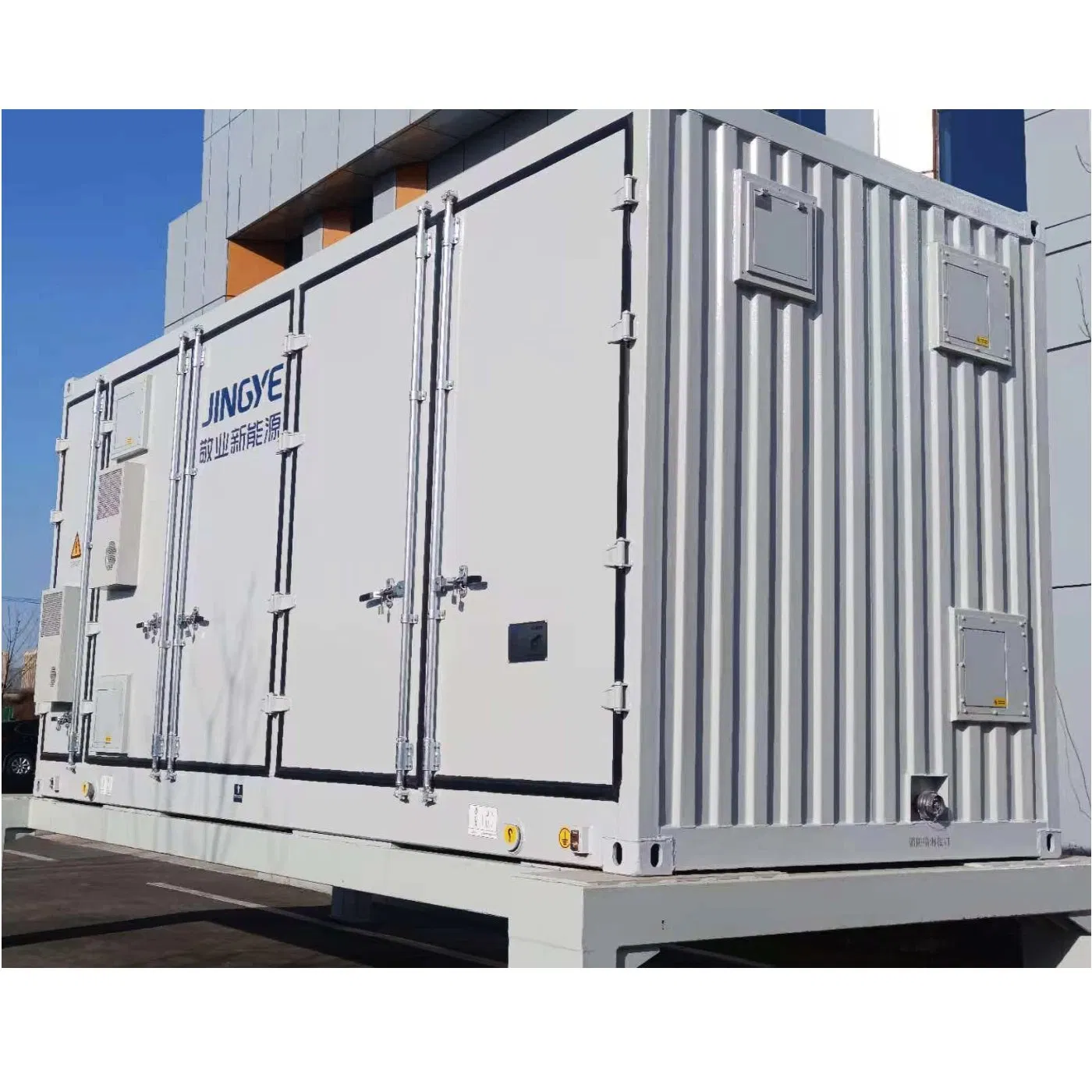

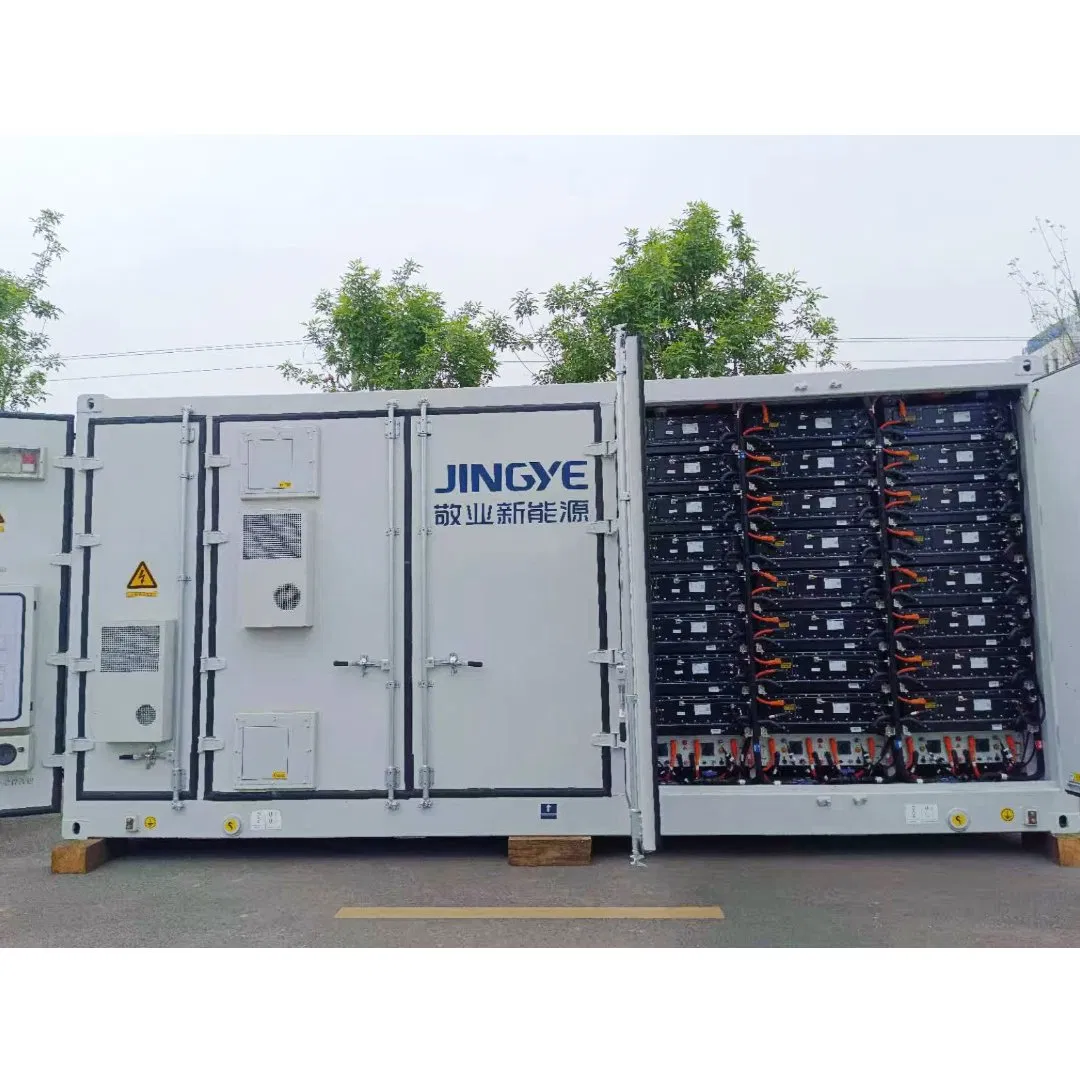

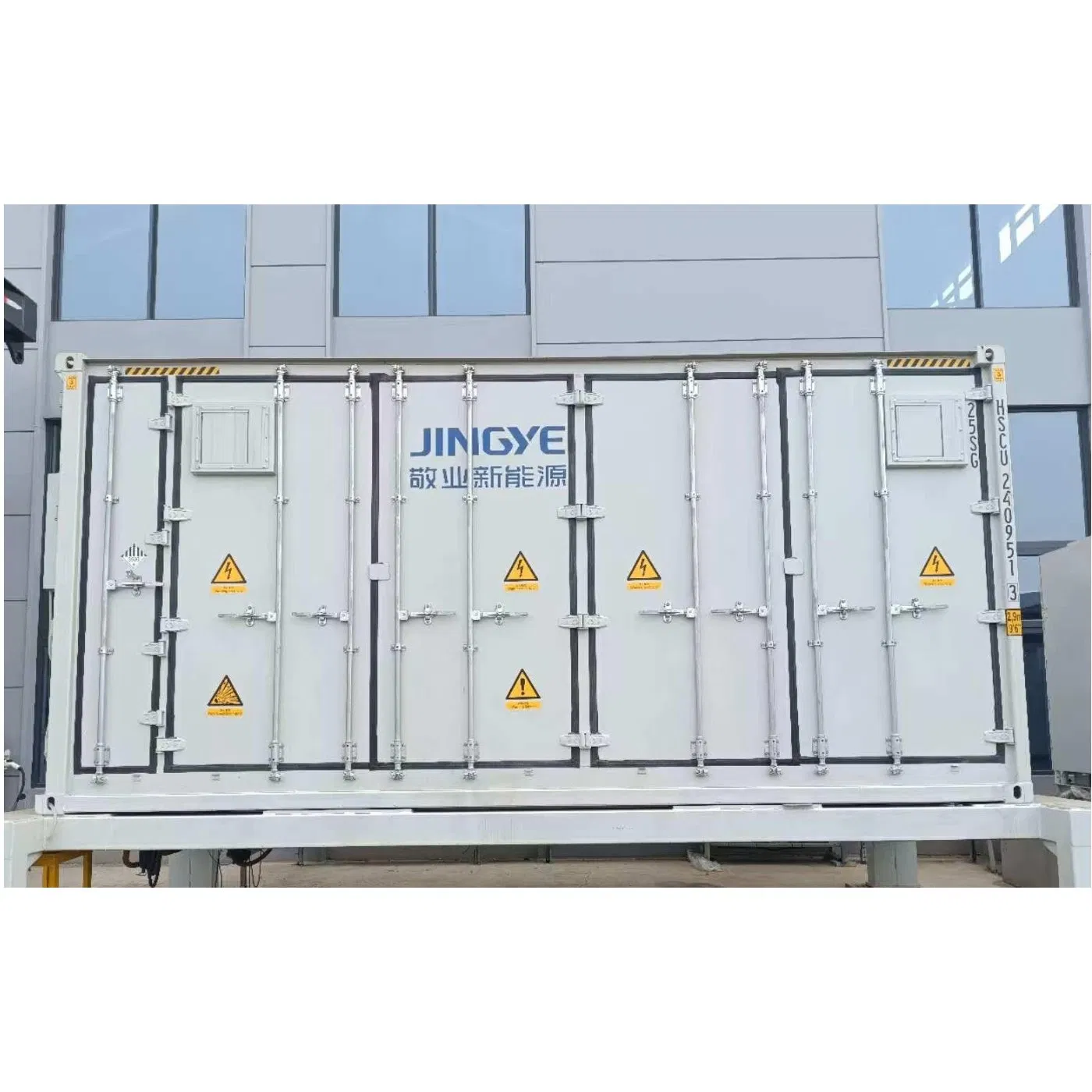

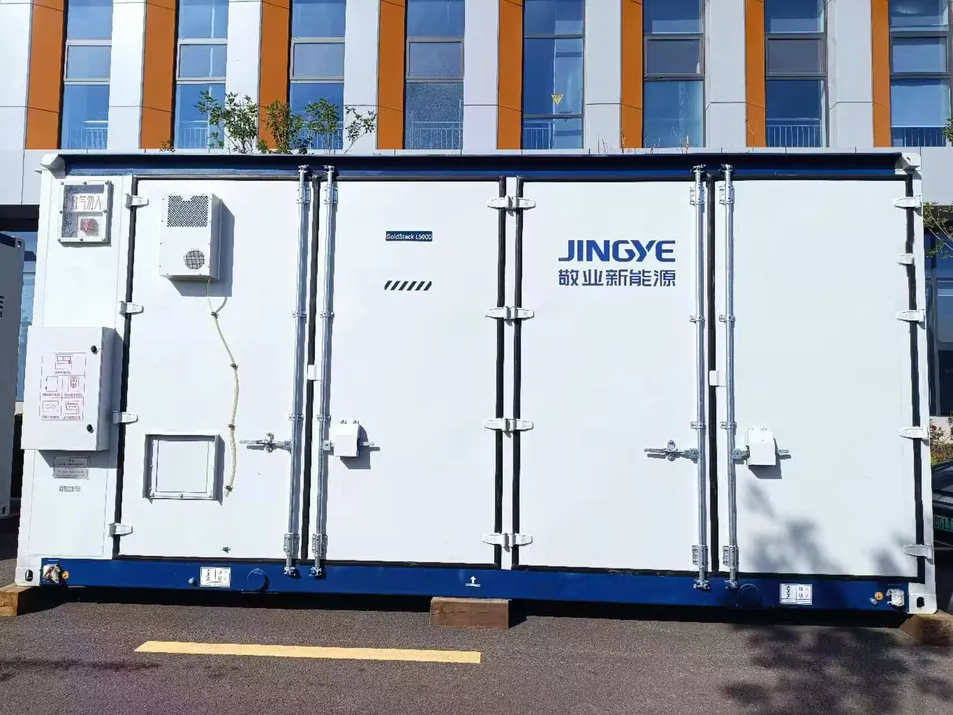

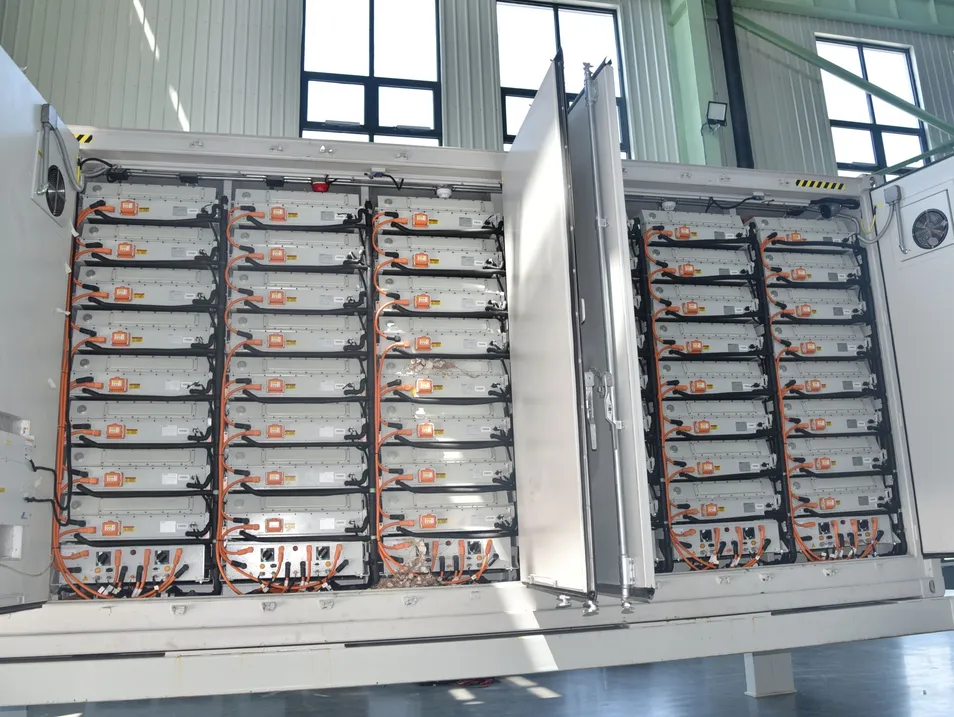

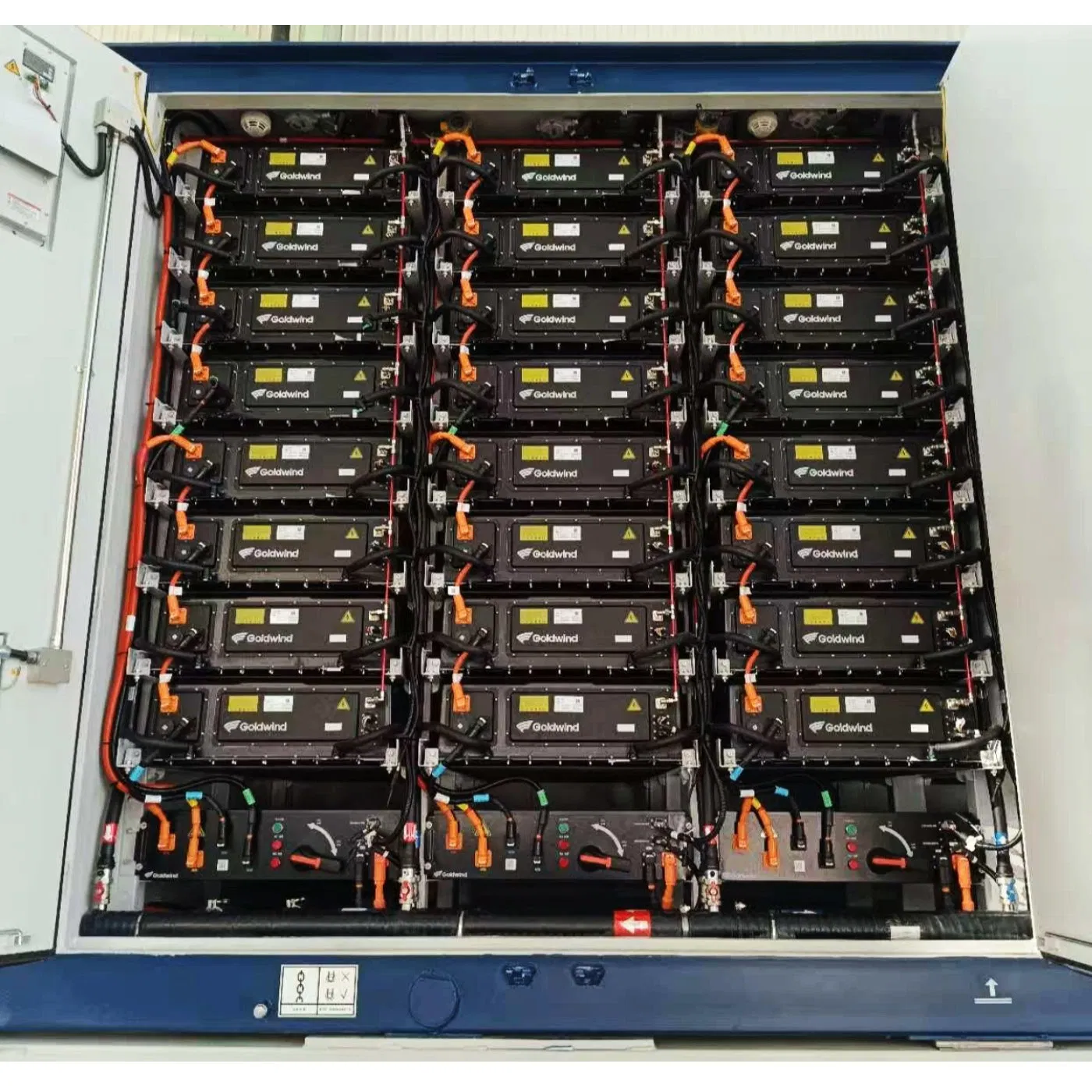

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, and environmental control systems. This standard 20-foot container (6058mm x 2438mm x 2896mm) ensures safety control while being suitable for various transportation conditions and utility-scale site designs.
| No. | Item | Specification |
|---|---|---|
| 1 | Configuration | 12*(1P104S*4) |
| 2 | Rated Capacity | 5MWh |
| 3 | Rated Voltage | 1331.2VDC |
| 4 | Voltage Range | 1164.8V - 1497.6VDC |
| 5 | Charging/Discharge Power | ≤ 2.5MW |
| 6 | Altitude | ≤ 4000m |
| 7 | Dimensions | L6058 x W2438 x H2896mm |
| 8 | Weight | Approx. 43t |
| 9 | IP Rating | IP54 |
| 10 | Communication | Ethernet, CAN, ModbusRTU |

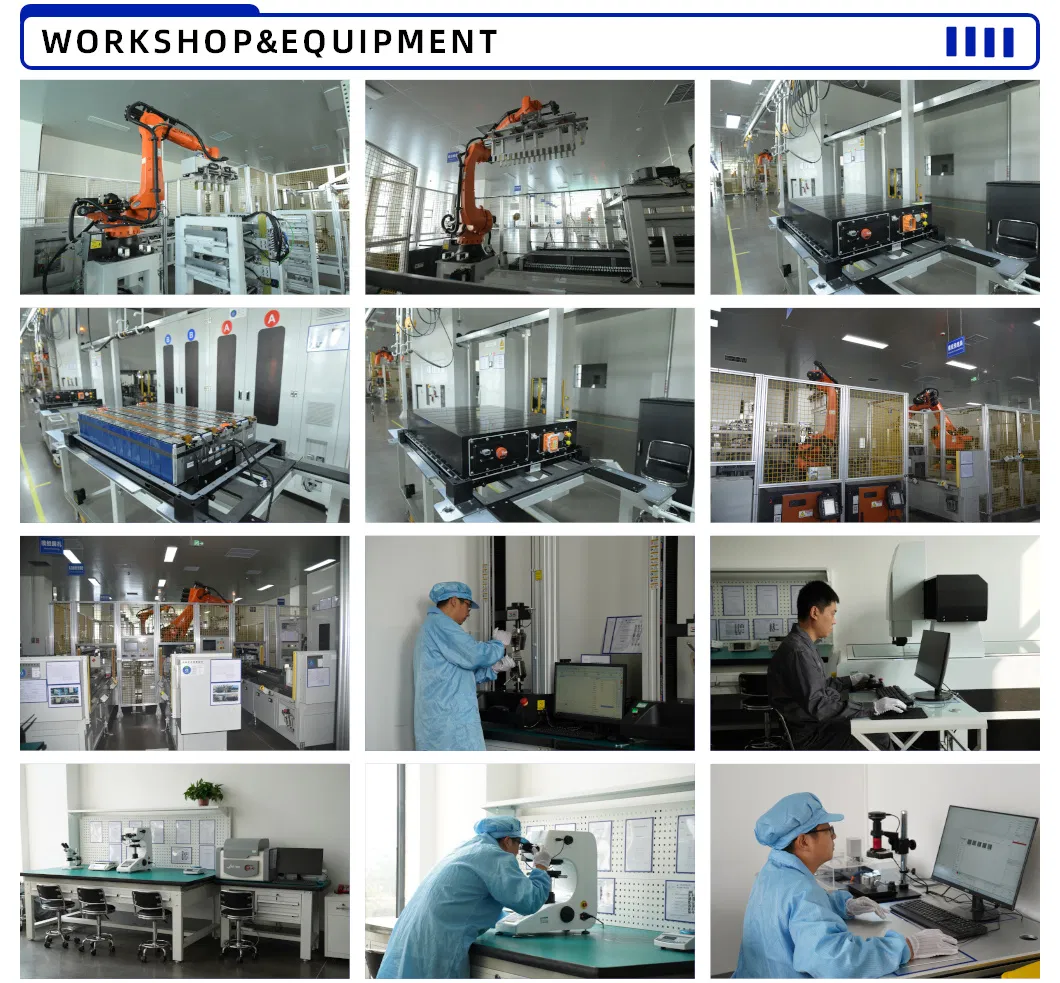

Equipped with advanced automated production lines, the facility maintains an annual production capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. These products are widely deployed in smart grids, wind/solar power distribution, and industrial energy storage globally.
