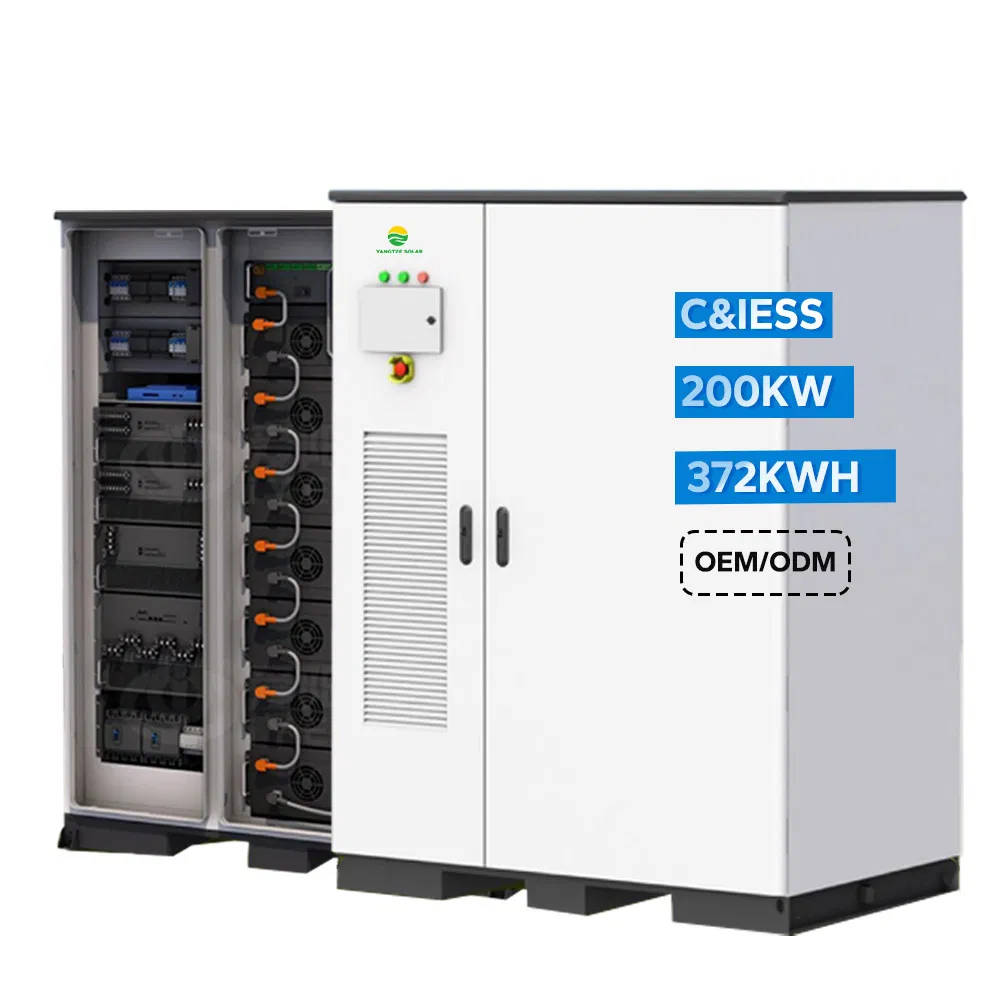

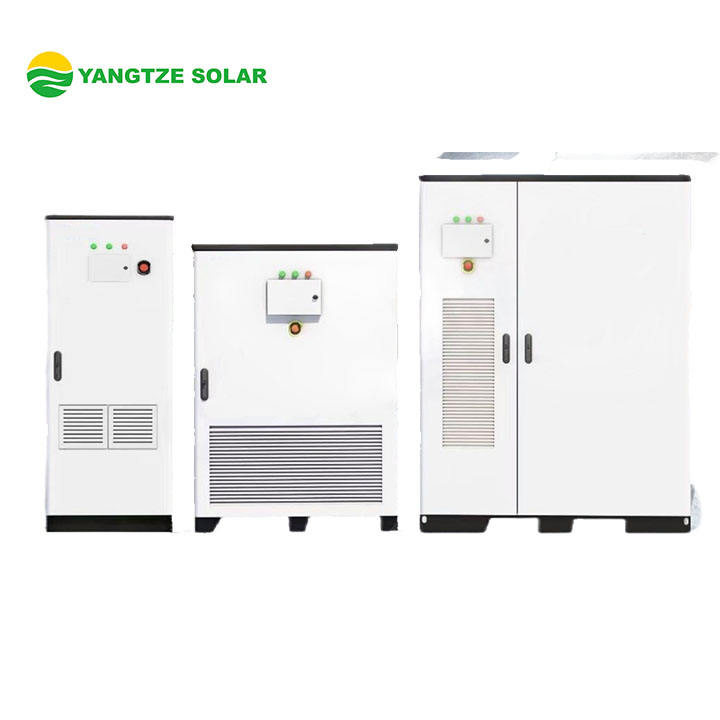

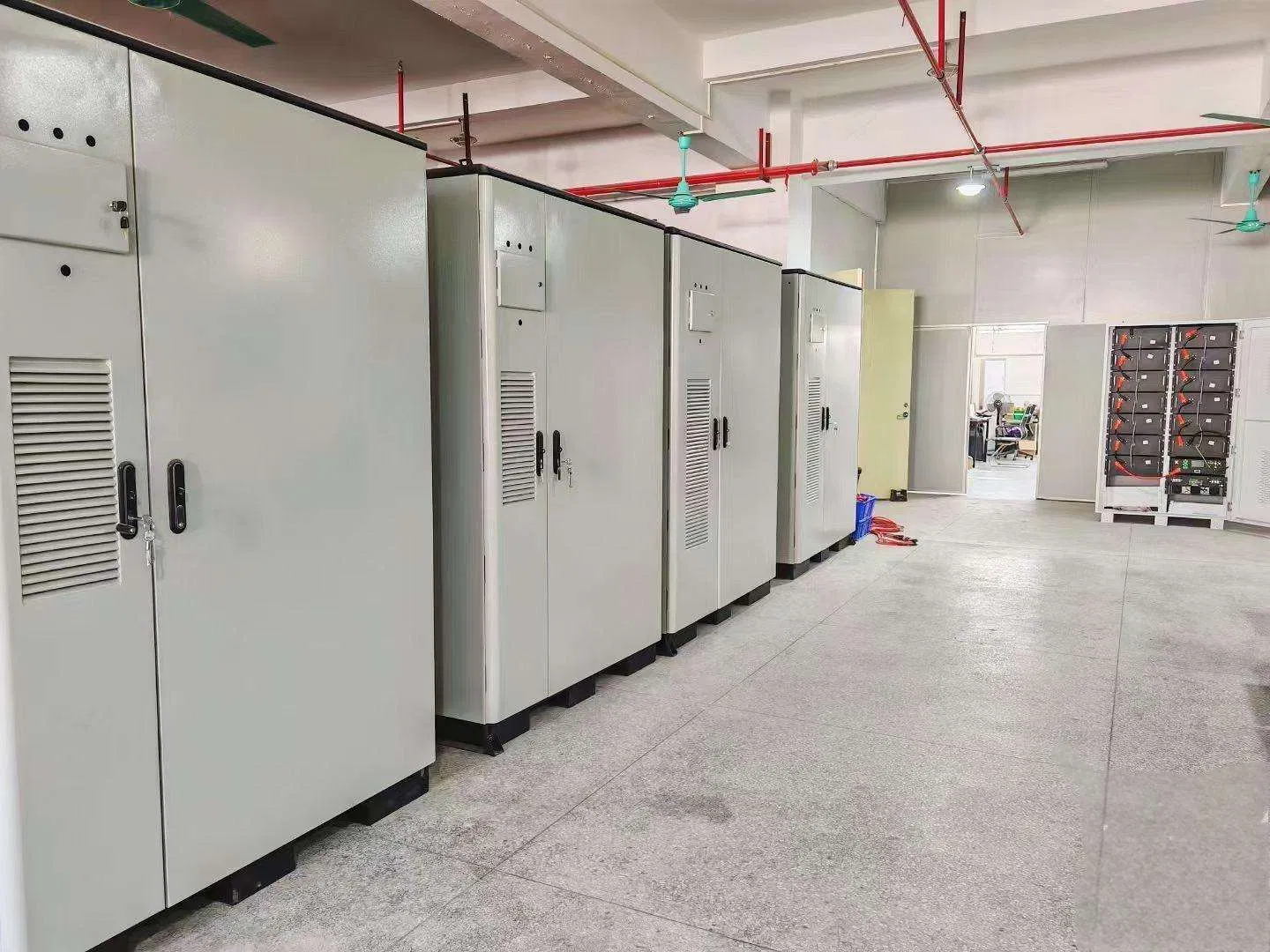

Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
1 / 5
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage
Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage

Yangtze 200kw+372kwhl LiFePO4 Lithium Battery System off Grid Air Cooling C&I Ess Cabinet High-Power Energy Storage

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Send Inquiry

Product Description

i

Technical Specifications

Model NO.
YS 200KW+372KWHL
Nominal Voltage
CE, TUV, IEC61215, IEC61730
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Packaged
Rechargeable
Chargeable
Nominal Capacity
100ah
Cycle Life
8000 Times
Warranty
20 years
Maintenance
Free
Certificate
CE/Rosh/MSDS/Un38.3
Color
Grey, Black, Red, Green, White
OEM/ODM
Acceptable
Battery Protection
PCM/PCB
Container Material
ABS / Customized
Origin
China
HS Code
8506500000

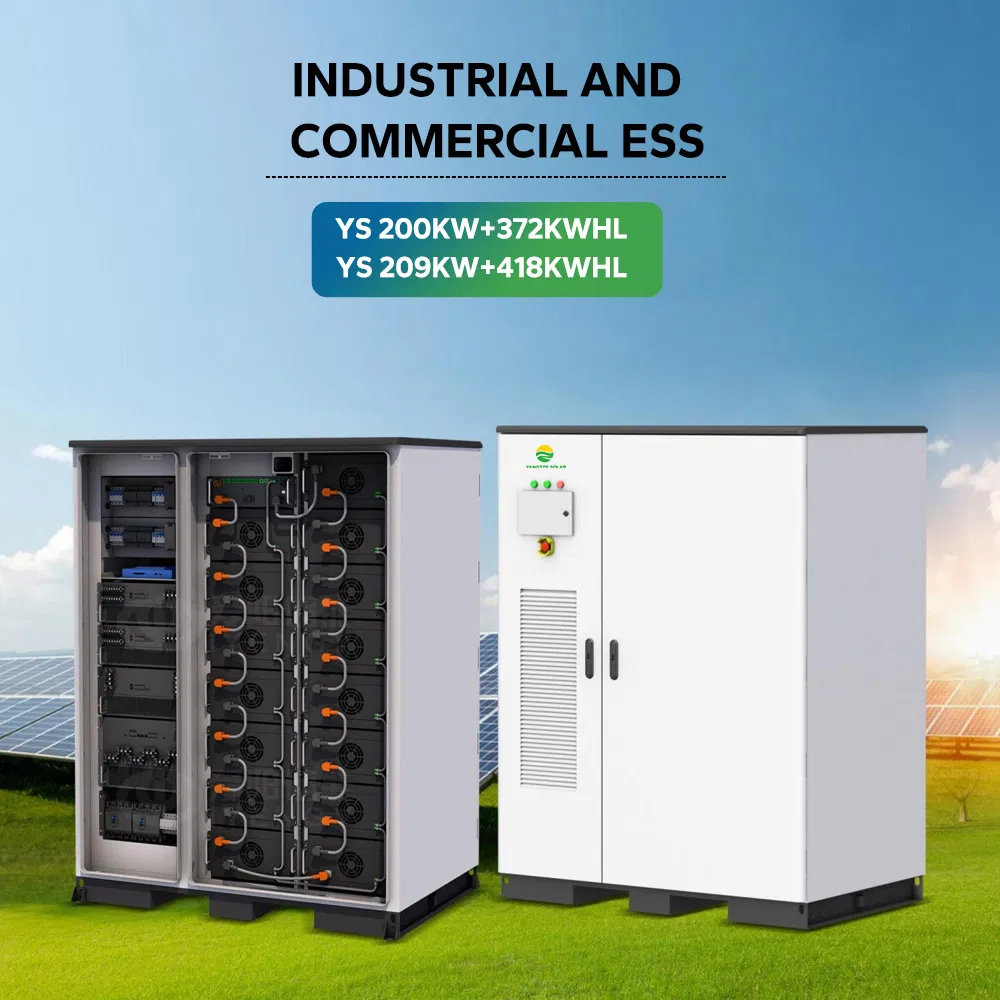

Energy Storage Cabinet
📋

Product Description & Parameters

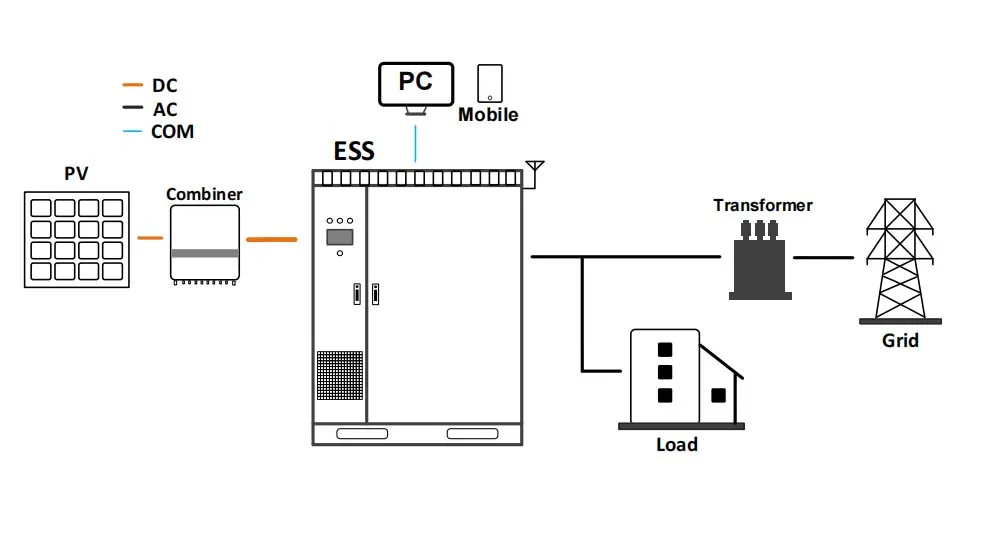

System Overview
Model YS 200KW+372KWHL YS 209KW+418KWHL
Battery Type
Cell Rated Capacity 280Ah 314Ah
Rate Capacity 372.73kWh 417.99kWh
Battery Type LiFePO4
Normal Voltage 1331.2V
Operating Voltage Range 1164.8-1497.6V
AC Output (Grid Side)
Rated Output Power 200KW 209KW
Rated Grid Voltage 3/N/PE, 230/400V
Rated Grid Frequency 50/60Hz
Power Factor 1 (0.9 leading ~ 0.9 lagging)
Voltage Distortion Rate <3% (linear load)
General Data
Ingress Protection IP54
Cooling Method Air-conditioning cooling
Fire Protection Aerosol
Communication RS485, CAN
Environment Outdoor

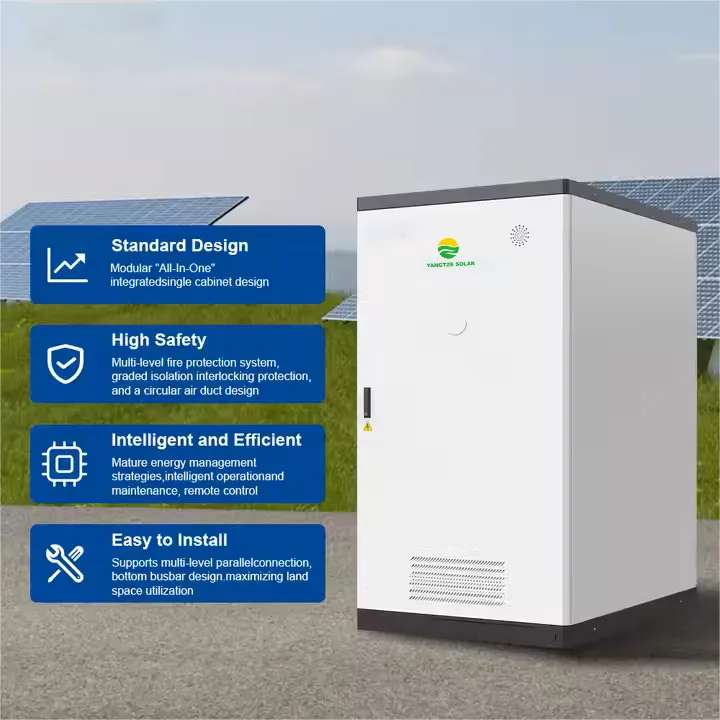

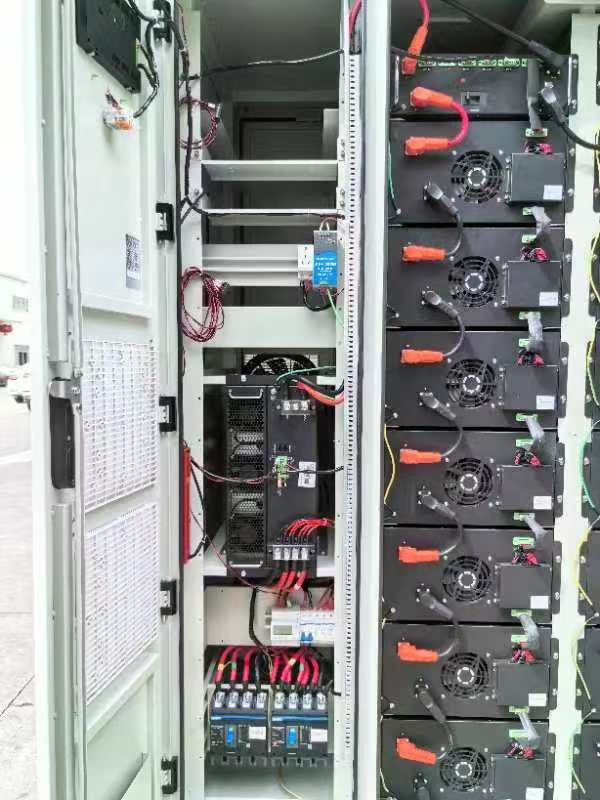

Internal Structure Side View Detail View
⭐

Key Features & Factory Strength

Energy Storage System Application
♦ Battery factory Founded in 1996, 2 million batteries annual production capacity.
♦ Products including Lithium battery, valve regulated lead acid battery, Gel battery, deep cycle battery, OPzV and OPzS battery.
♦ Products are exported to more than 150 countries.
♦ Products are certified by CE, Rohs.
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah.

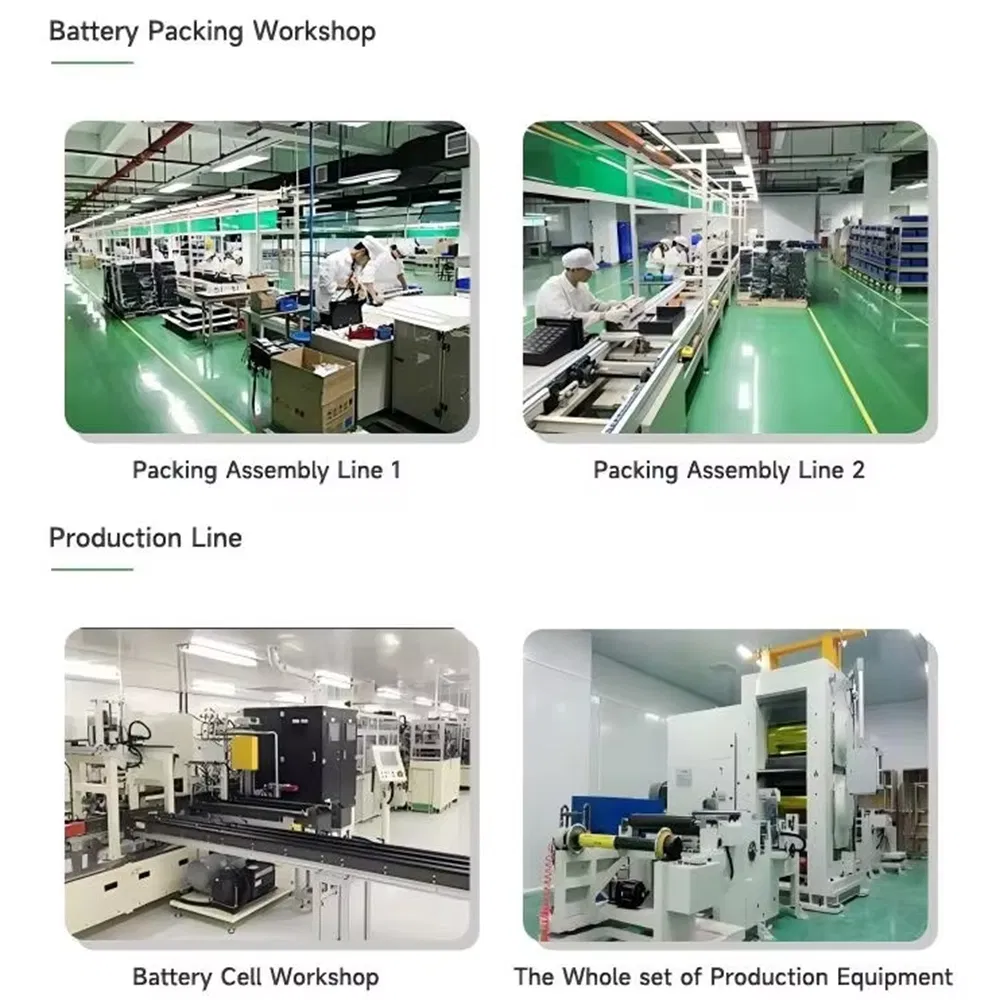

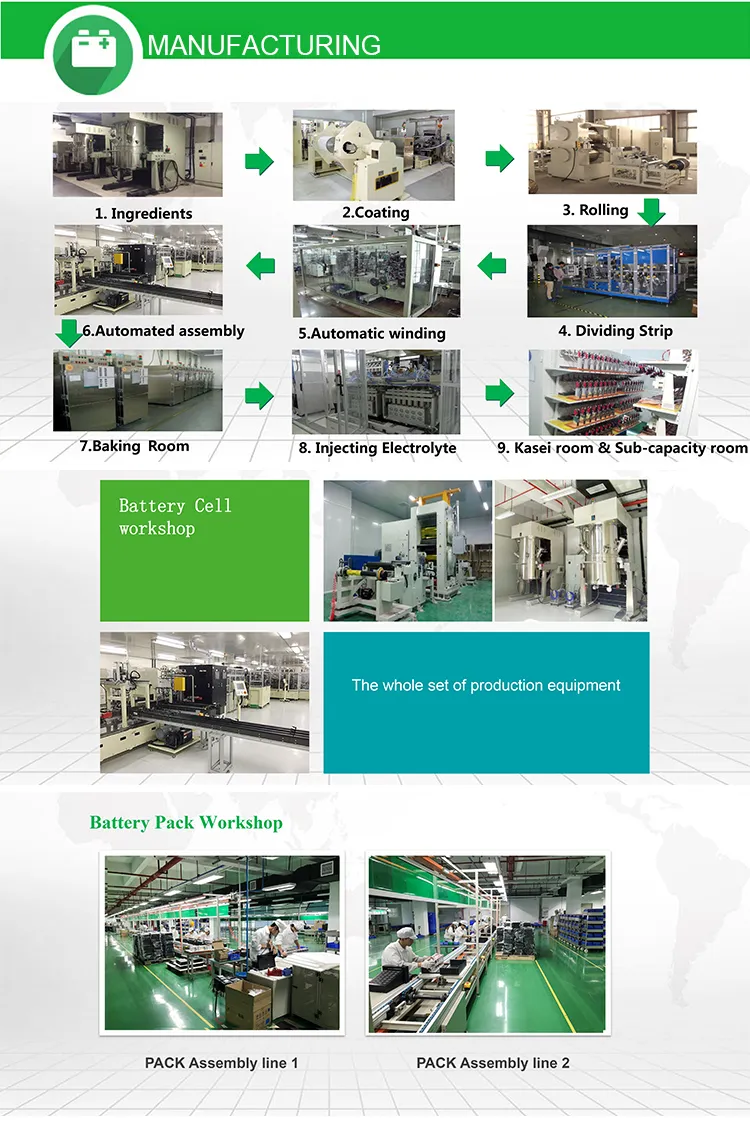

Factory Certificate Production Line
?

Frequently Asked Questions

Q1: What is the expected cycle life of this LiFePO4 battery system?
A: The system offers a high-performance cycle life of up to 8000 times, ensuring long-term reliability for energy storage needs.
Q2: Can the energy storage system be installed outdoors?
A: Yes, the cabinet is designed with an IP54 protection rating and includes air-conditioning cooling, making it suitable for outdoor environments.
Q3: What kind of safety and fire protection features are included?
A: The system is equipped with an Aerosol fire protection system and integrated PCM/PCB battery protection for maximum safety.
Q4: Does the system support remote communication?
A: Yes, it supports standard industrial communication methods including RS485 and CAN protocols for monitoring and control.
Q5: What is the warranty period for this Energy Storage System?
A: We provide a comprehensive warranty of 20 years, reflecting our confidence in the product's durability and technology.
Q6: Are OEM and ODM services available?
A: Yes, OEM and ODM customization are acceptable to meet specific project requirements and technical configurations.
