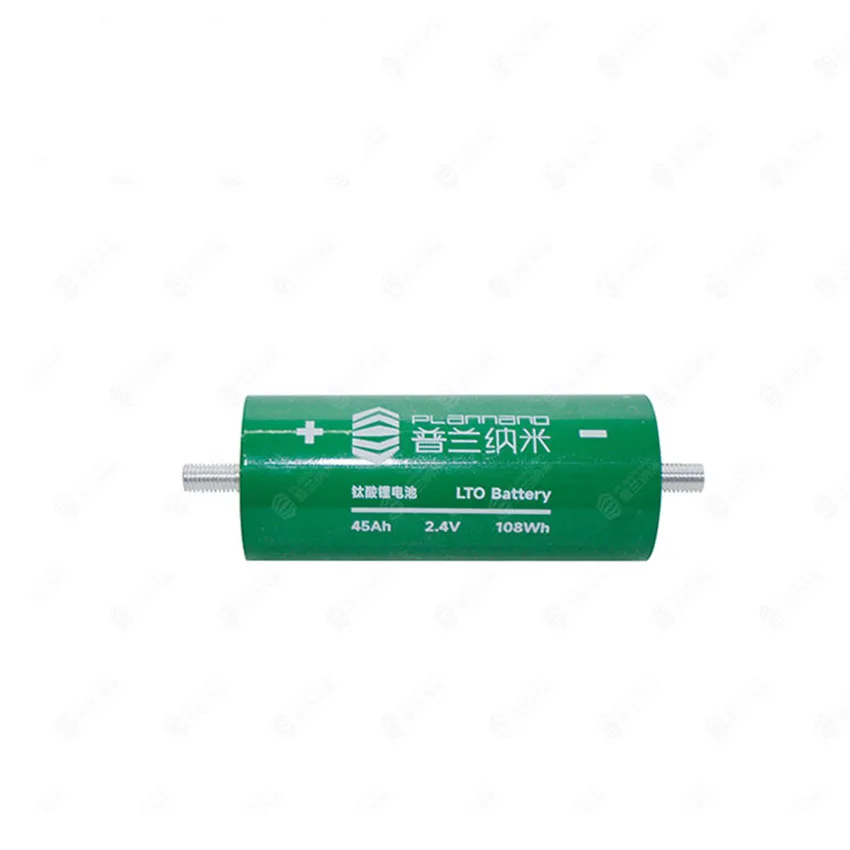

LTO 2.4V 45Ah
LTO 48V 100Ah

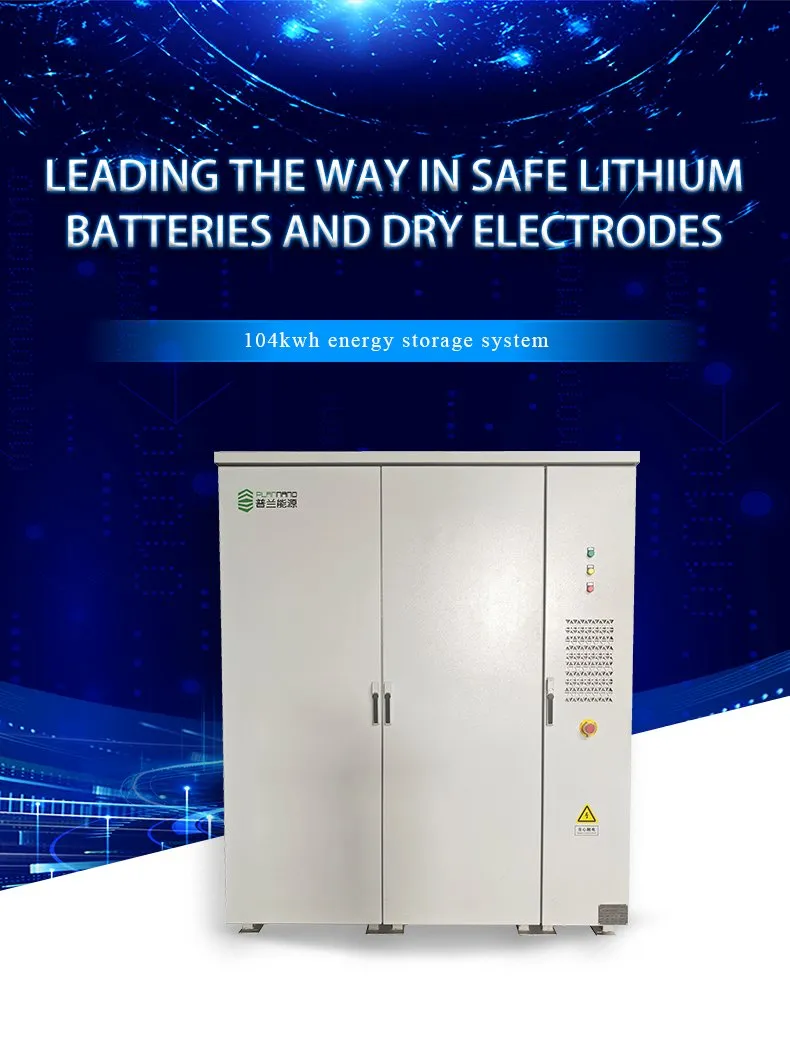

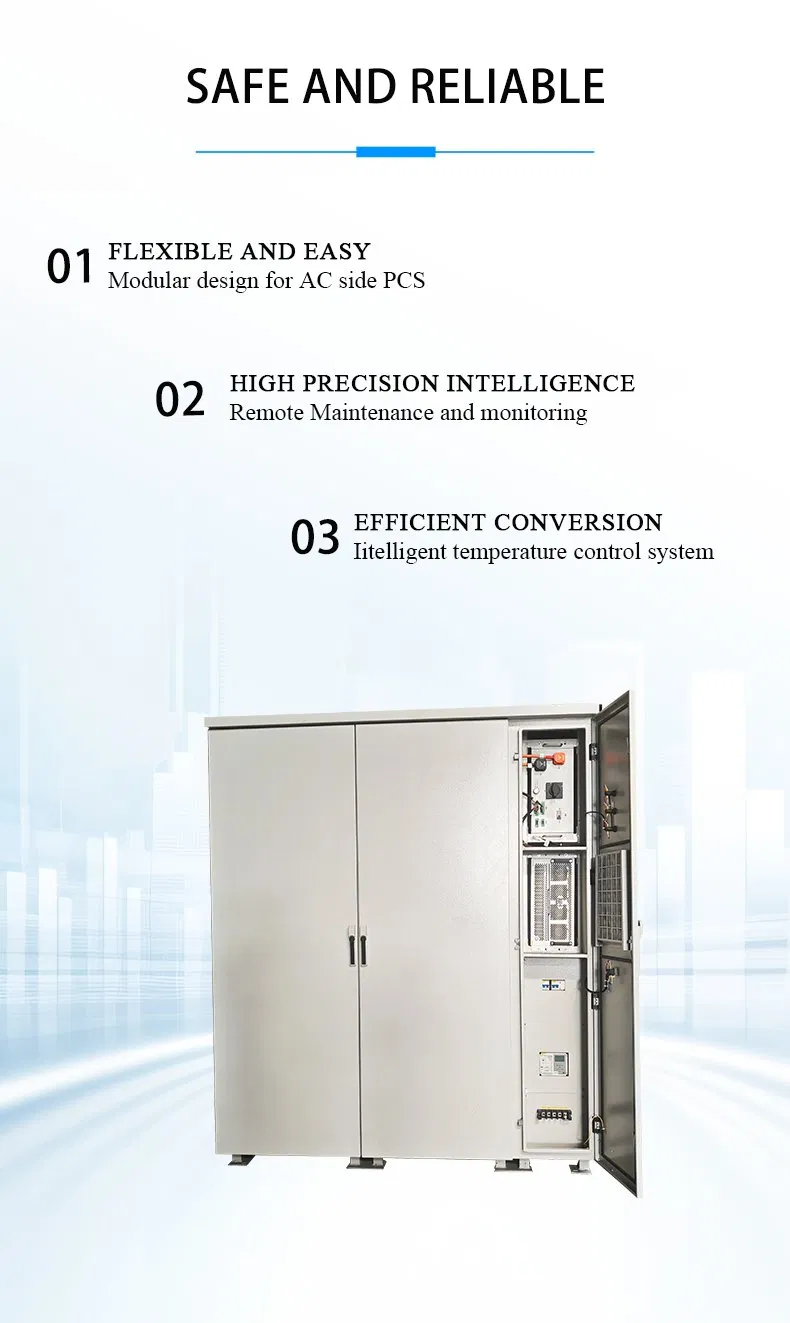

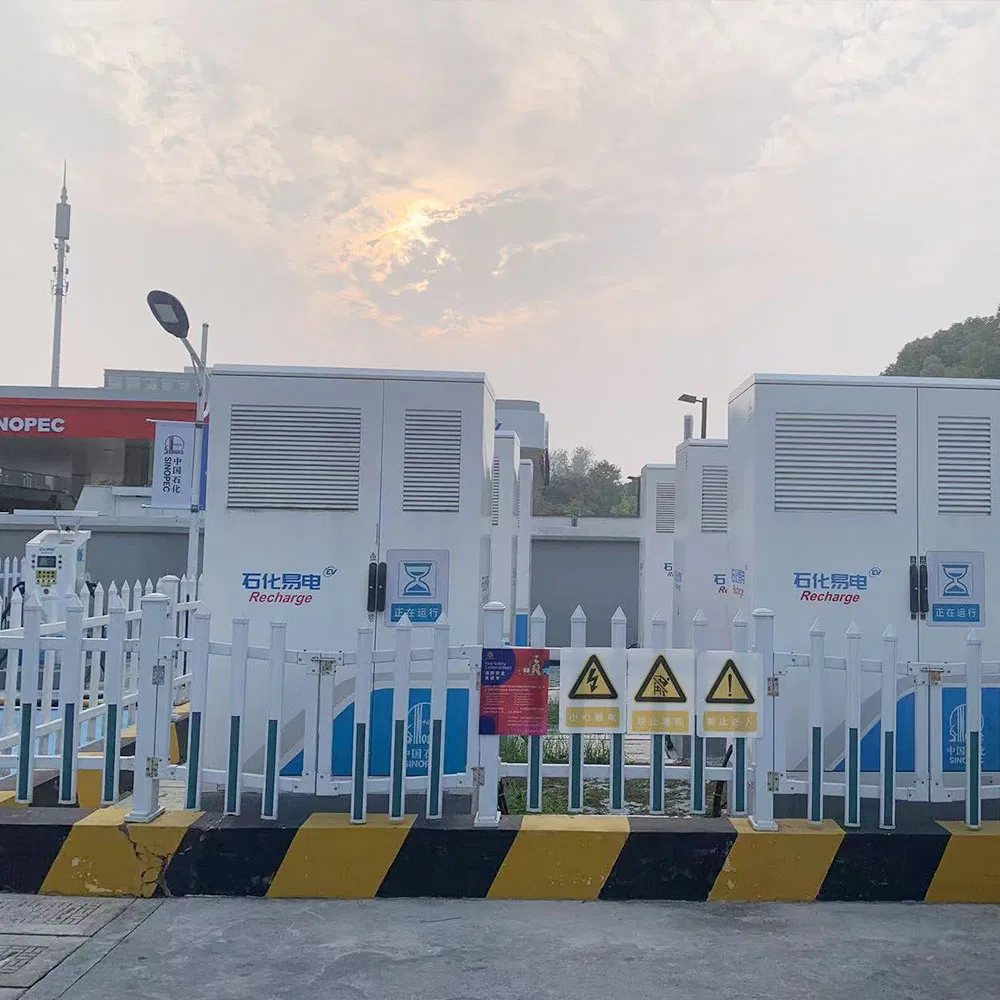

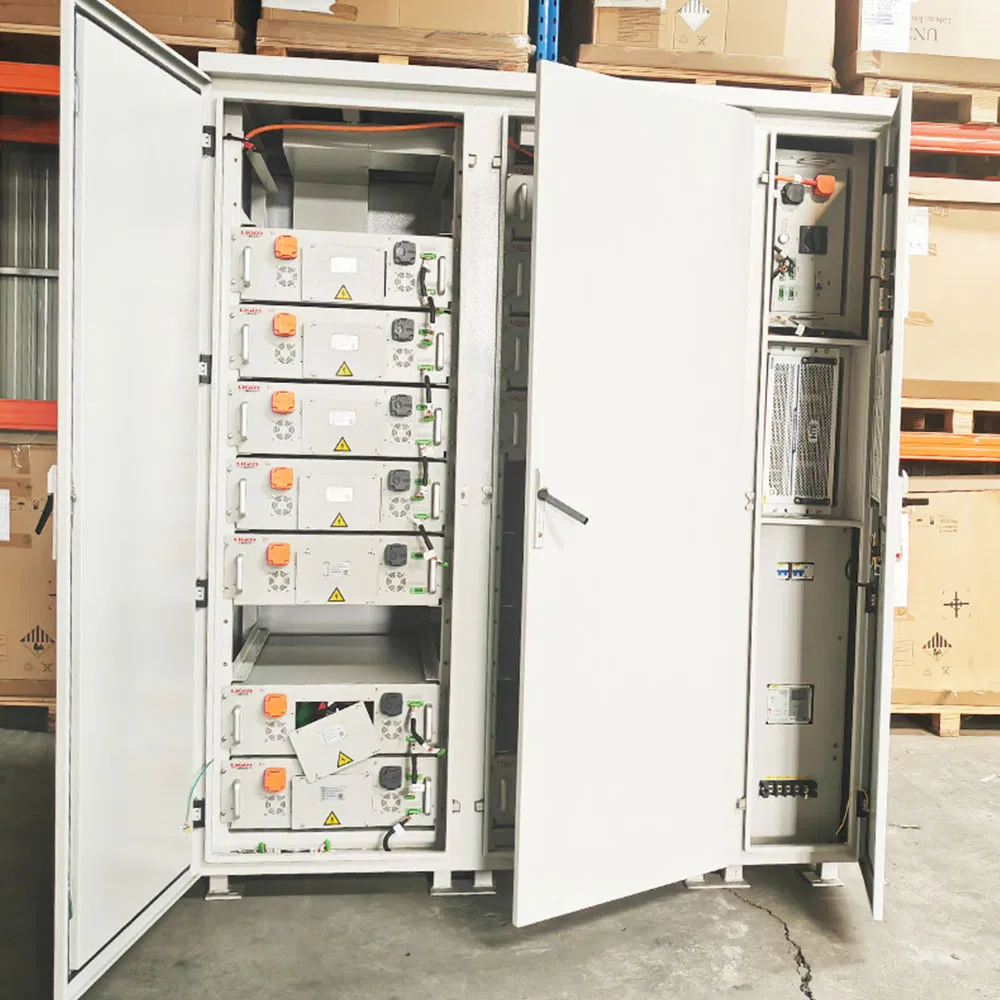

104KWh LTO Energy Storage System
| No. | Name | Specification and Model | Number | Unit |
|---|---|---|---|---|

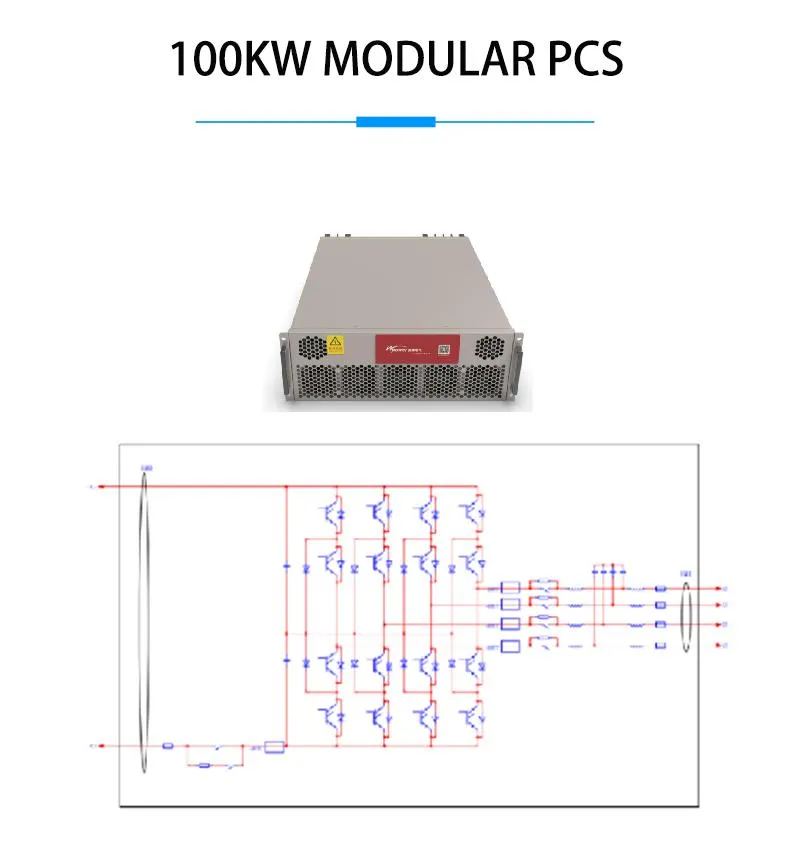

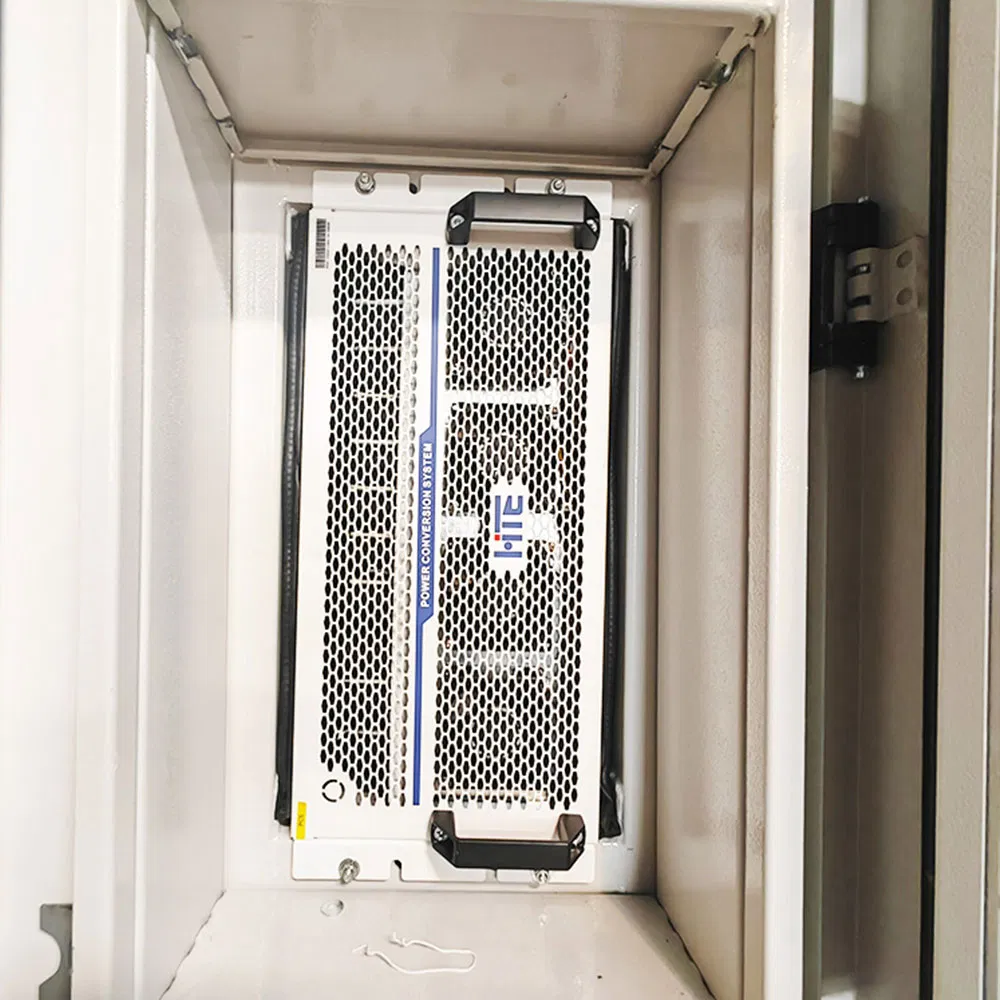

| 1 | PCS energy storage inverter | INPPCS-100/0.4, DC input: 600-900V | 2 | set |
| 2 | Distribution section | UPS and secondary distribution, including lighting, dehumidification, etc. | 1 | set |
| 3 | Air conditioning | ECA-50HR, Refrigeration capacity 5kW | 1 | set |
| 4 | Fire protection | Aerosol fire protection system | 1 | set |

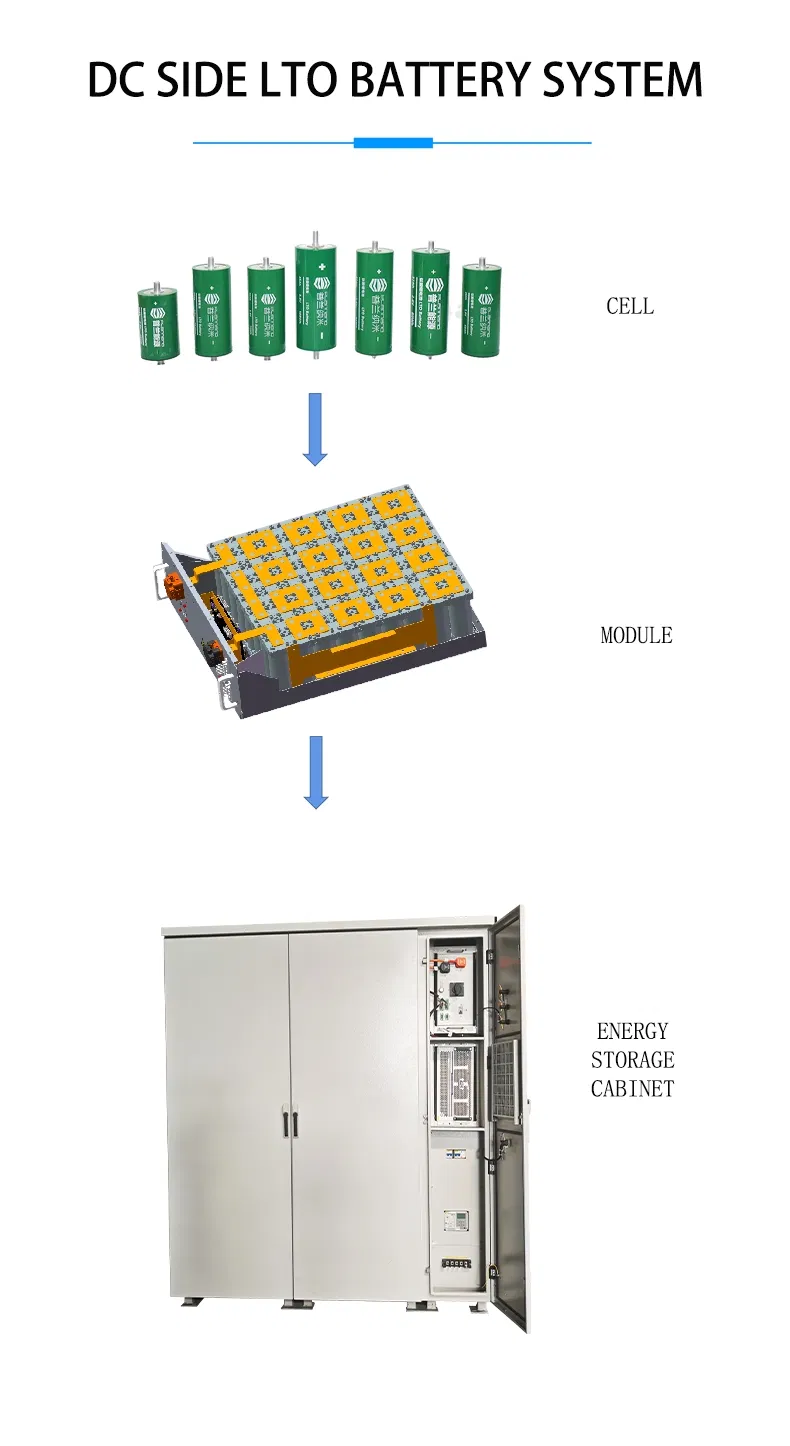

| 5 | Battery system | 52kWh LTO cells, 35Ah capacity | 2 | set |

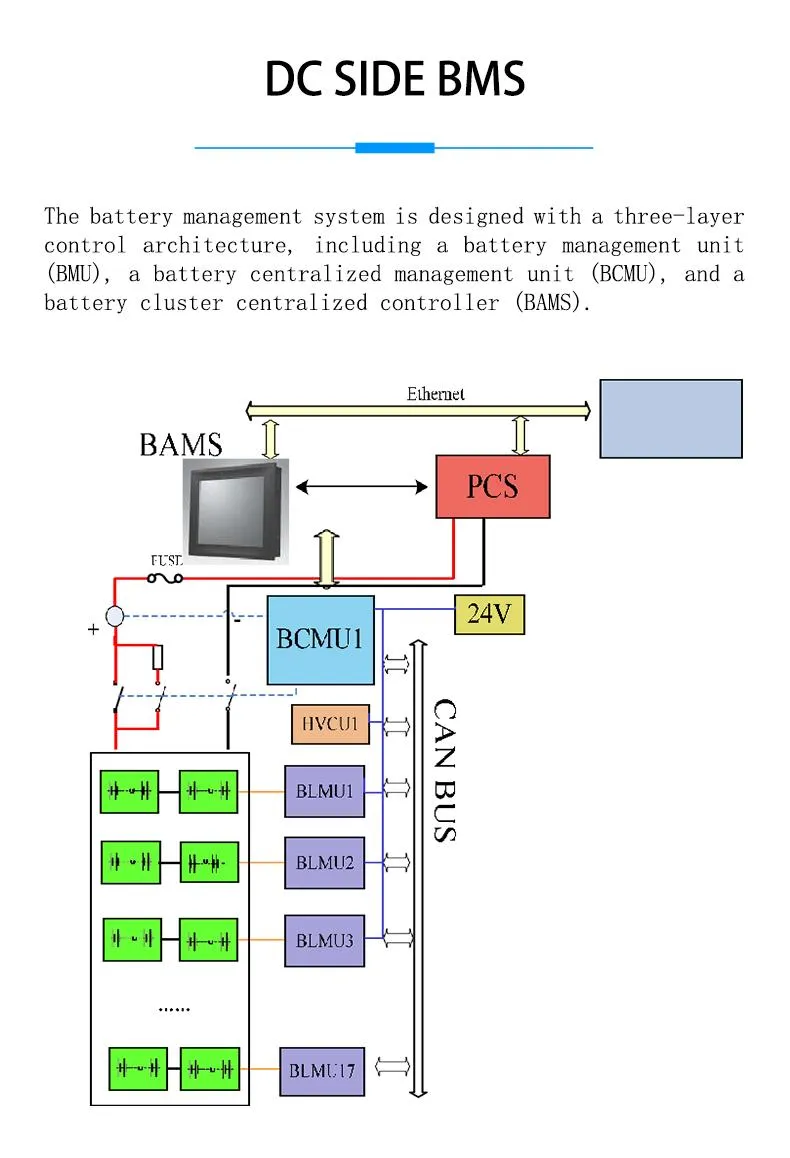

| 5.1 | BMS system | 1 main line and 9 secondary lines | 2 | set |

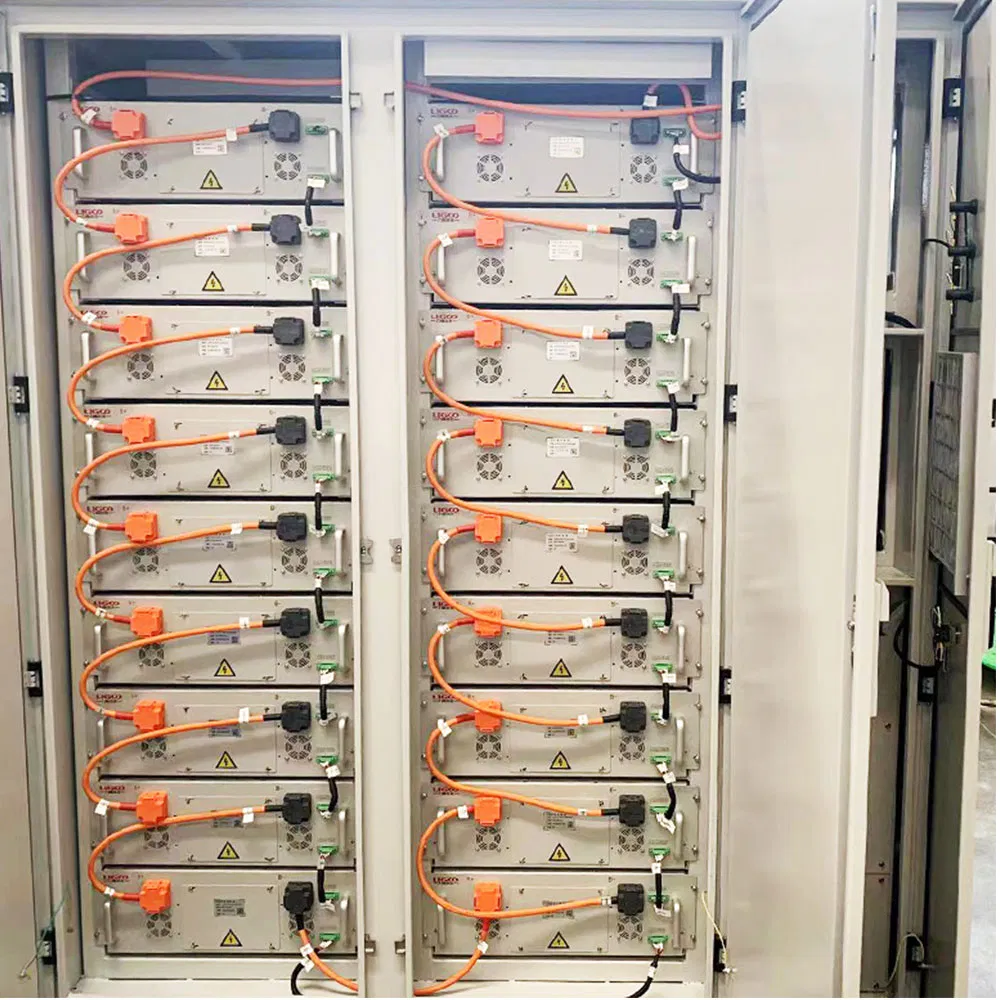

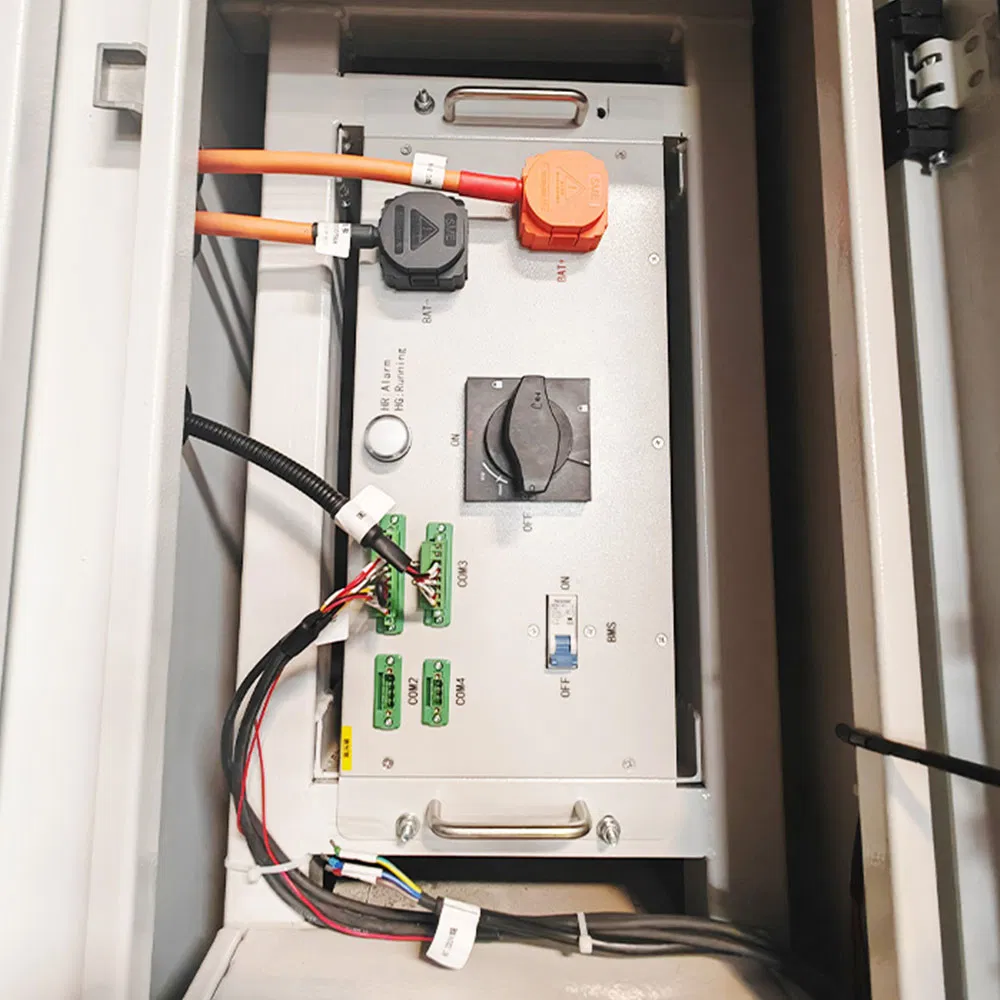

| 5.2 | Battery plug box | Battery cells 2P36S, 82.8V/70Ah | 18 | set |
| 6 | Main control | Local controller + screen | 1 | set |

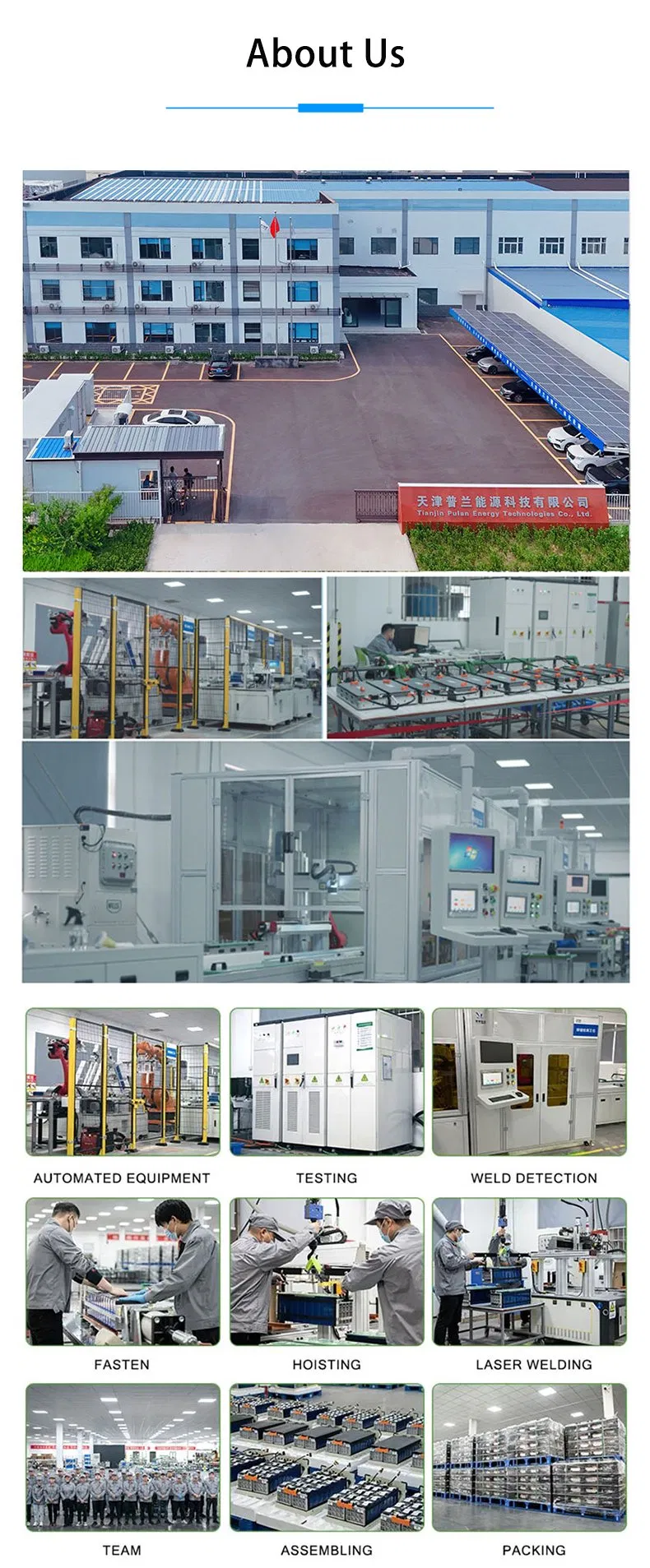

We are a high-tech enterprise focusing on the research, development, manufacturing, and technical service of graphene-based materials and their applications in clean energy. We aim to supply complete solutions for green-energy storage and products in power systems for clients worldwide.
Our team owns high-standard test instruments and a top-class technical management team. With more than 50 patents in the preparation and application of graphene-based materials, we have completed the construction of production lines for mass-producing graphene, LTO (Lithium Titanate), Si/C materials, and supercapacitor cells ranging from 0.1F to 3000F.
Our main products are widely applied to new-energy vehicles, rail transportation, smart grids, micro-grids, engineering machinery, and industrial energy-saving fields. We are committed to manufacturing advanced clean-energy products with high quality and supplying reliable solutions to energy-related systems.
