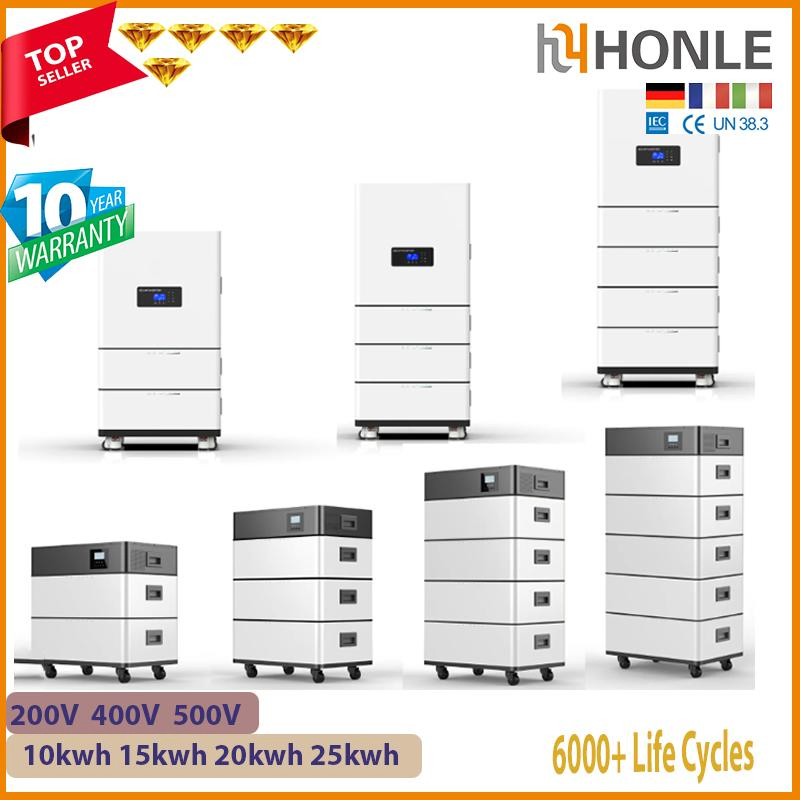

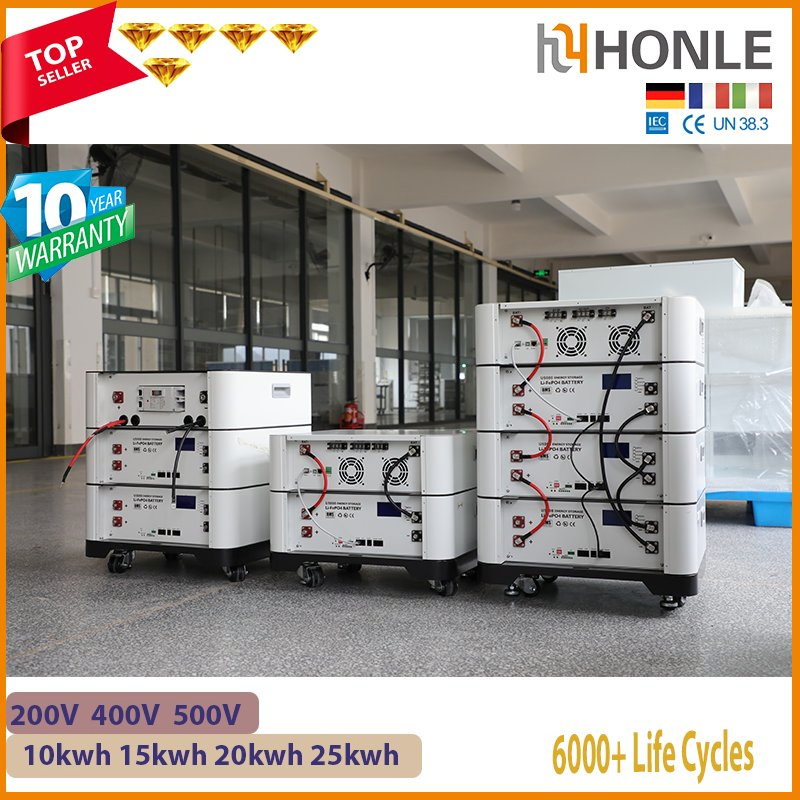

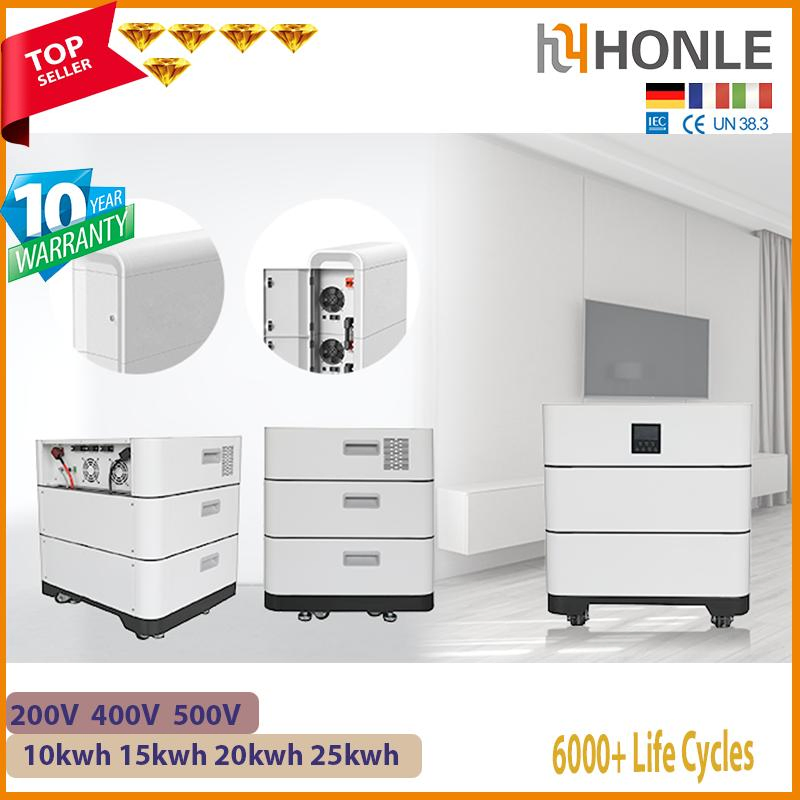

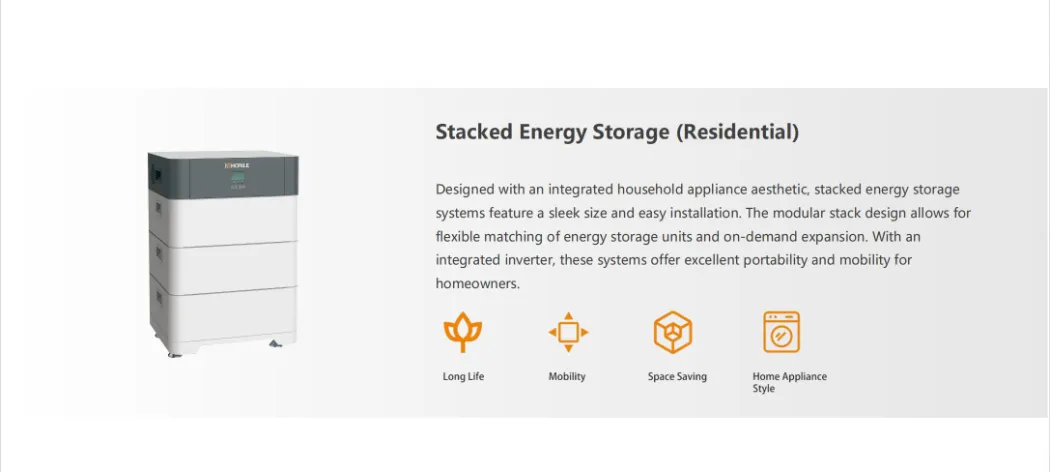

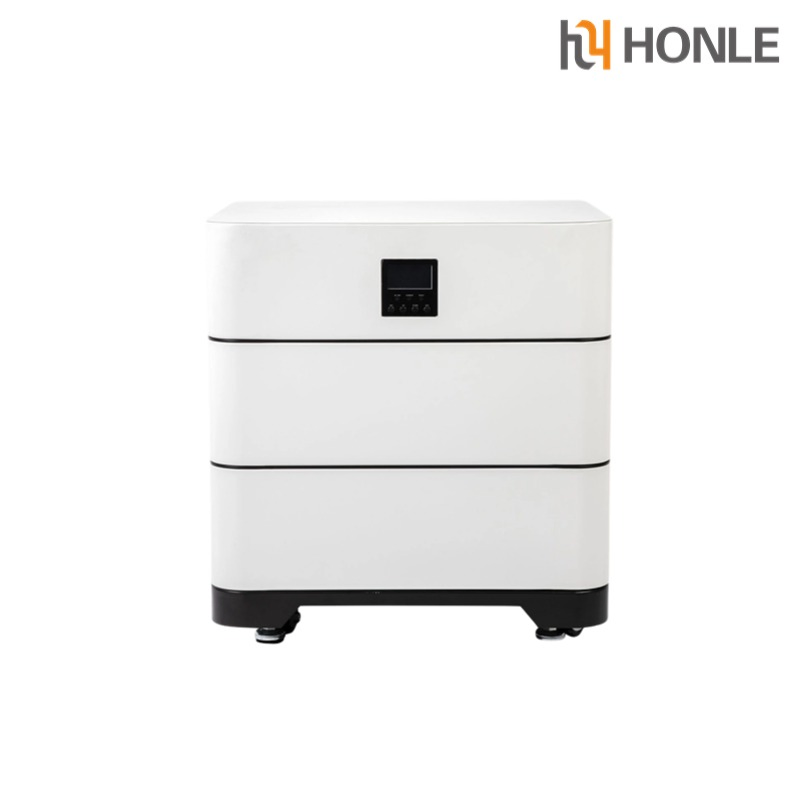

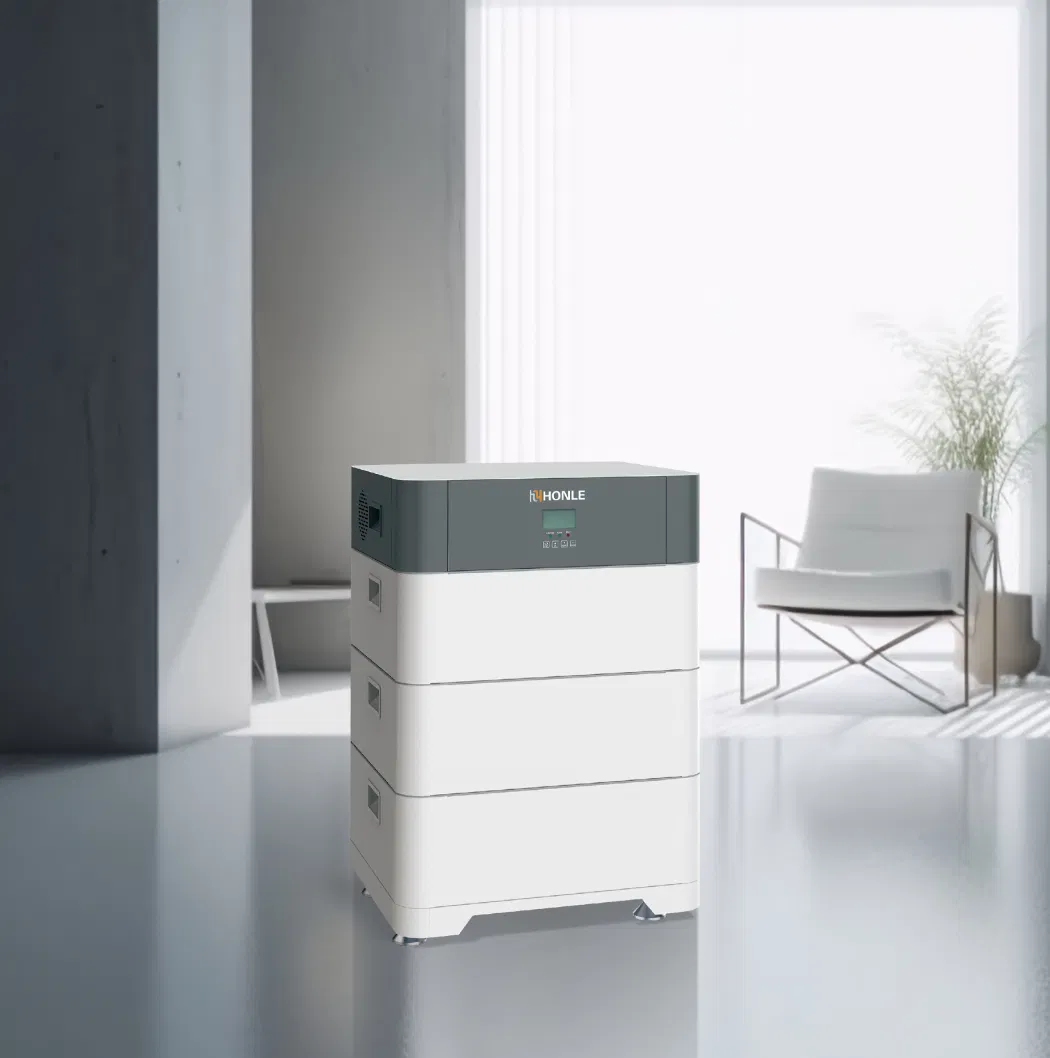

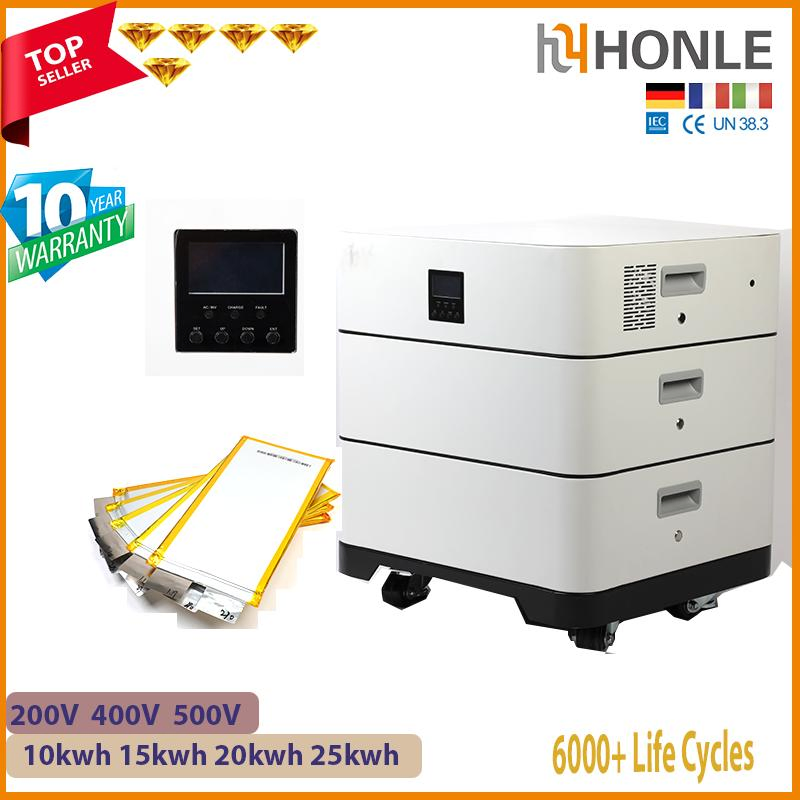

Stacked Energy Storage (Residential)

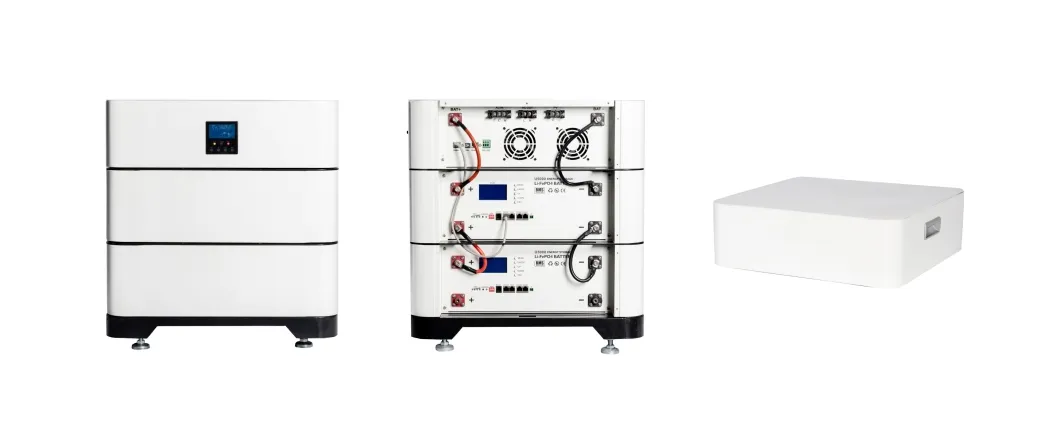

Designed with an integrated household appliance aesthetic, stacked energy storage systems feature a sleek size and easy installation. The modular stack design allows for flexible matching of energy storage units and on-demand expansion. With an integrated inverter, these systems offer excellent portability and mobility for homeowners.
| Model | Stacked Lithium Battery Series (5kW + 5.12kWh to 25.6kWh) | ||||||
|---|---|---|---|---|---|---|---|
| Single Module Capacity | 5.12kwh | ||||||
| Module Number | 1pcs | 2pcs | 3pcs | 4pcs | 5pcs | ||
| Total Capacity | 5.12kwh | 10.24kwh | 15.36kwh | 20.48kwh | 25.6kwh | ||
| Standard Voltage | 51.2V | ||||||
| Working Voltage | 43.2V-57.6V | ||||||
| Solar Input | |||||||
| Max PV Open-circuit Voltage | 500Vdc | ||||||
| MPPT Voltage Range | 120-500Vdc | ||||||
| Maximum PV Input Power | 5200W | ||||||
| AC Output | |||||||
| Rated Output Power | 5000W | ||||||
| Peak Power | 10000VA | ||||||
| Maximum Efficiency | >90% | ||||||
Our Group is a globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions. With more than two decades of experience in the electric and new energy industry, we have established a strong international presence across multiple continents. With stable products and services, we are solidifying our reputation as a renowned supplier worldwide.

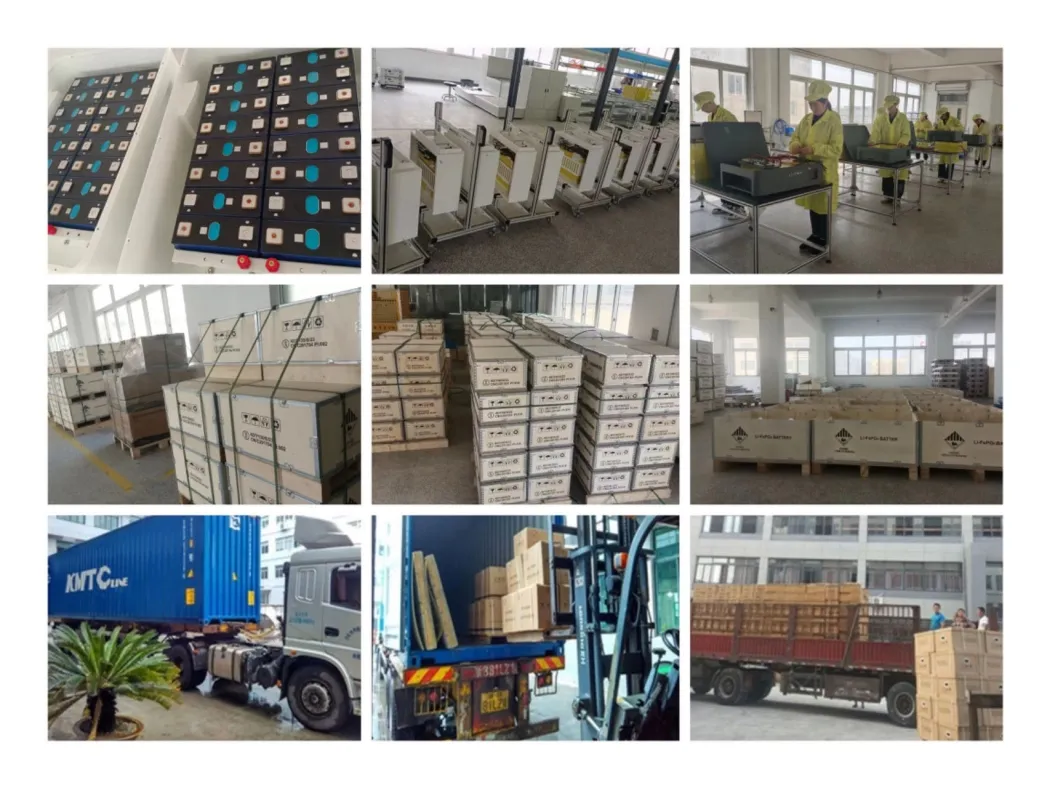

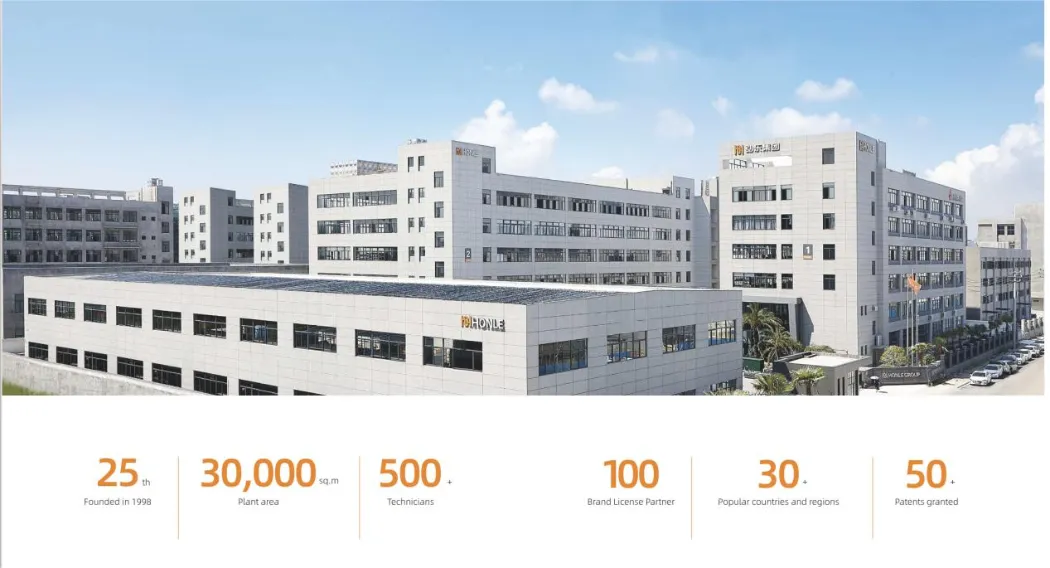

Our state-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters. Our power solutions find wide applications in household energy storage, power walls, commercial energy storage systems, and other dynamic fields.
Packing List: Inverter communication cable, Positive/Negative wires, Parallel wires, Stainless steel combination screws, Grounding wire, and User instructions.
