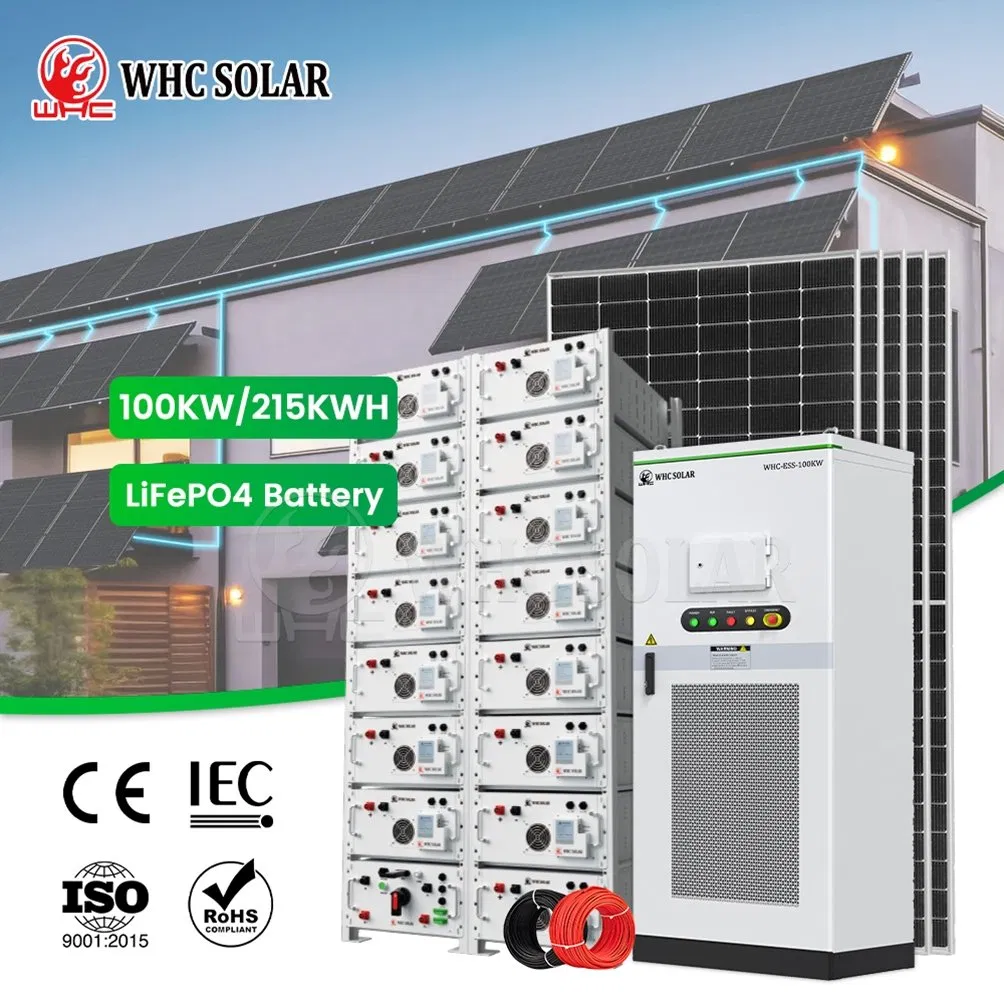

WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
1 / 5
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container

WHC 100KW 215kwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container

Customization: Available
Container Size: 2700mm*1100mm*2550mm
Weight: 2700KG
Send Inquiry

Product Description

📋 Basic Information
Model NO.
100KW-Li-215KWH
Nominal Voltage
768V
Warranty
3 years
Nominal Capacity
215KWH
Cycle Life
6000 Times
System Type
Commercial Solar System
Max Output Power
100KW
Output Voltage
AC220V
Solar Panel
550W Mono Solar Panel
Battery Capacity
215Kwh
Max PV Input
200KW
UPS Type
1KVA/900W
Max Efficiency
99%
Cooling Method
Intelligent air cooling
💡 Product Description

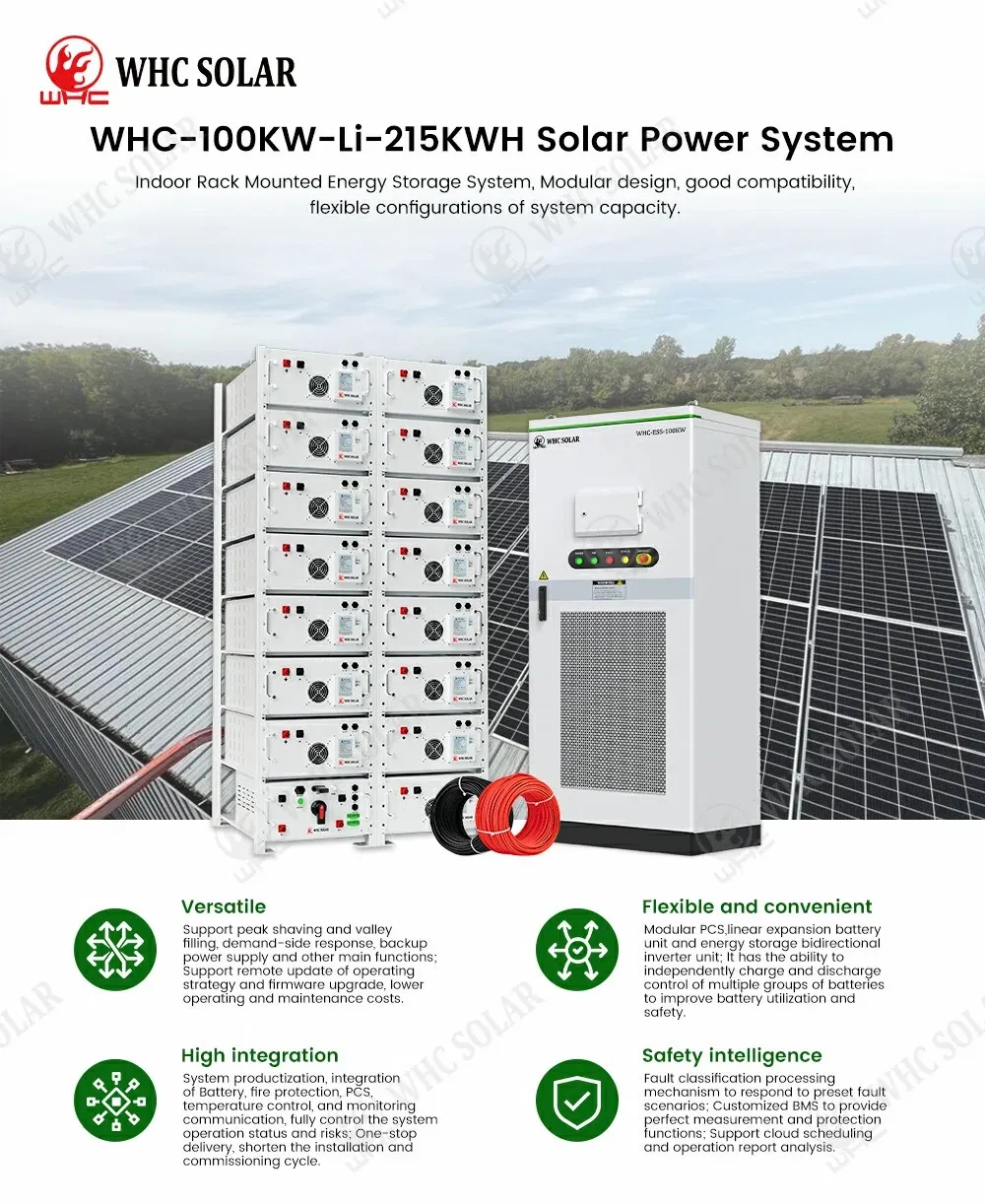

Energy Storage System

The Solar Energy System, also known as an off-grid solar system, is the most cost-effective type for solar setups. It is a complete solar solution that comes with highly efficient solar panels, off-grid solar inverters, lithium-ion battery or gel battery, and other standard solar accessories. This solar system not only provides continuous electricity but also significantly reduces heavy electricity bills.

📊 Product Parameters
NO. Item Quantity
1100kw/215kwh solar Energy storage System (integrated BMS/PCS/EMS, LiFePo4 Battery)1 Set
2550W Solar Mono Panel182 Pieces
3100KW PCS System1 Set
4UPS1 Set
5EMS Management System1 Set
6Battery Cable RV*50cm² 50cm18 Pieces
7PV Combiner Box: N4 Plus1 Piece
8PV Cable 1*10mm 100M4 Pieces
9Solar Panel Bracket1 Set
10MC4 solar Cable Connector30 Pieces
11Solar Py Crimping Tool kit1 Set
📷 Detailed Components
Detailed View

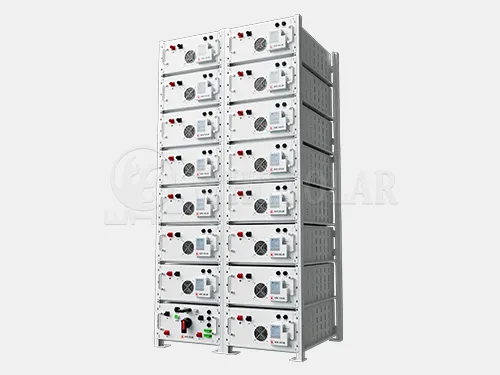

Battery Data

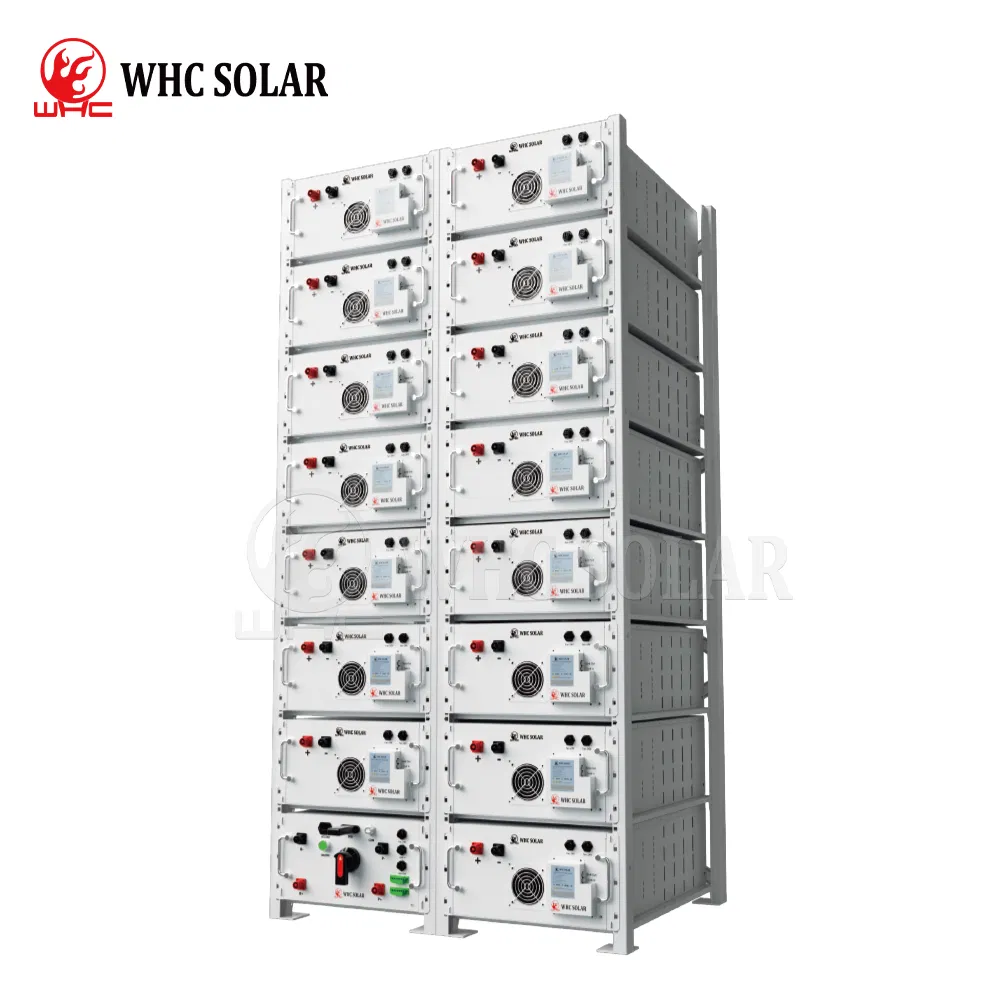

100KW/215Kwh Solar Energy Storage System
Battery Data:
- Chemistry: Lithium Iron Phosphate (LiFePo4)
- Cell spec: 3.2v/280Ah
- Rack Rated Energy Capacity: 215kwh
- Nominal Voltage: 768V
- Cycle: >6000 (@25ºC, 0.5c/0.5c)
AC Data:
- Max output power: 100KW
- Rated voltage: 230V(single phase) / 400v(3 phase)
Control Box
- Type: 0-1500V, 140A
- 2-Stage BCMU, BMU Architecture
- High voltage control box
- Ethernet communication and upgrade interface
- Master-slave stable structure for system operation
General Data
General Data:
- Dimension(W*D*H): 2700*1100*2550mm
- System Weight: < 2700kg
- Degree of Protection: IP65
- Operating Temp: -20°C to 40°C

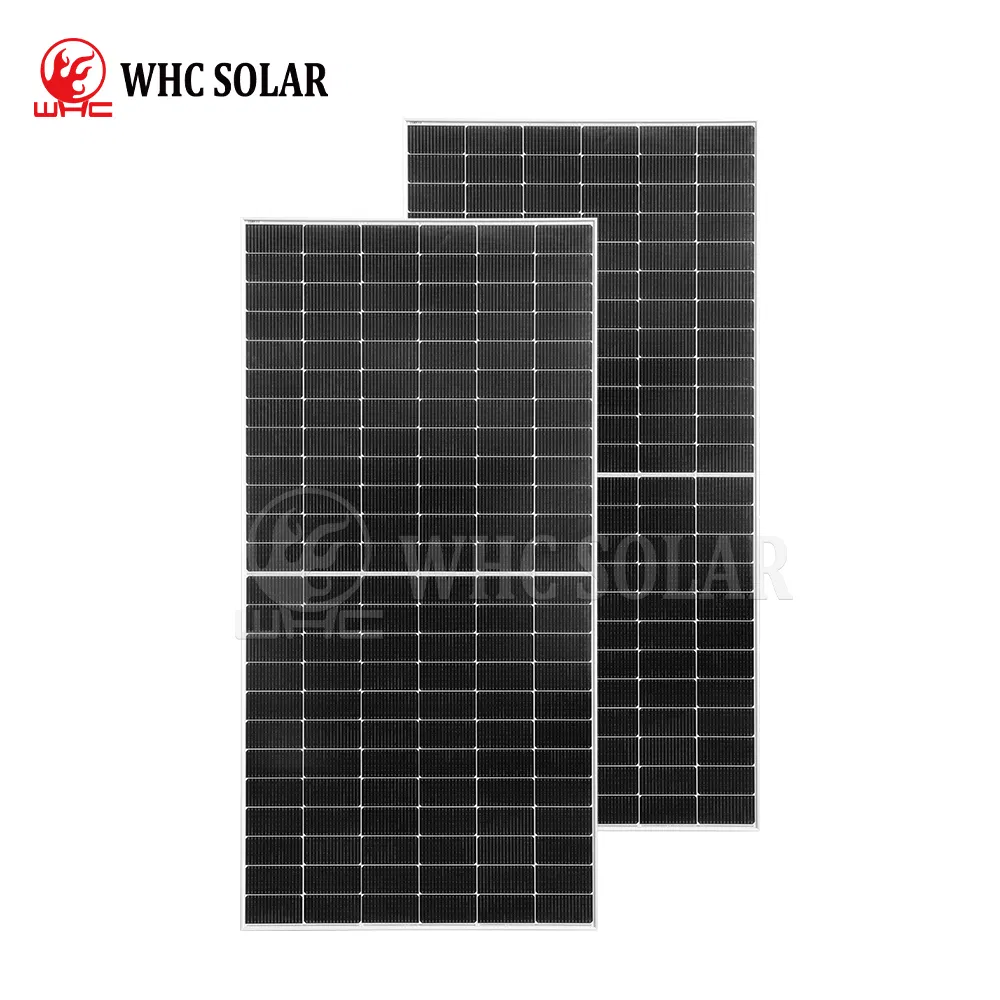

Solar Panel
Mono Solar Panel:
- Model: 550M-144
- Voc: 49.95V | Vmp: 41.97V
- IMP: 12.97A | 1SC: 13.86A
- Module Efficiency: 20.9%

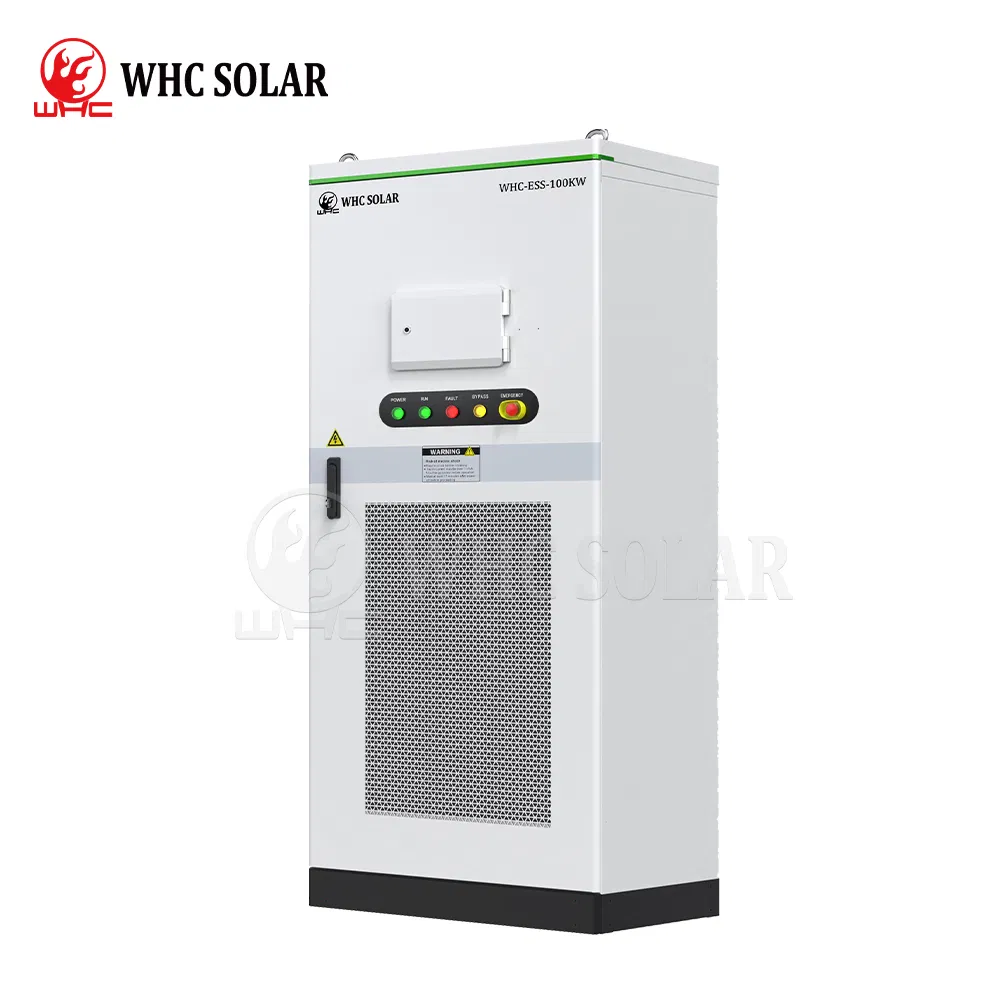

PCS System
100KW PCS System:
- Max PV input power: 200KW (4*50KW)
- PV Open Circuit Voltage range: 900V
- MPPT Working Voltage Range: 180-800V
- Ingress protection class: IP55

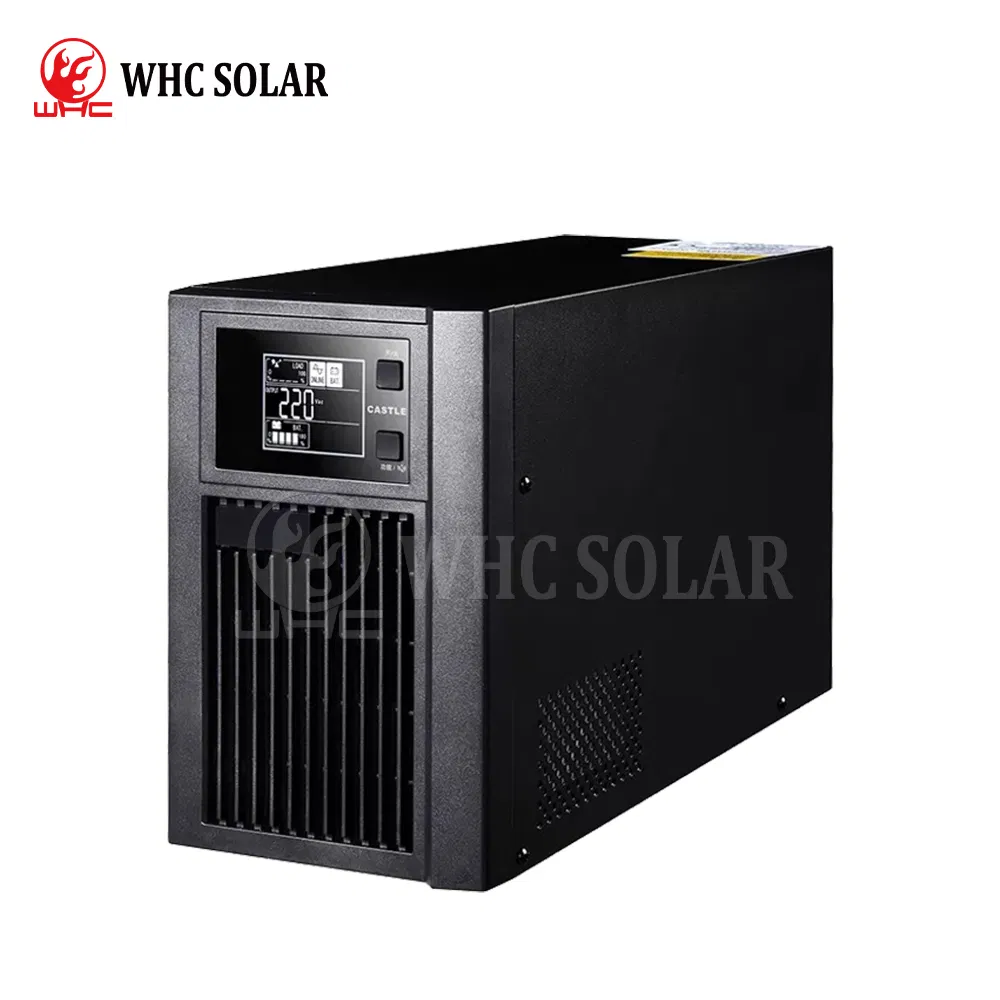

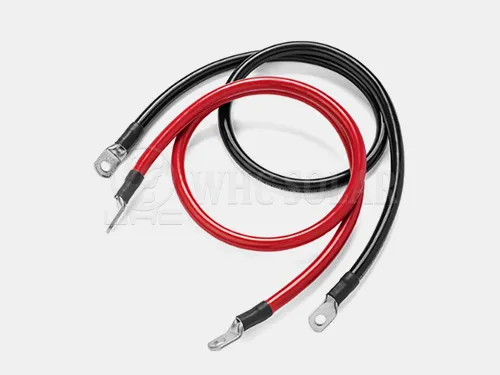

UPS Cables Combiner Box

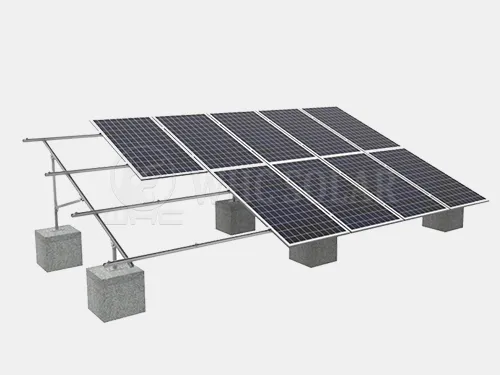

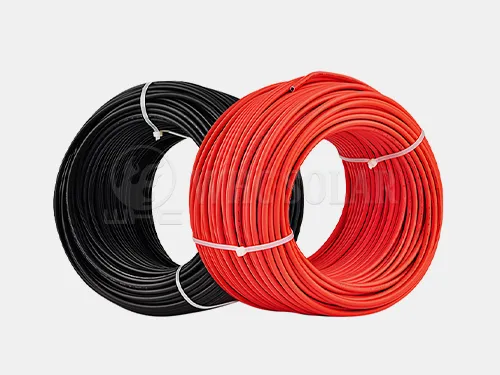

PV Cable Bracket MC4 Connector

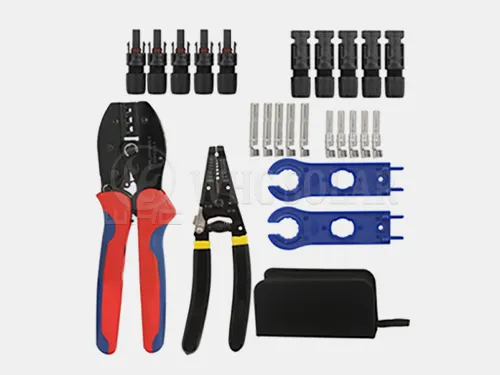

Tool Kit
🏭 System Overview

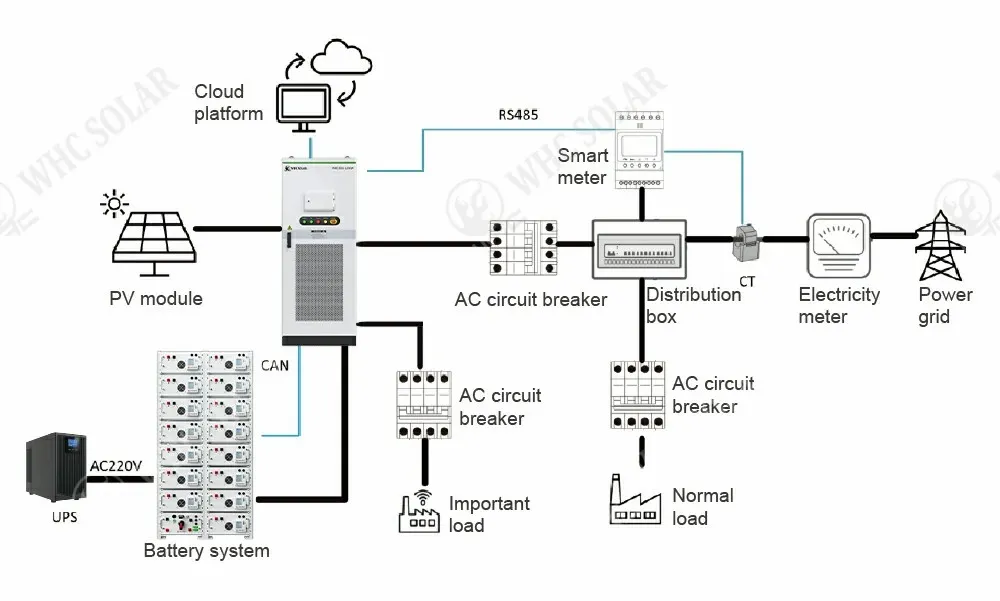

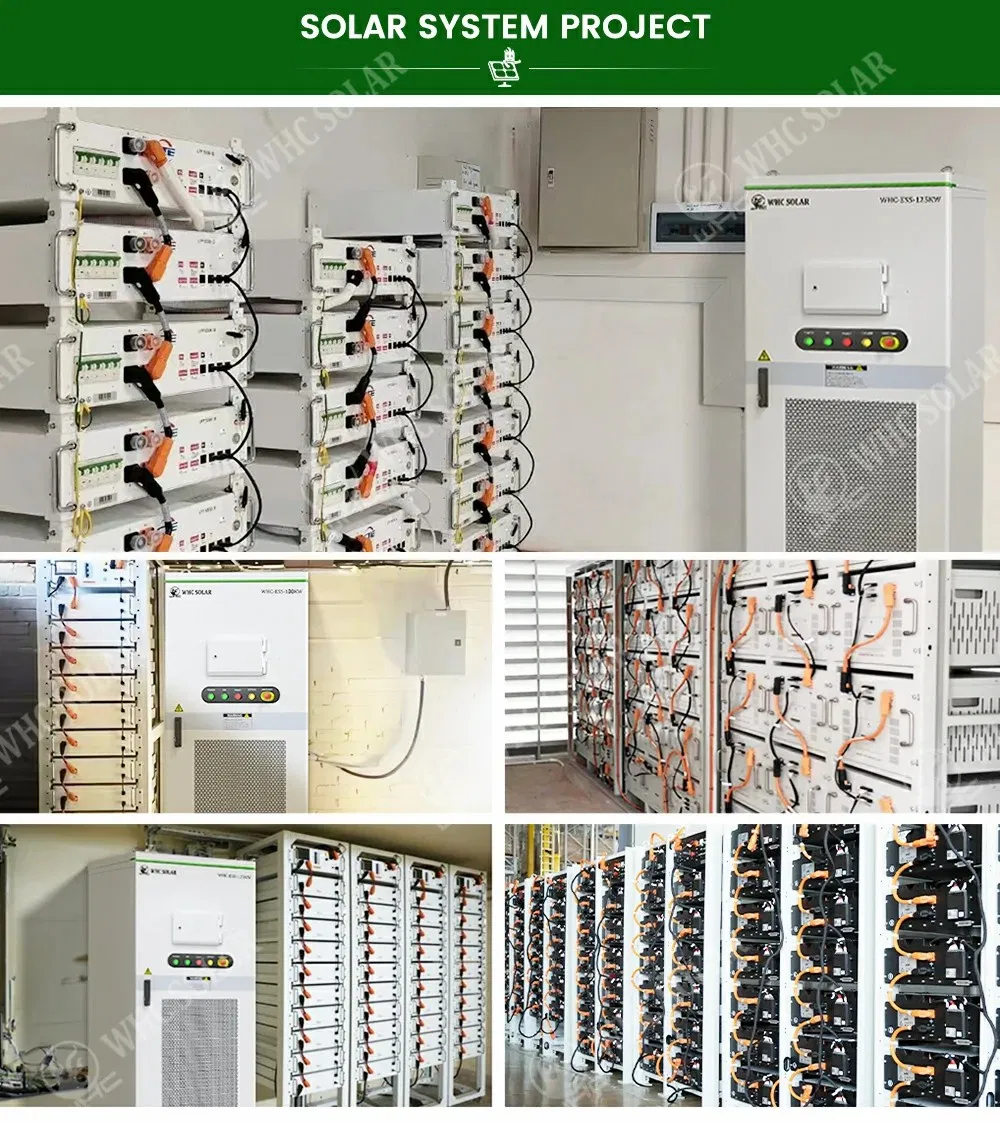

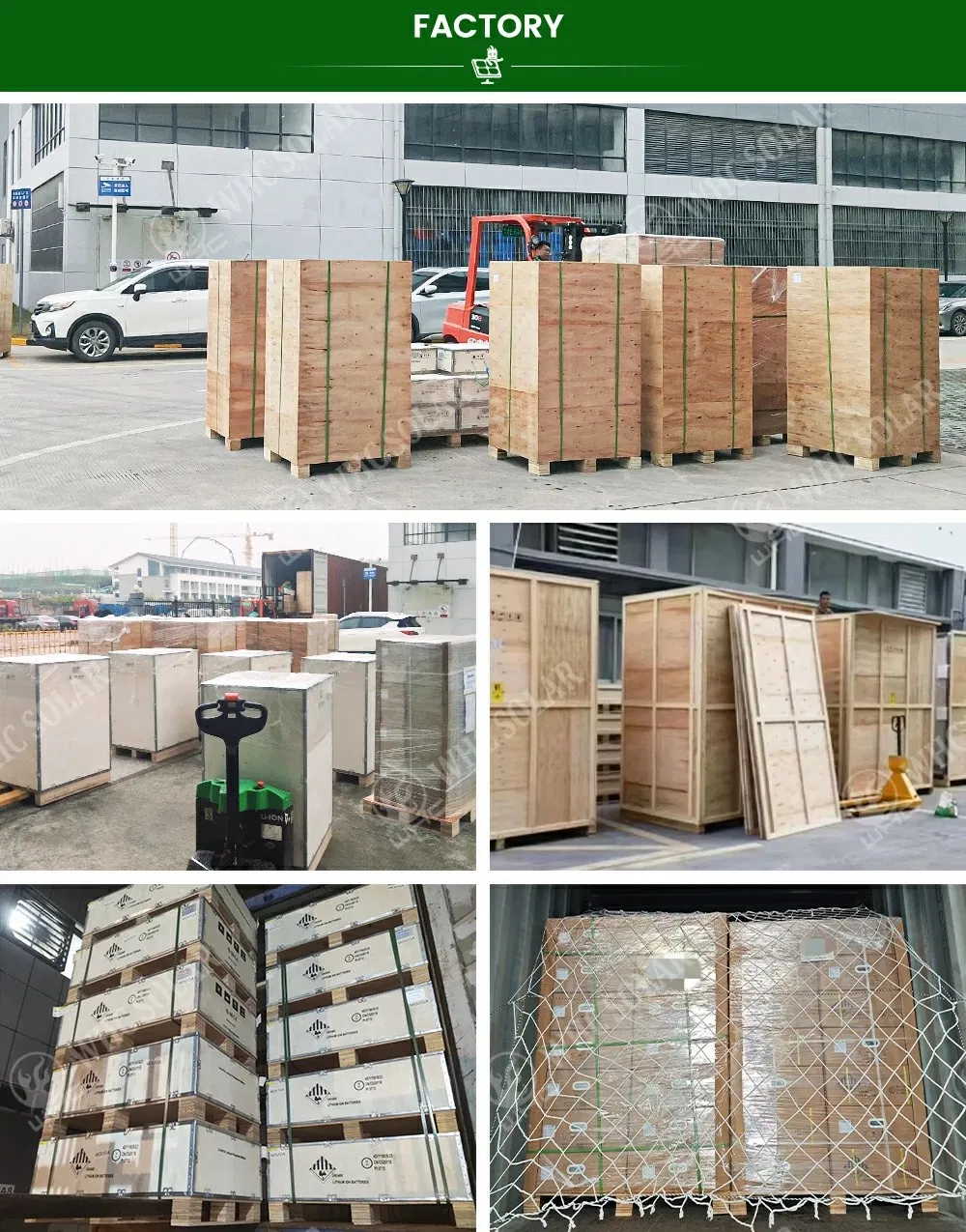

System Map System Installation
🏢 Production Facility
Factory 1 Factory 2 Factory 3
Factory 4 Certification
❓ Frequently Asked Questions
What is the expected cycle life of the battery system?
The system features high-quality LiFePO4 cells with a cycle life of over 6,000 times at 25ºC (0.5c/0.5c).
What kind of protection does the system offer against weather?
The whole system is designed with an IP65 protection degree, while the PCS system maintains an IP55 rating, making it suitable for various outdoor conditions.
Can the system operate in extreme temperatures?
Yes, the operating temperature range for the system is between -20°C and 40°C.
What type of solar panels are used in this setup?
The system includes 182 pieces of 550W Mono Solar Panels with a module efficiency of 20.9%.
Is there a monitoring or management system included?
Yes, the system comes integrated with an EMS (Energy Management System) and BMS for comprehensive operation control.
What is the maximum output power of the system?
The system provides a maximum output power of 100KW with a nominal battery capacity of 215KWh.
