Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
1 / 5
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations
Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations

Sunark 500kw 1mwh Large Scale Battery Storage System with Video Monitoring Control for Utility Scale Energy Stations

Customization: Available
Container Size: 6058*2438*2591mm
Weight: <50mt
Send Inquiry

Product Description

📊 Basic Information
Model
500kw-1mwh
Nominal Voltage
628-806V
Warranty
Yes
Nominal Capacity
100kwh
Cycle Life
>8,000 Cycles @0.5c
Application
Liquid Cooling Container Energy Storage
Cell Type
Prismatic LFP
Protection
IP65
Communication
RS485, Ethernet, GPRS
BMS
Built-in
⚡ Product Description

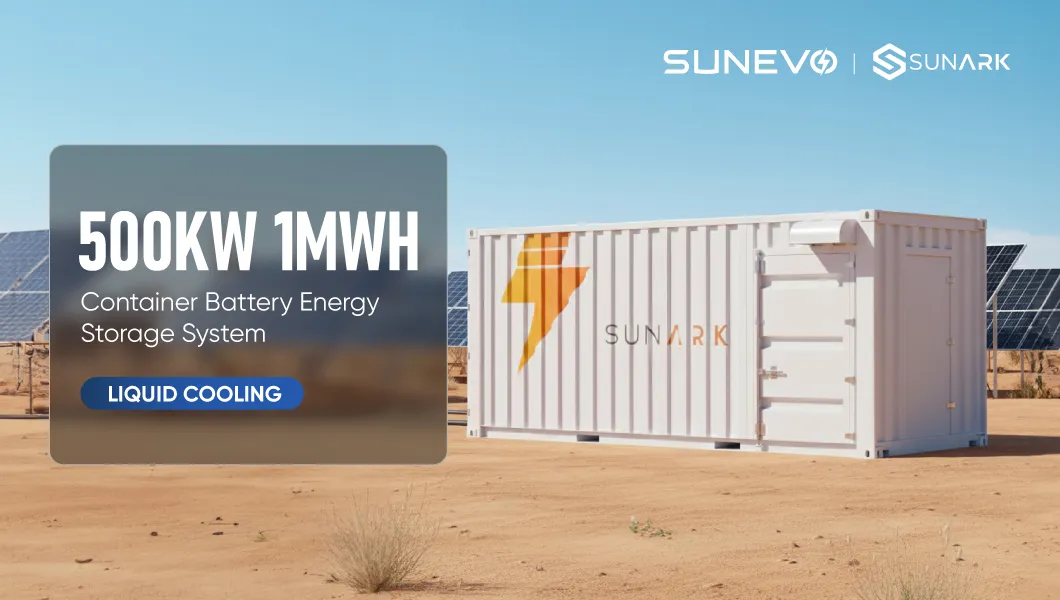

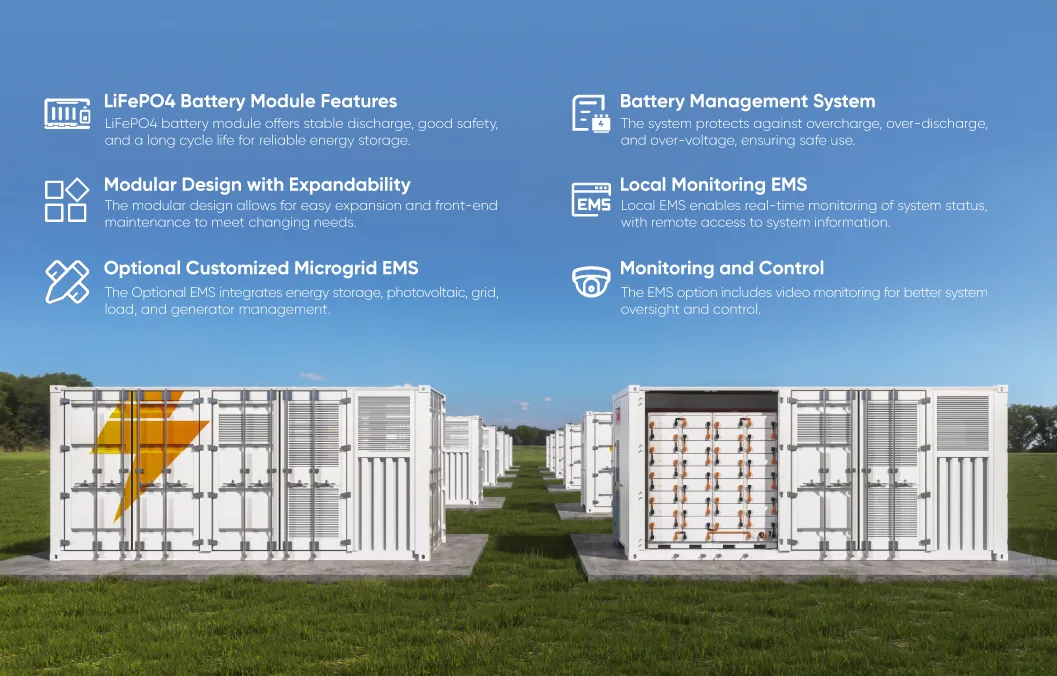

Battery Storage System Overview Energy Storage Control System
Category Technical Specifications
Module ModelCubeArk-500K-1MWH
Cell BrandHiGEE / EVE / GOTION
Cell Specification3.2V 280Ah / 314Ah
Cycle Life>8,000 Cycles @ 25ºC
DC Rated Energy1205kWh
Rated Voltage768V
Voltage Range628V ~ 806V
Communication ProtocolModbus RTU, Modbus TCP
Rated AC Power500kW
Maximum AC Power550kW
Rated AC Voltage400V
Grid Frequency50/60Hz
Isolation Method3 Phase 4 line Transformer
⚙️ System Operation & Details

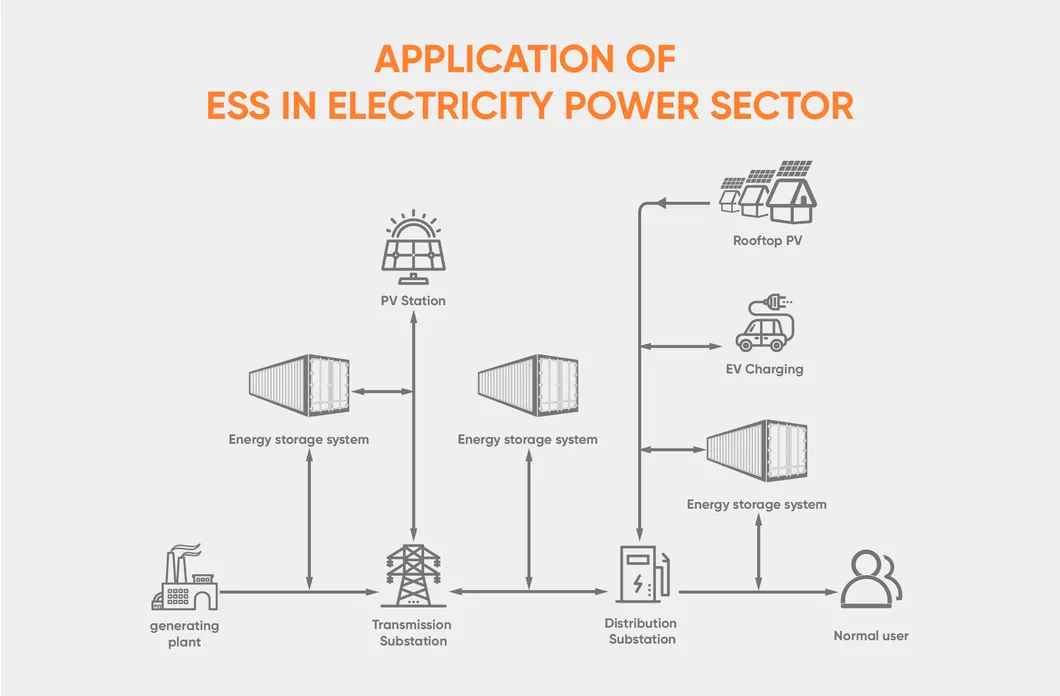

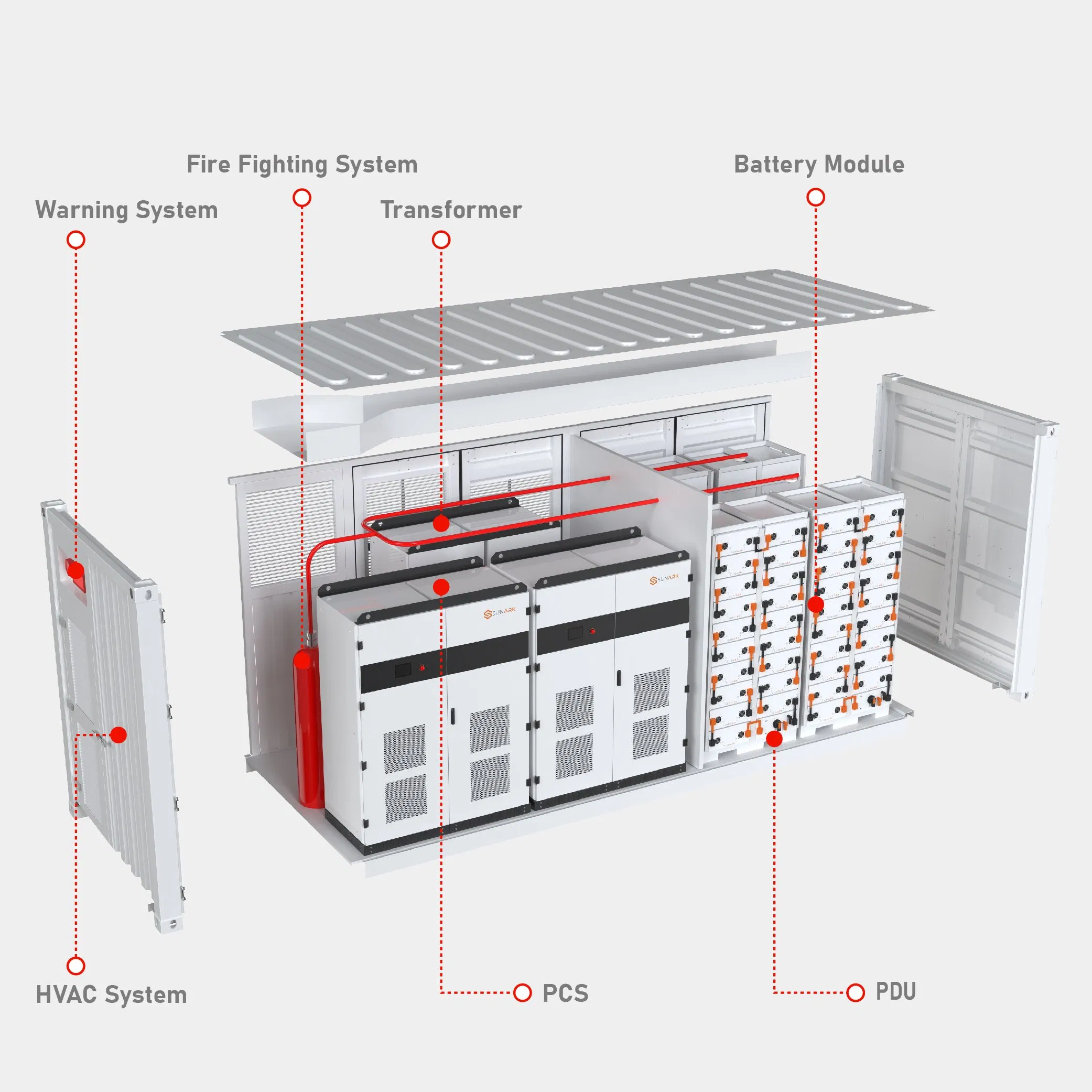

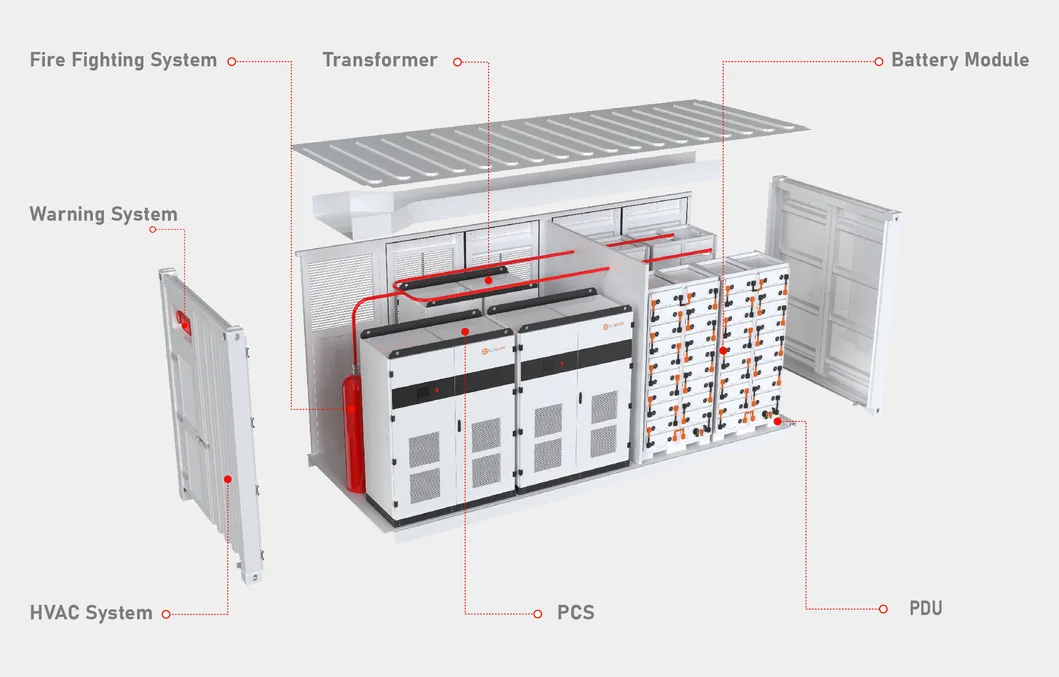

How it Works Diagram Product Technical Details
📸 Detailed Photos

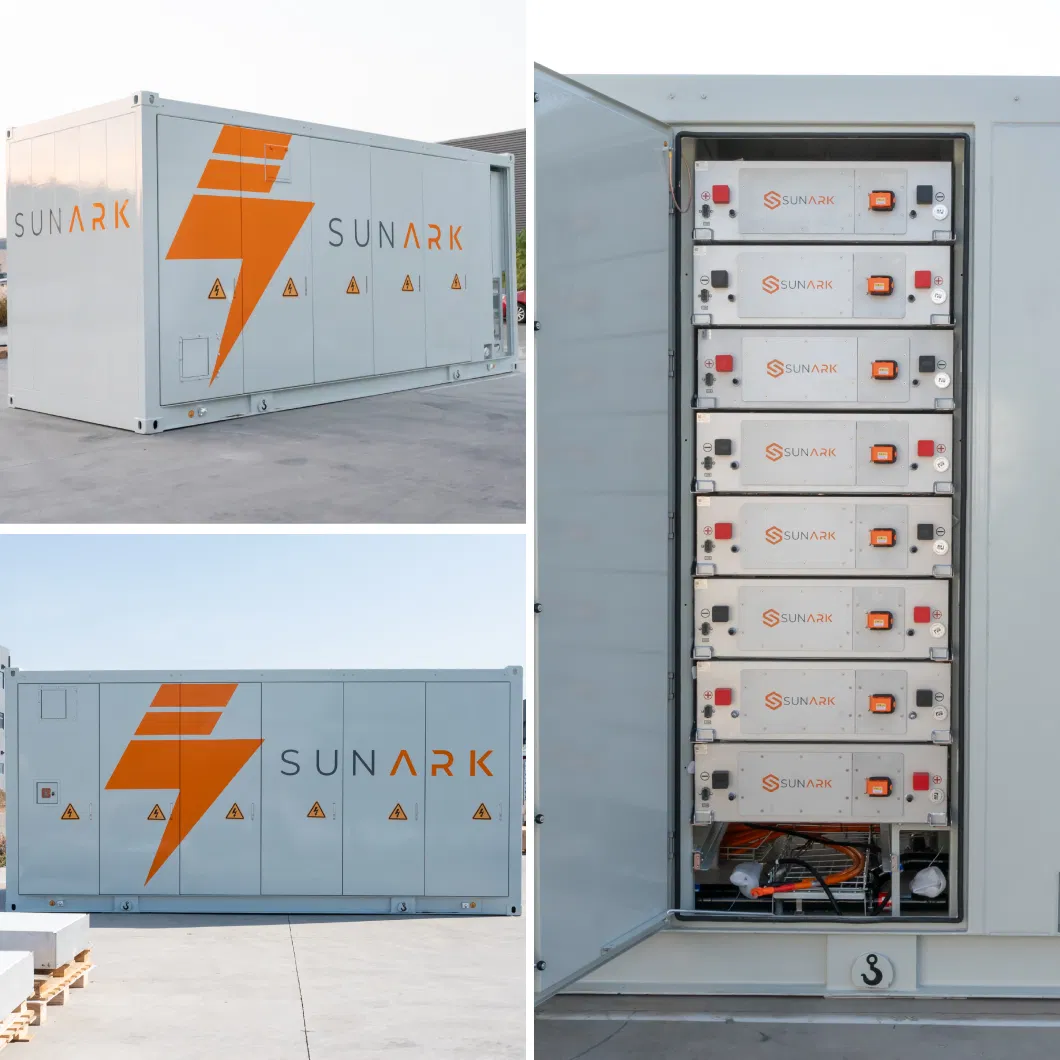

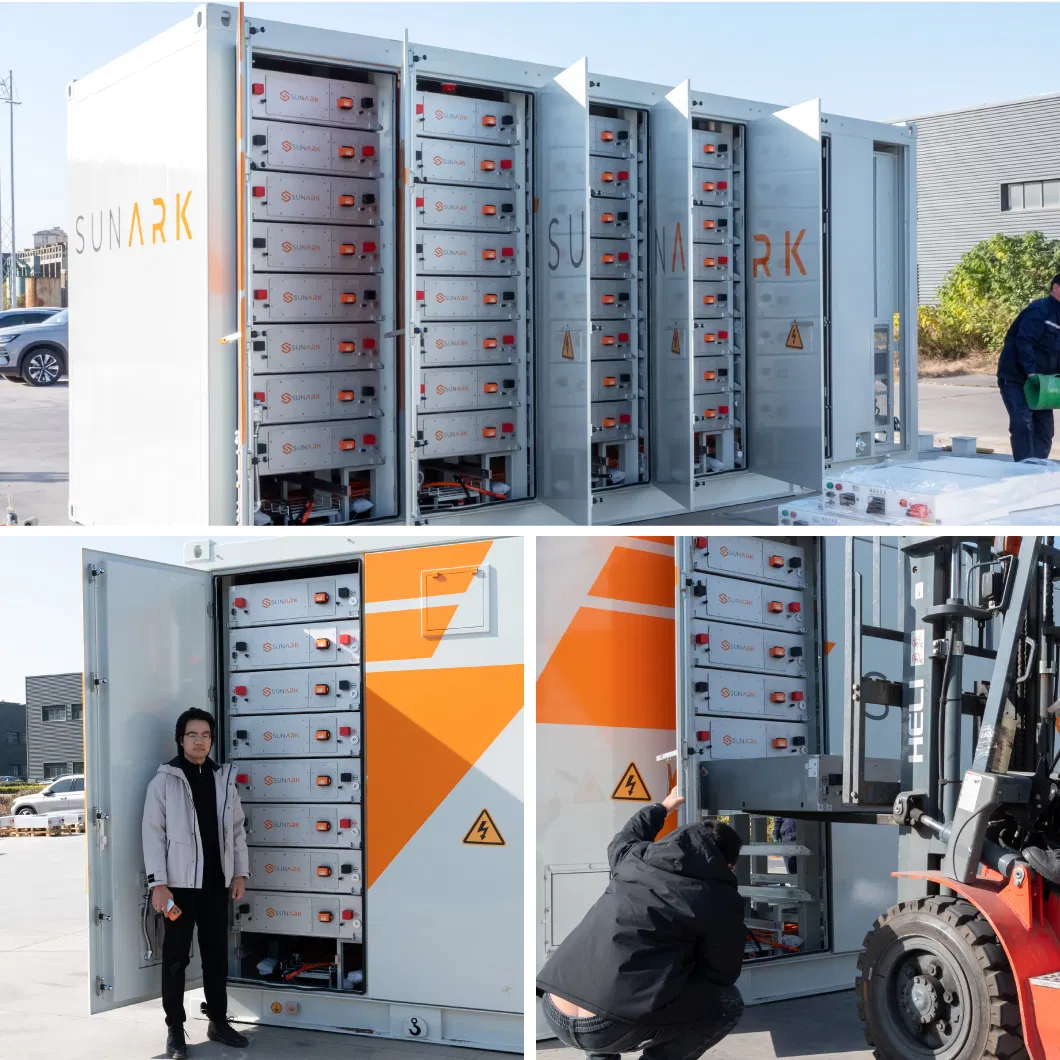

Detail View 1 Detail View 2
📦 Packaging & Logistics

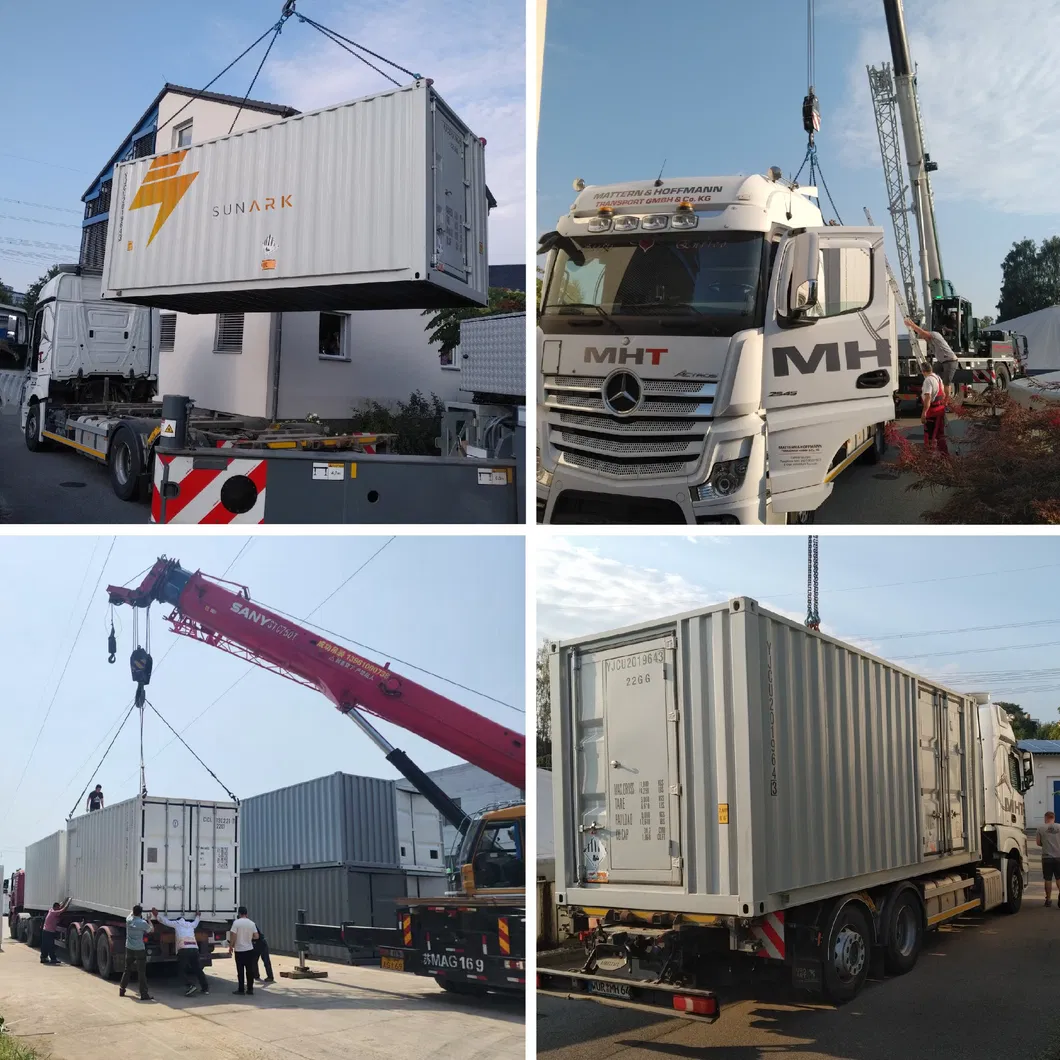

Packaging and Shipping
🌍 Global Project Case

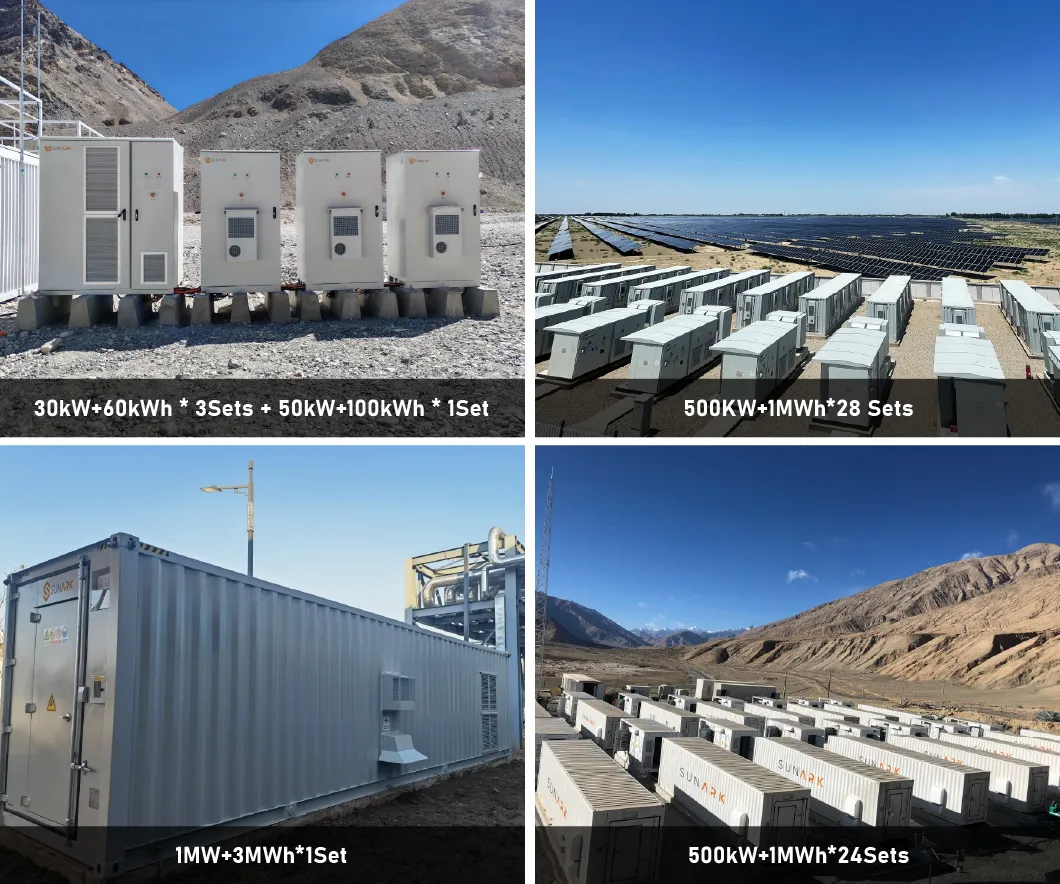

Energy Storage Project Case
🤝 Exhibitions & Visits
Factory Overview Production Line
Customer Visit 1 Customer Visit 2
Industrial Energy Solutions
❓ Frequently Asked Questions
What is the expected cycle life of this battery storage system?
The system utilizes high-quality Prismatic LFP cells, offering a cycle life of over 8,000 cycles at 25ºC, ensuring long-term reliability for utility-scale stations.
What type of cooling technology is used in the container?
This system features an advanced liquid cooling container design, which provides superior thermal management compared to traditional air cooling, maintaining optimal cell temperatures.
Which communication protocols are supported for integration?
The built-in BMS supports multiple communication interfaces including RS485, Ethernet, and CAN, using Modbus RTU and Modbus TCP protocols for seamless system monitoring.
Is the system suitable for outdoor installation?
Yes, the energy storage system is designed with an IP65 protection rating, making it highly resistant to dust and water, ideal for various outdoor industrial environments.
What is the total energy capacity of the 500kW system?
The DC rated energy capacity is 1205kWh, providing a robust solution for large-scale energy storage and grid support requirements.
Can the AC output be customized?
The system has a rated AC power of 500kW with a maximum power of 550kW, operating at a rated AC voltage of 400V, suitable for most utility-scale grid connections.
