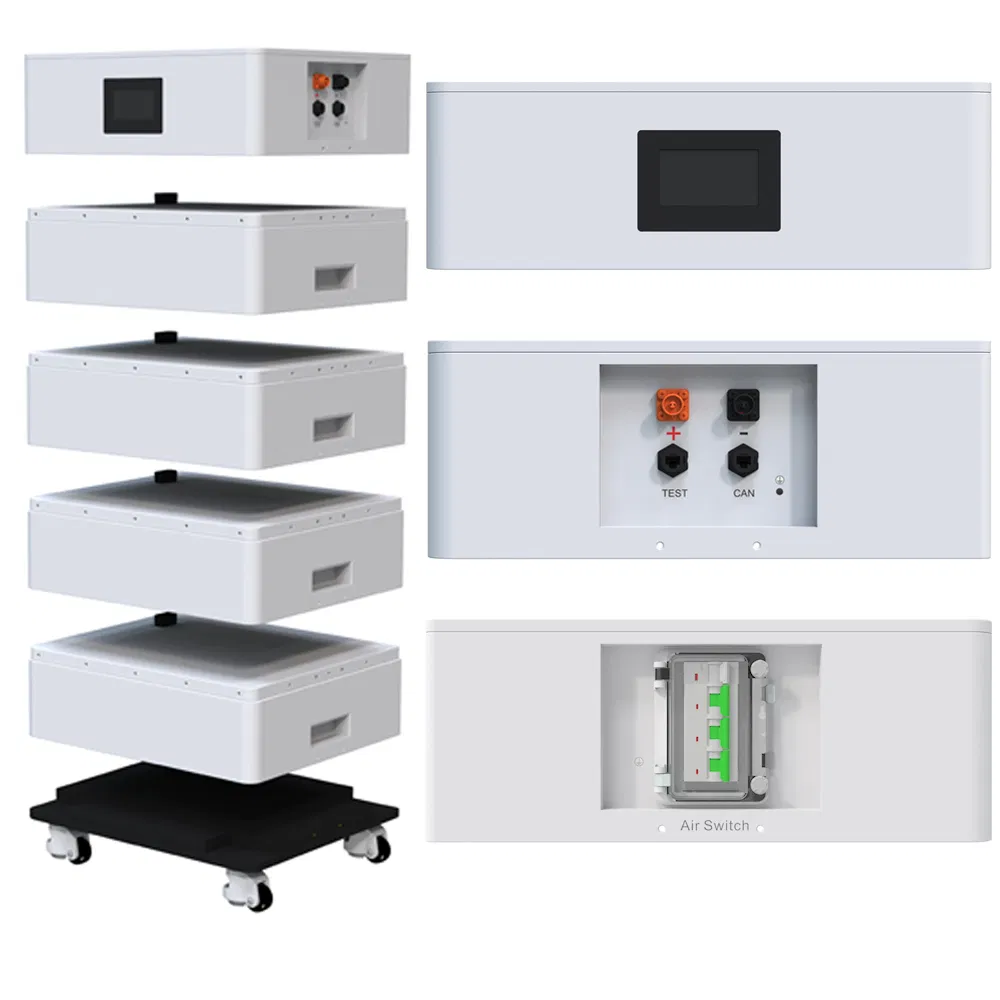

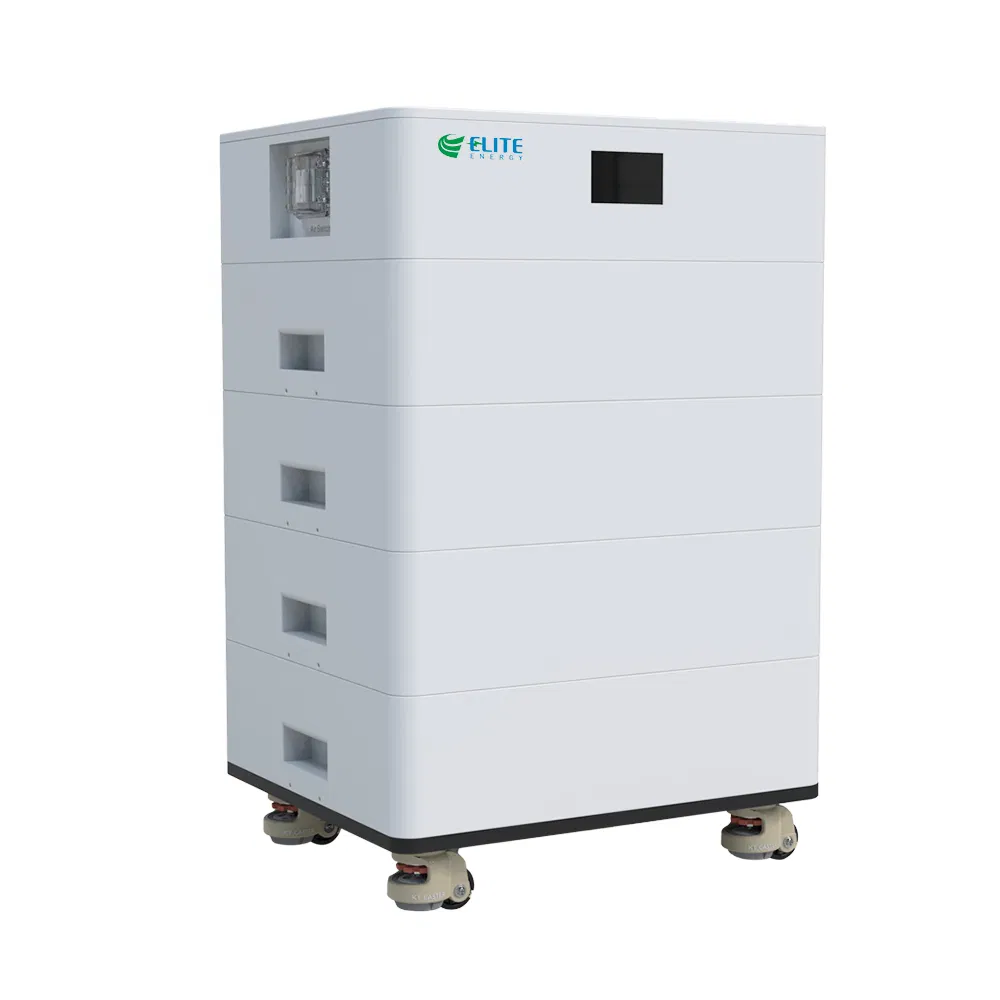

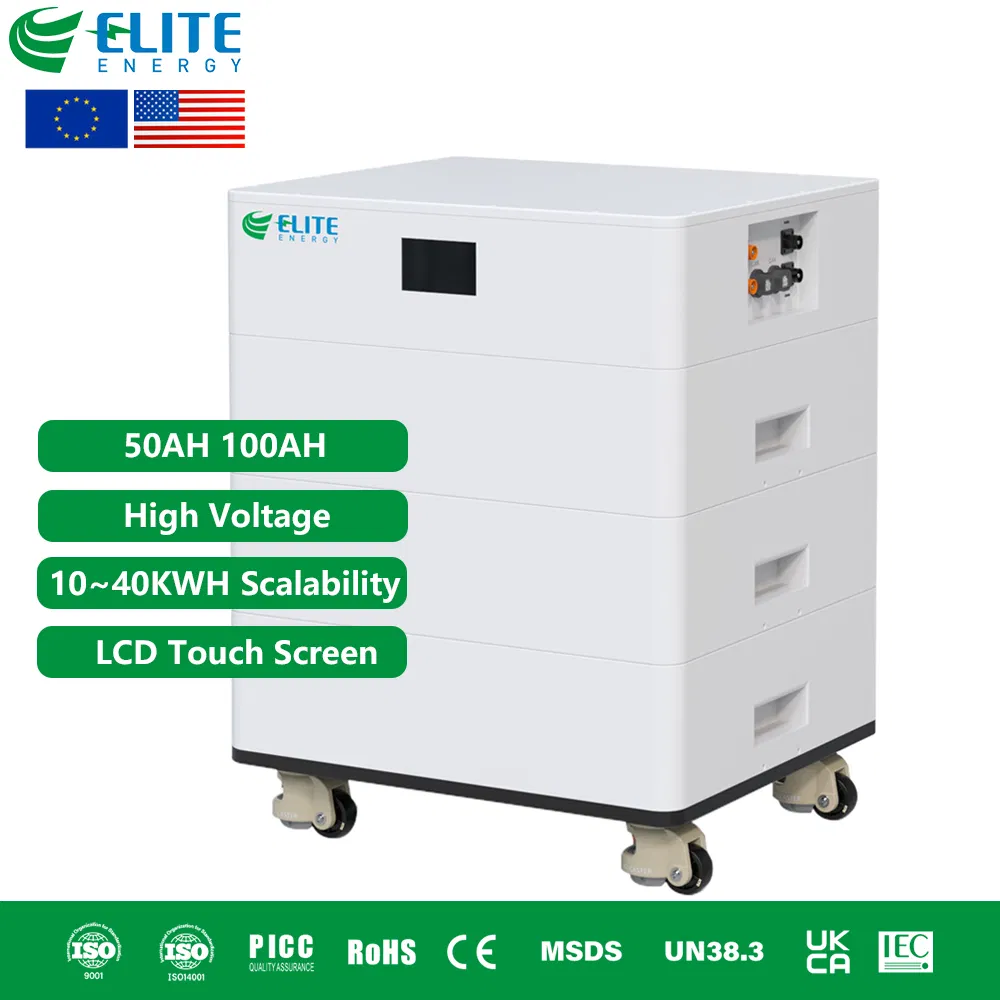

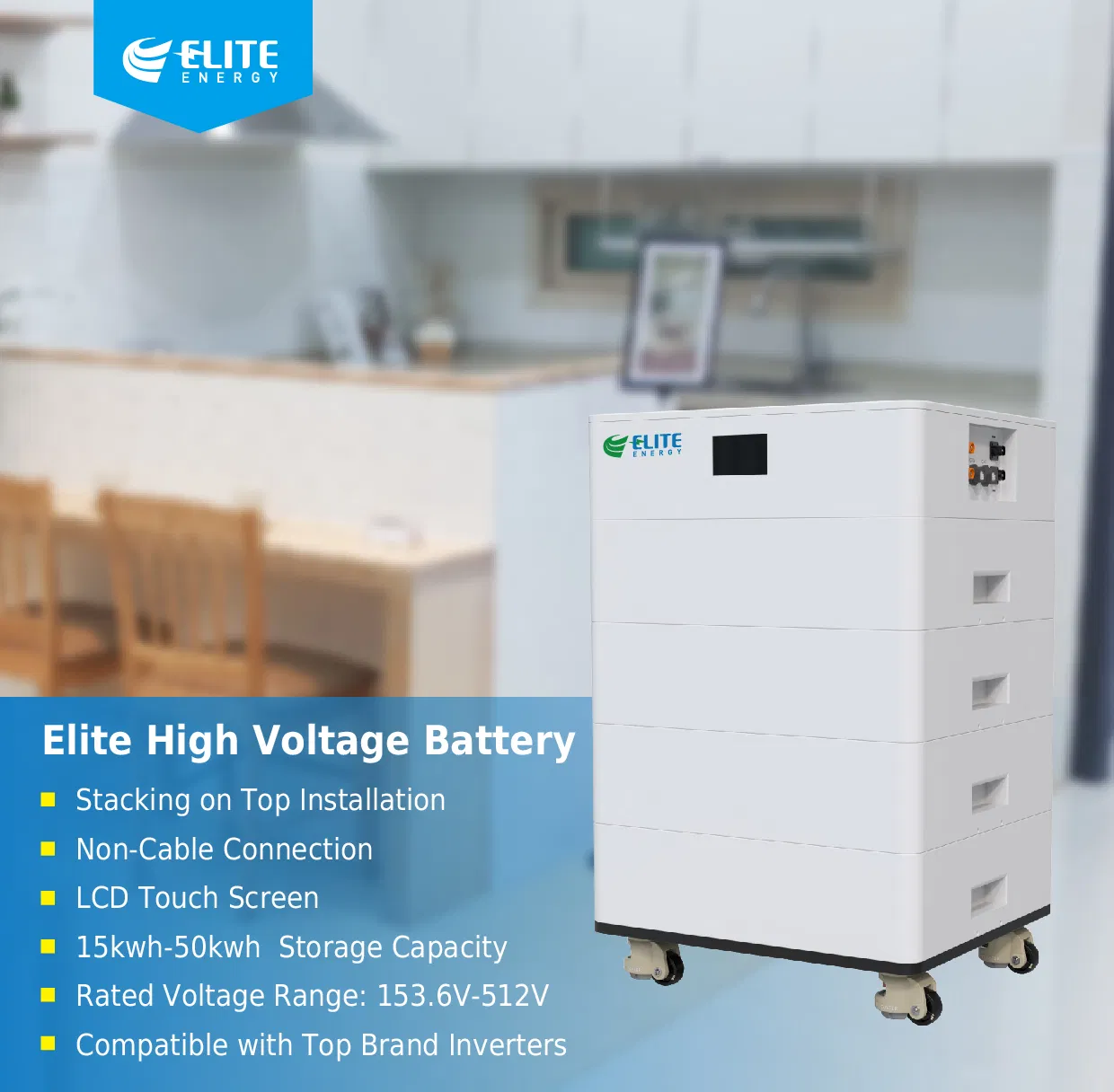

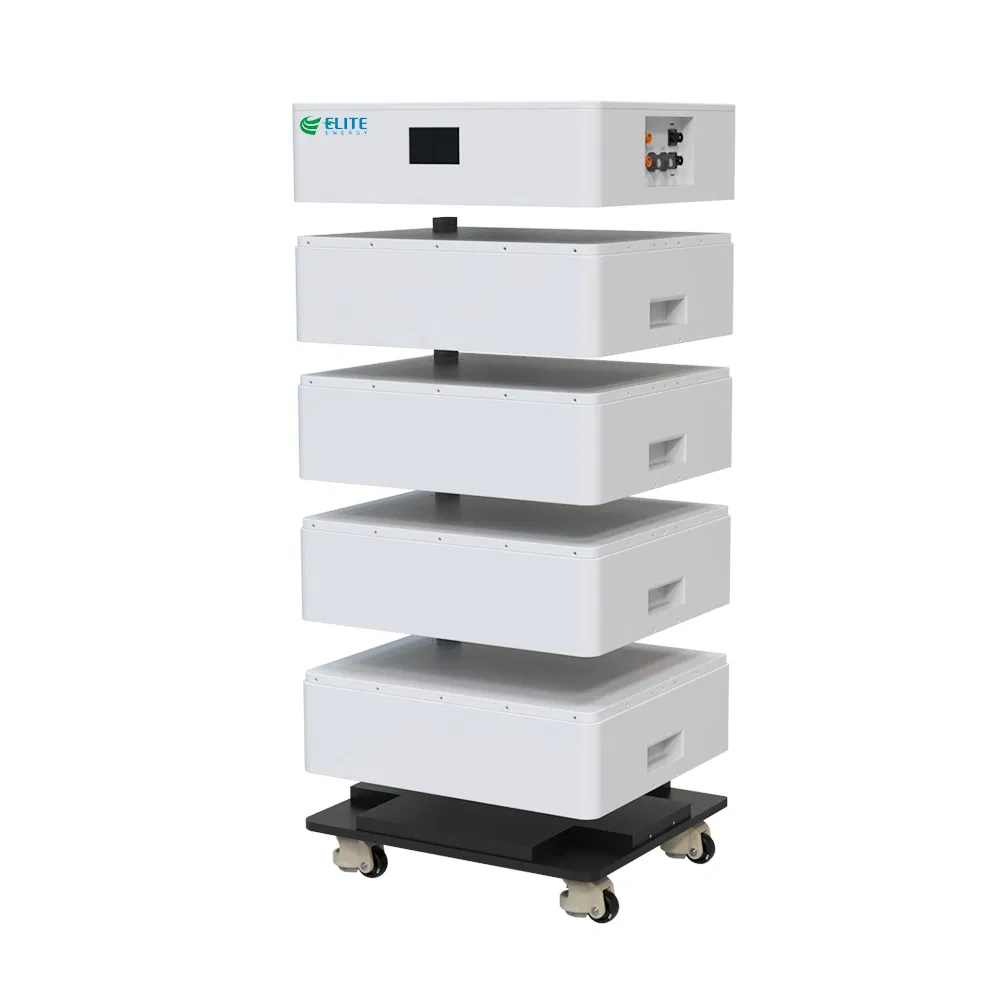

High Voltage HV Stackable ESS 10kWh - 60kWh LiFePO4 Battery
📊 Basic Specifications
Energy Range
10kWh - 60kWh
Certification
CE/RoHS/Un38.3/MSDS
🚀 Key Product Features
🔋
Adopts green, safe and reliable LiFePO4 battery cells.
⚙️
Flexible Investment, meet different energy requirements.
⚡
Highest energy efficiency for home and C&I.
🔄
Wide compatible with market main inverter brands like Deye, Sofar, Growatt.
📋 Technical Specifications
| Typical Model |
ELT15K100H |
ELT20K100H |
ELT25K100H |
ELT30K100H |
ELT40K100H |
| Number of Modules | 3 | 4 | 5 | 6 | 8 |
| Battery Type | LiFePO4 |
| Nominal Energy | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh | 40.96kWh |
| Nominal Voltage | 153.6V | 204.8V | 256V | 307.2V | 409.6V |
| Operating Voltage | 120-175.2V | 160-233.6V | 200-292V | 240-350.4V | 320-467.2V |
| Max Current | 100A (Cont.) / 150A (Peak 10s) |
| Dimensions (W*H*D) | 550*470*712 | 550*470*885 | 550*470*1058 | 550*470*1231 | 550*470*1577 |
| Weight (kg) | 177 | 227 | 277 | 327 | 427 |
✅ Professional Certification
Products are approved by CE, UKCA, MSDS, UN38.3, and BIS. The manufacturing facility is ISO9001, ISO14001, and ISO45001 certificated.
📦 Packaging & Shipping
Packaging
Pearl wool, UN cartons / Plywood, plastic pallet.
Lead Time
Samples: 15-20 days | Bulk: 25-40 days.
Shipping
By air, sea, express, or railway.
❓ Frequently Asked Questions
What is your MOQ (Minimum Order Quantity)?
Sample order for testing is available. You can choose to place just one piece for testing.
What is the warranty term of your product?
The standard warranty term is 5 years. Extended warranty options are available based on specific requirements.
What about the lead time of bulk order?
It depends on the order quantity. Normally, the lead time is around 30 days.
What shipping methods are available?
By Express (3-15 days) for small quantities; By Sea (25-45 days) or Railway (15-35 days) for bulk orders.
What is the payment term for orders?
T/T 30% as deposit, and T/T 70% before shipment. Other terms can be discussed based on order volume.
Is the system compatible with my inverter?
The system is widely compatible with major brands including Deye, Sofar, Growatt, Goodwe, Megarevo, and Afore.
