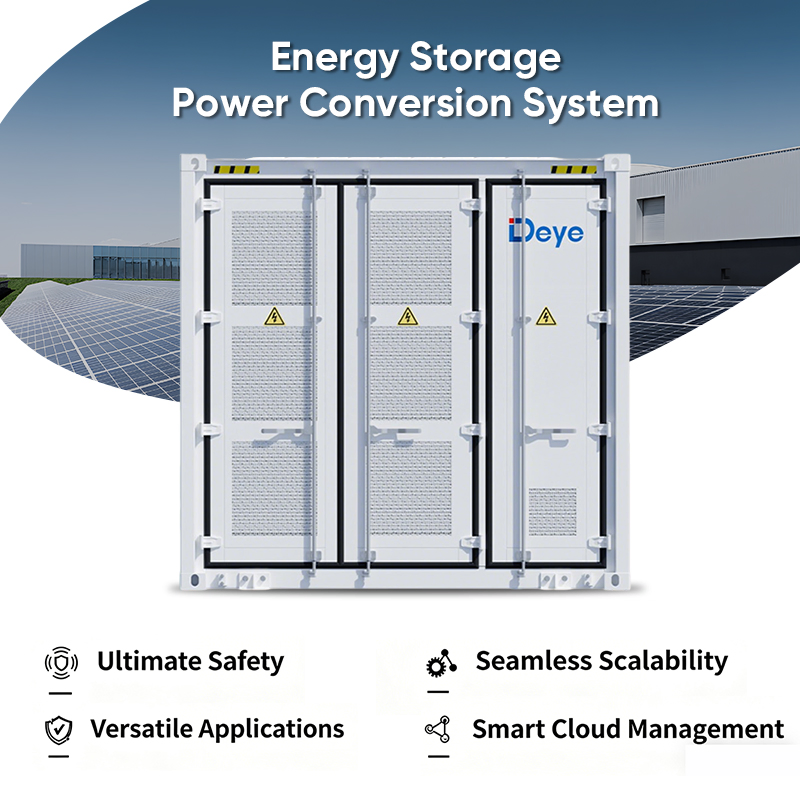

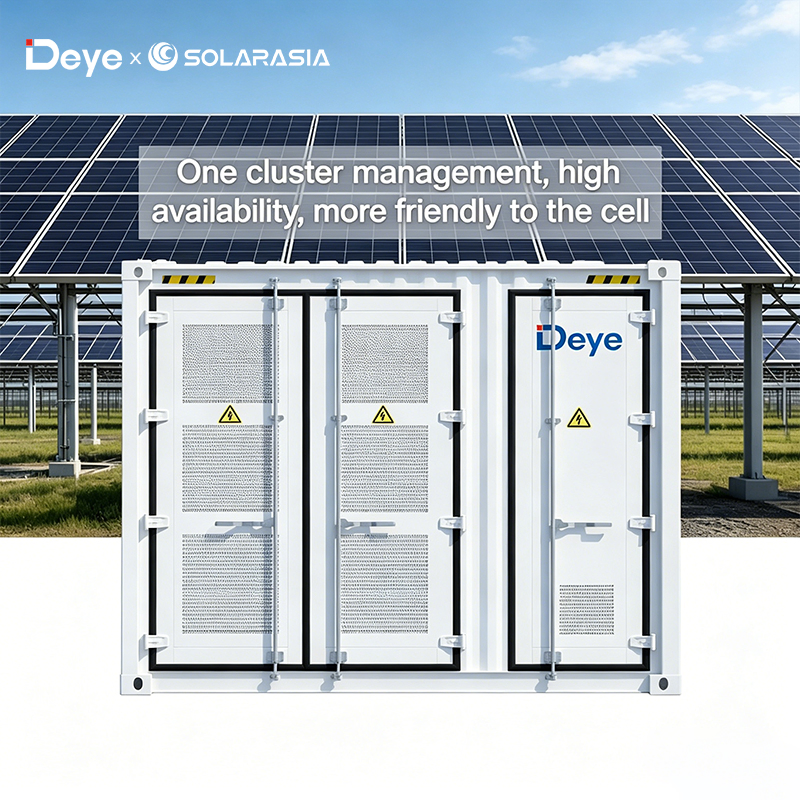

Commercial Ess 2250kw Deye All in One Hybrid Battery Energy Storage PCS System for Utility Scale Ess Solution

Customization: Available
Container Size: 2991X2438X2896 mm
Weight: 11500kg

Product Description

📋 Basic Information
Model NO.
Deye WS-PCS2250-2
Nominal Voltage
400V
Warranty
10 Years
Nominal Capacity
2250kw
IP Rating
IP54
AC Rated Frequency
400VAC / 50Hz (3L+N+PE)
MPP Trackers
144 (18X8)
Operating Temp
-25℃ ~ +55℃
Anticorrosion
C4-M (Optional C5)
Battery Type
LiFePO4
🖼️ Product Overview

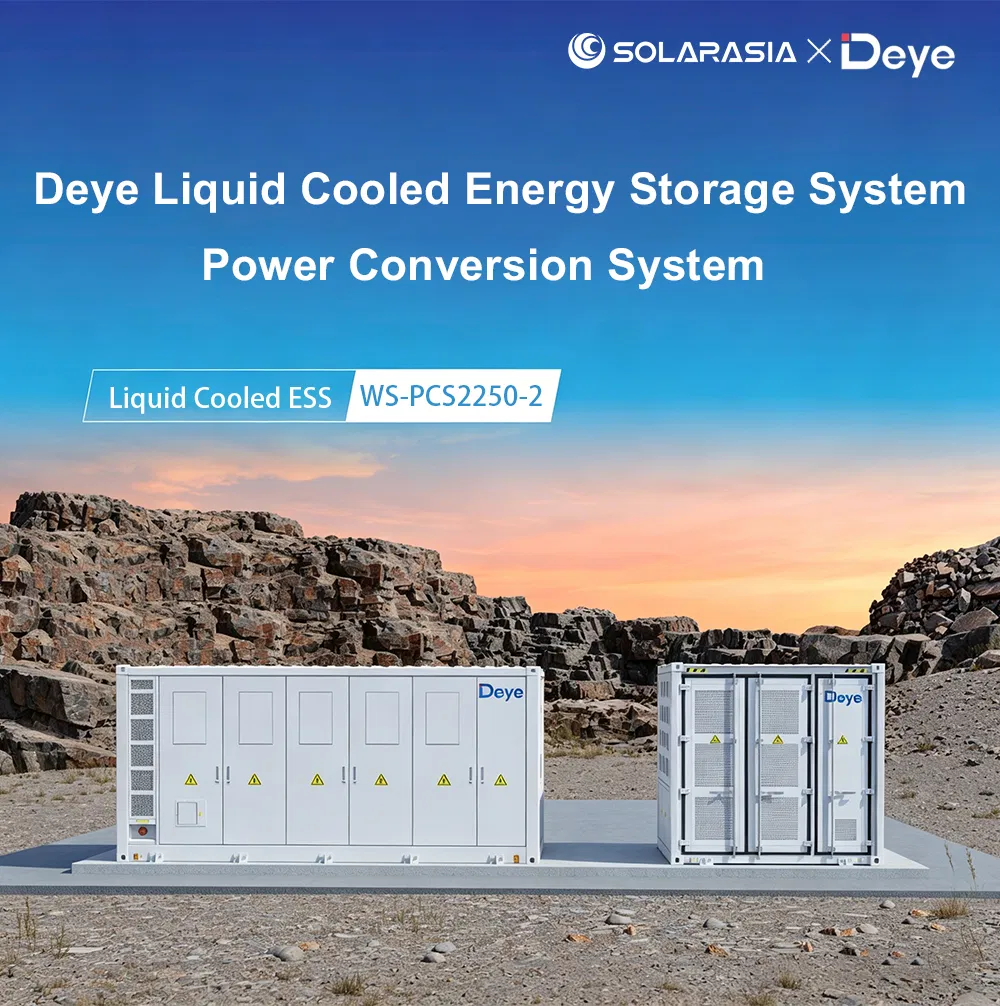

Commercial Ess 2250kw Deye All in One System
Utility Scale Ess Solution
⚙️ Technical Specifications
ParameterDetail
AC Rated Power2250 kW (18 × 125 kW)
AC Rated Voltage/Frequency400 Vac / 50 Hz (3L+N+PE)
AC Rated Current3248 A (18 × 180.4 A)
Max Power2475 kW (18 × 137.5 kW)
Power Factor-1 ~ +1
Battery Input Voltage Range630 Vdc – 1000 Vdc
Max Charging/Discharging Current3420 A (18 × 190 A)
Max PV Input Power3600 kW (18 × 200 kW)
No. of MPP Trackers144 (18 × 8)
Weight11,500 kg

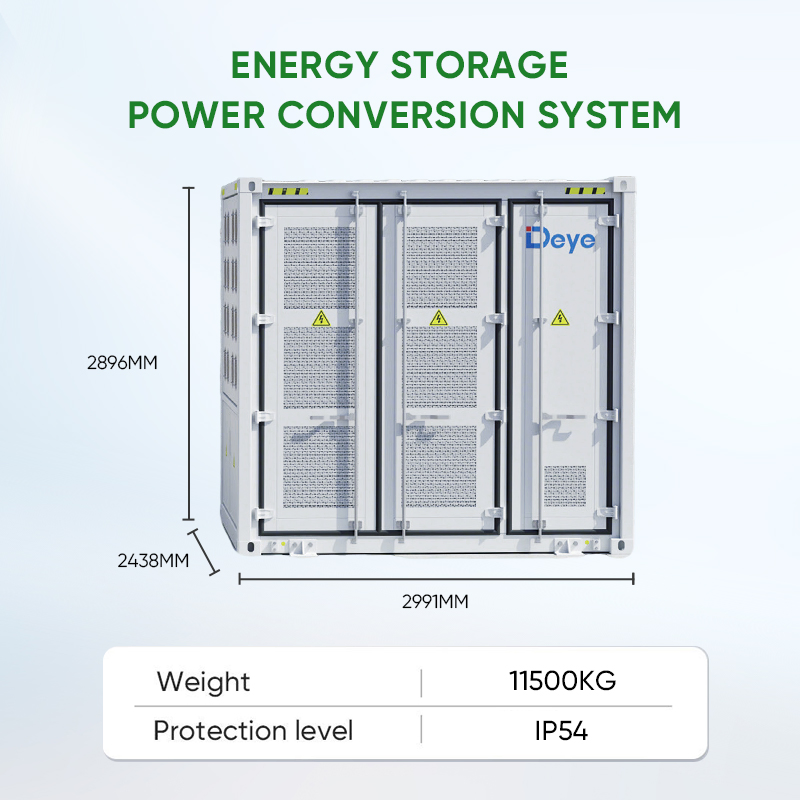

Dimensions (W×D×H)2991 × 2438 × 2896 mm
💡 Working Principle

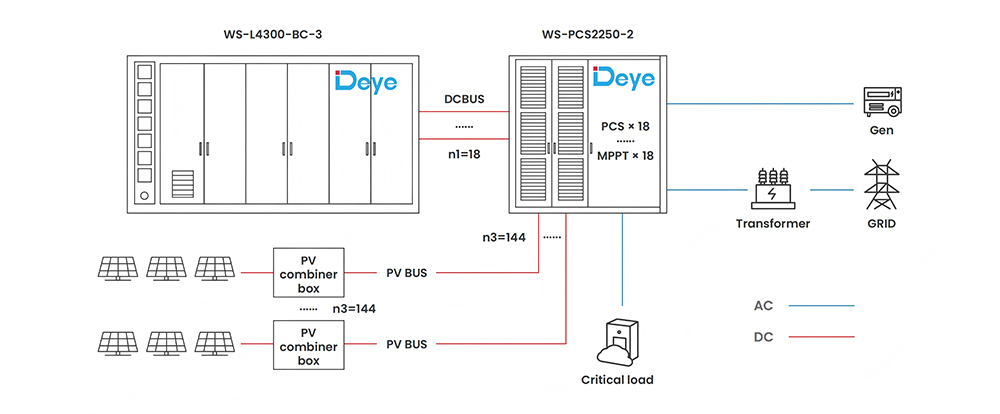

Working Principle Diagram
🌍 Project Cases

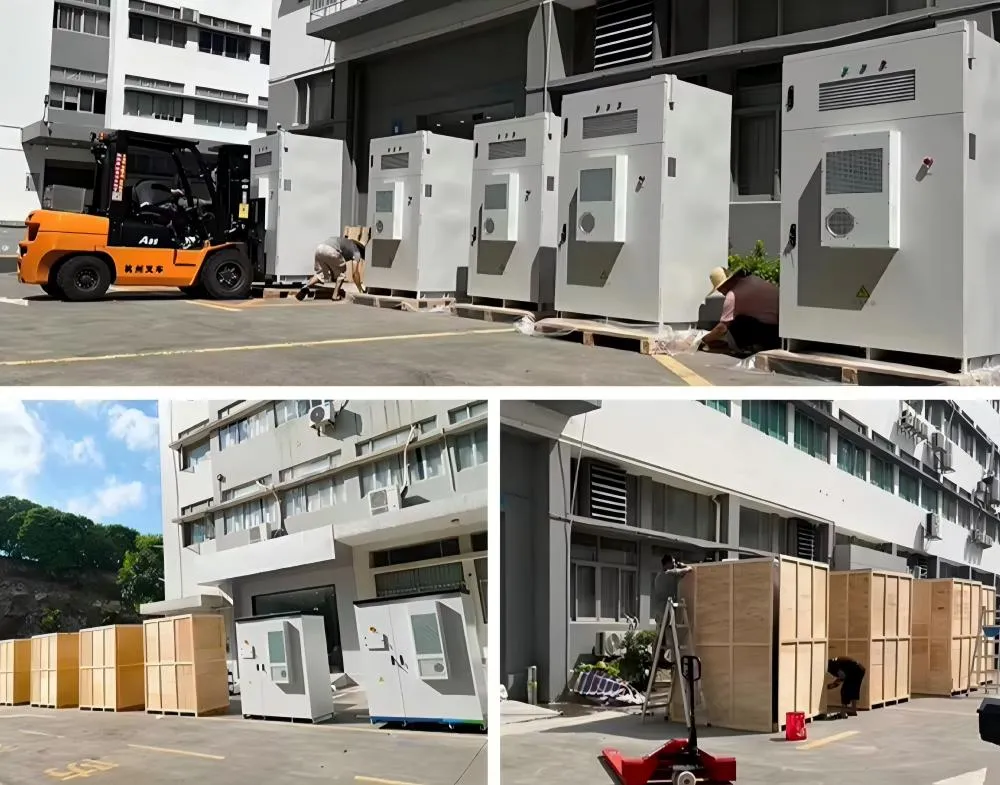

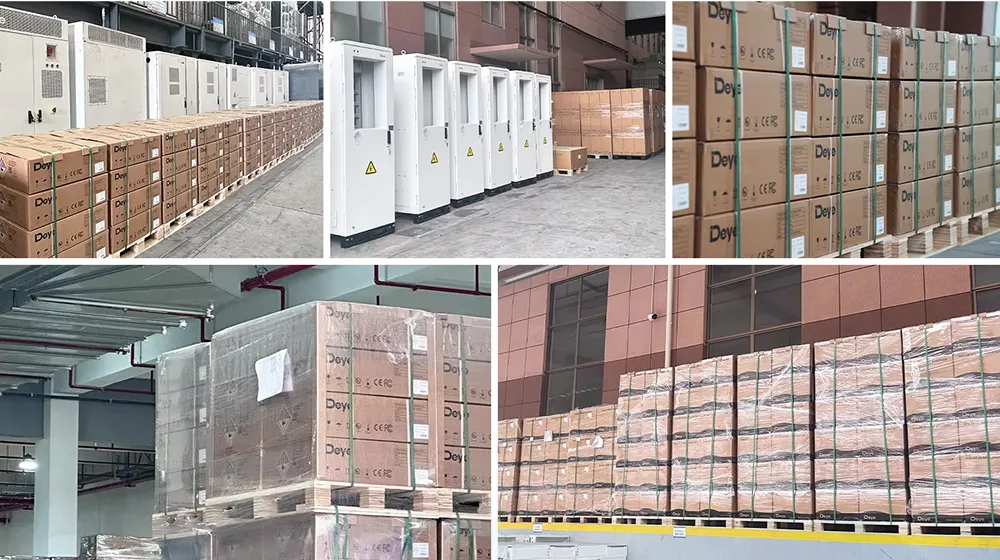

Project Case 1 Project Case 2 Project Case 3
📜 Certifications
Product Certifications
🏢 Company Profile
Established in 2016, we are a preeminent energy technology enterprise specializing in solar panels, solar inverters, lithium batteries, and complete solar systems. Our products have been distributed in over 100 countries, earning a remarkable reputation from our loyal customers. Our partner manufacturers are equipped with state-of-the-art production equipment and technology, ensuring quality in full compliance with ISO, TUV, and CE standards. We look forward to building friendly and long-term relationships with partners worldwide to embark on the journey of sustainable energy innovation.
Frequently Asked Questions
What is the main application of the 2250kw ESS system?
The 2250kw Deye All-in-One system is designed for utility-scale energy storage, commercial and industrial (C&I) applications, and large-scale renewable energy integration.
What is the warranty period for this system?
The system comes with a comprehensive 10-year warranty, ensuring long-term reliability and performance for your energy project.
Is the enclosure suitable for harsh outdoor environments?
Yes, the system features an IP54 ingress protection rating and a C4-M anticorrosion grade (with C5 optional), making it suitable for a wide range of outdoor conditions.
What type of battery technology is used?
The system utilizes high-safety LiFePO4 (Lithium Iron Phosphate) battery technology, known for its long cycle life and thermal stability.
Can this system handle solar PV input directly?
Yes, it supports a maximum PV input power of 3600 kW with 144 MPP trackers, allowing for efficient integration of solar power generation.
What are the operating temperature limits?
The system is designed to operate efficiently within a temperature range of -25°C to +55°C.
