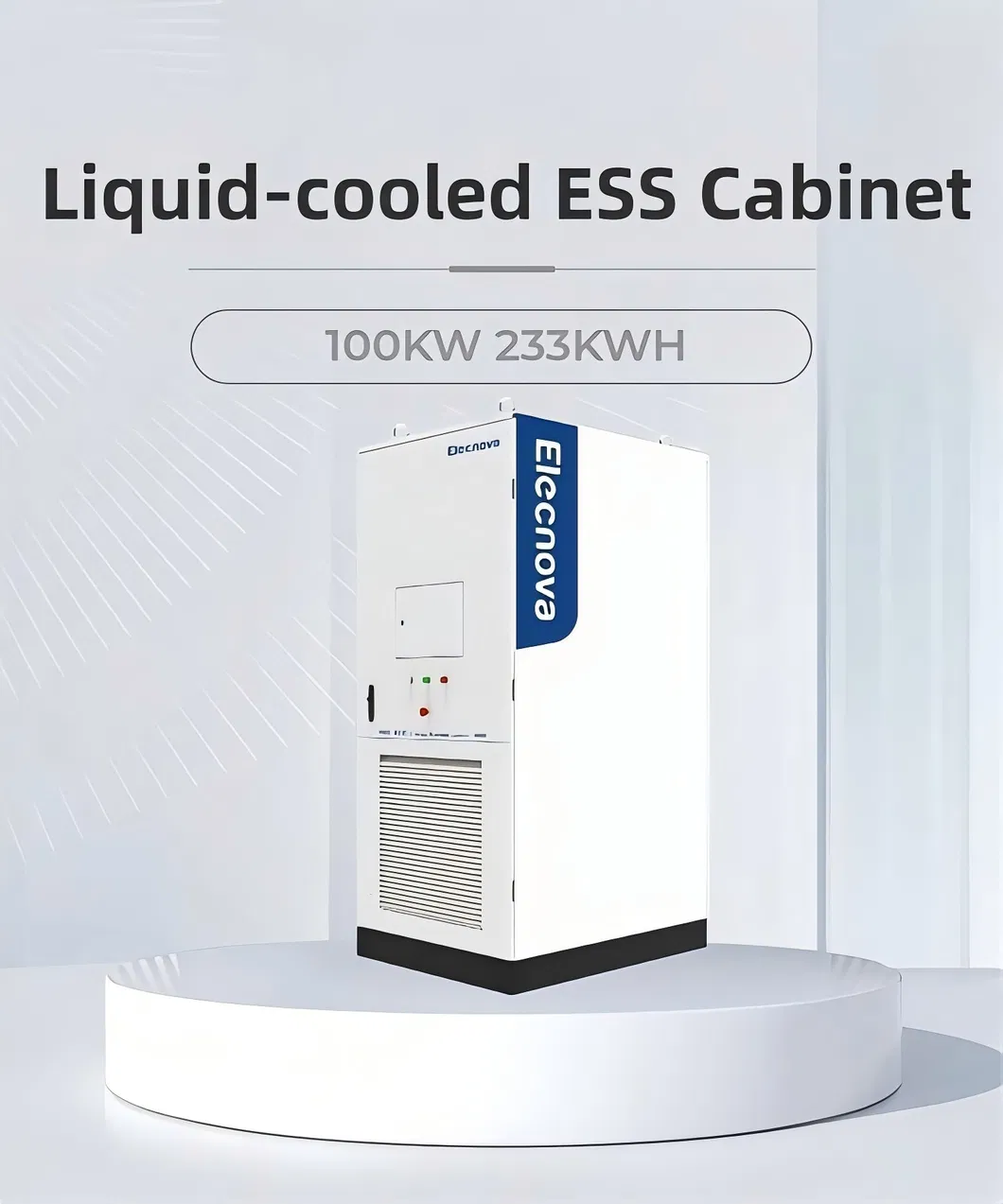

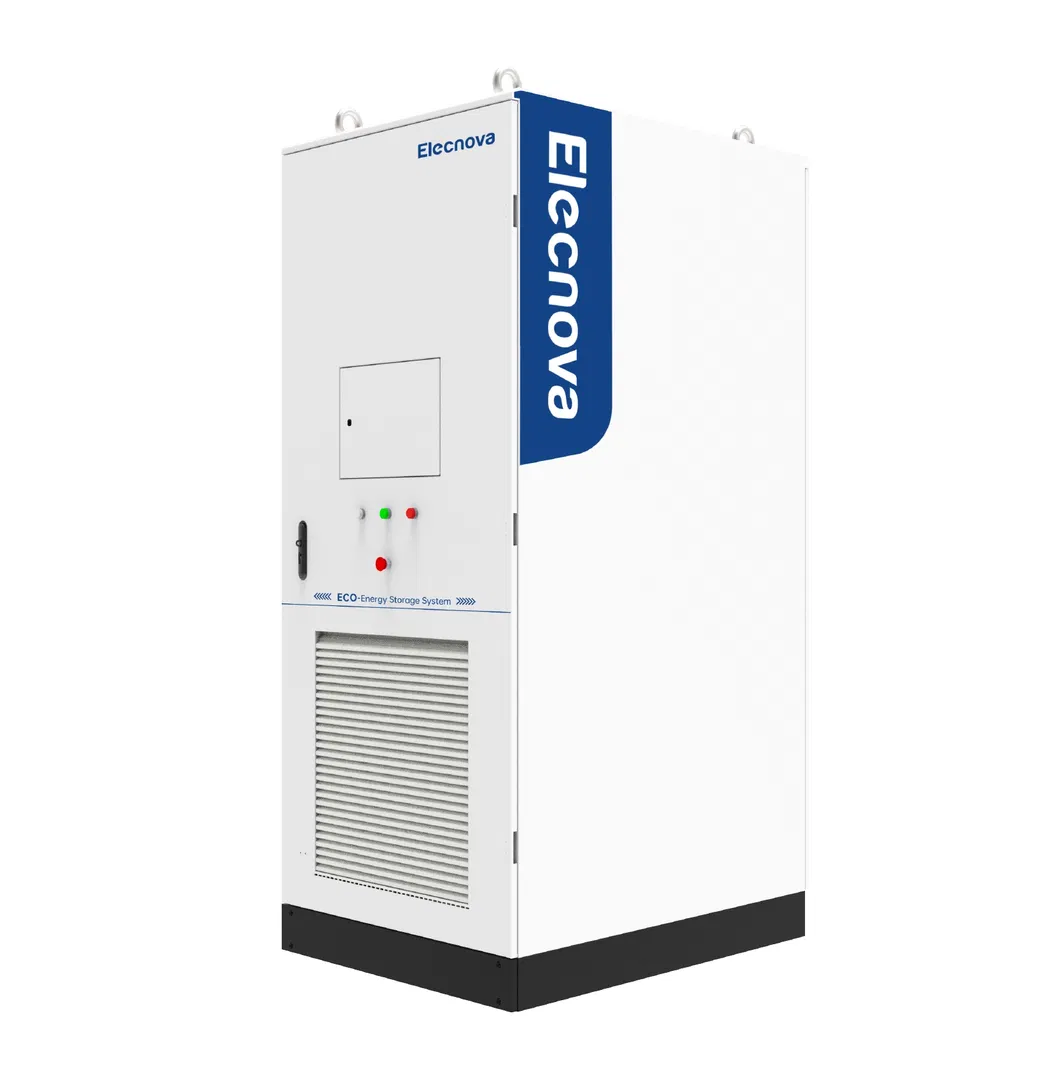

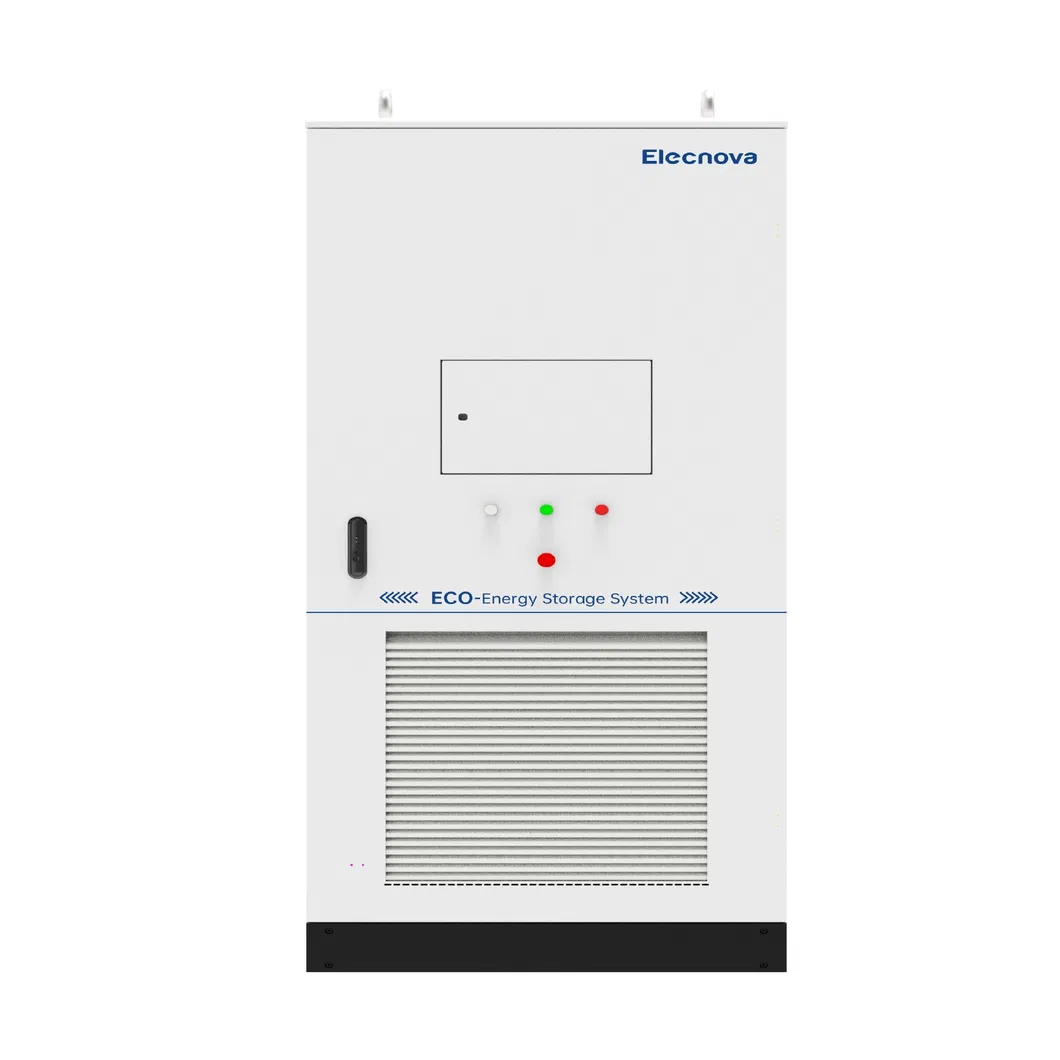

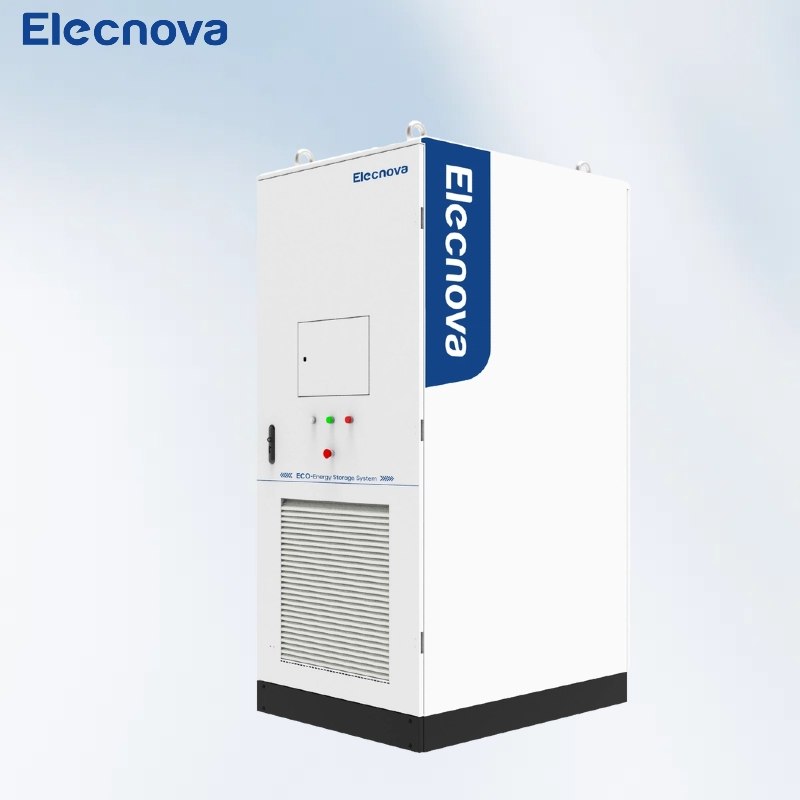

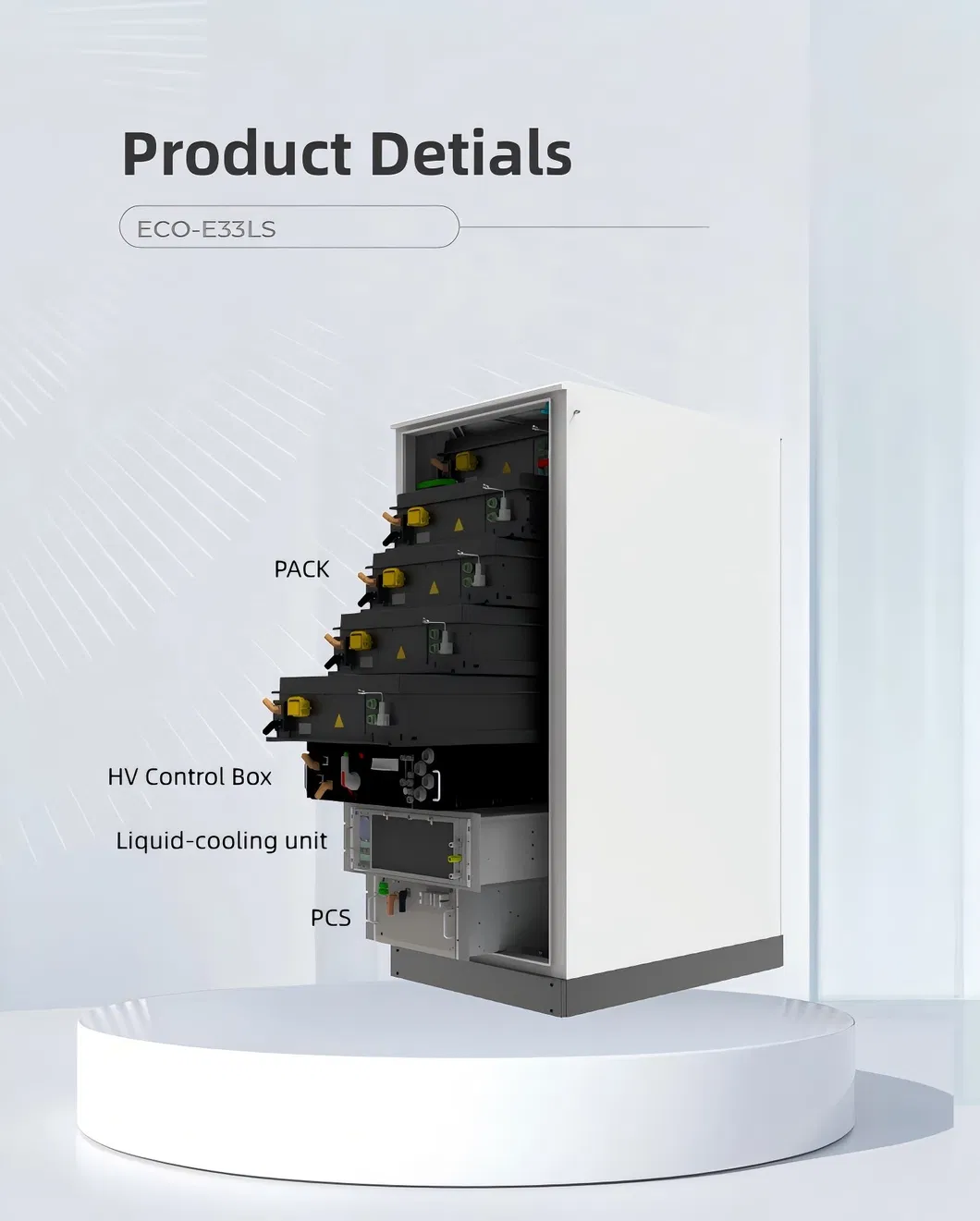

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
• Conversion efficiency: 99%
• IP65 protection, ms-level on-/off-grid switching
• Active thermal management system with over 8,000 times cycle life
• 10 years designated lifespan
| DC Side Specifications | |
|---|---|
| Cell Type | LFP280Ah |

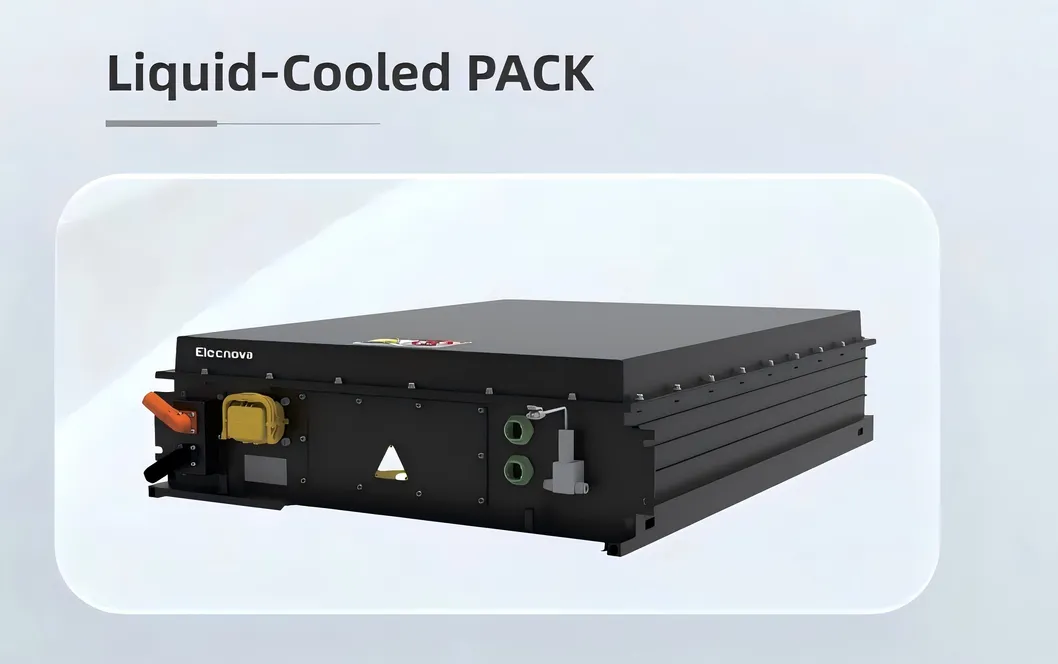

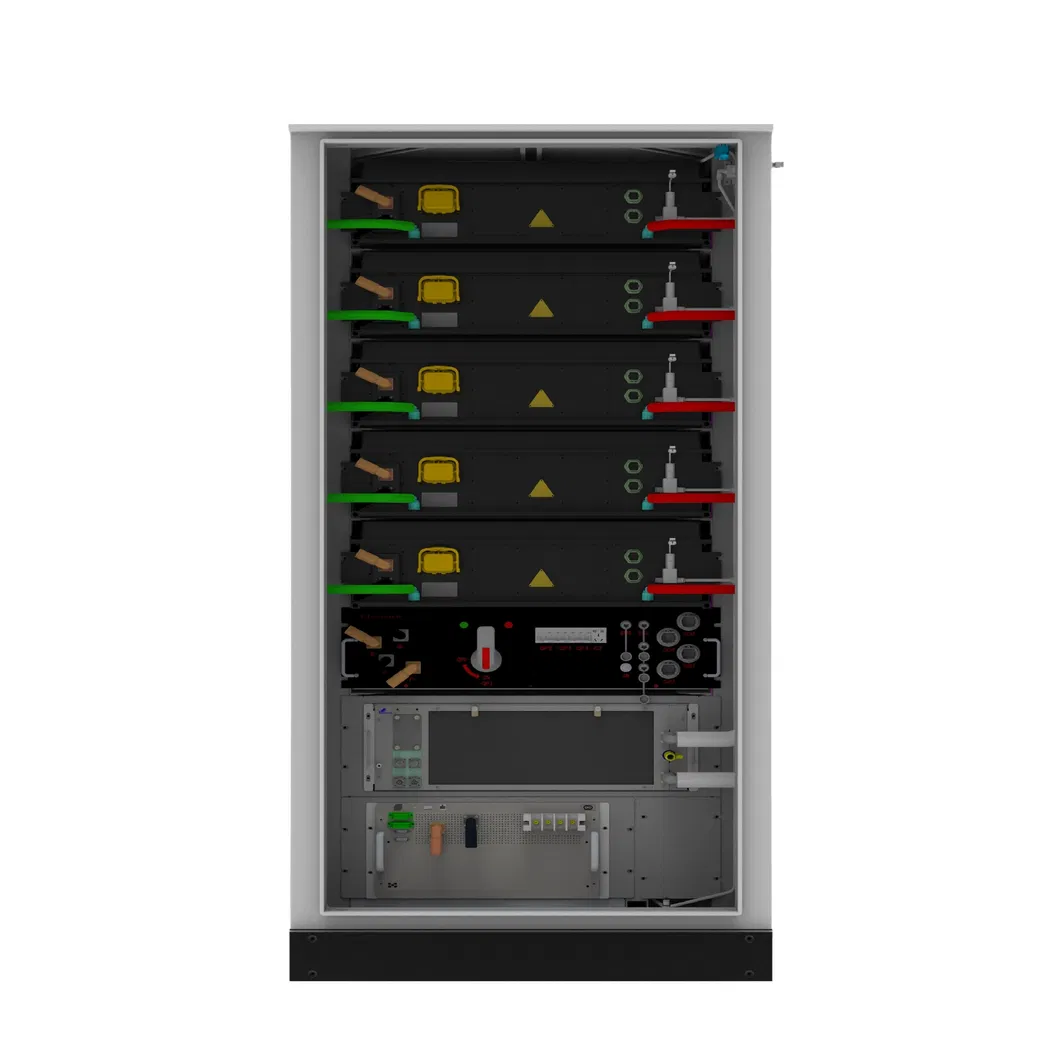

| PACK | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| AC Side Specifications | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac/3P+N+PE |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling | Active liquid cooling |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

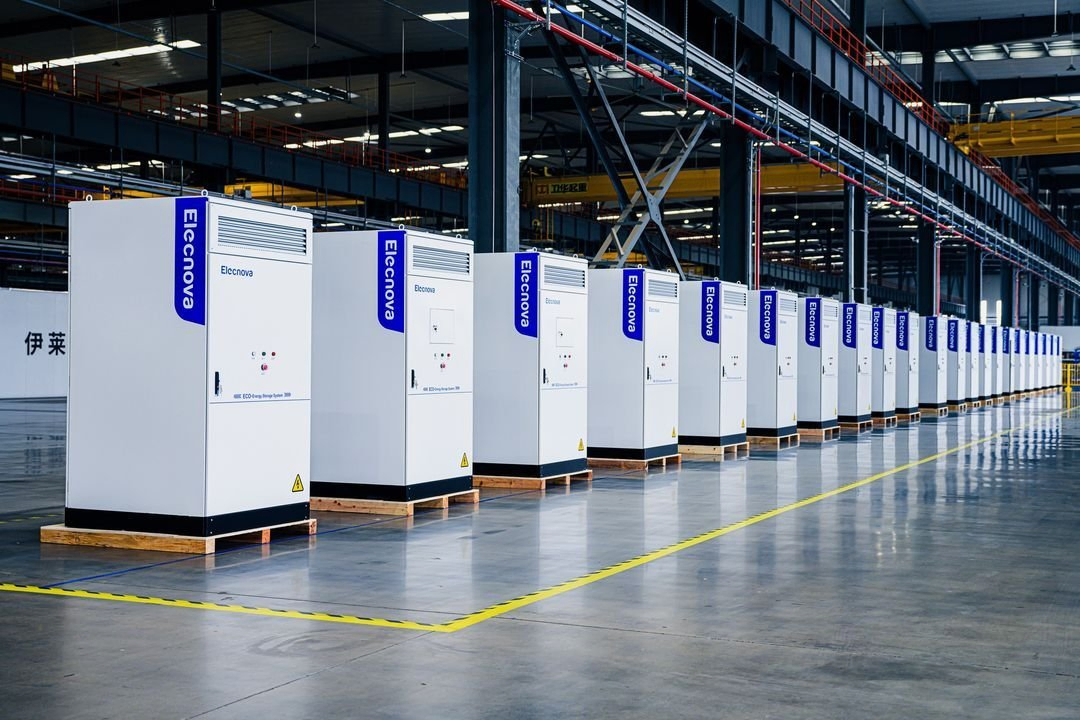

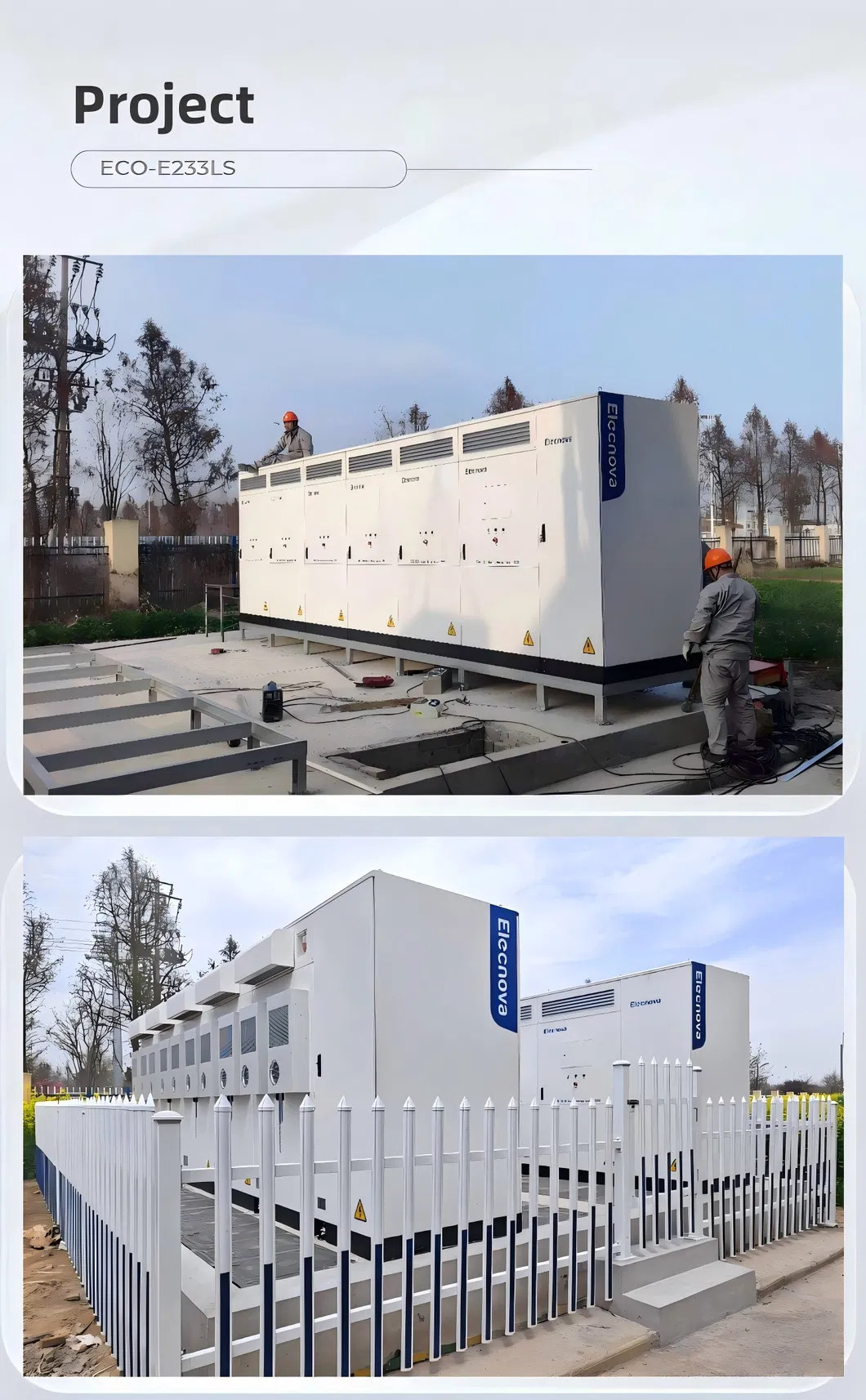

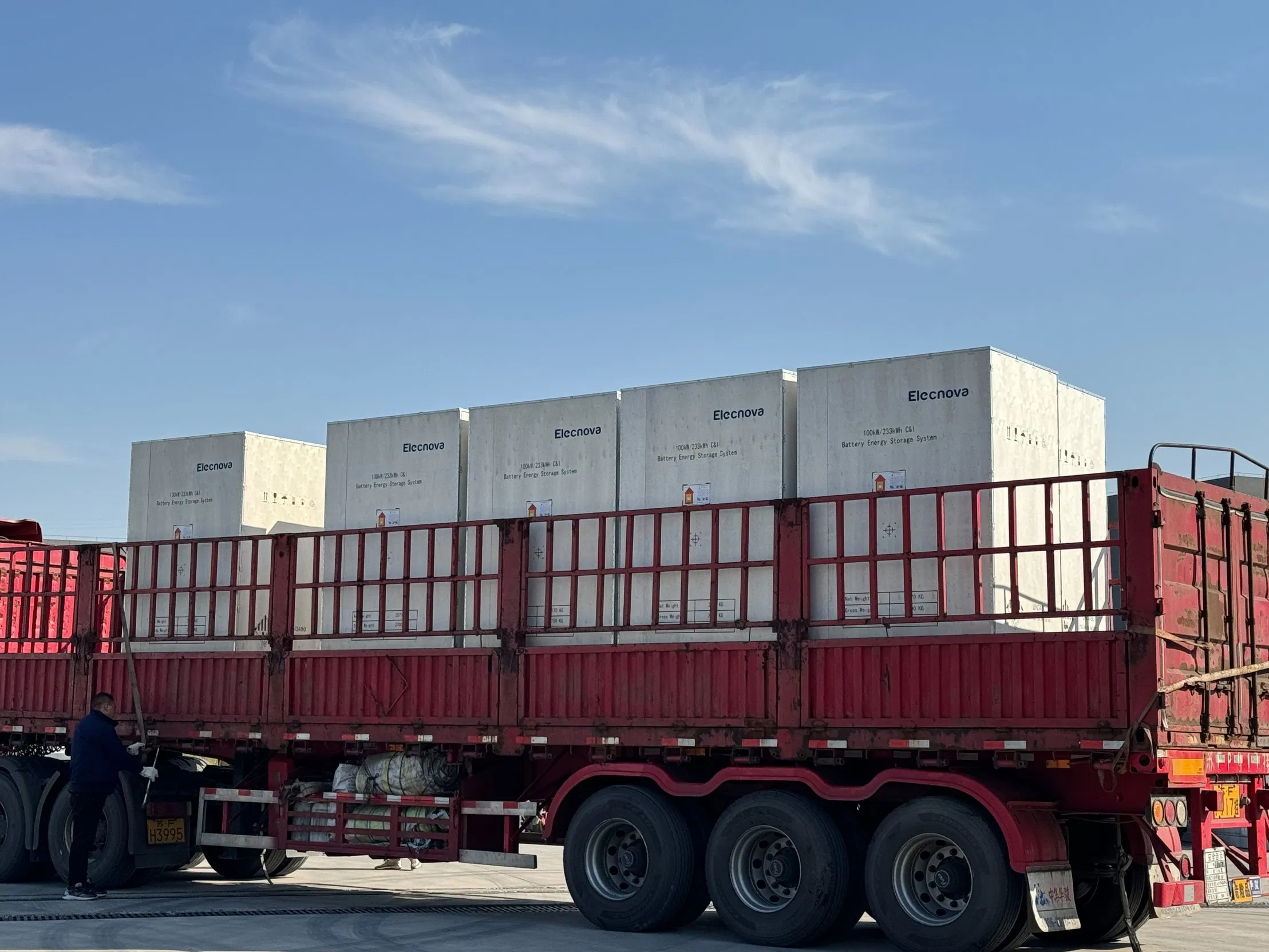

Our energy storage projects are successfully connected to the grid worldwide! The system adopts advanced technology and equipment, characterized by high efficiency, stability, and safety.
As a technology-based enterprise focusing on overall solutions for energy storage systems, we possess comprehensive supporting capabilities for system integration of PACK, PCS, and BMS. We aim to meet diversified energy requirements with quality as our cornerstone, providing customized products for various scenarios on the power generation, grid, and user sides.
