Smart Energy Management System for Advanced Storage Solutions

1

Our Services

Pcb Assembly Capability
Single and double sided SMT/PTH	Yes
Large parts on both sides, BGA on both sides	Yes
Min Chips size	01005
Min BGA and Micro BGA pitch and ball counts	0.008 in. (0.2mm) pitch, ball count > 1000
Min Leaded parts pitch	0.008 in. (0.2 mm)
Max Parts size assembly by machine	2.2 in. x 2.2 in. x 0.6 in.
Assembly surface mount connectors	Yes
Odd form parts: Resistors/Capacitors/Sockets	Yes
Wave soldering	Yes
Max PCB size	14.5 in. x 19.5 in.
Min PCB Thickness	0.02
Fiducial Marks	Preferred but not required
PCB Shape	Any
Panelized PCB	Tab routed/V-Scored/Routed
Inspection	X-ray / 20X Microscope / 100% AOI
Rework	BGA/SMT IR/Thru-hole stations
Min IC Pitch	0.2mm
Solder paster printer	0.2mm
POP Manufacturing capability	POP *3F

2

Application Areas

3

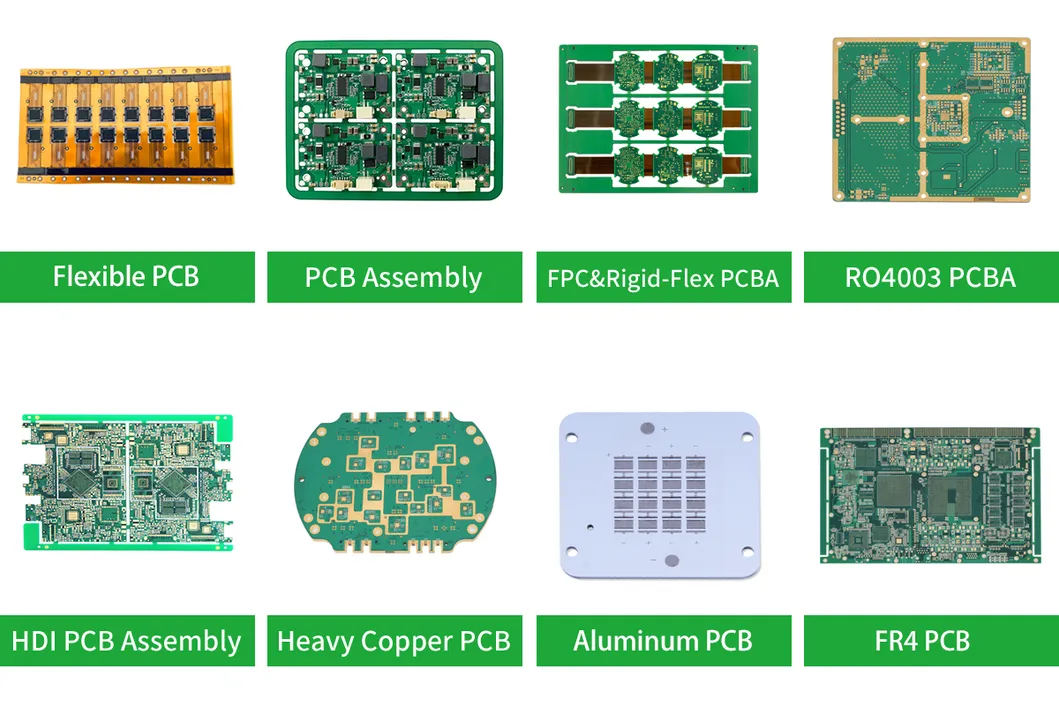

Main Products

4

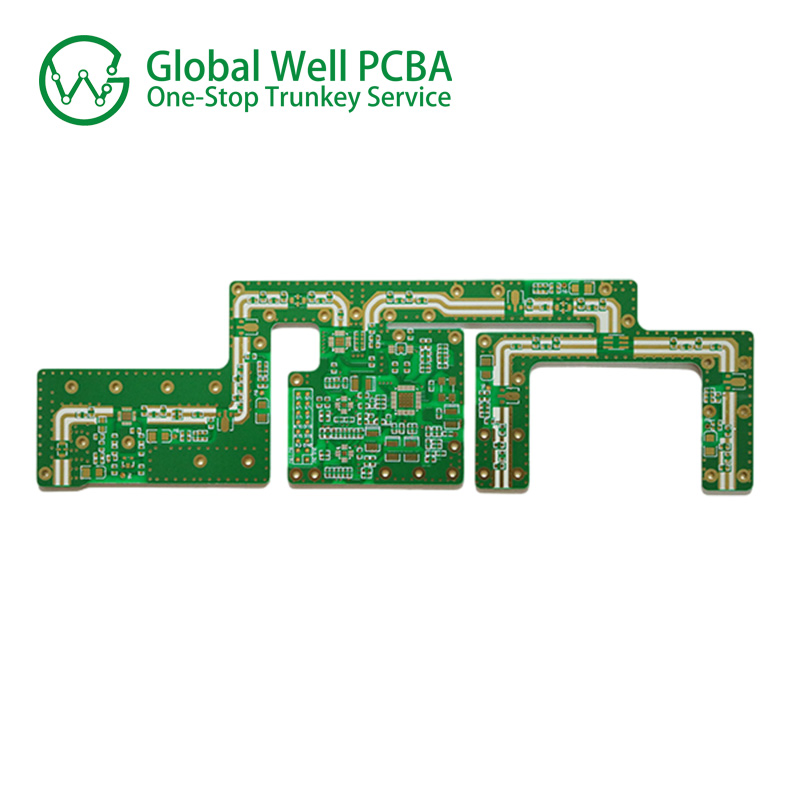

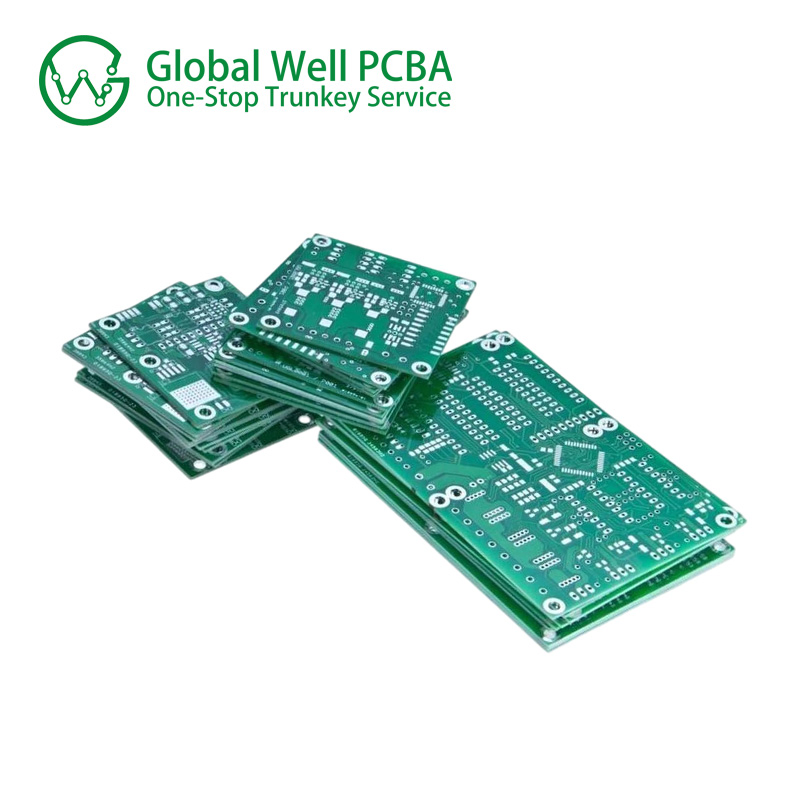

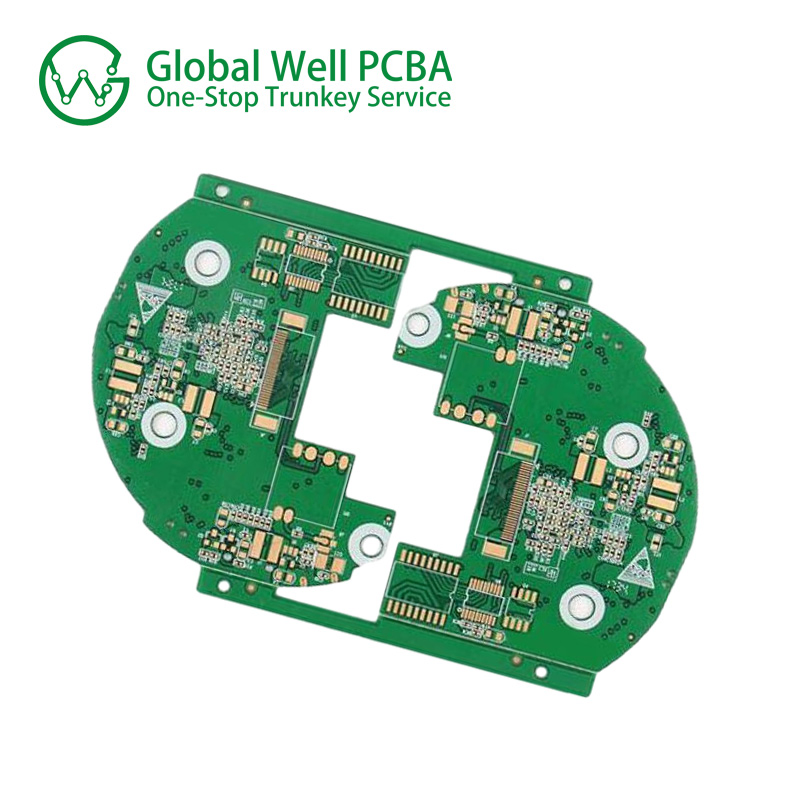

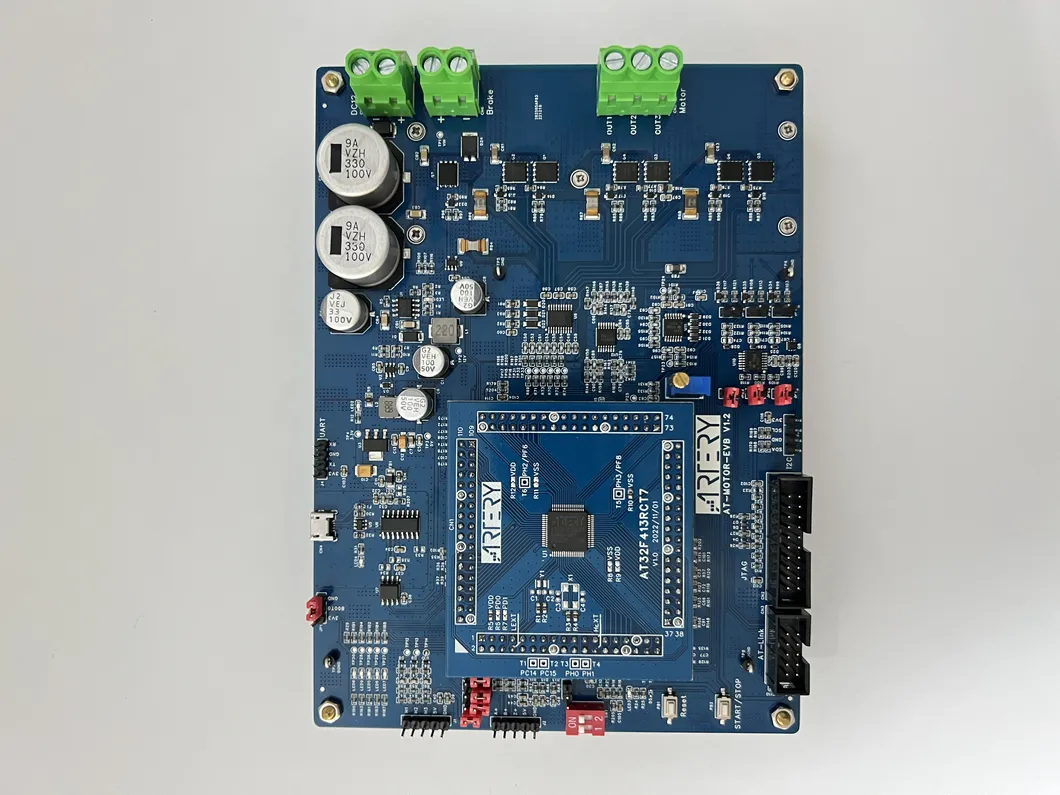

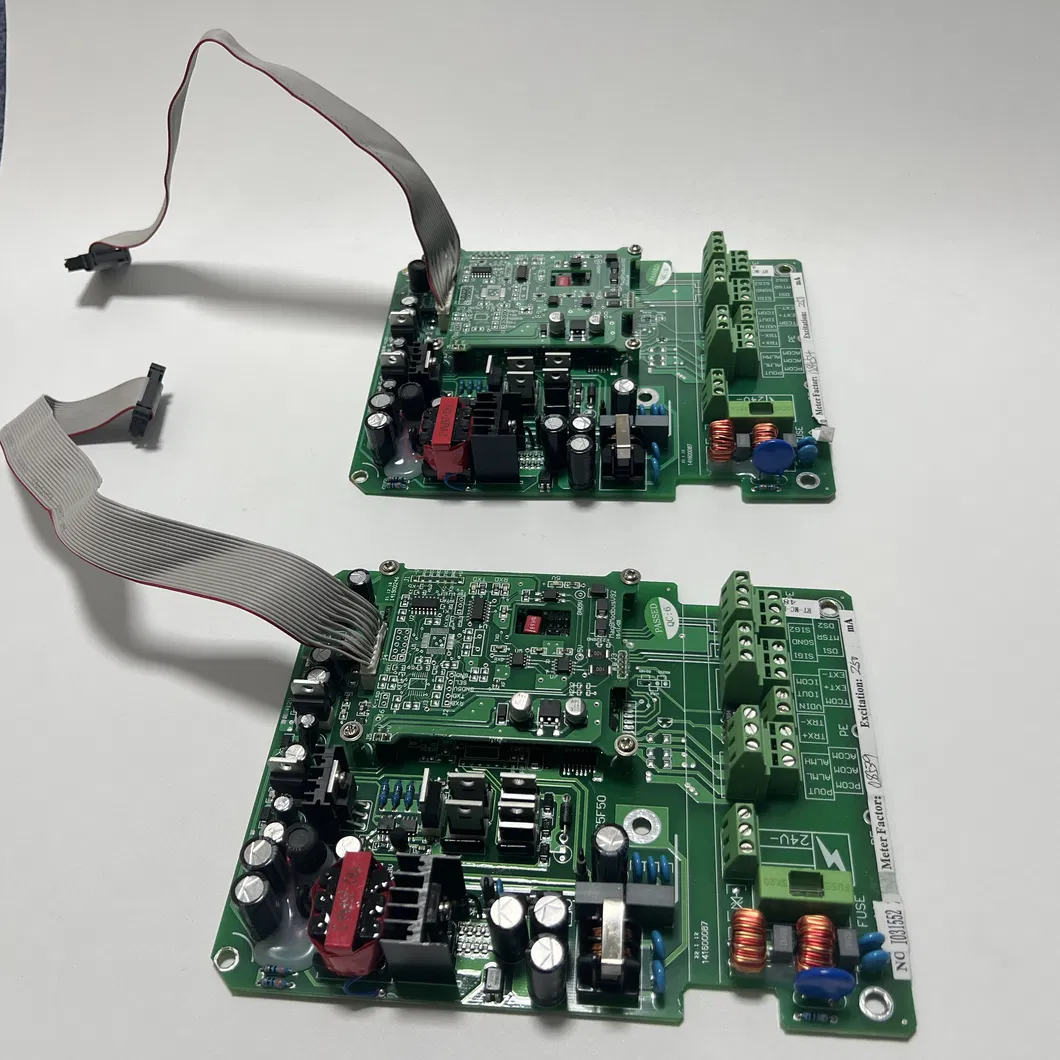

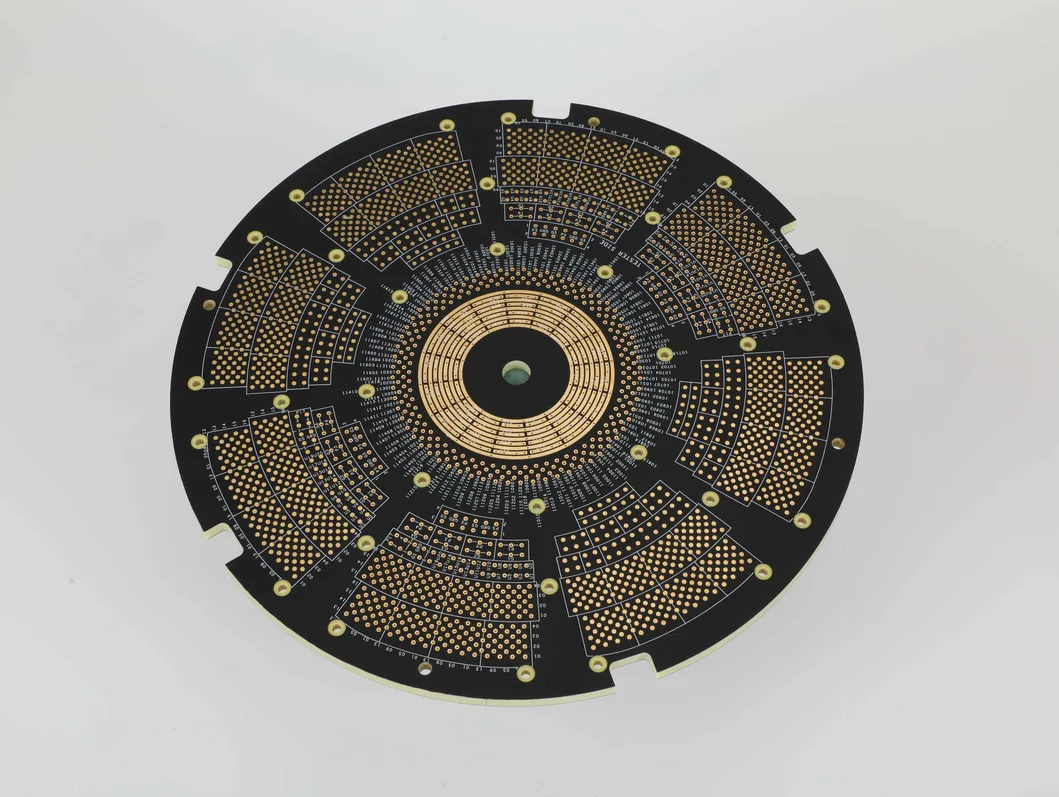

Sample Show

5

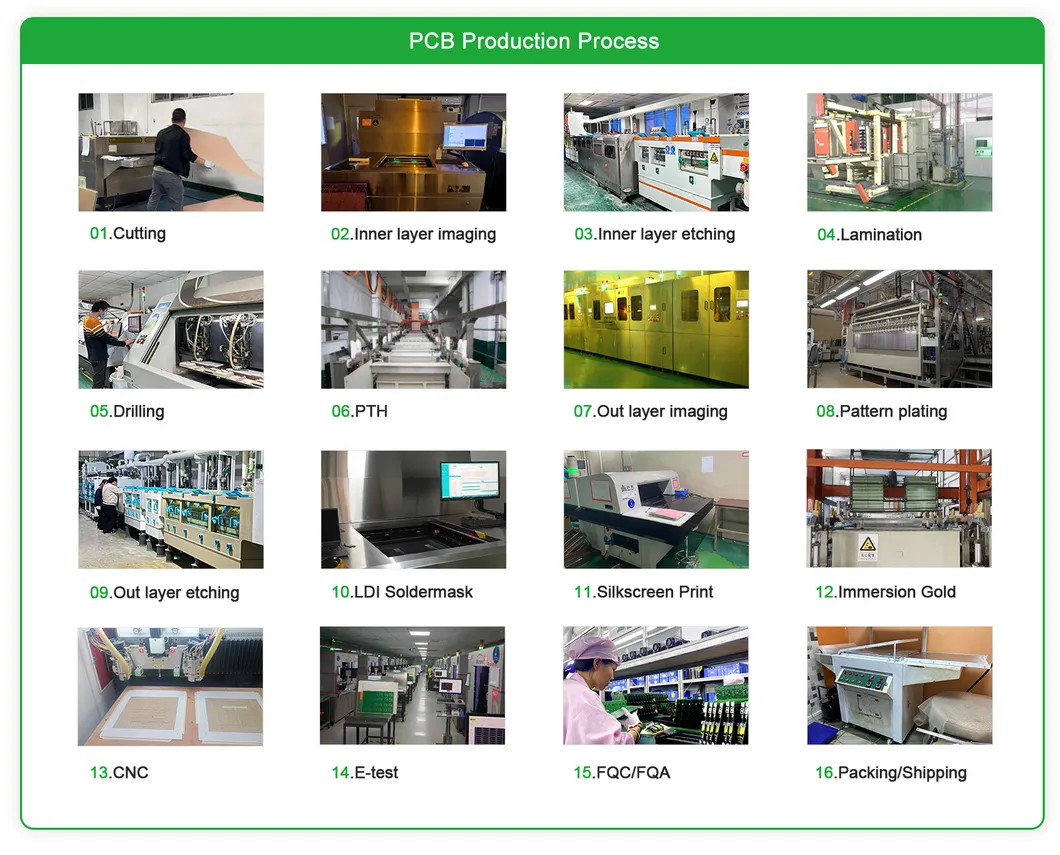

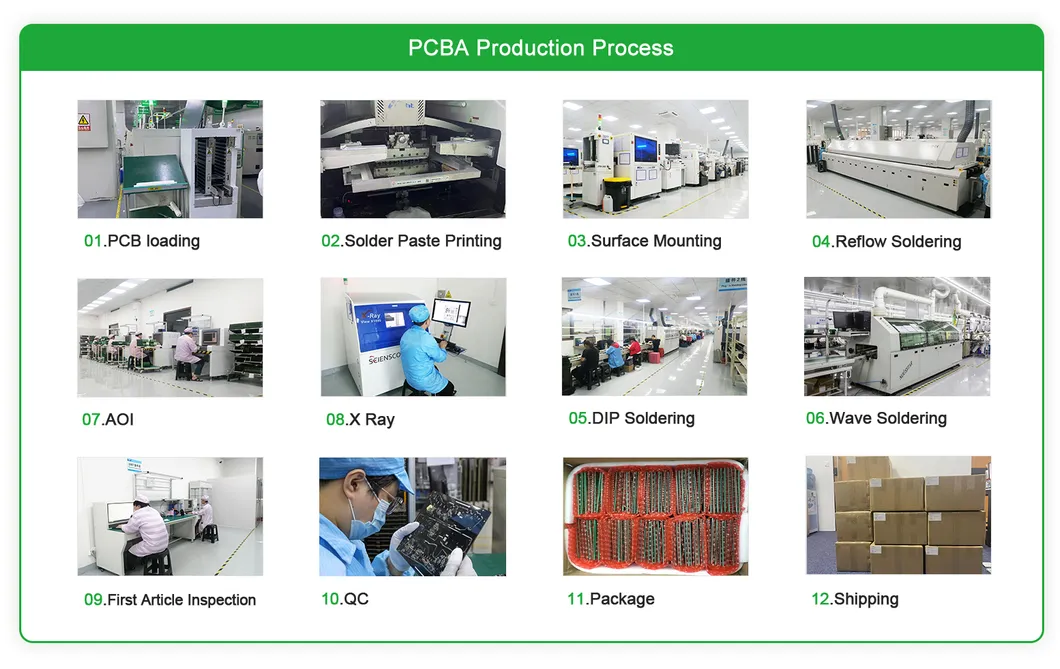

Manufacturing Excellence

6

Packing & After Sales

Packing Standards: Our product is meticulously packaged to ensure robust protection from all angles. No matter how turbulent the journey, our packaging guarantees the product remains secure and undamaged.

?

Frequently Asked Questions

What information is required for a PCB/PCBA quotation?

For Bare PCB, provide Quantity, Gerber files, and specs (material, finish, thickness). For PCBA, include the above plus a BOM list and pick-and-place files.

Are my design files and intellectual property safe?

Absolutely. We uphold the highest standards of IP protection. All documents are kept strictly confidential and we are happy to sign an NDA governed by your local law.

Do you have a Minimum Order Quantity (MOQ)?

We have no MOQ. Our production lines are flexible enough to handle both prototype samples and large-scale volume orders.

How are the shipping costs calculated?

Costs are determined by the destination, total weight, and dimensions of the package. Contact us for a precise shipping quotation.

What additional technical services do you provide?

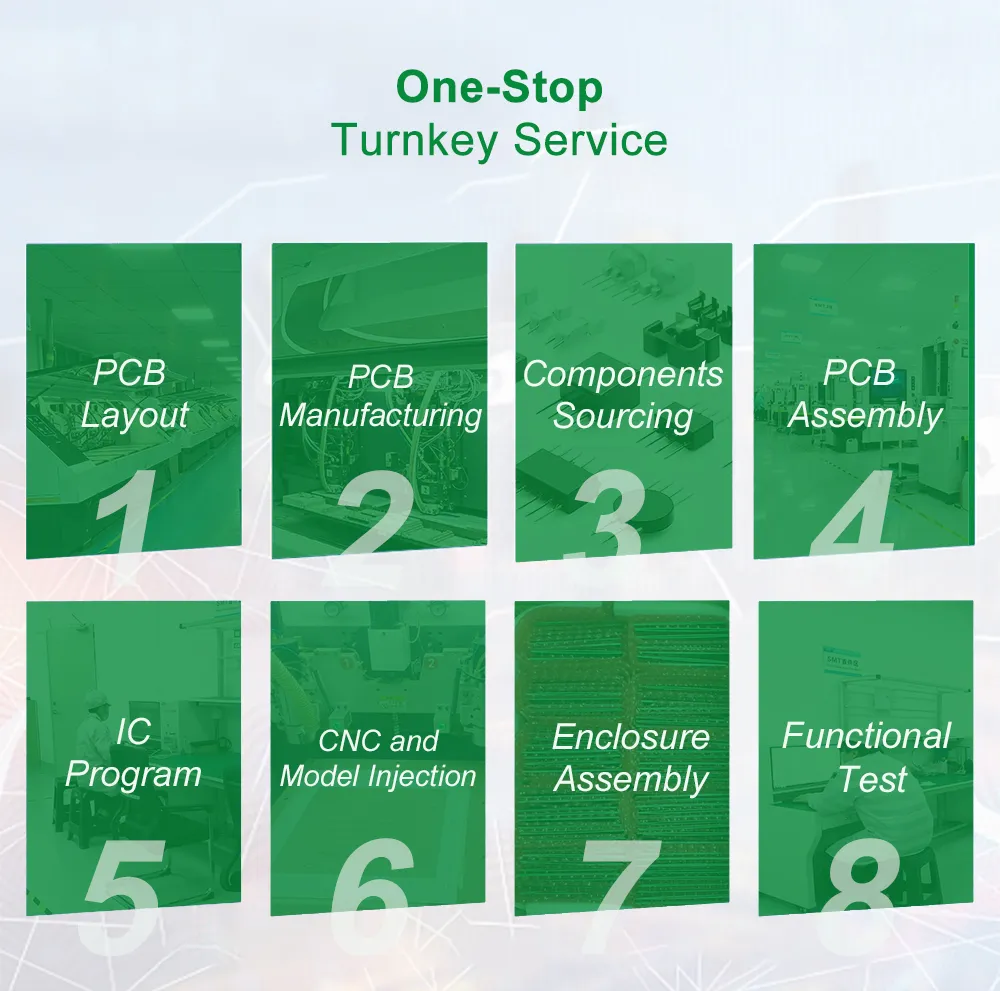

Beyond PCB assembly, we offer components sourcing, IC programming, functional testing, cable assembly, and full enclosure assembly.

What inspection methods do you use for quality control?

We utilize a comprehensive inspection suite including 100% AOI testing, X-ray analysis for BGAs, and microscope inspections up to 20X.
