All-in-One Energy Storage System for Enhanced Operational Efficiency and Renewable Integration

Customization: Available
Transport Package: Wooden Cases
Specification: IEC

Product Description

Basic Information
Model NO.
ROH-H-P20 Series
HS Code
8504
Production Capacity
50000 Sets/Year
Product Description

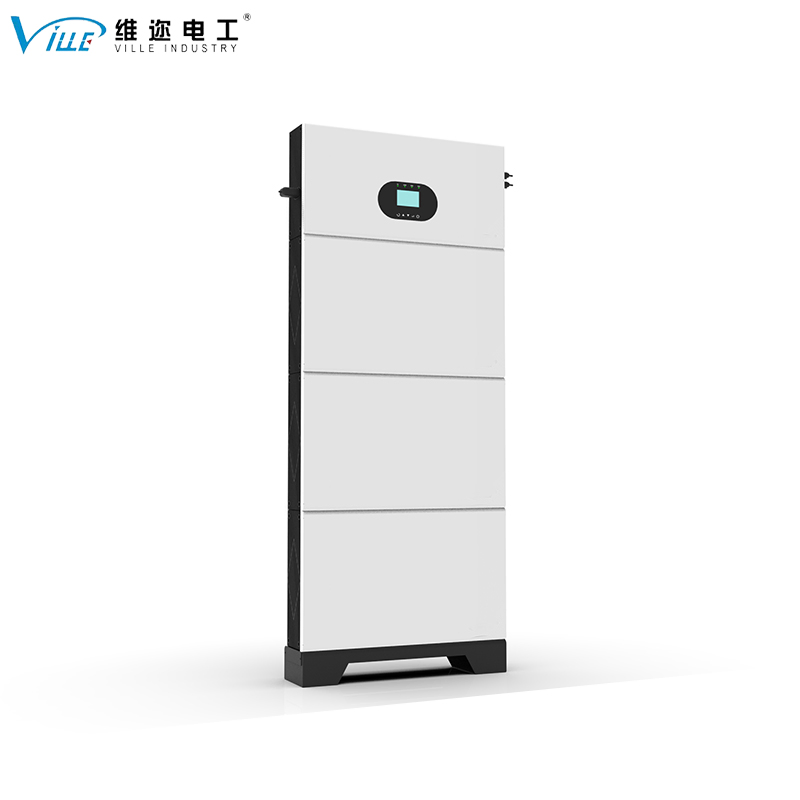

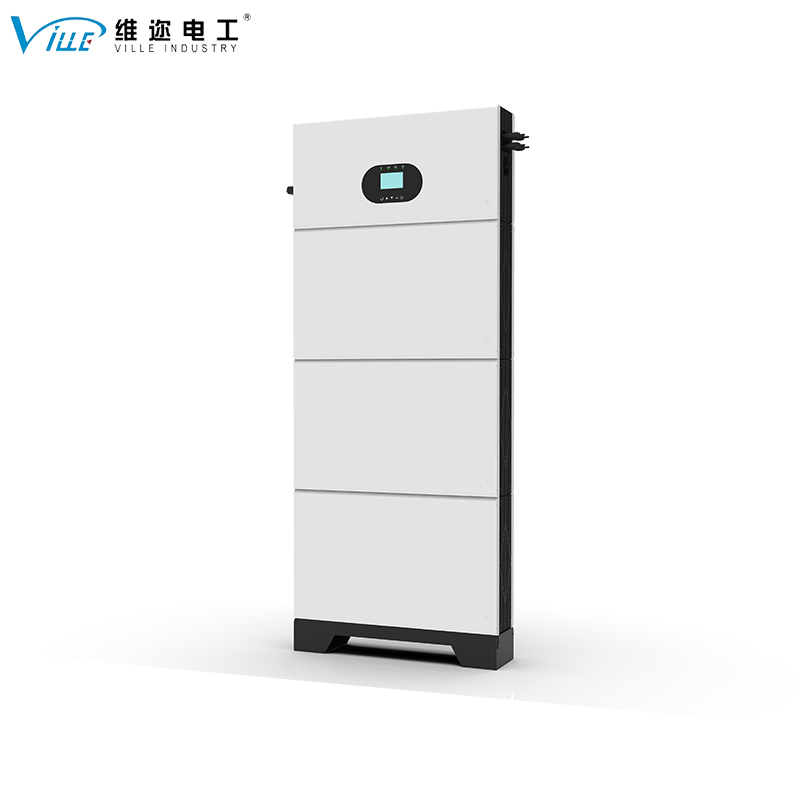

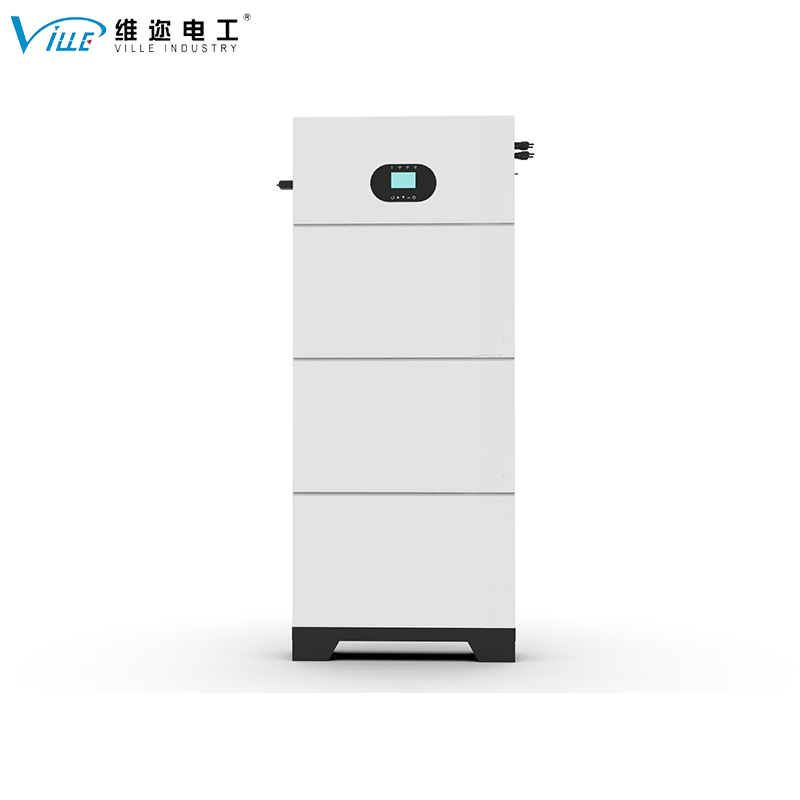

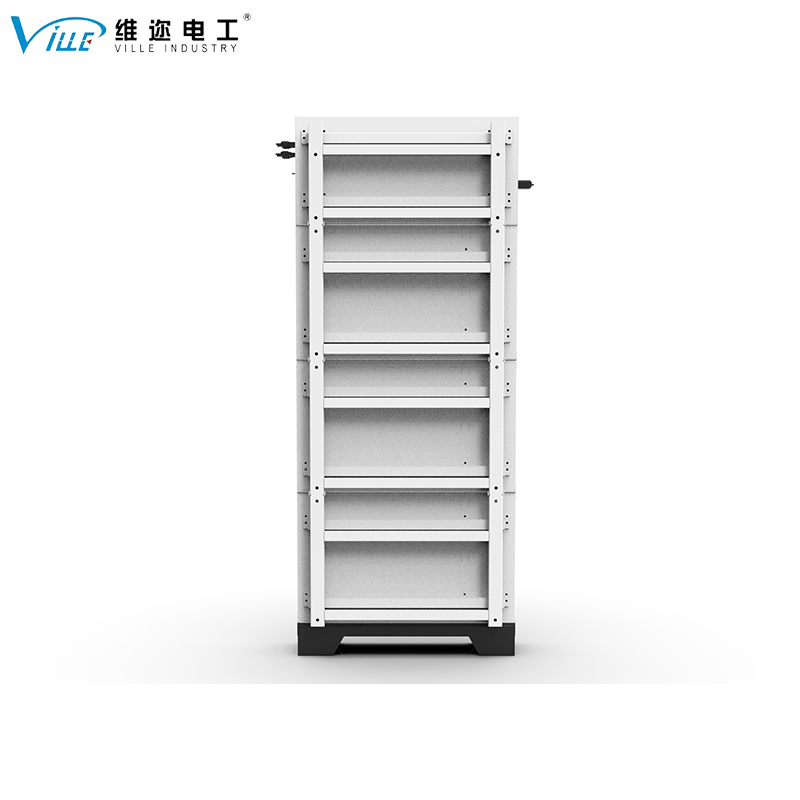

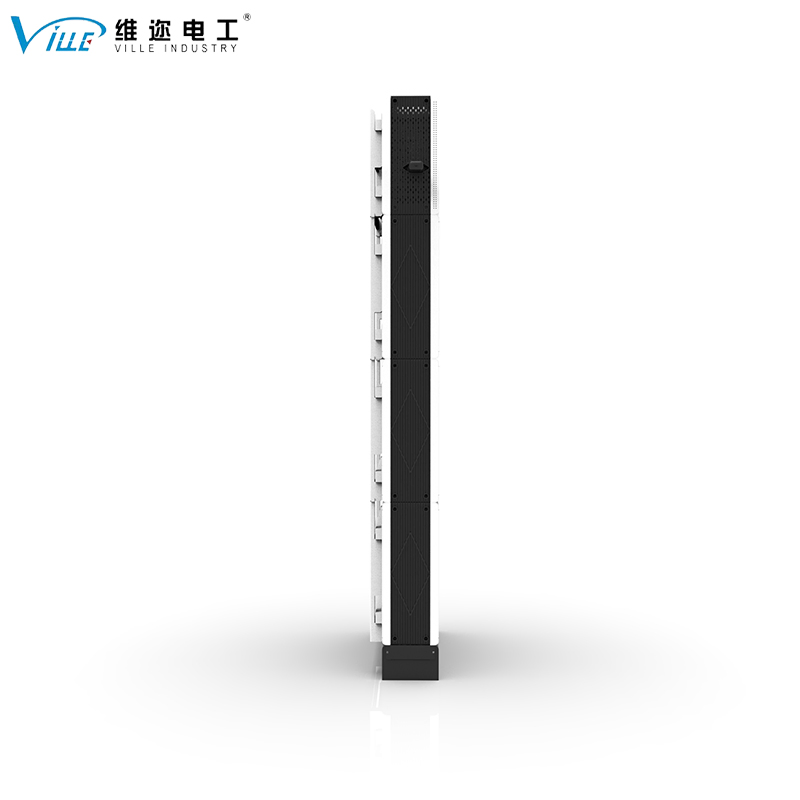

ROH-H-P20 Series All-in-one Energy Storage System: Discover cost-effective, robust solutions for enhanced operational efficiency and renewable integration.

Experience Advanced Energy Solutions with the ROH-H-P20 Series All-In-One Energy Storage System. This sophisticated system is designed to meet the demands of modern energy management, integrating high-durability lithium batteries with an off-grid inverter in a sleek, wall-mountable package. Capable of handling up to six lithium battery modules, each offering 5.12 kWh for a total of up to 30.72 kWh, the ROH-H-P20 ensures substantial power capacity for a variety of uses, from residential backup to off-grid applications.

The system's off-grid inverter host offers comprehensive energy solutions with its ability to manage inputs from the grid, oil generators, and solar panels while providing utility bypass and inverter output options. This allows for flexible and efficient use of available power sources, ensuring optimal energy utilization. The ROH-H-P20 features state-of-the-art DSP control technology for precise and stable operation, enhanced by MPPT technology that maximizes the efficiency of solar arrays under various conditions.

For user convenience, the unit supports extensive parallel operation capabilities, making it scalable for more extensive setups by linking multiple systems for either single-phase or three-phase output. Its user-friendly interface, complete with a large LCD screen, provides real-time system data and operational control, further simplified by remote management capabilities via Bluetooth or Wi-Fi.

Technical Parameters
Specification Item Details
Inverter Output Voltage 220V/230V
Inverter Rated Power 5500W
Charging Technology MPPT
Max PV Open Circuit Voltage 500V
Max PV Charging Current 100A
Battery Type Lithium (LFP)
Rated Battery Voltage 51.2VDC
Energy Capacity 5.12kWh - 30.72kWh
Model Parameter 05X1P20 10X2P20 15X3P20 20X4P20 30X6P20
Battery Packs 1 2 3 4 6
Energy Capacity 5.12KWH 10.24KWH 15.36KWH 20.48KWH 30.72KWH
Total Net Weight 74.4kg 122.8kg 171.2kg 219.6kg 316.4kg
Height (mm) 833 1236 1639 2042 2848
Product Gallery
Energy Storage System Overview
Inverter host detail
System Installation
Our Advantages
  • Quality Assurance: Quality ensures every step to achieve the best durability and reliability.
  • Experience Sharing: Optimized solutions backed by more than 30 years' experience in the power industry.
  • Global Service: Comprehensive global network support to provide value wherever you are.
  • Quick Response: Immediate response to your technical and commercial needs.
Frequently Asked Questions
What is the typical delivery time for the energy storage system?
The delivery time depends on the specific configuration and model type of the system required.
What are the available payment terms?
Standard terms are 30% advance via T/T, with the remaining 70% before delivery via T/T or L/C. Other options can be discussed.
Which international standards do your products follow?
Our systems follow major international standards including IEC, ANSI, CSA, and GB.
What kind of supporting documentation is provided?
We provide comprehensive documentation including outline drawings, manufacturing plans, quality control plans, and test reports.
What is the standard warranty period for the system?
The normal warranty period is 12 months after the system begins operation.
Can you provide on-site installation and commissioning?
Yes, professional installation teams can be sent to the user's location for setup, commissioning, and training services.
