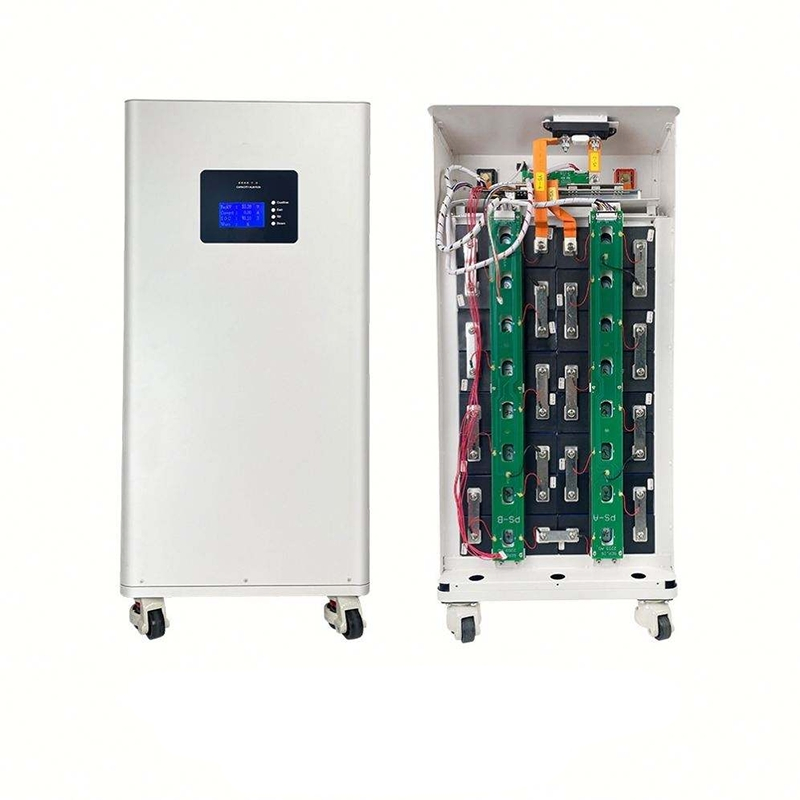

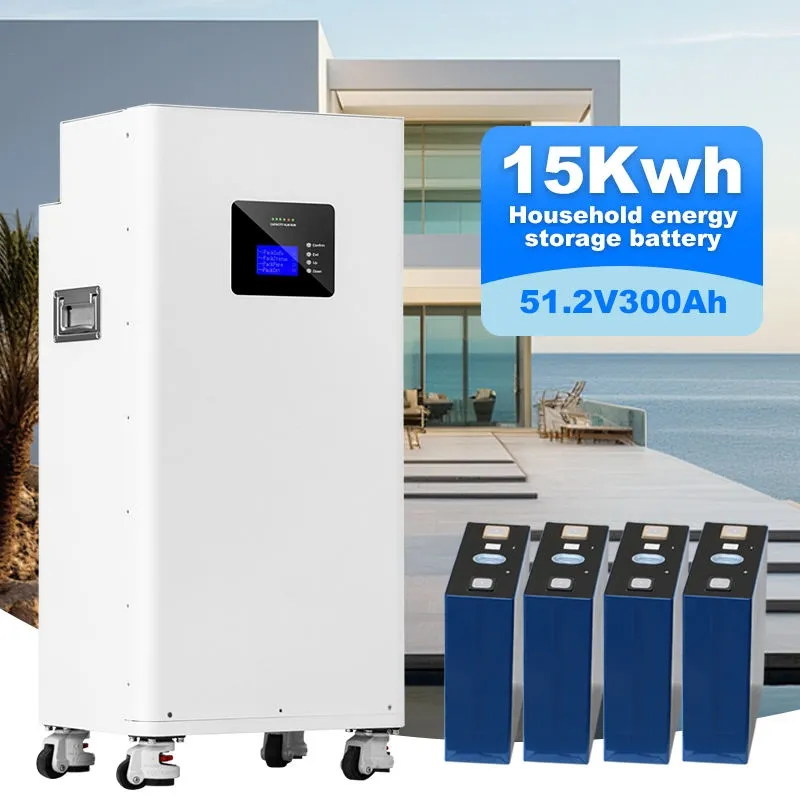

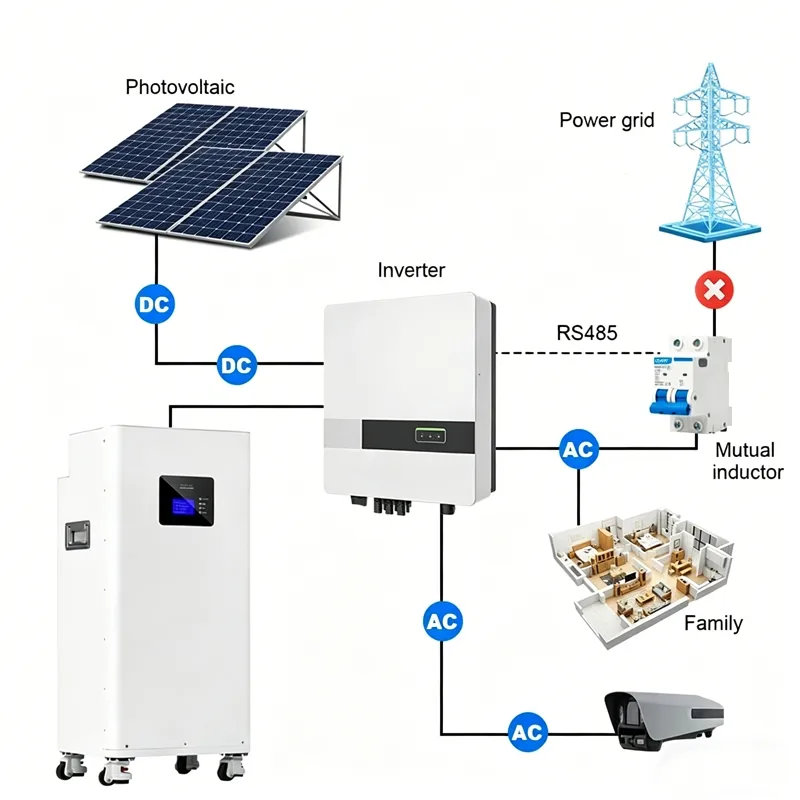

This battery pack System is applicable both for residential and commercial energy storage system, which is assembled with 3.2 V 300Ah lithium iron phosphate cell in 1P16S configuration, and intelligent BMS form 51.2V 300Ah lithium battery system.
| Items | Specifications |
|---|---|
| Rated energy(kWh) | 15.36KWh |
| Configuration | 1P16S |
| Nominal Voltage(V) | 51.2V |
| Working Voltage(V) | 42V~58.4V |
| Nominal Capacity(Ah) | 300Ah |
| Rated charge/discharge Current(A) | 100A/200A@25± 2 ℃ |
| Maximum charging current | 200A@25±2℃ |
| Maximum discharge current | 200A @25±2℃ |
| Working Temperature | 0~40℃(Charge) - 20~40℃(Discharge) |
| Storage temperature and humidity | -10℃~35℃ (Within one month) / 25±2℃ (Within three months) / 65%±20%RH |
| Altitude Limited(m) | 0-3000m |
| Weight(kg) | 113Kg±3kg |

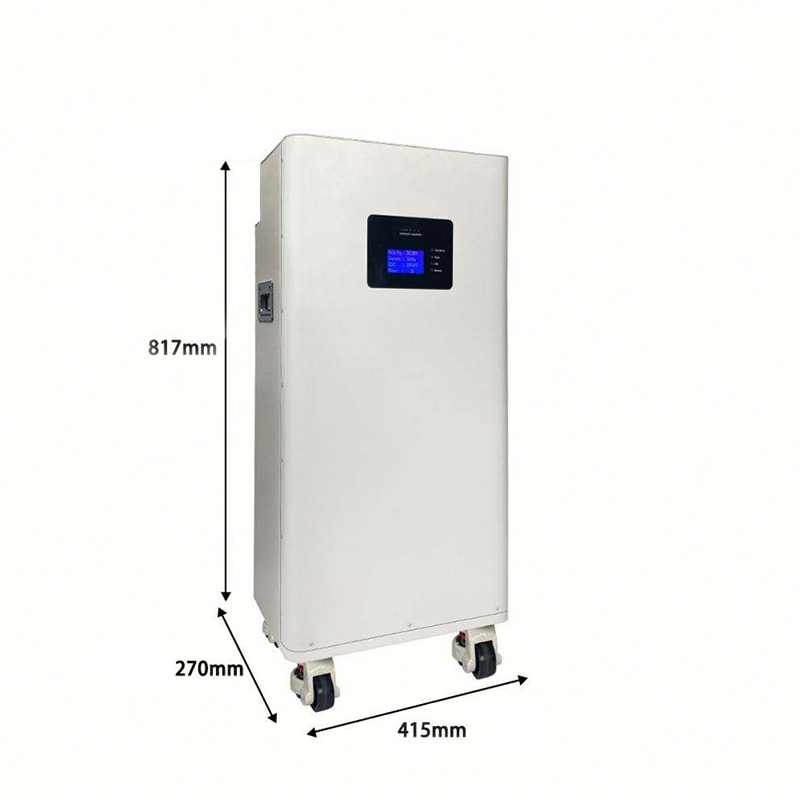

| Dimension(mm) | 817×412×267 mm |
| Cycle life | 6000 cycles @25℃, 50A charge/discharge, 80% DOD |
| IP grade | IP20 |

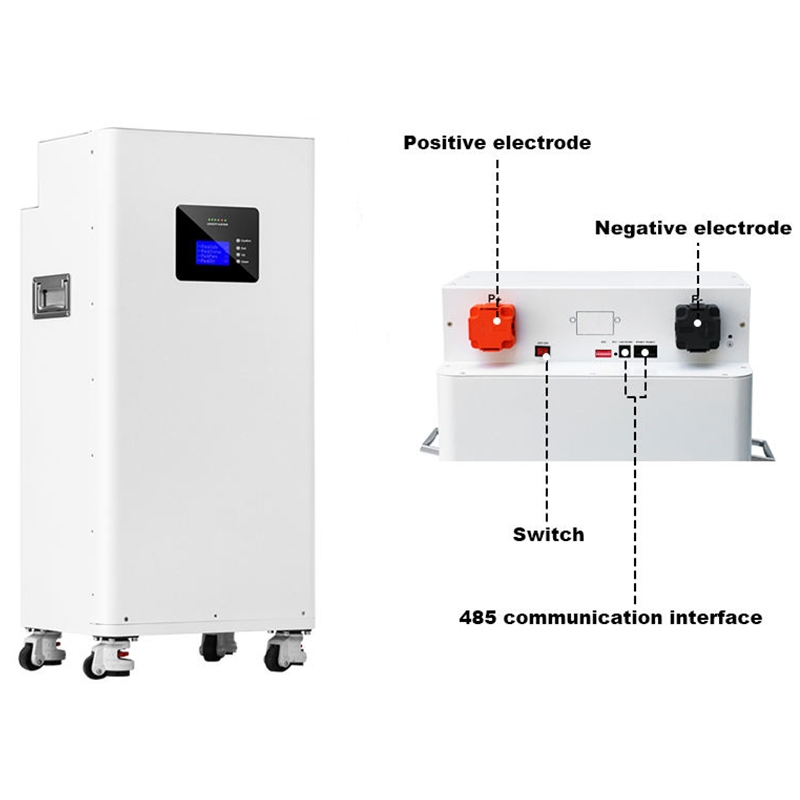

| Communication mode | CAN & RS485 |
| Humidity(%) | 5~95% |
