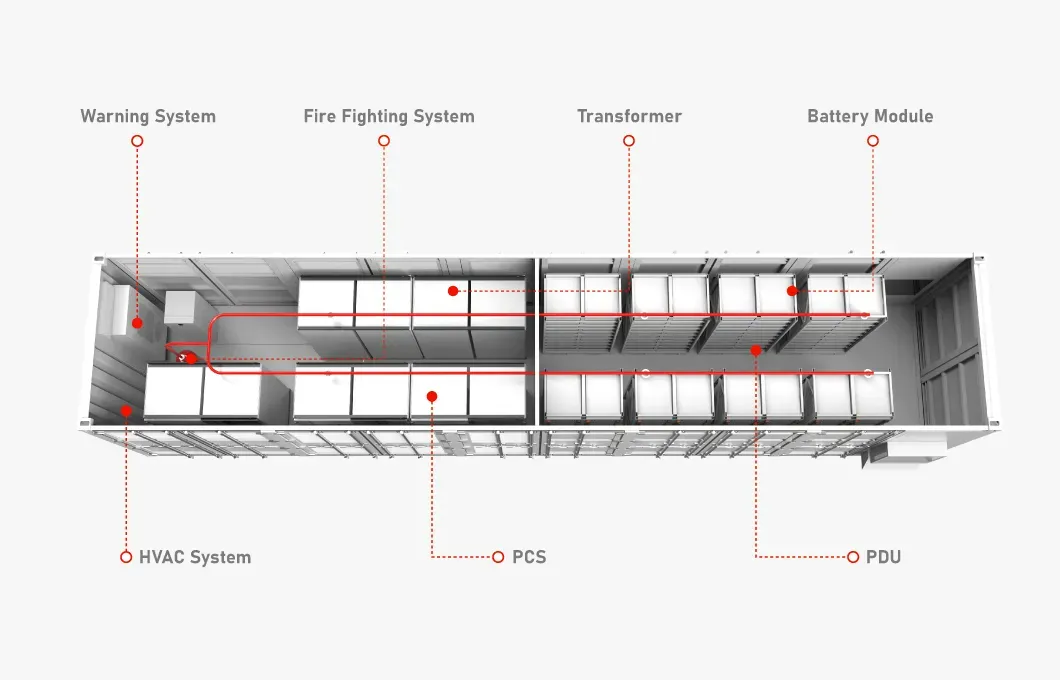

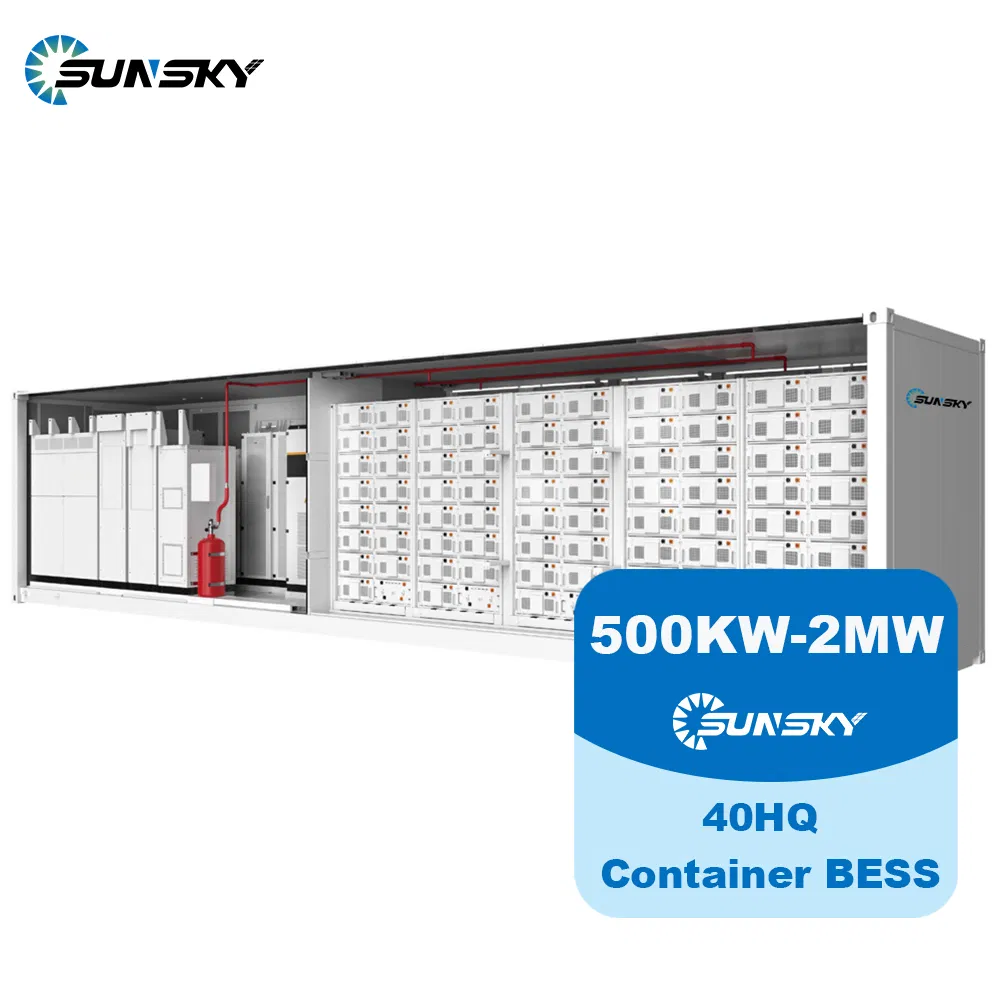

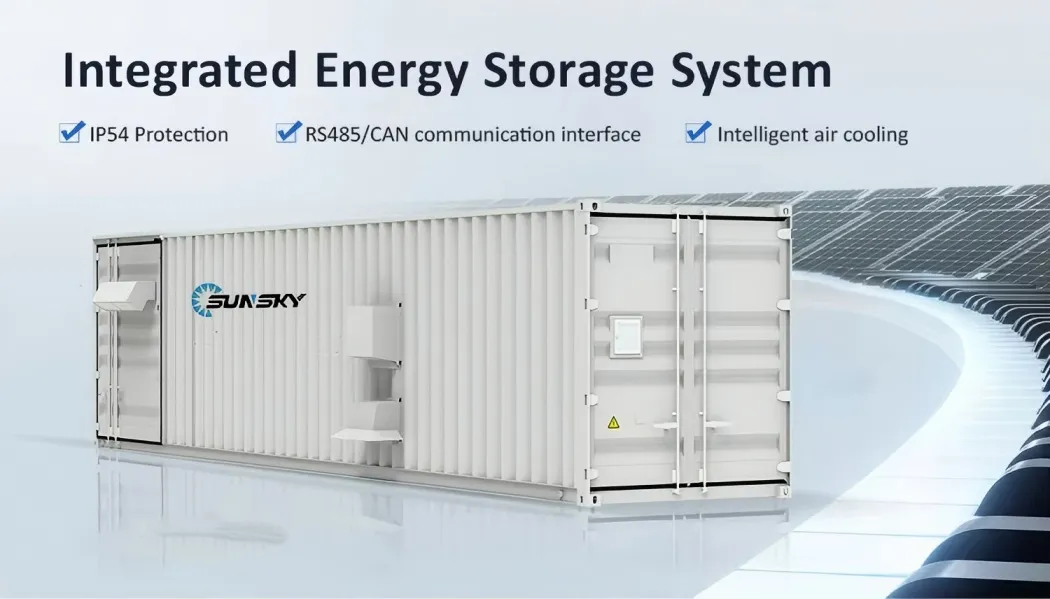

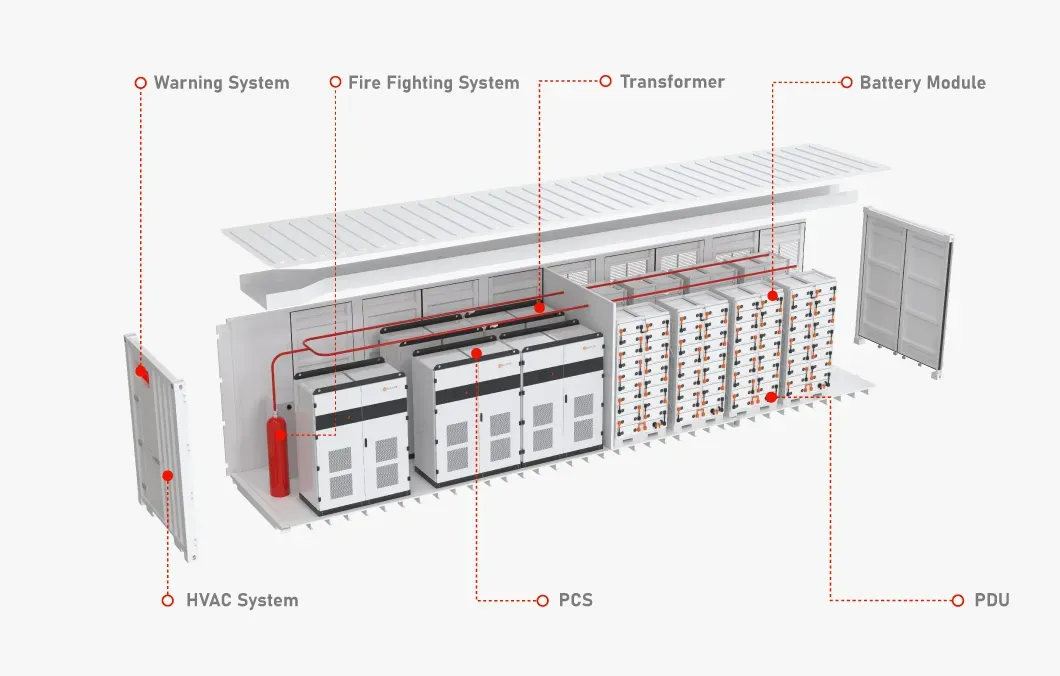

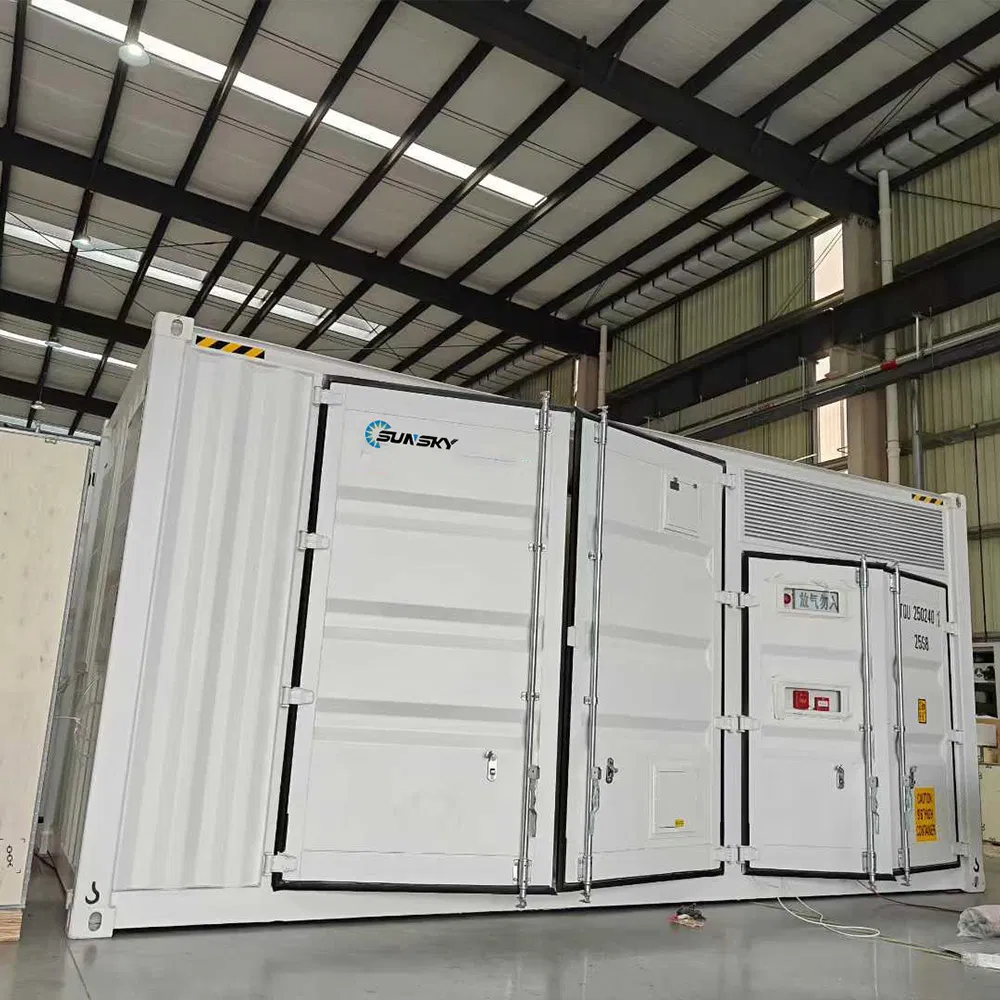

The 20-ft and 40HQ liquid-cooled ESS container integrates PACK, EMS, BMS, HVAC, and fire safety system into one cabinet. Compared with air cooling, liquid cooling empowers the ESS product with higher power density and ensures the temperature difference between the cells within 3 ºC, which effectively extends battery service life and improves energy efficiency. This system is applicable to the power generation side, grid side, as well as C&I ESS scenarios.
| Specifications | 20FT - 0.5MW/1MWh | 40FT - 1MW/2MWh |
|---|---|---|
| Cell type | 3.2V/280Ah/LFP | |
| Cell brand | HIGEE/EVE/REPT/CORNEX | |
| Life cycle | >8,000 cycles @0.5C, 25°C | |
| Total Rated Energy | 1003.52kWh | 2007.04kWh |
| Rated voltage | 627.2V | |
| Rated AC power | 1*500kW | 2*500kW |
| Dimension (L*W*H) | 6058*2591*2438mm | 12116*2438*2896mm |
| Operating Temp | -20~65°C | |
| Fire Extinguisher | HFC bottle group | |
1. Multiple working modes can be flexibly set.
2. Support battery management system and comprehensive thermal management.
3. Support real-time online monitoring of system status.
4. Support simultaneous access to load, battery, grid, DG, and PV.
5. Separated electrical and battery compartments to prevent thermal runaway spread.
6. Integrated design, easy to transport, install, and deploy.

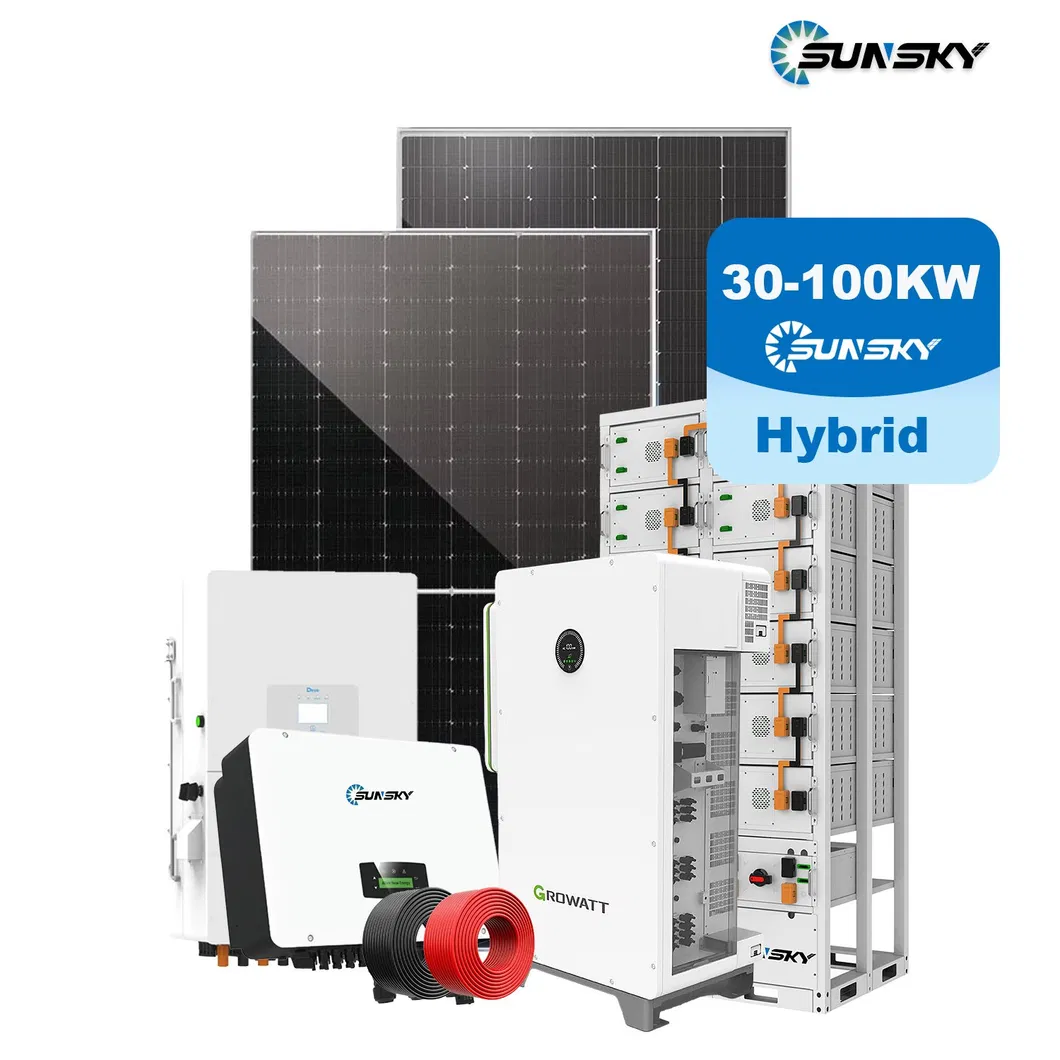

High efficiency up to 22.84%. Complies with European standard IEC61215 and IEC61730. Features SMBB + Half-cell tech to reduce internal current loss and improve module reliability. Lower temperature coefficient (-0.29%/ºC).

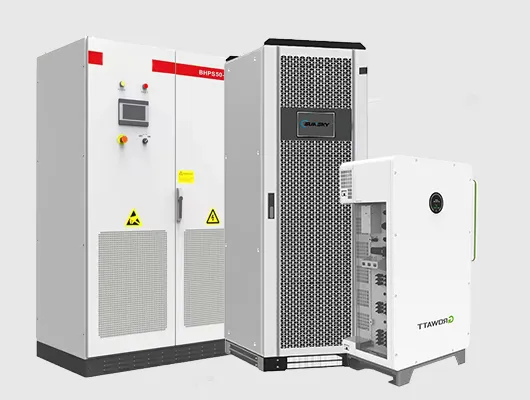

Intelligent IC control with multiple protection functions. Pure sine wave output, Alumimum alloy shell, and 10 Years Warranty. Supports smart monitoring and management.

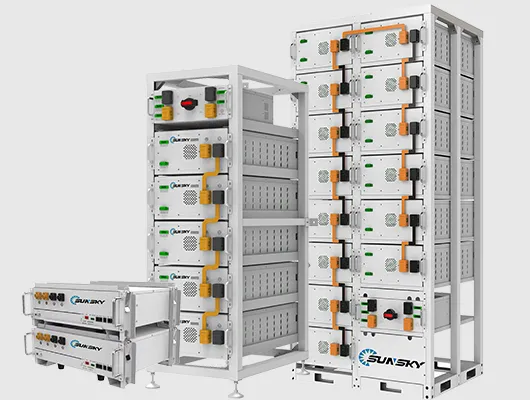

Standard battery modules consisting of 16 units of 3.2V single cells. Nominal voltage 51.2V. Capacity customizable from kWh to MWh/GWh scales depending on project requirements.
