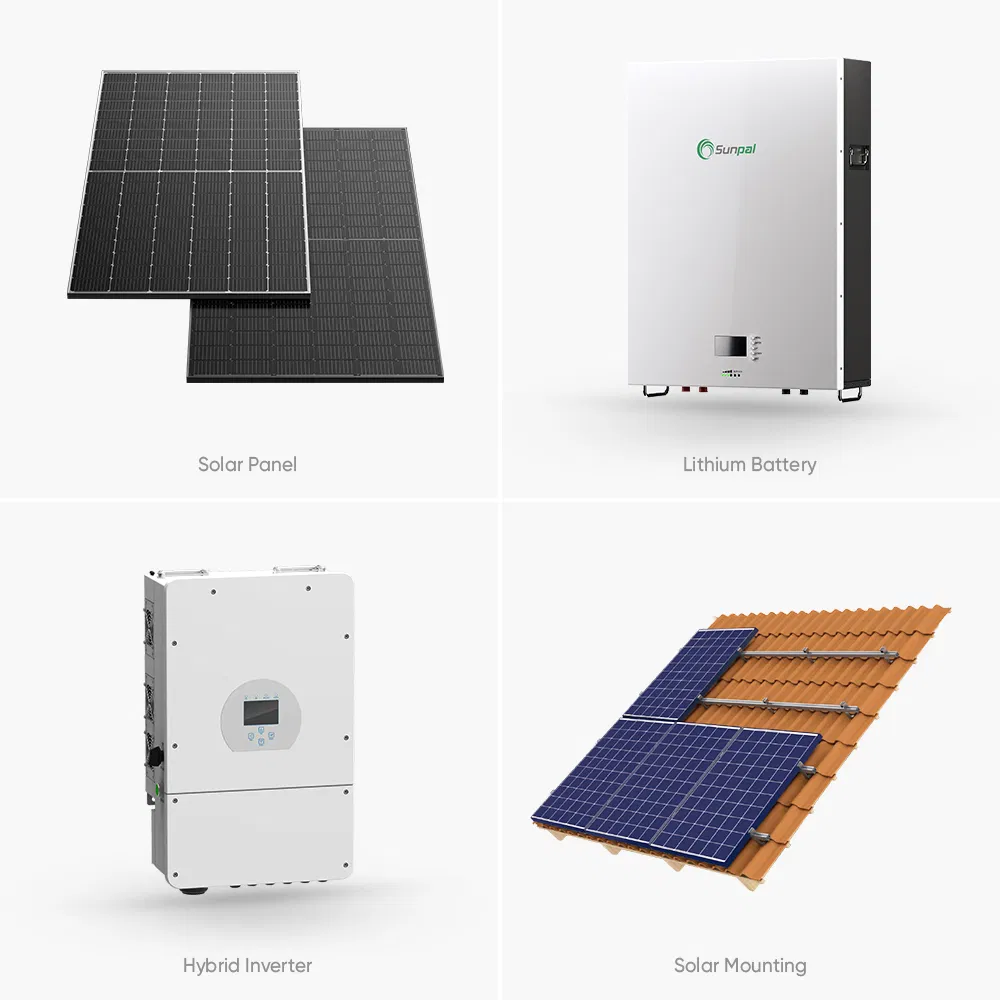

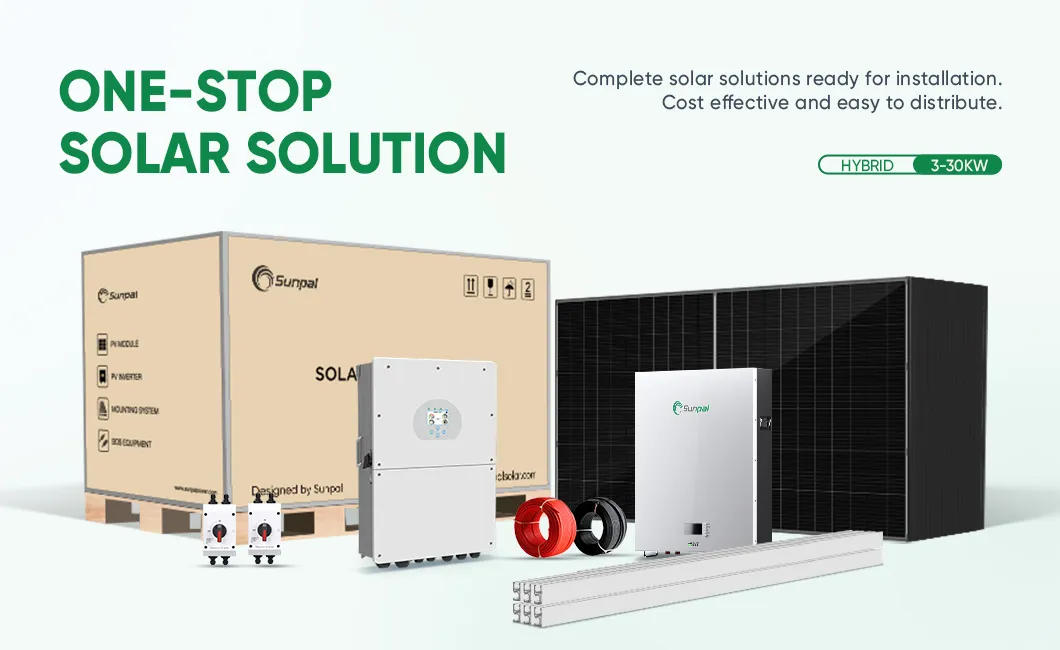

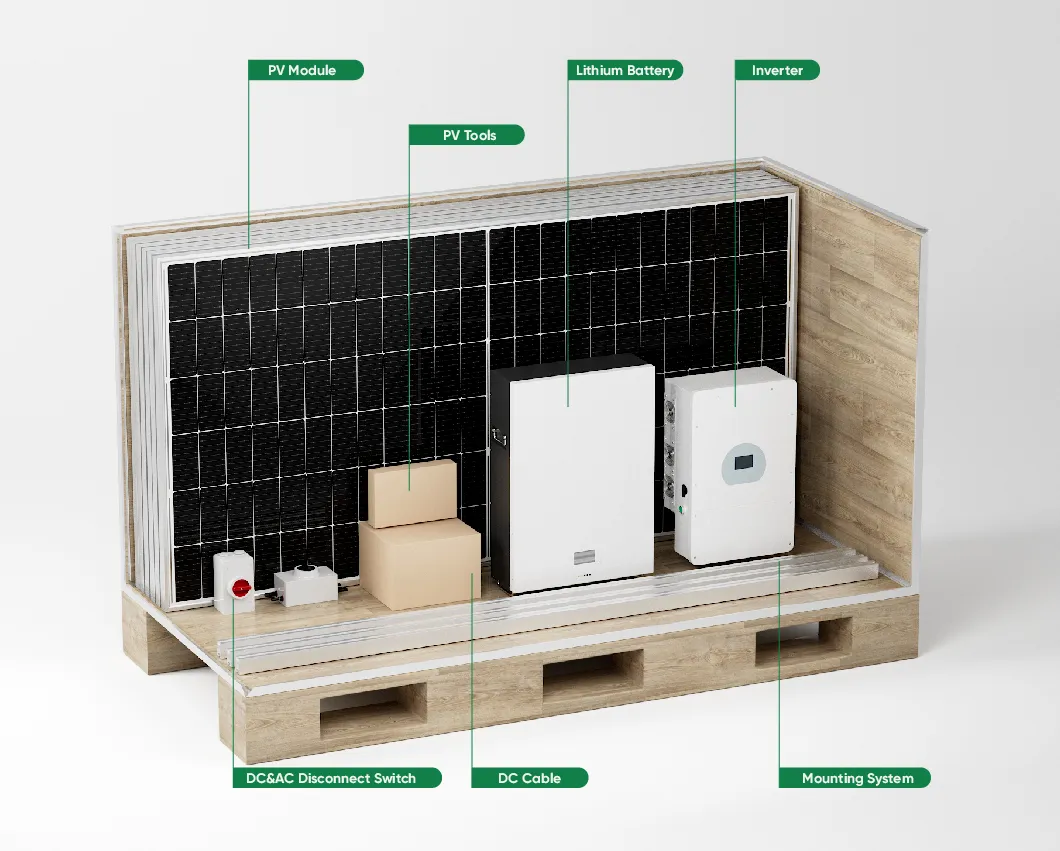

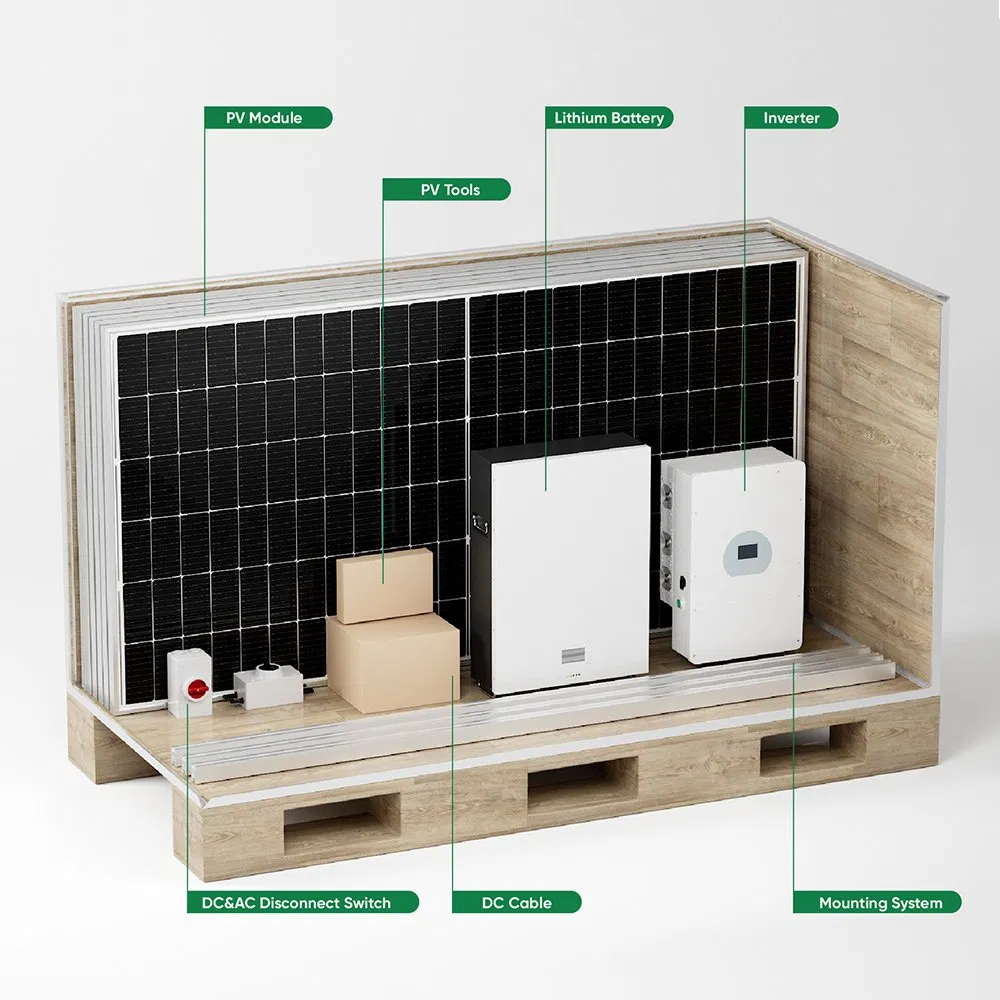

| Model | 3KW-HY | 5KW-HY | 10KW-HY |
|---|---|---|---|
| 550W Solar Panel | 6 Pieces | 10 Pieces | 2 Pieces |
| DC Disconnect | 1 Piece | 2 Piece | 3 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |
| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| AC Disconnect | 1 Piece | 1 Piece | 1 Piece |
| MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| Model | 15KW-HY | 20KW-HY | 30KW-HY |
|---|---|---|---|
| 550W Solar Panel | 30 Pieces | 420 Pieces | 63 Pieces |
| DC Disconnect | 4 Piece | 6 Piece | 9 Pieces |
| Hybrid Inverter | 3 Pieces (5K) | 2 Pieces (10K) | 3 Pieces (10K) |
| LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V | Current: 12.84A
Open Circuit Voltage: 49.75V | Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

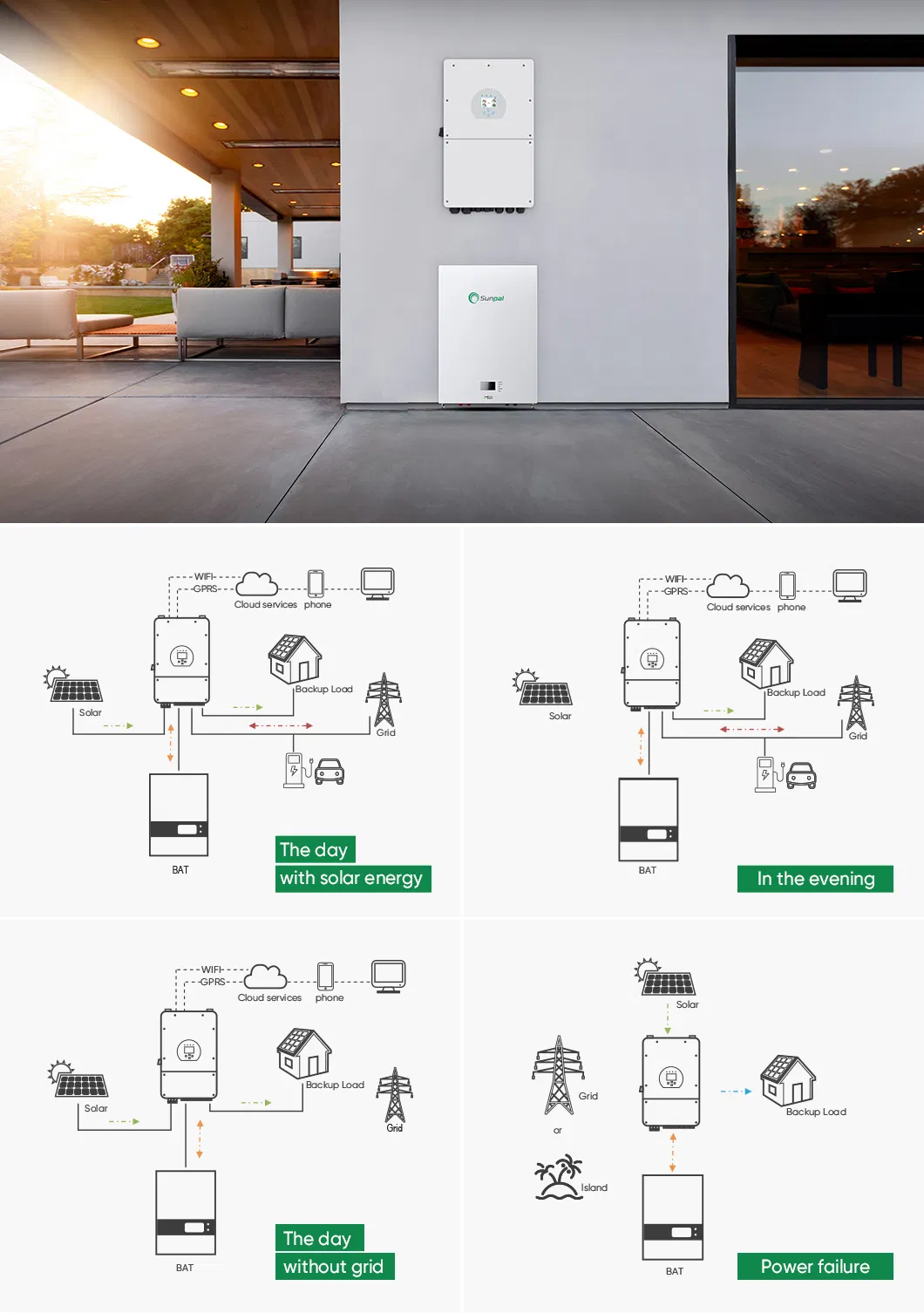

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max. charging/discharging current of 240A. Supports max 10pcs parallel. DC/AC couple to retrofit existing solar systems.
One-click installation and registration. Safe operation with traceable logs. Supports full lifecycle data storage to ensure data security and reliability.
15-20 years design life with 6000+ cycles. Scalable modular design with high-quality built-in BMS. Lithium iron phosphate technology for maximum home safety.

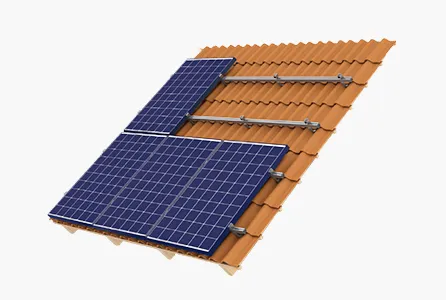

Mounting Rail & Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps (35-50mm). Options for L-Foot Asphalt Shingle, Hanger Bolts, and Ground Clips.
IP Rating: IP66 for outdoor durability. Rated Voltage: 1000VDC. Connection Type: M20, M25, MC4. Rated Current: 16A, 20A.

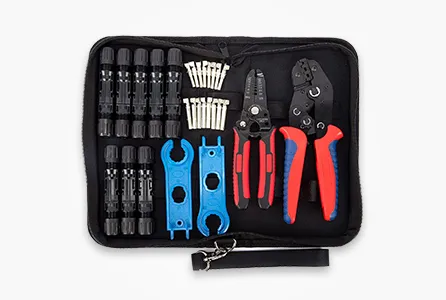

Comprehensive kit including Wire Cable Cutter & Stripper, MC3/MC4 Crimper, and Connector Assembly/Disassembly Tools.

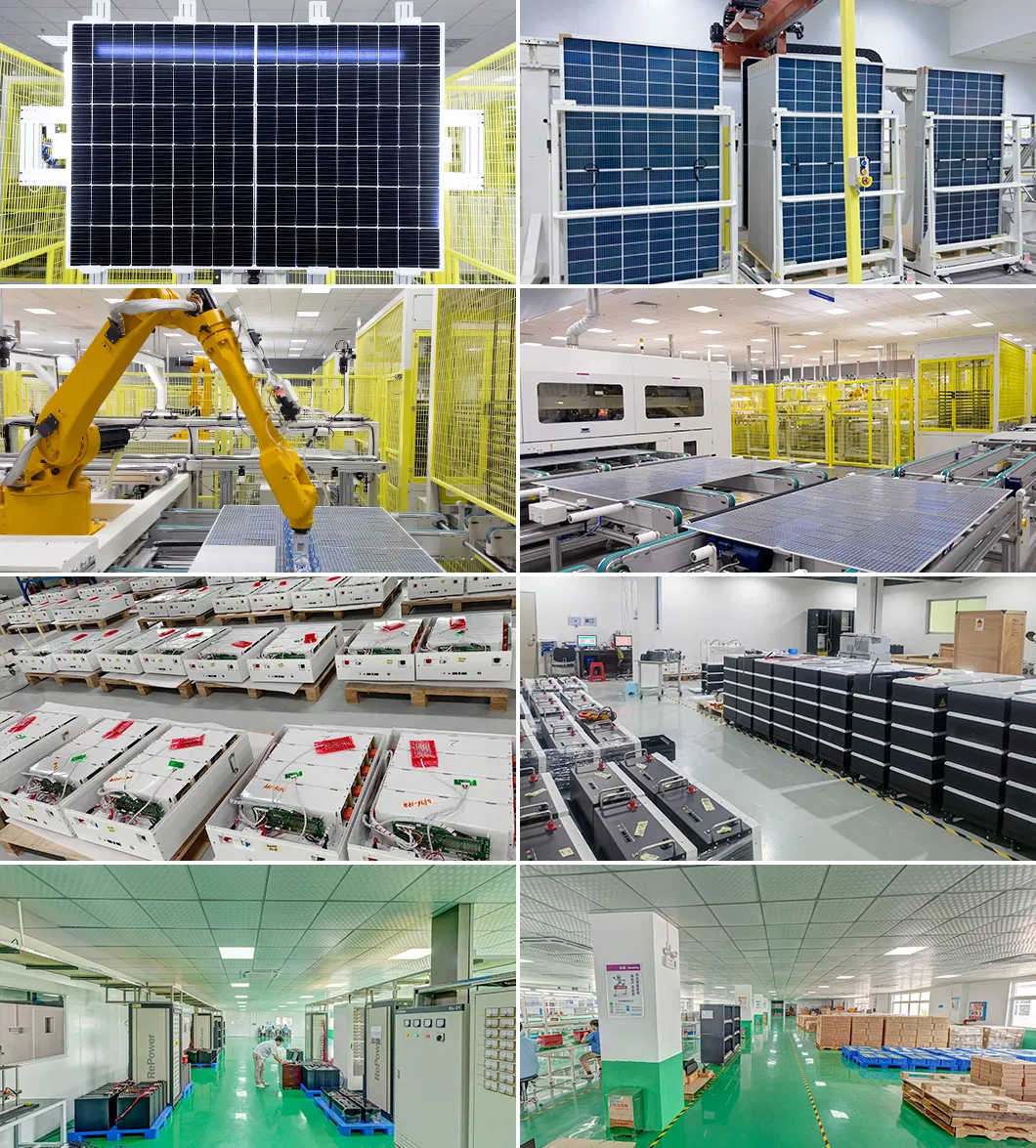

Specializing in the research, development, production, and sales of solar PV products. Focused on innovative solar panel technology since 1998, with products exported to 86 countries. The facility covers 150,000 square meters with over 600 experienced employees.
