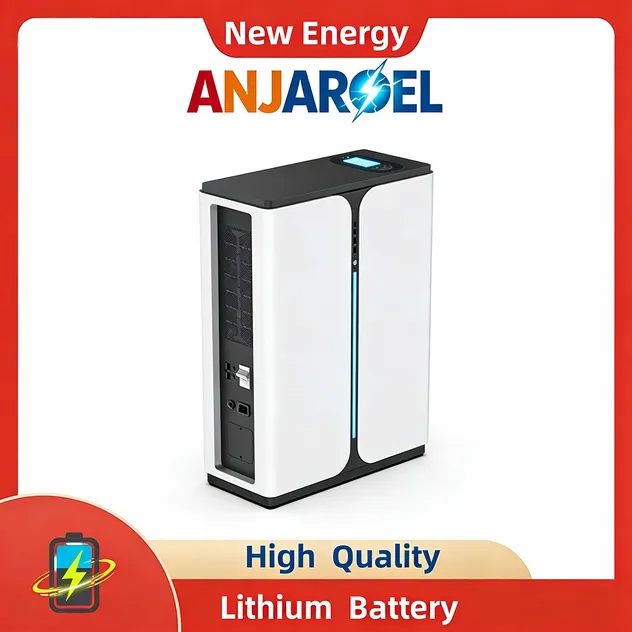

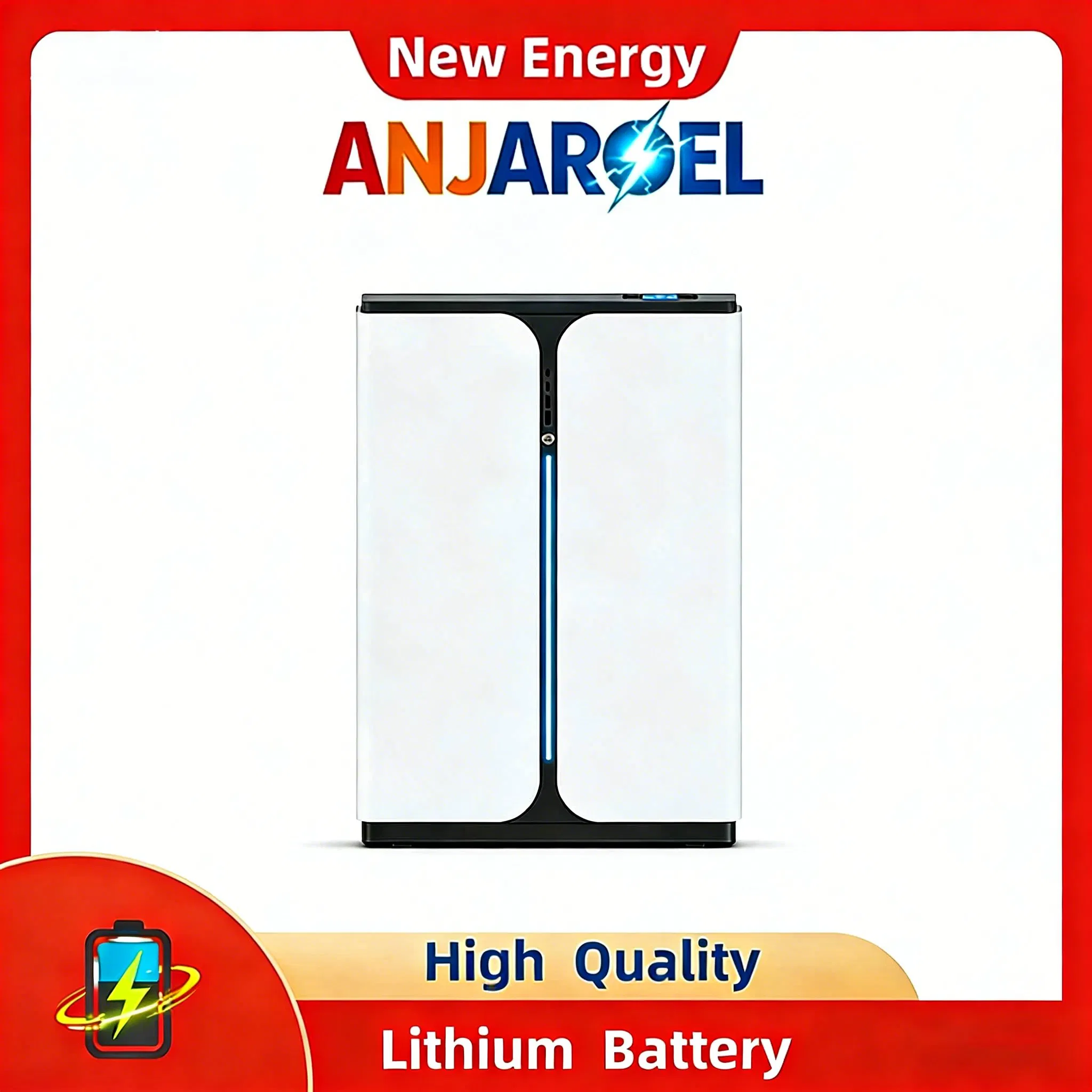

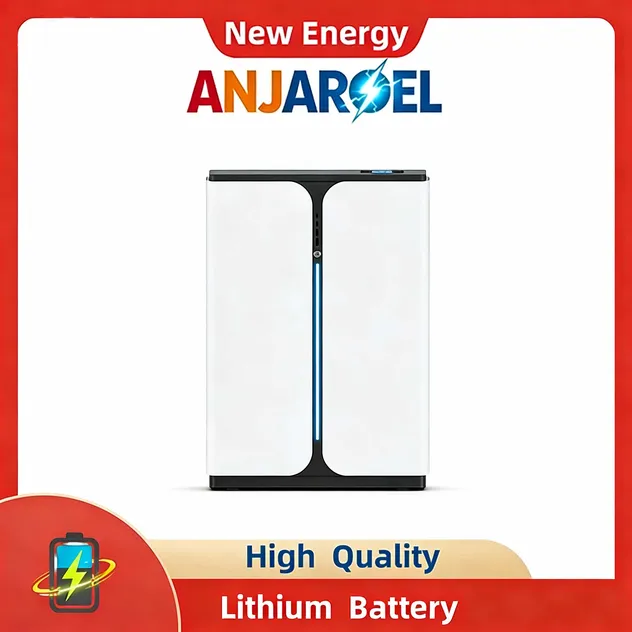

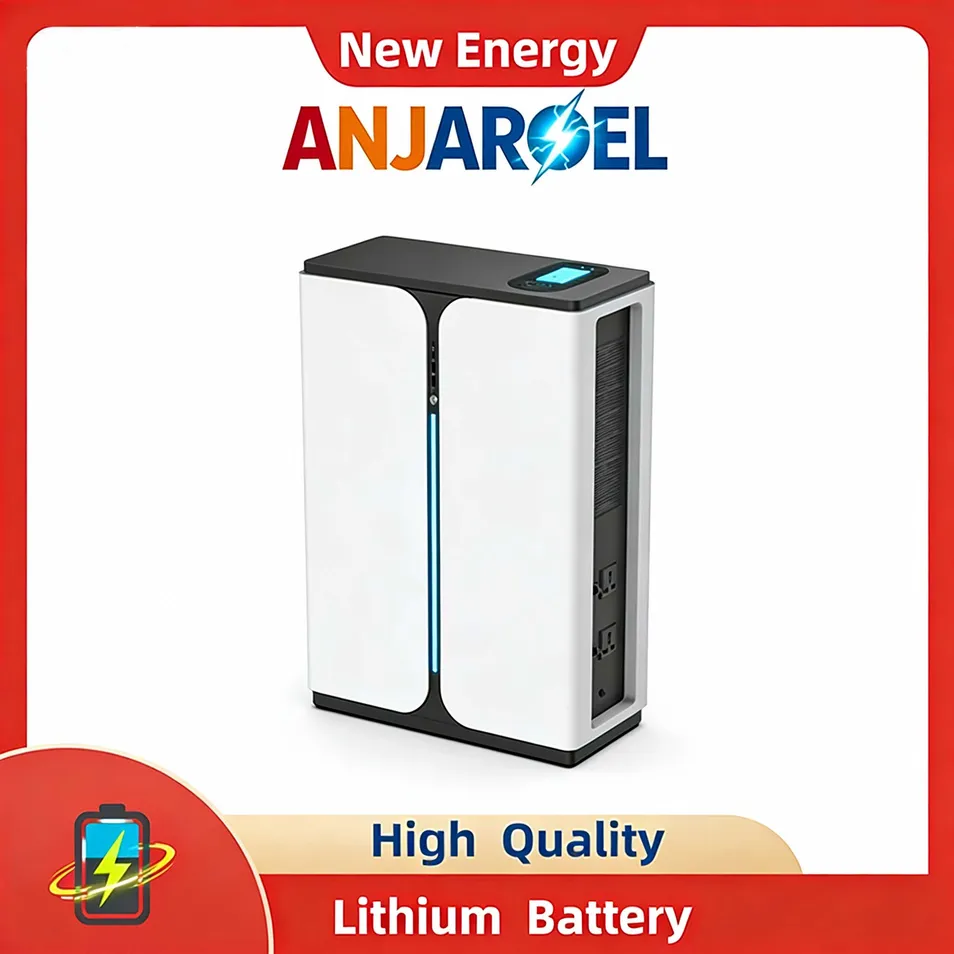

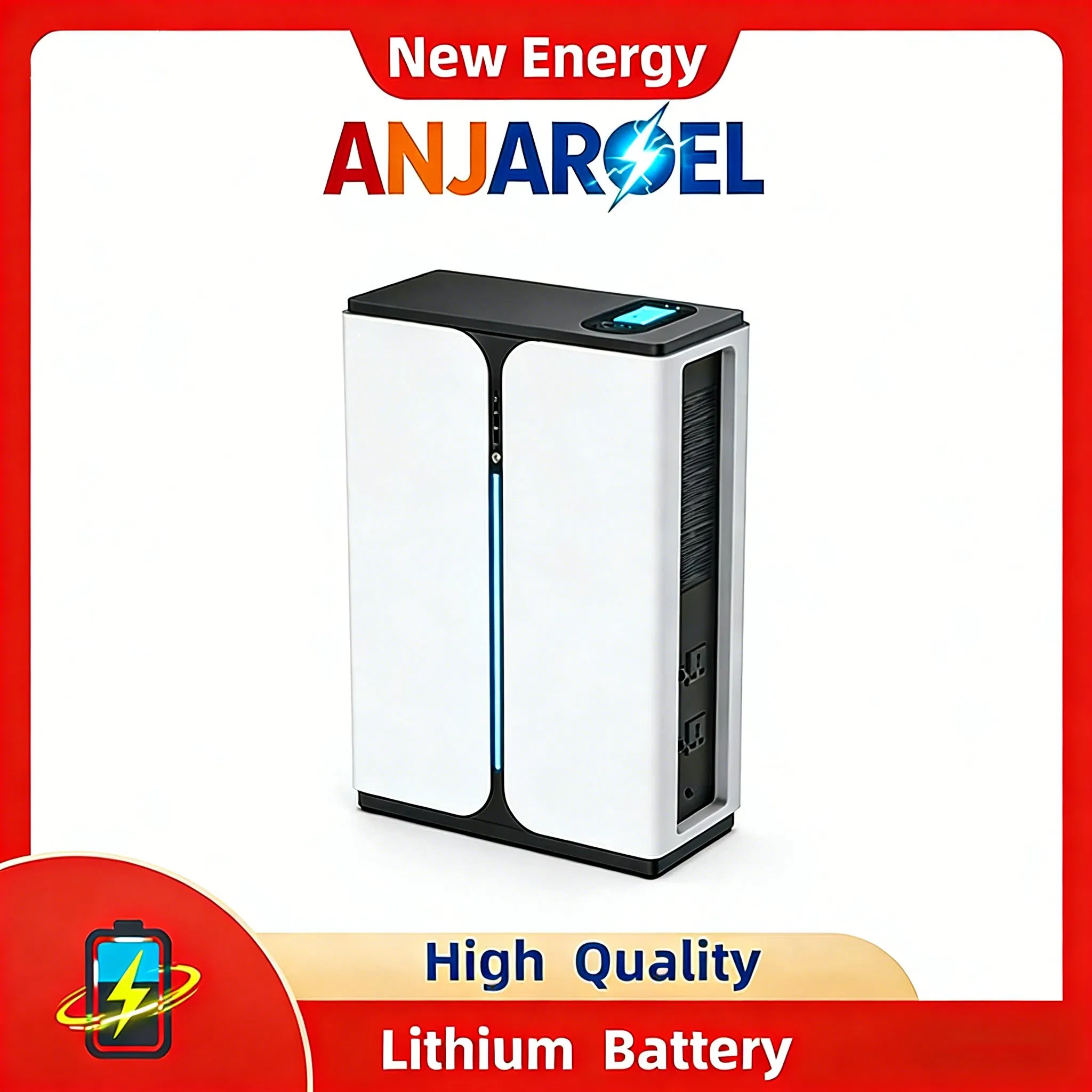

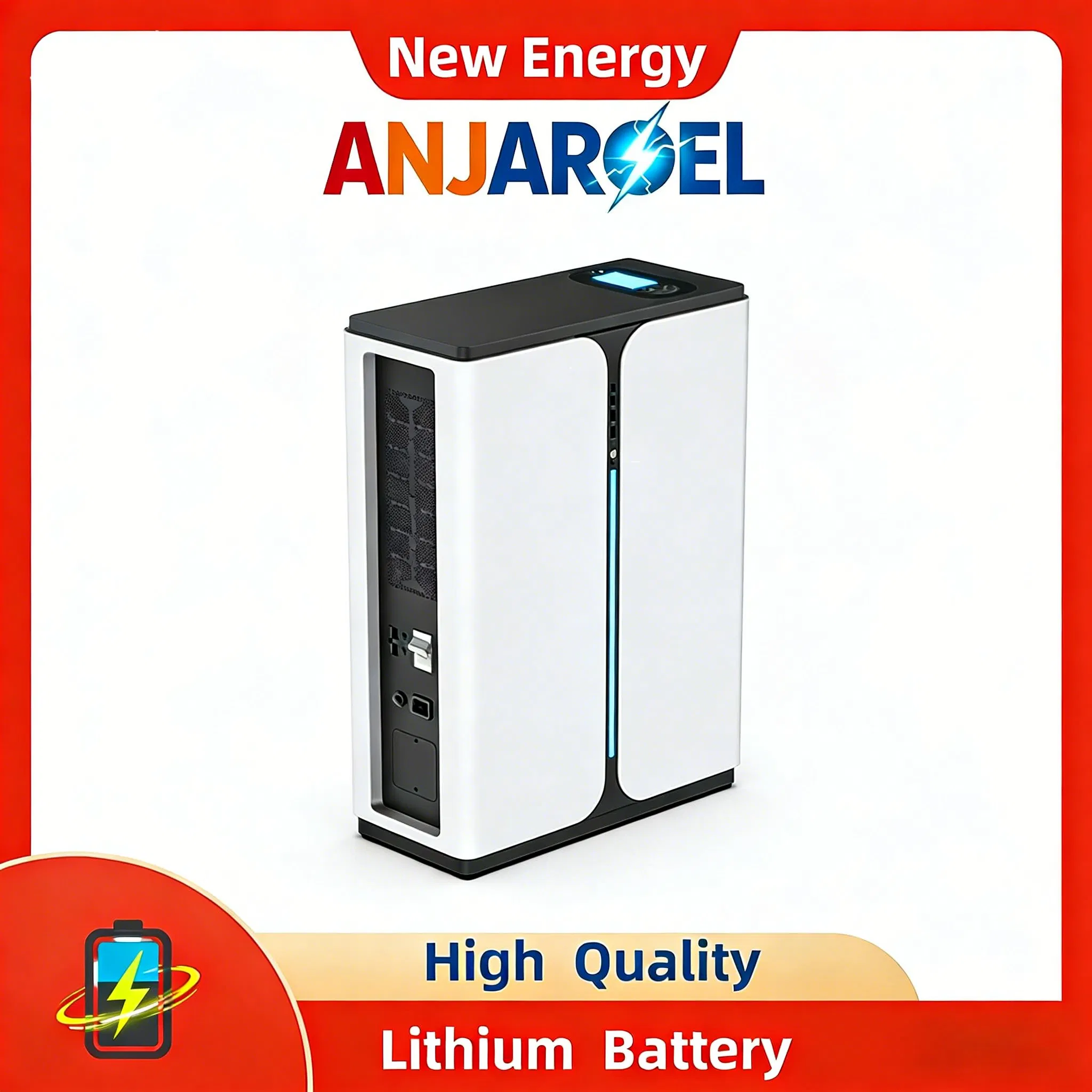

The all-in-one home energy storage system is a plug-and-play residential energy storage solution integrating lithium iron phosphate batteries, bidirectional inverters, and an intelligent BMS management system.
Featuring a vertical integrated design, it requires no complex installation and can be used simply by plugging in. Supporting dual charging from the grid and solar energy, it provides households with stable backup power, peak-valley arbitrage, and off-grid power supply services.
High-performance LiFePO4 cells engineered for deep cycling and long lifespan, ensuring predictable performance and low lifecycle cost.
Hot-swappable modules allow seamless capacity expansion without system downtime or complex on-site reconfiguration.
Robust IP65-rated enclosure with rugged mechanical design supports indoor or sheltered outdoor installation in varied climates.
Integrated BMS with RS232, RS485 communication provides real-time monitoring, cell balancing, and layered safety protections.
| Parameter | Detail |
|---|---|
| Single Module Capacity | 100 Ah |
| Total Capacity | 5.12 kWh |
| Battery Type | LiFePO4 (LFP) |
| Standard Voltage | 51.2 V |
| Working Voltage Range | 43.2 – 57.6 V |
| Standard Charge/Discharge Current | 100 A |
| Suggested DoD | 80% |
| Operating Temperature | -10℃ ~ +50℃ |
| Management System | Integrated BMS |
| Cycle Life | > 6,000 Cycles |
| Dimensions | L480*W279*H872mm |
| Gross Weight | 75.000kg |

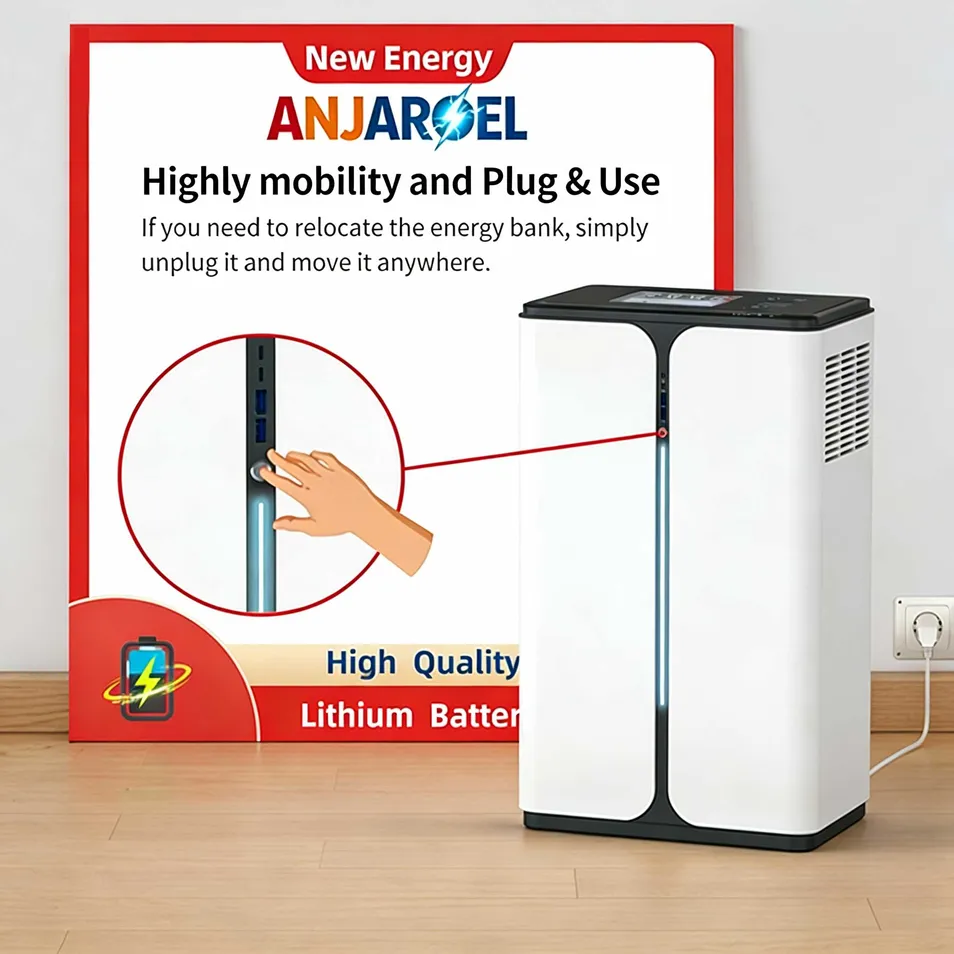

No professional installation required; simply plug in to use, relocate at any time, adapting to flexible power supply needs. Hot-swap capability and uniform electrical connections enable fast service without lengthy outages.

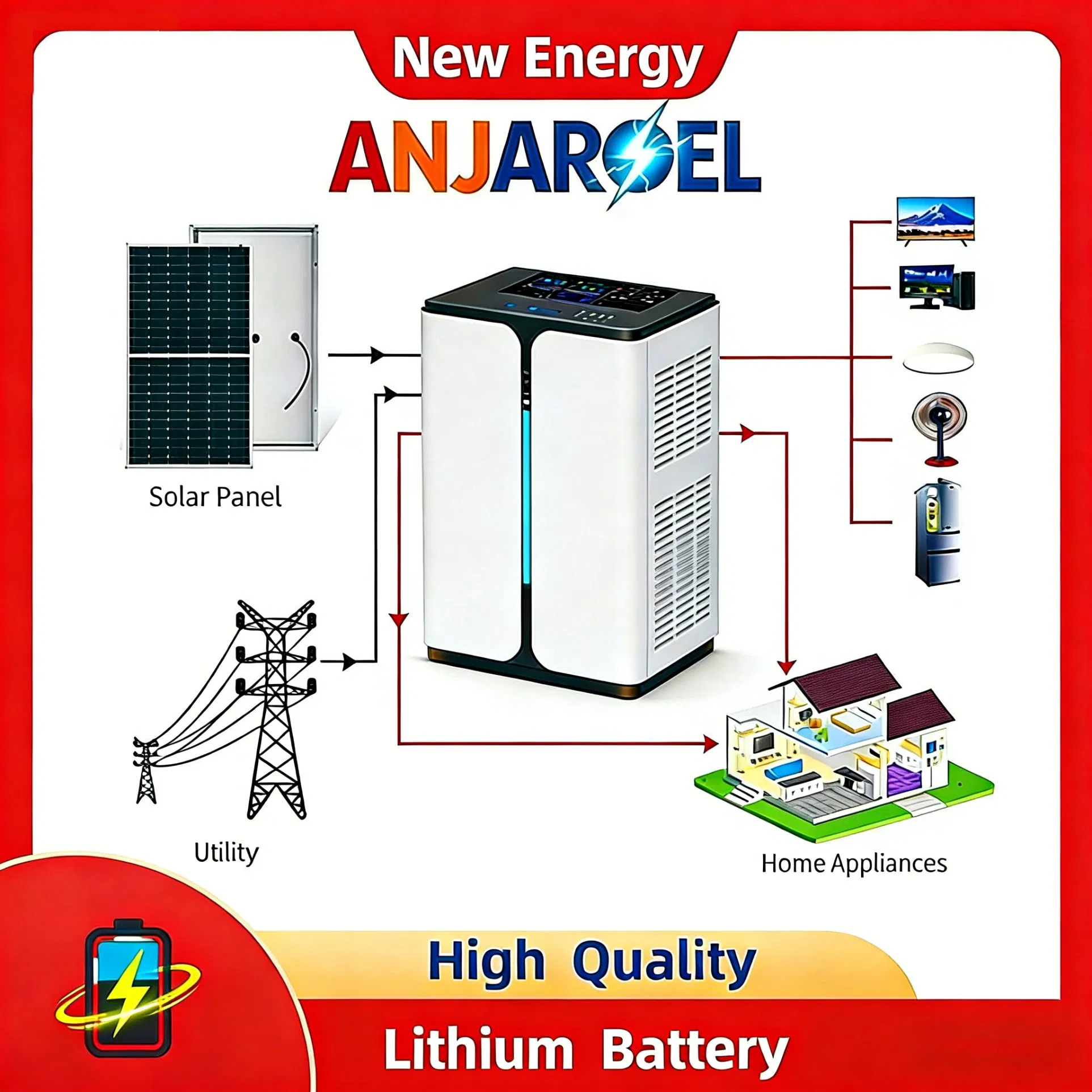

Supports both grid power and solar photovoltaic panel dual-input. Automatically switches to optimal charging mode to maximize clean energy use. Compatible with refrigerators, TVs, air conditioners, and lighting.
