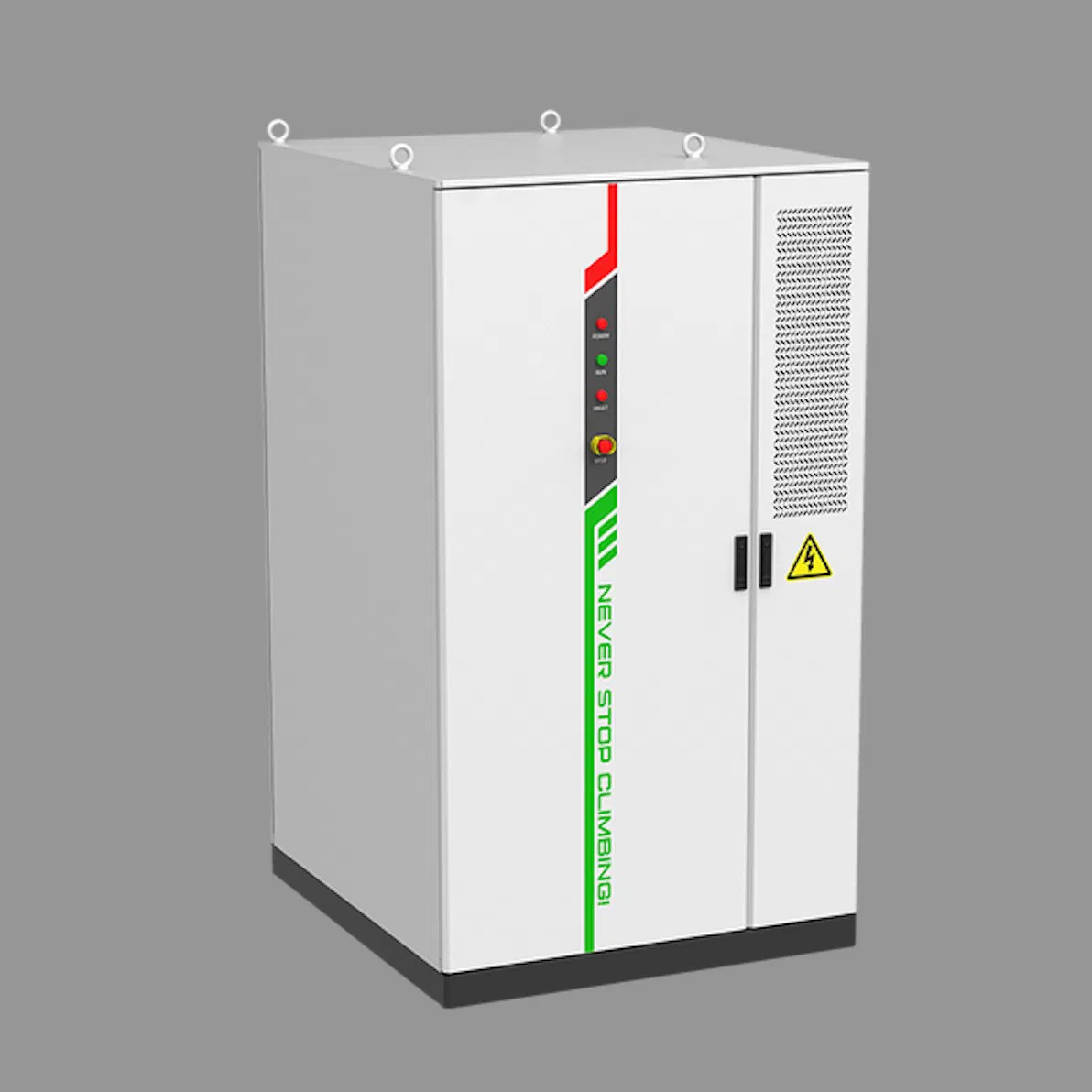

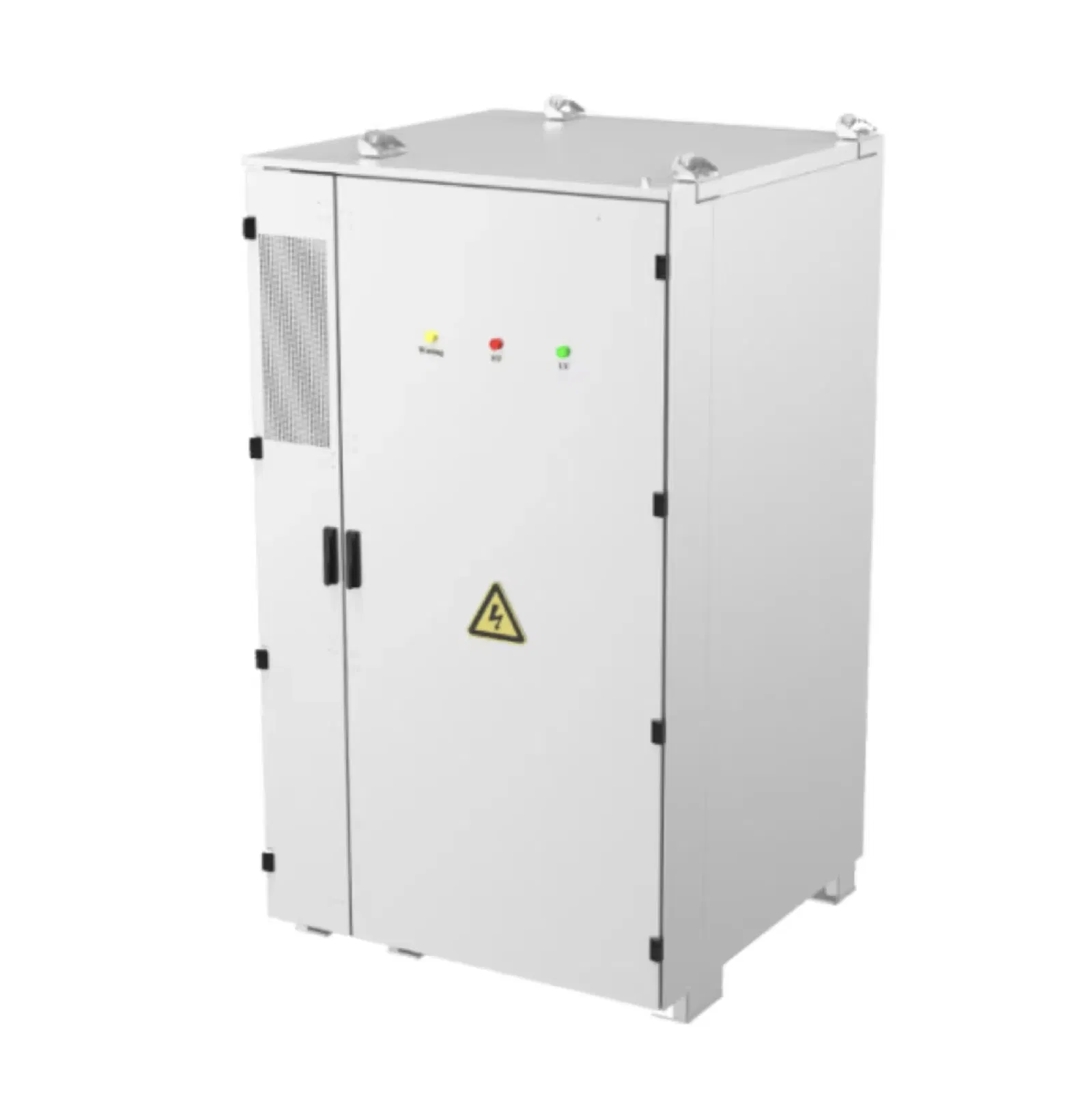

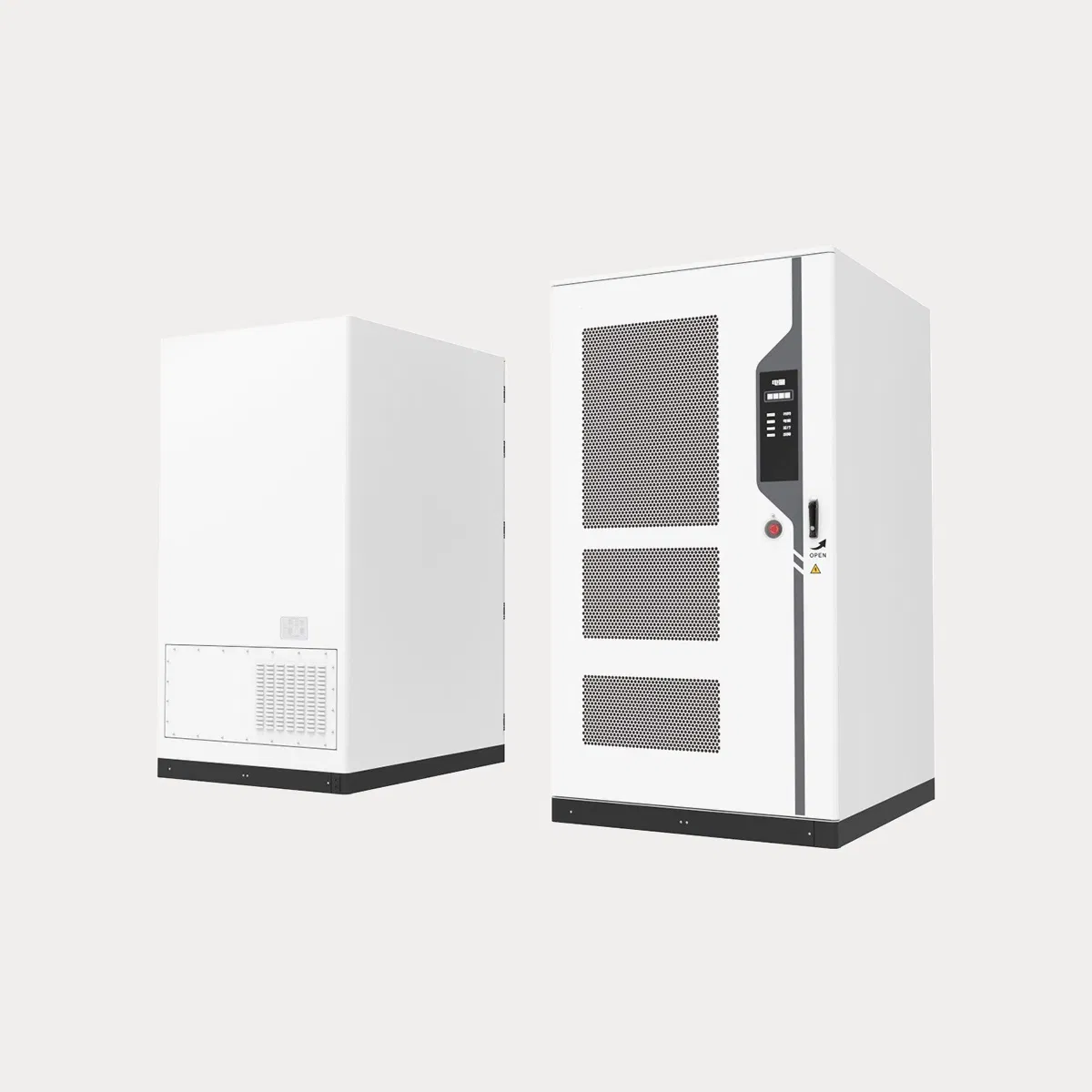

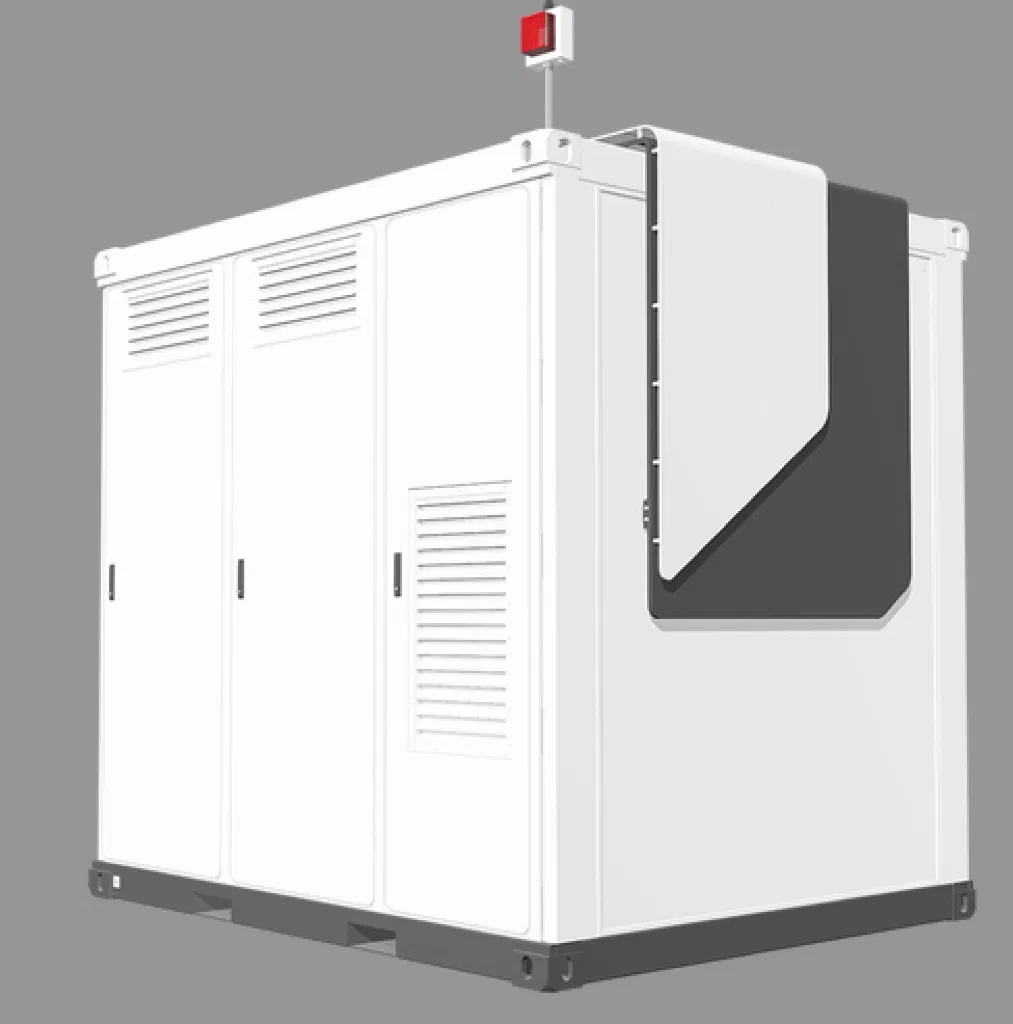

The integrated liquid-cooled energy storage system adopts the All-In-One design concept, integrating the power supply, conversion system, battery modules, EMS, temperature control, and fire protection. This system is designed to occupy a minimal footprint while offering modular expansion capabilities by combining multiple cabinets. Utilizing three-dimensional surround liquid cooling, it ensures superior heat dissipation compared to traditional methods, maximizing the cycle life of battery cells.
PCS max efficiency ≥ 99%, system comprehensive efficiency ≥ 91%. Supports 1C charging/discharging with intelligent energy scheduling.

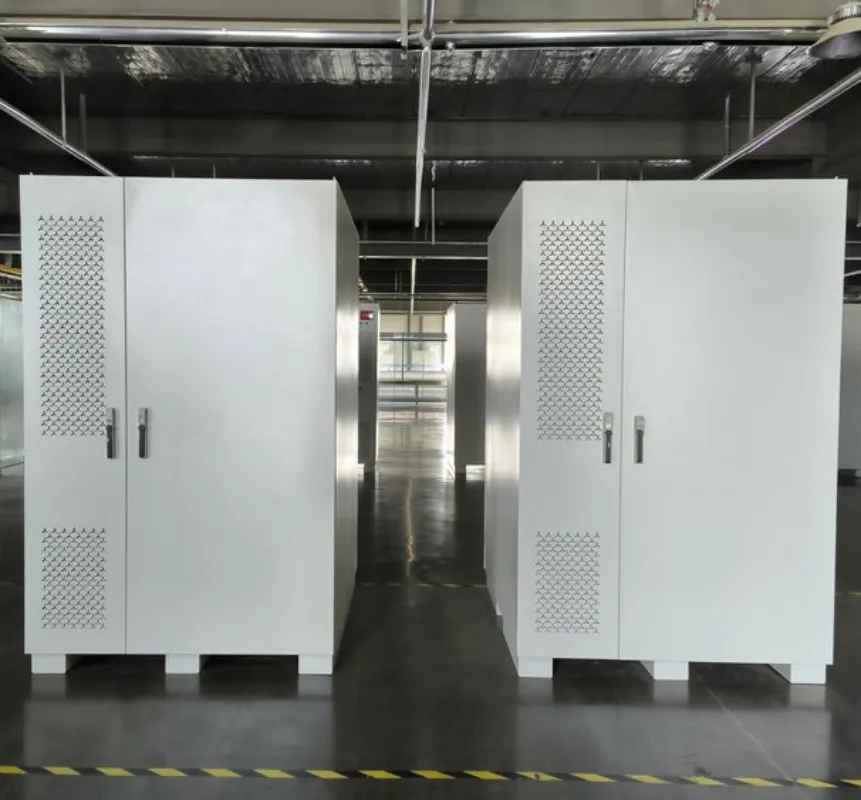

AI cell fault diagnosis with four-level fire safety design. Three-level overcurrent protection at packet, cluster, and PCS levels.

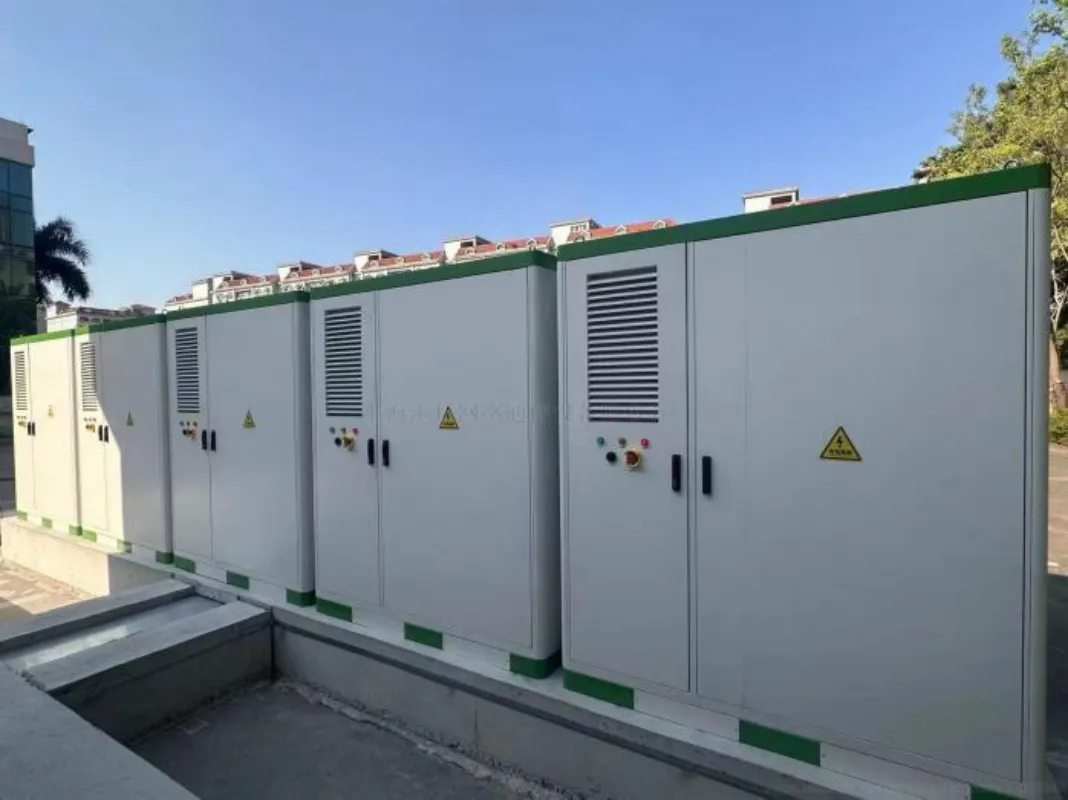

Integrated transportation for reduced on-site workload. Supports multi-machine seamless parallel connection.
| Battery & System Parameters | |
|---|---|
| Model | ICB120K241D |
| Cell Type | Lithium iron phosphate (LFP) / 314Ah |
| Rated Capacity | 241kWh |
| Voltage Range | 672V ~ 876V |
| Charge/Discharge Rate | 0.5P |
| Depth of Discharge | 95% DOD |
| Rated Grid Voltage | 380V / 400V |
| Maximum Power | 125kW |
| Operating Temperature | -30℃ ~ +50℃ |
| Dimensions | 1100 × 2400 × 1350 mm |
| Fire-fighting | Active warning / PACK-level immersion / Aerosol |
This pre-configured solution is ideal for a variety of high-demand scenarios:

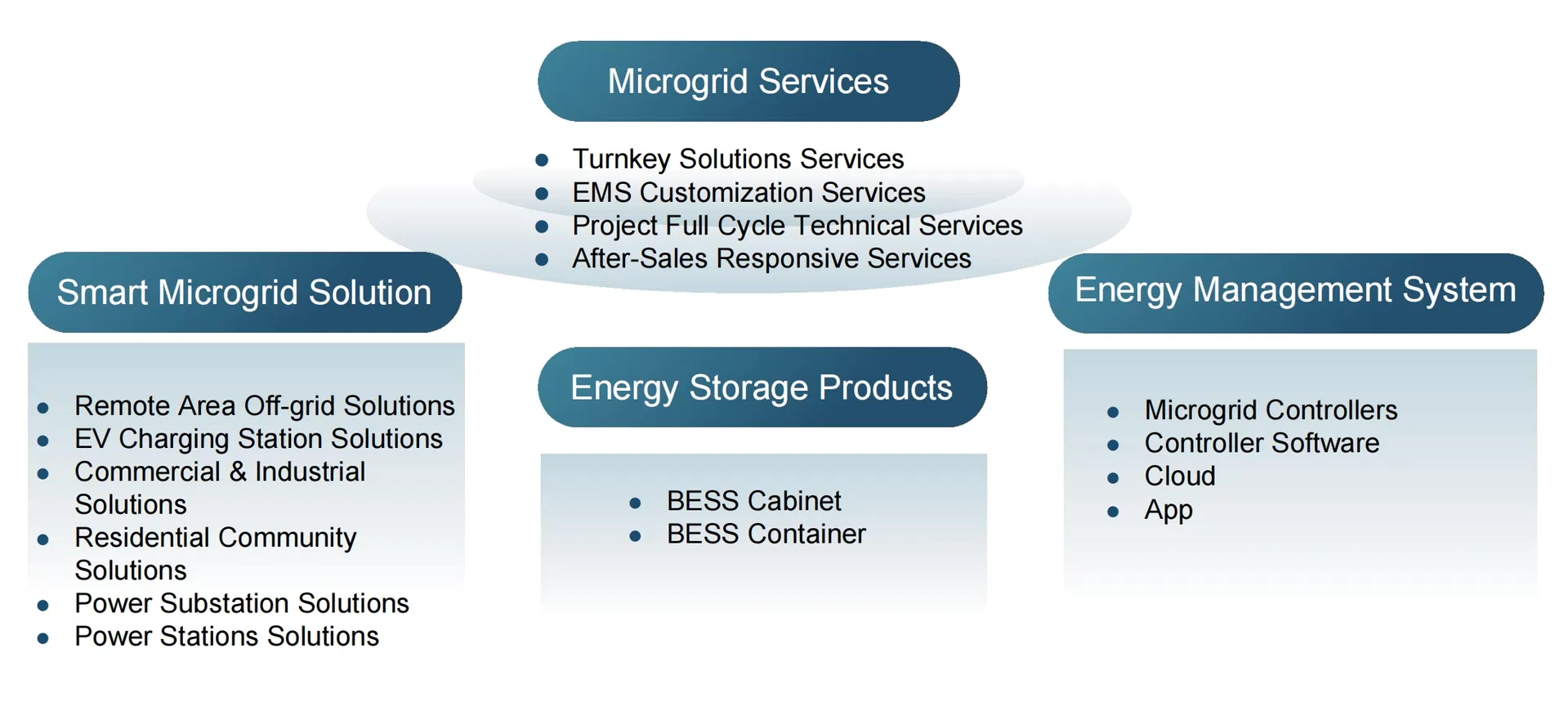

As a global provider of green energy solutions, we focus on accelerating the world's transition to clean energy. Our comprehensive coverage includes Hydrogen Energy value chains, Renewable Generation (Solar/Wind), and advanced Energy Storage systems for both residential and commercial applications.
