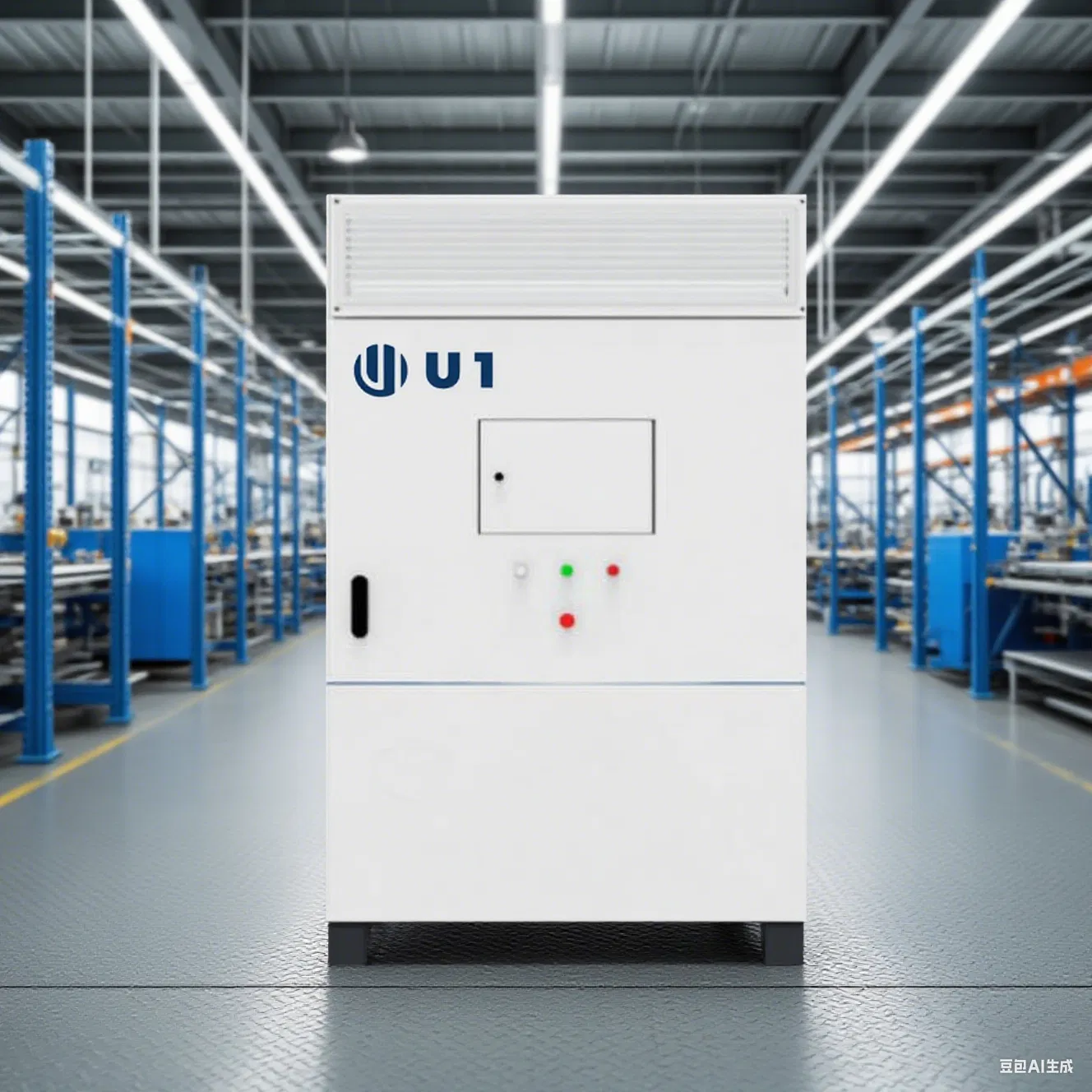

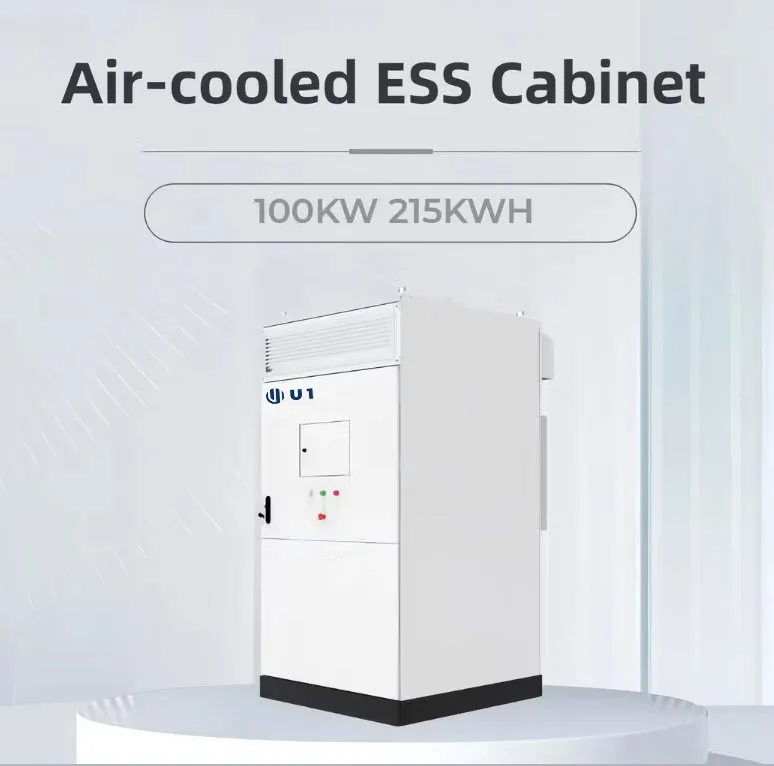

The U1 215KWH commercial & industrial energy storage system integrates cutting-edge cabinet-level liquid cooling and temperature balancing strategies. With a cell temperature variance of less than 3°C, it optimizes cell temperature consistency, thereby extending battery life. Its modular design enhances the flexibility of parallel solutions and increases energy density, significantly boosting the economic, safety, and construction advantages of ESS projects.
Main Features
📦

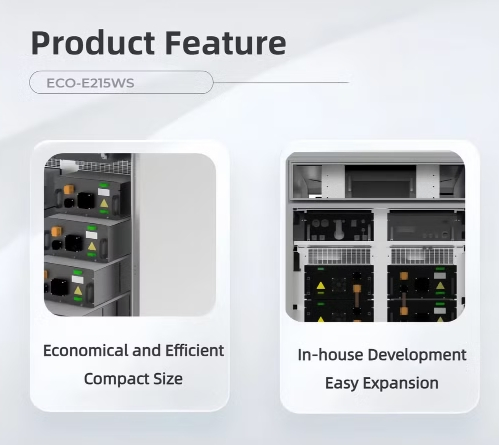

Compact Design
With just a 1.4m² footprint, this system offers unparalleled ease in transportation and swift installation.
🔗
High Integration
Seamlessly integrates 233kWh of energy into a single cabinet, ensuring robust long-term performance.
❄️
Efficient Cooling
Designed with optimal in-PACK duct technology, it ensures superior cooling efficiency with minimized energy use.
🔄
Long Cycle Life
Boasting a cycle life that exceeds 8,000 iterations, this battery system delivers outstanding reliability.
➕
Flexible Expansion
Thanks to its modular design, parallel expansion is simplified and highly adaptable.
🛡️
Ultimate Safety
Equipped with in-PACK fire warning and protection systems using aerosol, it effectively prevents heat spread.
Technical Parameters
| General Specifications |
| Model No. | ECO-ESS-100kW/215kWh-W-CH |
| Nominal Capacity | 215kwh |
| Cycle Life | 8000 Cycles |
| Cooling Method | Forced Air Cooling |
| Switching Time | <100ms |
| DC Battery System |

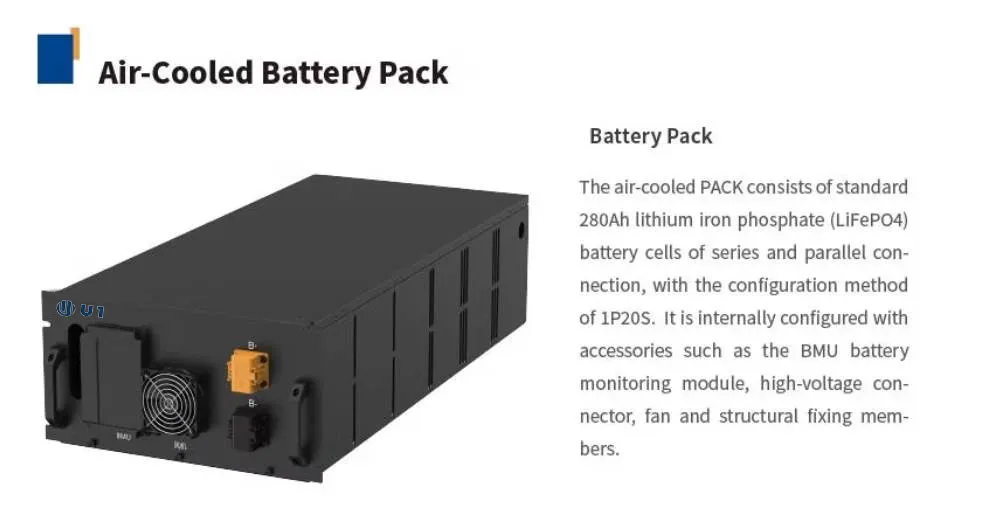

| Battery Cell Type | LFP 280Ah |
| System Configuration | 215kWh/1P240S |
| Voltage Range | 600~876V DC |
| Rated Voltage | 768V DC |
| AC Side Parameters |
| AC Rated Power | 100kW |
| AC Maximum Power | 110kW (1min) |
| Grid Rated Voltage | 400V AC |
| Rated Grid Frequency | 50Hz |
| System & Environmental |
| Protection Level | IP55 |
| Operating Temperature | -25~55ºC |
| Dimensions (W*D*H) | 1,250*1,300*2,350 (mm) |
| Weight | 2,500kg |
Key Advantages
- All-in-one design for seamless integration
- Modular design for adaptable expansion
- Capacity up to 215kWh and power output of 100kW
- Equipped with black start capability
User Benefits
- Tailored for industrial & commercial applications
- Dependable power supply during outages
- Cost-effective solar panel battery storage solution

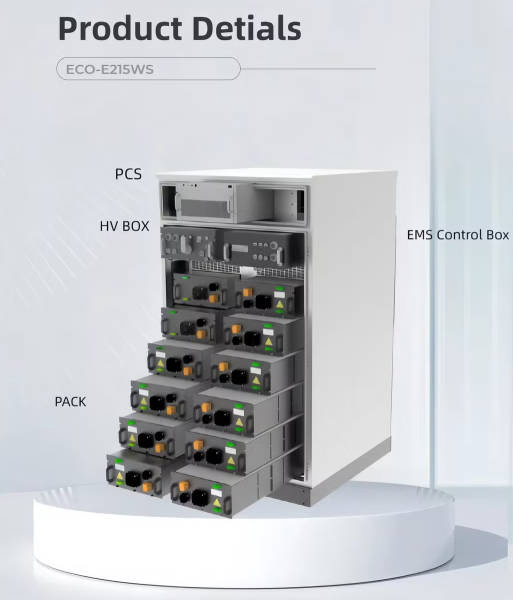

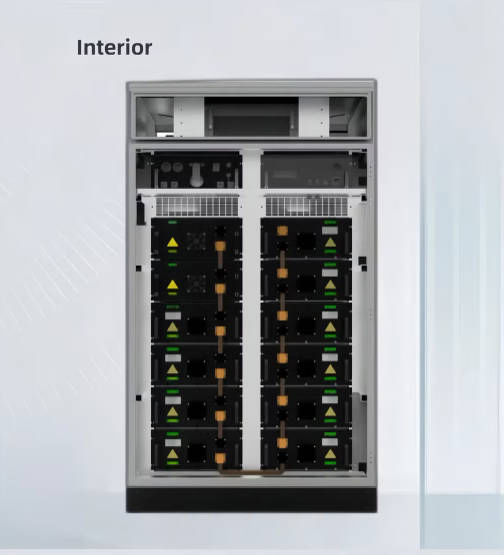

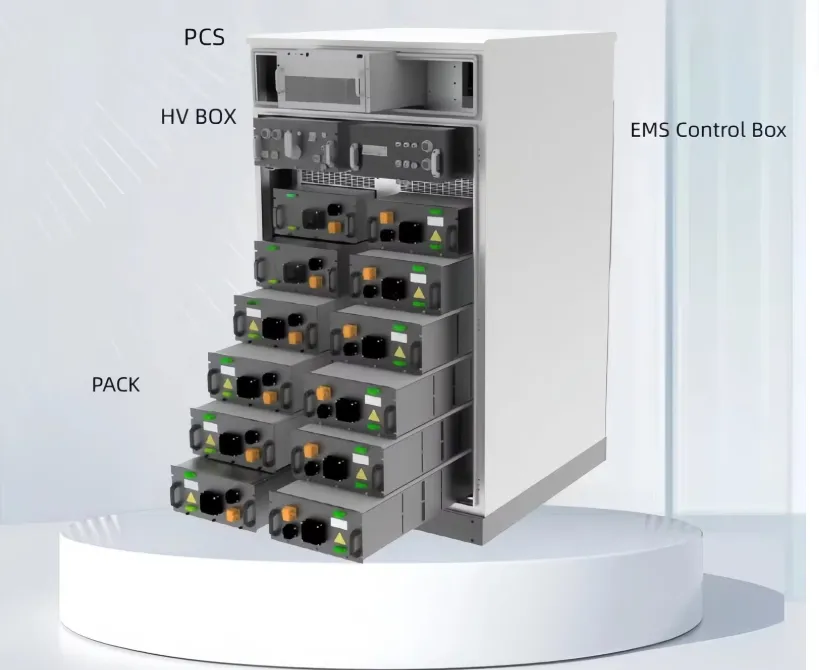

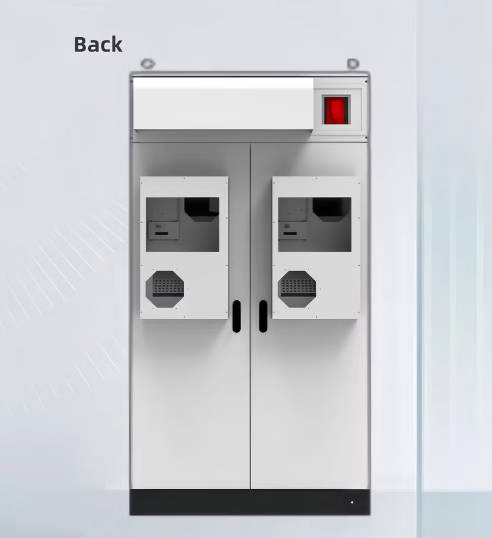

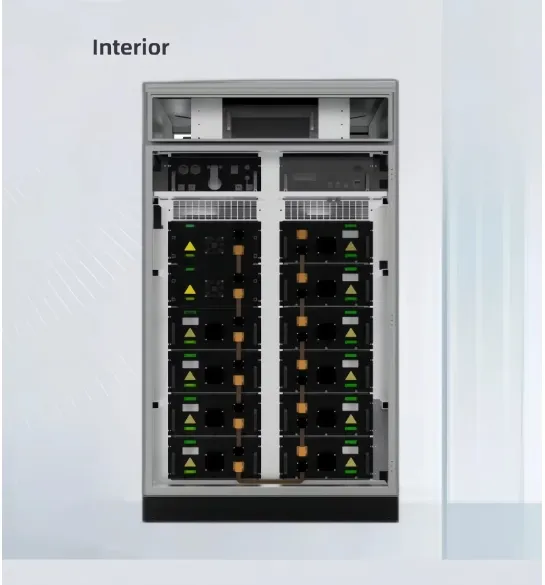

Detailed Gallery

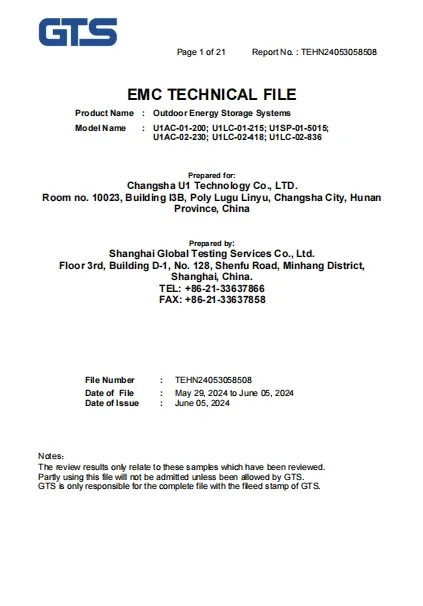

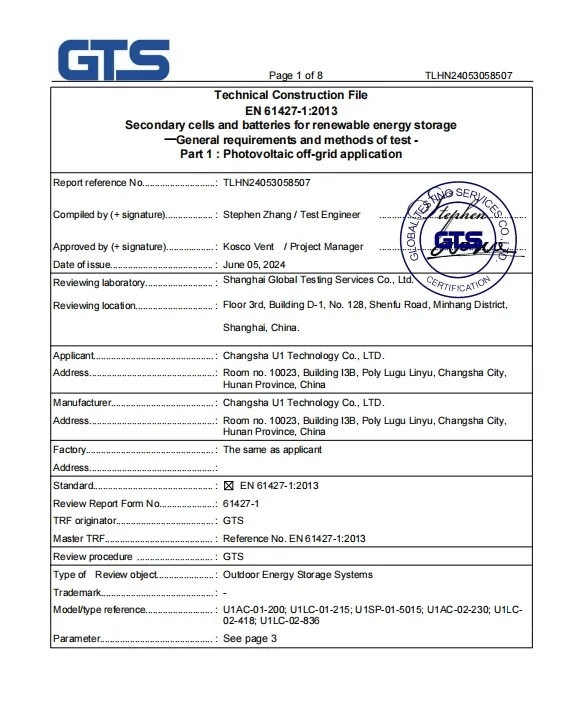

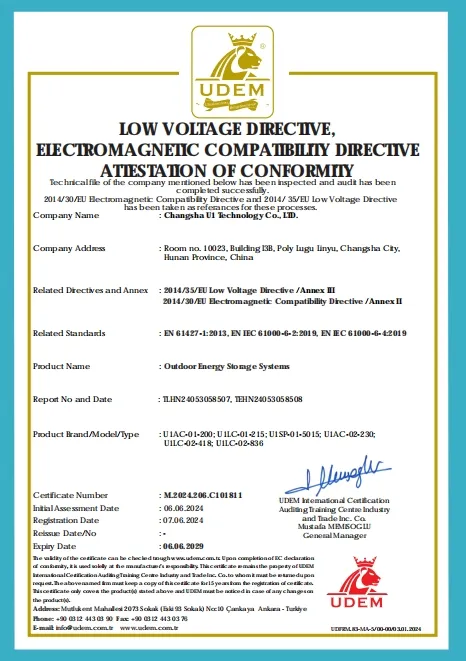

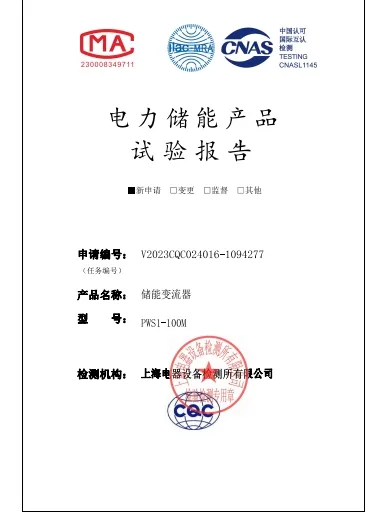

Certifications
Frequently Asked Questions
Are you a manufacturer or trading company?

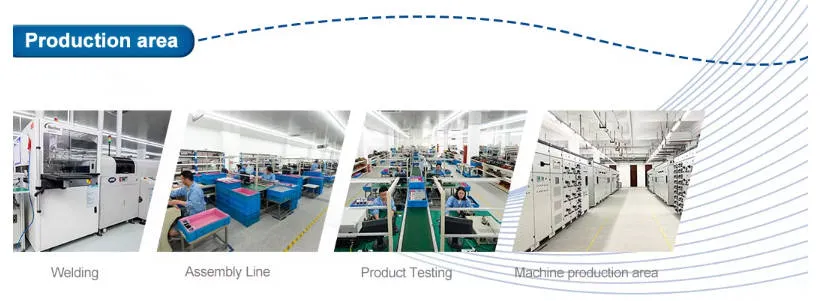

We operate a professional manufacturing facility focused on advanced energy storage solutions.
Do you provide customized manufacturing services?
Yes, we provide comprehensive OEM/ODM services. Our experienced R&D team delivers efficient, customized solutions to meet specific customer requirements.
What is the typical delivery lead time?
For items currently in stock, the delivery time is typically within 1 month.
Can we request samples?
Samples are available; however, they require payment for the unit and the associated freight costs.
What are your standard payment terms?
For orders under $3000, 100% payment is required before shipment. For orders exceeding $3000, a 30% deposit is required, with the remaining 70% due before shipment.
How is the system protected against fire?
The system is equipped with an advanced fire suppression system using Aerosol and active warning triggers to ensure ultimate safety.
