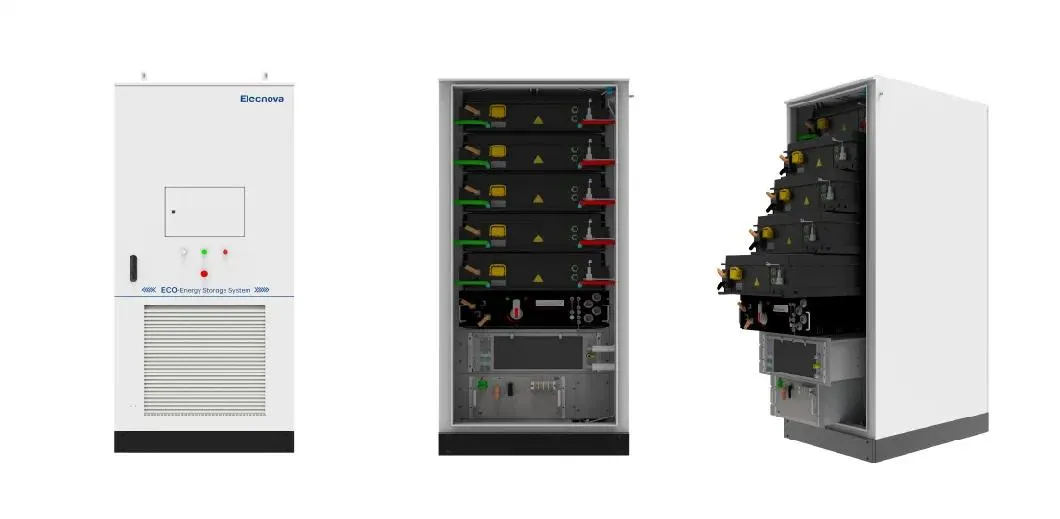

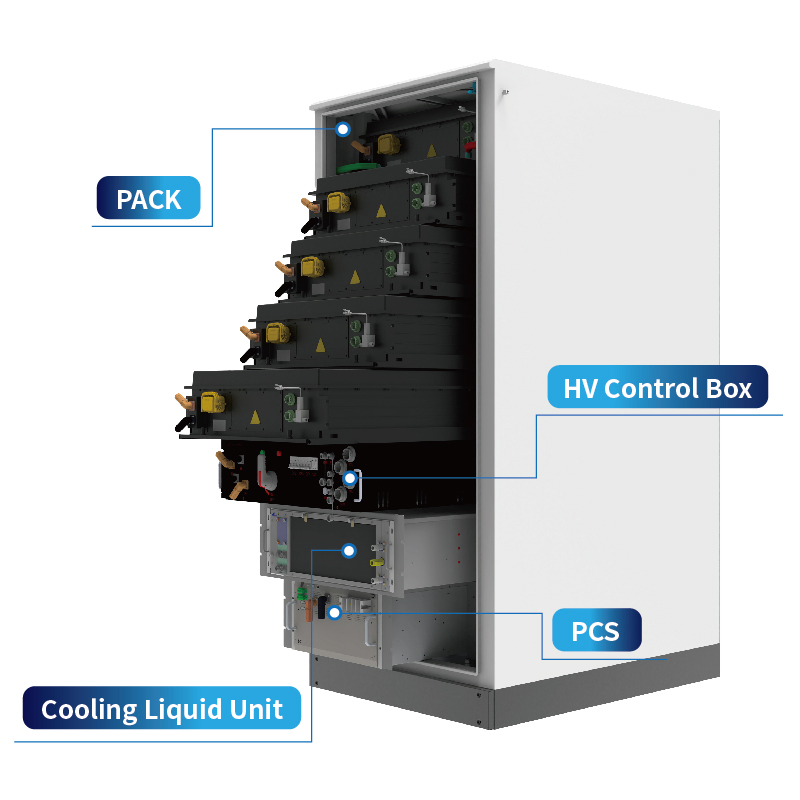

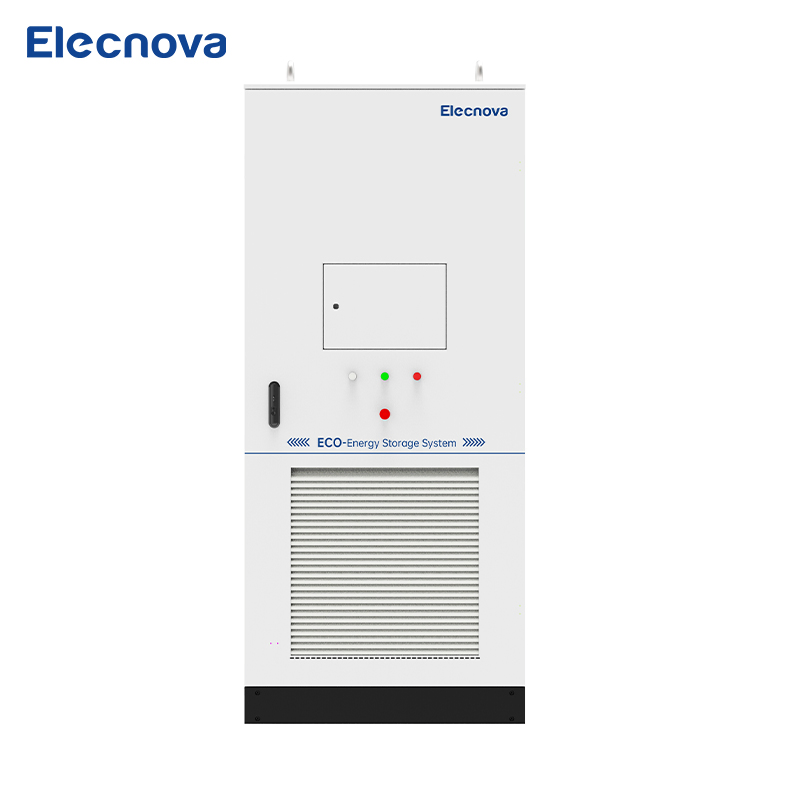

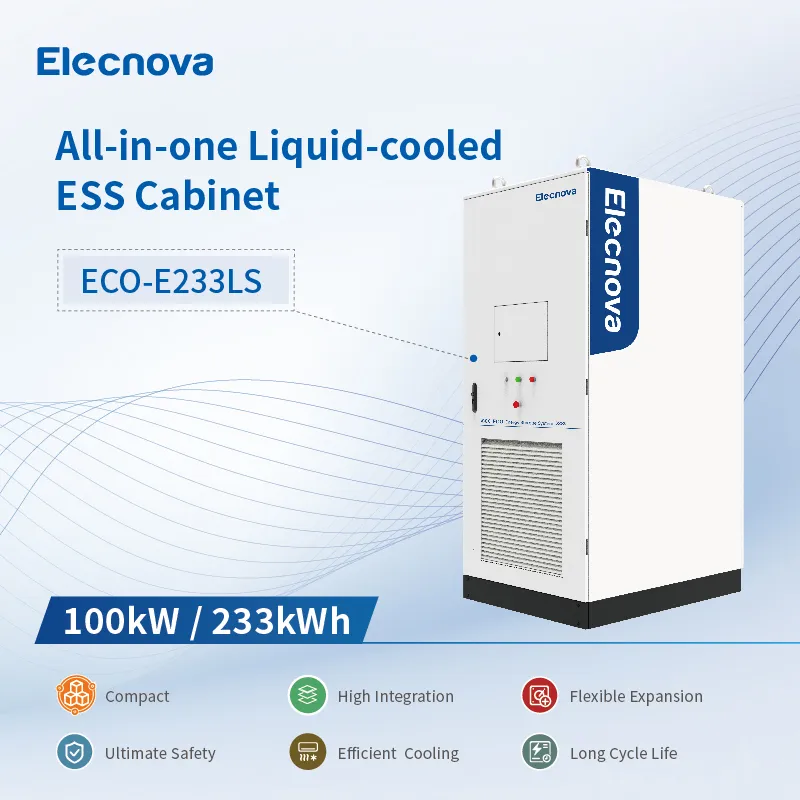

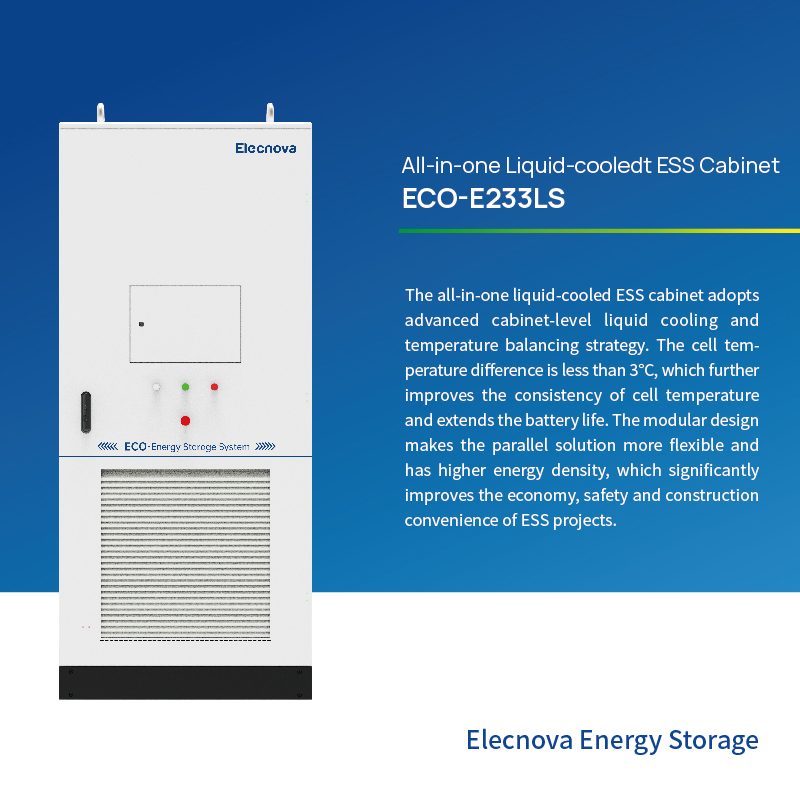

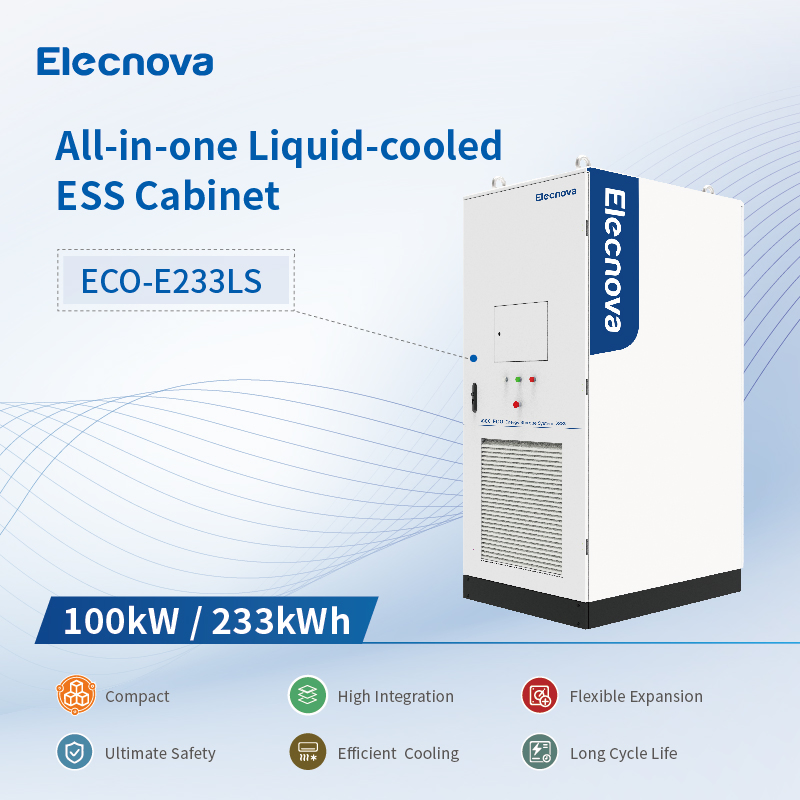

"All in One" design Liquid Cooling Energy Storage System Cabinet
The all-in-one liquid-cooled ESS cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
| DC Battery Parameters | |
|---|---|
| Battery Cell Type | LFP 280Ah |
| Battery Pack Configuration | 46.592kWh/1P52S |
| Battery System Configuration | 233.96kWh/1P260S |
| Battery Voltage Range | 728~936V DC |
| System Rated Voltage | 768V DC |
| AC Side Parameters | |
| AC Rated Power | 100kW |
| AC Maximum Power | 110kW |
| AC Current Distortion Rate | <3% |
| Grid Rated Voltage | 400Vac/3P+N+PE |
| Rated Grid Frequency | 50Hz/60Hz |
| System Parameters | |
| Energy Conversion Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Discharge Depth (DOD) | 95% |
| Switching Time | <100ms |
| Cooling Method | Active liquid cooling |
| Fire Suppression System | NOVEC1230/aerosol |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,500kg |
