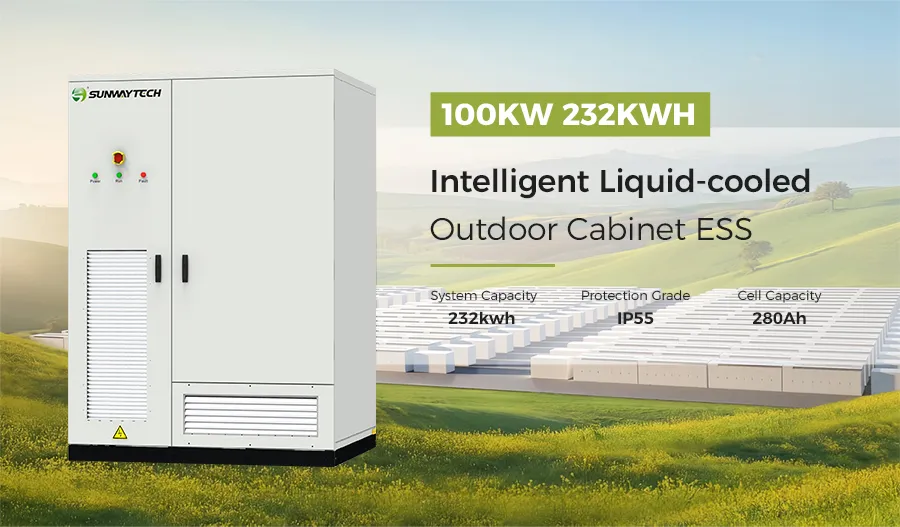

50KW-1000KW Complete Solar Energy Storage System
This product series is highly configurable based on specific energy requirements. Whether for industrial or commercial applications, the system can be tailored to provide the most efficient power solution. For different roof materials, various mounting structures are available. All system designs are customizable per request.
| Battery & Technical Specifications | |
|---|---|
| Battery Rated Capacity | 232kWh |
| Battery Rated Voltage | 832V |
| Battery Type | Lithium iron phosphate battery (LFP) |
| Max. Charge/Discharge Current | 140A |
| PV Voltage Range | 250~500V (MPPT) |
| Rated AC Voltage | 400V, 3W+N+PE |
| THDi / THDv | <3% |
| Ambient Temperature | -25°C to +60°C (Derating above 45°C) |

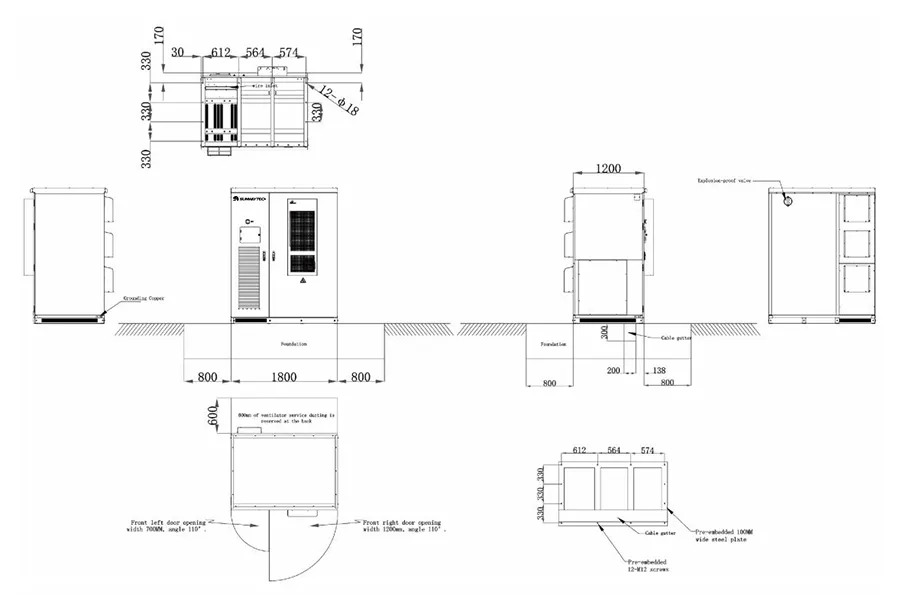

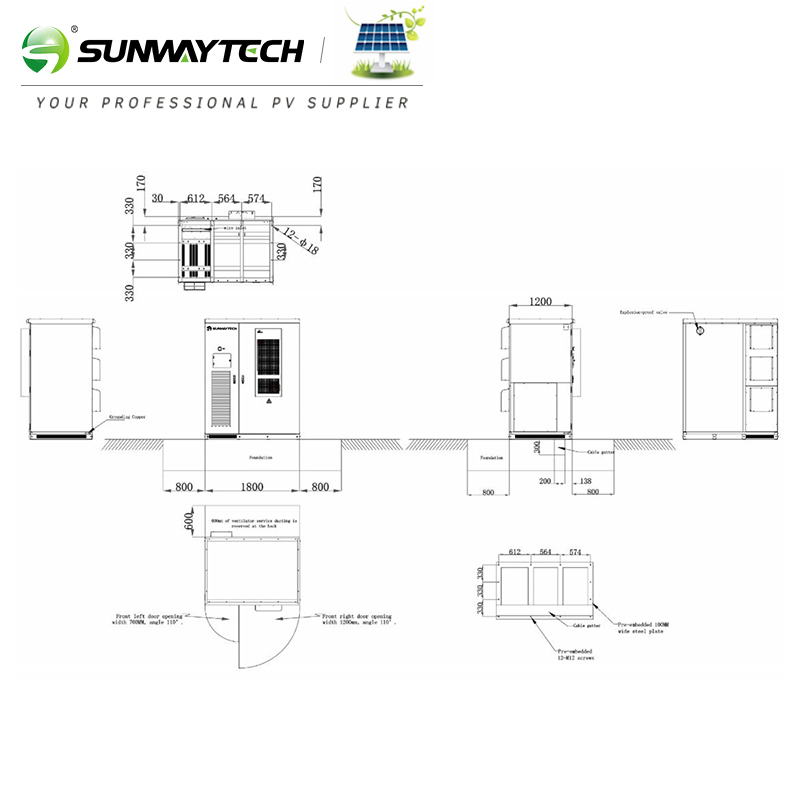

| Dimension (W*D*H) | 1600*1350*2300mm |

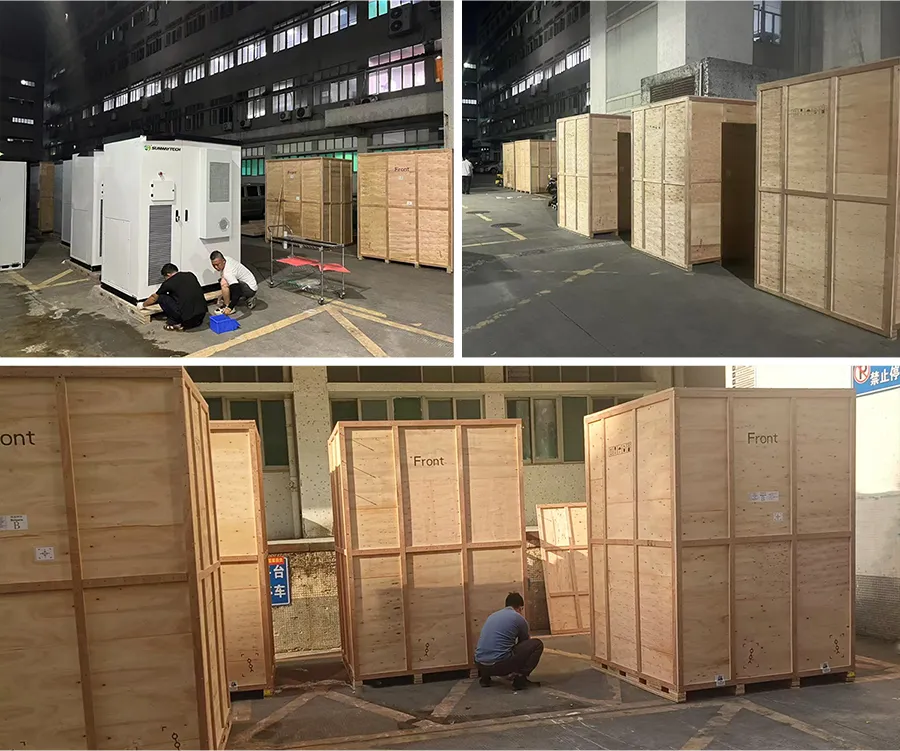

Packaging Advantage: Wooden box packaging enables high-strength stacking, simple operation, and high cost-effectiveness. Extra-large and extra-long sizes can be easily assembled. The system can be loaded/unloaded from the front and transported flat or in kits to the assembly site.
Package Size: 200.00cm * 150.00cm * 250.00cm
Package Gross Weight: 3500.000kg
