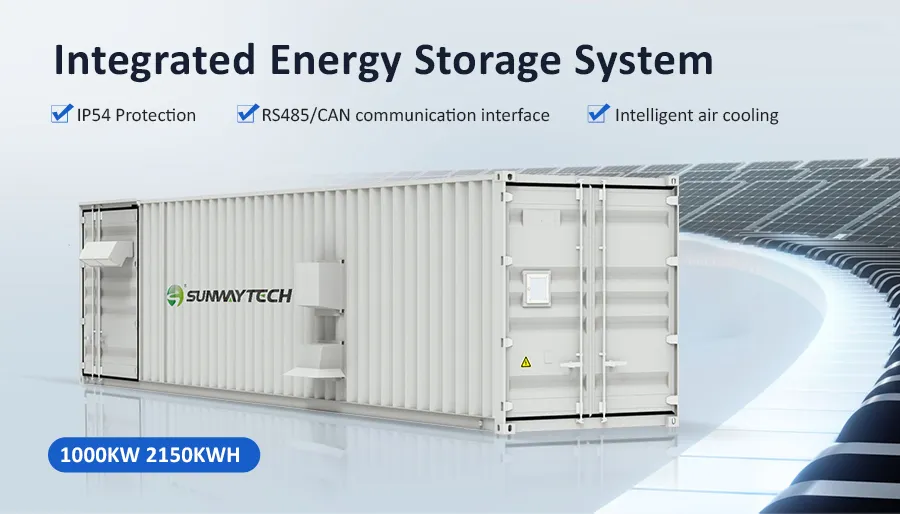

Intelligent Energy Storage System (1000KW 2150KWH)

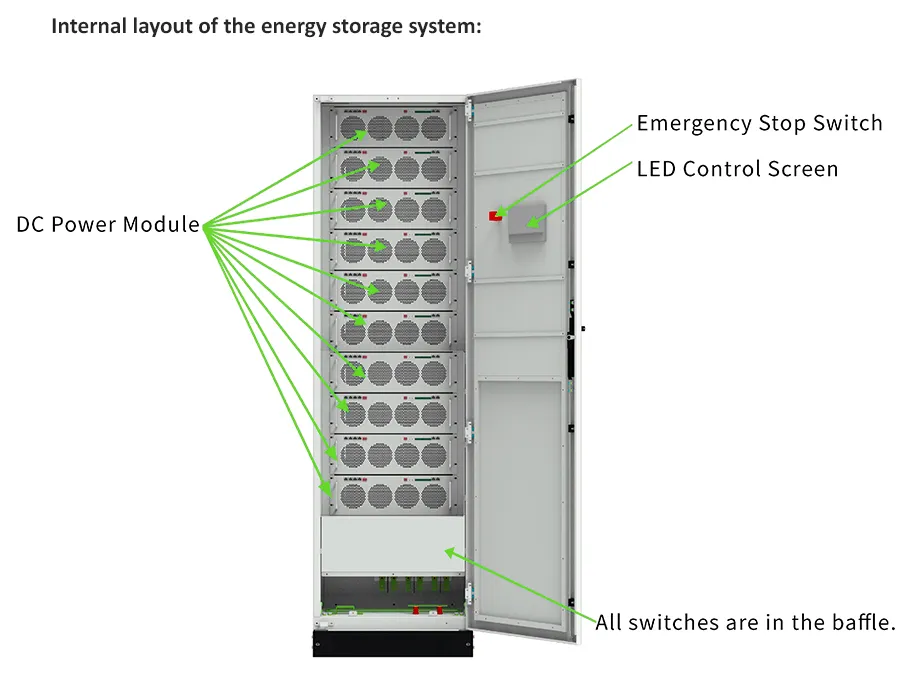

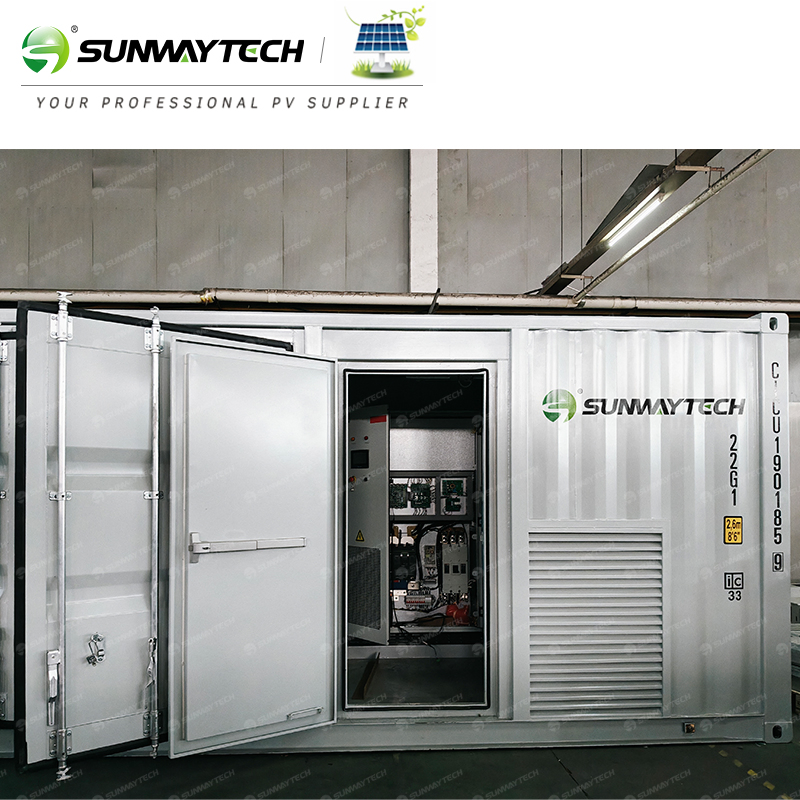

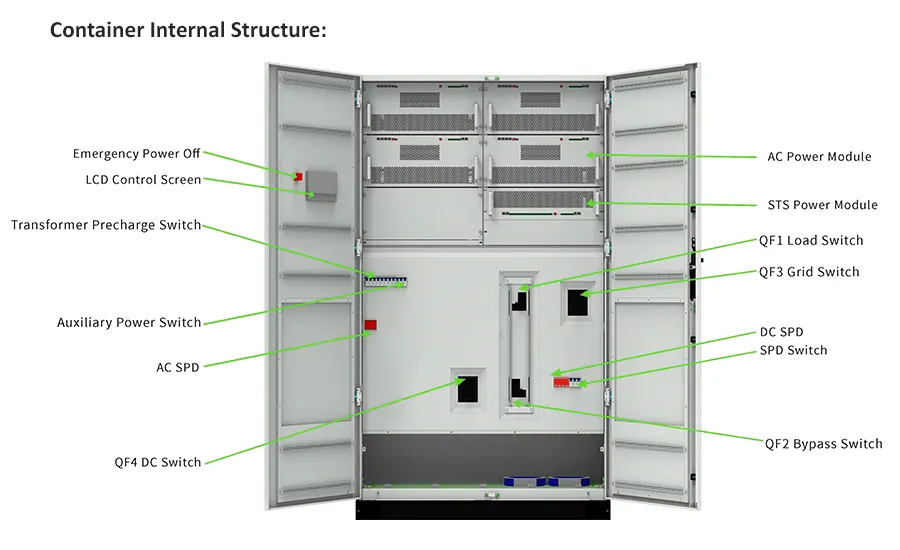

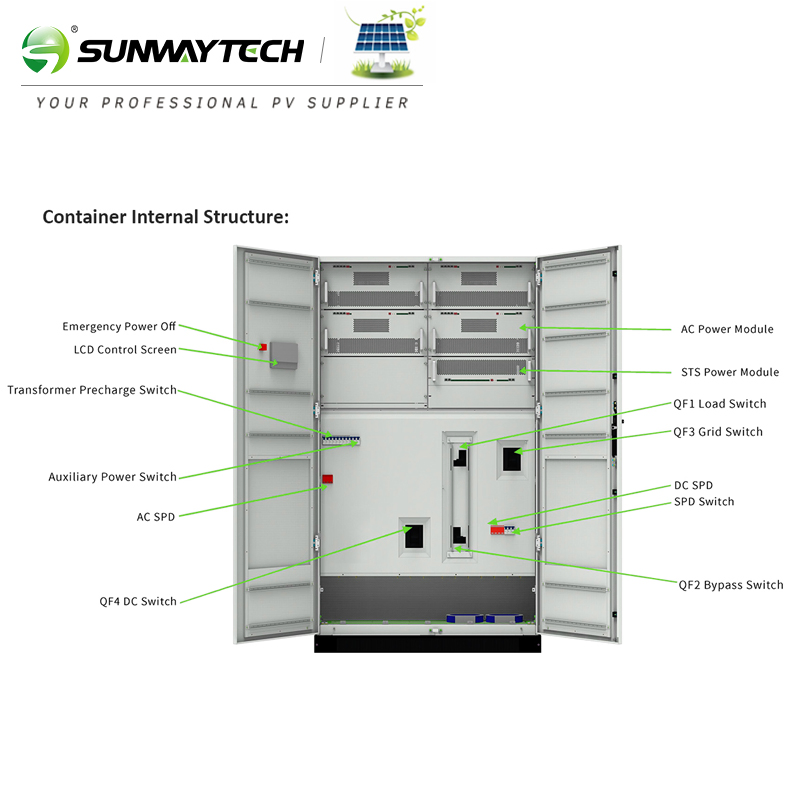

The outdoor energy storage cabinet integrates energy storage batteries, modular PCS, energy management monitoring systems, power distribution systems, environmental control systems, and fire control systems. Adopting modularized PCS, it is easy to maintain and expand capacity. The outdoor cabinet features front maintenance, reducing the footprint and maintenance access. It is characterized by safety and reliability, rapid deployment, low cost, high energy efficiency, and intelligent management.
| Technical Specifications | |
|---|---|
| Energy Storage Converter (SWMonet-1000T) | |
| Operating Voltage Range | 680~1000V |
| Maximum DC Current | 200A*8 |
| Charging Mode | BMS command / Tri-Stage / MPPT |
| AC-side Parameters (On-grid) | |
| Rated/Maximum AC Power | 1000/1100kW |
| Rated AC Voltage | 400V, 3W+N+PE |
| Power Factor | -1 ahead ~ +1 behind |
| Energy Storage System (ESS) | |
| Battery Rated Capacity | 215kWh*10 |
| Battery Rated Voltage | 832V |
| Cell Capacity | 280Ah |
| Fire Extinguishing System | Perfluorohexane/heptafluoropropane pipeline system |
| Dimensions (Container) | 12196*2438*2896mm |
| Weight (Approx.) | 27.5t |
Powering the Future with Solar Energy Storage Solutions: We are a leading manufacturer and global exporter specializing in advanced solar energy storage products. Our cutting-edge energy storage solutions are designed to meet the growing demand for reliable, efficient, and eco-friendly power systems.
Commercial and Industrial Energy Storage: Schools, factories, gas stations, and other commercial buildings with high energy demands can maximize energy independence and reduce grid power demand through solar PV and battery storage. These solutions help save on electricity bills and reduce environmental impact.
Packaging Advantage: Wooden box packaging enables high-strength stacking, simple operation, and high cost-effectiveness. Extra-large and extra-long sizes can be easily assembled. Systems can be loaded and unloaded from the front and transported flat or in kits to the assembly site.
