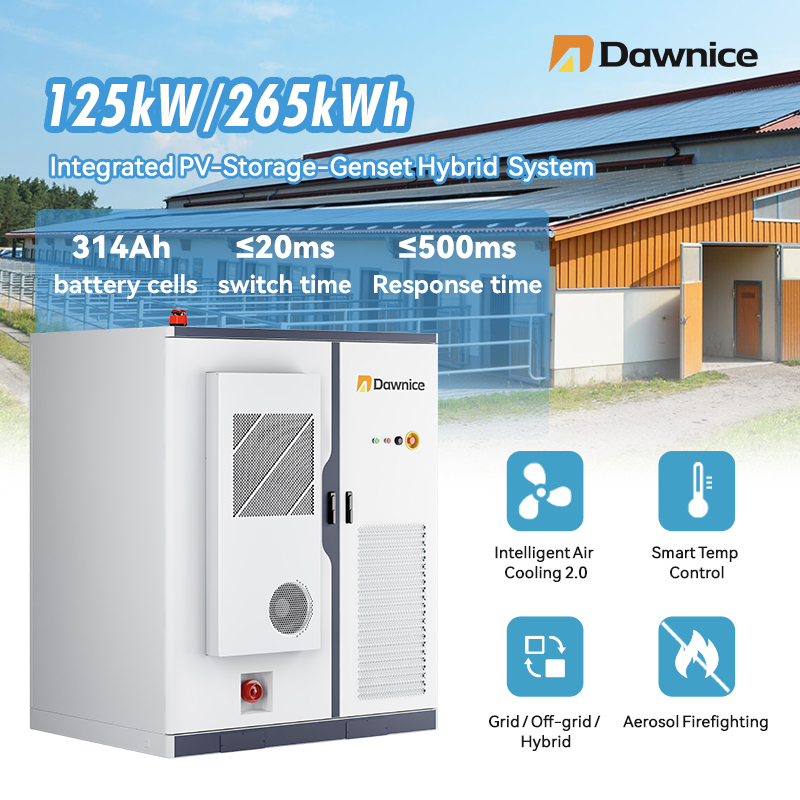

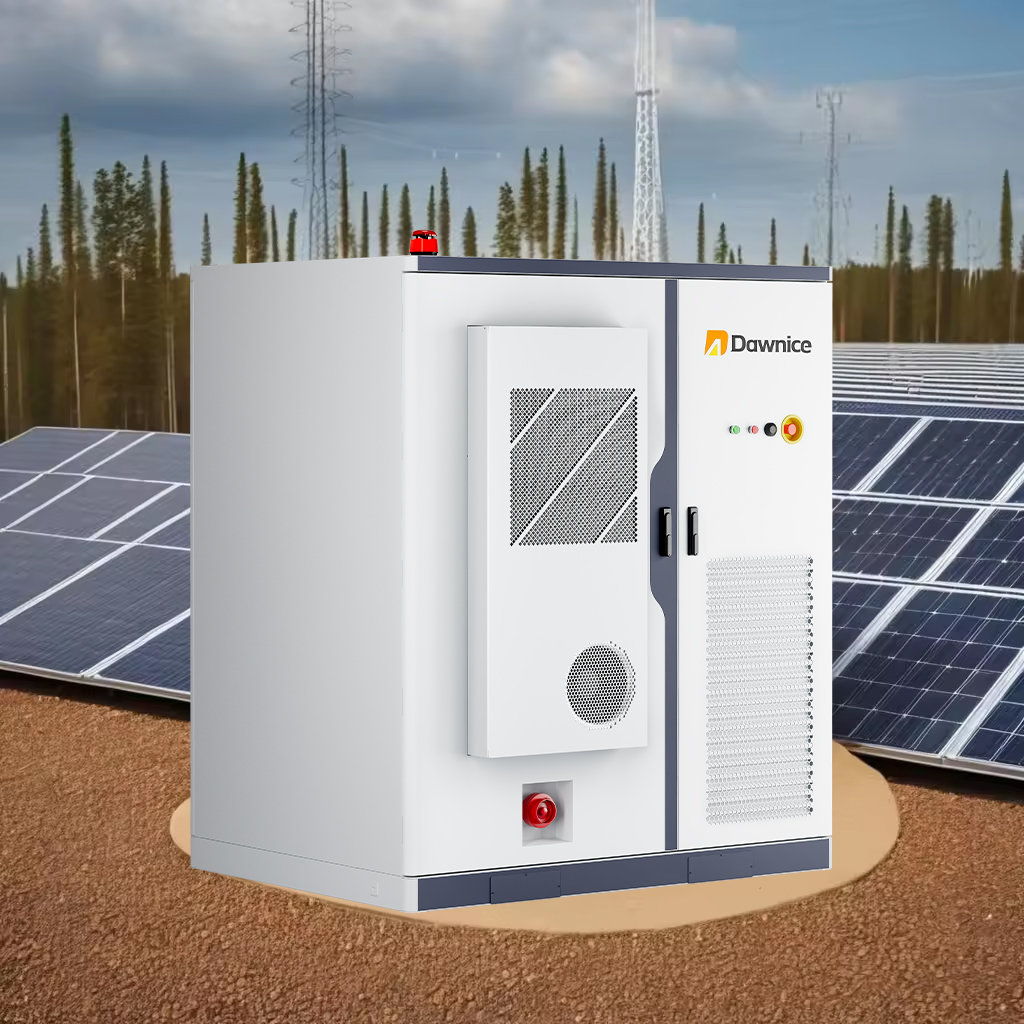

| Model | HZEB-HCT-125TS/265 |
| Battery Type | LiFePO4 |
| Configuration | 1P264S |
| Rated Battery Voltage | 844.8V DC |
| Battery Voltage Range | 739.2~950.4V DC |
| Rated Battery Energy | 265.267kWh |
| Max Charge/Discharge Rate | 0.5C |
| Cycle Life | 8000 times (@25℃, 0.5C, 90%DOD, 70%EOL) |
| PV Output Power | 120kW |
| PV open-circuit voltage | 200~900V |
| MPPT Voltage Range | 200~700V |
| AC Rated Power (On Grid) | 125kW |
| Output Voltage | 230/400VAC |
| Grid Connection Form | (3W+N+PE) Three-phase four-wire |
| AC Rated Power (Off-grid) | 125kW |
| Isolation Transformer Capacity | 150kVA |
| Max Efficiency | ≥97% |

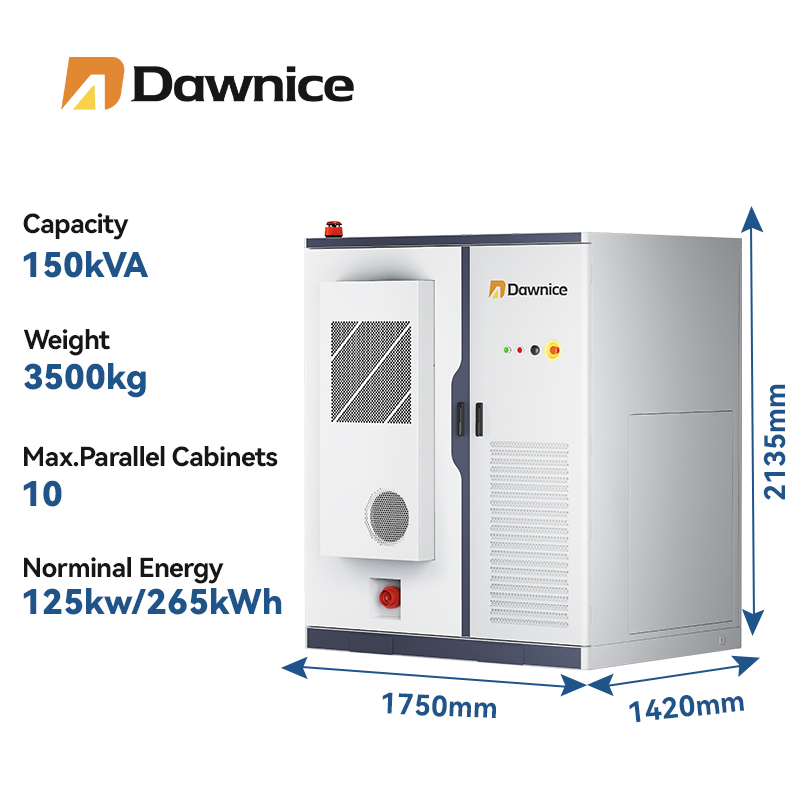

| Dimensions (W*D*H) | 1750*1420*2135mm |
| Weight | 3500kg |
| IP Rating | IP54 |
| Cooling Method | Intelligent Air Cooling |

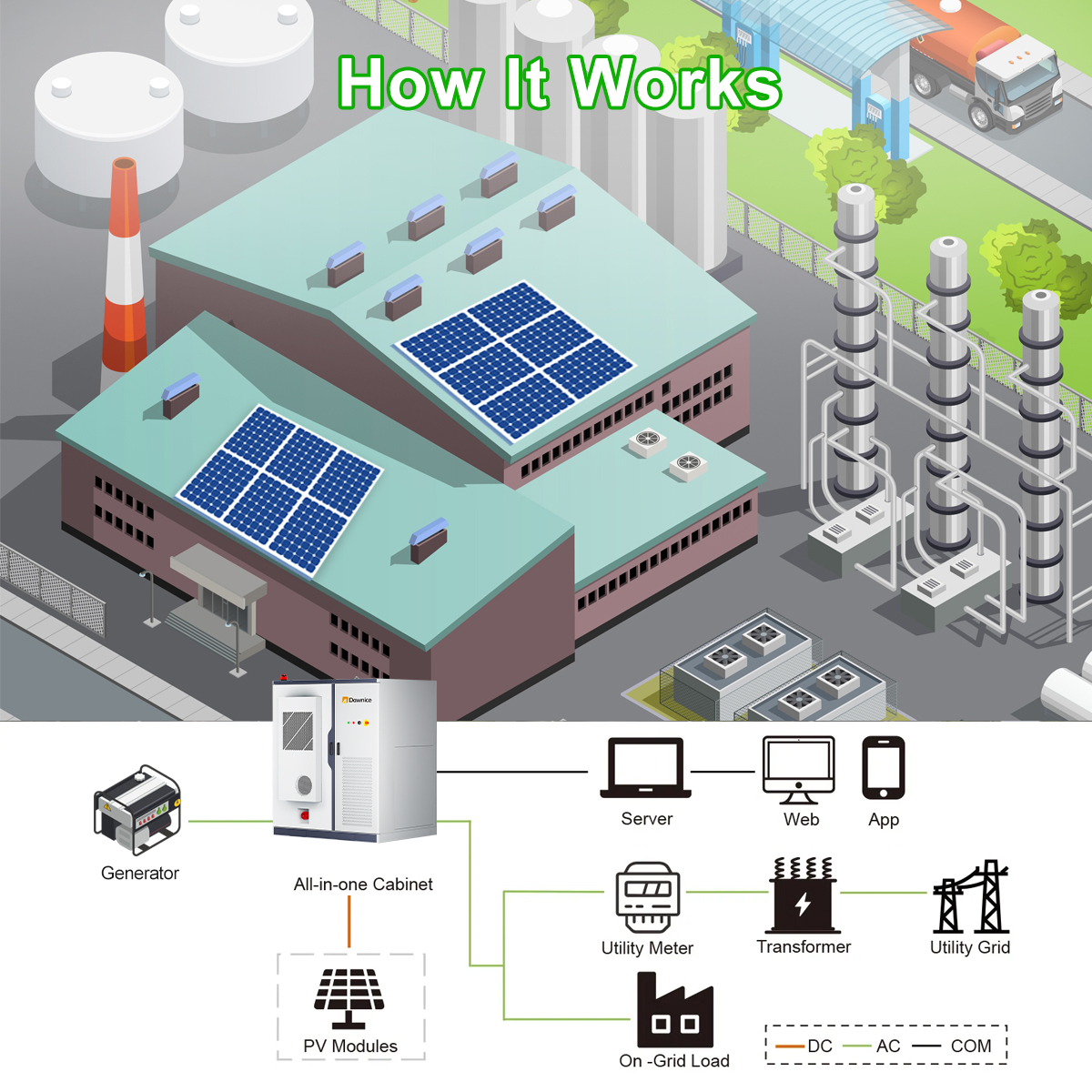

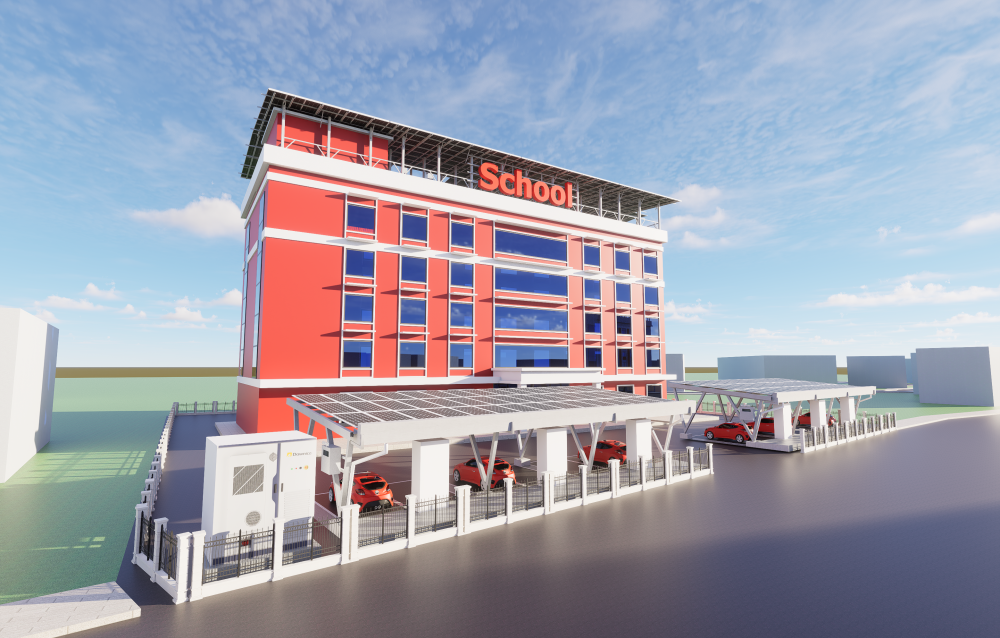

Commercial and Industrial Energy Storage: Schools, factories, gas stations and other commercial buildings with high energy demands can maximize energy use. Energy independence and reduced grid power demand through solar PV and battery storage. We provide one-stop solutions for commercial and industrial facilities to save on electricity bills, reduce the risk of rising energy prices, generate additional revenue from renewable energy and reduce their environmental impact.
We will recommend the most suitable configuration list for you.

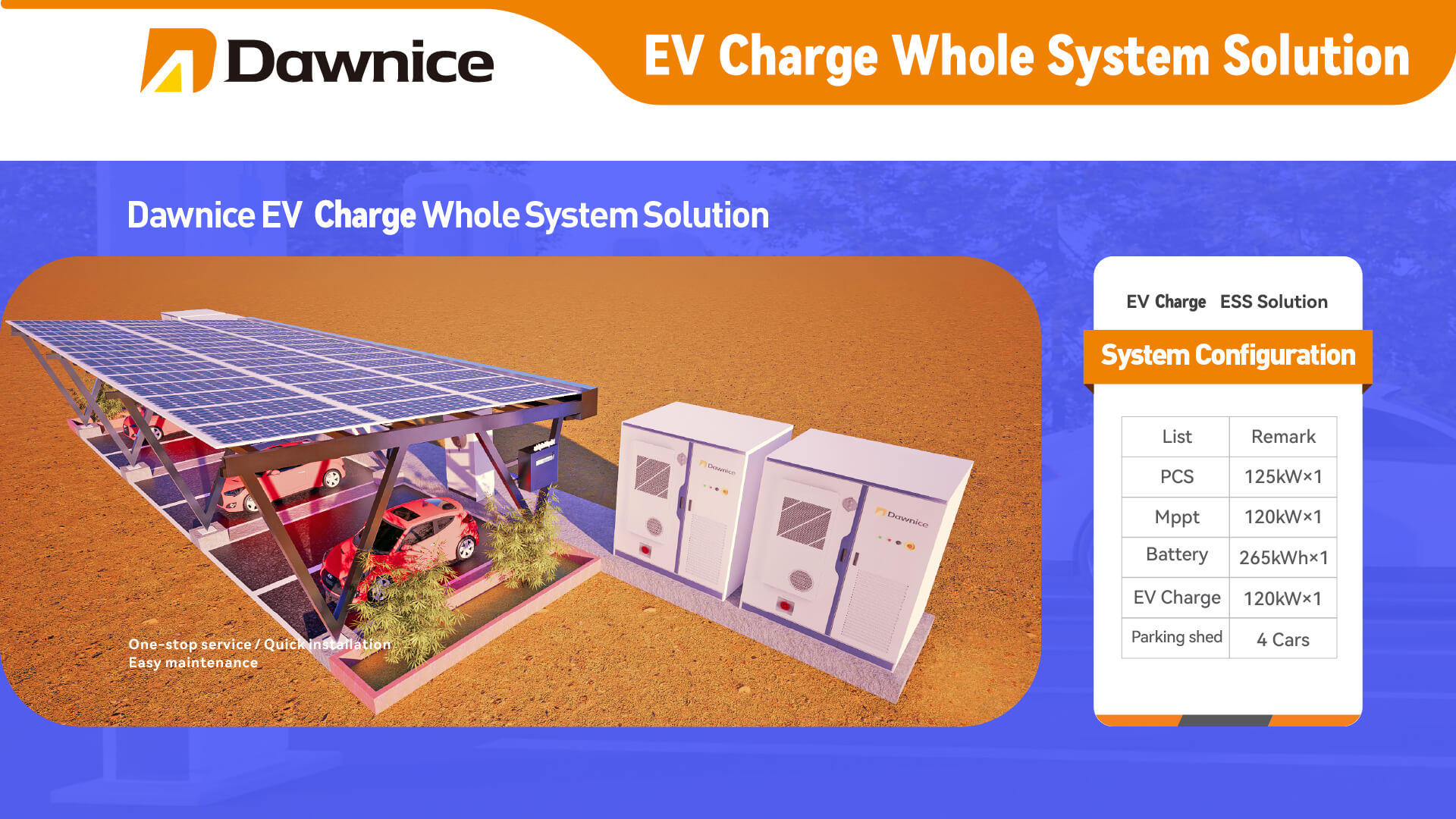

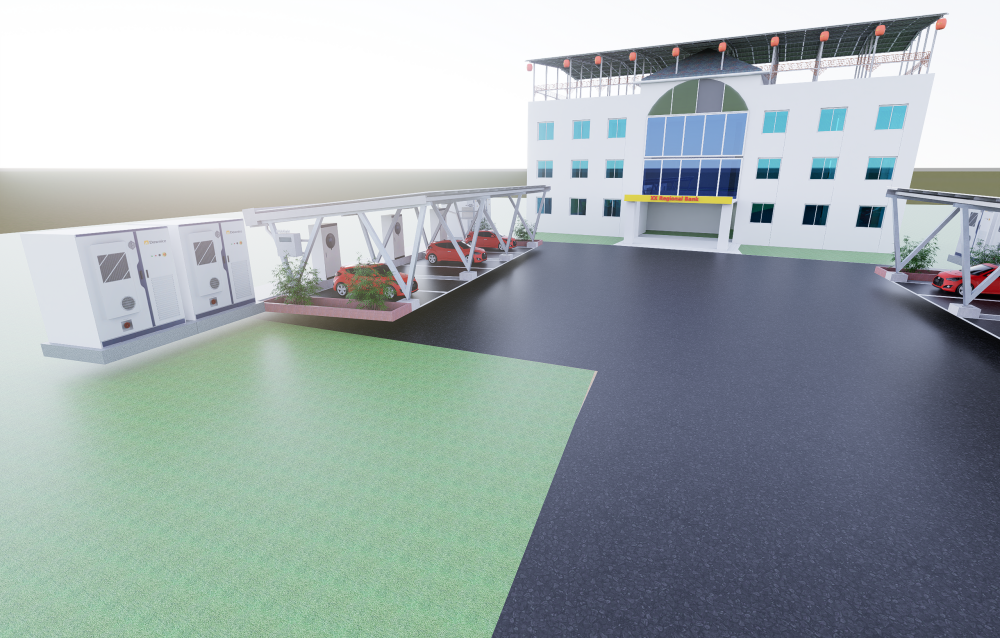

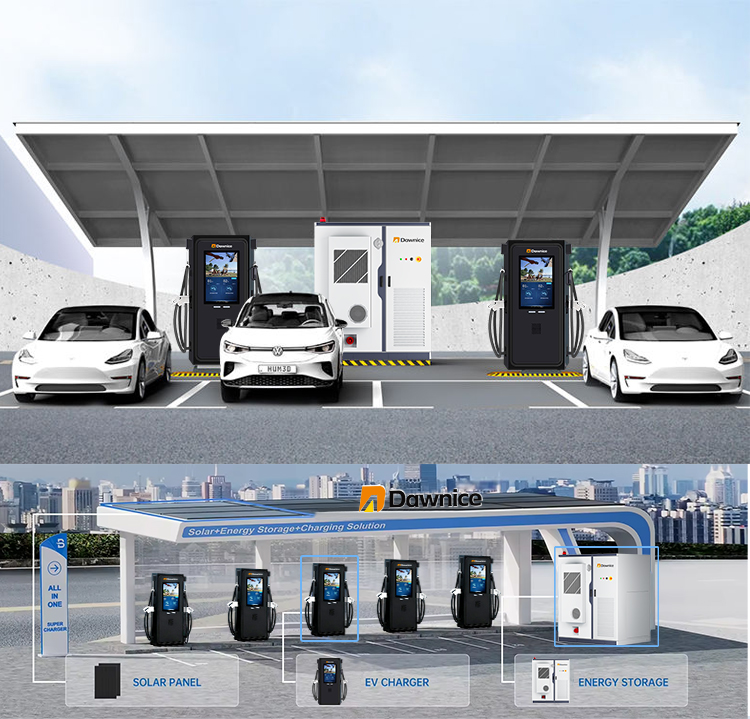

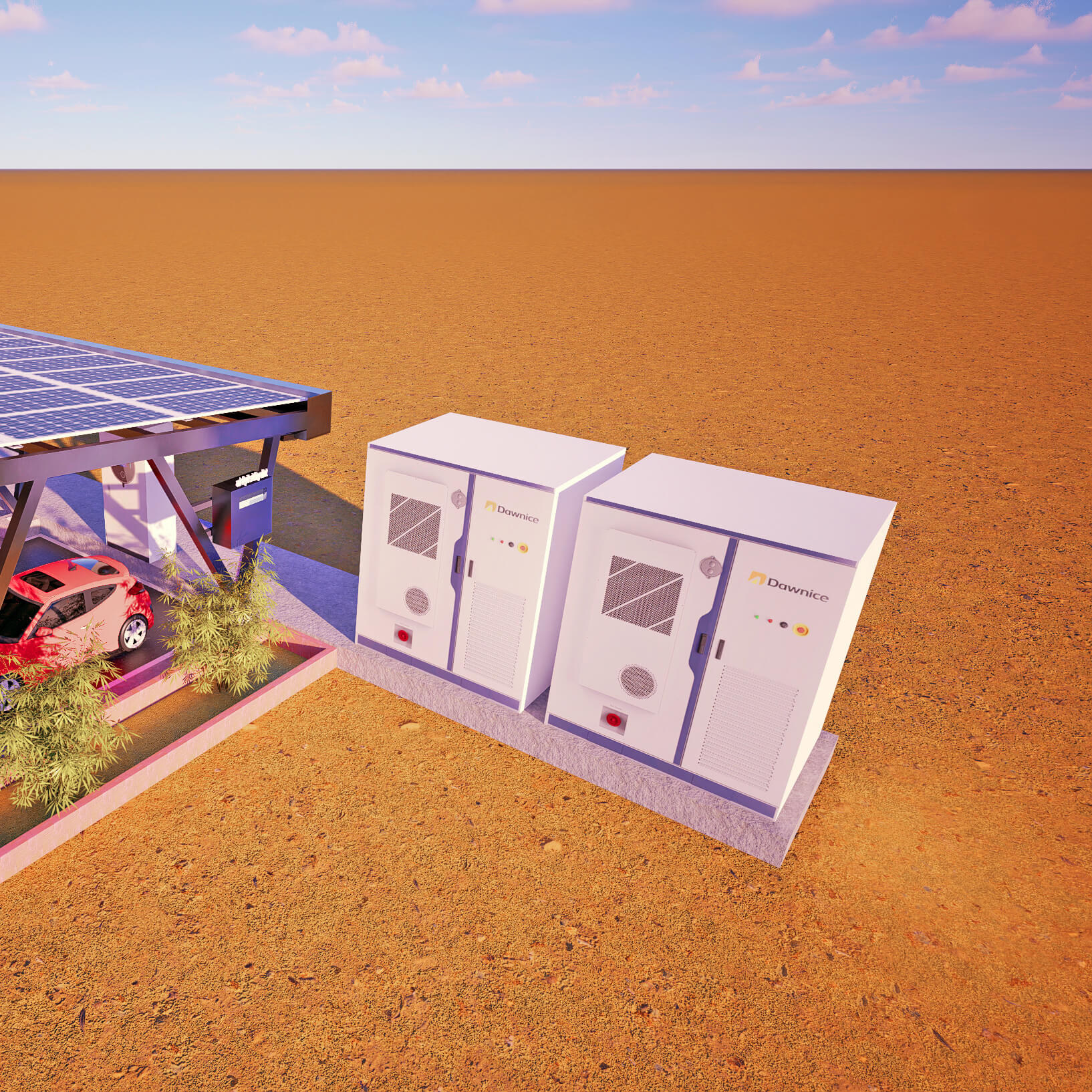

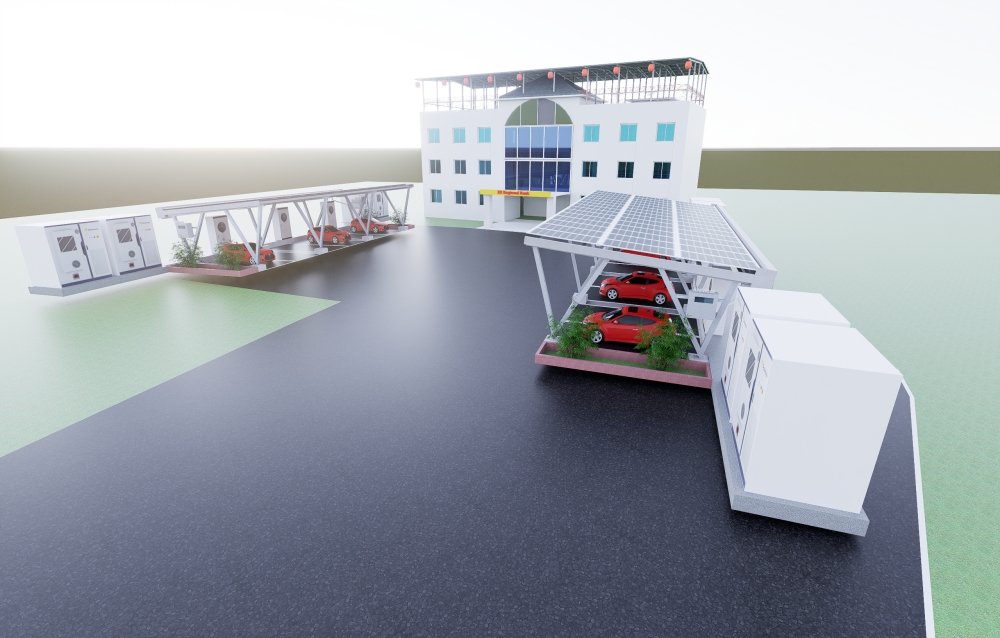

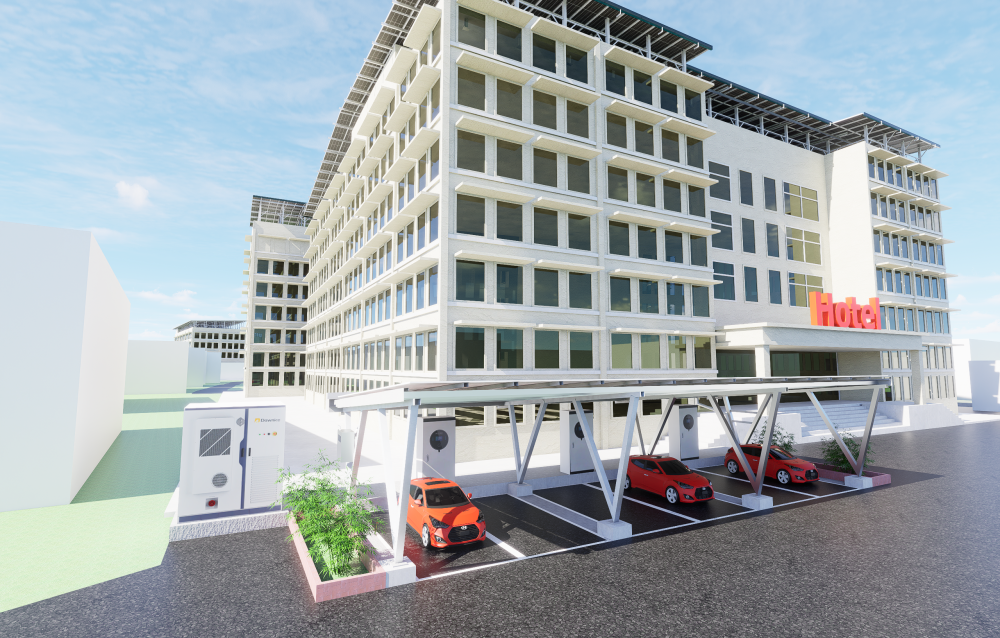

Smart microgrid system: can optimize the efficiency of charging piles based on real-time vehicle flow and grid load, reduce vehicle waiting time, and improve the overall utilization rate of charging stations. If the transformer capacity is not enough, the energy storage system can be used to solve this problem.

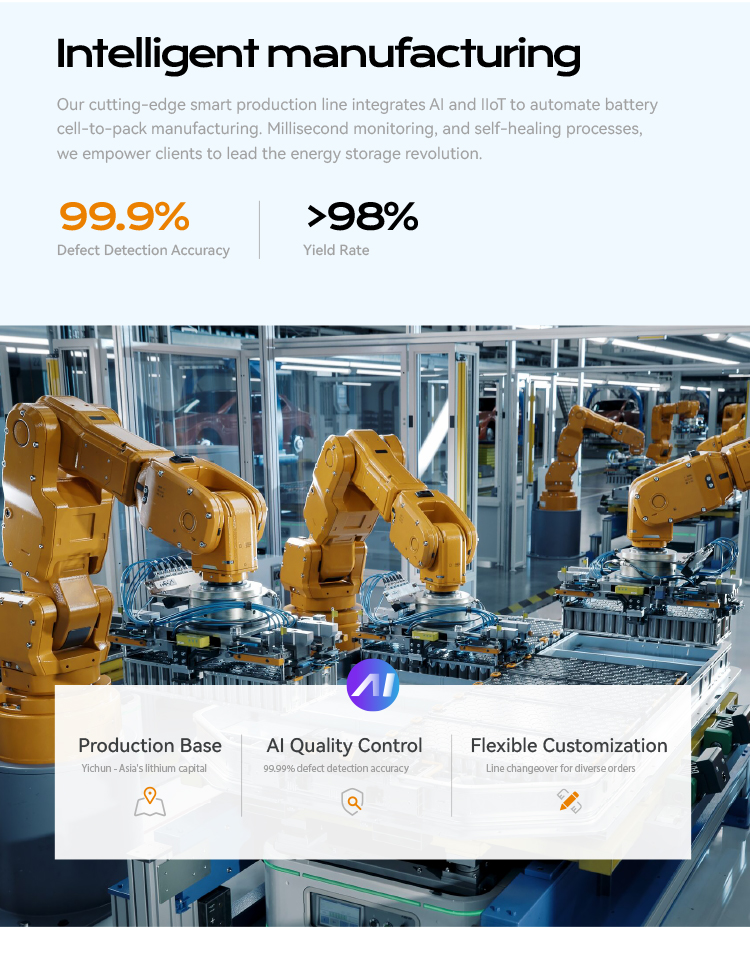

Our Battery Factory was founded in 2002. It is a leading manufacturer of home energy storage batteries, commercial energy storage systems, and battery energy storage systems with integrated solar inverters.
Core products include residential storage batteries and commercial solar storage solutions. Energy solutions have been provided to 70 countries, serving around 80,000 households. The lithium battery factory holds recognized certificates such as CE, UL, UN38.3, RoHS, IEC62619, ISO14001, and ISO9001.
A: The system features high-quality LiFePO4 cells with a cycle life of up to 8000 times at 25℃ (0.5C, 90% DOD, 70% EOL), ensuring long-term reliability for industrial use.

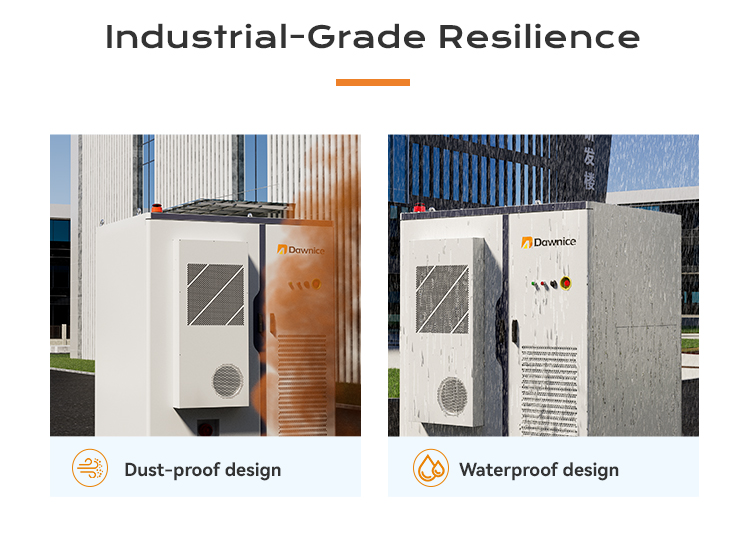

A: Yes, the system has an IP54 rating, making it suitable for outdoor installation. It is equipped with an intelligent air cooling system and air conditioning for the battery compartment to maintain optimal temperatures.
A: Absolutely. The system is designed for both on-grid and off-grid applications, providing a seamless transition to ensure power continuity for critical commercial loads.
A: It is ideal for commercial and industrial facilities, including schools, factories, gas stations, and EV charging stations, to reduce peak demand charges and increase energy independence.
A: Yes, the system includes a built-in isolation transformer with a 150kVA capacity to ensure safety and electrical stability for your industrial equipment.
A: Our production processes and products are fully certified with CE, UL, UN38.3, RoHS, IEC62619, ISO14001, and ISO9001 standards.
