| No. | Item | General Parameter | Remark |
|---|---|---|---|
| 1 | Combination method | 224S2P | |
| 2 | Rated Capacity | 200 Ah | Standard discharge after Standard charge |

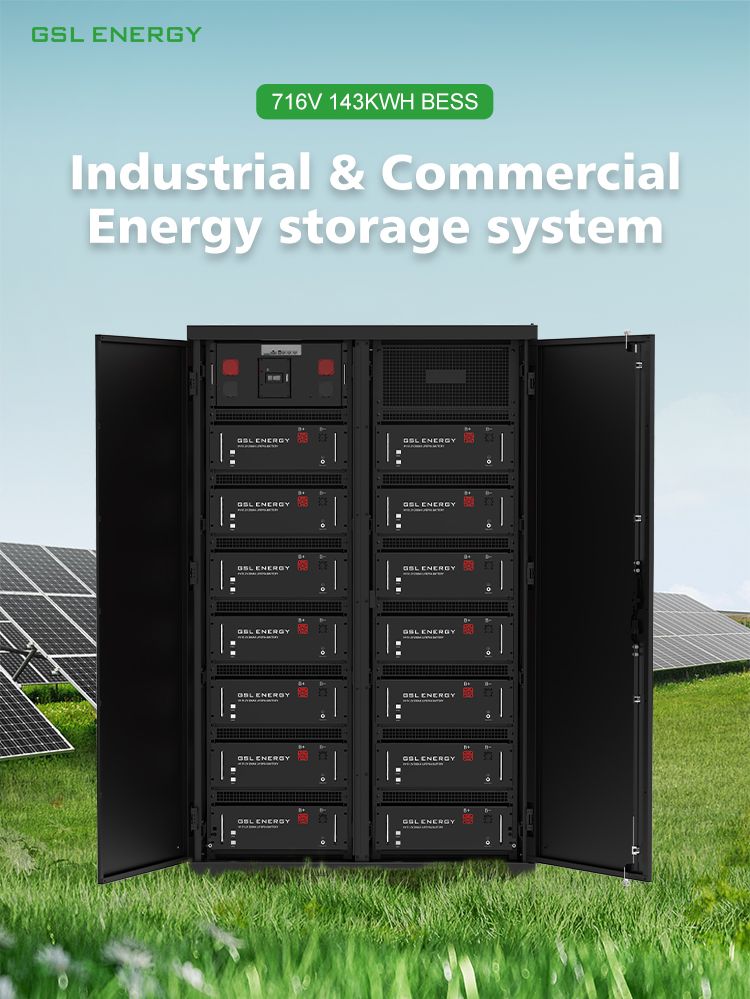

| 3 | Factory Voltage | 716.8V | Mean Operation Voltage |
| 4 | Voltage at end of Discharge | 616.0V | Discharge Cut-off Voltage |
| 5 | Charging Voltage | 817.6V | Charge Cut-off Voltage |
| 6 | Internal Impedance | ≤ 10mΩ | AC 1KHz after 50% charge |
| 7 | Standard charge | Constant current 10A | Charge time: Approx 2.5 h |
| 8 | Max Continuous Charge Current | 200A | |
| 9 | Standard discharge | Constant current: 100A | |
| 10 | Max Continuous Discharge Current | 200A | 100A when T=10°C |
| 11 | Max Continuous Discharge Power | 143.0kwh | |
| 12 | Operation Temperature Range | Charge: 0~45°C / Discharge: -20~55°C | 60+25% R.H. |
| 13 | Storage Temperature Range | -10~35°C (12 months) | 60+25% R.H. |
| 14 | Dimensions | 2180*480*800mm | Include Bracket |
| 15 | Weight | Approx: 1560.5 kg (N.W) | |
| 16 | Parallel connection | 32 SETS | MAX 4587KWH |
| 17 | BMS Port | CANBUS/RS485 |
