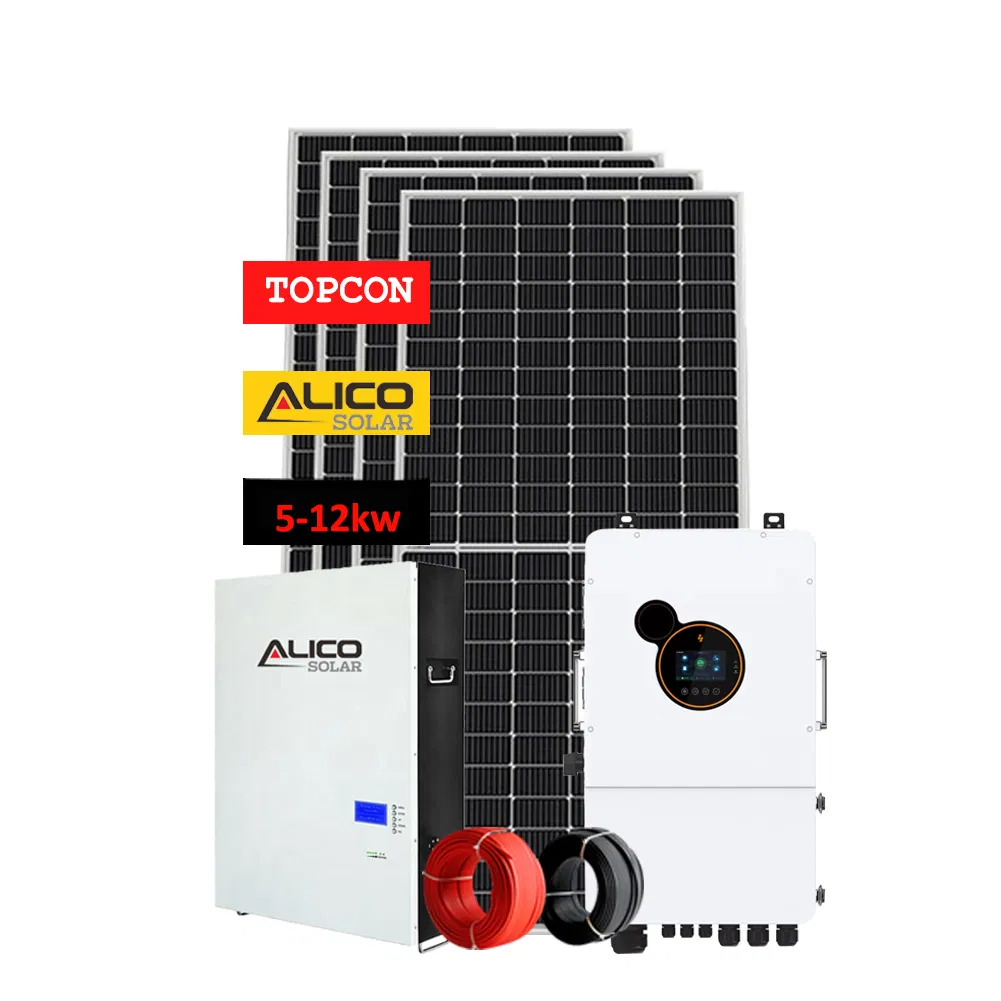

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

1 / 5

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Solar Inverter

Grid-Tied Inverter

Solar Panel

Mono N-Type Hjt

Mounting Support

Roof or Ground Support

Capacity

2 Gw/Year

Packaging & Delivery

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Gross Weight

2000.000kg

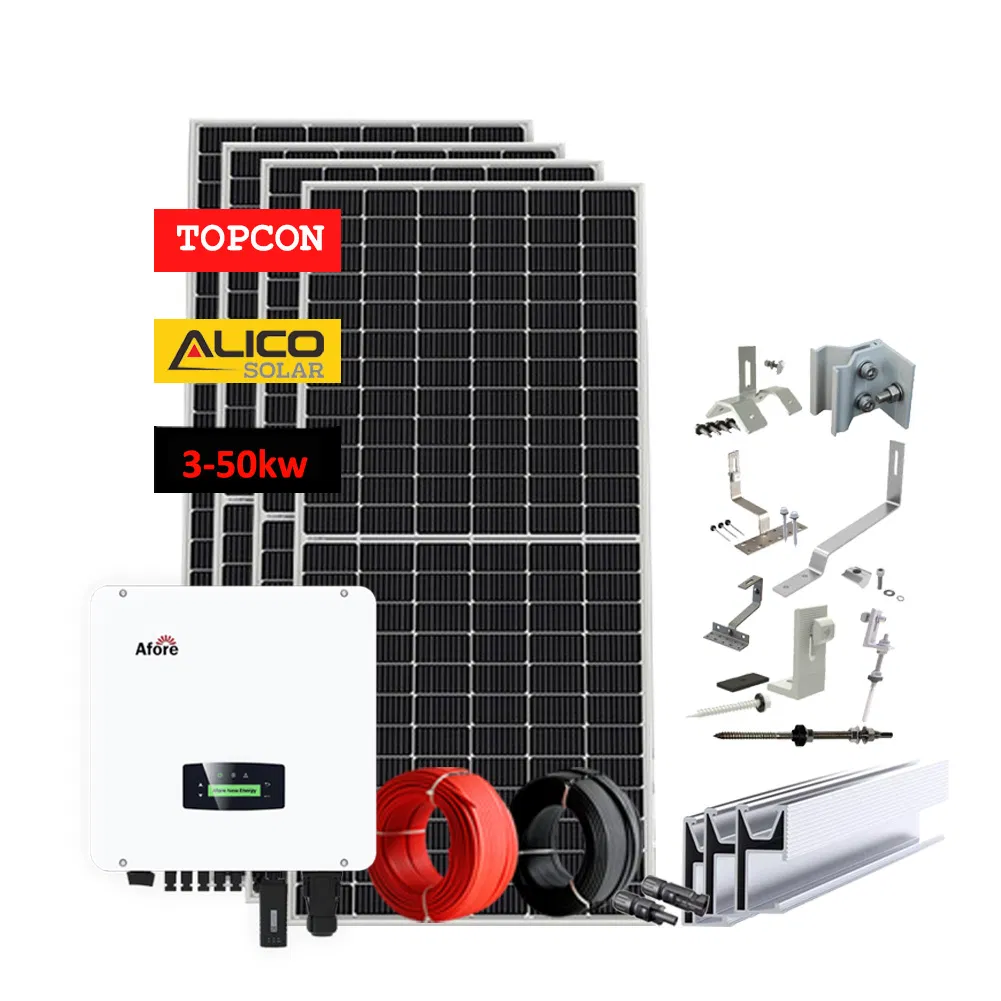

On-Grid System Configuration

Component Name	Technical Description	Quantity Range
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500KW	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm² Cross Section	200 - 2000 Meters
MC4 Connector	4mm² 1000VDC	10-1000 Pairs
Mounting System	Standard Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter, Stripper, Disassembly Tool	1 Set

Core Components & Technology

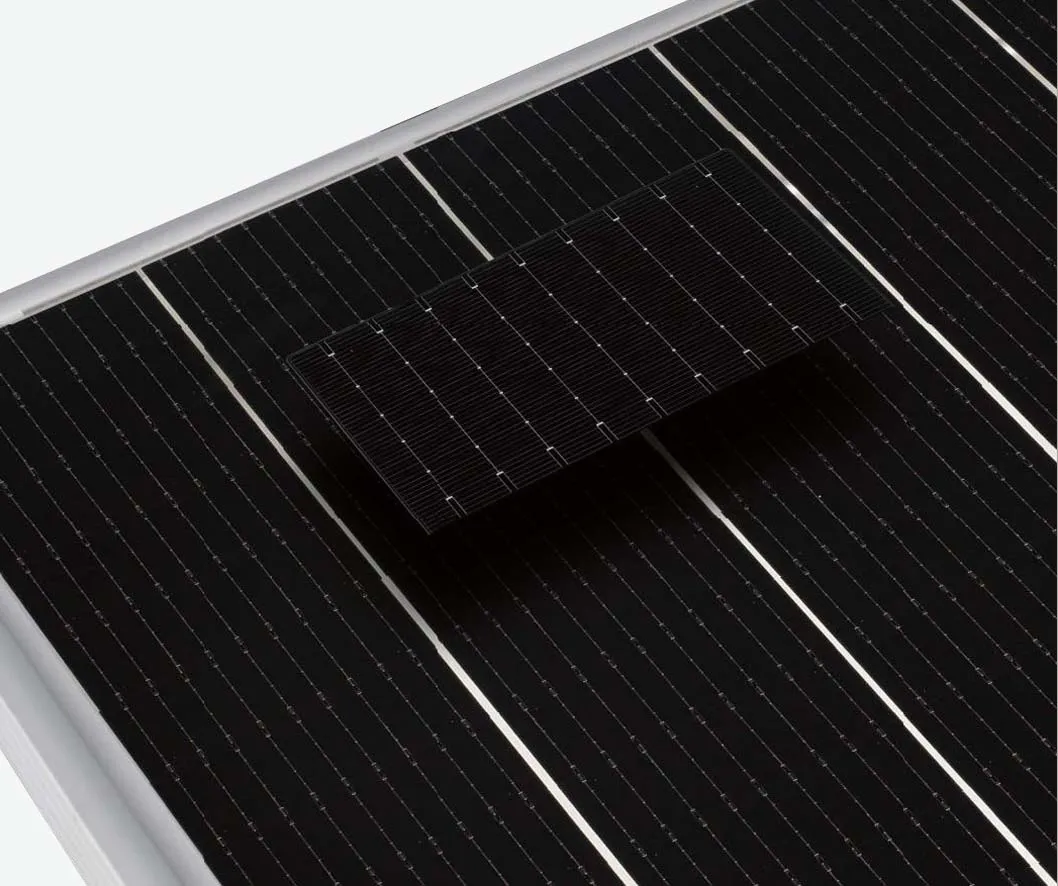

Mono Solar Panels

Peak Power Watts: 480W | Max Voltage: 49.2V | Max Current: 9.02A | Open Circuit Voltage: 42.8V | Short Circuit Current: 11.2A

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU) | Warranty: 5-10 Years | Wifi Stick For STD, Lan & GPRS Optional.

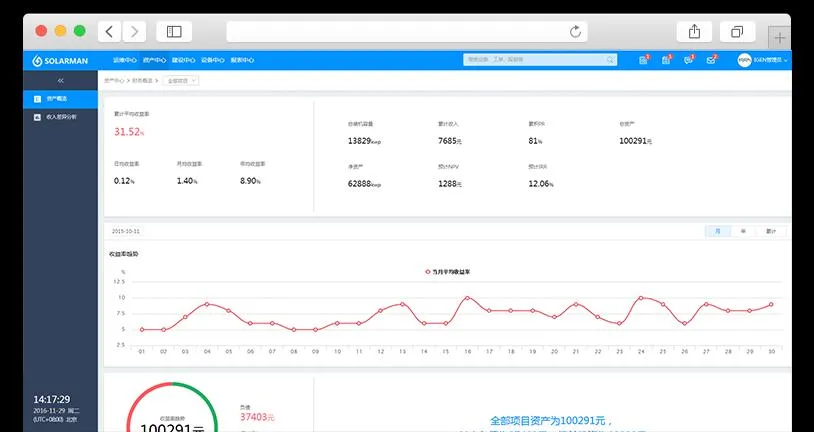

Remote Monitoring System

Data Logging Stick allows real-time PV system updates via Wi-Fi, Lan or GPRS. Mobile App available for PC, iOS & Android.

PV Mounting System

AI6005 Rail & SUS304 Bolts. Includes Mid/End Clamps (35-50mm), Asphalt Shingle Mounts, and Ground Clips.

Packaging & Shipping Display

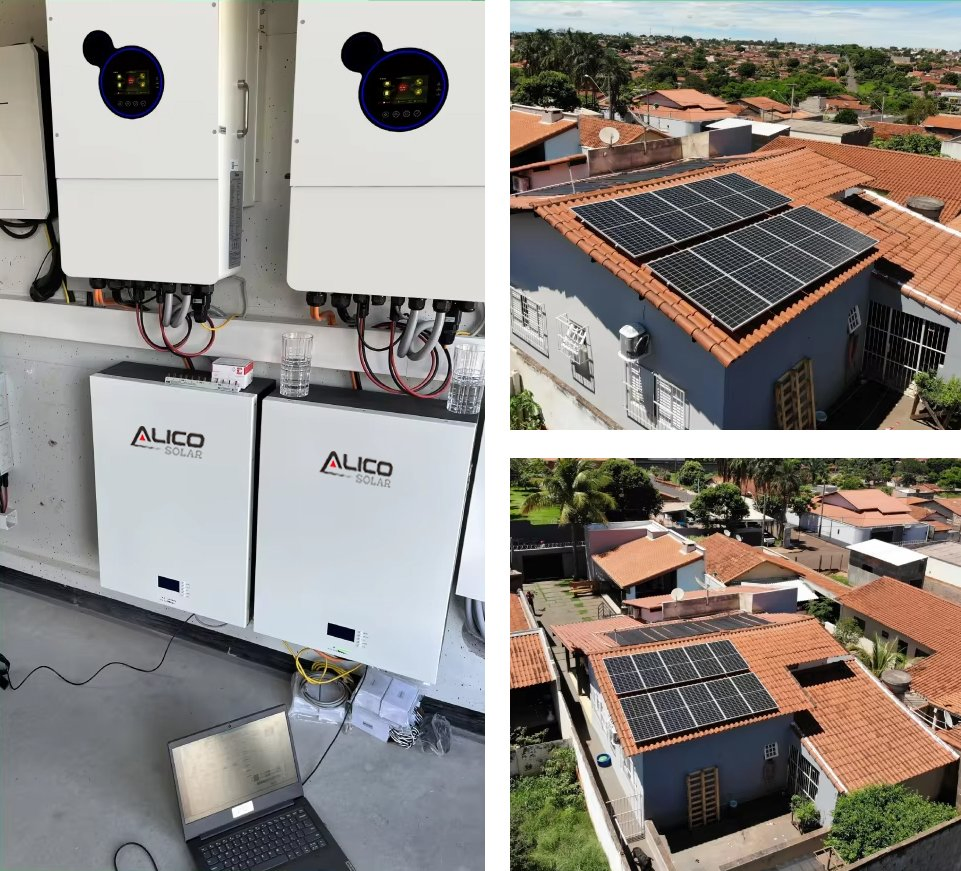

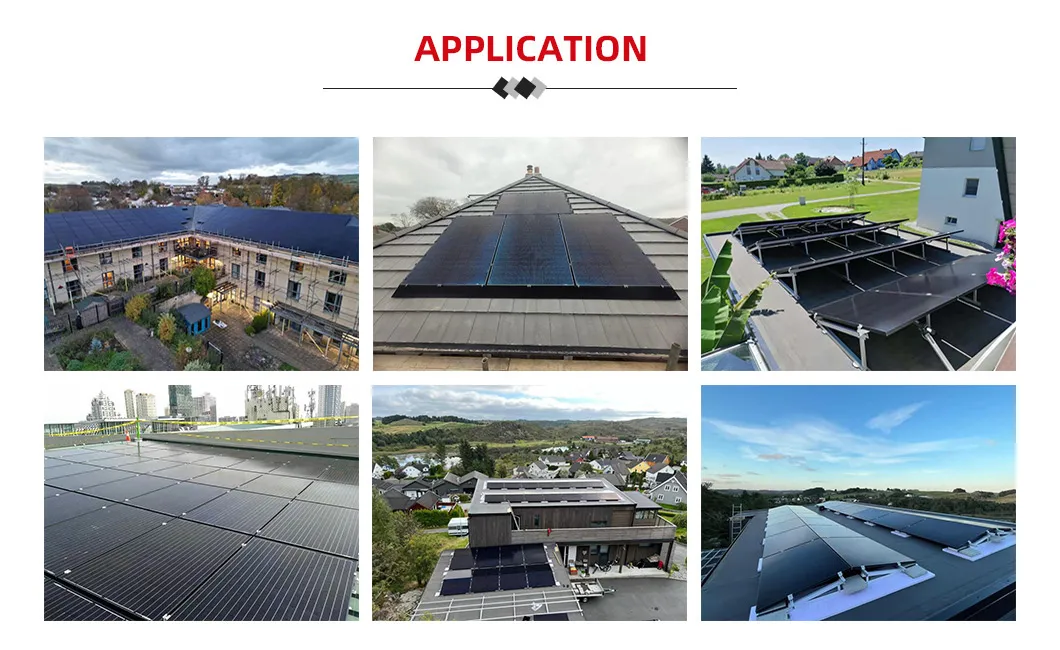

Global Projects Showcase

12MW Commercial Metal Roof Solar Plant

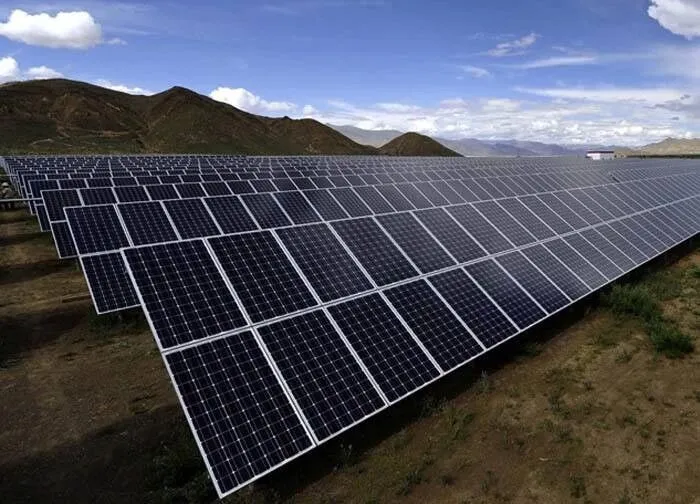

20MW Ground Plant, USA

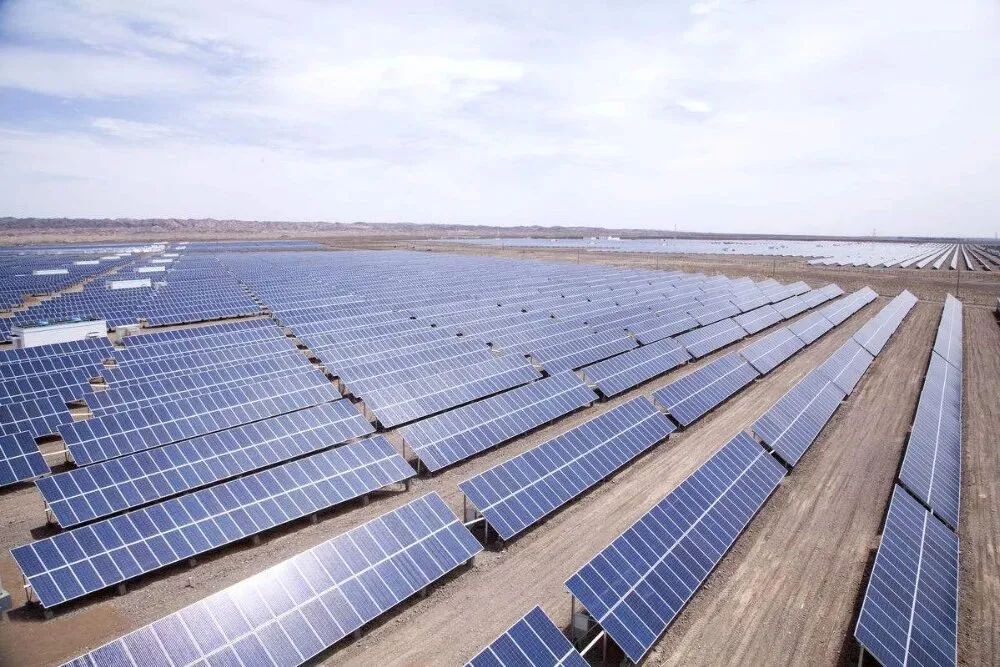

50MW Solar Plant, Brazil

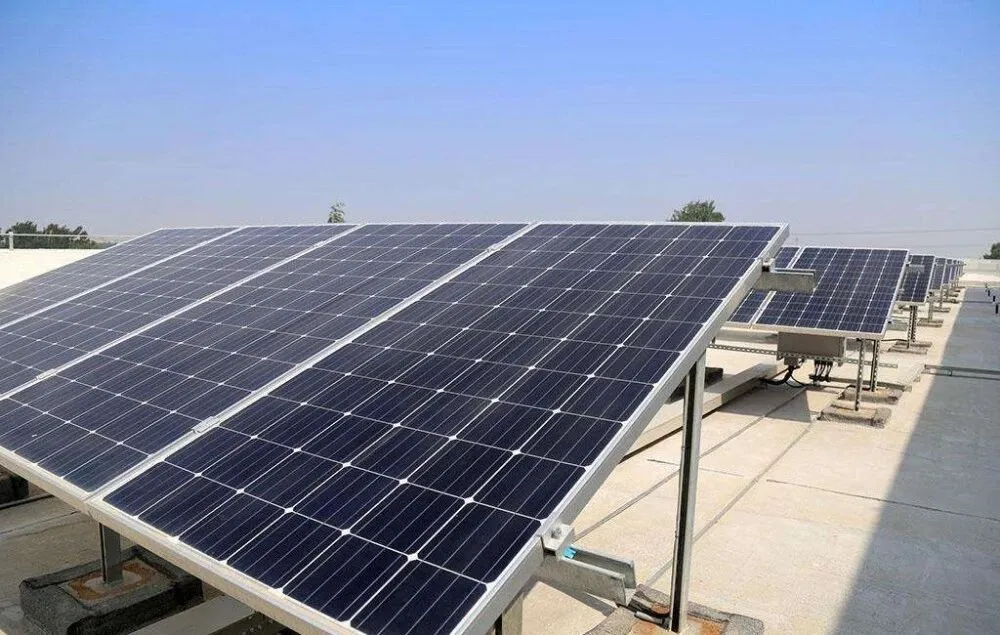

20KW Solar Plant, Mexico

Frequently Asked Questions

What are the benefits of an On-Grid Solar System?

An on-grid system allows you to use solar power when available and draw from the utility grid when needed. It is often more cost-effective as it doesn't require expensive battery storage, and you may sell excess energy back to the grid.

Can I monitor the system performance remotely?

Yes, our systems include a Wi-Fi or GPRS data logging stick that connects to a web server. You can monitor atmospheric conditions and PV generation via a PC or smartphone app (iOS & Android).

Is the mounting system compatible with my roof type?

Our mounting systems are designed for standard pitched roofs using AI6005 and SUS304 components. We also offer customized options for asphalt shingles and ground-mounted installations.

What is the lifespan of the solar cables and connectors?

The DC cables and MC4 connectors are designed for a lifetime of up to 25 years. They are TUV certified and rated for high voltage and extreme outdoor conditions.

What kind of maintenance is required for this system?

On-grid systems require very little maintenance. Periodic cleaning of the solar panels and a visual check of the inverter and connections are usually sufficient to maintain optimal performance.
