High Efficiency: 91%+ RTE for maximum energy utilization.
Active Safety: Real-time monitoring, early warning & spray protection.
Flexible Operation: Seamless grid/island switching enhances reliability.
Long Life: 8,000+ cycles, up to 15-year service life.
Precision Cooling: Full liquid cooling keeps cell temperature difference ≤3℃.
Modular Design: Supports easy expansion and mobile deployment.

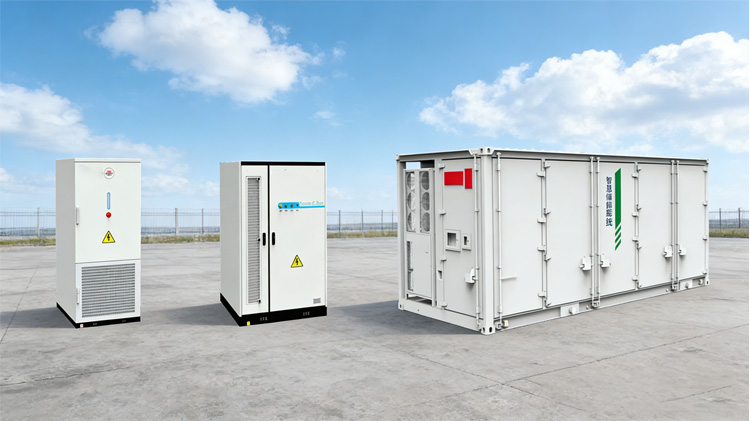

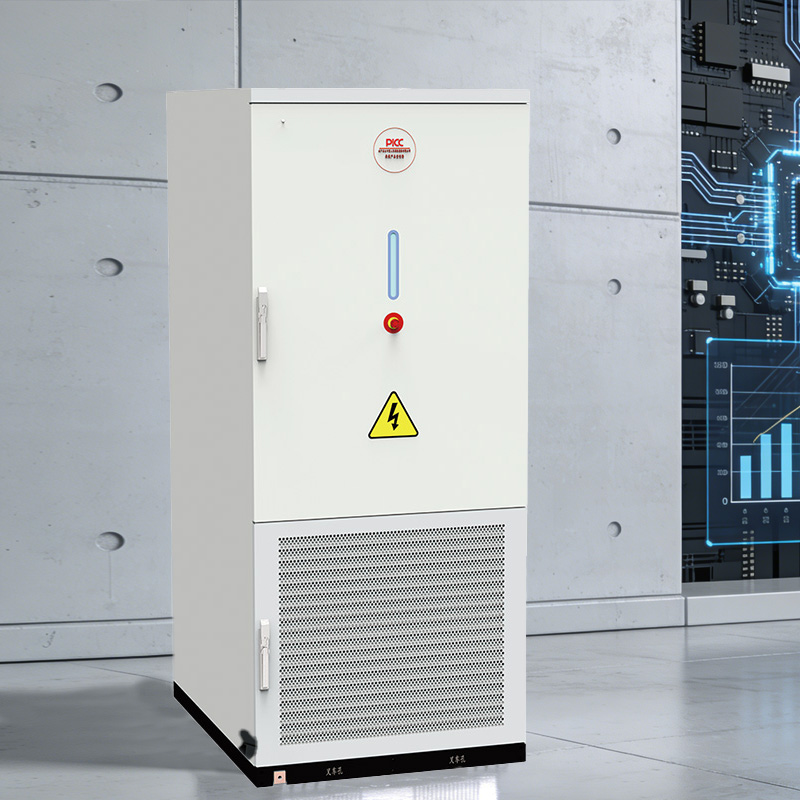

| Model | ENNP-BES-261 | ENNP-ESS-5015 |
|---|---|---|
| Rated Capacity (kWh) | 261 | 5015 |
| System Power (kW) | 125 | 2500 |
| Nominal Voltage (V) | AC 400V | 1332V |
| Standard Charge C-rate | 0.5P, 25±2℃ | 0.5P, 25±2°C |
| Battery Cell Model | LFP-314 | LFP-314 |
| Cooling Method | Liquid Cooling | Liquid Cooling |
| Environment Temp | -20-60℃ | -20-60℃ |
| Communication | LAN/CAN/RS485 | LAN/CAN/RS485 |
| Life Cycle | ≥8000 times @25℃ | ≥8000 times @25℃ |
| Fire Suppression | Perfluorohexanone + Aerosol | Perfluorohexanone + Aerosol |

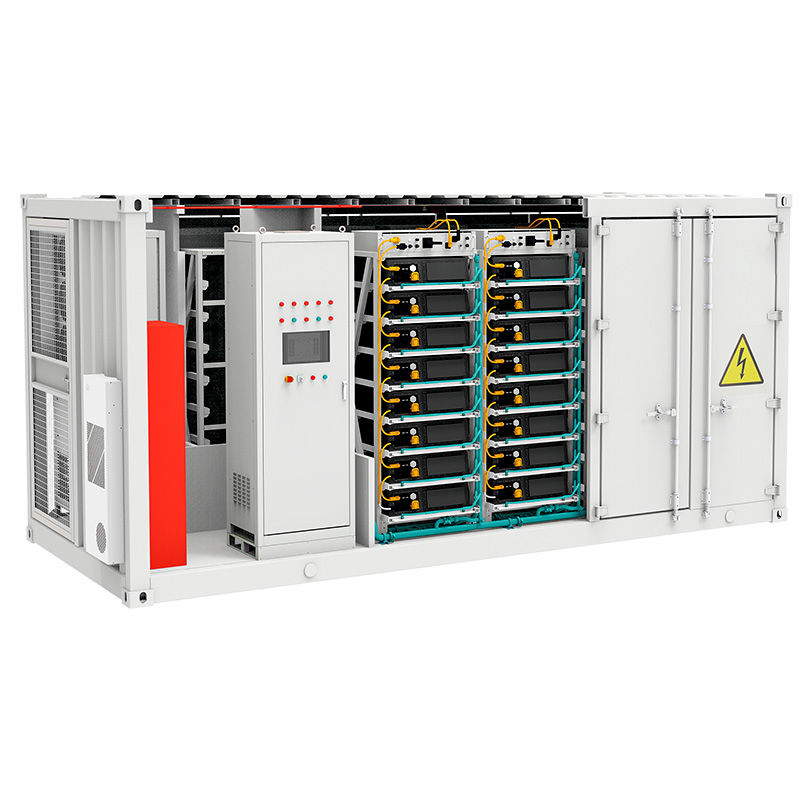

| Dimension / Weight | 1000*1300*2400mm, 2800kg | 6058*2438*3000mm, 43t |

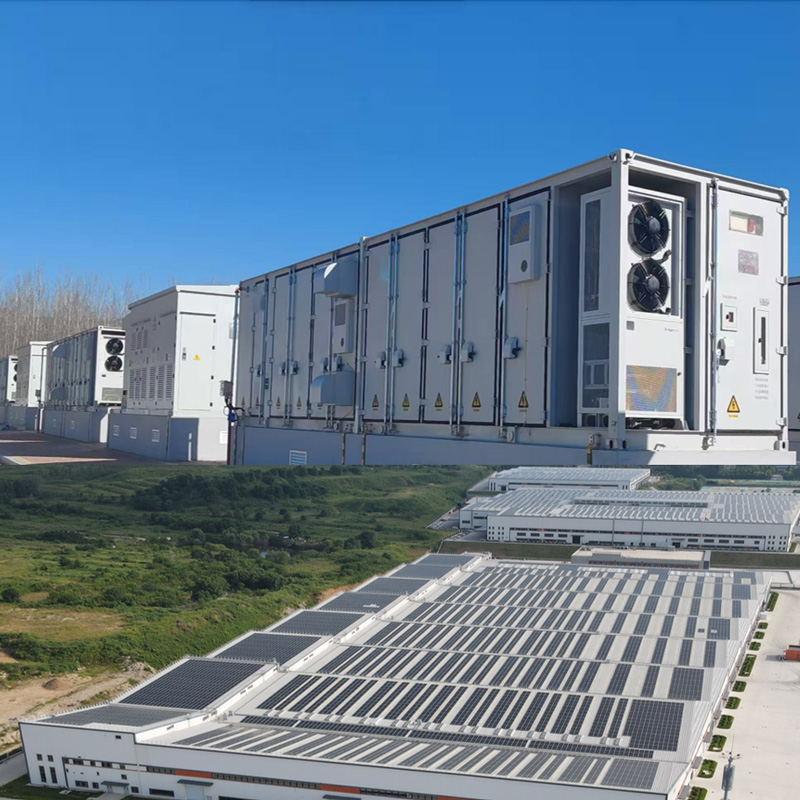

Case Study: A large-scale industrial park hosts energy-intensive enterprises with a monthly power consumption of 10 million kWh.
Equipments: 5MWp PV System, 5MW/10MWh BESS, Micro-grid EMS.
Functions:
1. Arbitrage: System charges during off-peak and discharges during peak rates, saving ~200,000 RMB/month.
2. Power Quality: BESS serves as backup to stabilize voltage and frequency.

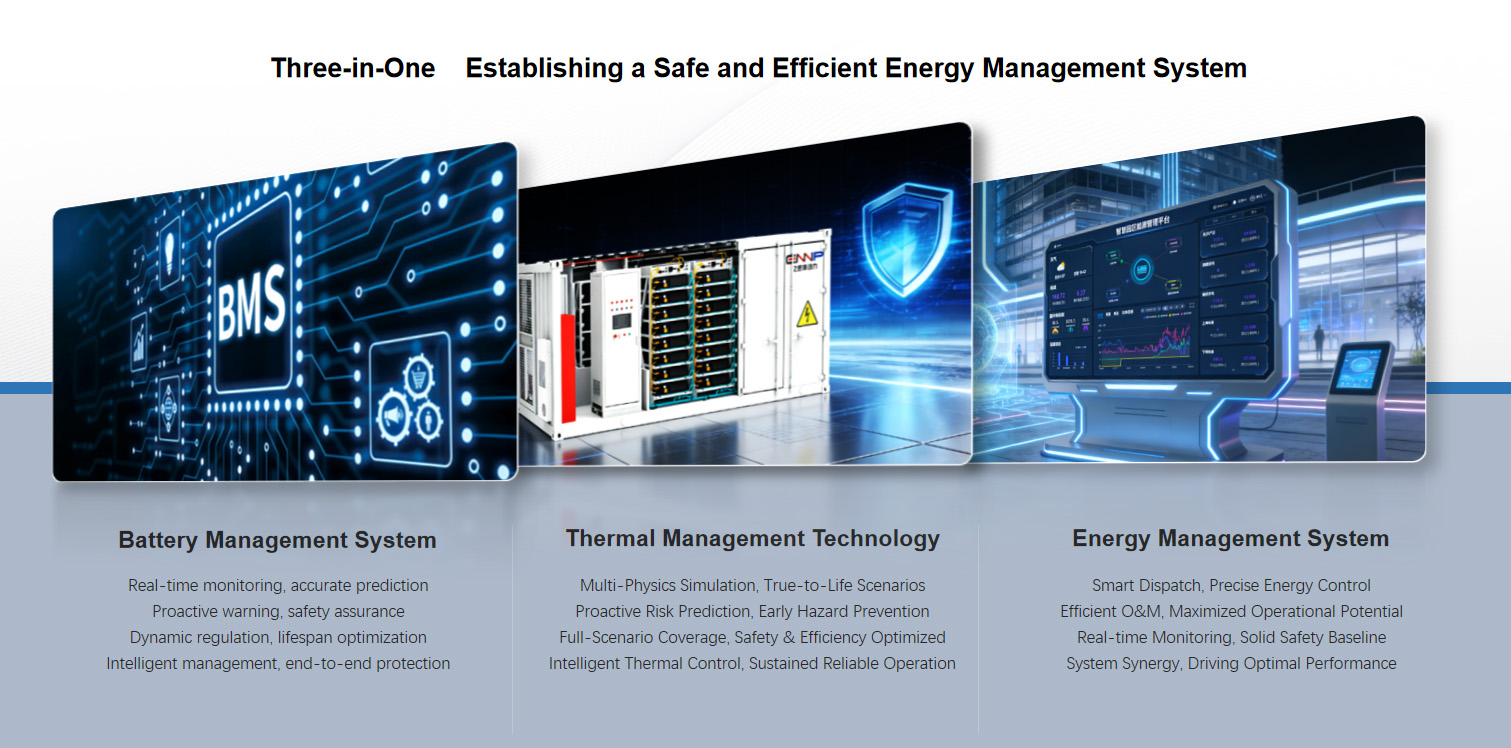

Three-in-One Safe and Efficient Energy Management System
Battery Management System (BMS)
Real-time monitoring, accurate prediction, proactive warning, and lifespan optimization for end-to-end protection.
Thermal Management Technology
Multi-physics simulation and intelligent thermal control ensuring sustained reliable operation in all scenarios.
Energy Management System (EMS)
Smart dispatch, precise energy control, and efficient O&M to maximize operational potential and safety.
We are a high-tech enterprise specializing in professional lithium battery manufacturing. Our management team combines over 16 years of industry experience from leading global firms to drive innovation in R&D and design. We provide both standard and highly customized battery solutions.

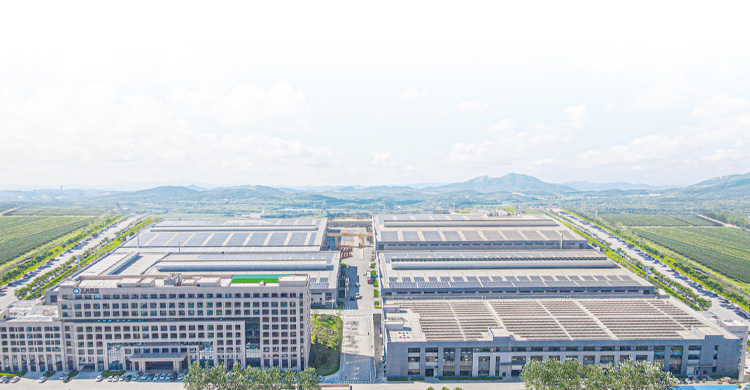

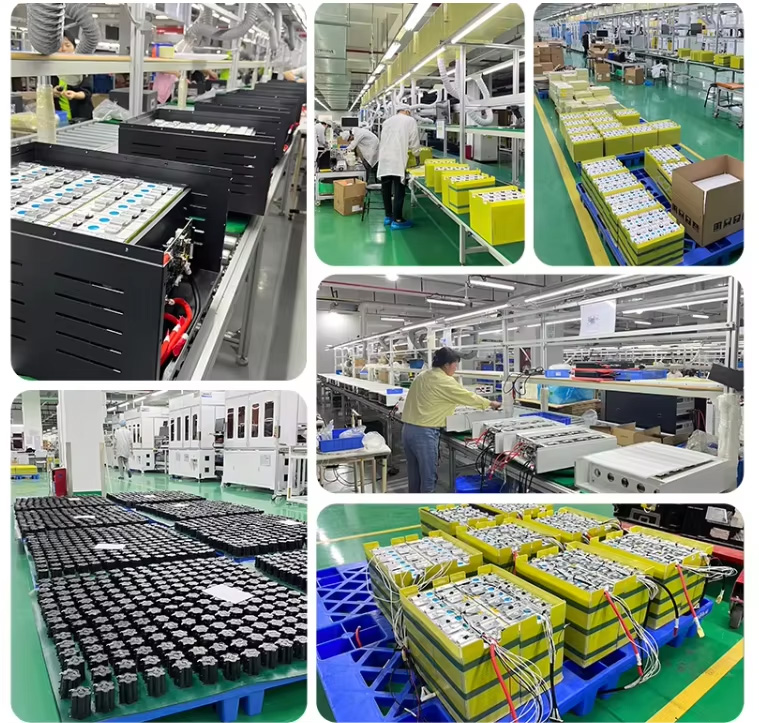

Our facility features automated production lines equipped with intelligent visual recognition and comprehensive testing systems. This allows us to deliver high-quality products, including power battery systems for construction, mining, and large-scale energy storage, with high flexibility and efficiency.
