Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
1 / 5
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System
Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System

Solar Energy System For Home Off Grid Full Set 5Kw 8Kw 10Kw With Lifepo4 For Solar Wind Hybrid Energy Battery Storage System

Customization: Available
After-sales Service: Free Warranty
Warranty: 10 Years
Send Inquiry

Product Description

📋 Basic Information
Condition
New
Certification
ISO, CE
Application
Home
Specification
Normal, 3KW-30KW
Product Name
Household Hybrid Solar Power System
Controller Type
MPPT
System Type
Off-Grid Solar Photovoltaic System
Solar Panel
Mono Crystalline Perc Solar Panel
Inverter
Single Phase/Split Phase/3phase
Battery
Lead Acid/LiFePO4 Lithium Battery
Mounting Structure
Customized
Production Capacity
50000 kits/Year
🔍 Product Description

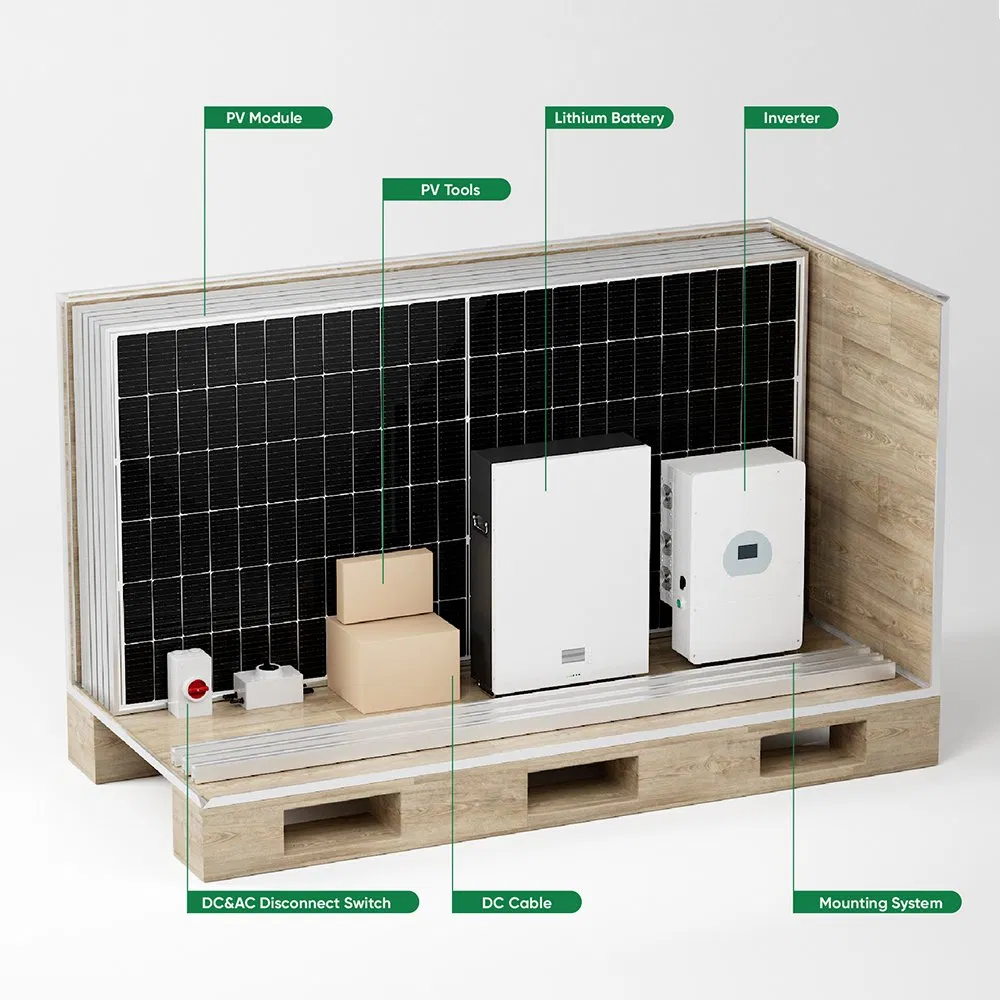

Solar Energy System Overview
🛡 Warranty Information
Warranty Details
⚡ How It Works

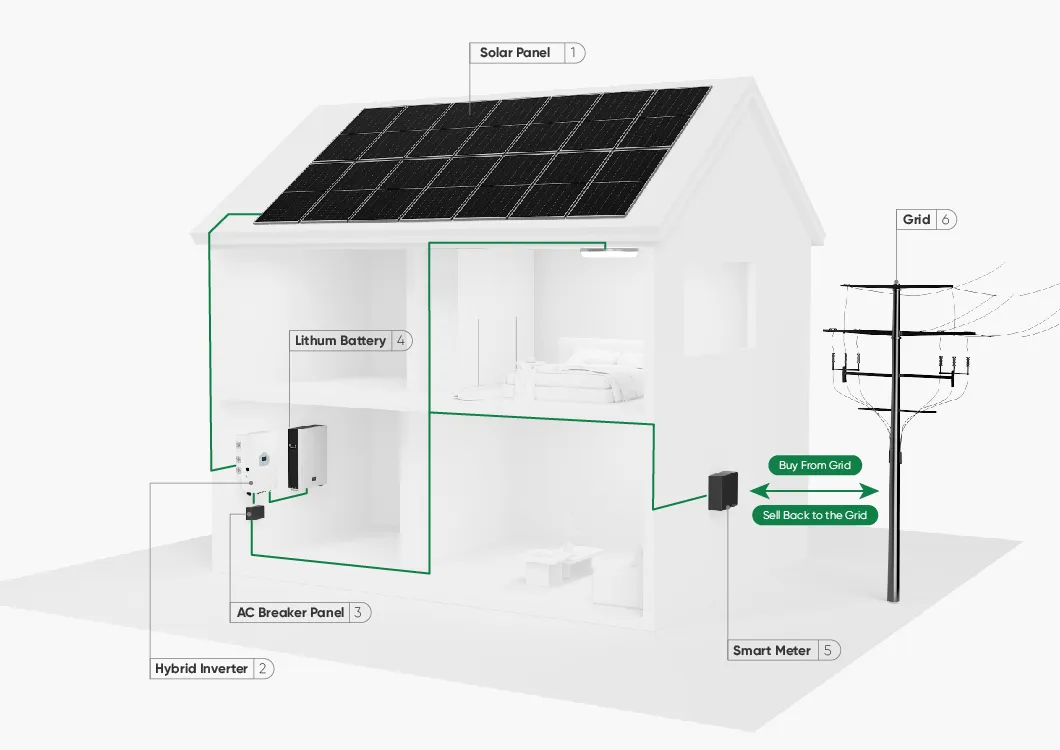

System Workflow 1

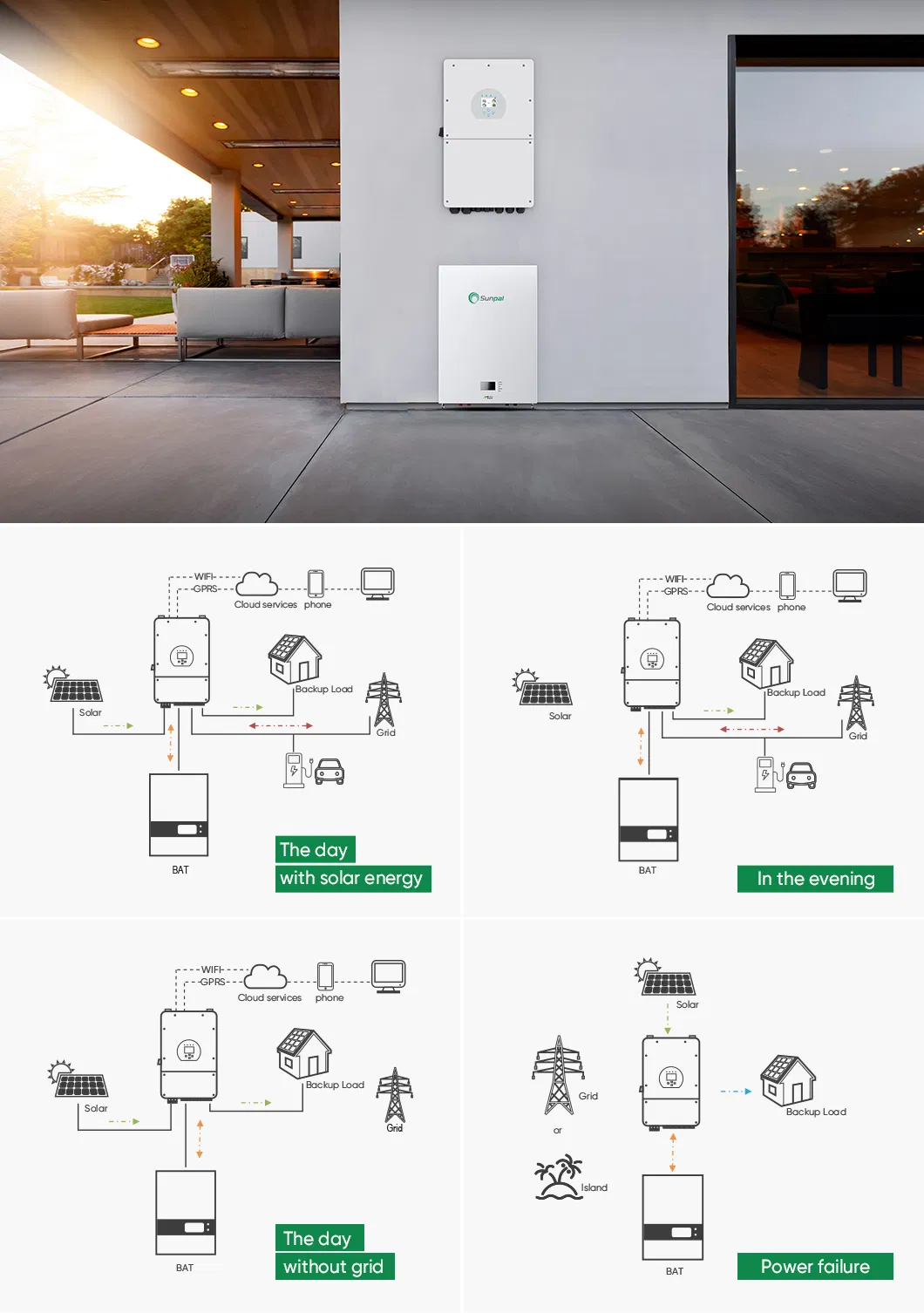

System Workflow 2
📝 System Components & Specifications
Model SP-3KW-HY SP-5KW-HY SP-10KW-HY
Mono 550W Panel6 Pieces10 Pieces20 Pieces
DC Disconnect1 Piece2 Pieces3 Pieces
Hybrid InverterSUN-3K-SG04LP1SUN-5K-SG03LP1SUN-10K-SG04LP3
LiFePo4 Battery5Kwh5Kwh10Kwh
DC Cable 4mm2100m200m400m
Mounting SystemCustomized based on Installation Roof/Ground
Model SP-15KW-HY SP-20KW-HY SP-30KW-HY
Mono 550W Panel30 Pieces42 Pieces63 Pieces
DC Disconnect4 Pieces6 Pieces9 Pieces
Hybrid InverterSUN-5K (3 Pcs)SUN-10K (2 Pcs)SUN-10K (3 Pcs)
LiFePo4 Battery15Kwh20Kwh30Kwh
DC Cable 4mm2600m800m1000m
Mounting SystemCustomized based on Installation Roof/Ground

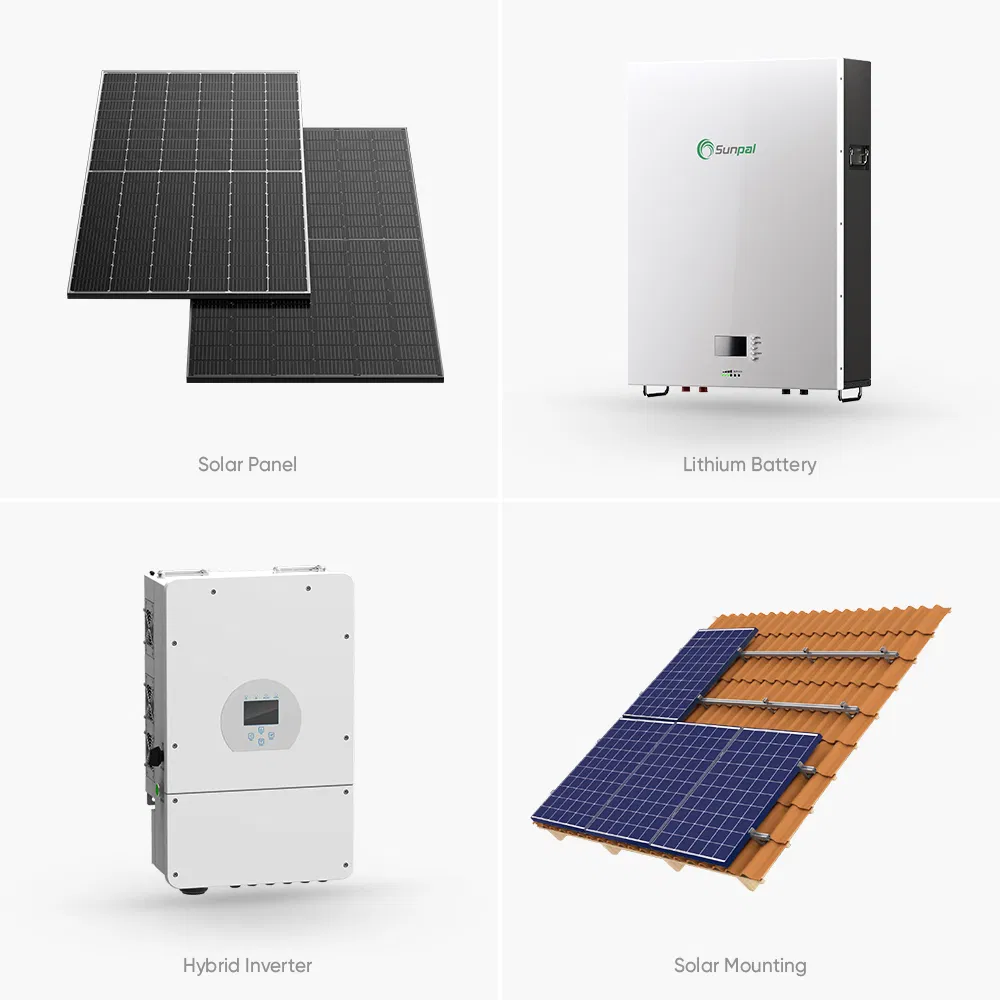

📦 Main Components Detail
Solar Panel
Half Cut Mono 550W Solar Panel
Peak Power: 550W
Max Power Voltage: 42.06V | Current: 12.84A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg
Hybrid Solar Inverter
48V low voltage battery support, transformer isolation design.
6 time periods for flexible charging/discharging.
Max parallel capacity up to 10pcs.
Supports DC and AC coupling for system retrofitting.
Inverter
Monitoring
Smart Monitoring System
One-click installation and registration.
Safe operation with traceable logs.
Full lifecycle data storage ensuring security and reliability.
Wall Mounted LiFePo4 Battery
15-20 years design life | 6000+ cycles.
Scalable battery modules for larger storage needs.
Built-in high-quality BMS for cell protection.
Safe lithium iron phosphate technology.
Battery

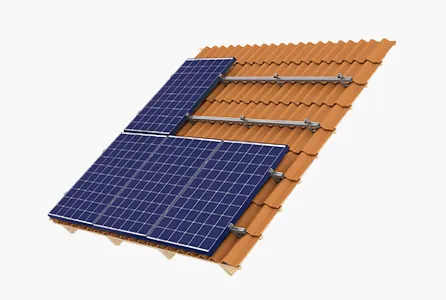

Mounting System
PV Mounting System
Material: AI6005 & SUS304 Bolts.
Adjustable clamps for 35-50mm panels.
Optional L-feet, hanger bolts, and ground clips for all roof types.
DC & AC Safety Protection
IP Rating: IP66 waterproof.
Rated Voltage: up to 1000VDC.
Connection Types: M20, M25, MC4.
Disconnect Switch
🏭 Manufacturing & Projects
Production Facility
Expert Manufacturing
Specialized in research, development, and production of solar PV products. Focused on high-efficiency solar panels since 1998, exporting to over 86 countries. Facility covers 150,000 square meters with over 600 experienced professionals.
📦 Product Packaging

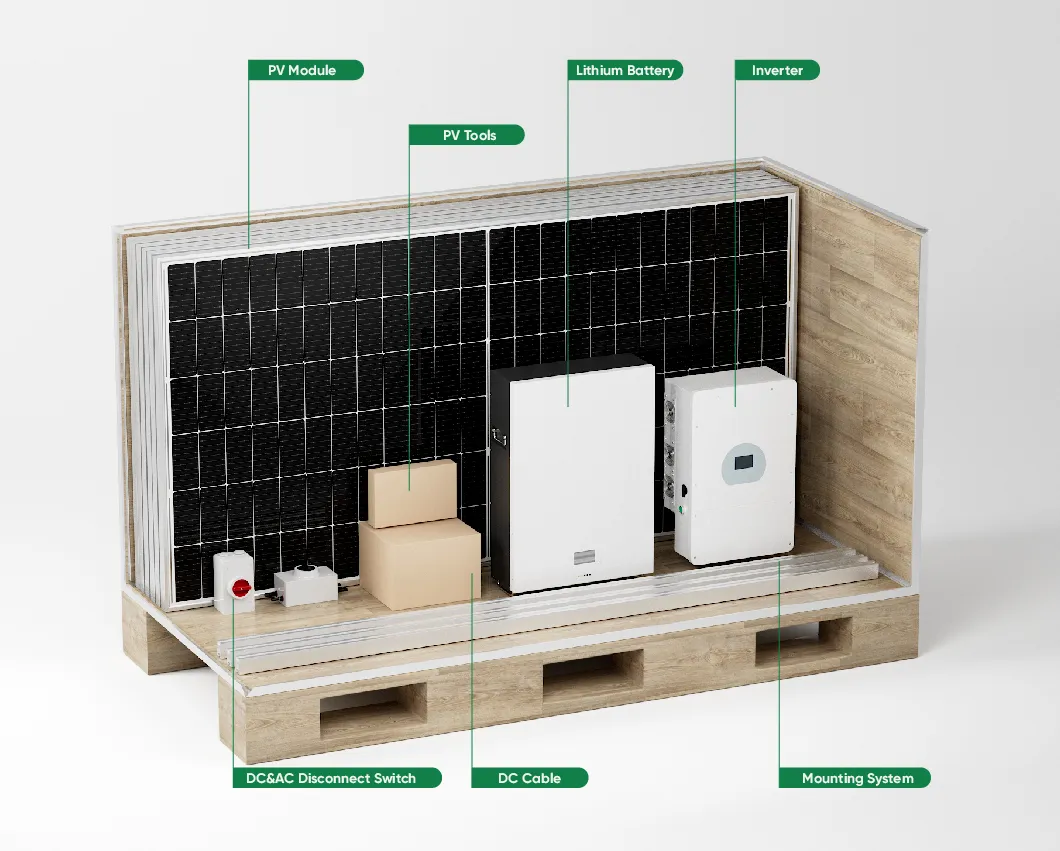

Packaging 1
Packaging 2

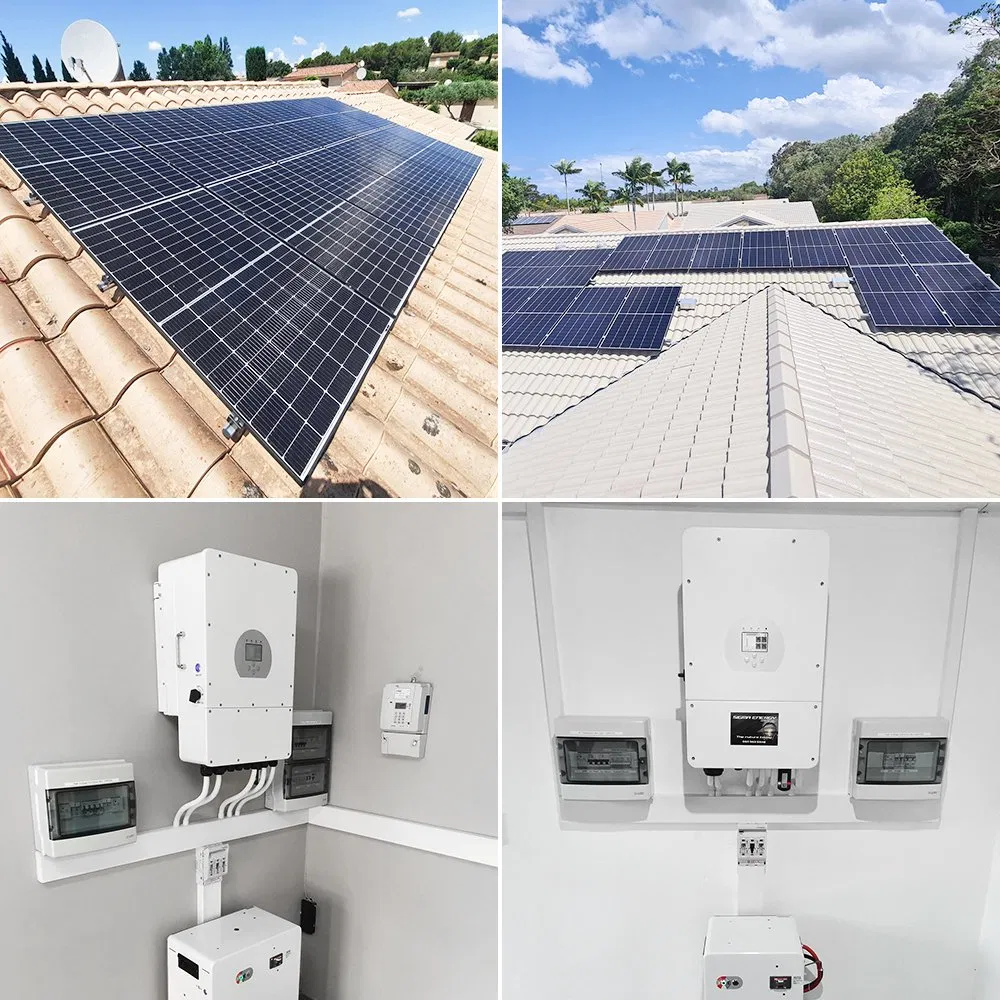

🏡 Project Case Studies

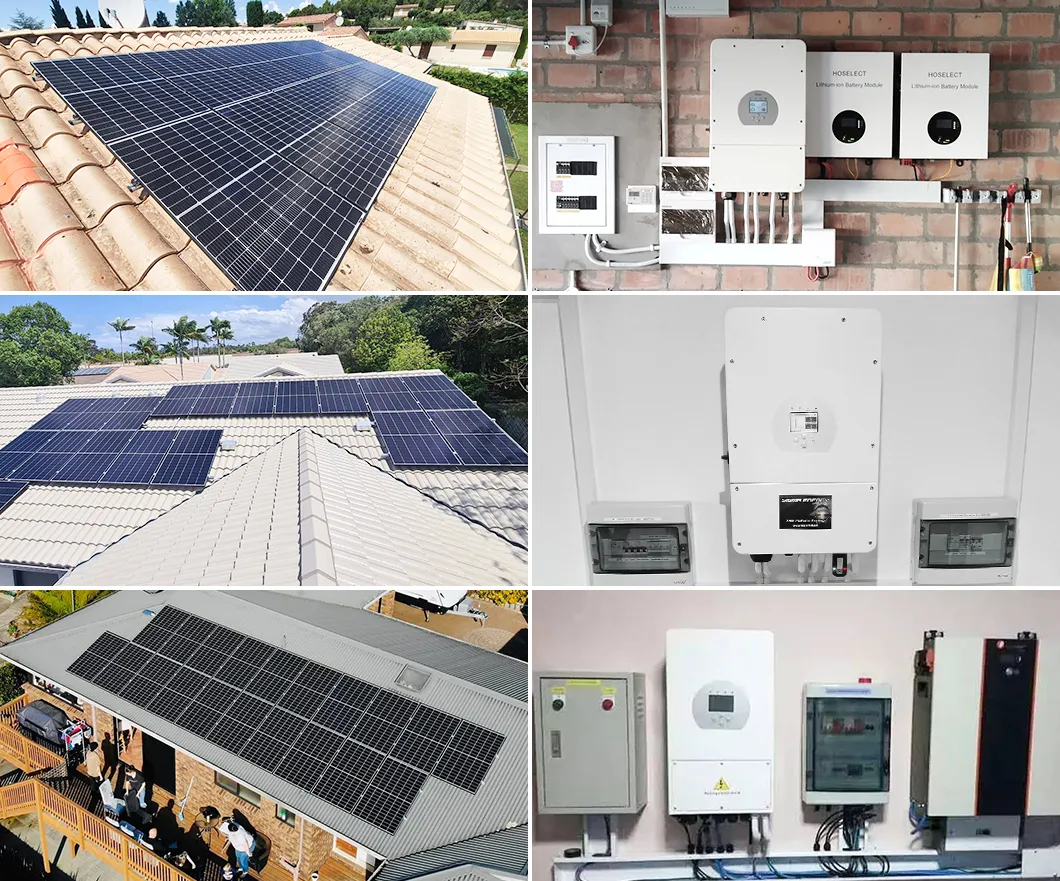

Project Case
🏭 Factory Overview

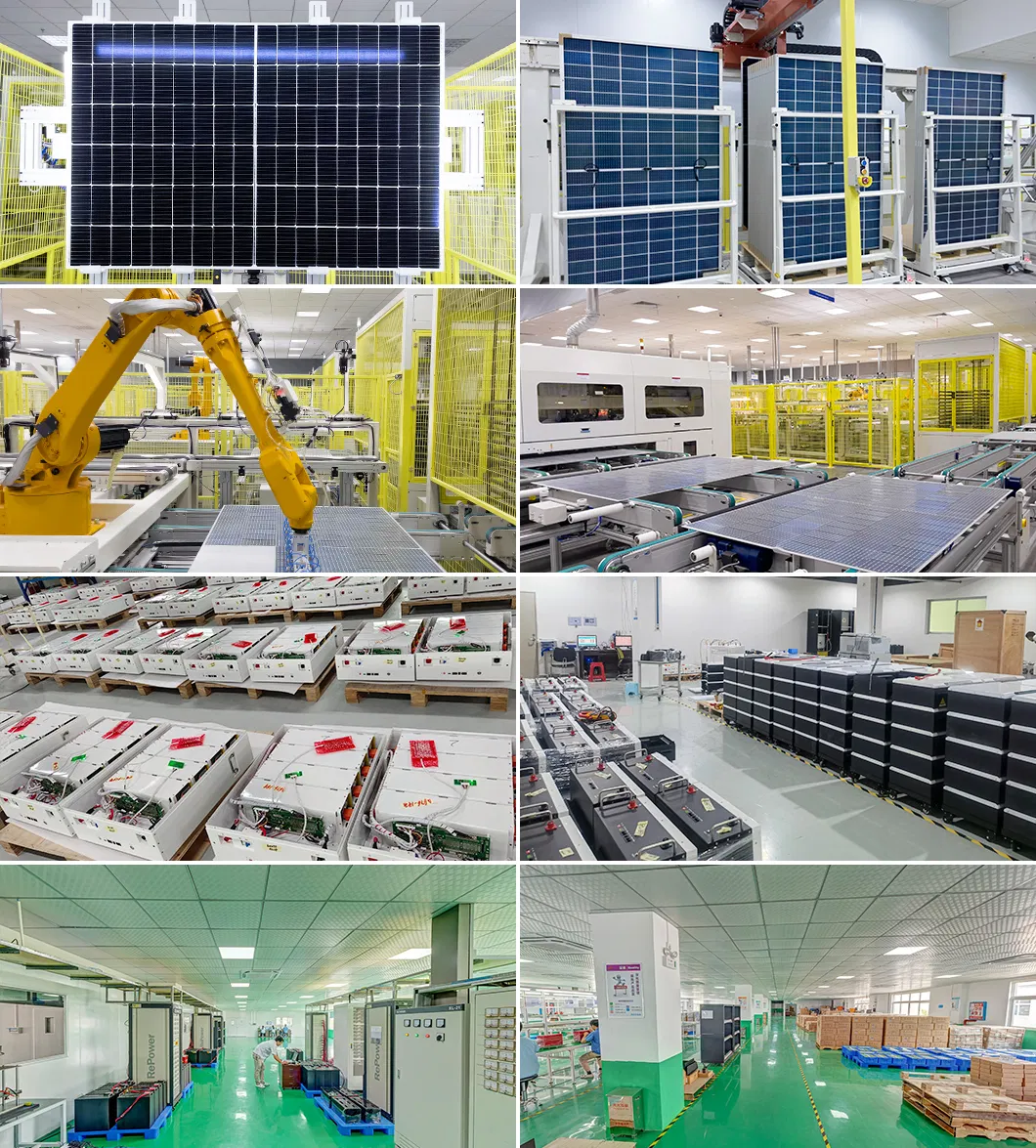

Factory Internal
❓ Frequently Asked Questions
What is a Hybrid Solar Power System?
A hybrid solar system combines solar panels, a battery storage unit, and a connection to the utility grid. It allows you to use solar energy first, store excess in batteries, and only draw from the grid when necessary.
How long does the LiFePO4 battery last?
Our lithium iron phosphate (LiFePO4) batteries are designed for a 15-20 year lifespan and can handle over 6000 charge/discharge cycles.
Will the system work during a power outage?
Yes, the hybrid inverter can automatically switch to battery power during a grid failure, providing an uninterruptible power supply for your home's essential loads.
Can I monitor my energy production remotely?
Absolutely. Our smart monitoring system supports mobile app and web access, allowing you to track energy generation, battery status, and consumption in real-time.
Is the mounting system compatible with my roof?
Yes, we provide customized mounting solutions for various roof types (asphalt shingle, tile, metal) and ground-mounted installations using high-grade aluminum and stainless steel components.
What certifications do your products have?
The entire system and its individual components are ISO and CE certified, ensuring they meet international standards for safety, quality, and performance.
