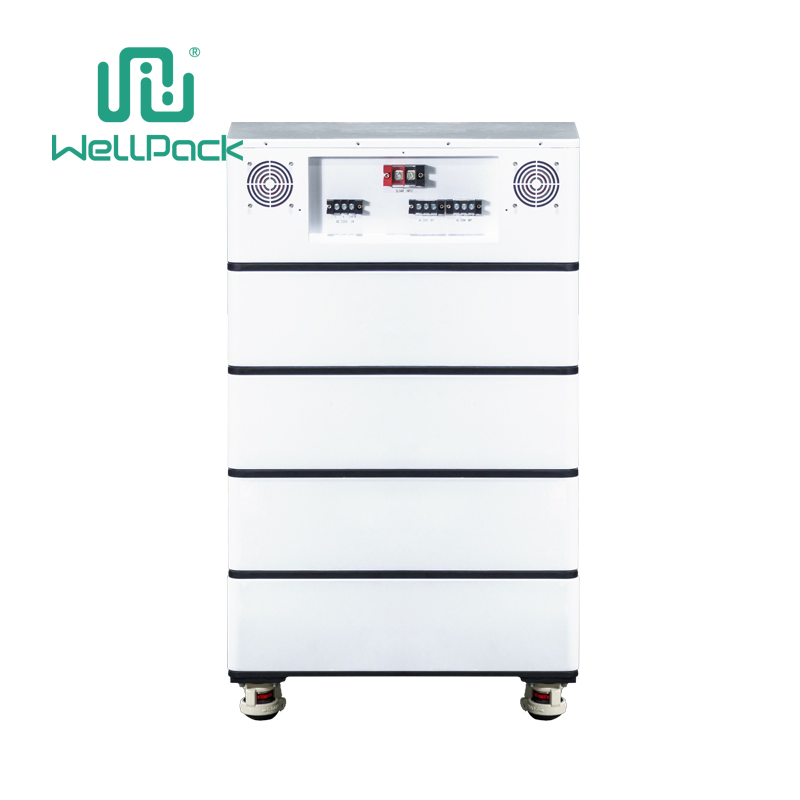

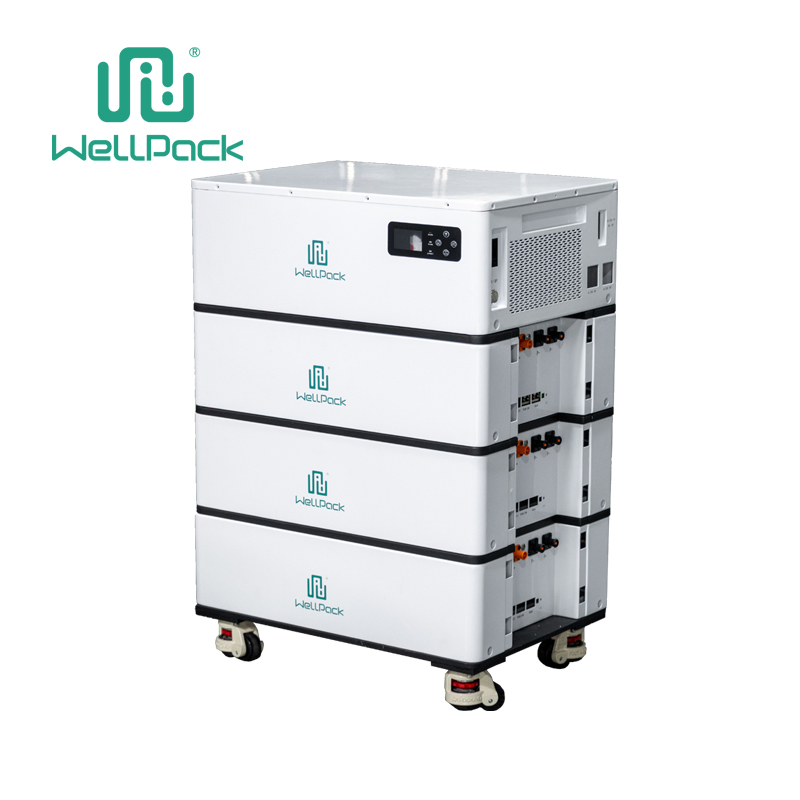

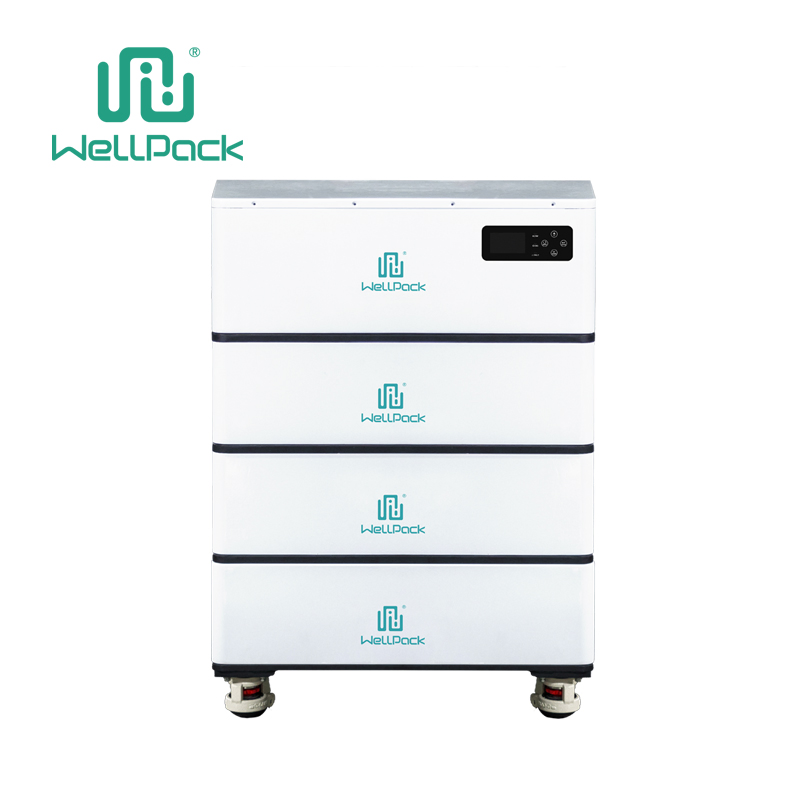

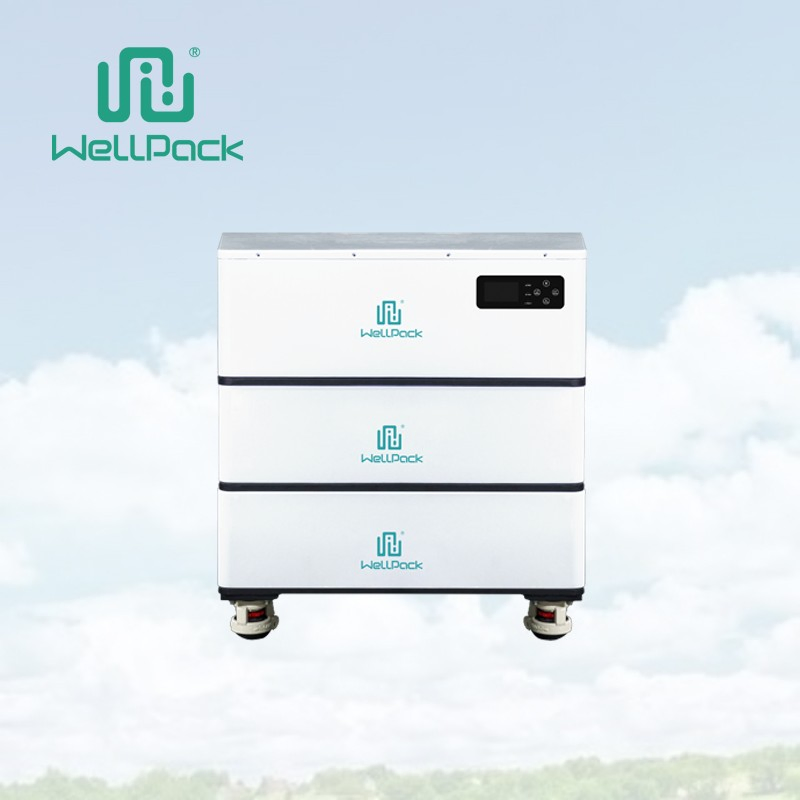

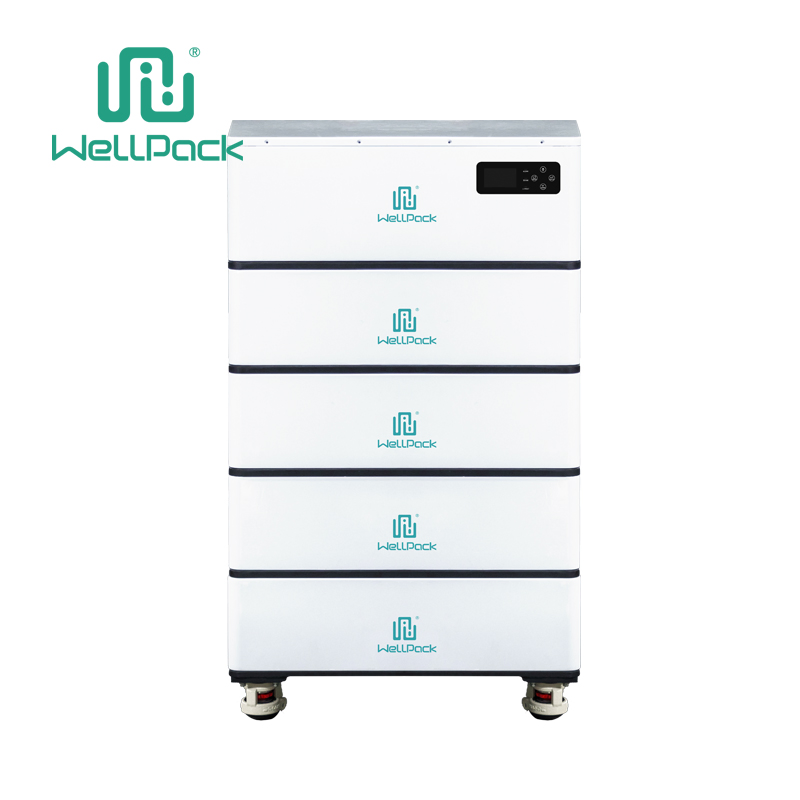

Residential Stacked Household Energy Storage Battery System (10~20KWh, All In One)
This system adopts integrated technology, allowing it to obtain electric energy from photovoltaic, mains, and other multi-channel power supply facilities. It is designed to realize 24-hour safe, economic, and uninterrupted electricity consumption for modern homes.
| No. | Item | General Parameter | Note |
|---|---|---|---|
| 1 | Battery type | Lithium ion battery | |
| 2 | Battery material | LiFePO4 | |
| 3 | Nominal voltage | 51.2V | 16S1P |
| 4 | Voltage range | 48~57.6V | Operating range |
| 5 | Charge limit voltage | 57.6V | |
| 6 | Battery capacity | 100Ah/51.2V (5.12KWh) | At 25ºC, 0.2C Discharging |
| 7 | Internal resistance | ≤80mΩ | AC 1kHz |
| 8 | Charging voltage | 57.6V±0.5V | |
| 9 | Charge limit current | 10A | |
| 10 | Maximum charge current | 100A | Continuous |
| 11 | Equalization current | 80mA | |
| 12 | Charging temperature | 0ºC~45ºC | Optimal range |
| 13 | Overcharge protection | 58.4V±0.5V | |
| 14 | Discharge termination | 40V±0.5V | Cut-off voltage |
| 15 | Max discharge current | 100A | Continuous |
| 16 | Parallel Support | Up to 16 units | Not for series |
| 17 | Interface | Same interface | Charge/Discharge |
| 18 | Dimension | 620*440*182.5mm | Per module |
| 19 | Weight | 40Kg | |
| 20 | Shell Material | Sheet metal + plastic spraying |

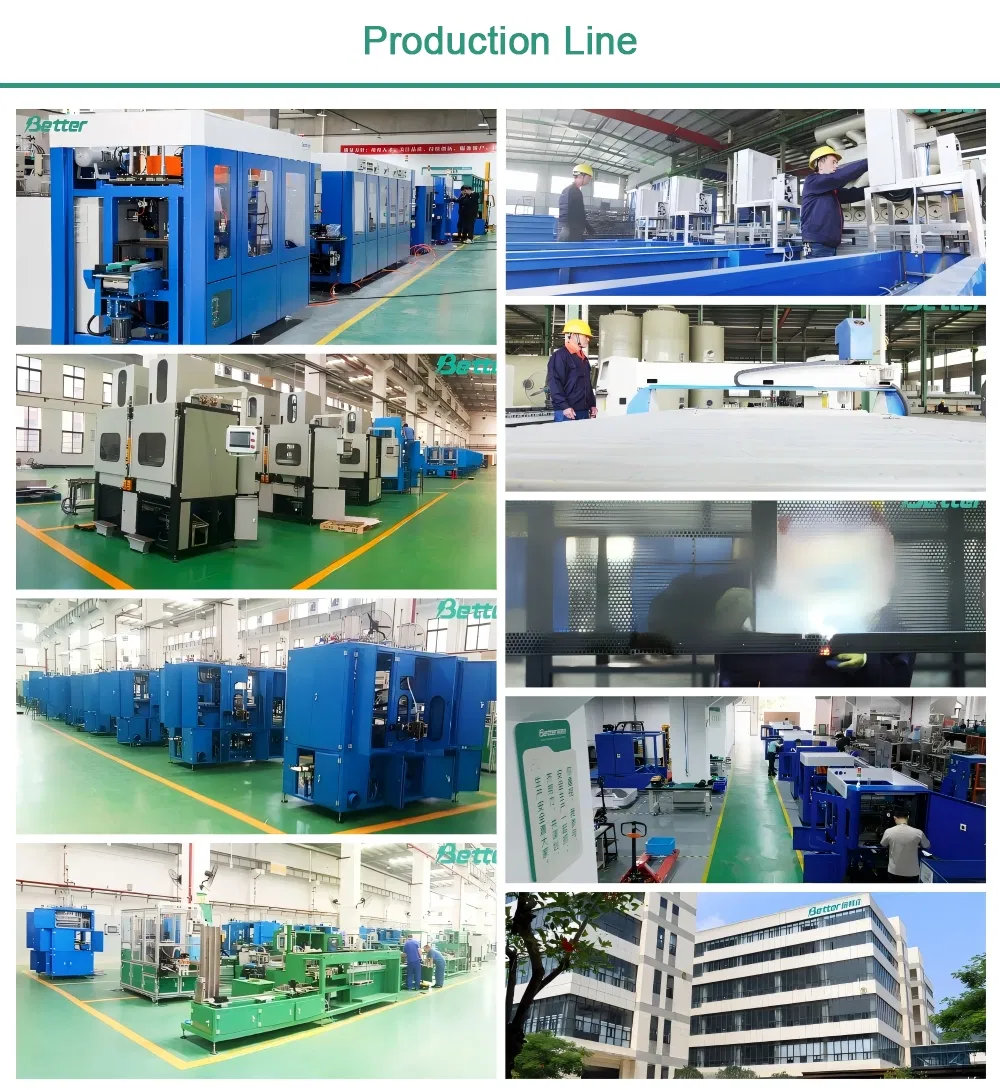

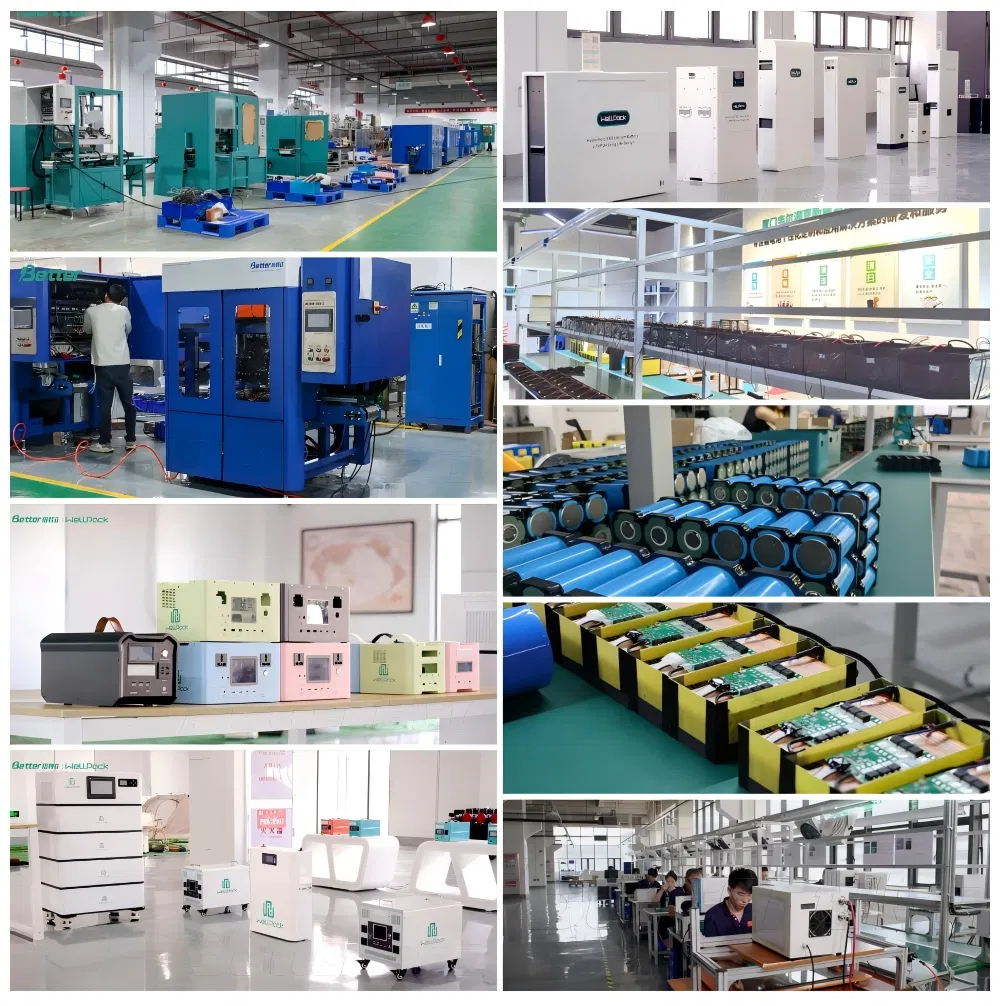

We are a well-known integrated solution provider for global battery manufacturing. Our operations include multiple manufacturing plants offering turnkey solutions for battery production, new energy lithium batteries, and lead-acid batteries. For over a decade, we have deeply served global markets, extending our business to nearly 120 countries and regions worldwide.
The company is certified in Quality Management Schemes and holds nearly 100 patents, software copyrights, and trademarks. Recognized as a High-tech Enterprise, we have established strategic cooperation with several Fortune 500 companies and universities for industry-academia-research integration, investing significantly in product R&D, technological innovation, and quality control.
