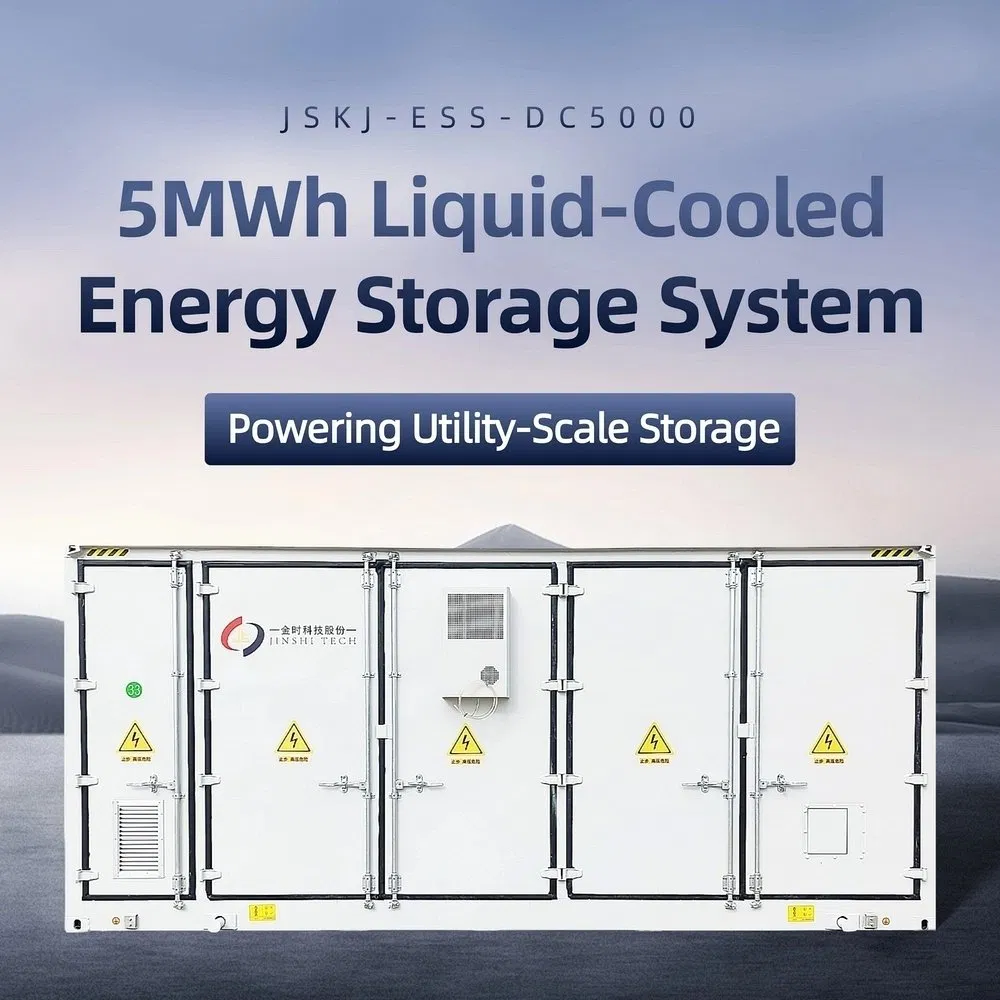

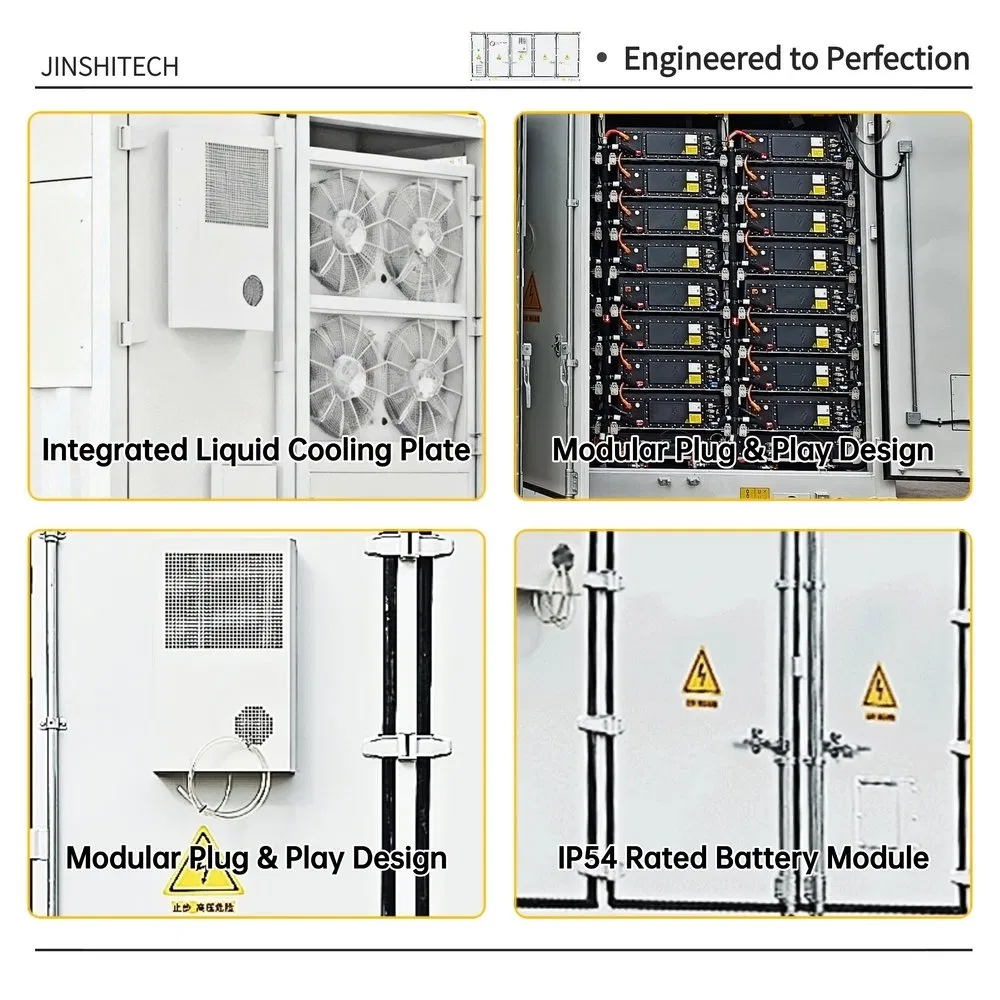

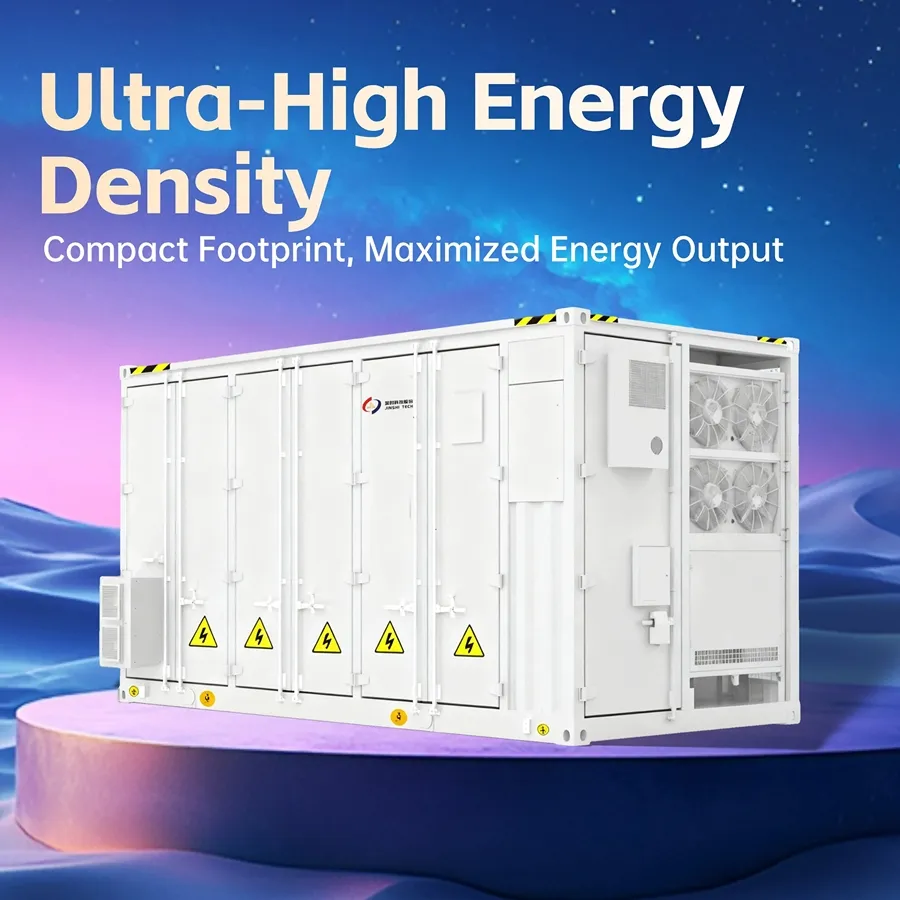

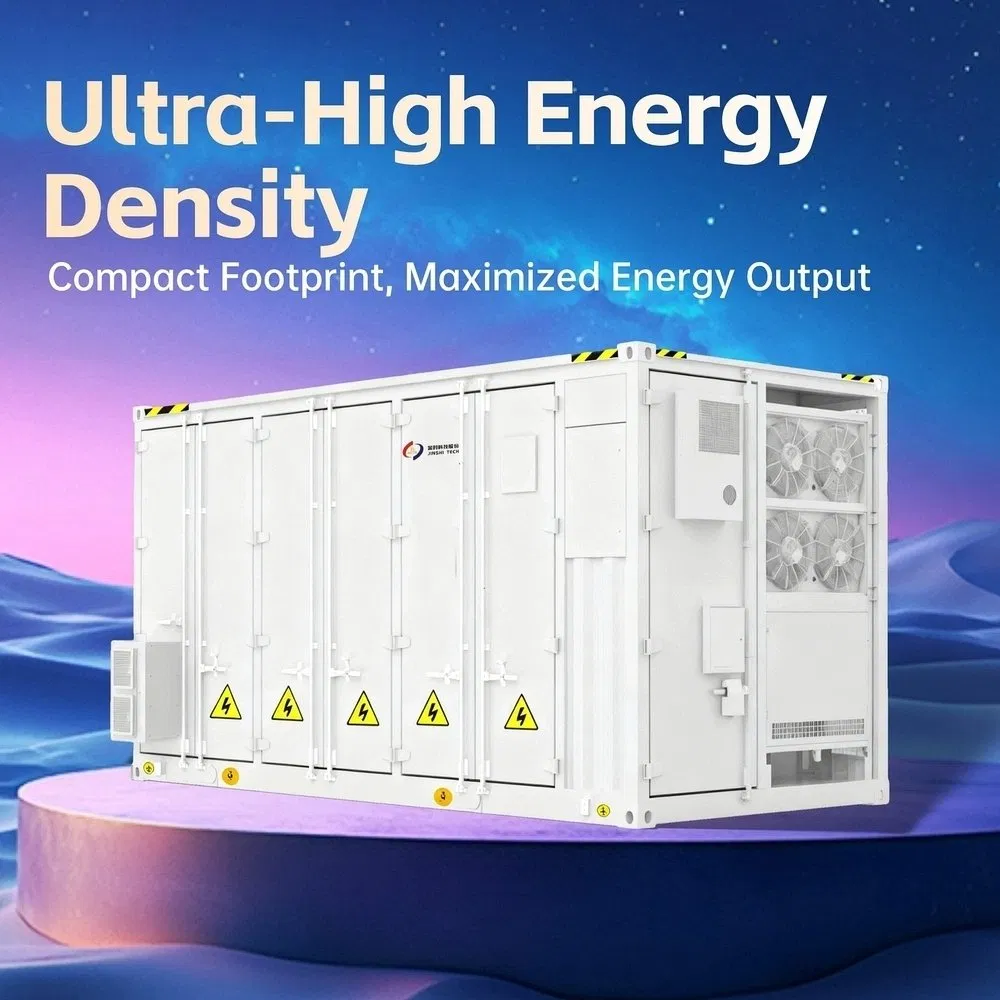

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.
Original Three-Level Fusing + Targeted Explosion Discharge Design. Supports NOVEC 1230 and Liquid Nitrogen.
Full BMS Monitoring with real-time sensors for Temp, CO, and Smoke to ensure fail-safe operation.
Multi-Cabinet Parallel Connection supports expandable energy storage up to 100MWh+.

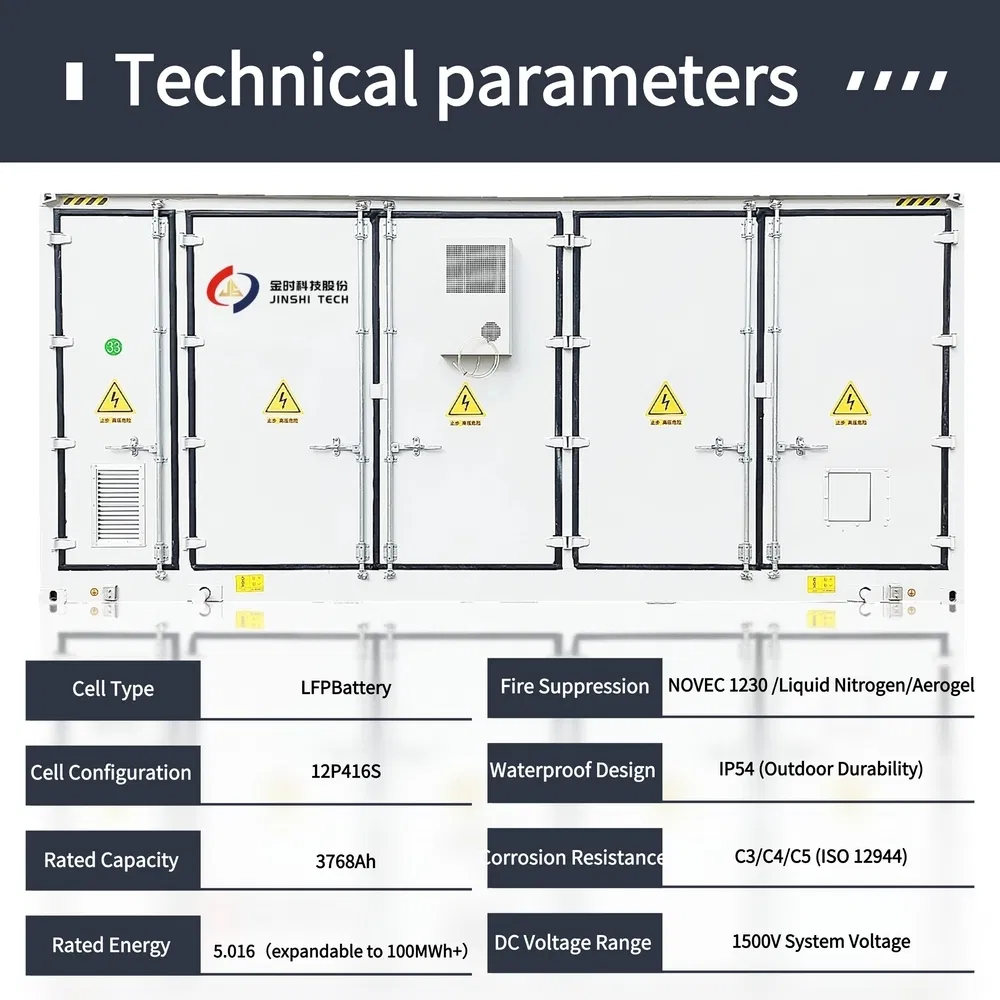

| Specification | Details |
|---|---|
| Cell Configuration | 12P416S |
| Rated Capacity | 3768Ah |
| Rated Energy | Expandable To 100MWh+ |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 1164.8-1497.6V |
| Standard Current | 1884A/1884A |
| Corrosion Resistance | C3/C4/C5 (ISO 12944) |
| DC Voltage | 1500V System Voltage |
| Package Gross Weight | 44000.00kg |
| Package Size | 650.00cm * 280.00cm * 289.60cm |
IP54 waterproof rating and C3/C4/C5 corrosion resistance make this system suitable for inland, plateau, and coastal applications.

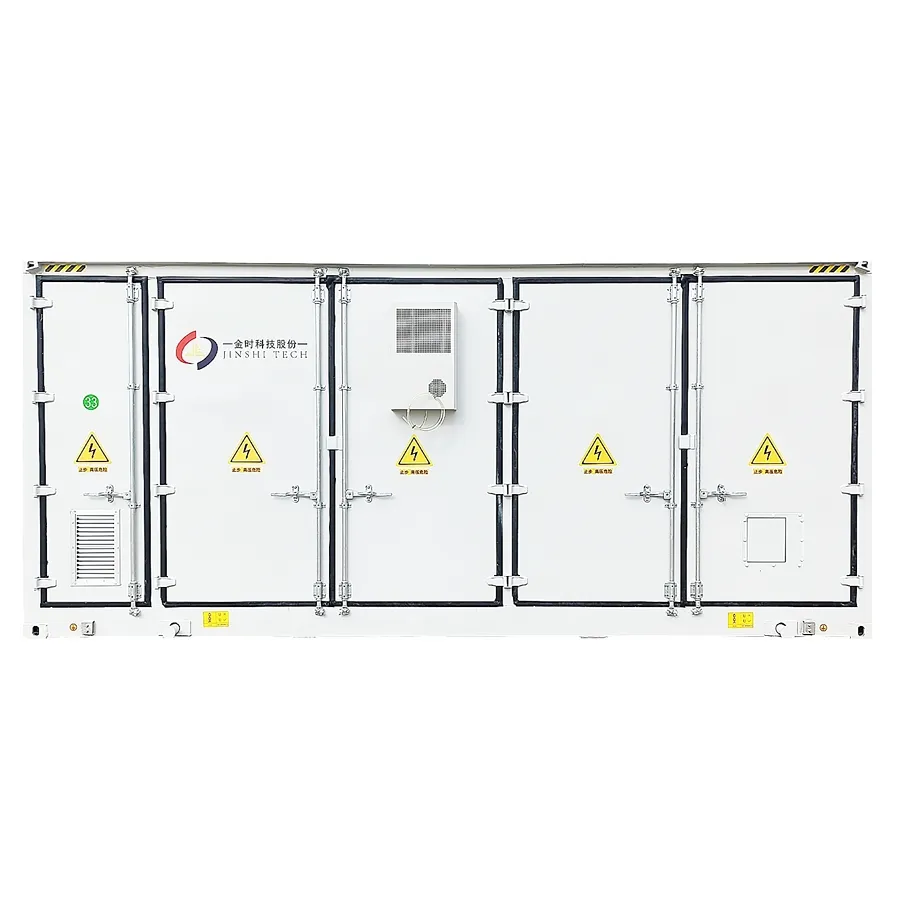

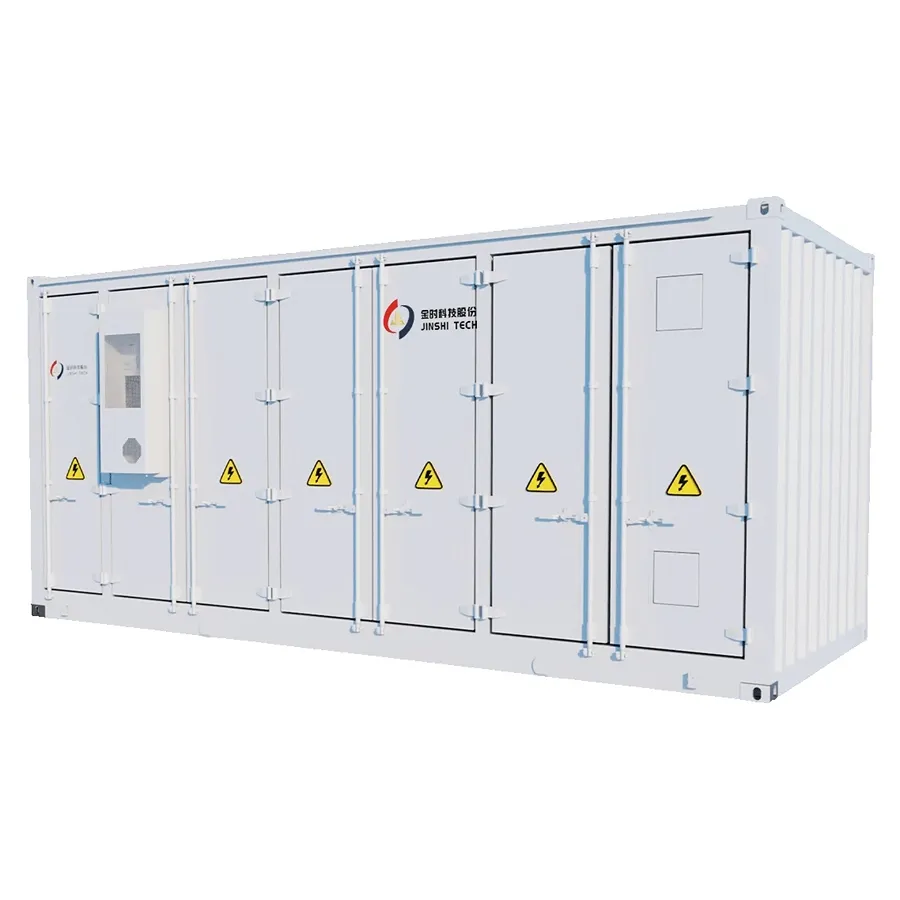

Featuring triple-layer fire protection and plug-and-play containerized design for quick deployment.
