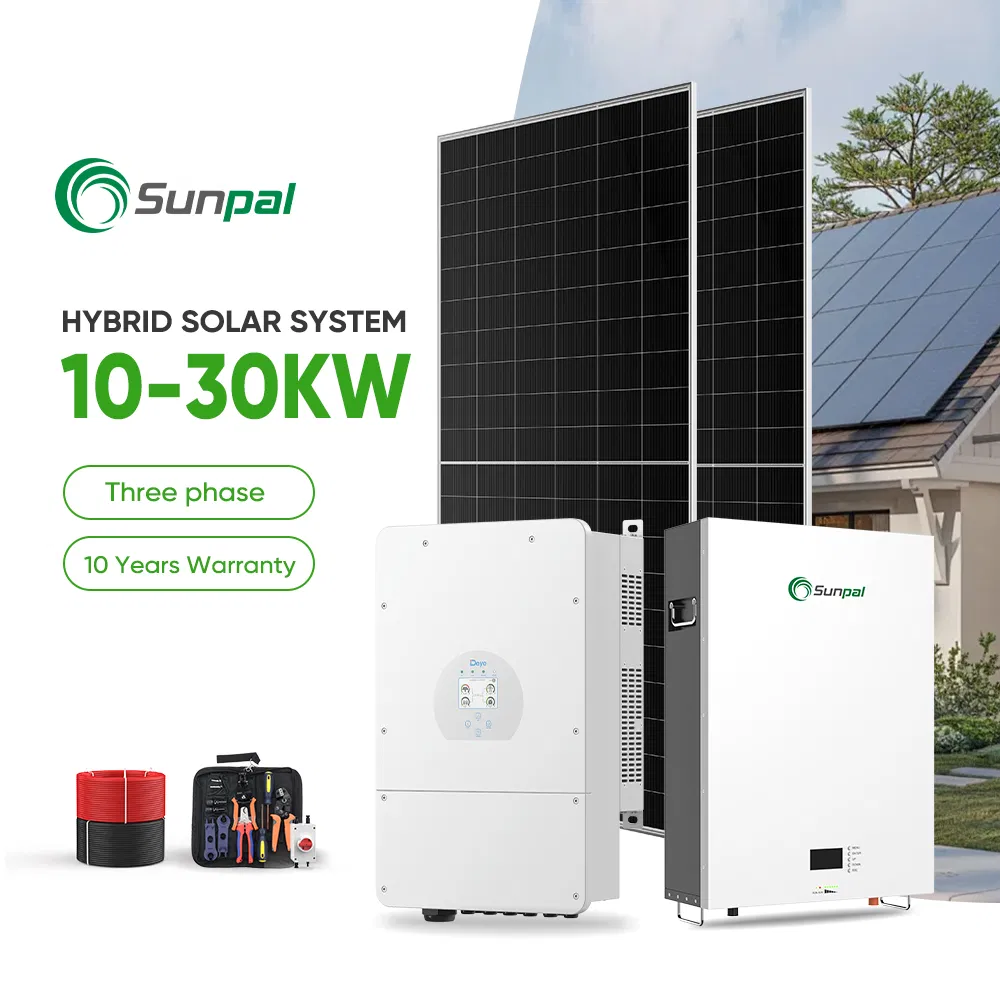

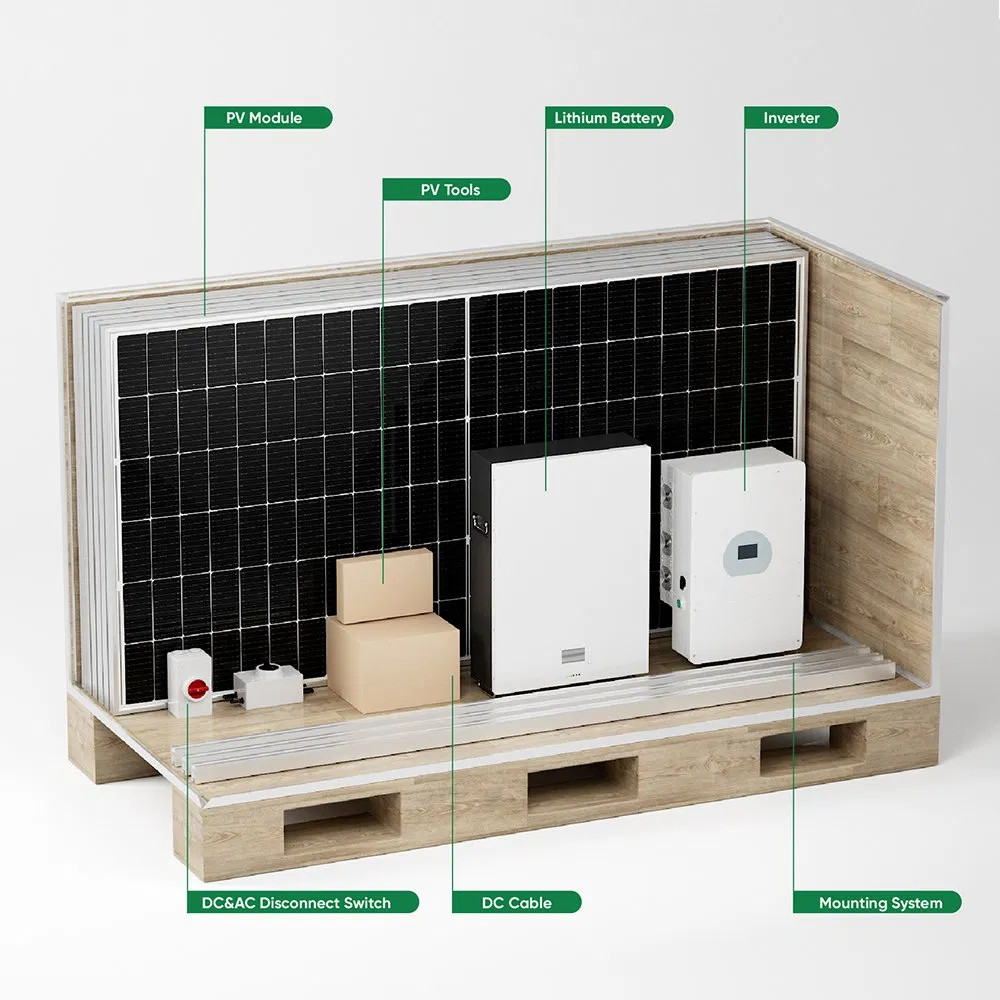

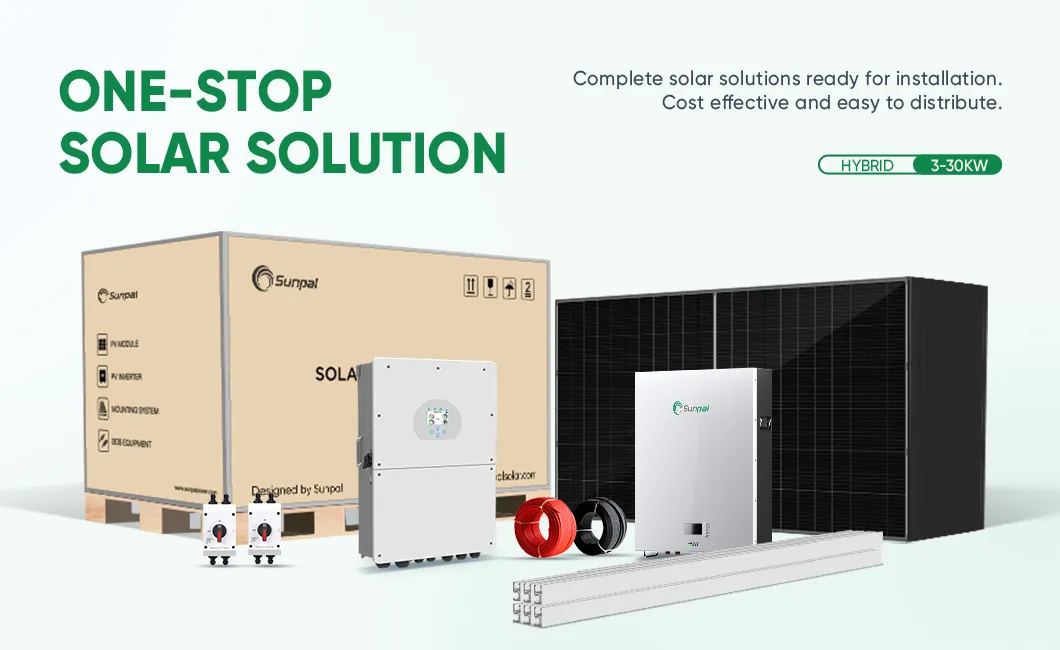

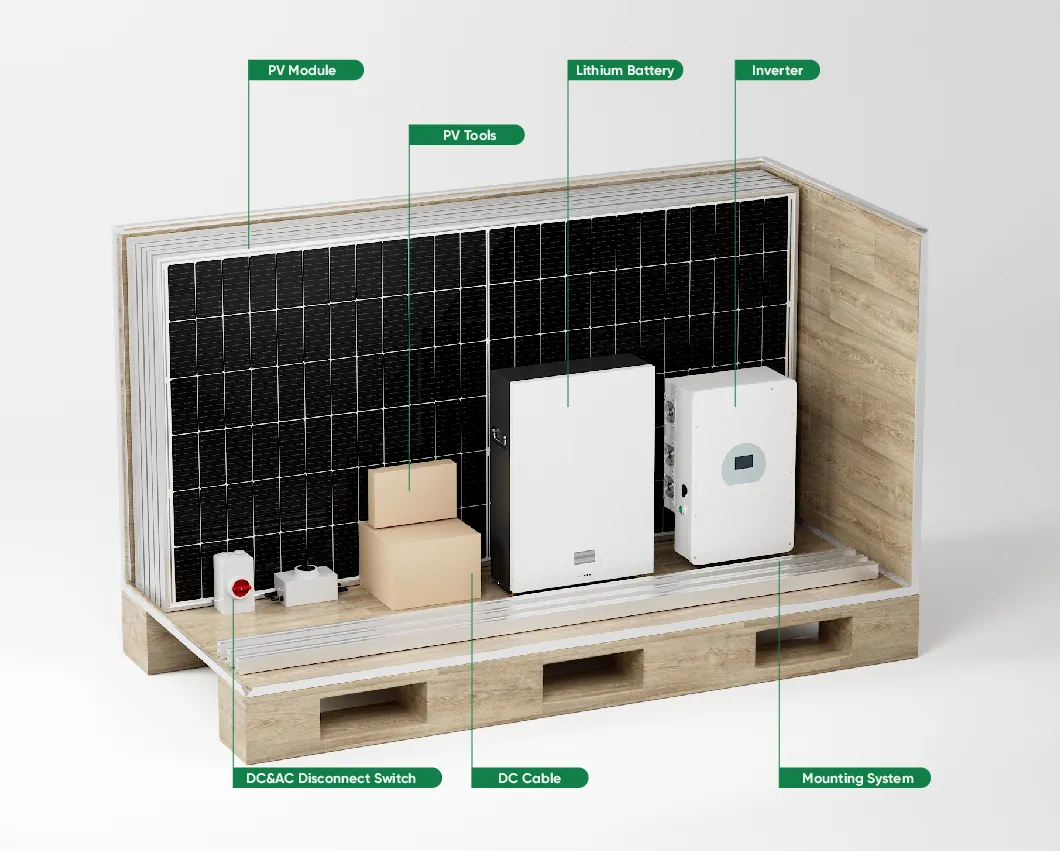

| Model | SP-3KW-HY | SP-5KW-HY | SP-10KW-HY |
|---|---|---|---|
| Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 20 Pieces |
| DC Disconnect Switch | 1 Piece | 2 Piece | 3 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |
| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| Mounting System | Customized Based On Roof/Ground | ||
| Model | SP-15KW-HY | SP-20KW-HY | SP-30KW-HY |
|---|---|---|---|
| Mono 550W Solar Panel | 30 Pieces | 42 Pieces | 63 Pieces |
| Hybrid Inverter | SUN-5K (3 Pcs) | SUN-10K (2 Pcs) | SUN-10K (3 Pcs) |
| LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |

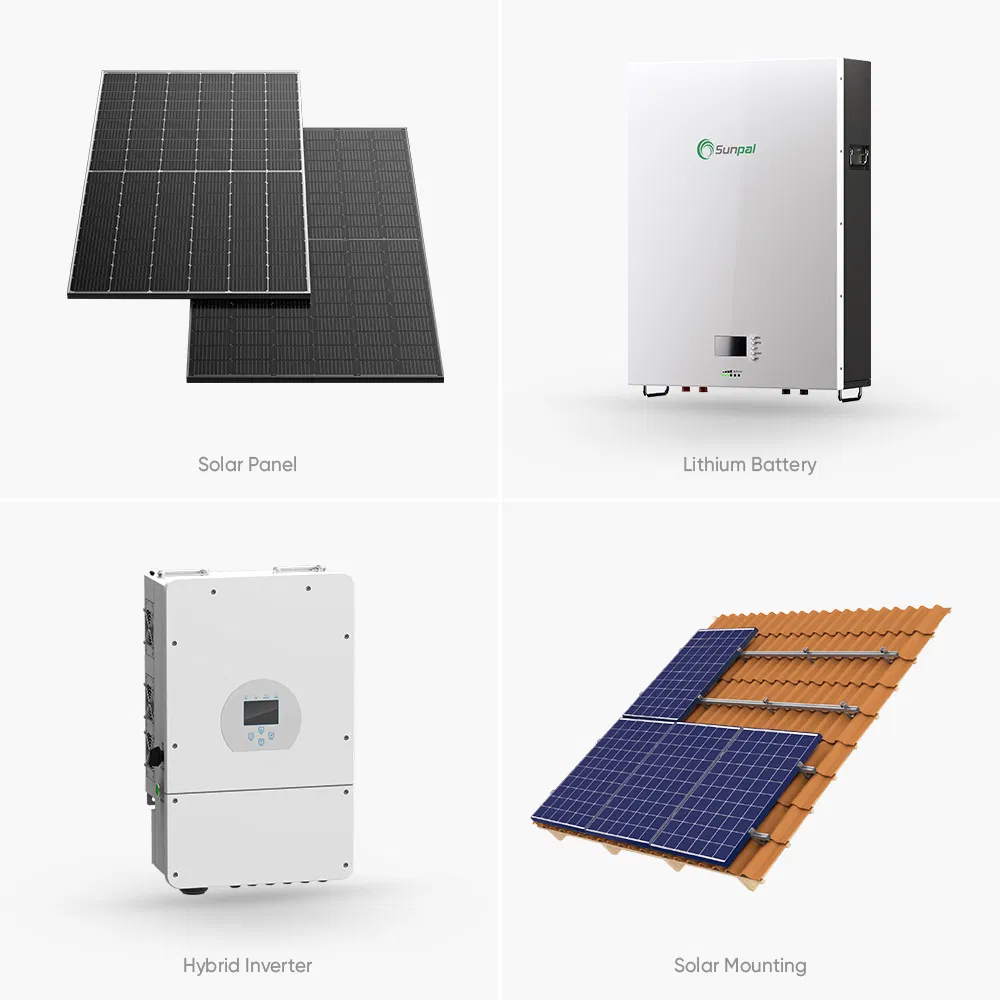

Peak Power Watts: 550W
Max Power Voltage: 42.06V | Max Current: 12.84A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg
48V low voltage battery, transformer isolation design. 6 time periods for charging/discharging. Max current 240A. Supports parallel connection up to 10pcs.
One-click installation and registration. Safe operation with traceable logs. Supports full lifecycle data storage for security and reliability.
15-20 years design life. Up to 6000+ cycles. Scalable module design with built-in high quality BMS. High safety lithium iron phosphate cells.

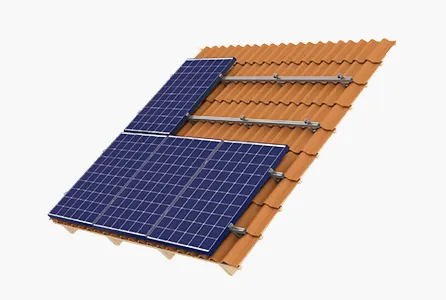

Material: AI6005 & SUS304 Bolt. Mid & End Clamps for 35-50mm panels. Optional L-Foot, Hanger Bolts, and Cable Clips.
IP Rating: IP66 | Rated Voltage: 1000VDC. Reliable connection types: M20, M25, MC4. Rated Current: 16A-20A.
As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels.

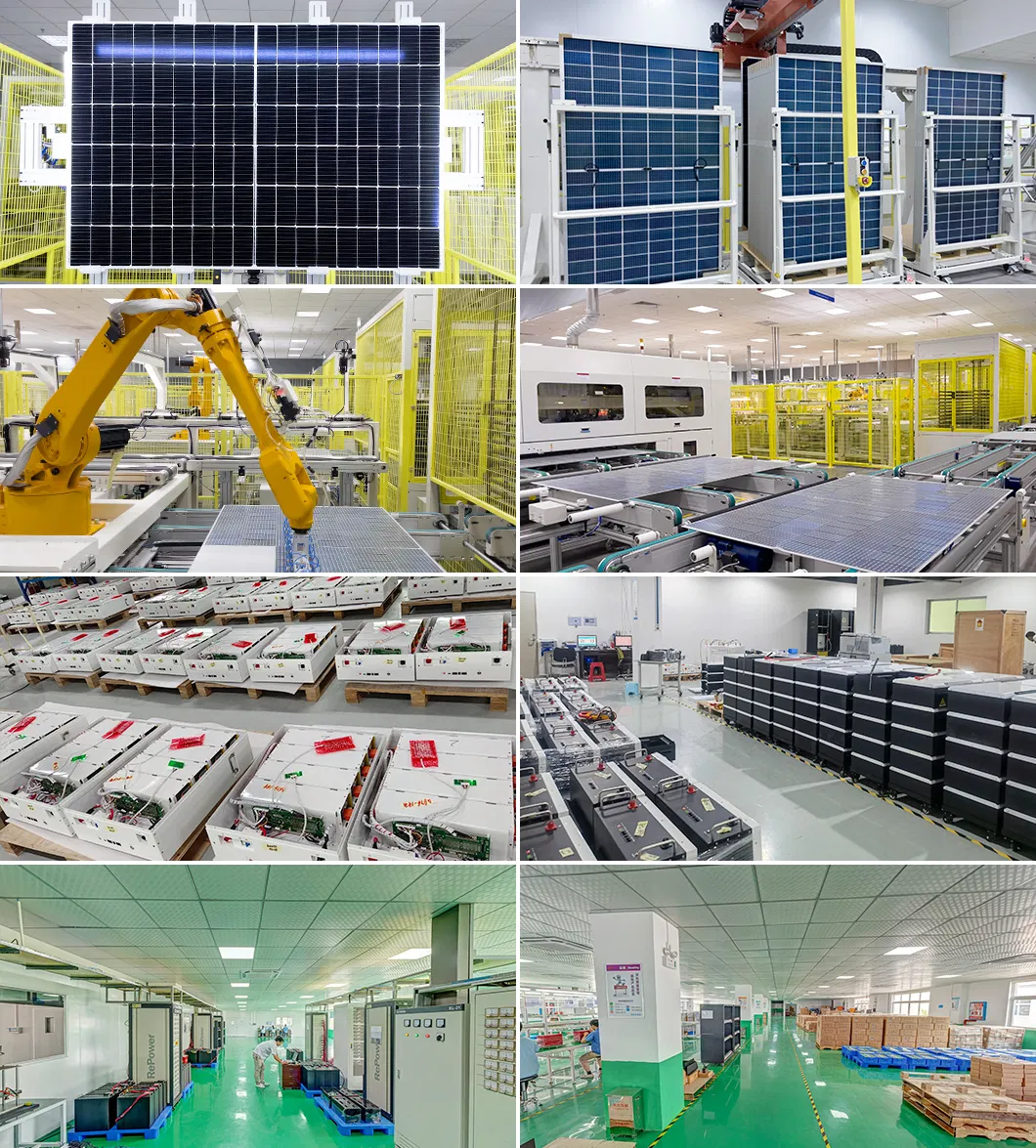

Focused on research and manufacture since 1998, exporting to over 86 countries. The factory area covers 150,000 square meters with 600 experienced employees.
