Off Grid Hybrid Solar Wind Power System 5KW 10KW 12KW Electrical Energy Storage Systems

Customization:	Available
After-sales Service:	Free Warranty
Warranty:	10 Years

Send Inquiry

Product Description

ⓘ

Basic Specifications

Model NO.

SP3-30KW3-HY

Certification

ISO, CE

Application

Home Energy Storage

Solar Panel

Mono Crystalline Perc

System Type

Hybrid / Off-Grid

Battery

LiFePO4 Lithium Battery

Inverter

Single/Split/3-Phase

Controller

MPPT Integrated

⚙

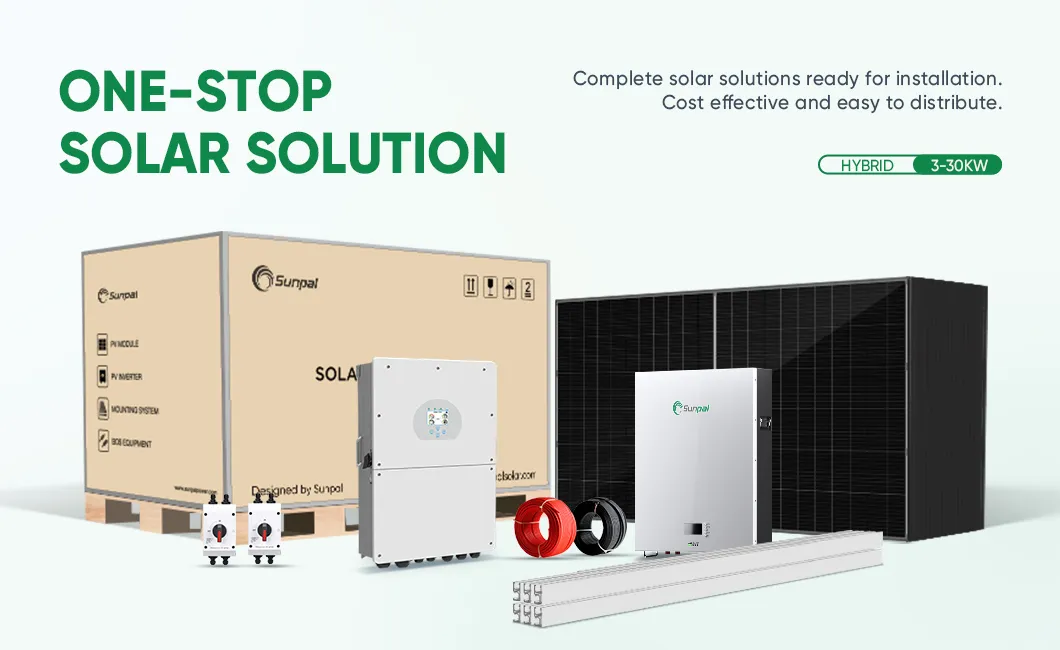

Product Overview

Reliable Power Warranty

▶

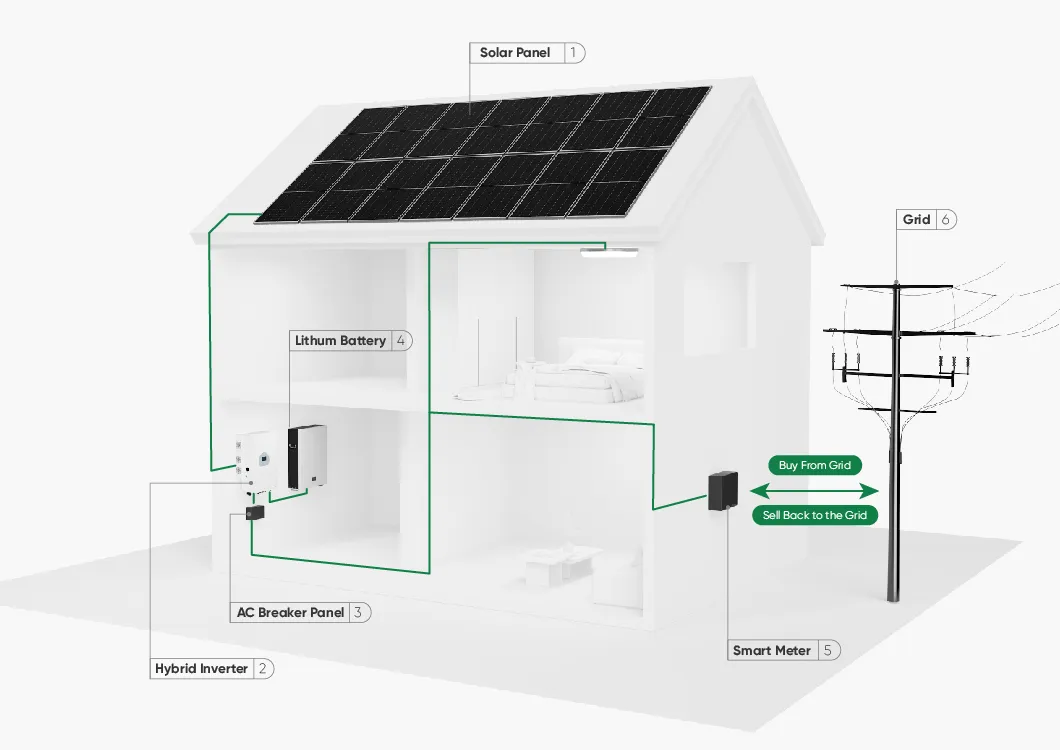

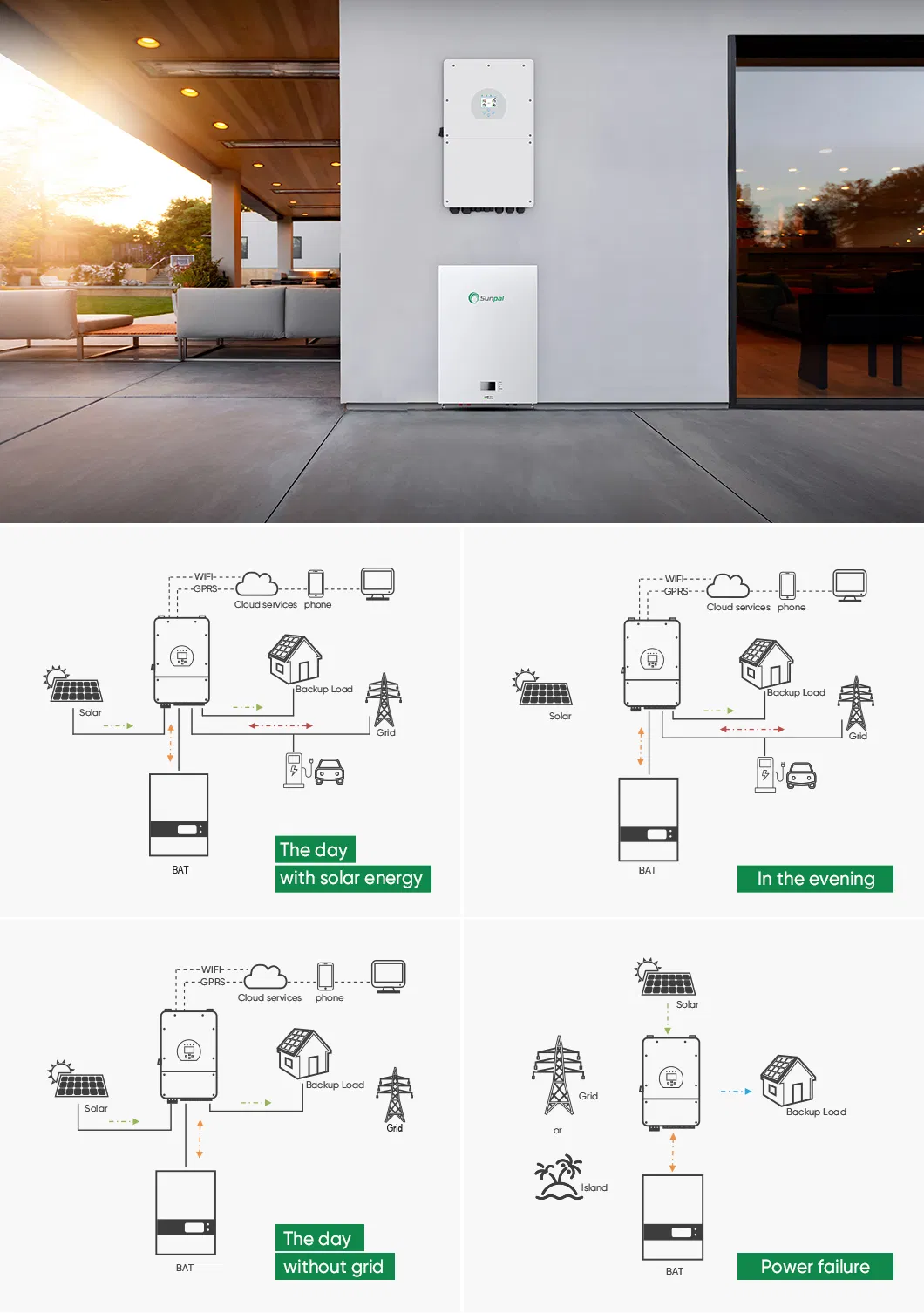

How it Works

📋

System Configurations

Model	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Mono 550W Panel	6 Pieces	10 Pieces	20 Pieces
Hybrid Inverter	3K-SG04LP1	5K-SG03LP1	10K-SG04LP3
LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable	100m	200m	400m
Mounting System	Customized Roof/Ground Structure

Model	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Mono 550W Panel	30 Pieces	40 Pieces	60 Pieces
Hybrid Inverter	5K-SG03LP1 (3x)	10K-SG03LP1 (2x)	10K-SG04LP3 (3x)
LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable	600m	800m	1000m

🧩

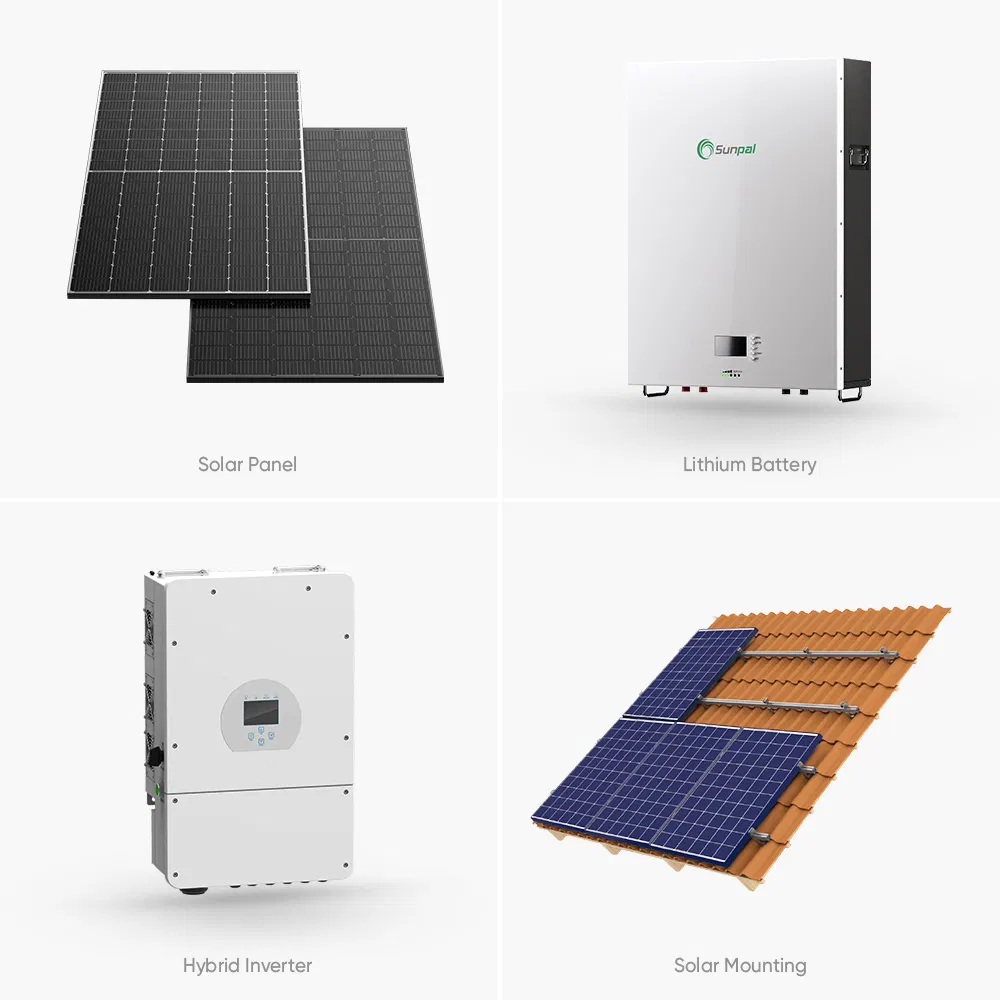

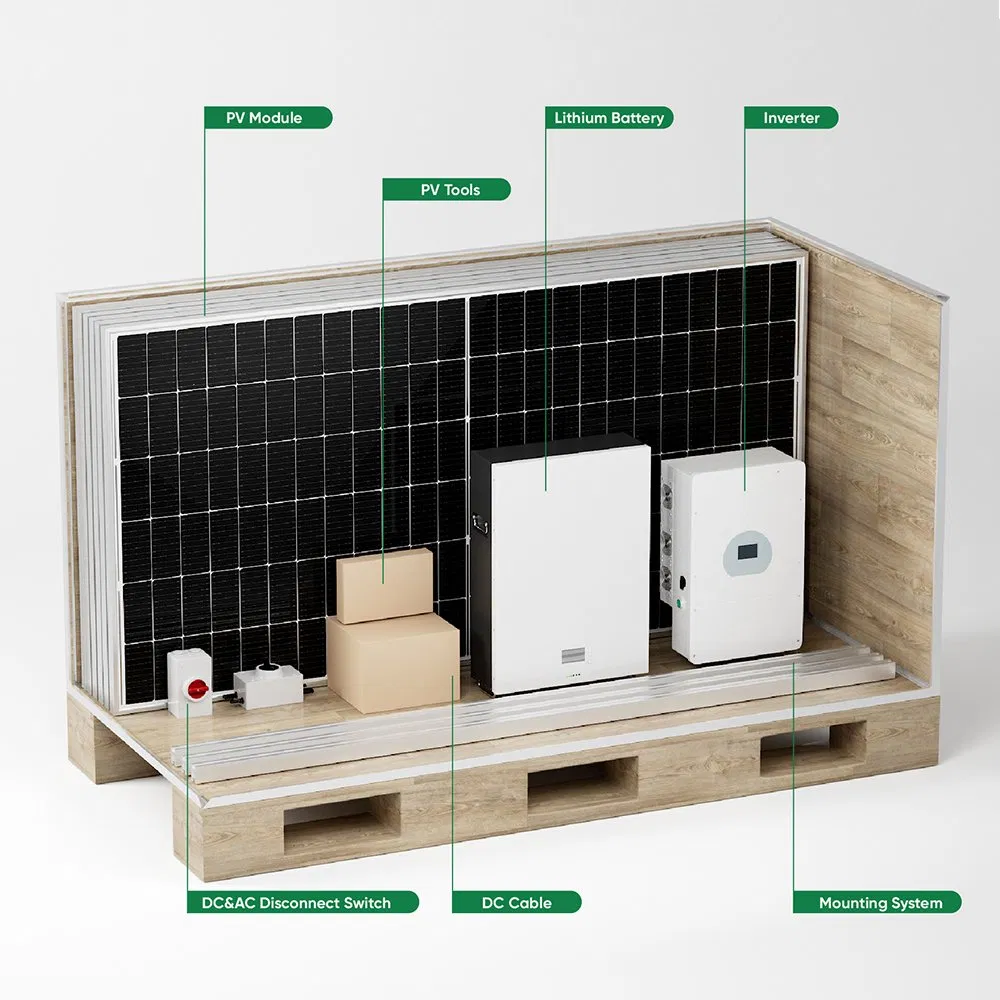

Main Components

Half Cut Mono 550W Solar Panel

Peak Power: 550W | Dimensions: 2279x1134x35mm
High-efficiency PERC technology for maximum energy capture even in low light.

Hybrid Solar Inverter

Supports 48V low voltage batteries with transformer isolation. Allows parallel connection up to 10pcs for system scaling.

Wall Mounted LiFePo4 Battery

6000+ Cycle Life | 15-20 years design life. Scalable modular design with high-quality built-in BMS protection.

Smart Monitoring System

Real-time data tracking via mobile app. One-click registration and safe operation logs for system reliability.

DC & AC Safety Switches

IP66 Waterproof Rating | 1000VDC Rated Voltage. Essential protection for circuit maintenance and safety.

🏢

Project & Factory

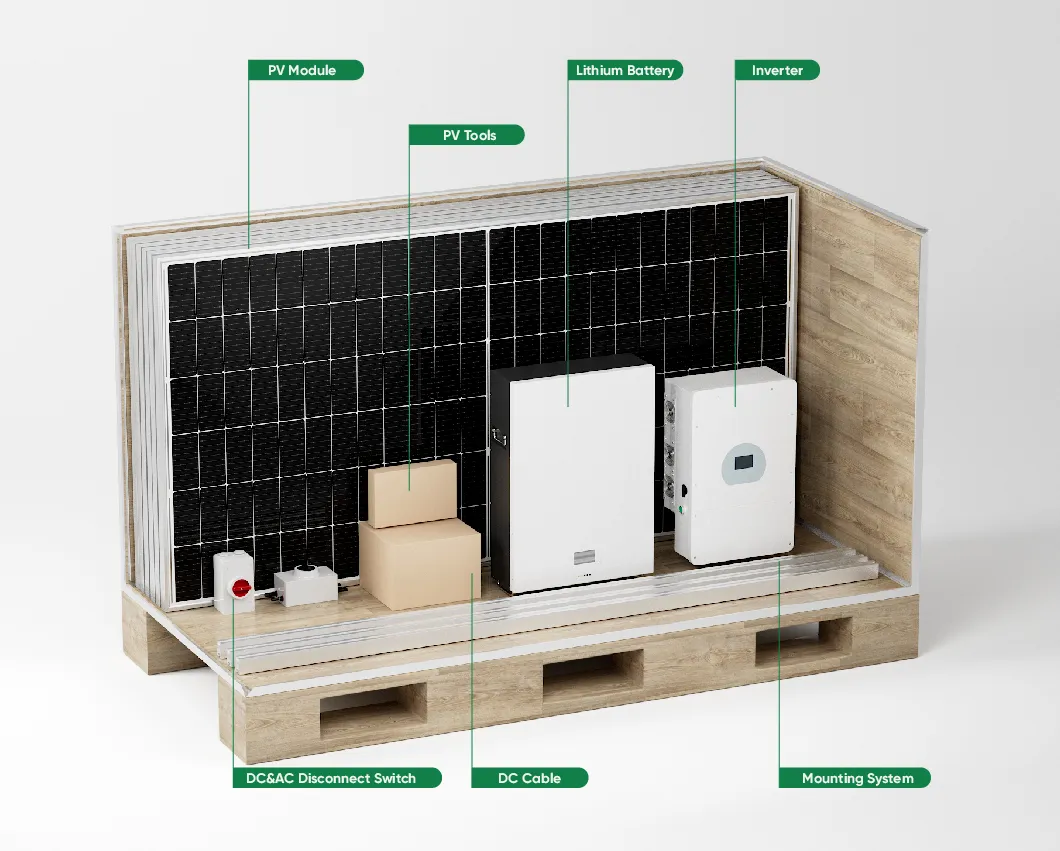

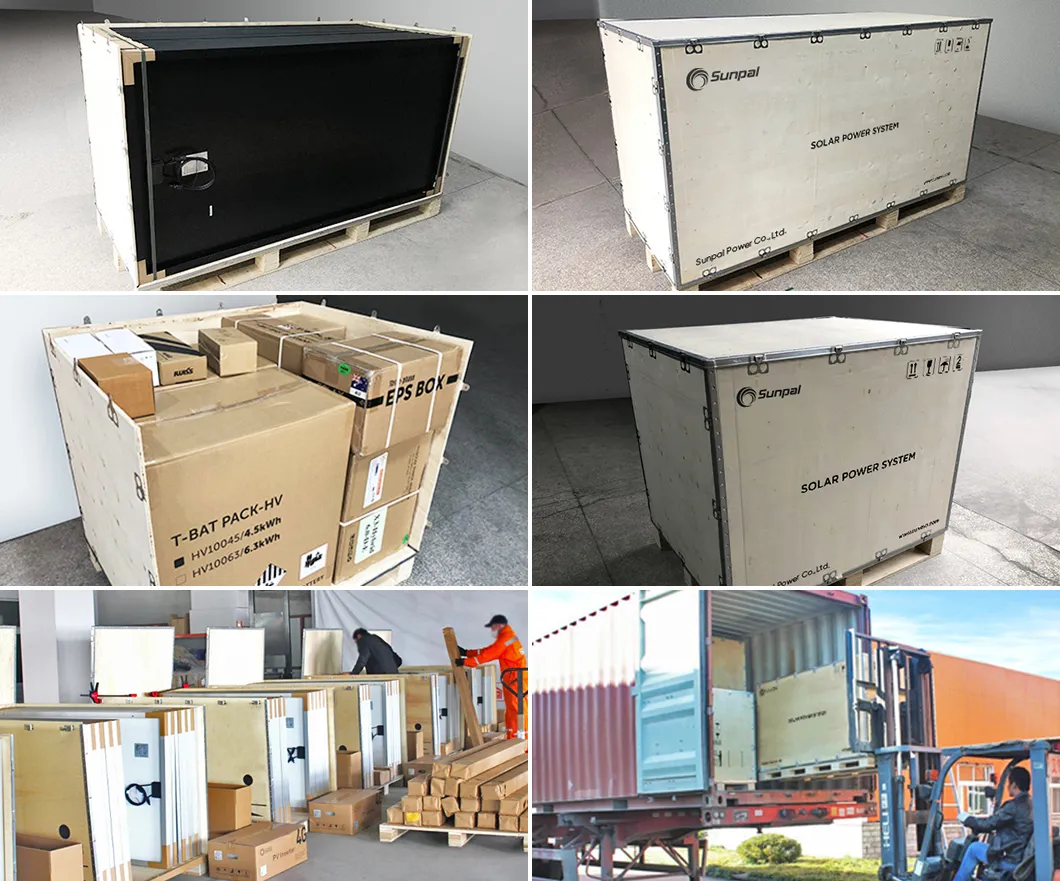

Professional Packaging

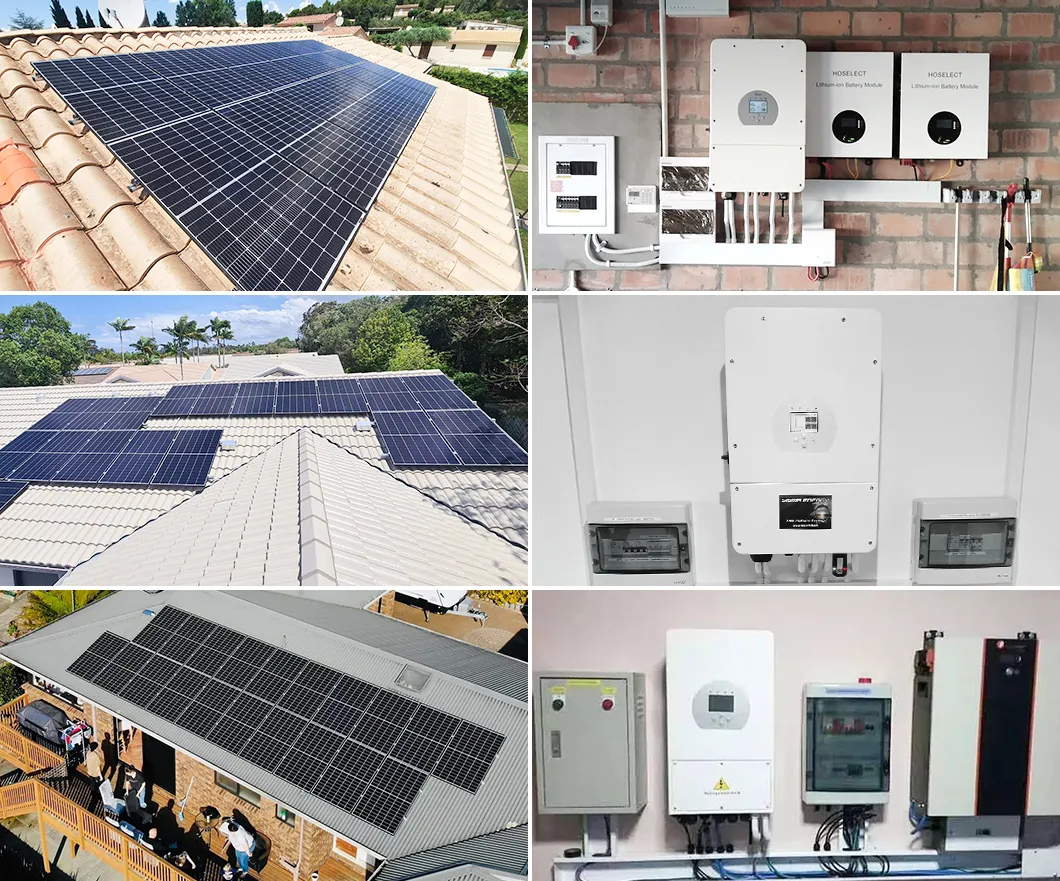

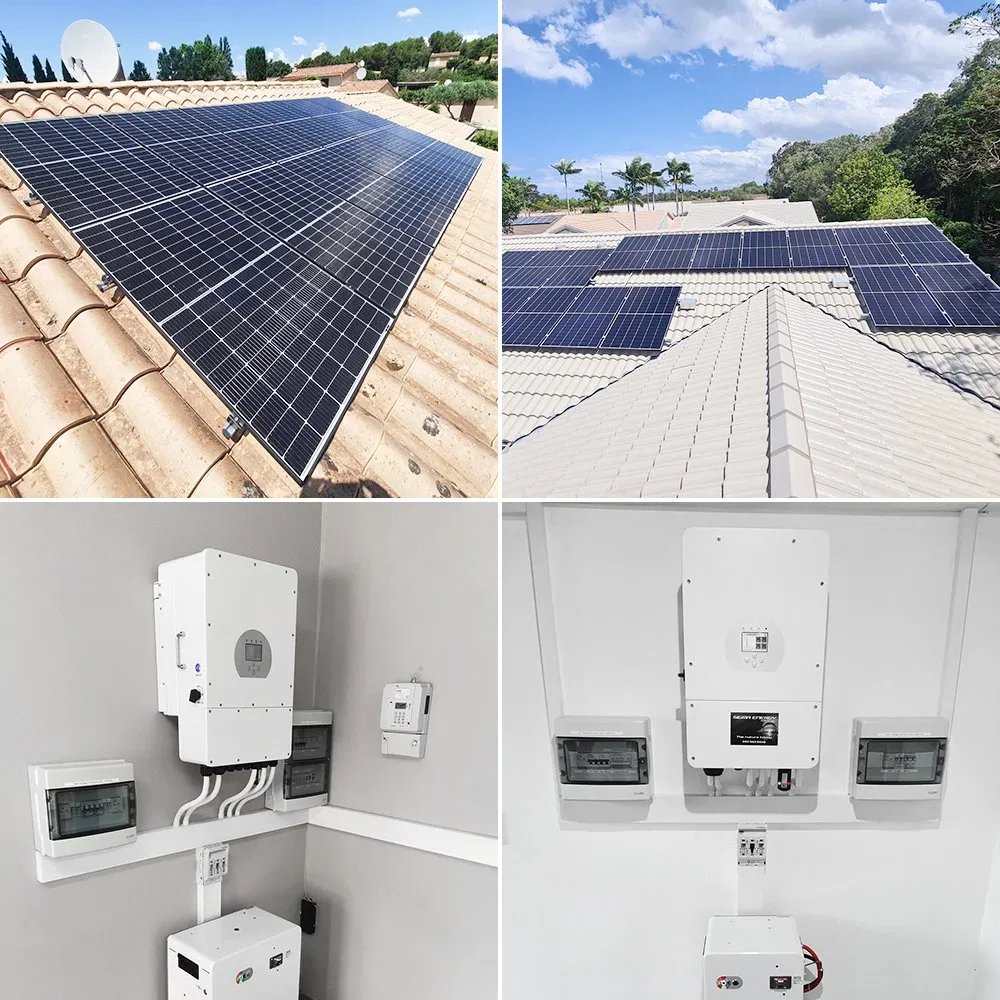

Global Project Cases

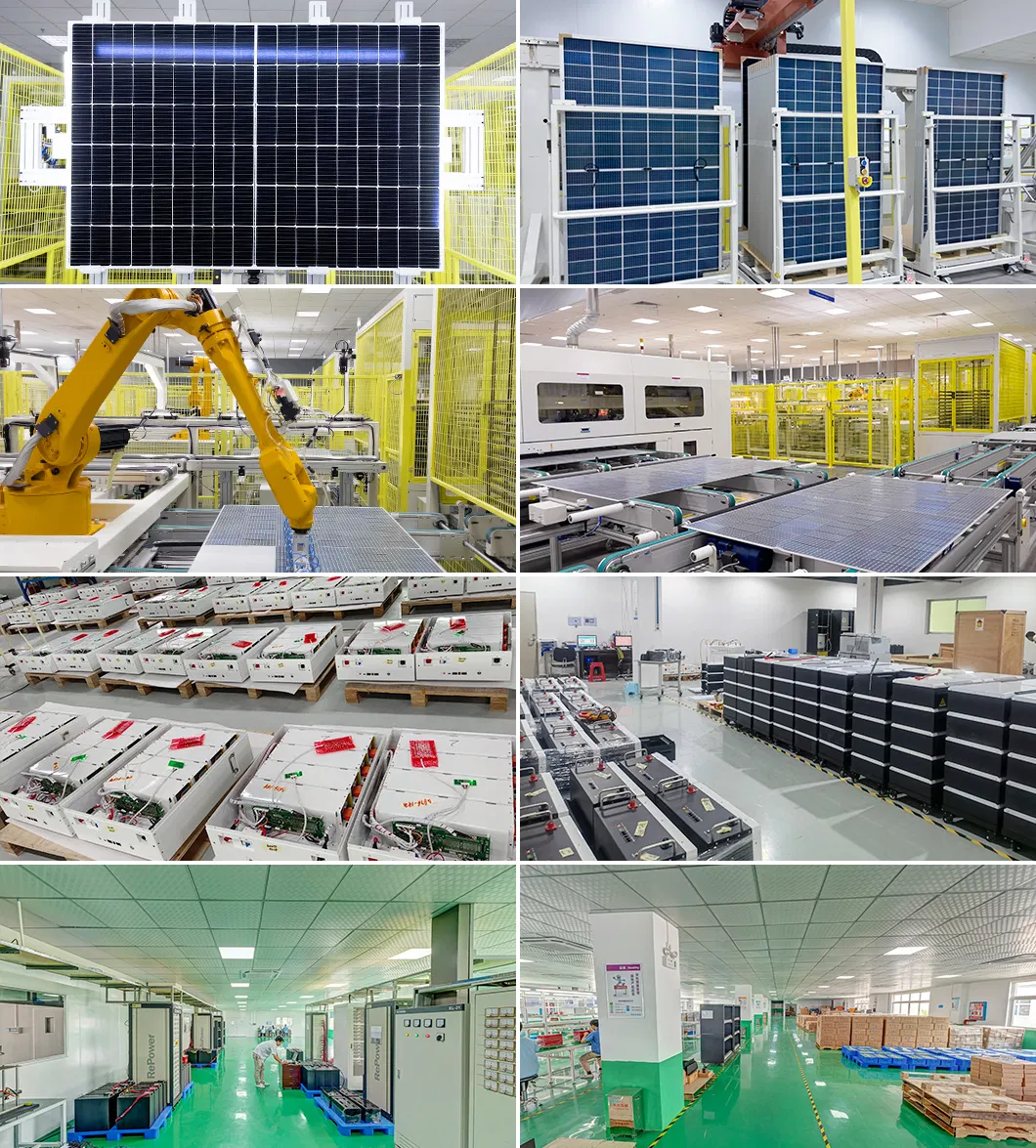

Manufacturing Facility

❓

Frequently Asked Questions

How long is the warranty for this solar system?

The system features industry-standard warranties, typically covering solar panels for 25 years (linear power output) and inverters/batteries for 5-10 years depending on the specific configuration.

Is the system compatible with both off-grid and on-grid setups?

Yes, this is a hybrid system that can operate entirely off-grid to provide backup power or connect to the grid to sell back excess energy or supplement power needs.

Can I expand the battery storage later?

Absolutely. The LiFePO4 battery modules are scalable, allowing you to add more capacity as your energy storage needs grow.

Does the system include all necessary installation tools?

Yes, we provide a basic PV installation tool set including wire cutters, strippers, and MC4 crimping tools to assist with the setup.

How do I monitor my energy production?

Each system comes with a smart monitoring module that connects to your WiFi, allowing you to track real-time production and consumption via a mobile app or web portal.
