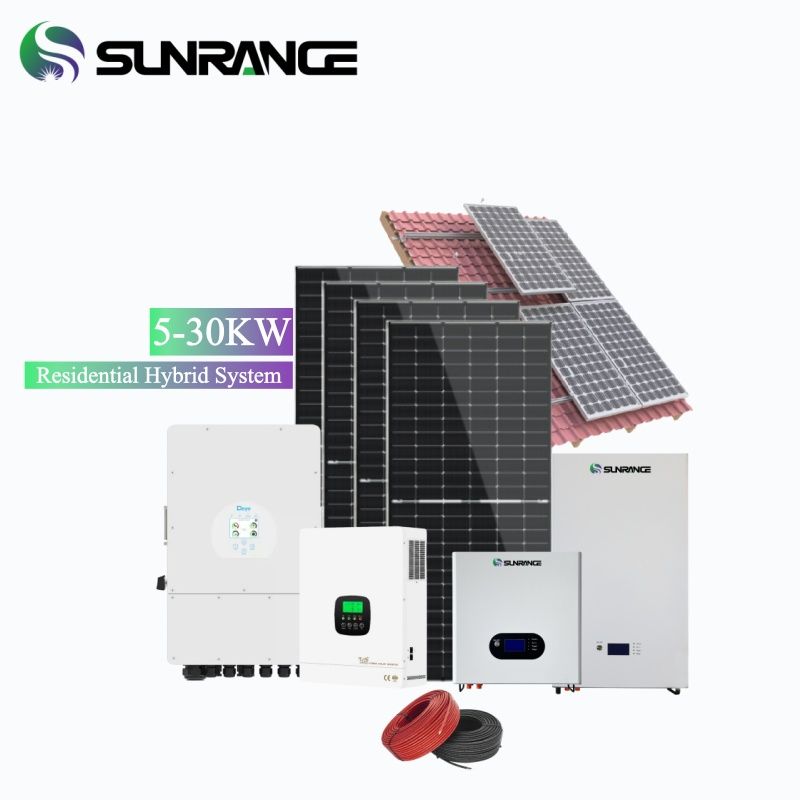

| Model. No. | SR-5KW-HY | SR-10KW-HY | SR-15KW-3HY | SR-20KW-3HY | SR-30KW-3HY | |
|---|---|---|---|---|---|---|
| System Parameter | AC Rated Power | 5KW | 10KW | 15KW | 20KW | 30KW |
| Grid Voltage | 220/230VAC | 380/400VAC | ||||
| Max. Output (KVA) | 5.5 | 11 | 16.5 | 22 | 33 | |
| Solar Panel | Quantity | 12PCS | 21PCS | 30PCS | 42PCS | 56PCS |
| Power Total | 6.96KW | 12.18KW | 17.4KW | 24.36KW | 32.48KW | |
| Lithium Battery | Model | SR48200 | SR48280 | SR48100 | SR48200 | SR48280 |
| Capacity | 10.24KWH | 14.336KWH | 30.72KWH | 40.96KWH | 57.344KWH | |

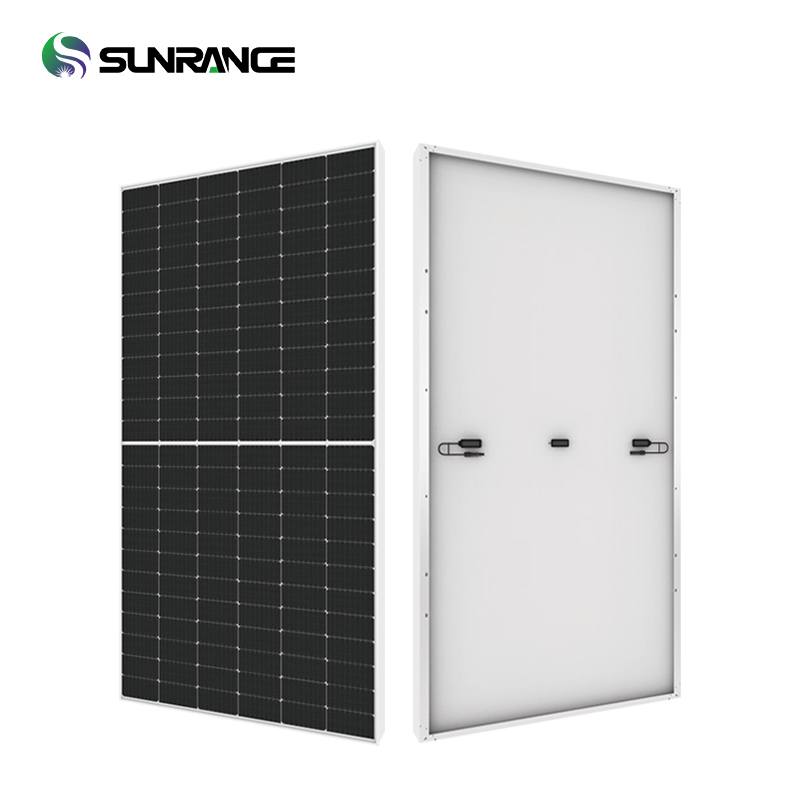

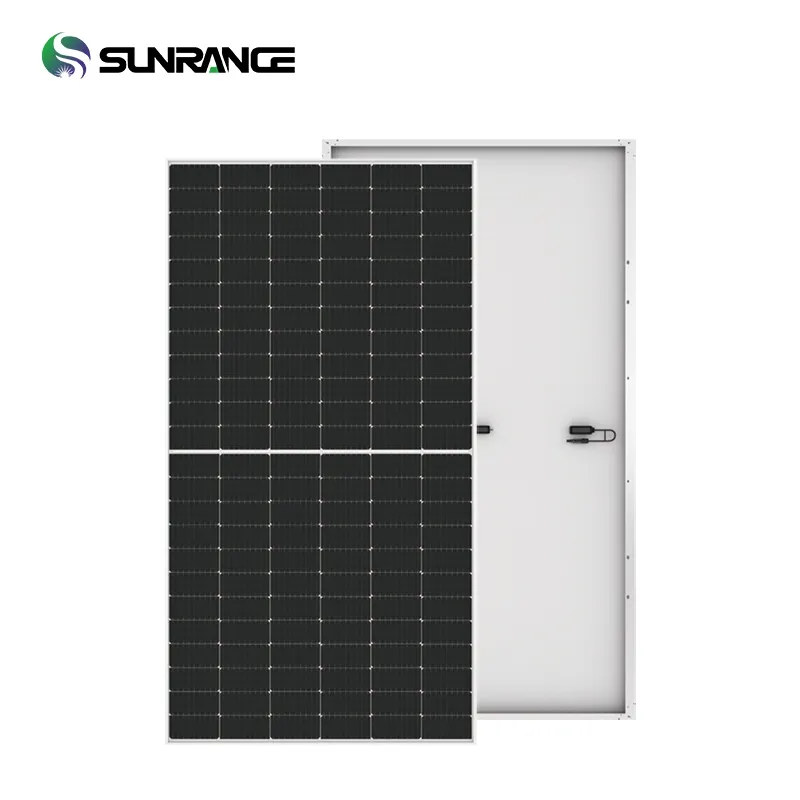

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Module Efficiency: 22.44%

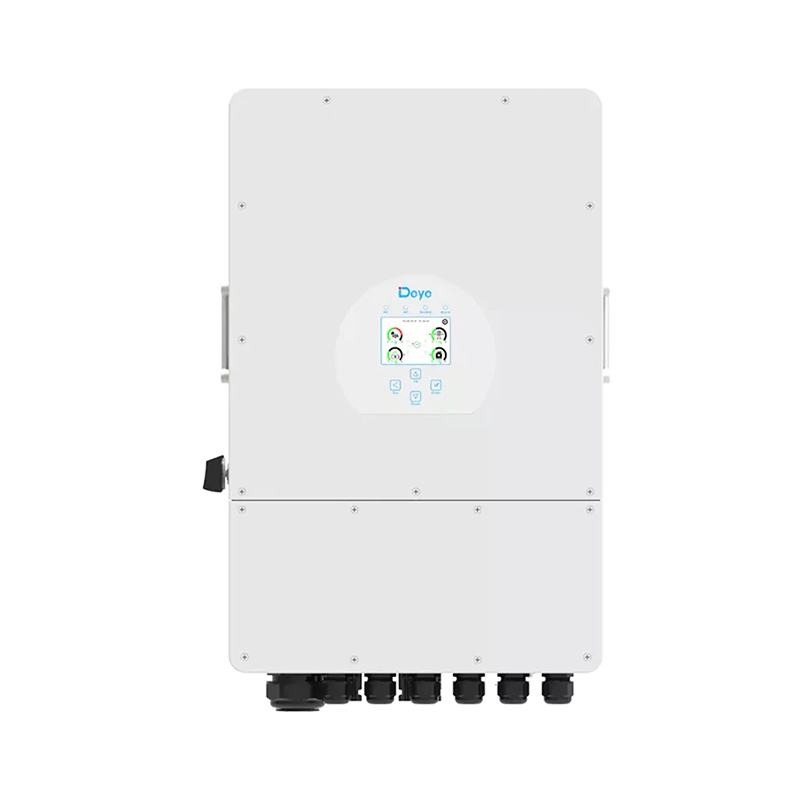

• Supports PV, battery, DG, grid, and load connections.
• System capacity can be easily expanded.
• Dynamic power distribution to fulfill load demand.

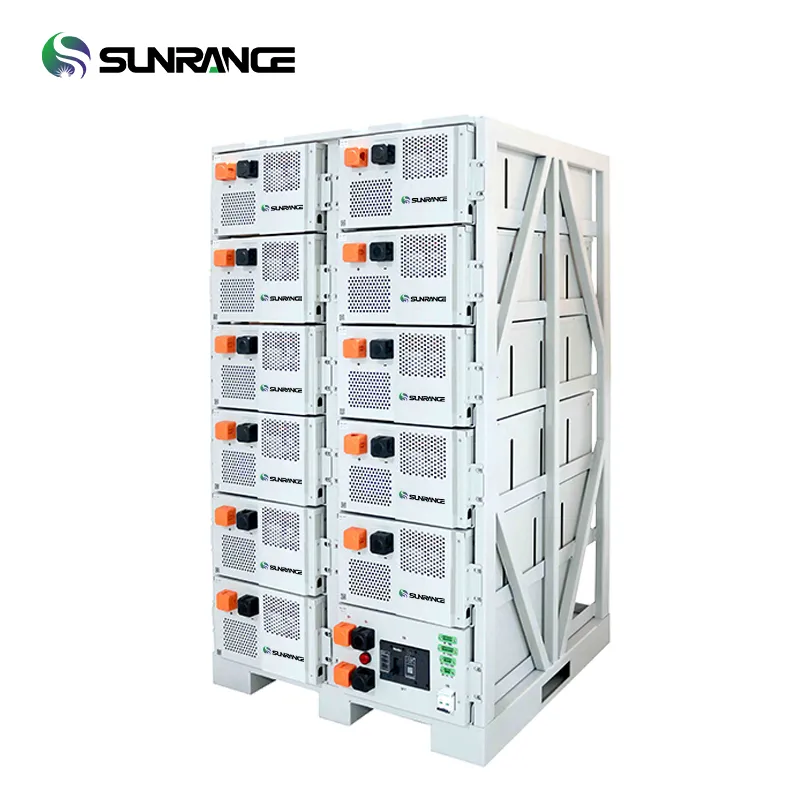

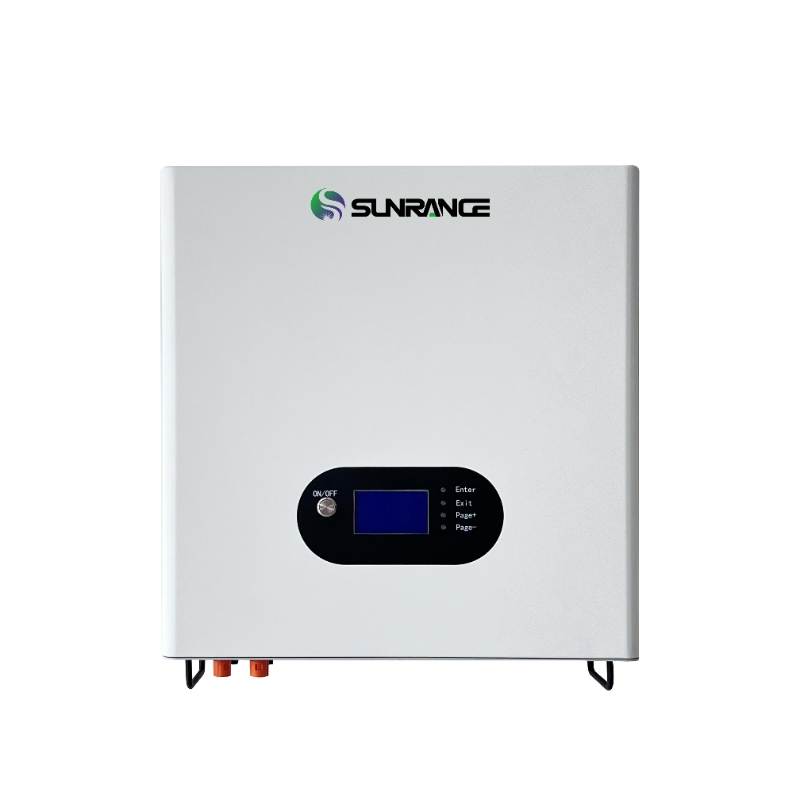

• Rack mounted, Deep Cycle long lifespan.
• High discharge performance & Maintenance-free.
• LiFePO4 Lithium Ion options.
• More than 6000 times, up to 90% DOD.

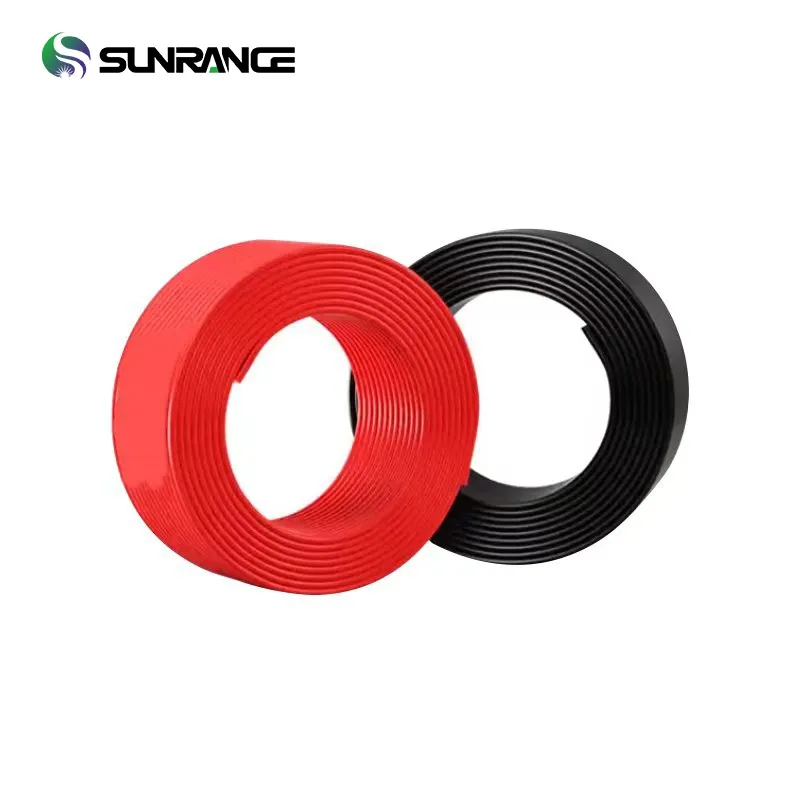

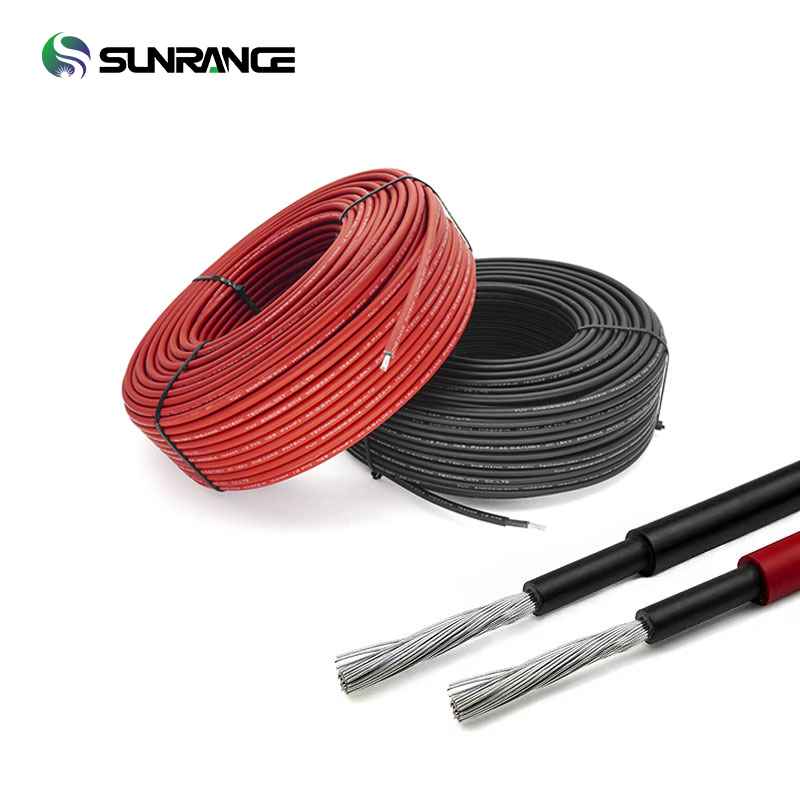

DC Cable & MC4 Connector

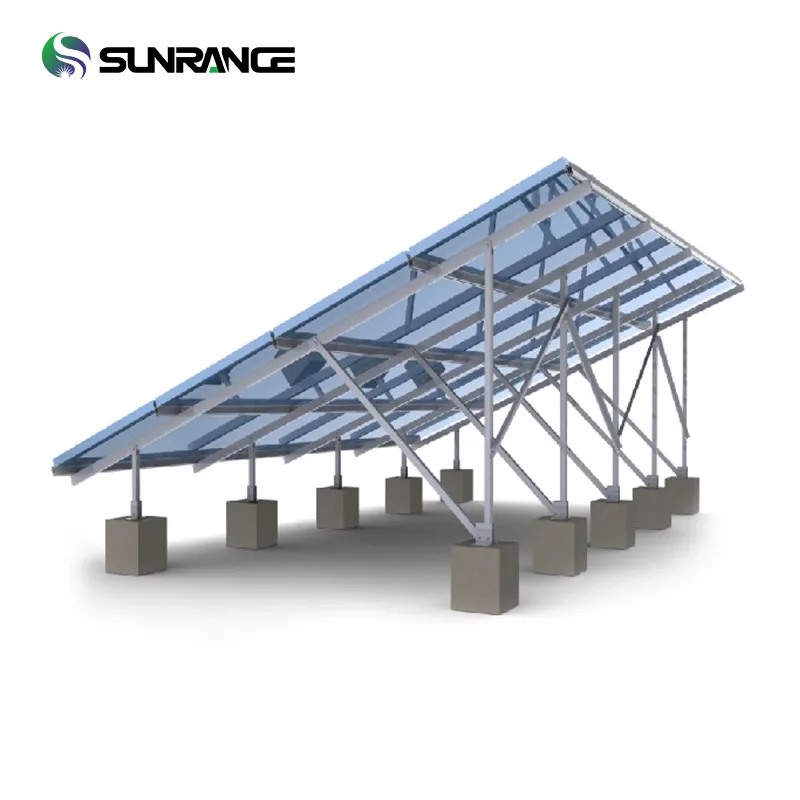

PV Mounting System
The batteries are designed for deep cycle performance with a lifespan of over 6000 cycles at up to 90% Depth of Discharge (DOD).
Yes, the all-in-one hybrid inverter supports easy system capacity expansion to meet increasing load demands.
The system utilizes high-efficiency Monocrystalline N-Type Topcon Solar Panels, typically ranging from 400W to 700W.
The PV mounting system includes options for Ground Mounting, Roof Mounting, and specific hardware for asphalt shingle mounts.
Yes, the hybrid inverter supports PV, battery, Diesel Generator (DG), grid, and load connections simultaneously.
The systems are compatible with both 50Hz and 60Hz rated grid frequencies.
