Basic Specifications
Model NO.
HS-10
Cycle Life
3000 Times
Nominal Capacity
200Ah
Rated Voltage
51.2V (48V)
Battery Type
Prismatic LiFePO4 200Ah
Application
Off-Grid Solar System
Communication
CAN / RS485
Production Capacity
30,000 PCS Per Year
Origin
China
Composed Type
16S1P
Product Description

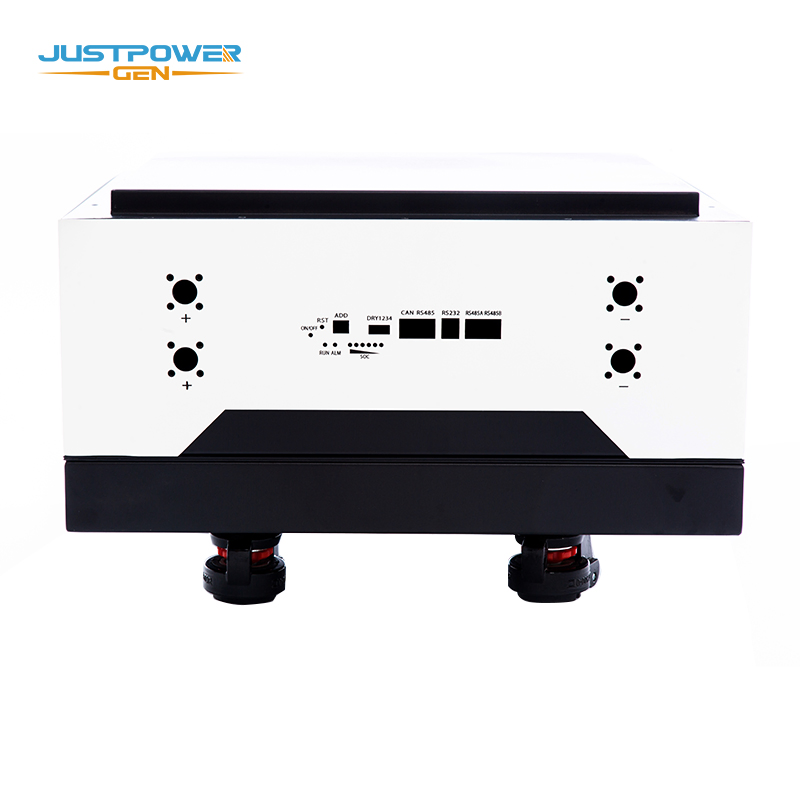

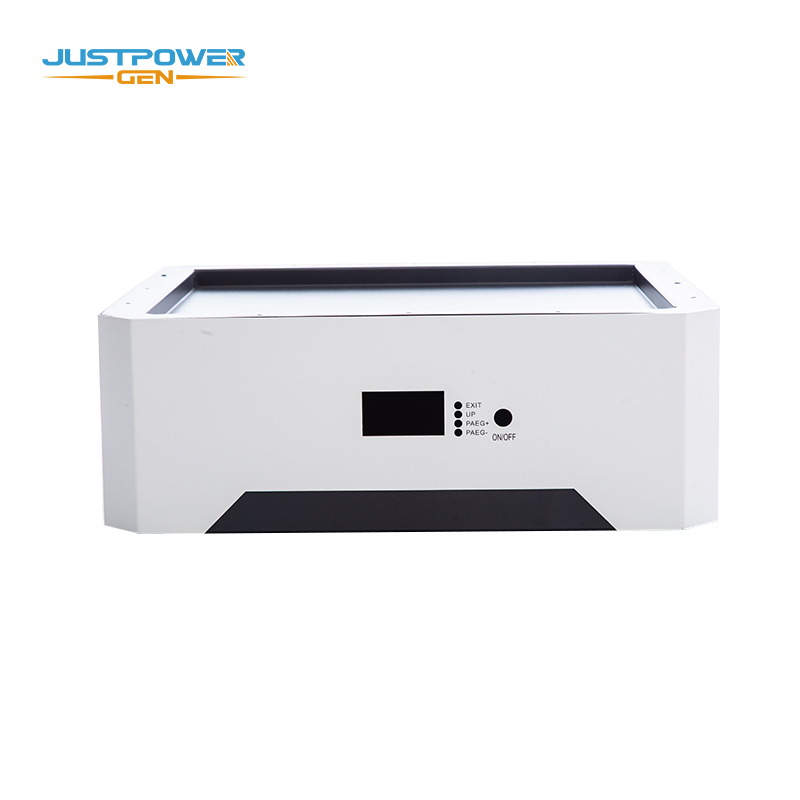

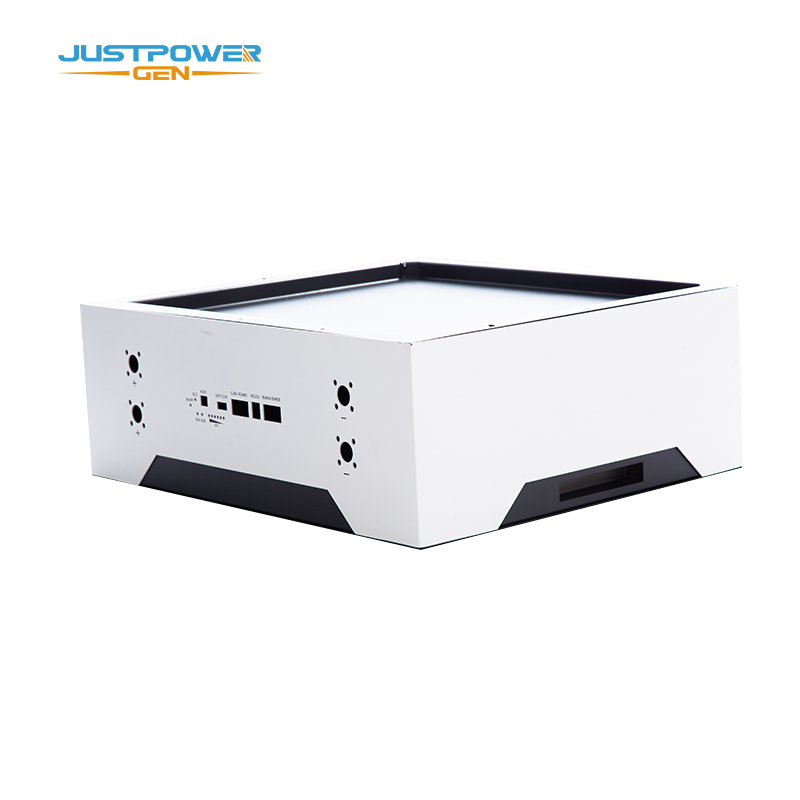

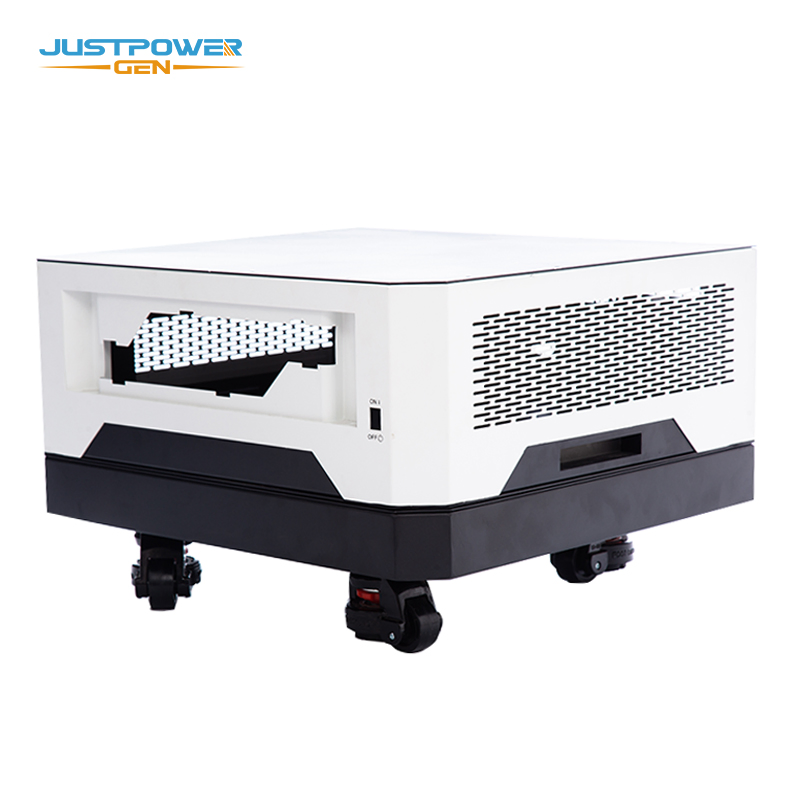

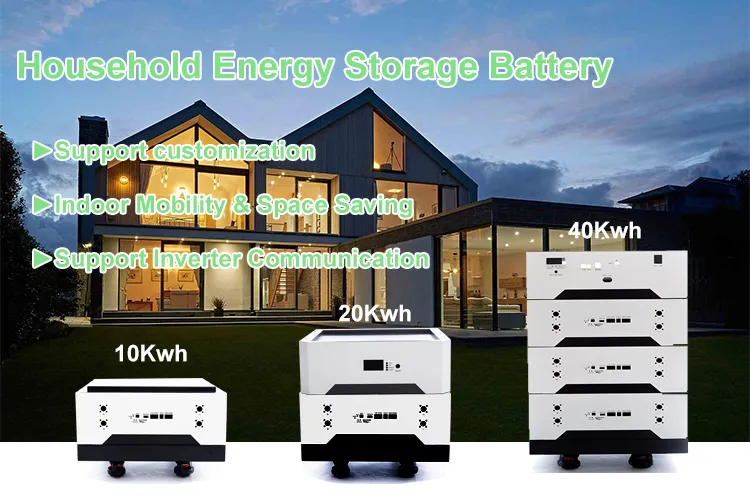

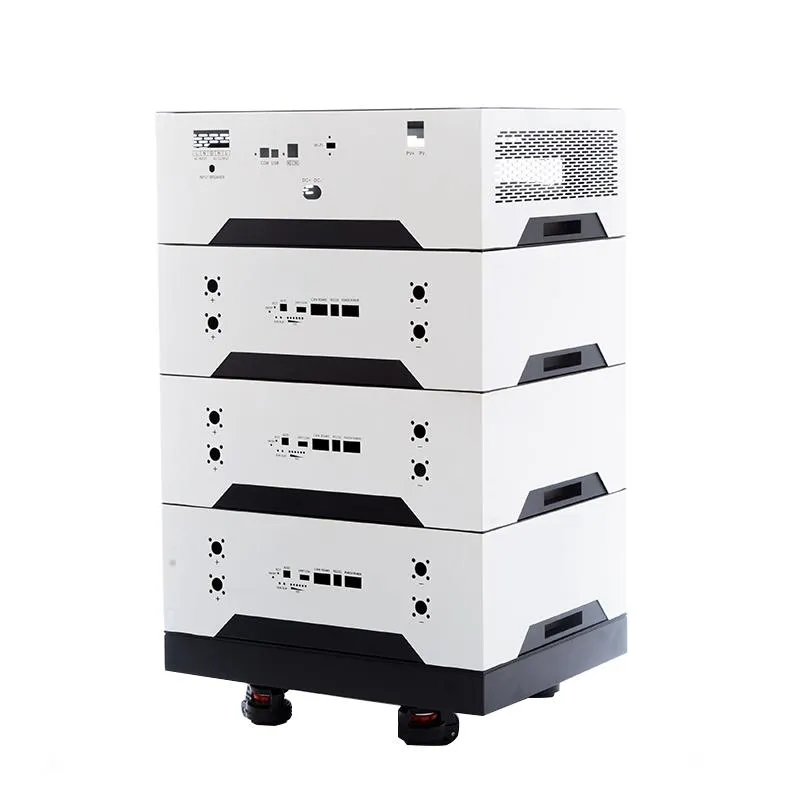

Household off-grid 10kwh 15kwh 30kwh Stackable LiFePO4 Solar Energy System Home Battery Storage
| Model | HS-10 |
| Nominal Voltage | 51.2V / 48V |
| Nominal Capacity | 200Ah |
| Energy Options | 10kwh / 20kwh/ 30kwh/ 40kwh |
| Charge/Discharge Current | 200A |
| Charging Cut-off Voltage | 58.4V ± 0.2V |
| Discharging Cut-off Voltage | 36.8V ± 0.2V |
| Cell Type | LiFePO4 Battery |

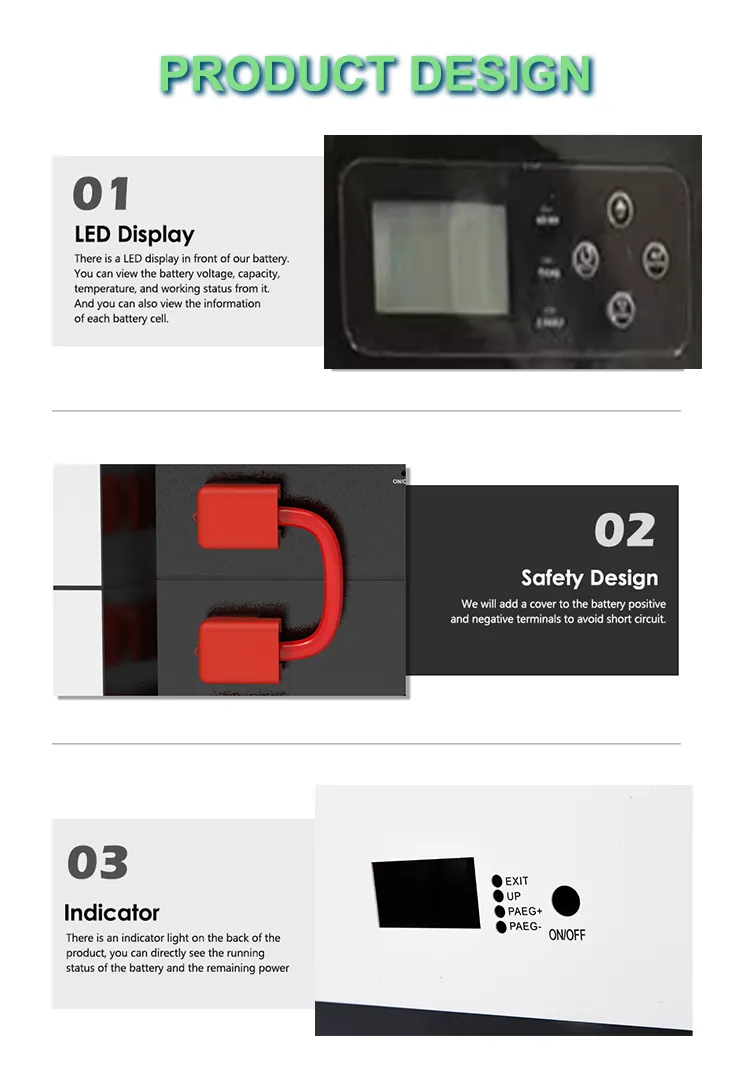

| Display | LCD |
| Terminal | M8 |
| Communication Mode | RS485 / CAN |
| Charge Temp Range | 0 ~ 45°C |
| Discharge Temp Range | -5 ~ 55°C |
We offer sustainable, safe, high-performance battery pack and storage solutions for RVs, marine vessels, off-grid living, and other applications. We understand what customers need and care about, providing suitable solutions with reasonable cost. Our products have obtained certifications like CE, ROHS, UN38.3, MSDS, IEC and other certifications.
Frequently Asked Questions
What is the expected lifespan of the HS-10 battery?
The battery features a cycle life of approximately 3000 times, ensuring long-term reliability for home energy storage.

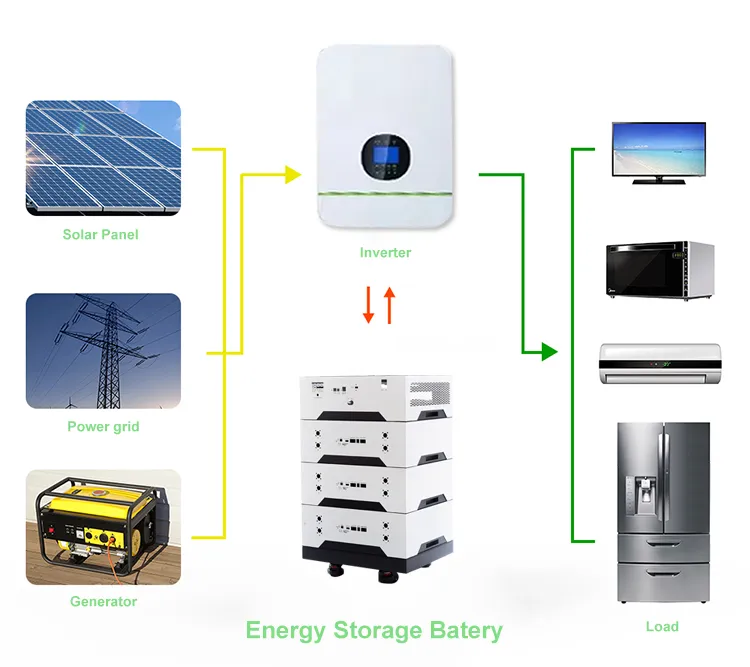

Is this battery compatible with off-grid solar systems?
Yes, it is specifically designed for off-grid solar systems and home battery backup applications.
What communication protocols does the system support?
The HS-10 supports both CAN and RS485 communication ports for seamless integration with various inverters.
What are the charging and discharging temperature limits?
The charging temperature range is 0~45°C, and the discharge temperature range is -5~55°C.

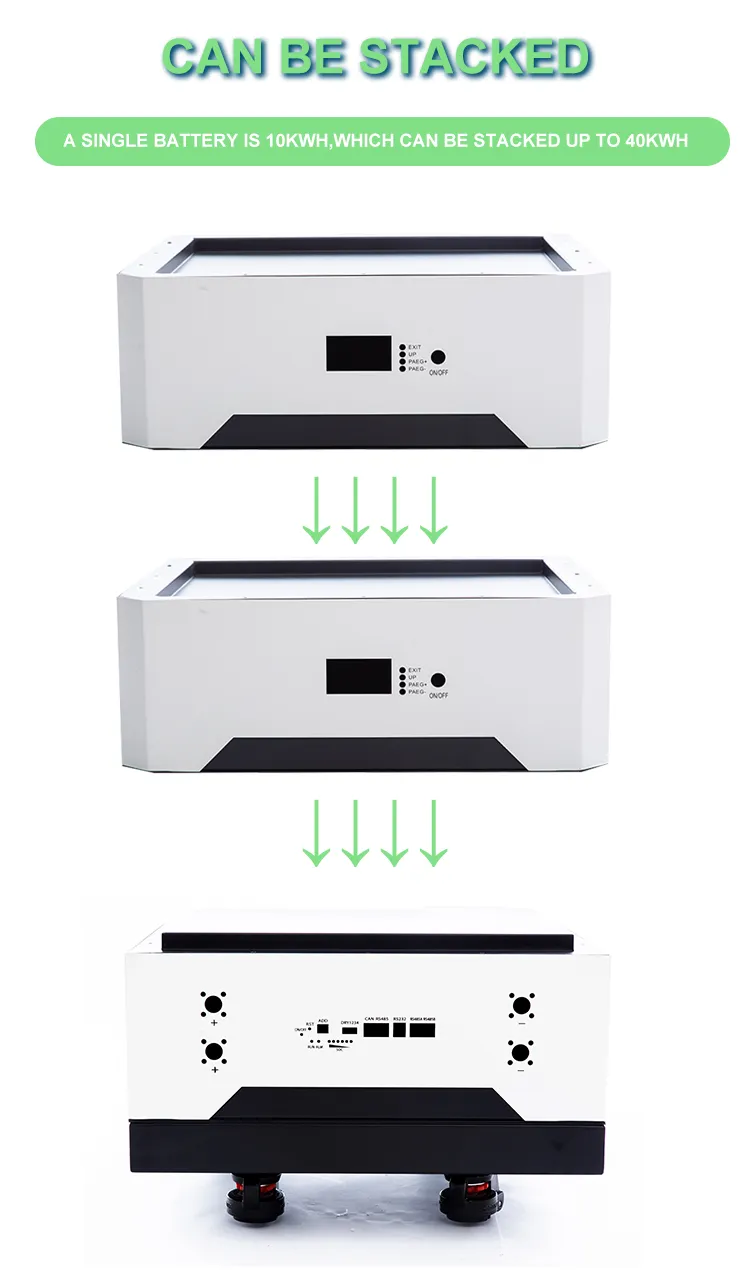

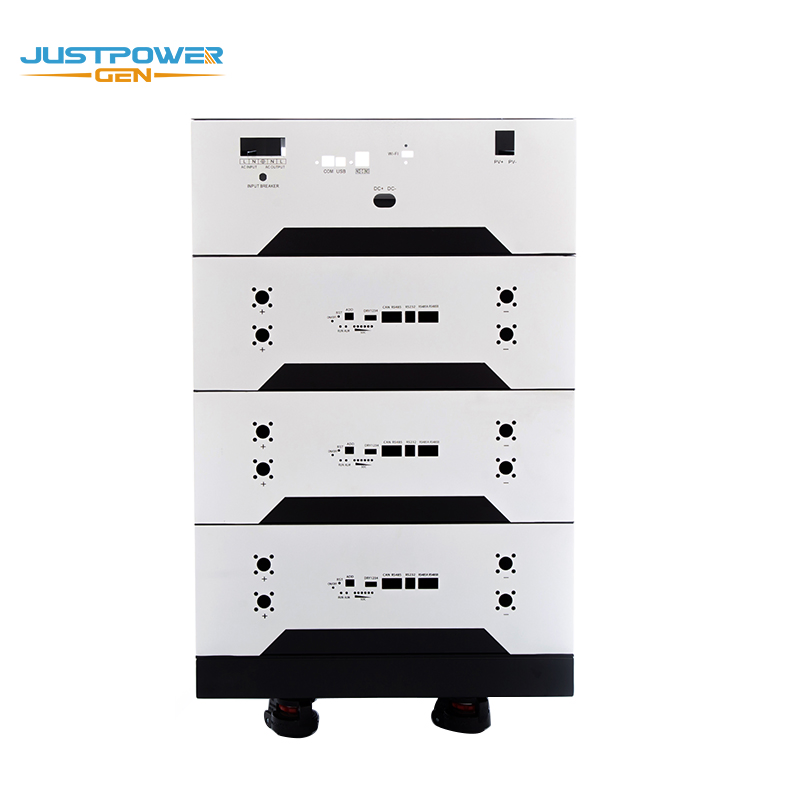

Can the energy capacity be expanded?
Yes, the system is stackable and supports energy configurations of 10kwh, 20kwh, 30kwh, and 40kwh.
What certifications do these batteries have?
Our products have obtained international certifications including CE, ROHS, UN38.3, MSDS, and IEC.
