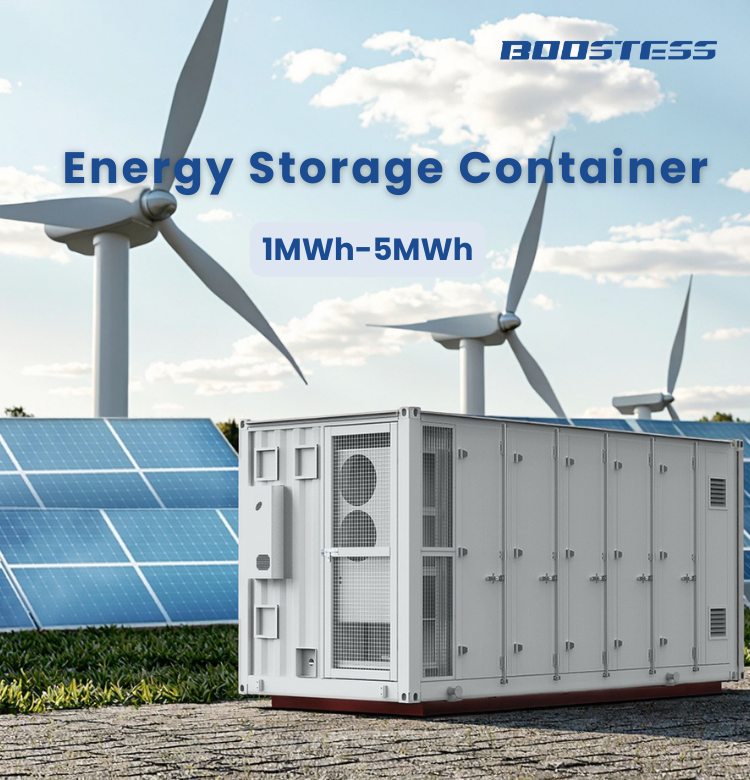

| Specifications | Parameters |
|---|---|
| Rated DC Capacity | 5MWh |
| Rated Battery Capacity | LFP 314Ah |
| Rated DC Voltage | 1331.2V |
| DC Charging & Discharging Efficiency | Max 95% |
| Battery Type | LFP |
| Fire Protection System | Liquid Cooling |
| Certification Standard | IEC61000, IEC62619, IEC62477, IEC63056, UL9540 |
| Weight | ~43tons |
| Dimensions | 6096*2438*2896mm |
| Case Protection Class | IP55 |
| Operating Temperature Range | -20-55℃ |
| Communication Interface | CAN, Modbus RTU, Modus TCP/IP |

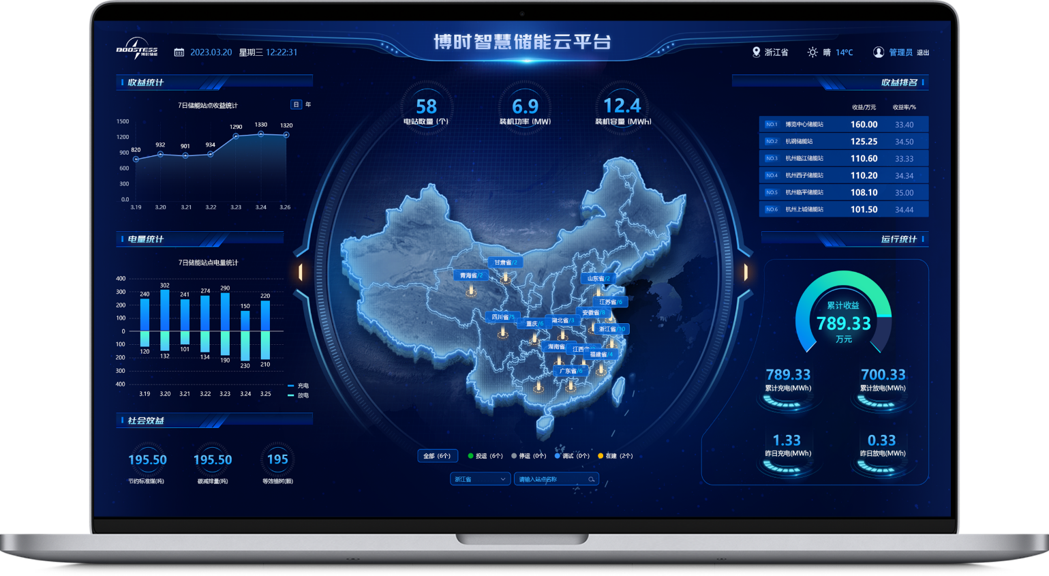

Remote operation and maintenance system monitors local device data, evaluating status to dynamically allocate output power and optimize operating modes for maximum efficiency.

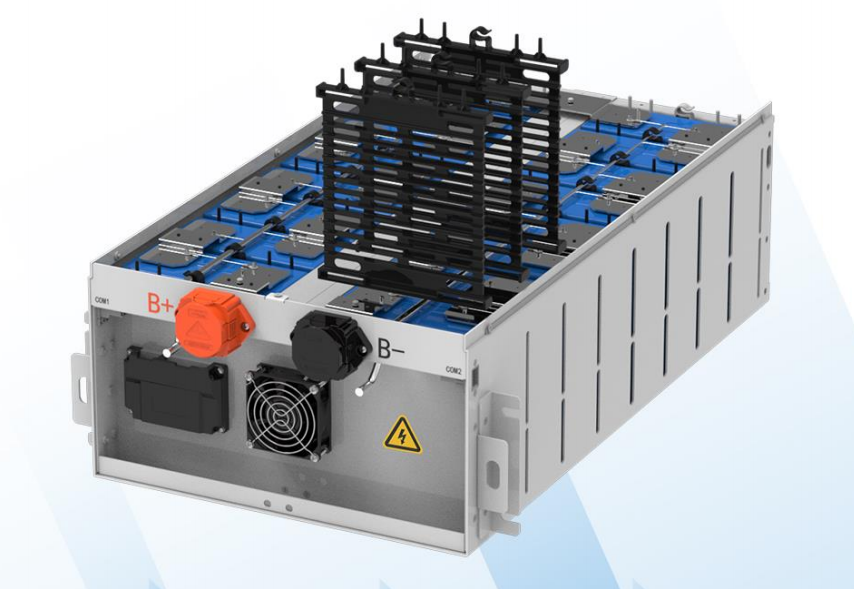

Full-spectrum BMS, Module, and System Integration Design and Development Capabilities.

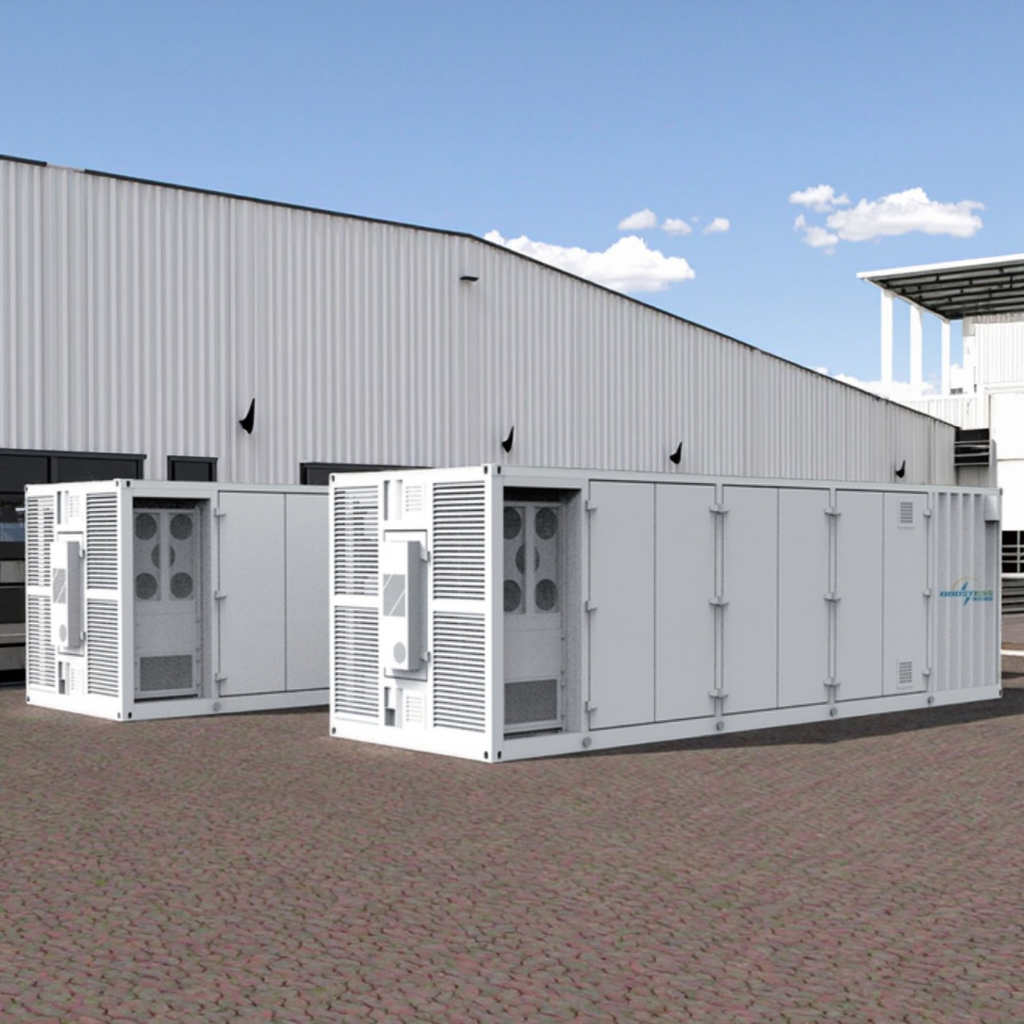

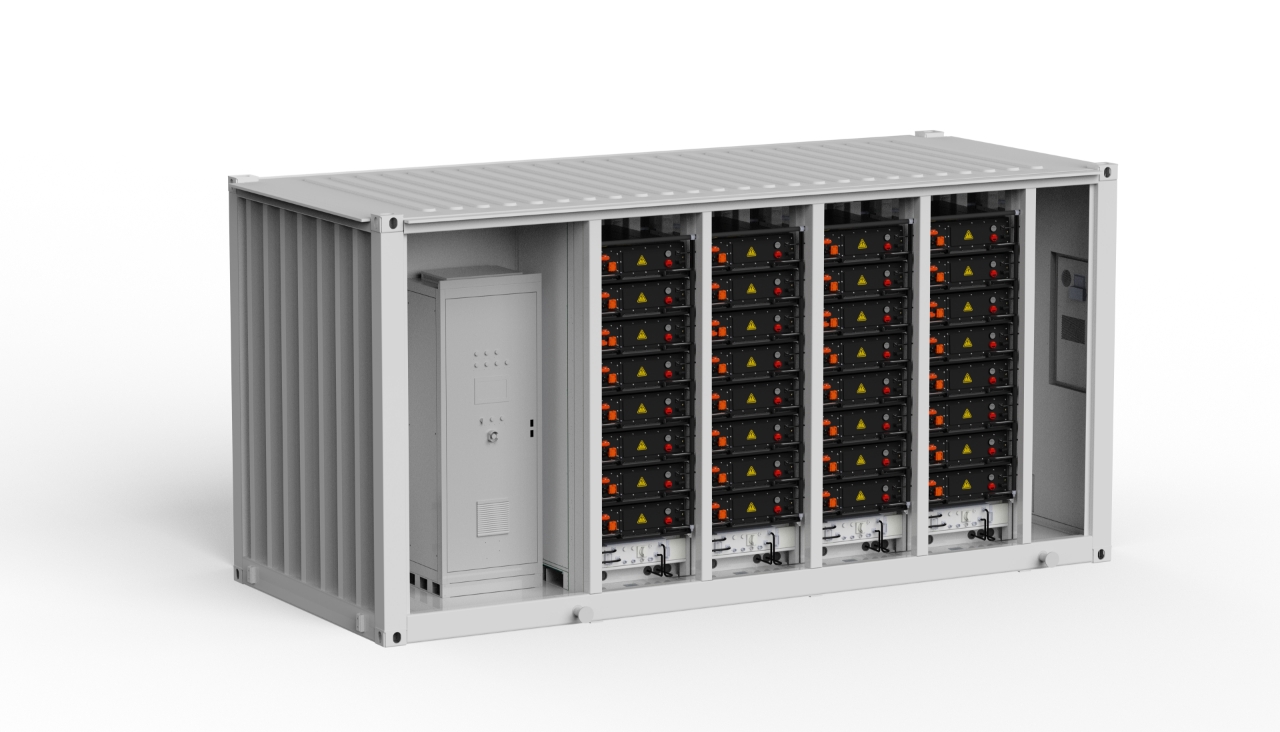

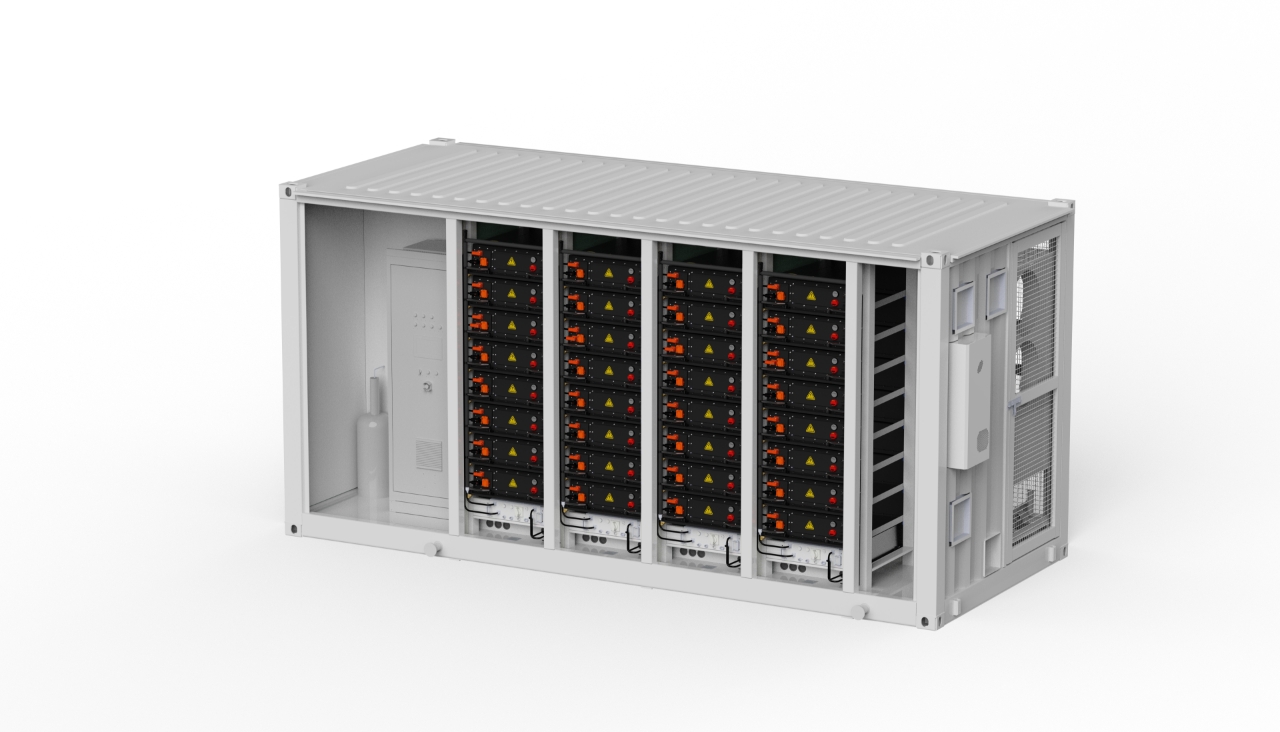

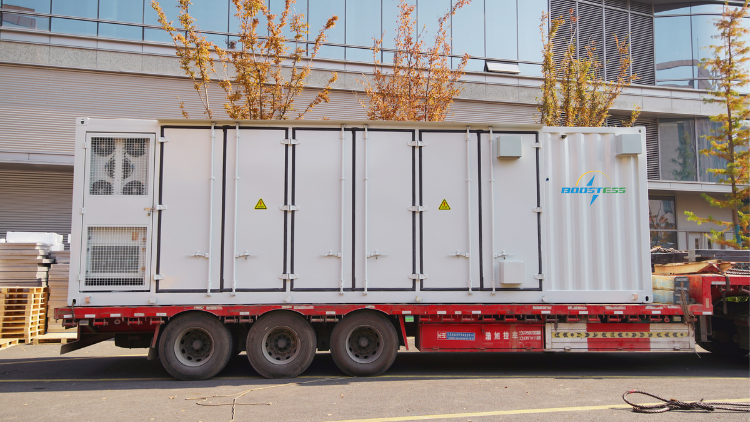

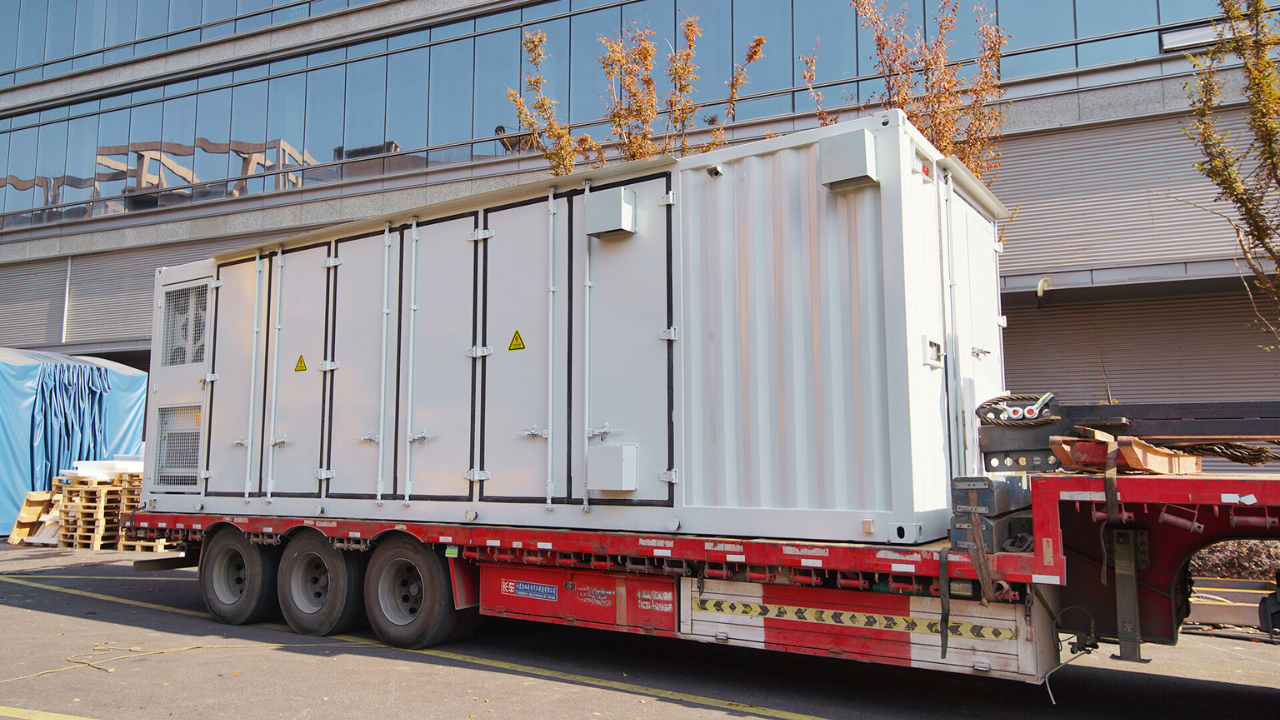

1. All-in-One Design: Pre-installed containerized systems for rapid plug-and-play deployment, reducing installation costs.
2. High Efficiency: AI-optimized cooling (IP54 rated). Round-trip efficiency (RTE) is 3% higher than industry average.

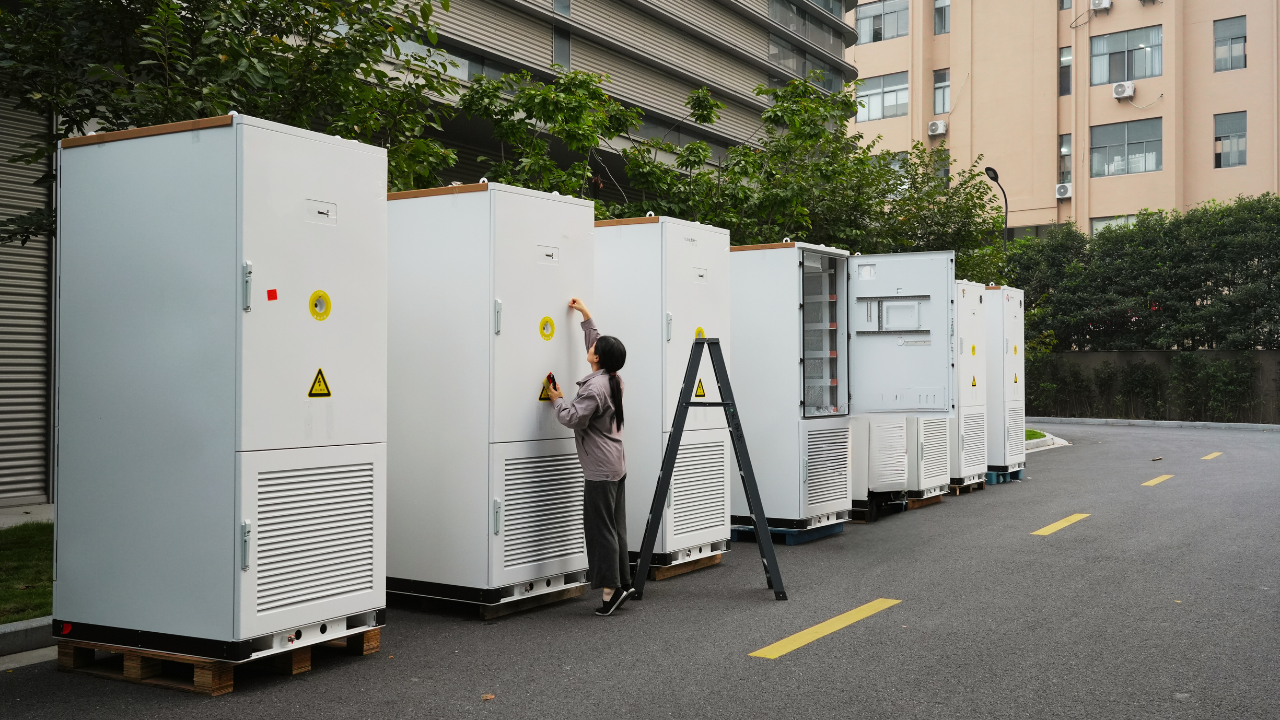

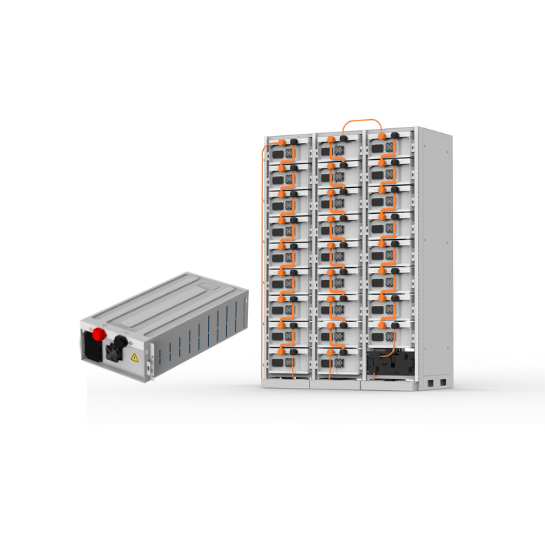

3. Scalability: Modular cabinets allow flexible capacity customization from 100kWh to 5MWh.

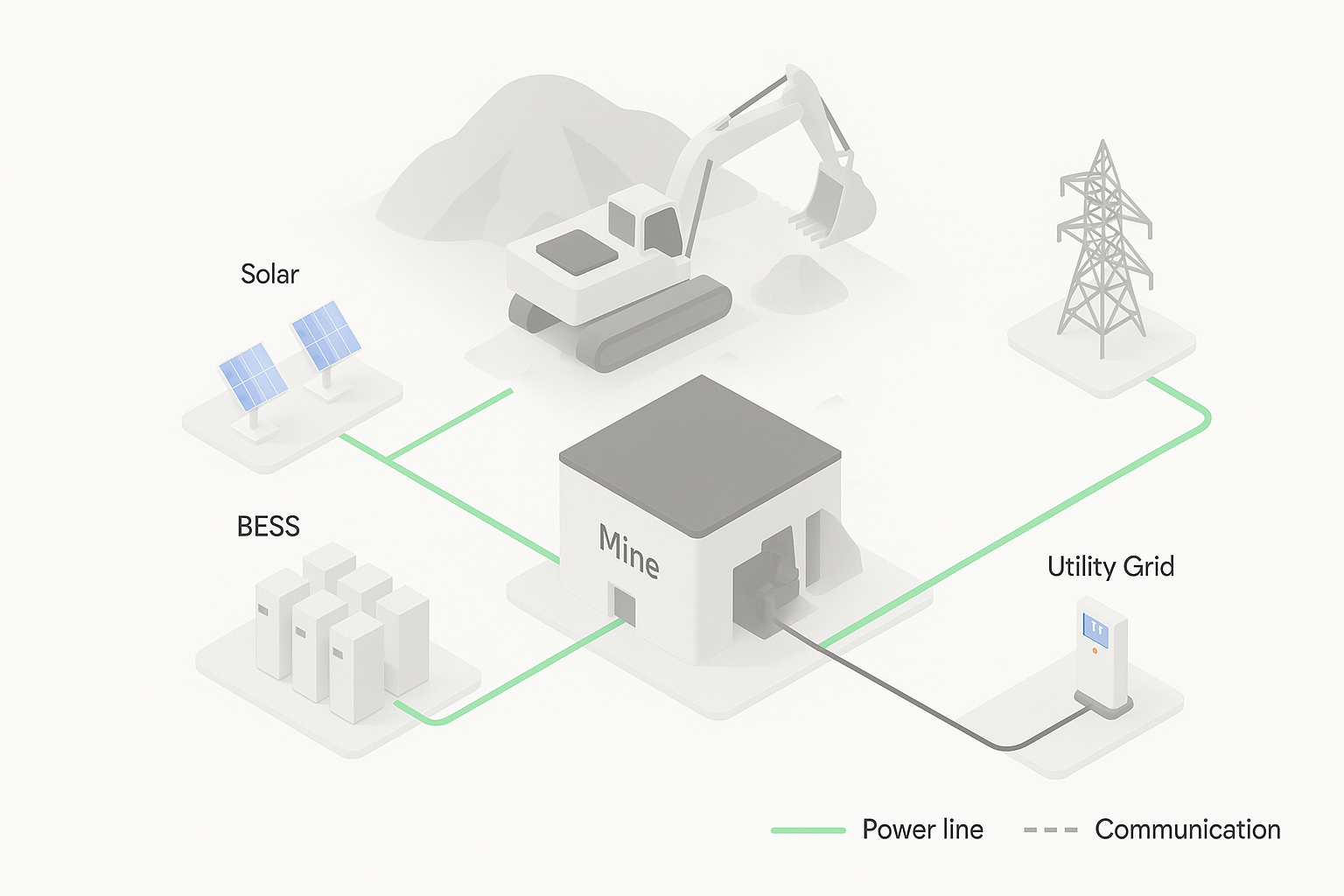

4. Cost Savings: Reduces energy costs by 30%-70% through solar integration and peak shaving.
5. Safety First: Multi-layer protection including automatic fire extinguishers and PACK-level immersion tech.
6. Smart Management: 24/7 fault detection and adaptive charging strategies maximize ROI.

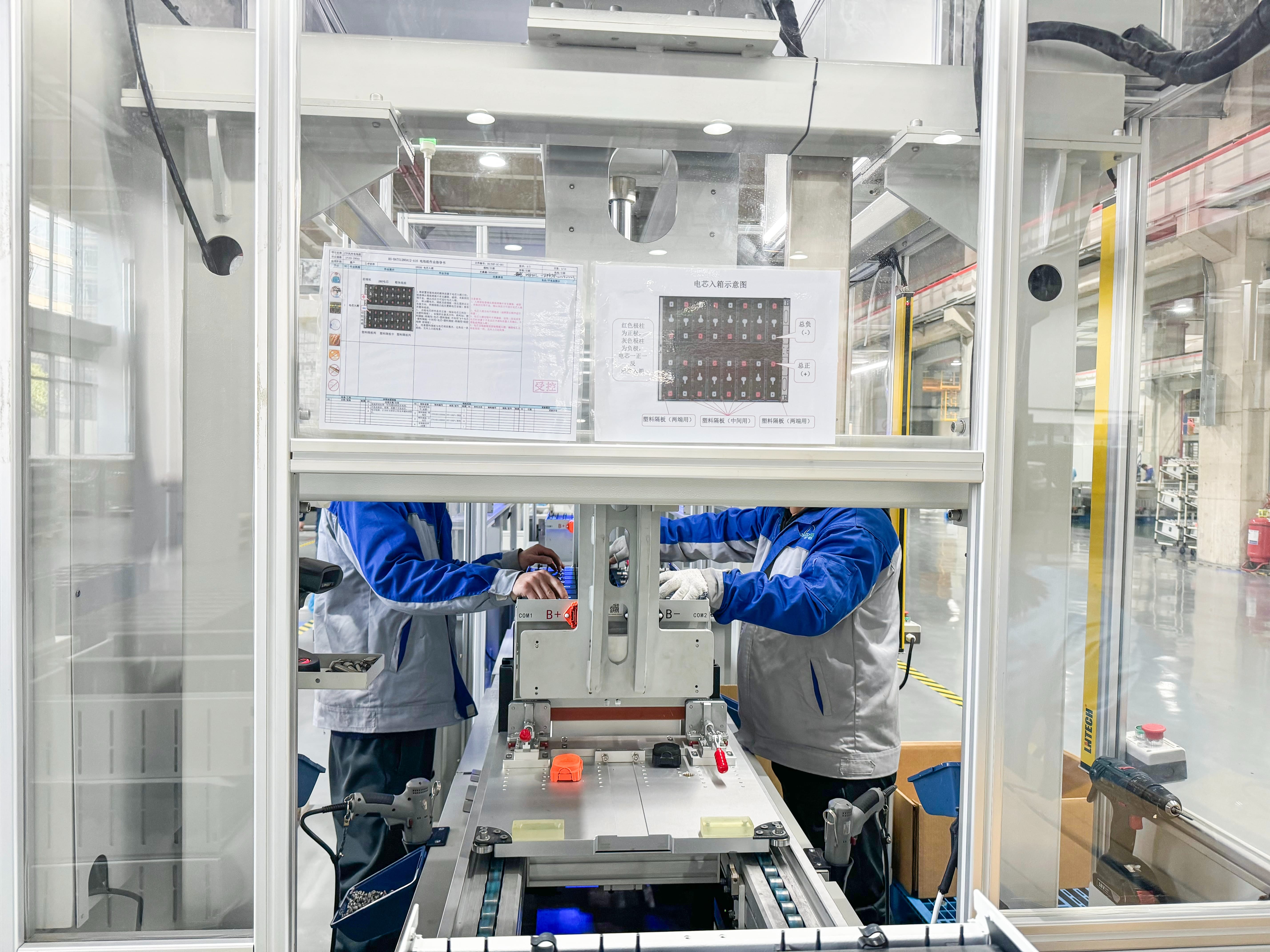

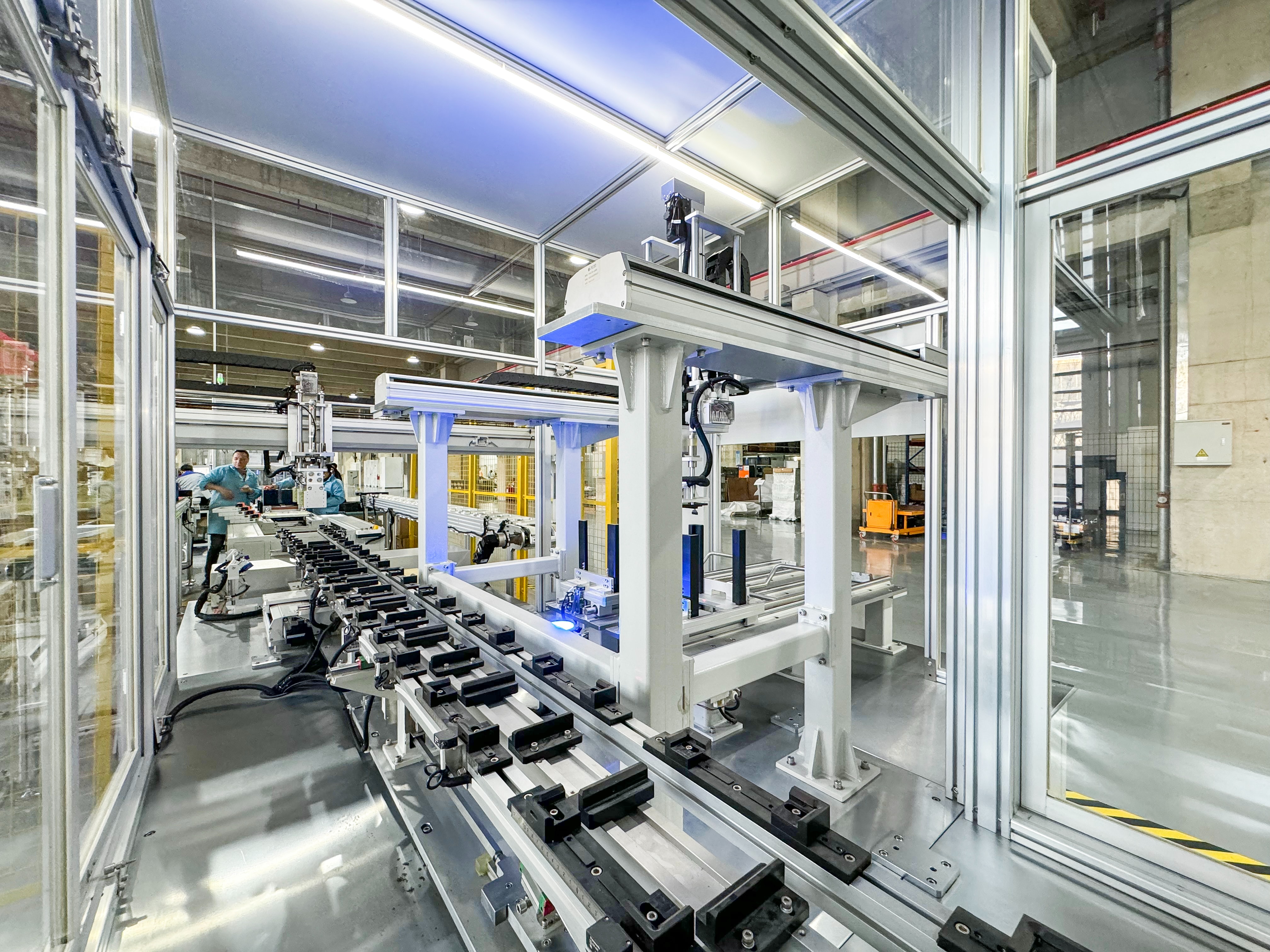

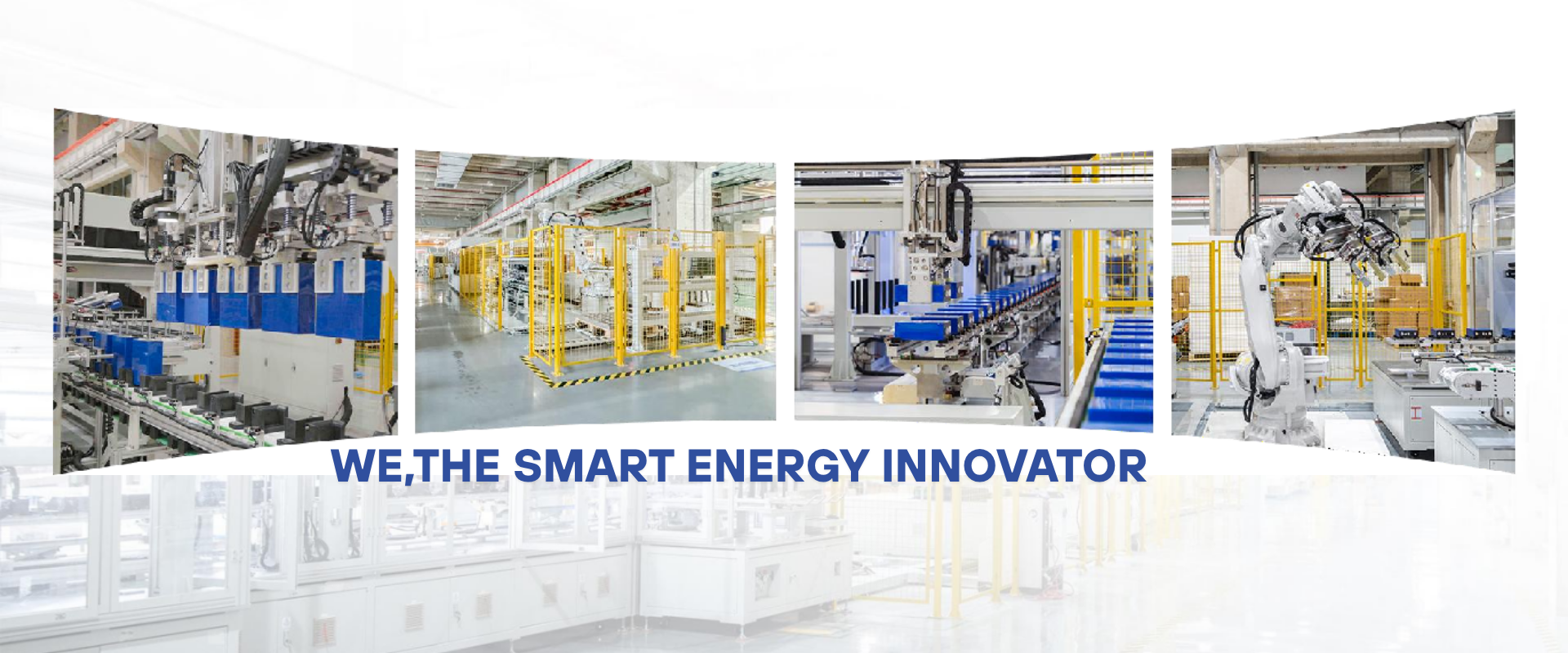

7. Manufacturing: Fully automated production lines for both air and liquid-cooled systems with ODM capabilities.

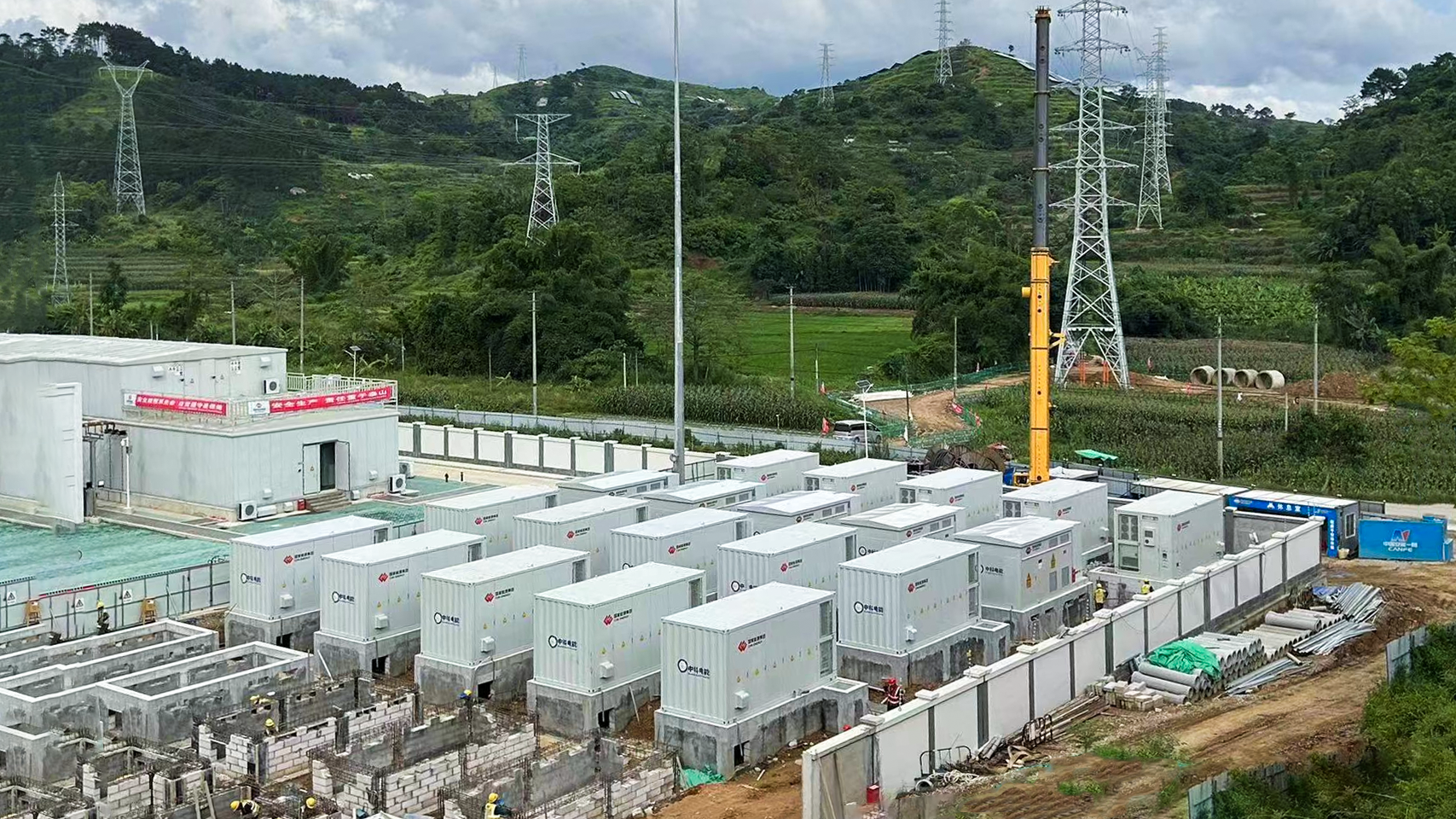

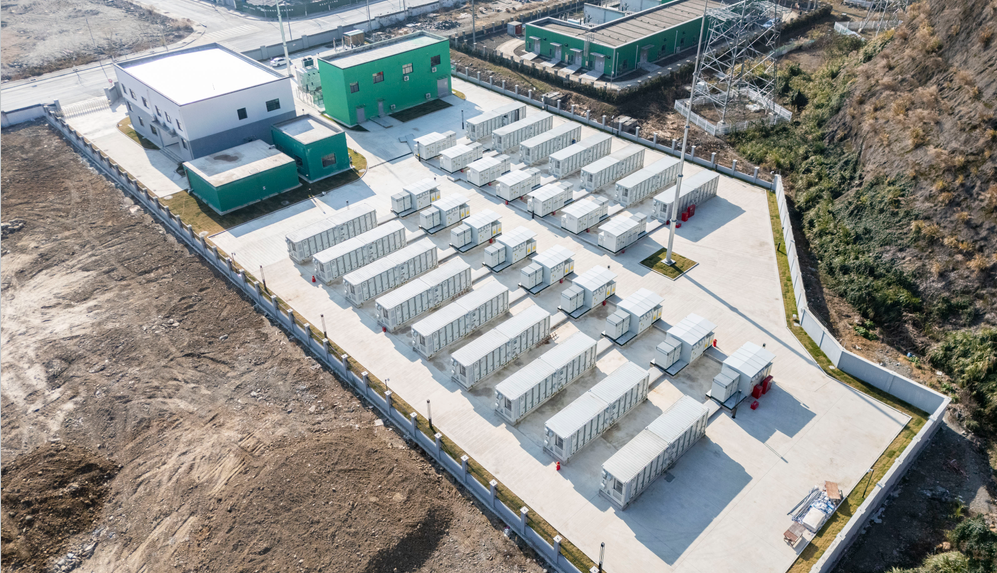

108MWh Liquid Cooling Station: Peak Loading and Frequency Regulation project.
103MWh Station: Peak load regulation and power dispatching.
4.47MWh Liquid-cooled Container: Frequency regulation and storage.
100MWh Demonstration Project: Power dispatching and load regulation.
Founded in 2015, we are a national high-tech enterprise specializing in the design, development, and manufacturing of new energy storage products with high-level R&D teams.

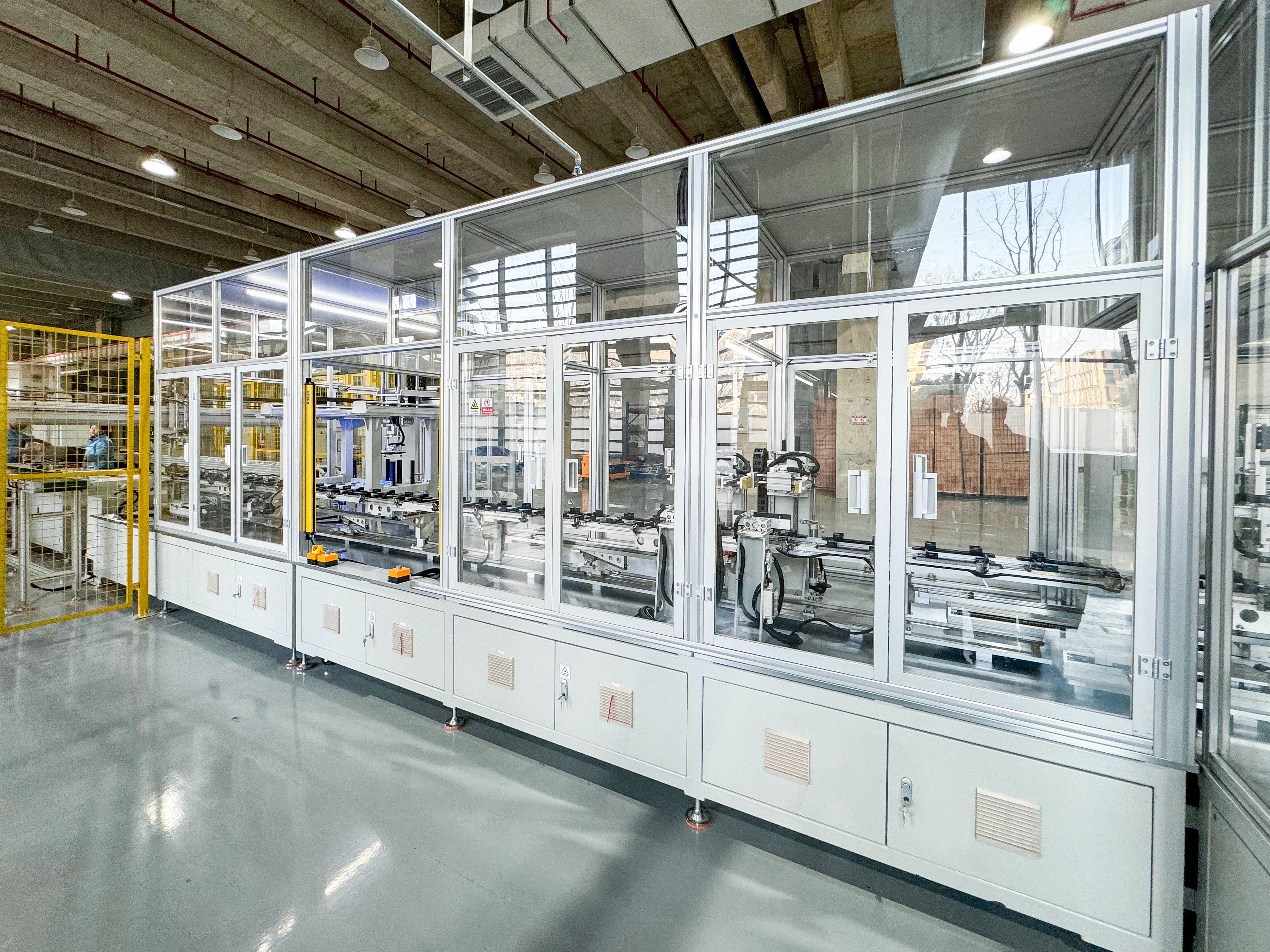

Equipped with 3 fully automated production lines to meet customized needs for air-cooled and liquid-cooled energy storage products, supporting GWh-level project demands.
