Product Description

Overview

Product Introduction:

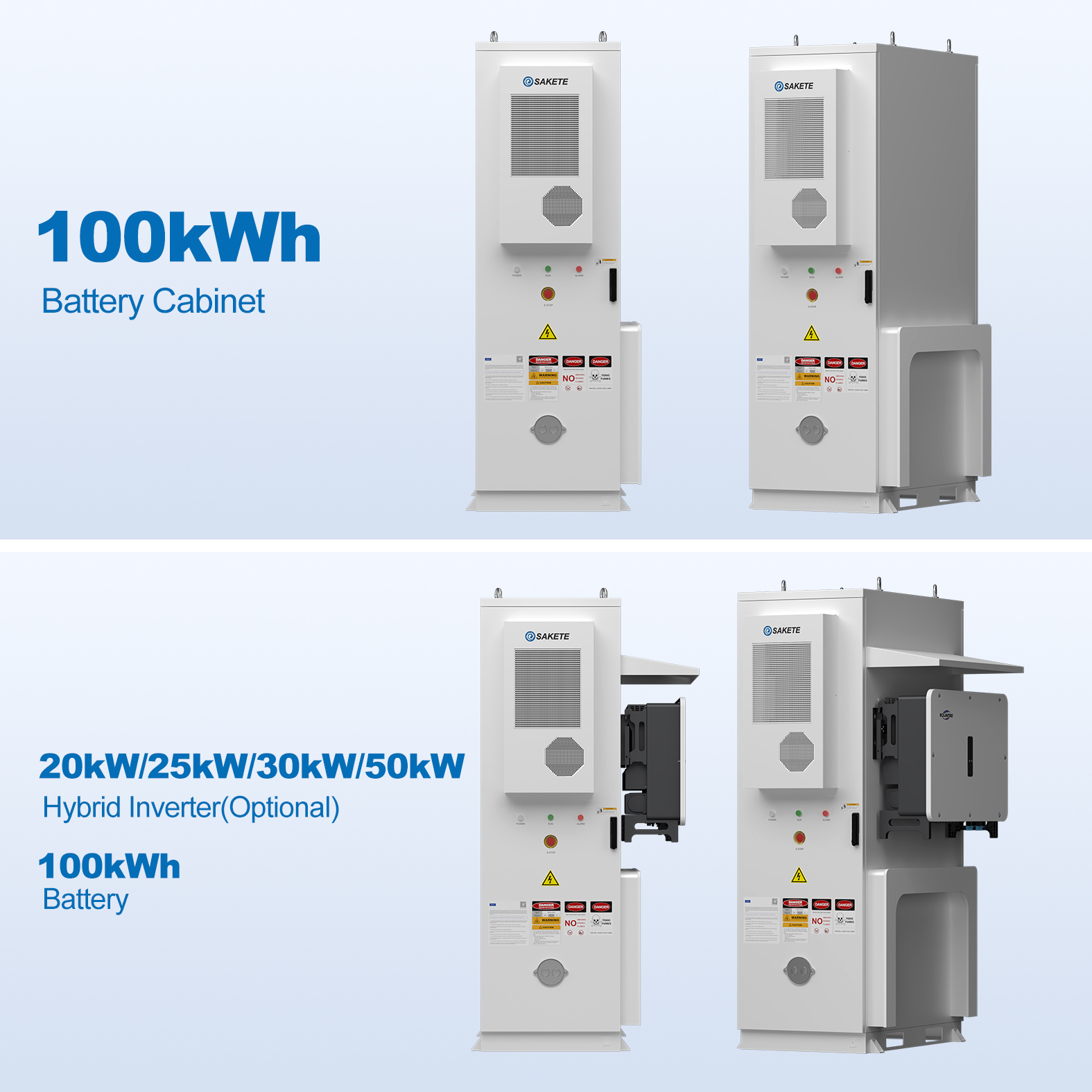

SKTESS100 is a DC battery cabinet designed for outdoor installation, featuring intelligent air cooling for efficient heat dissipation. Paired with a wall-mounted hybrid inverter, it delivers stable and reliable AC output. Ideal for small commercial and industrial applications including office parks, commercial buildings, and EV charging stations.

Technical Specifications

Model	SKTESS72	SKTESS86	SKTESS100
Battery Type	LiFePO4
Battery Capacity	280Ah
Pack Configuration	1P16S*5	1P16S*6	1P16S*7
Nominal Capacity	71.68kWh	86.016kWh	100.352kWh
Nominal Voltage	256V	307.2V	358.4V
Operating Voltage Range	224~284V	268.8~304.8V	313.6~397.6V
Max. Continuous Charge/Discharge	140A
Charge / Discharge Rate	0.5C
Ingress Protection	IP54
Anti-Corrosion Grade	C3 (C4 Optional)
Cycle Life	≥6000 / 5 Years (@25°C ±2°C, 0.5C / 0.5C, 70% EOL)
Operating Temp Range	-20°C~50°C
Communication	CAN/RS485
Cooling	Air Cooling
Dimension	(851.5±0.5) x (1325±5) x 2280mm
Weight	≤1050kg	≤1150kg	≤1250kg

Products Advantages

🚀

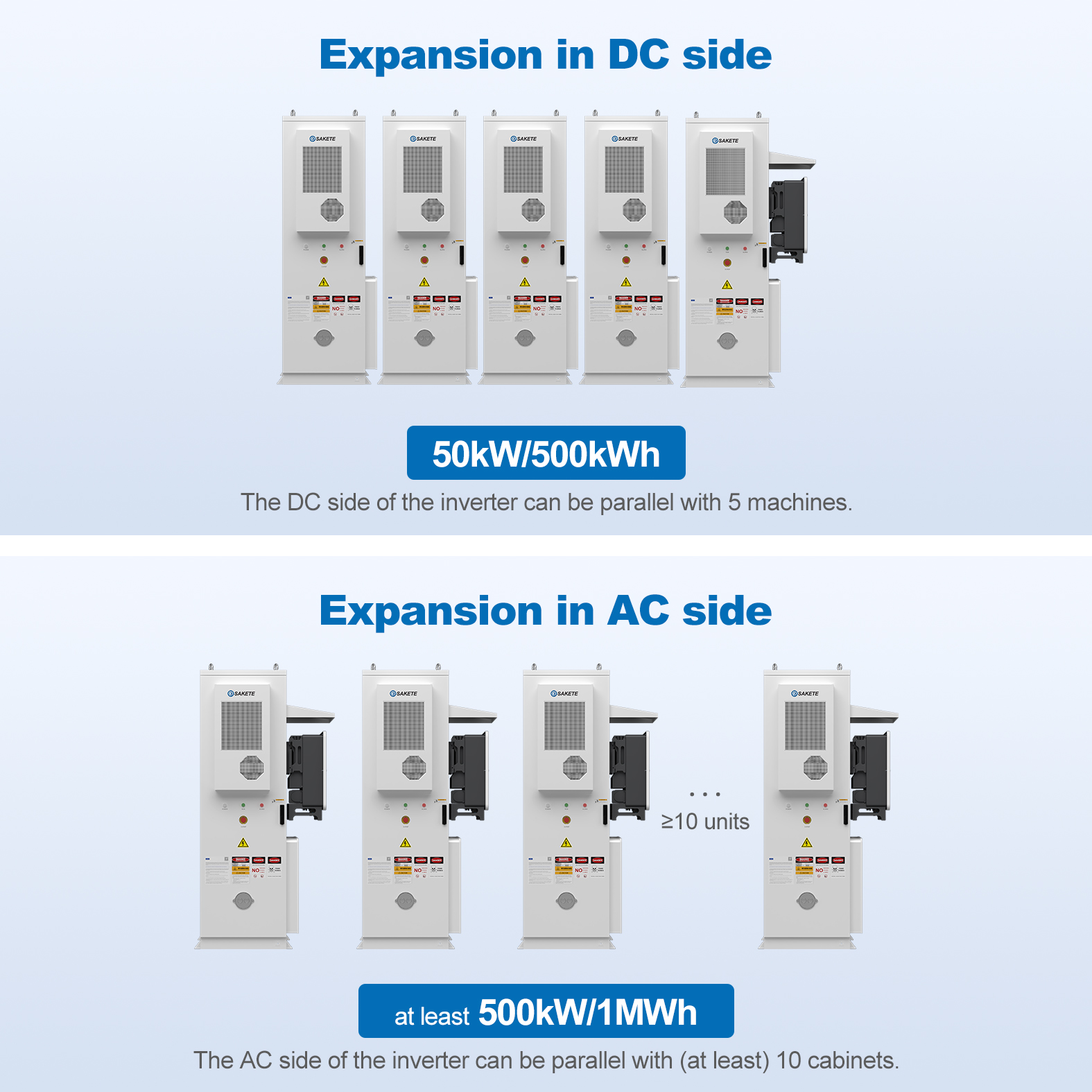

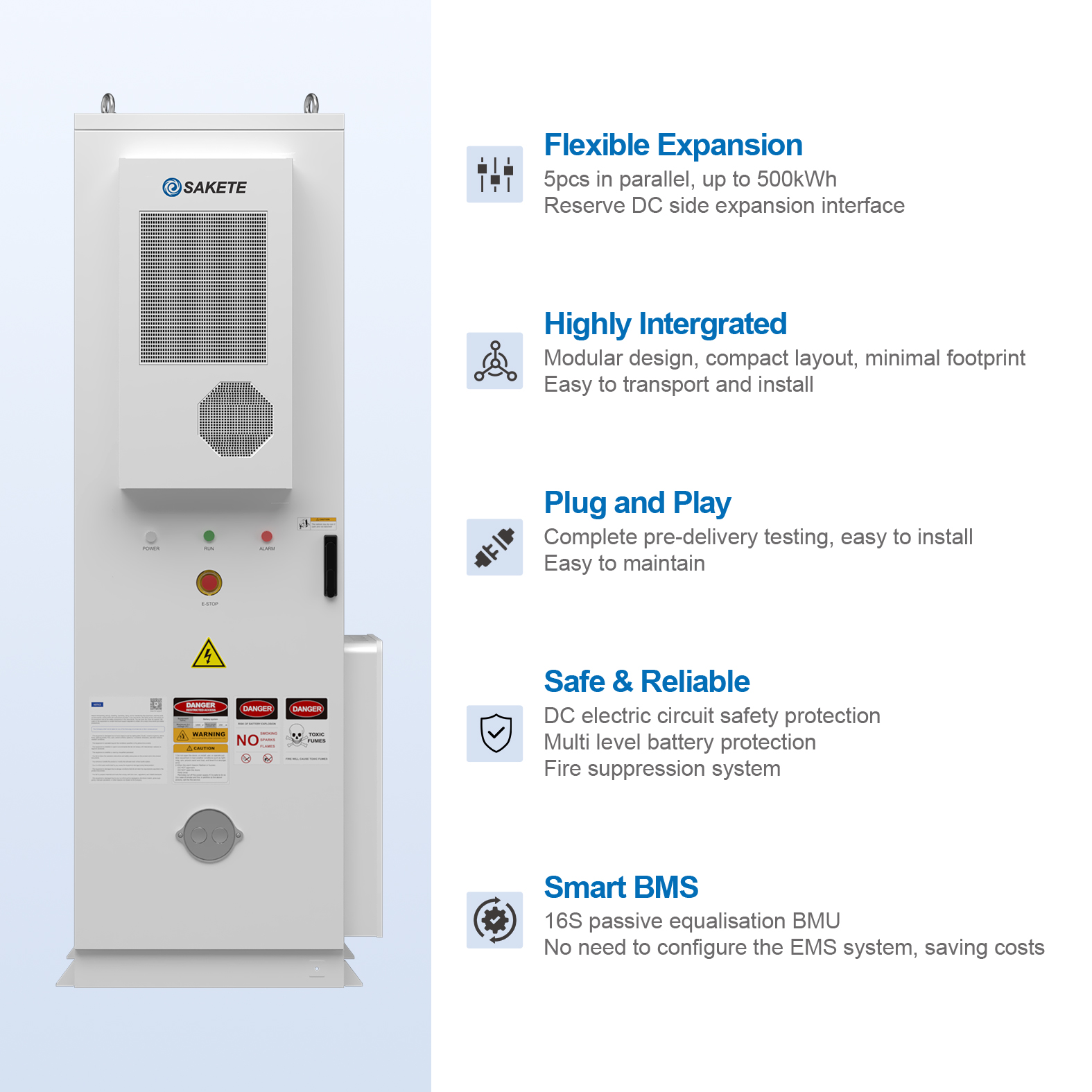

This product employs a modular design, featuring an externally mounted energy storage inverter. It offers flexible adaptation to diverse power application scenarios, supports rapid on-site installation, and enables multiple units to be interconnected for capacity expansion according to customer requirements.

🔧

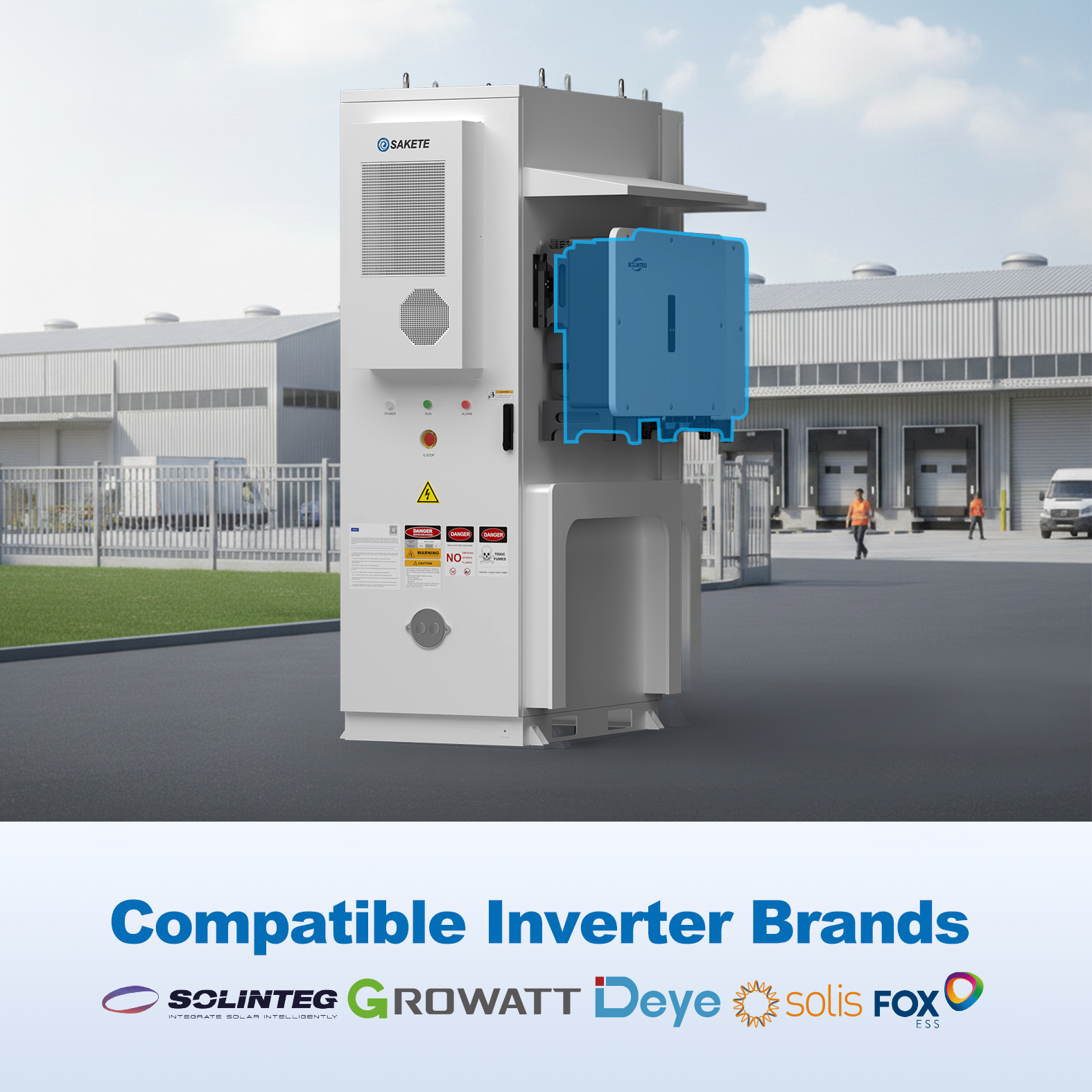

This product can be matched with inverters from multiple brands according to customer requirements.

Products Description

LiFePO4 Lithium Battery

This product utilises lithium iron phosphate batteries with a cell capacity of 280Ah. The nominal cell voltage is 3.2V, with an operating voltage range of 2.5V to 3.65V per cell. The monthly self-discharge rate does not exceed 3%. These cells offer extended longevity, robust battery safety, and excellent consistency.

HV Box

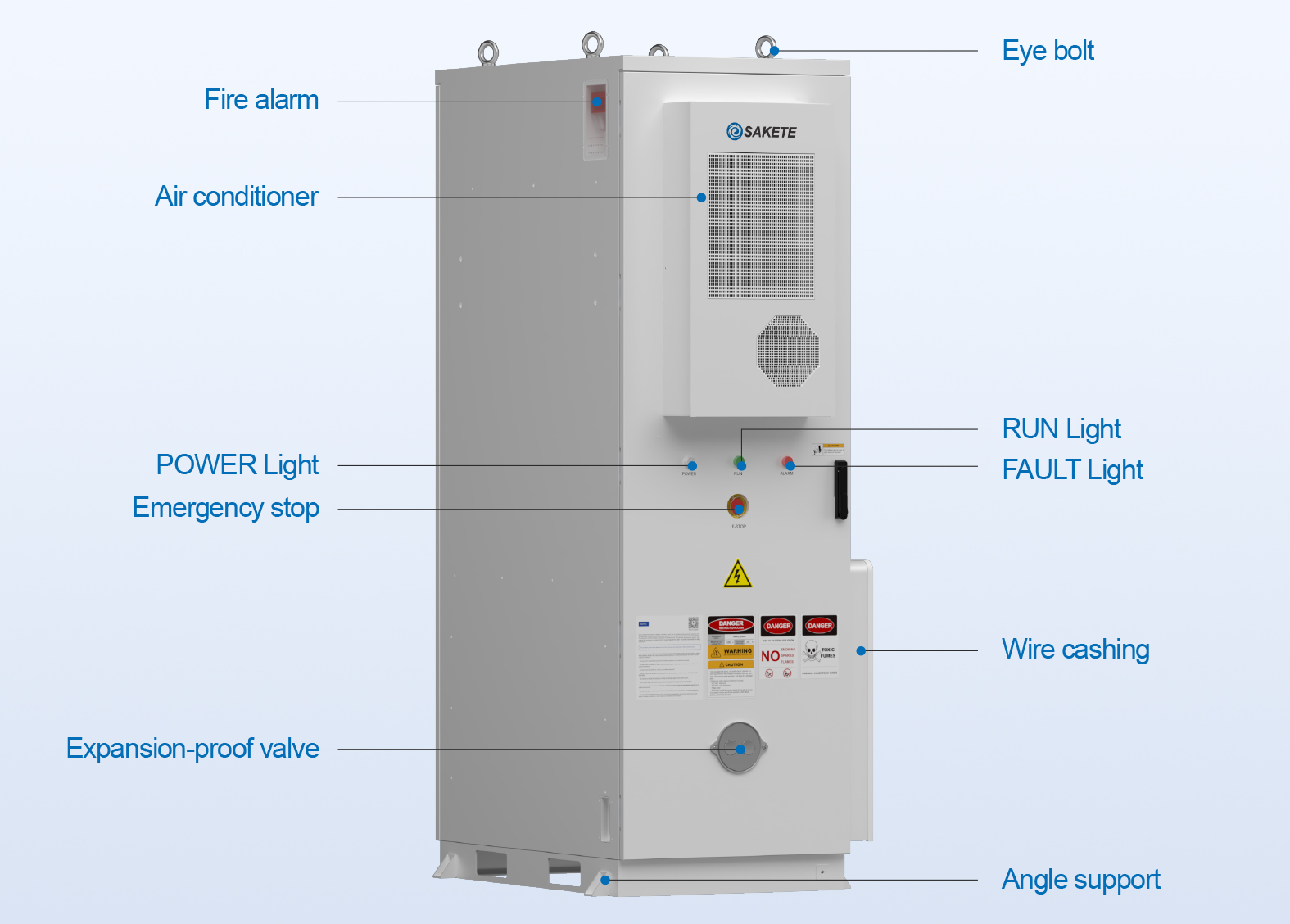

The high-voltage box features an integrated, compact design with optimised dimensions. It incorporates multiple interfaces for strategy expansion, including fire alarm, air conditioning, temperature detection, dry contacts, and RS485. Utilising DC-side power extraction eliminates the need for external power supply, enabling full black start capability for the system.

Monitoring Cloud Platform

The cloud platform supports direct wireless transmission of battery-side parameter information via 4G/WiFi/Bluetooth to the energy storage cloud platform. It enables core functionalities including real-time status queries, remote alarms, software/hardware traceability, and over-the-air BMS firmware upgrades.

Projects & Packaging

Our Strengths

⭐ 1. Integrating research, development, production, sales and service

⭐ 2. Providing integrated green energy solutions for multiple scenarios

⭐ 3. Comprehensive product portfolio featuring a diversified industrial, commercial and residential storage product matrix

⭐ 4. Robust ‘3S’ (BMS, EMS, PCS) product architecture ensuring seamless operation

⭐ 5. Possesses OEM & ODM capabilities

⭐ 6. Products hold industry certifications guaranteeing safety, reliability and efficiency

⭐ 7. 24-hour professional technical support team

Frequently Asked Questions

Q1: What are the primary applications for the SKTESS100 series? A1: It is ideal for small commercial and industrial (C&I) applications, including office parks, commercial buildings, and EV charging stations that require stable outdoor energy storage.

Q2: What type of battery technology does this system use? A2: The system utilizes high-safety LiFePO4 (Lithium Iron Phosphate) batteries with a cell capacity of 280Ah and a cycle life of ≥6000 cycles.

Q3: Can I expand the capacity if my power needs increase? A3: Yes, the system features a modular design that supports the interconnection of multiple units for flexible capacity expansion.

Q4: Is the cabinet suitable for harsh outdoor environments? A4: Absolutely. The unit has an IP54 ingress protection rating and a C3 anti-corrosion grade (C4 optional), designed specifically for outdoor durability.

Q5: How is the system monitored? A5: It includes a Monitoring Cloud Platform that supports wireless transmission via 4G, WiFi, or Bluetooth for real-time status queries and remote alarms.

Q6: Does the system require an external power supply to start? A6: No, the integrated HV Box utilizes DC-side power extraction, which enables full black start capability without needing an external power source.
