Three Phase 240V Single 110V 120V Energy Storage Grid Tied Solar System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount

Solar Inverter

Grid-Tied Inverter

System Type

Home Solar Power System

Solar Panel

Mono N-Type Hjt

Production Capacity

2 Gw/Year

Packaging & Delivery

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Gross Weight

2000.000kg

Transport Package

Carton/Wooden Box

On Grid System Configuration

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

Component Technical Details

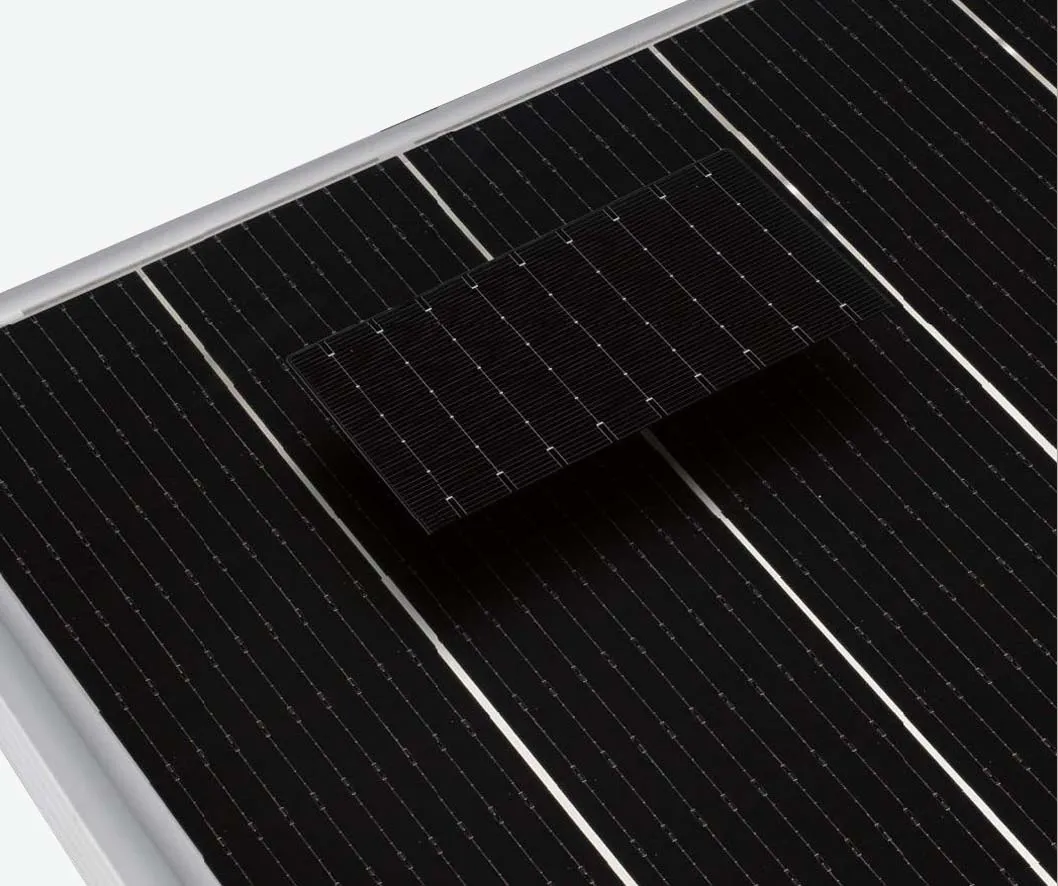

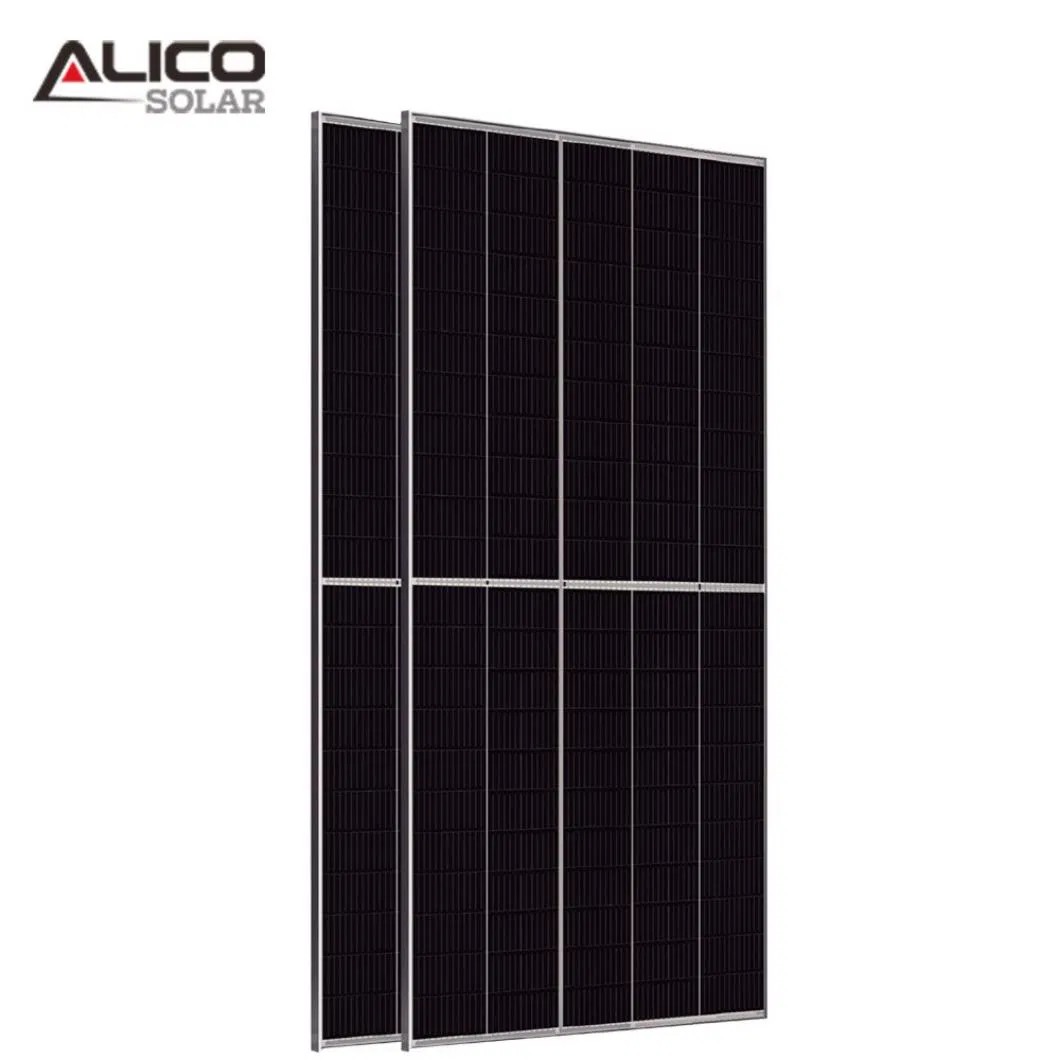

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

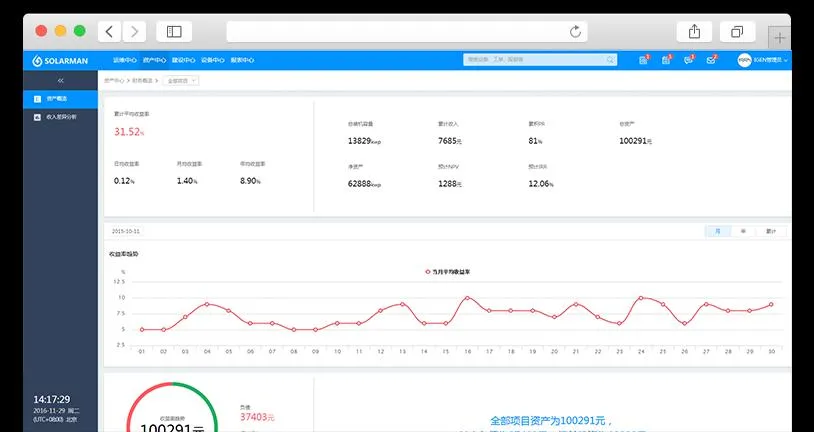

Remote Monitoring System

Data Logging Stick allows real-time information tracking via Wi-Fi, Lan or GPRS. App Available for PC, IOS & Android to keep you informed about system status and atmosphere conditions anywhere.

PV Mounting System

Mounting Rail & Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35-50mm
Optional: L Foot Asphalt Shingle Mount, Hanger Bolt, Cable Clips, and Ground Lugs.

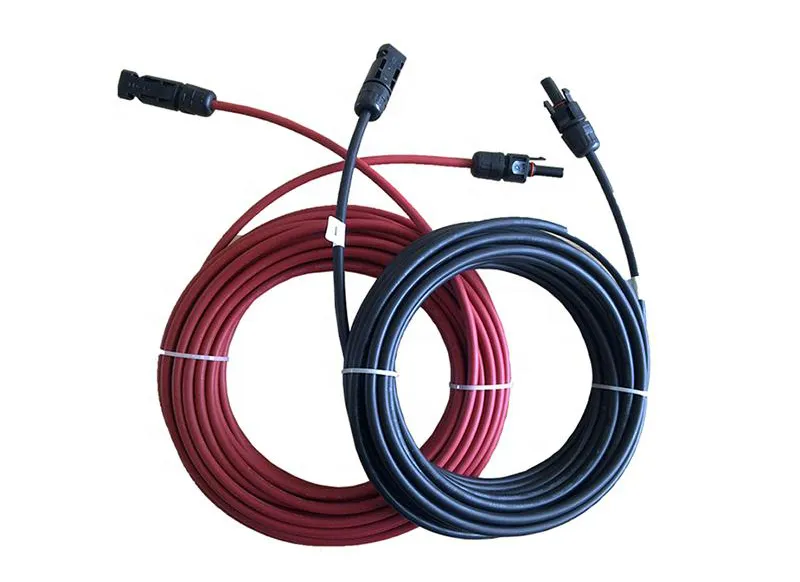

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Lifetime: ≤25 Years

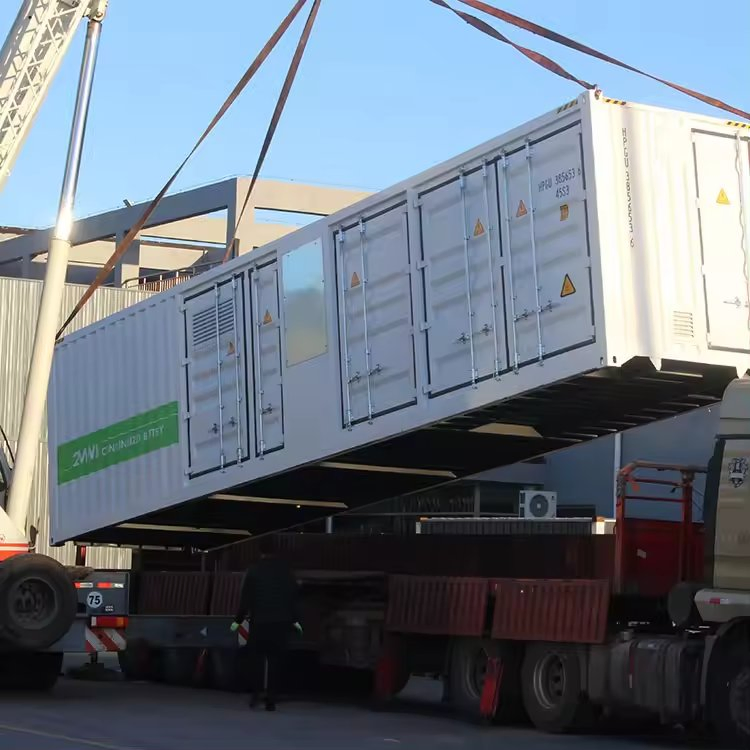

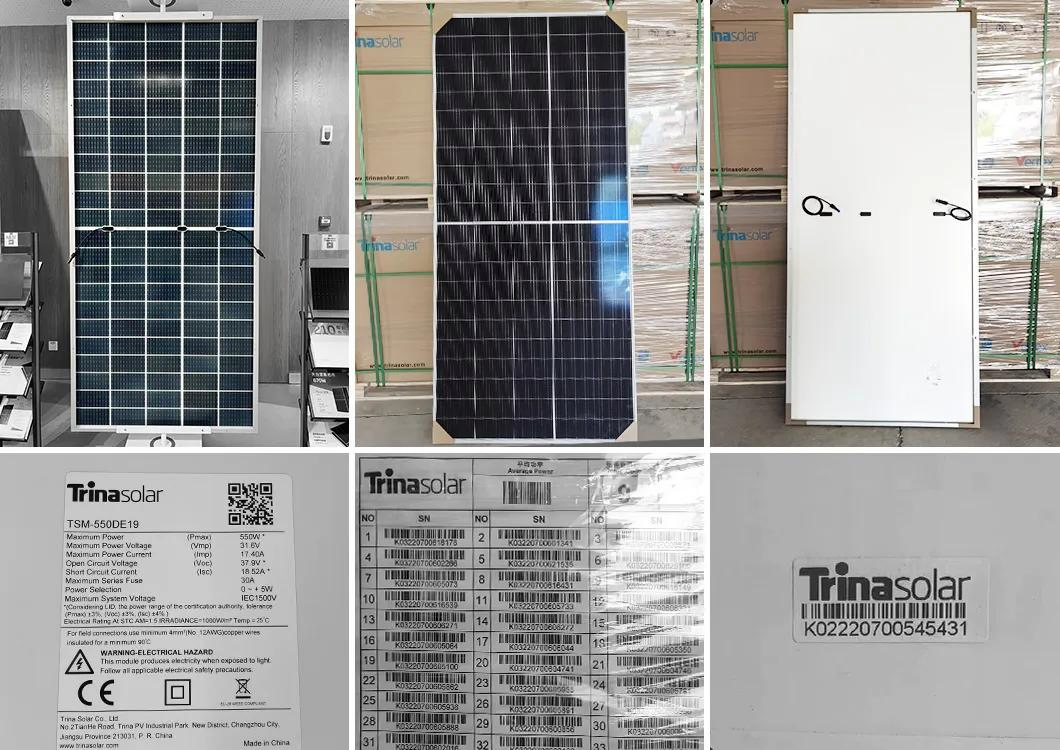

Packaging & Shipping

Global Projects

12MW Commercial Metal Roof Solar Plant

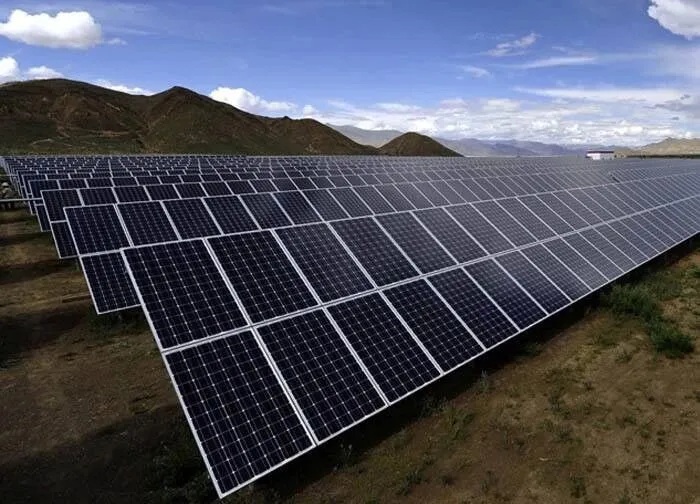

20MW Ground Solar Plant in USA

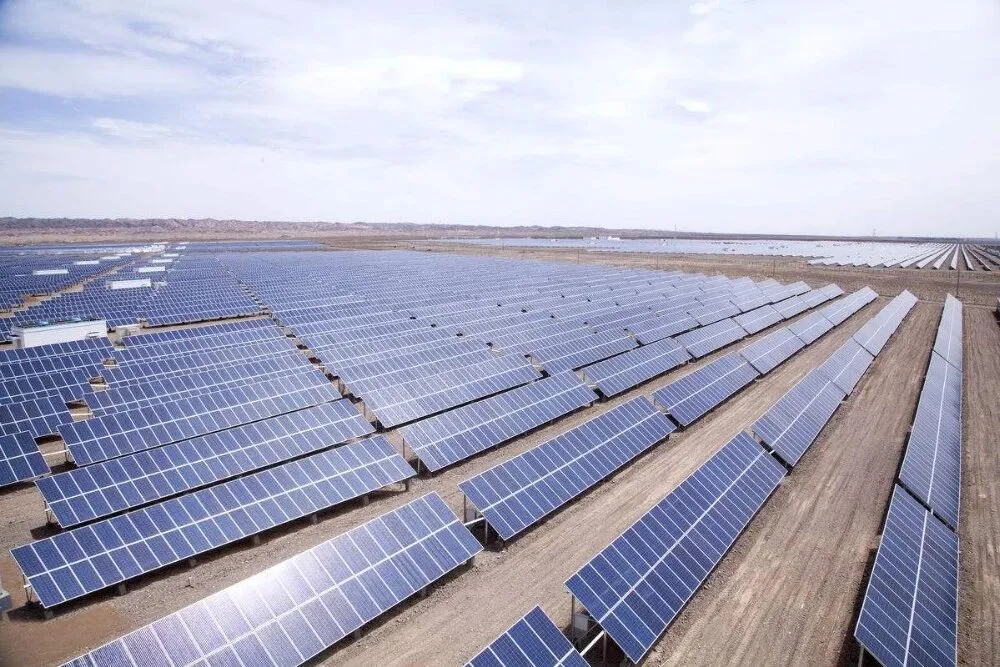

50MW Solar Plant in Brazil

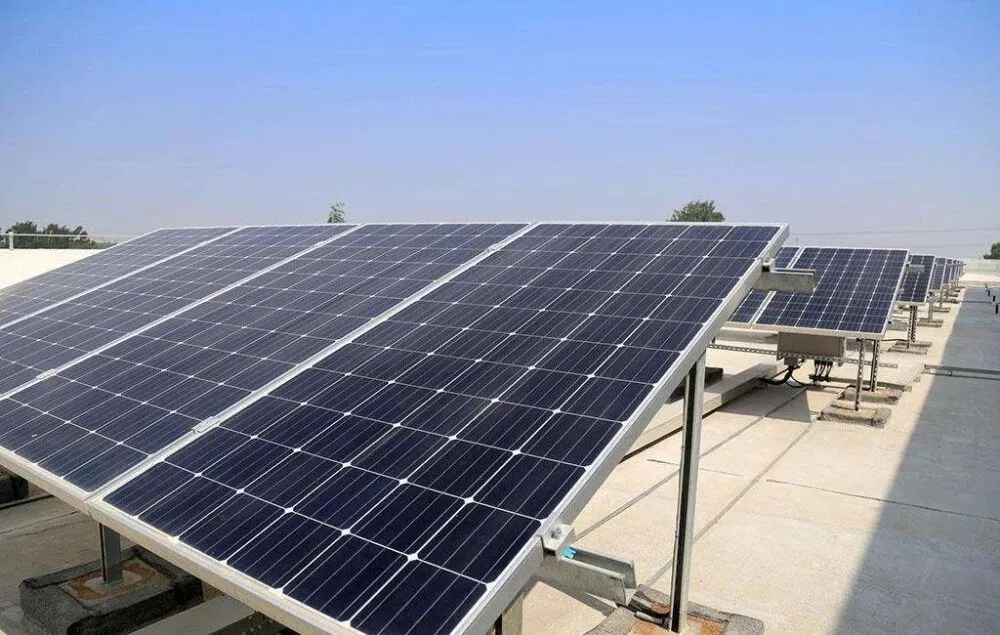

20KW Solar Plant in Mexico

Frequently Asked Questions

What is an On-Grid Solar System?

An on-grid solar system is connected to the local utility grid. It allows you to use solar energy when available and pull from the grid when needed, often allowing you to sell excess power back to the utility company.

Are these systems suitable for industrial use?

Yes, the system is designed for a wide range of applications including home, industrial, and commercial settings with capacity options ranging from 10KW up to 500KW.

What kind of maintenance does the system require?

The system is designed for longevity with components like DC cables rated for 25 years. Remote monitoring allows you to track performance and identifies if any cleaning or professional maintenance is needed.

Can the mounting system be customized for different roof types?

Absolutely. While standard pitched roof mounts are common, we offer customized options for metal roofs, asphalt shingles, and ground-mounted brackets.

What is the benefit of Mono N-Type HJT solar panels?

N-Type HJT (Heterojunction) panels offer higher efficiency, better performance in high temperatures, and lower degradation rates compared to traditional panels.

How does the remote monitoring work?

A data logging stick connects to your inverter and uploads data via Wi-Fi, LAN, or GPRS to a web server. You can access this data anytime via a dedicated app on your PC or mobile device.
