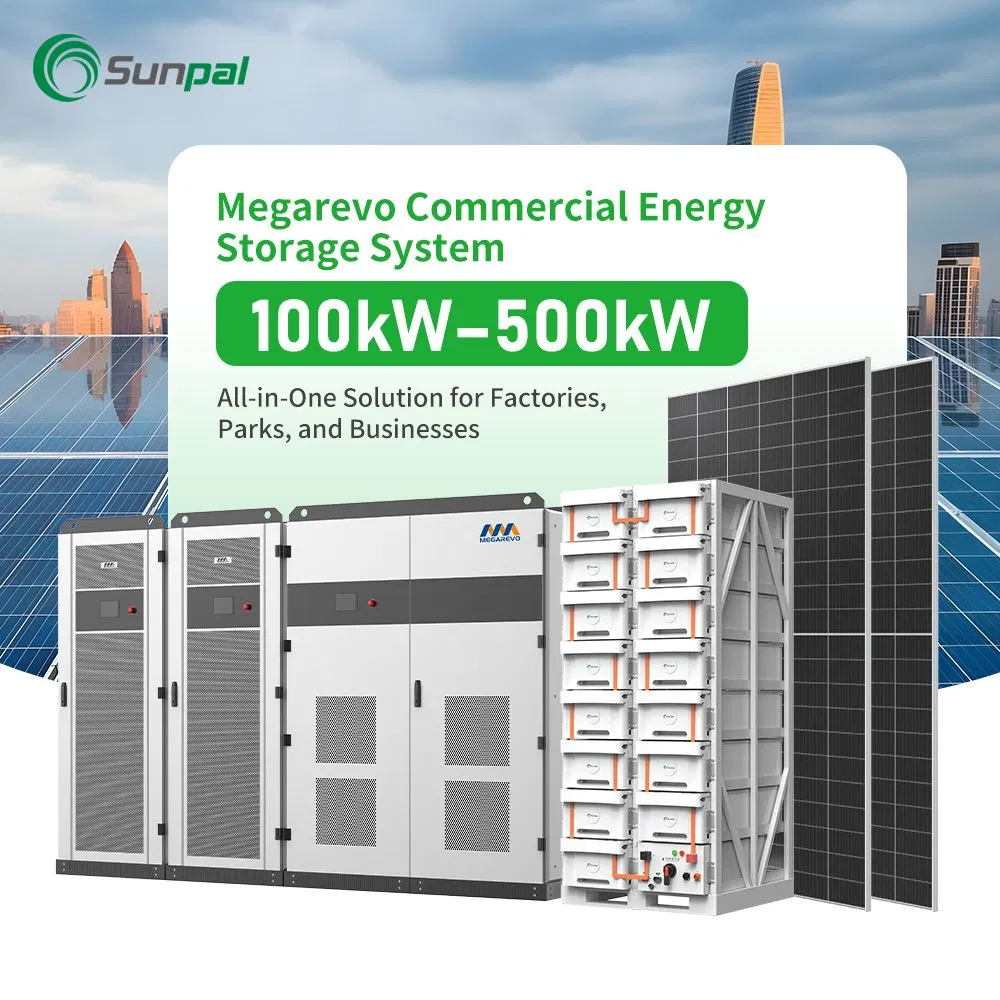

Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
1 / 5
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System
Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System

Sunpal Solar Commercial Energy Storage System Kit 400kW 250 kW 100kW Hybrid Solar Electrical Pv System

Customization: Available
Warranty: 10 Years
Solar Panel Type: Topcon Monocrystalline Silicon
Send Inquiry

Product Description

📊 Basic Information
Model NO.
100kW-500kW Commercial Storage System
Mounting Type
Roof/Ground Mounting
AC Voltage
230V/400V, 127V/220V
Output Frequency
50/60HZ
Communication
Smart Wifi; RS485; 4G; CAN
Controller Type
MPPT
Battery Type
Lithium Ion
Protection
IP67
Solar Panel
Bifacial Topcon High Efficiency
OEM/ODM
Acceptable
📦 Packaging & Delivery
Package Size
231.50cm * 112.50cm * 127.50cm
Gross Weight
1228.000kg
🌟 Product Description

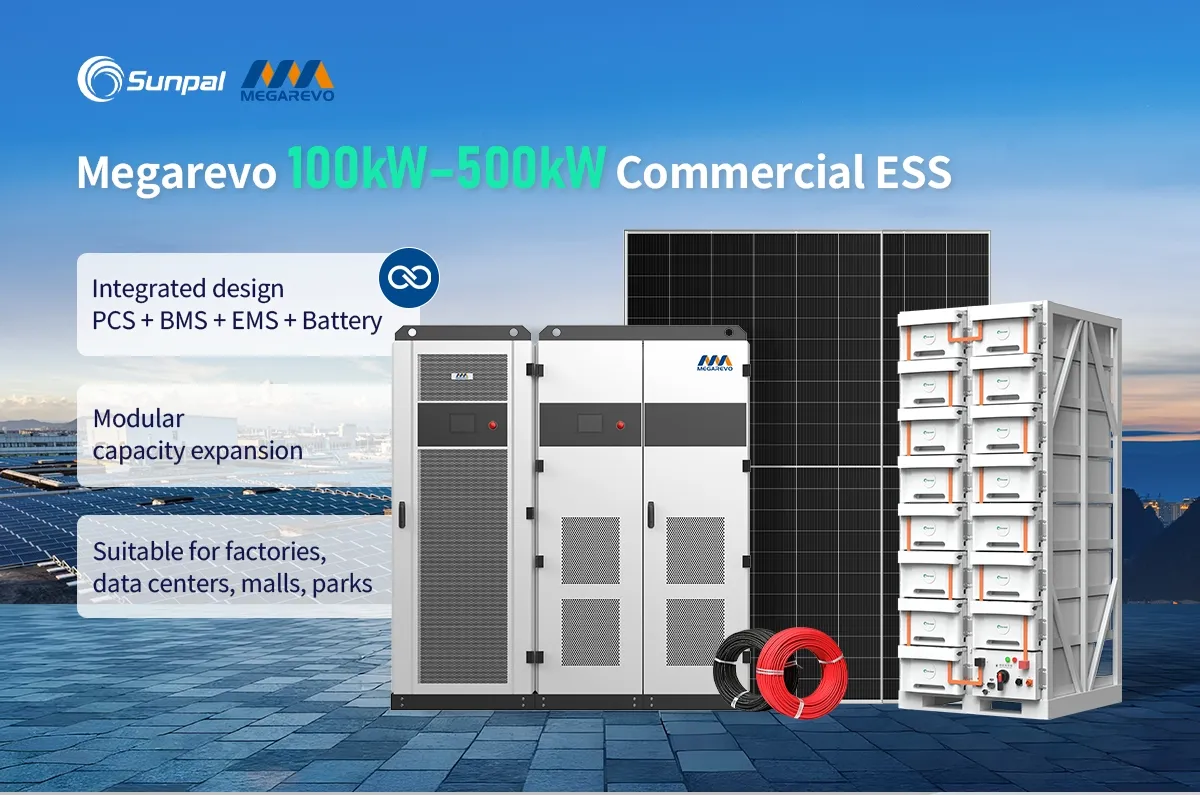

Commercial Energy Storage System

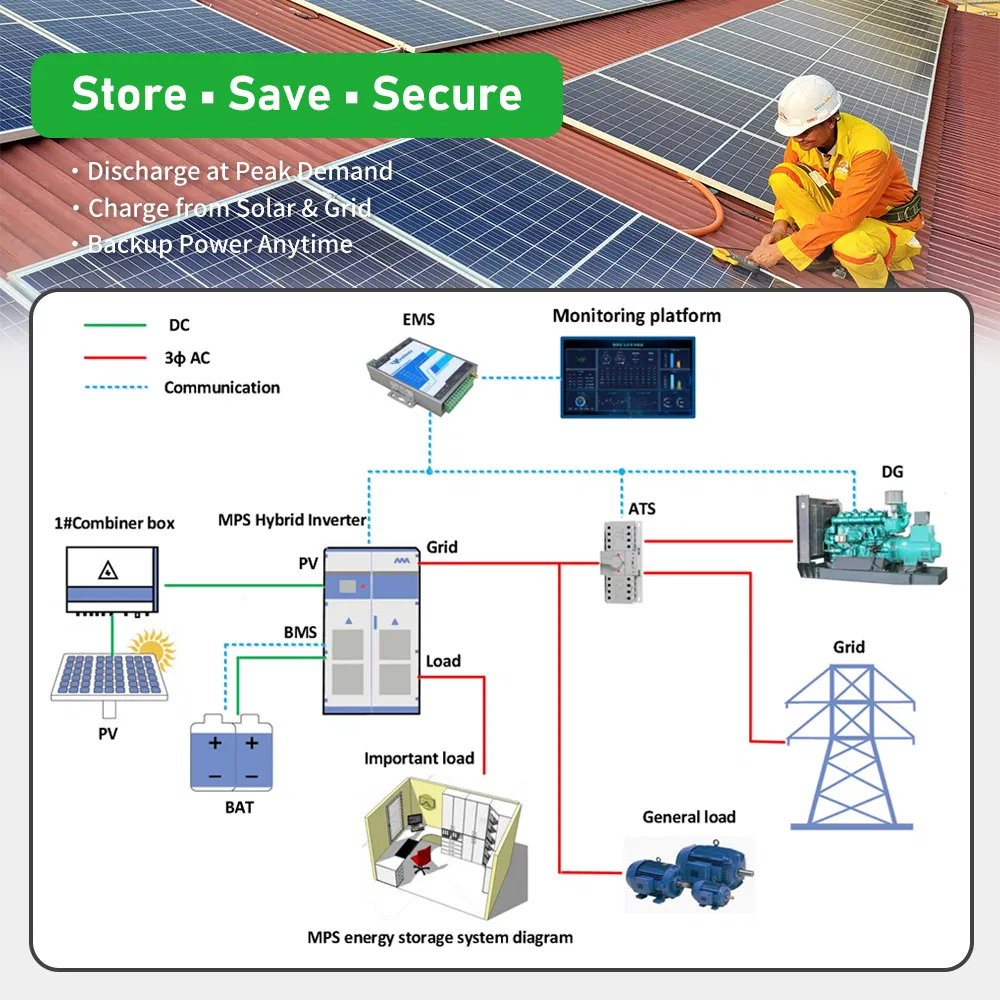

Hybrid Solar Electrical System

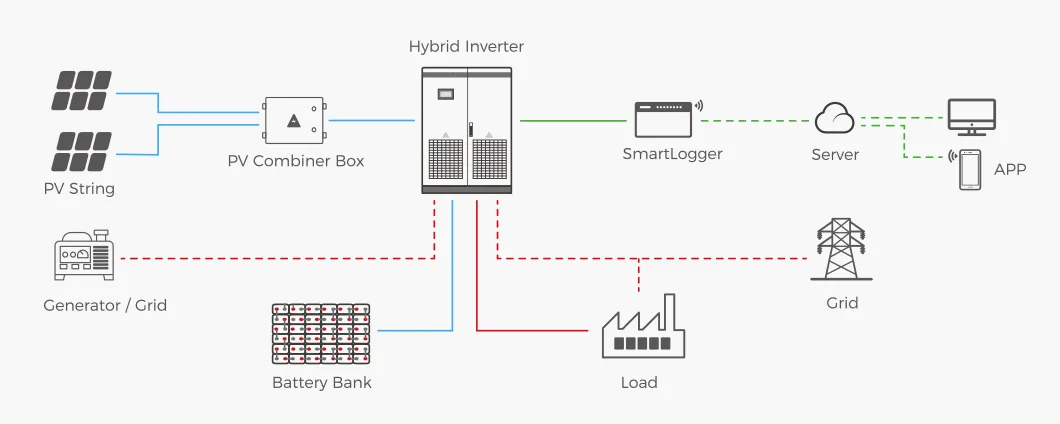

Solar Energy Storage Kit
⚙️ Technical Specification
Solar Panel
Topcon Half Cut Solar Panel
Peak Power: 580W-720W; Vmp: 42.71V; Open Circuit: 51.79V; Weight: 31.5kg.

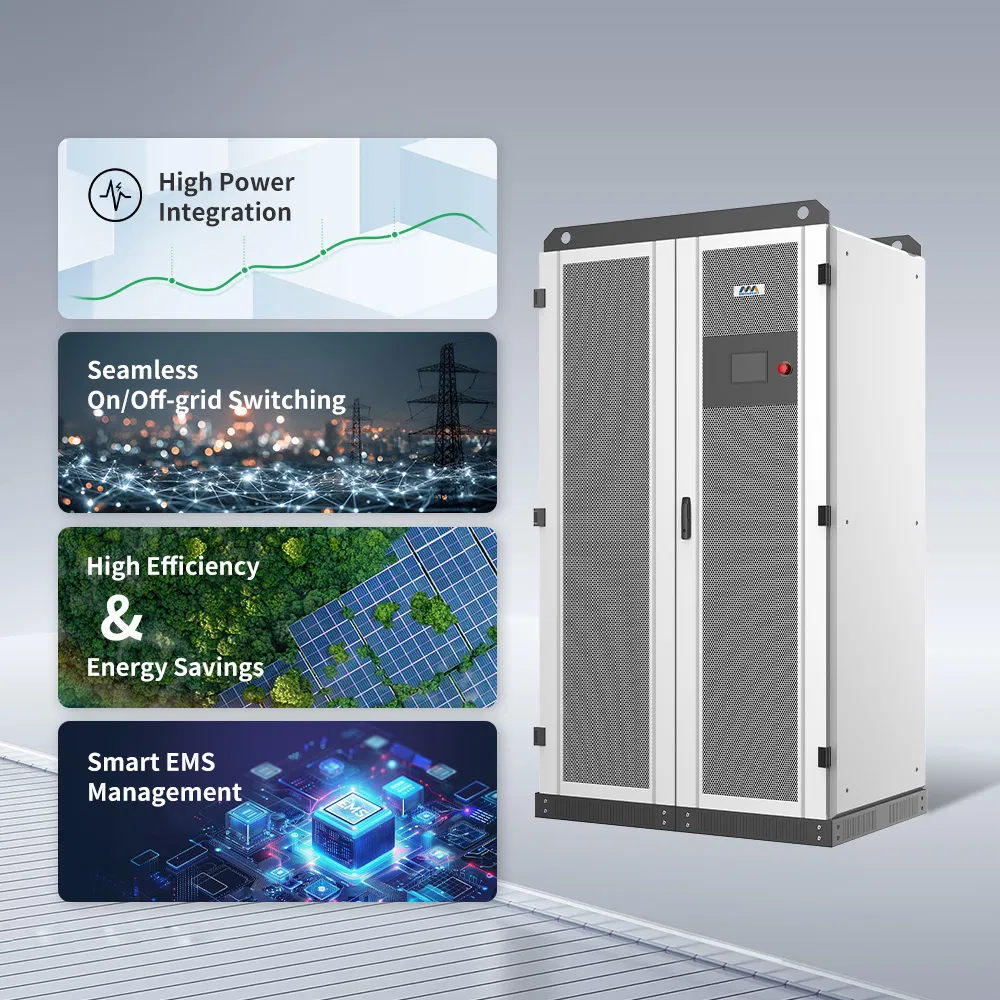

Hybrid Inverter
Hybrid Solar Inverter
Integrated design for loads, batteries, and grids. Smart battery management and discharge prediction.
LiFePo4 Battery
High Voltage LiFePo4 Battery
Long cycle life (6000 cycles); Smart BMS system; Emergency-Backup functionality.
Mounting System
PV Mounting System
AI6005 & SUS304 Bolt; 30/35mm Clamps; Asphalt Shingle Mount & Hanger Bolt Optional.
Monitoring
Monitoring System
One-click installation; Traceable logs; Full lifecycle data storage for security.
Combiner Box
PV Combiner Box
IP Rating: IP65; Rated Voltage: 1000VDC; Input cable: 4-6mm².

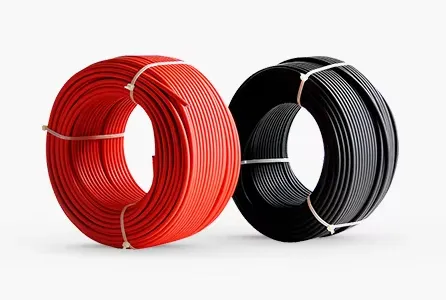

DC Cable
DC Cable & MC4 Connector
600VDC/1000VDC; 55A/70A current; Lifetime up to 25 Years.
Switch
DC & AC Disconnect Switch
IP66 Rating; 1000VDC; Connection Type M20/M25/MC4.
System ModelSP-100KW-HY
PV Module Power580W
Voc / Isc51.79V / 14.29A
Vmp / Imp42.71V / 13.58A
Module Dimensions2279*1134*30 mm
Inverter Power100 KW
MPPT Voltage Range200-850 V
Number of MPPT2
Output Frequency50/60Hz
Grid TypeHybrid
Battery TypeLiFePO4
Battery Bank Power200.704 kWh
Battery Bank Voltage716.8 V
Battery Bank Current280 Ah
🏆 Certifications
Product Certifications
🏠 Project Cases

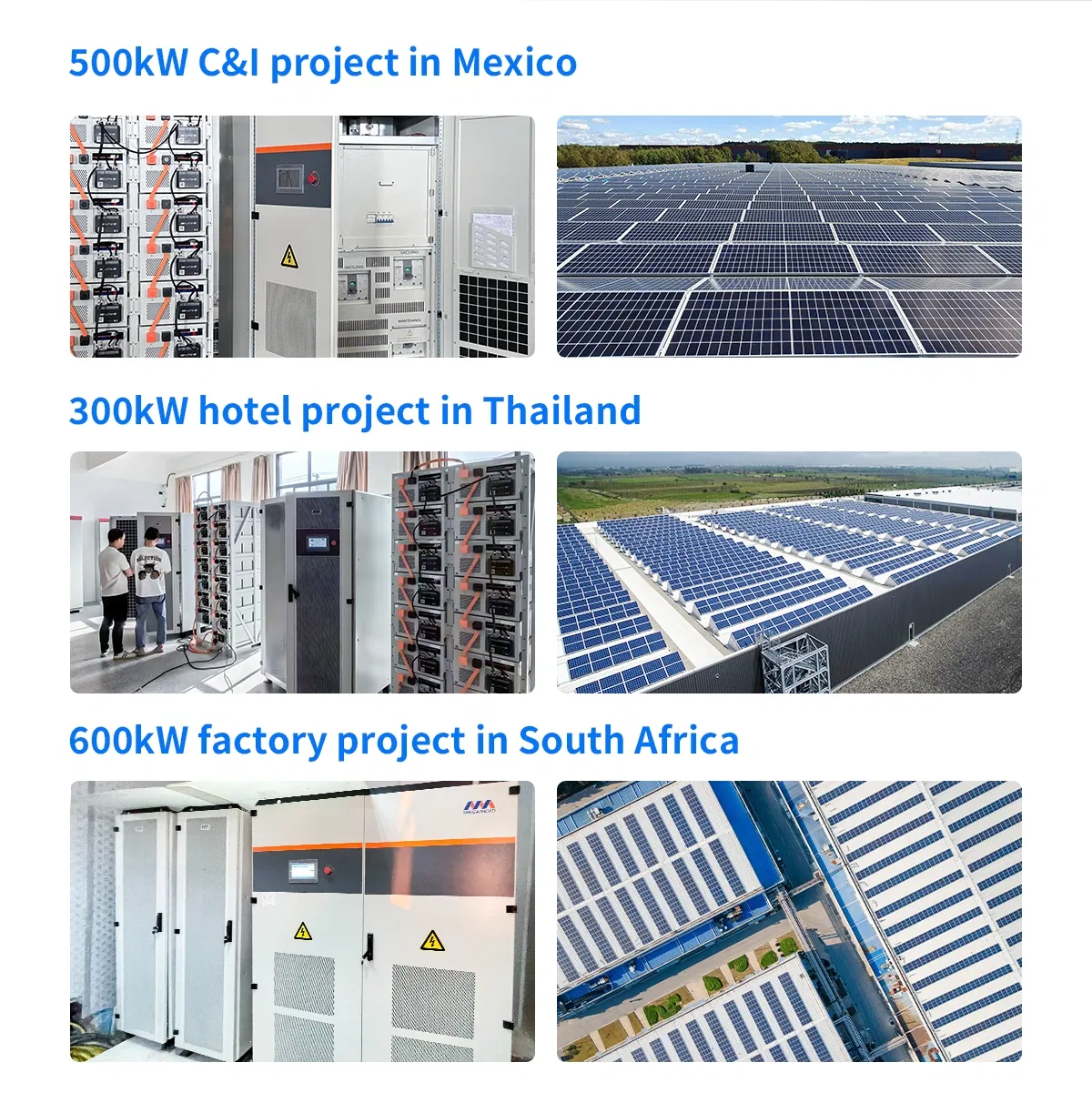

Solar Project Installation
🌍 Exhibition
Solar Exhibition
❓ Frequently Asked Questions
What is the expected lifespan of the LiFePO4 battery?
The high-voltage LiFePO4 battery is designed for a long cycle life, supporting up to 6000 cycles with safe operation ensured by a smart BMS system.
Can this system function during a power outage?
Yes, the system features emergency-backup and off-grid functionality, allowing it to provide power even when the main grid is unavailable.
What kind of maintenance does the monitoring system allow?
The monitoring system supports one-click registration, traceable logs for safety, and full lifecycle data storage to ensure the reliability of your energy data.
Is the mounting system compatible with different roof types?
Yes, the PV mounting system is versatile, offering options for L-foot asphalt shingle mounts, hanger bolts, and rail splice kits suitable for both roof and ground mounting.
What are the protection ratings for the outdoor components?
The main system components carry high protection ratings, such as IP67 for basic protection and IP65/IP66 for the combiner box and disconnect switches, ensuring durability in various weather conditions.
Does the inverter support multiple power sources?
Yes, the integrated hybrid inverter design supports connections for solar PV, batteries, the power grid, and even diesel generators for maximum flexibility.
