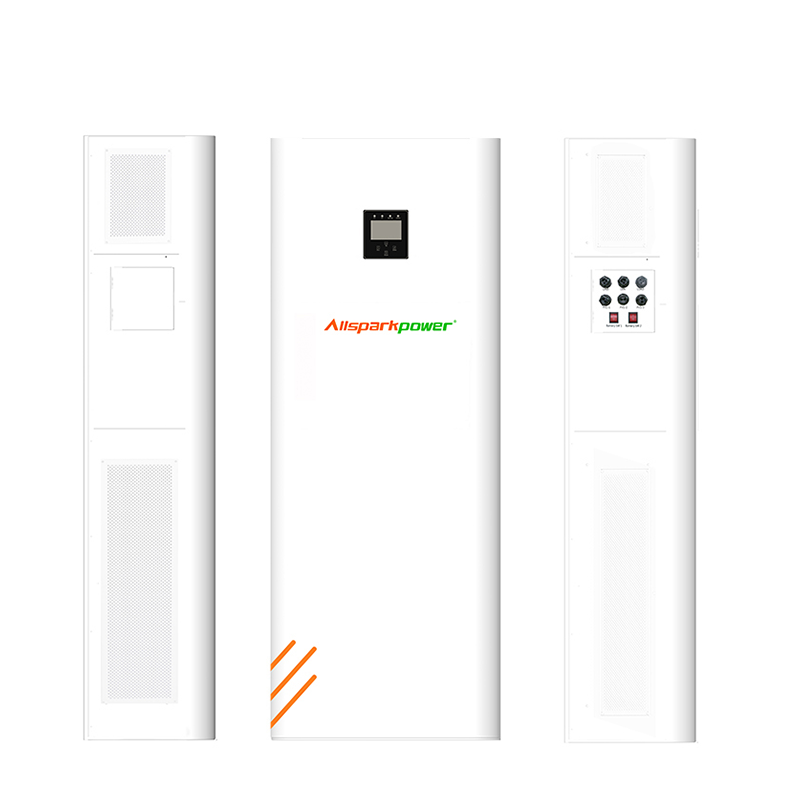

Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
1 / 5
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use
Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use

Solar Power Generation 8 kW 19.2 kWh LiFePO4 Wall-Mounted All-in-one Hybrid Grid CAN Energy Storage System for Residential Use

Send Inquiry

Product Description

📦 Products Description

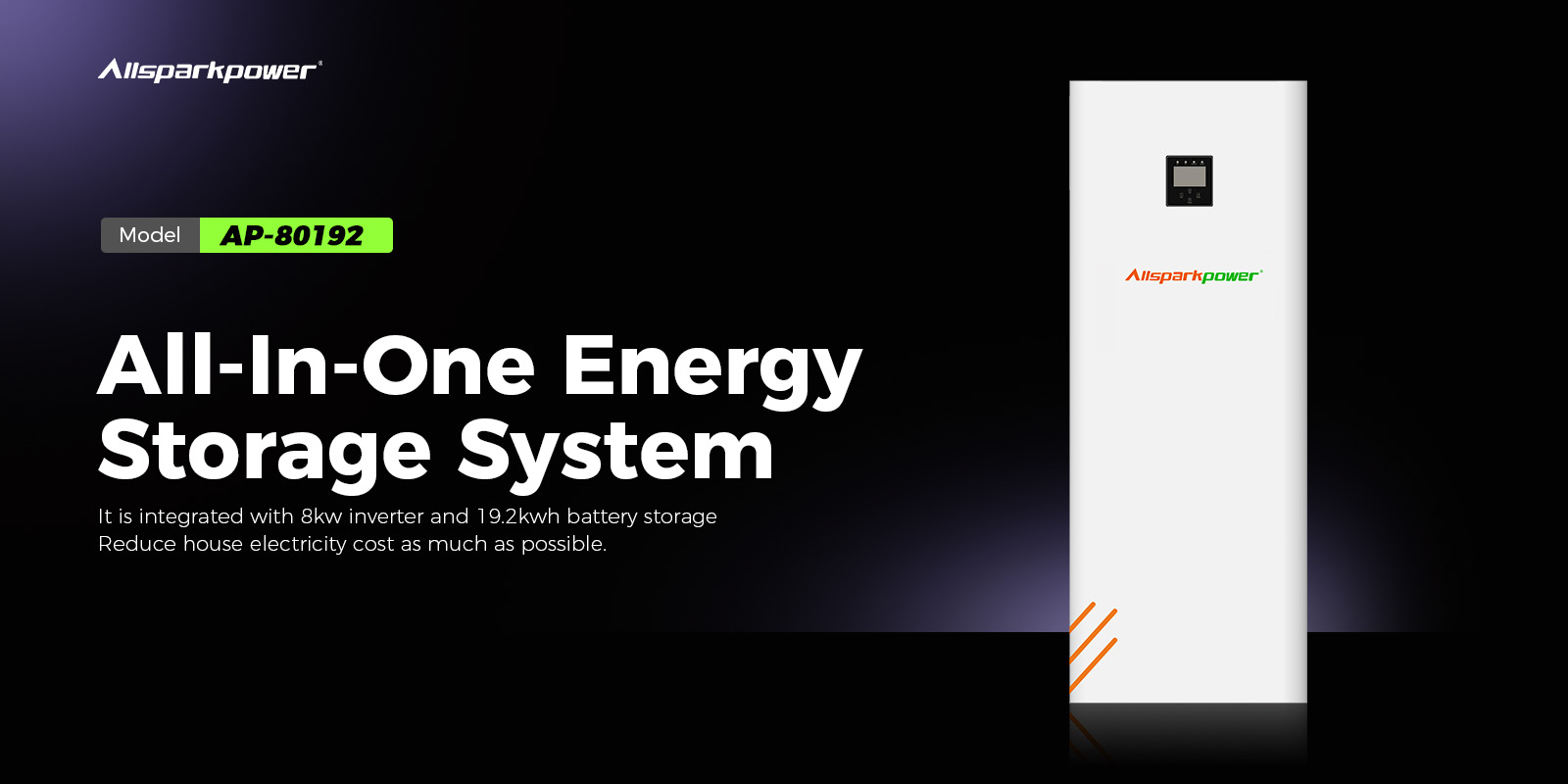

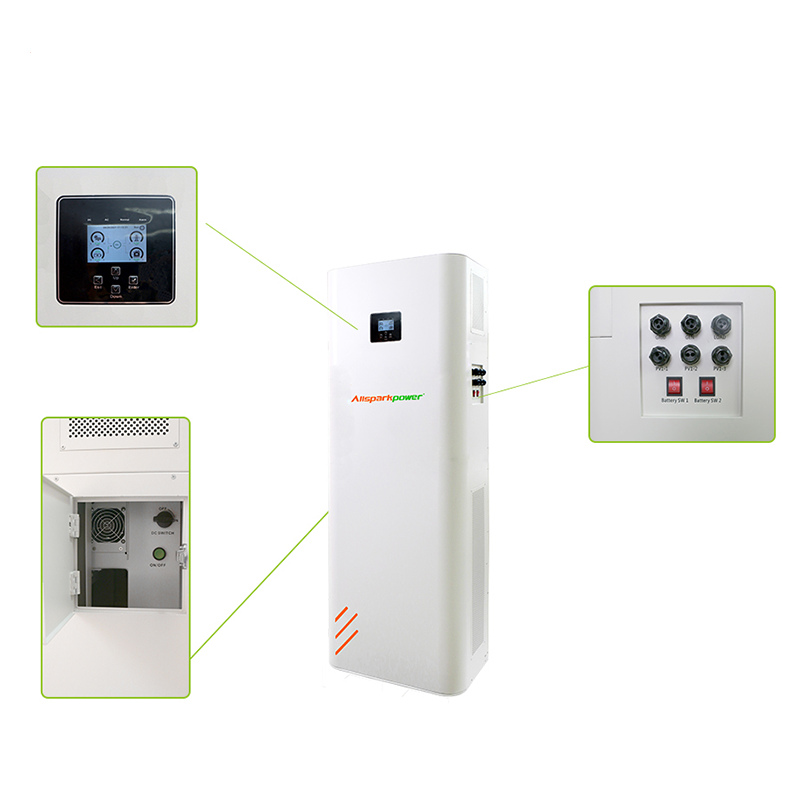

Product View 1
Product View 2
Product View 3

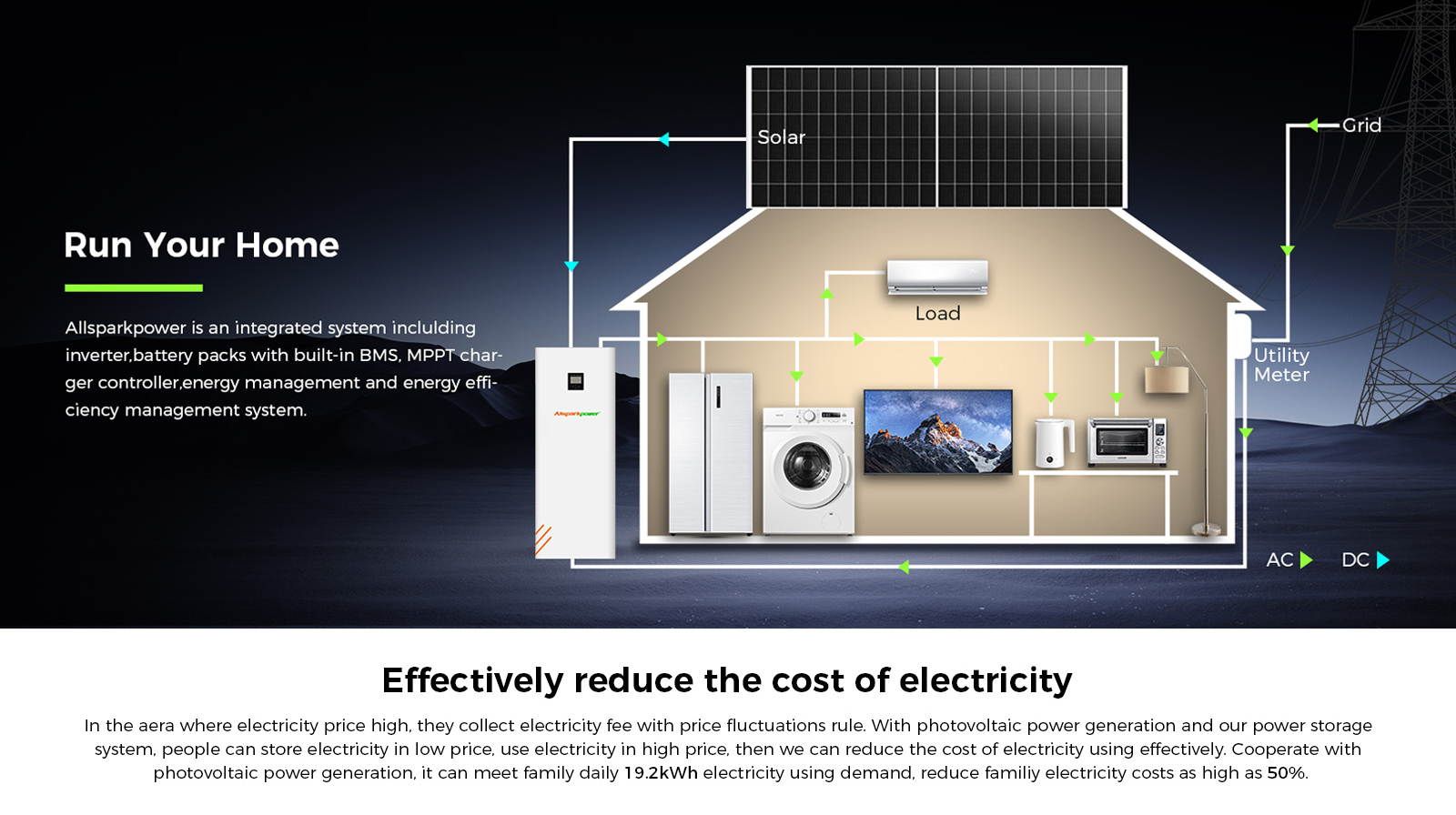

Product Details 1
Product Details 2
Product Details 3

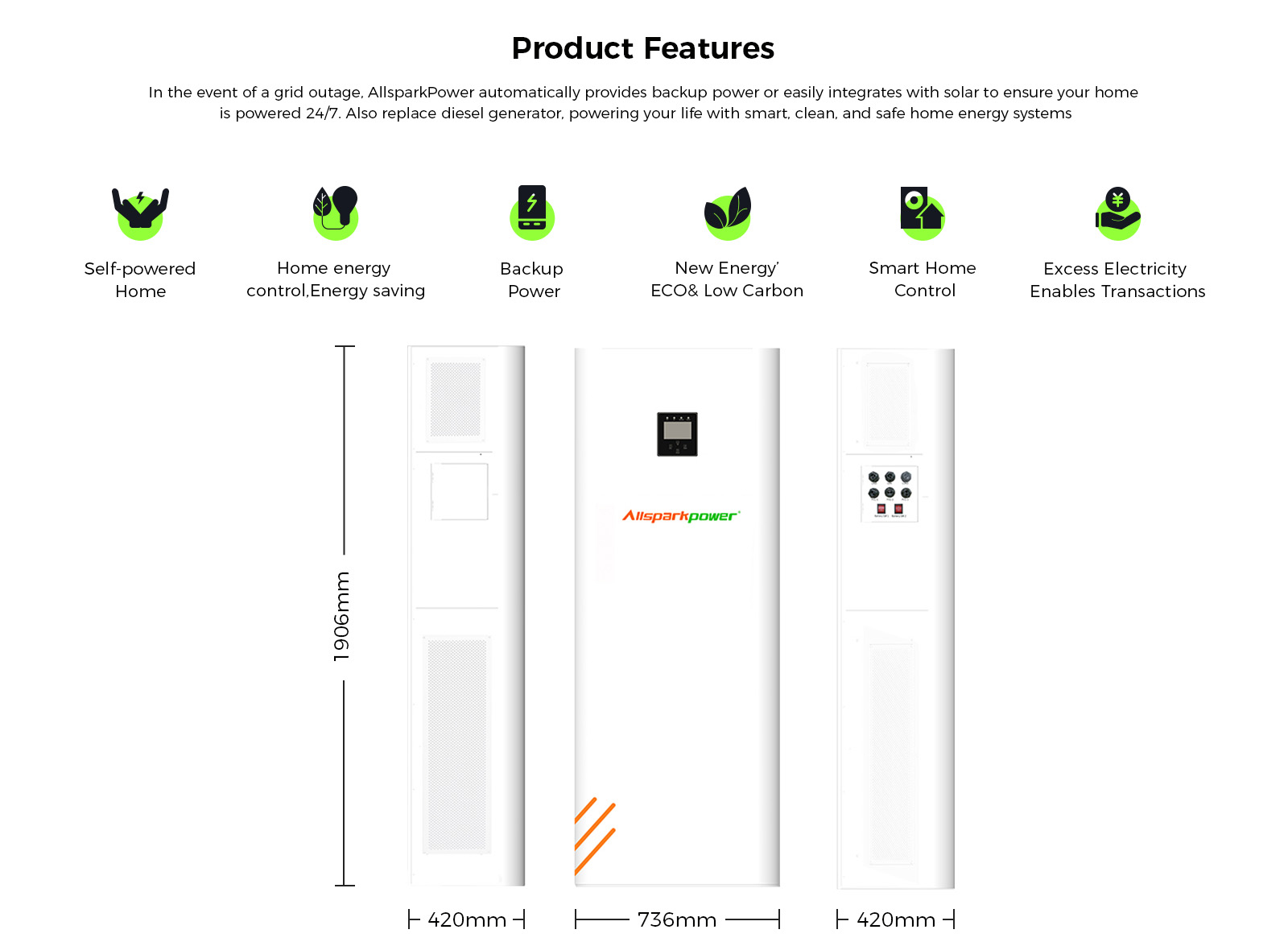

Product Features

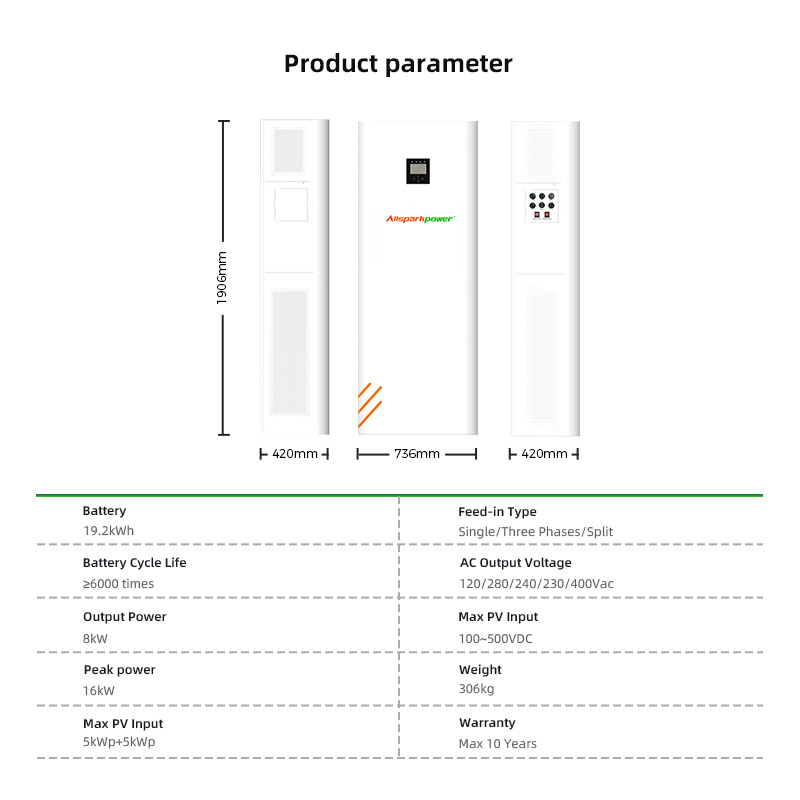

⚙️ Technical Specifications
ModelAP-80192H
AC Voltage (Nominal)208V, 220V, 230V, 200V, 240V, 380V
Feed-in TypeSingle Phase (can be Three-Phases)
Output Voltage230/380Vac
Storage Ability19.2 kwh
Max Solar input10.4kwp
PV Side Max. Input Voltage370V (100V~500V)
MPPT Voltage125V-425V
PV Charging Max Current (A)22A+22A
AC Charging Max Current (A)36.7A / 38.5A
Charging time1-3 Hours
Continuous Output Power8kw
Peak power16 kw (off grid discharge only), 10S
Weight306kg
Size (L*W*H)736*420*1906mm
Power Factor output Range+/- 1.0 adjustable
Battery DC voltage48V
Operating Temperature-10℃-50℃ / 14°F~122°F
Ingress RatingIP 65
CertificatesCE, MSDS, UN38.3, ISO:9001
Warranty5 years
Inverter BrandGrowatt
Application 1
Application 2
System Flow
Internal Components
Quality Control
Certifications
Packaging
❓ Frequently Asked Questions
What is the total energy storage capacity of this system?
The AP-80192H model offers a substantial storage ability of 19.2 kWh, suitable for extensive residential or light commercial use.
Does this system support three-phase power?
Yes, while it is primarily designed as a Single Phase system, it can be configured to support Three-Phase requirements.
How long does it take to fully charge the battery?
The system is designed for high efficiency, with a rapid charging time typically ranging between 1 to 3 hours depending on solar or AC input.
Can the unit be installed outdoors?
Yes, the unit features an IP65 ingress rating, providing excellent protection against dust and water, making it suitable for various installation environments.
What kind of warranty comes with the product?
The product comes with a comprehensive 5-year warranty, ensuring long-term reliability and peace of mind for your energy investment.
What is the peak power output for off-grid use?
During off-grid discharge, the system can handle a peak power of 16 kW for up to 10 seconds to accommodate high-startup current appliances.
