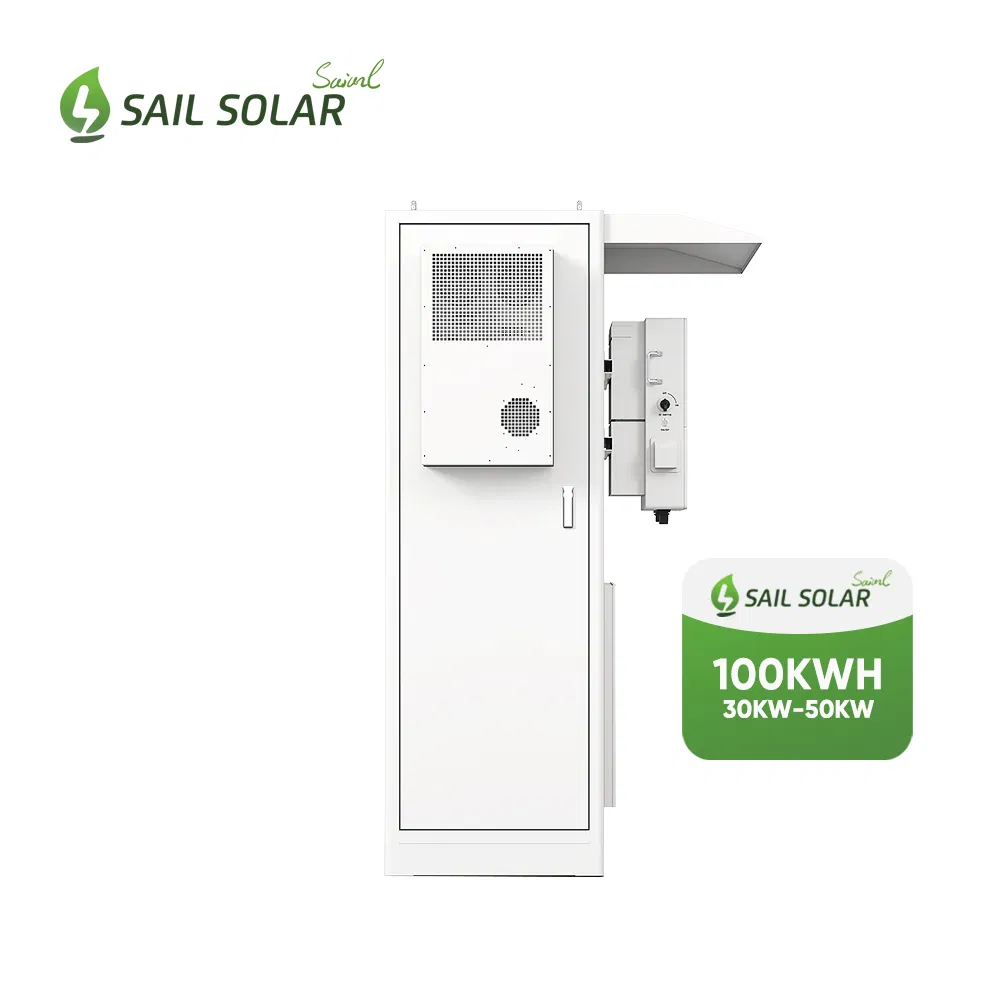

Sail Solar Cabinet 30-50kw Inverter 100kwh Lithium LiFePO4 All in One Air Cooling Solar Energy Storage System for Commercial and Industrial Use

1 / 5

Sail Solar Cabinet 30-50kw Inverter 100kwh Lithium LiFePO4 All in One Air Cooling Solar Energy Storage System for Commercial and Industrial Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model

BESS-I100

Energy Capacity

100kwh

Power Config

30-50kw

Cycle Life

8000 Cycles (80%DOD)

Cooling Method

Air Cooling System

Battery Type

Lithium LiFePO4

Certification

CE, TUV, VDE

Warranty

15 Years

Product Description

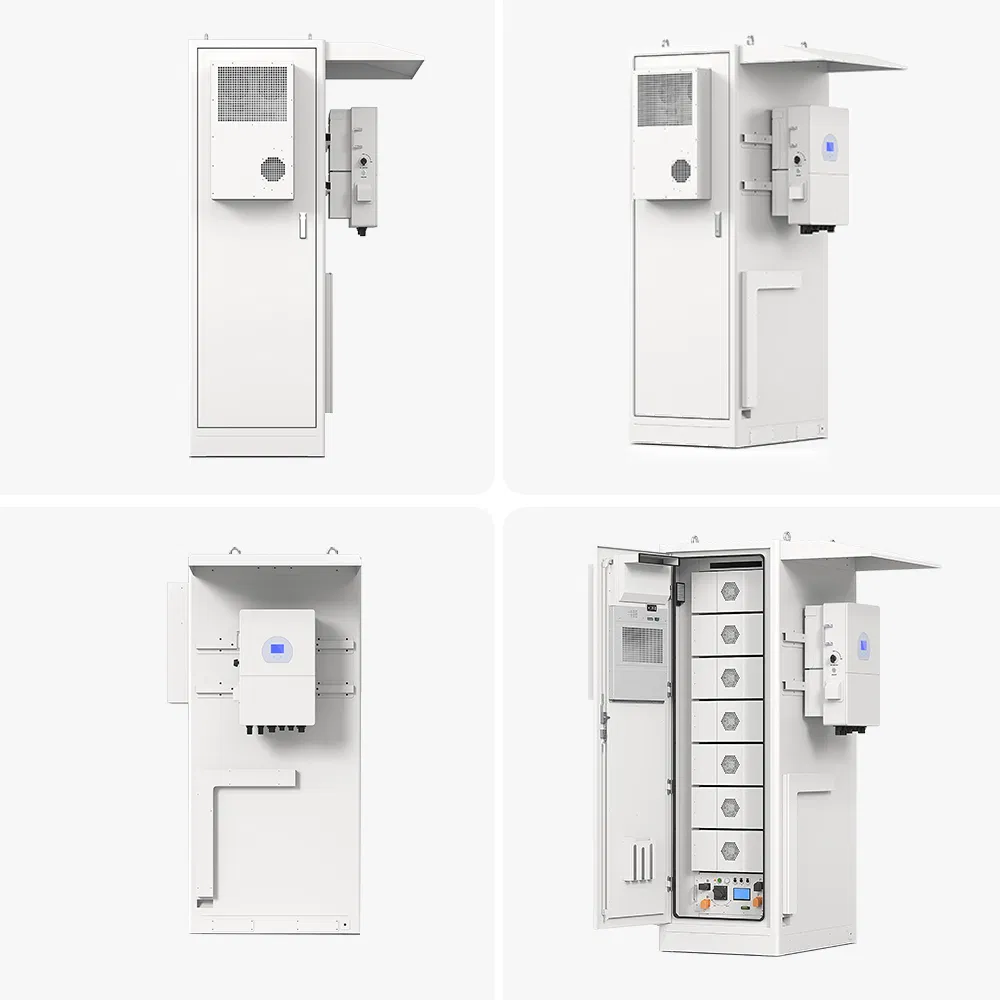

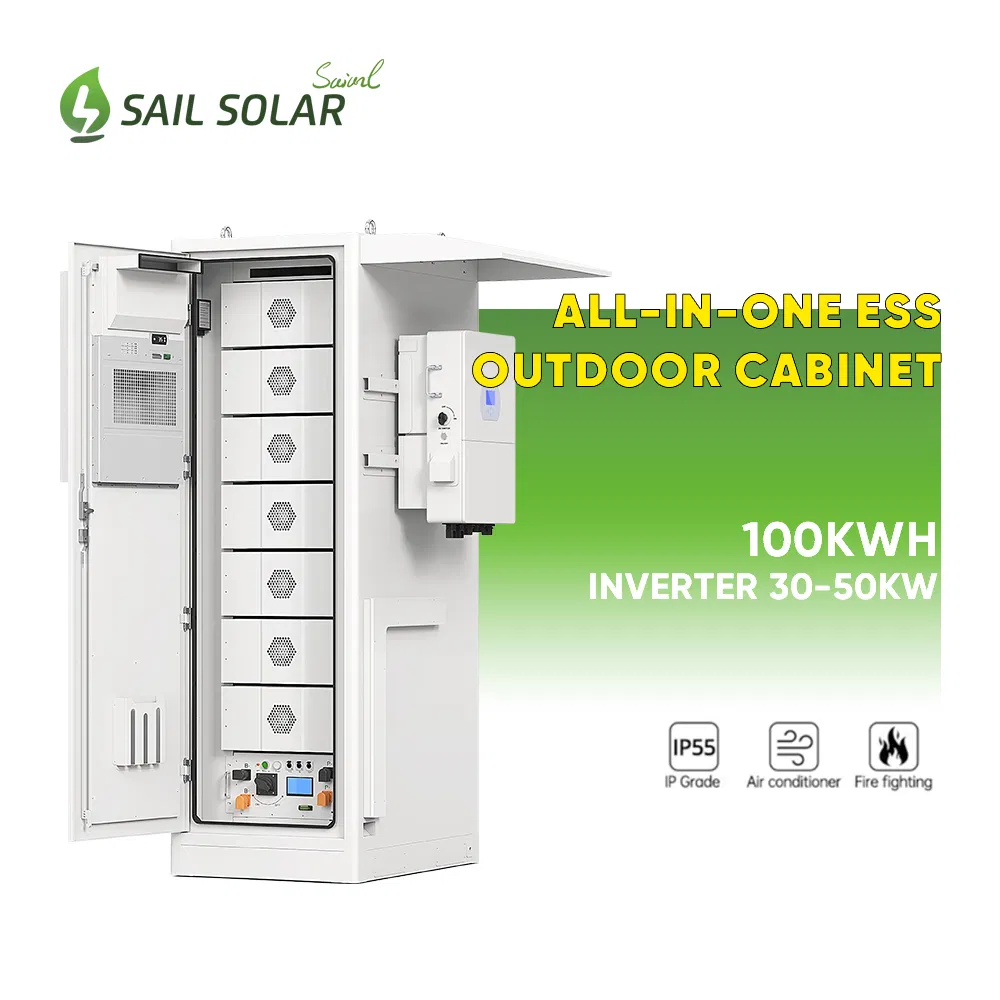

Outdoor All-In-One Cabinet ESS
Battery Capacity	112.53kWh / 100.35kWh
Inverter Power	30kW ~ 50kW
Battery Cell	LFP 314Ah
Rated Voltage	358.4V (7 modules in series)
Inverter Brand	Solis or Deye (Optional)
Protection Level	IP54
Communication	RS485, CAN
Dimensions	1200 * 803 * 2375 mm

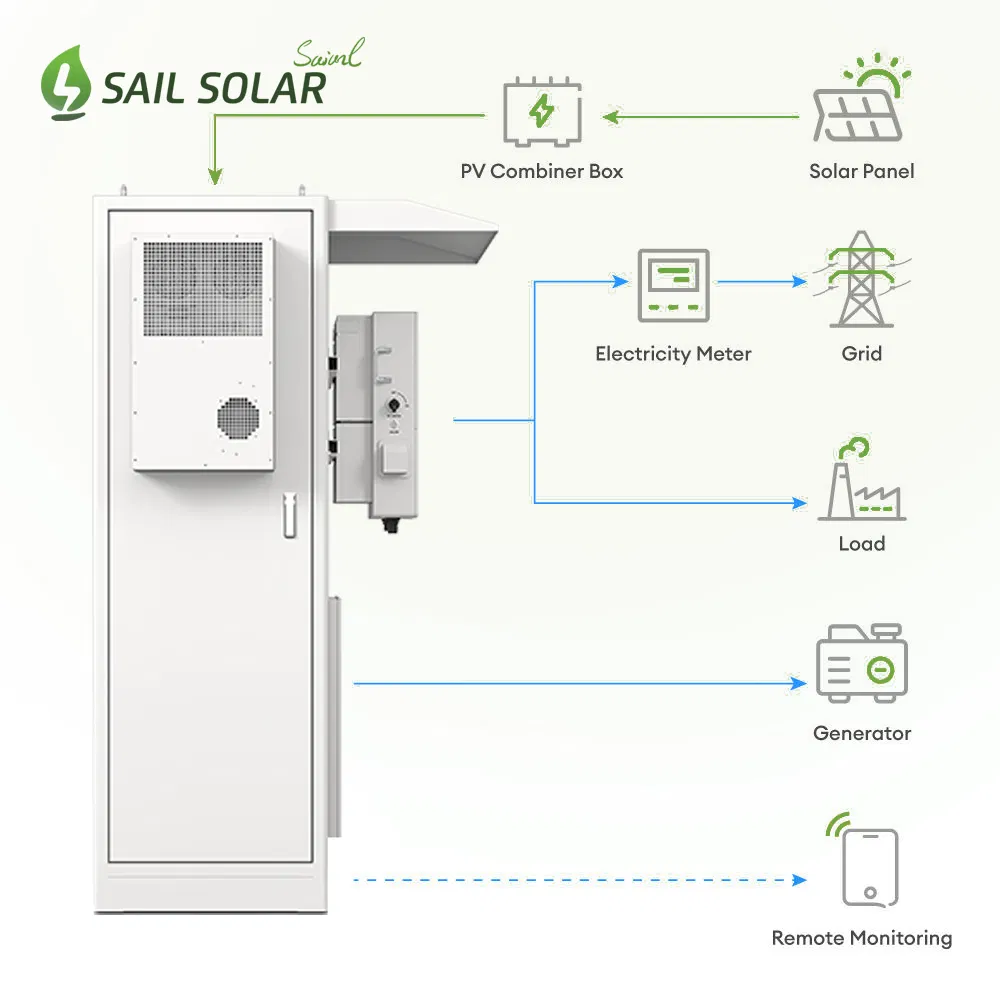

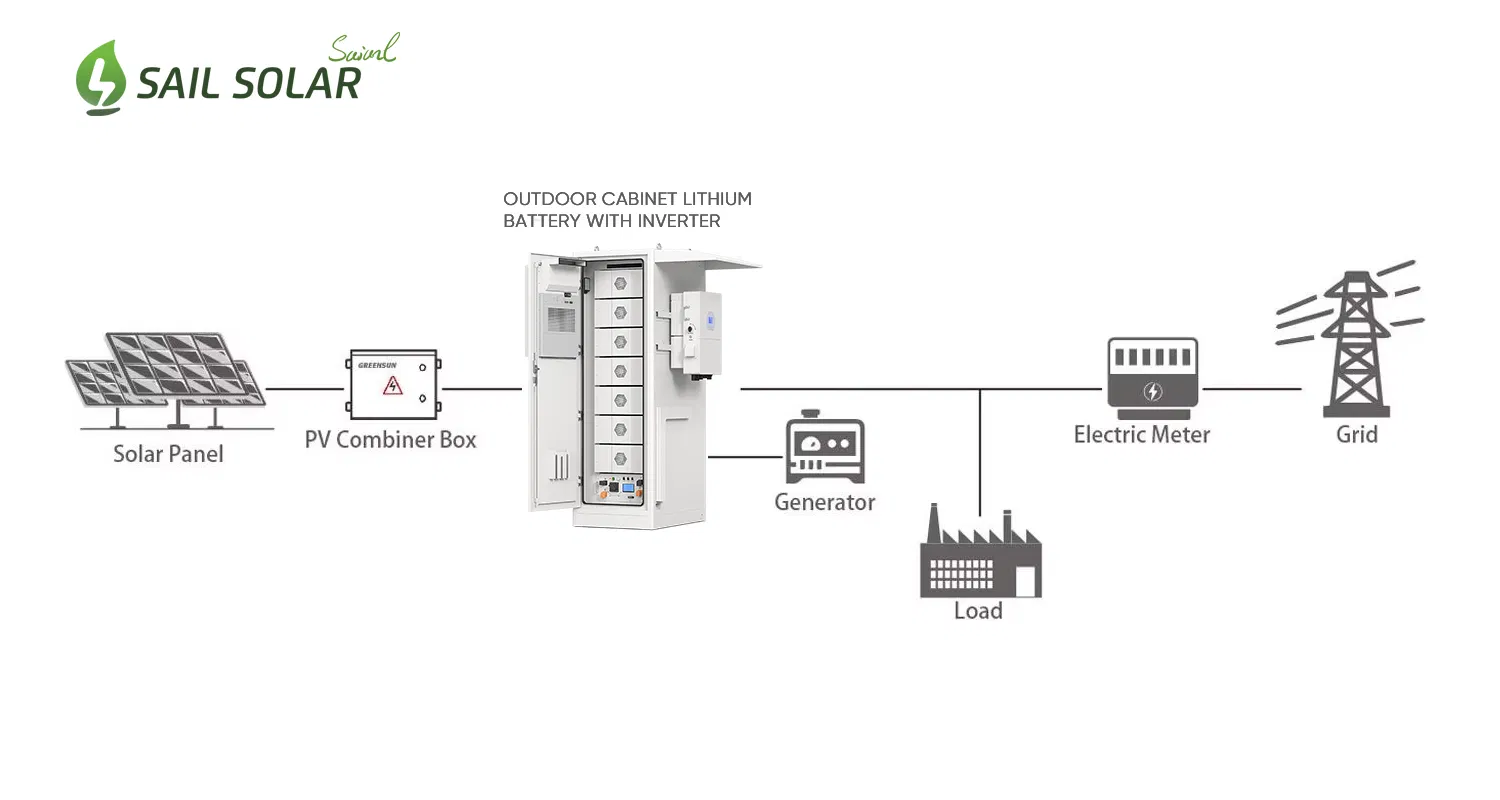

Product Application

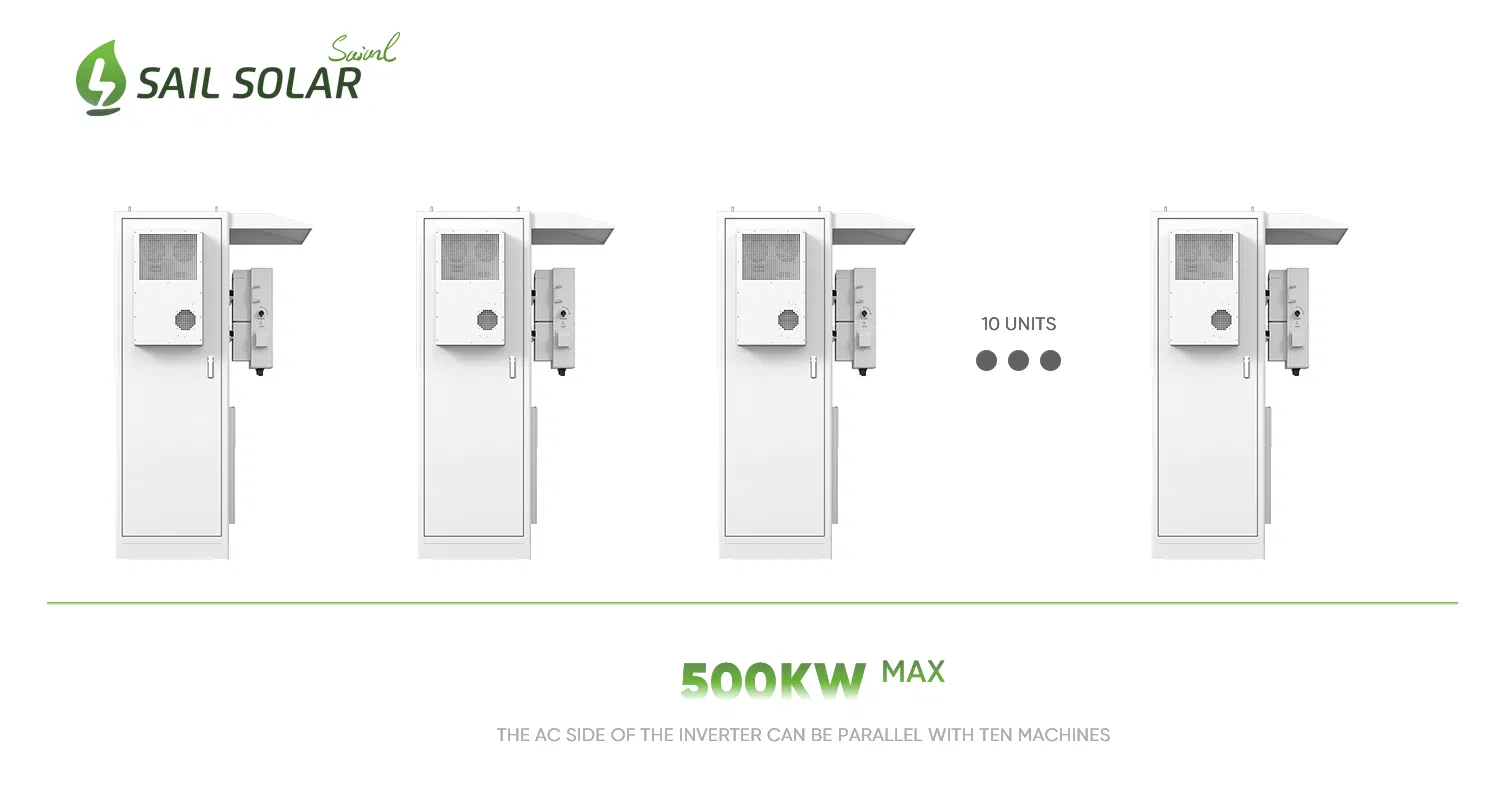

In-depth collaboration of lithium battery and inverter integrated in one cabinet. Easy to use and perfectly suited for outdoor installation scenarios. Supports up to 10 units in parallel, achieving a maximum AC output of 500KW and battery capacity of 1125Kwh.

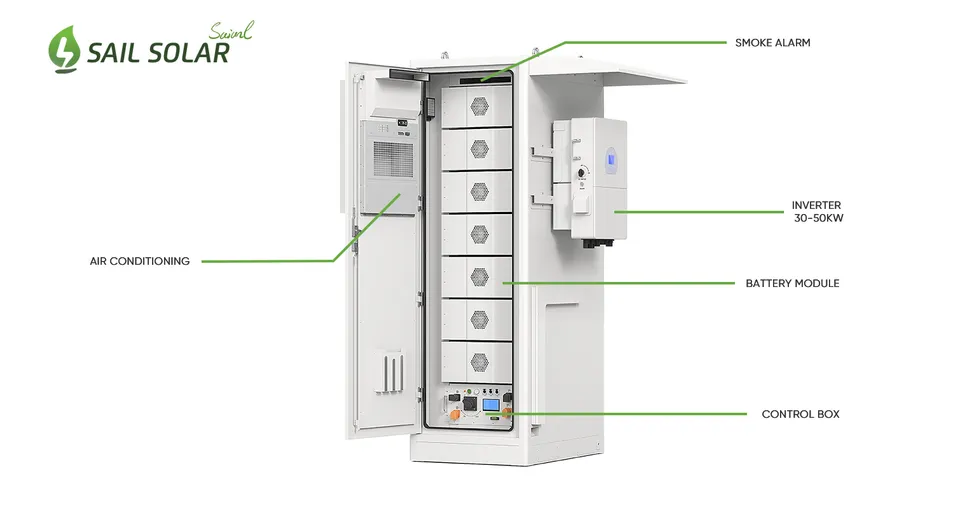

System Details

⚡ Lithium Battery Cabinet

All-in-one design for simple deployment

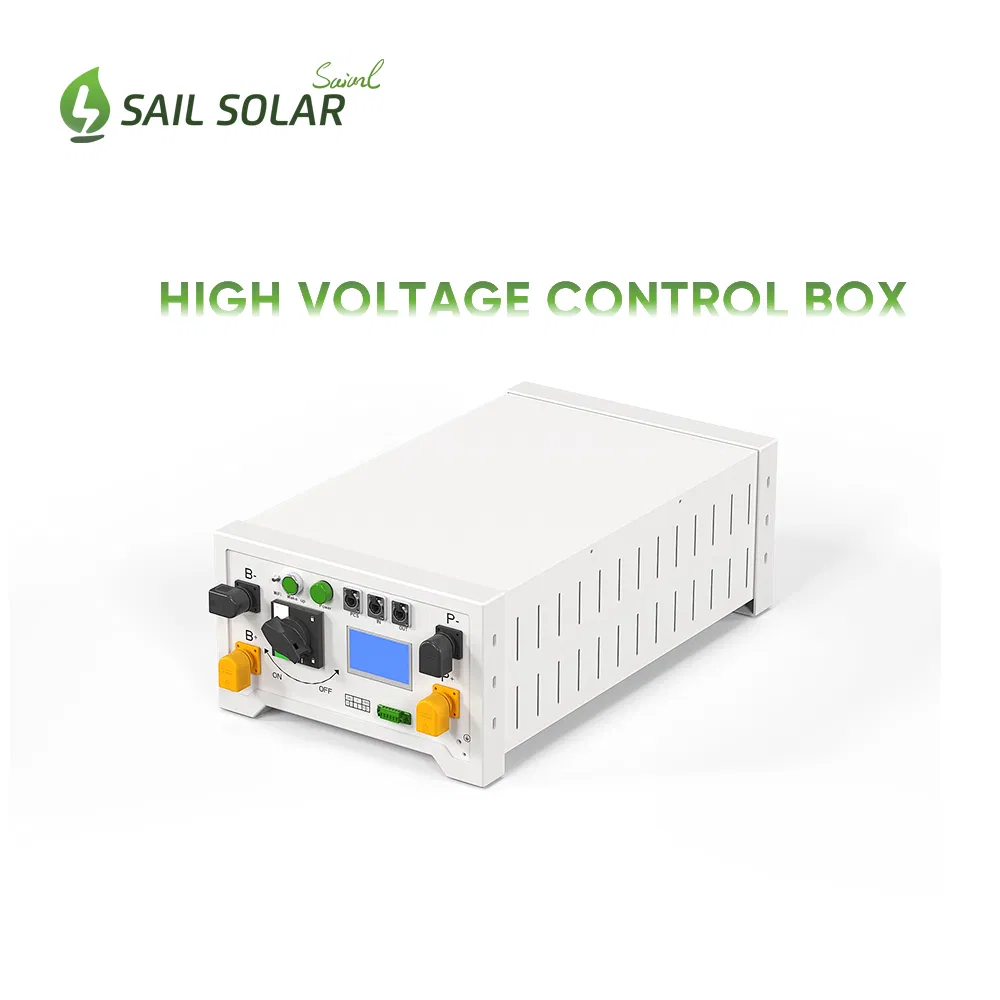

Includes high voltage battery, inverter, and air conditioner
IP54 protection for durability

🔋 Battery Modules

Top-tier LiFePO4 battery cells
16.07kWh per pack, total 100kWh
Over 8000 cycle life

Manufacturing & Certifications

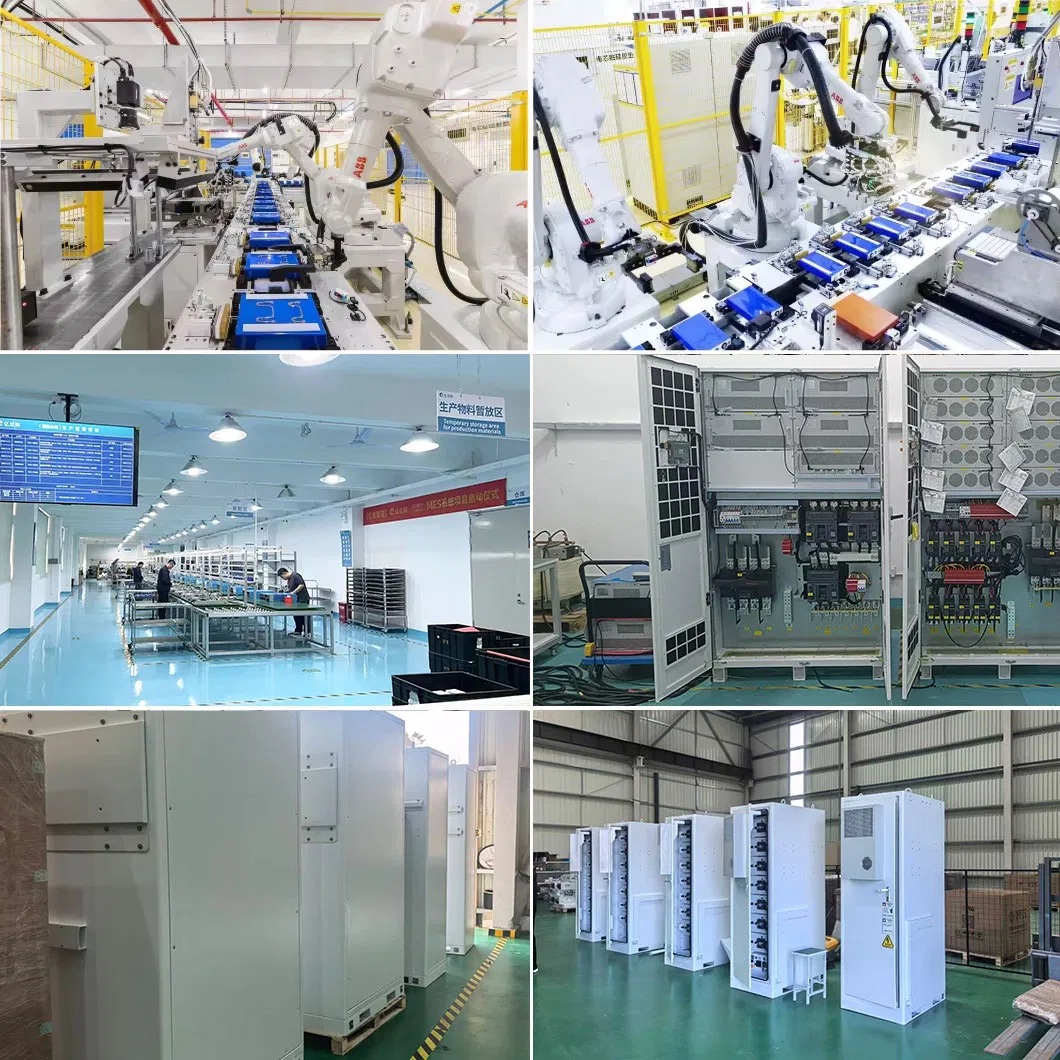

Our production utilizes world-class automation and AI technology to ensure efficiency and quality. Systems have passed rigorous testing including IEC62619, IEC/EN60730, UL1973, and CE-EMC.

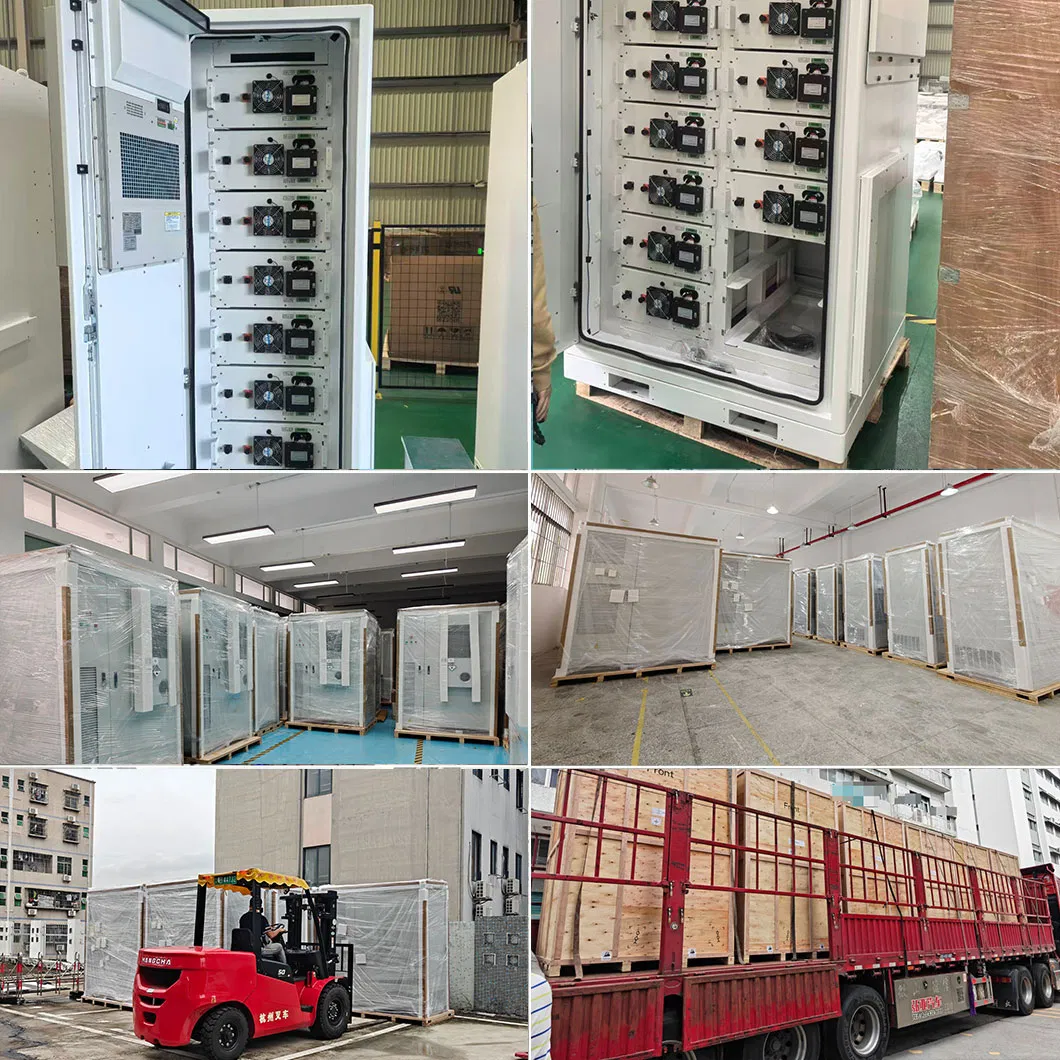

Packaging & Shipping

Frequently Asked Questions

What is the total energy capacity of the BESS-I100?

The system provides a rated energy capacity of either 112.53kWh or 100.35kWh depending on configuration.

Is the energy storage system suitable for outdoor installation?

Yes, the cabinet is designed with an IP54 protection level and includes an integrated air cooling system for outdoor commercial and industrial use.

How long is the expected lifespan of the battery?

The LiFePO4 battery cells offer more than 8000 cycles at 80% Depth of Discharge (DOD) and come with a 15-year warranty period.

Can I expand the system capacity later?

Yes, the system supports up to 10 sets in parallel, allowing for a maximum battery capacity of 1125Kwh.

Which inverter brands are compatible with this system?

The system is designed to work seamlessly with top-tier brands like Solis or Deye, with power ranging from 30kW to 50kW.

What safety certifications has the system obtained?

It has successfully passed IEC62619, IEC/EN60730, UL1973, and CE-EMC testing and certifications.
