Working Principle for Solar Power System
Solar System absorbs sun's energy to light up your home and power your home electrical appliances including charging mobiles. The components of the solar system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery, and inverter. Some system can be with fan, TV set, laptop, air conditioner, etc.
Providing illumination powered from the sun energy, the solar panel in the system convert the sun's energy directly into electricity. This electricity can be stored in the battery and used for lighting whenever required. Our solar System, compact, portable and easily mountable, is an economical solution to all your power problems and comes in an easy-to-install kit.
Instruction of Solar Energy System
5KW off grid solar system is widely used in the following places:
- Mobile equipment such as motor homes and ships;
- Remote areas without electricity, such as plateaus, islands, pastoral areas, and border posts for lighting and electronics;
- Home rooftop grid-connected power generation systems;
- Photovoltaic water pumps for drinking and irrigation of deep water wells;
- Transportation field: Beacon lights, signal lights, high-altitude obstacle lights;
- Communication fields: Microwave relay stations, optical cable maintenance, and broadcasting power supply.

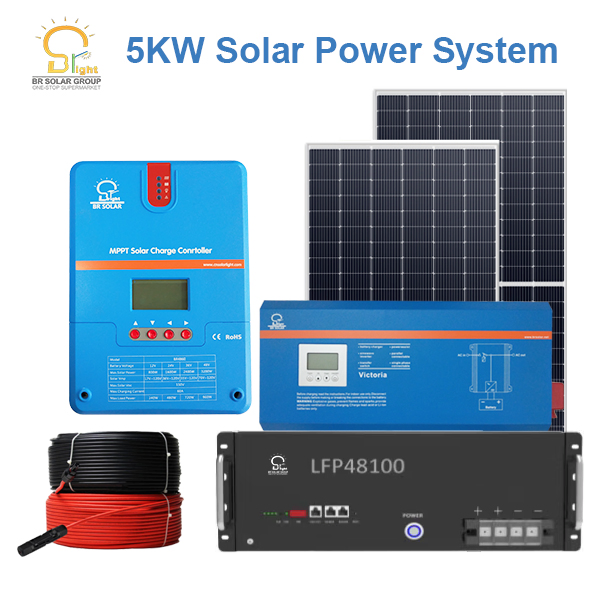

Customized 5KW Solar Power System Specifications
| Item |
Part |
Specification |
Quantity |
Remarks |
| 1 | Solar panel | Mono Half Cell BR-M550W Class A+ | 4pcs | 25 Years Design Lifespan, 9.3KWH daily power |
| 2 | Y-Type Connector | BR 2-1 | 1pc | 20 Years Design Lifespan |
| 3 | Mounting Bracket | Hot-dip Galvanized Rooftop | 1set | Anti-Rust, 35 Years Design Lifespan |
| 4 | Inverter | All in one Inverter BR-48V/5kw | 1set | Pure sine wave, 15 Years Design Lifespan |
| 5 | GEL Battery | Deep Cycle BR-12V-200AH | 4pcs | Total release power: 6.7KWH |
| 6 | MC4 Connector | MC4 Standard | 2 pairs | 20 Years Design Lifespan |
| 7 | PV cables | 4mm2 | 60m | 20 Years Design Lifespan |
| 8 | BVR Cables | 6mm2 | 10m | 20 Years Design Lifespan |
| 9 | BVR Cables (Battery) | 16mm2 | 2sets | 20 Years Design Lifespan |
| 10 | BVR Cables (Inverter) | 25mm2 | 2sets | 20 Years Design Lifespan |
| 11 | Connecting Cables | 25mm2 | 4sets | 20 Years Design Lifespan |
| 12 | Breaker | 2P63A | 1pc | 20 Years Design Lifespan |
| 13 | Installation Tools | PV Installation Package | 1 Pkg | Free Accessory |
| 14 | Extra Accessories | Replacement Parts | 1 Set | Free Accessory |

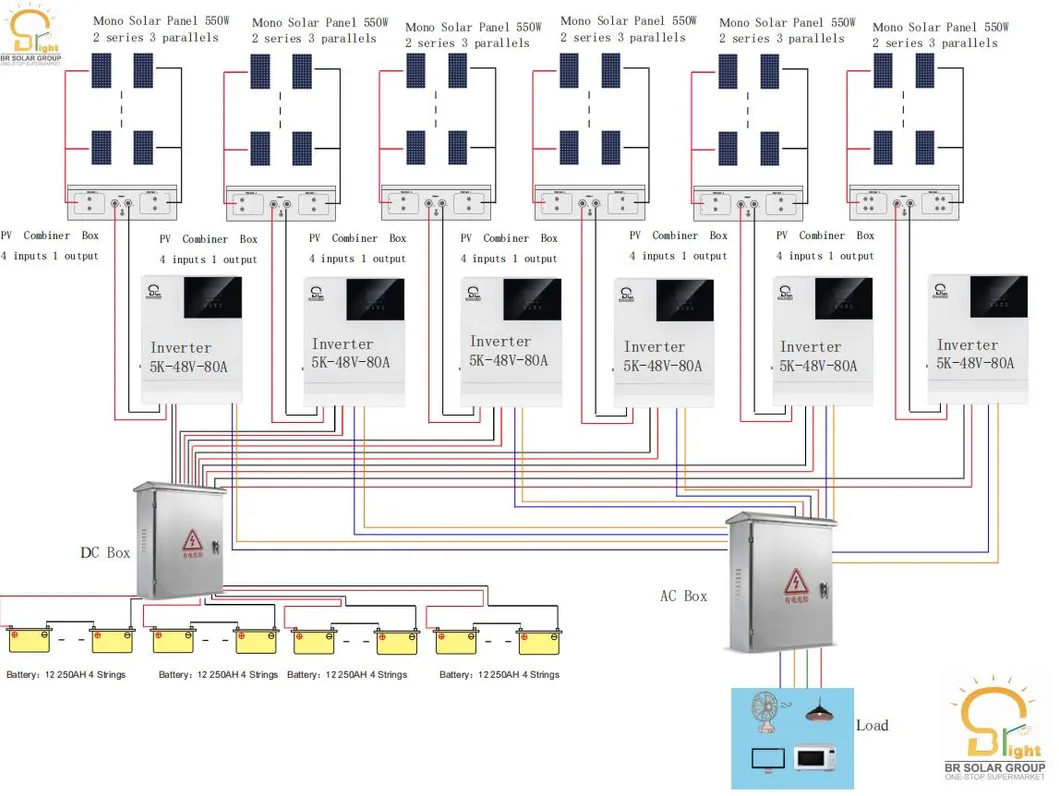

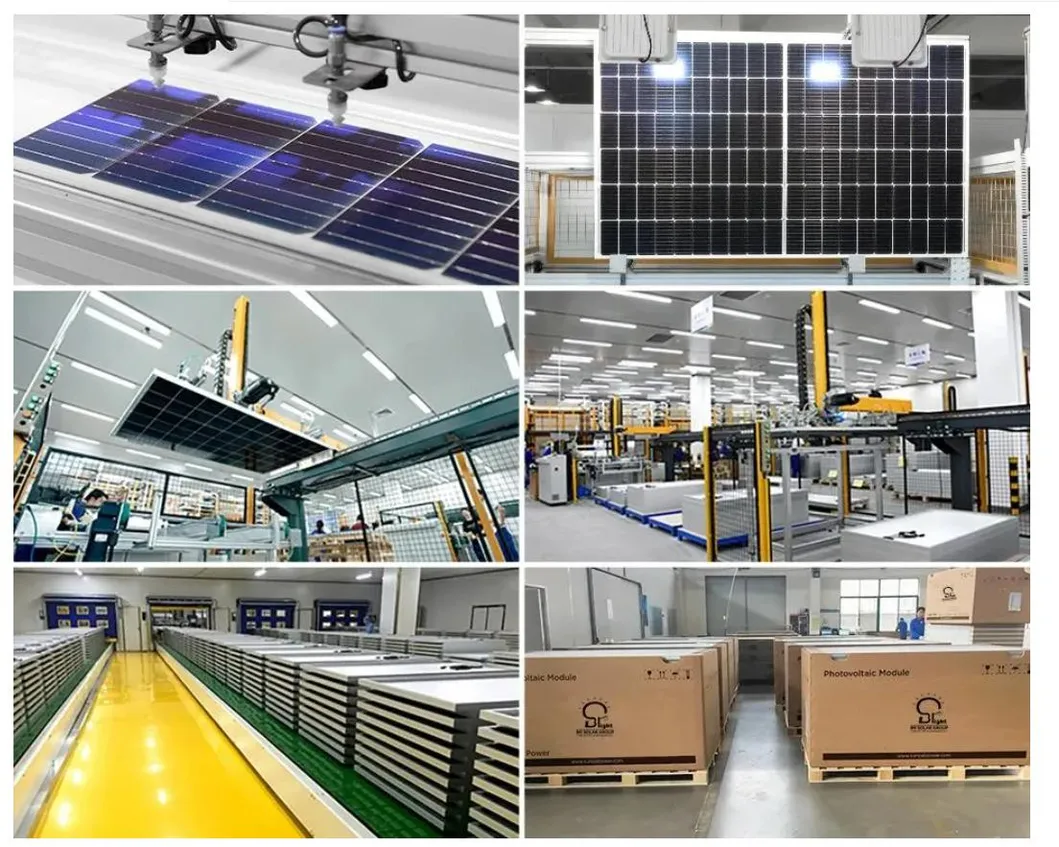

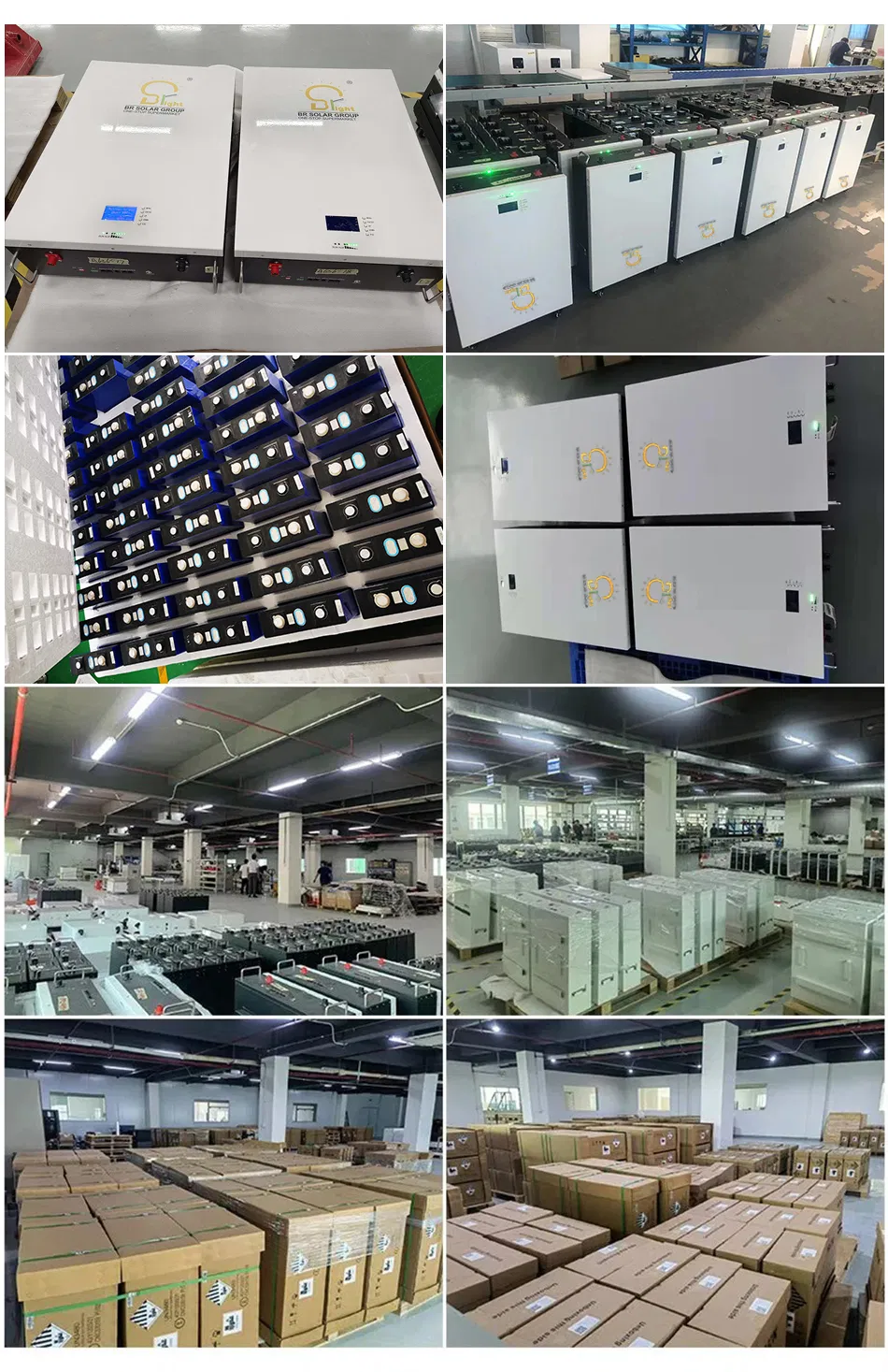

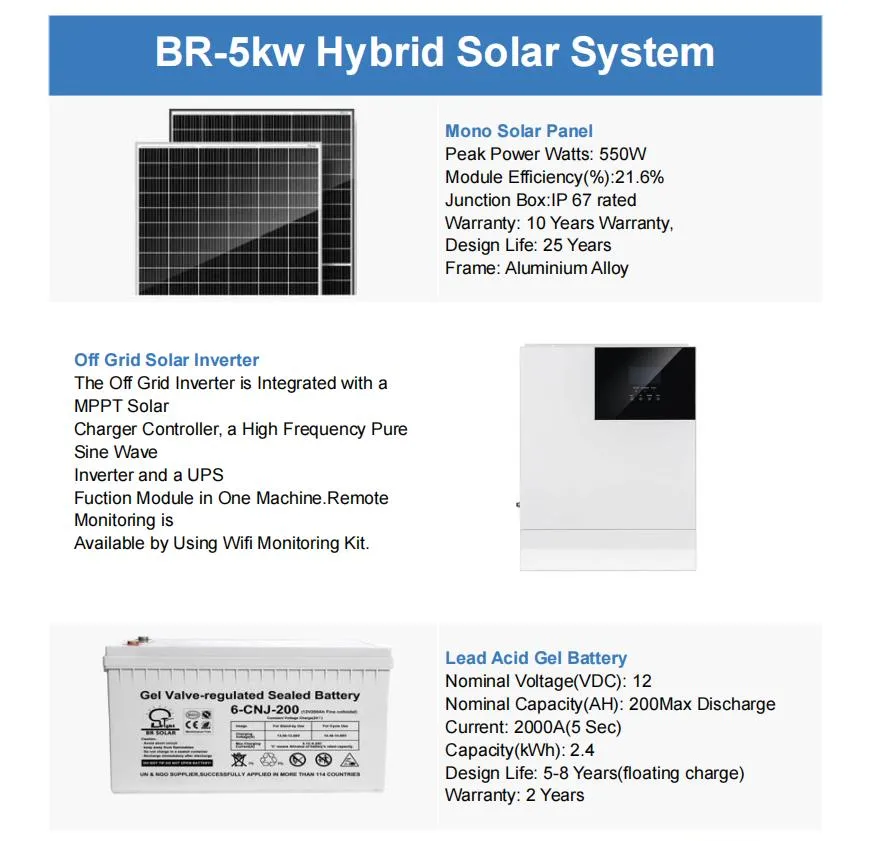

System Diagram & Factory Details

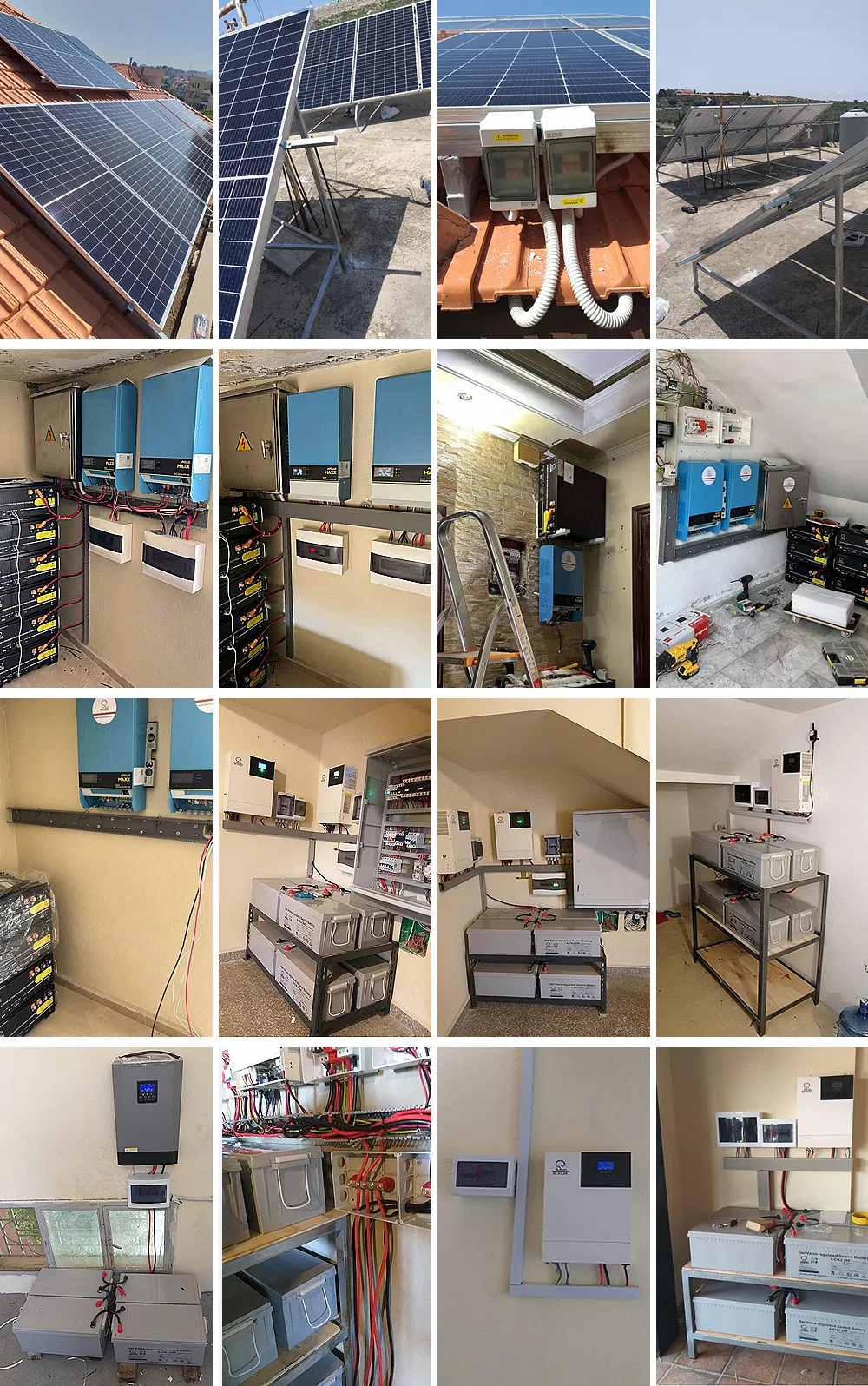

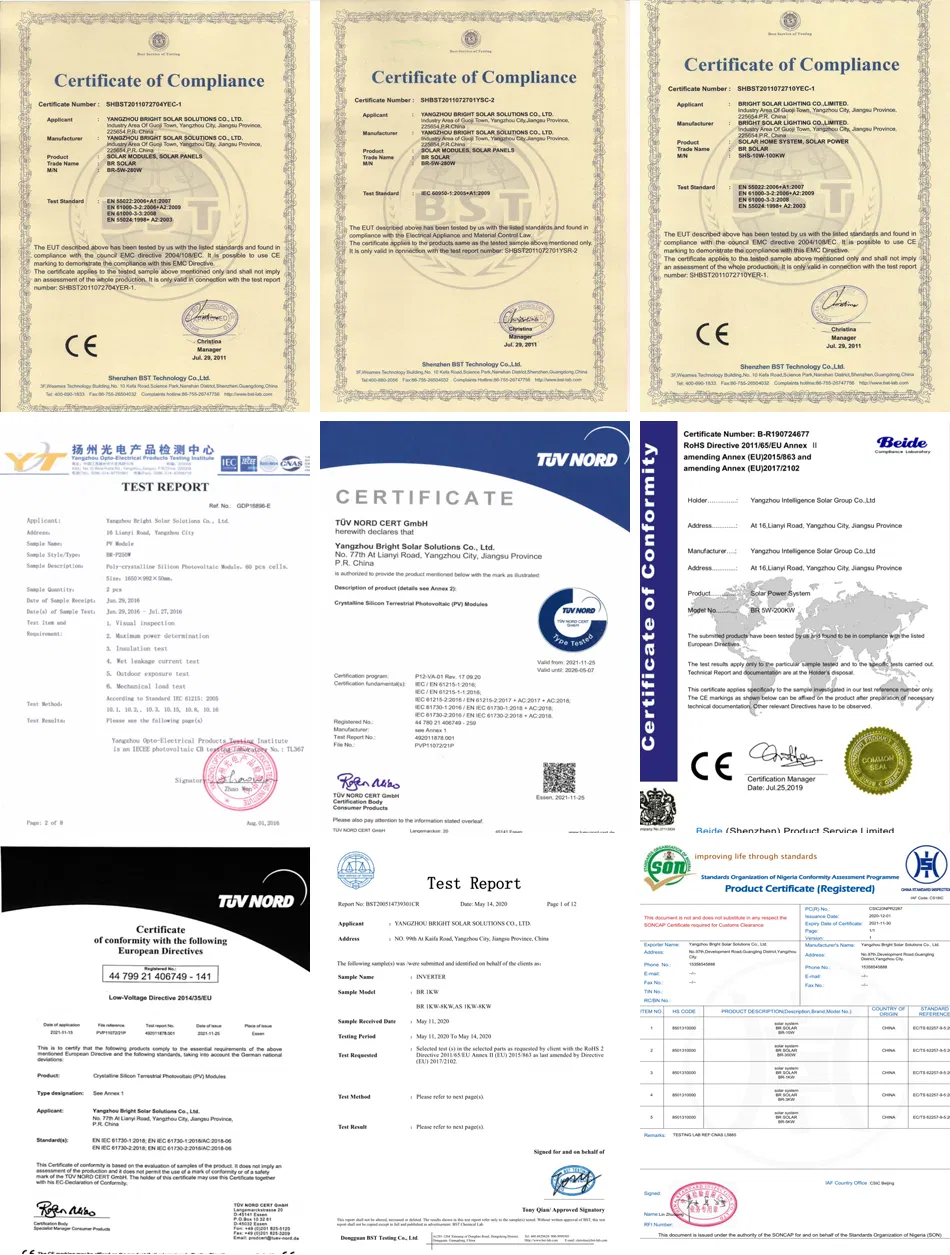

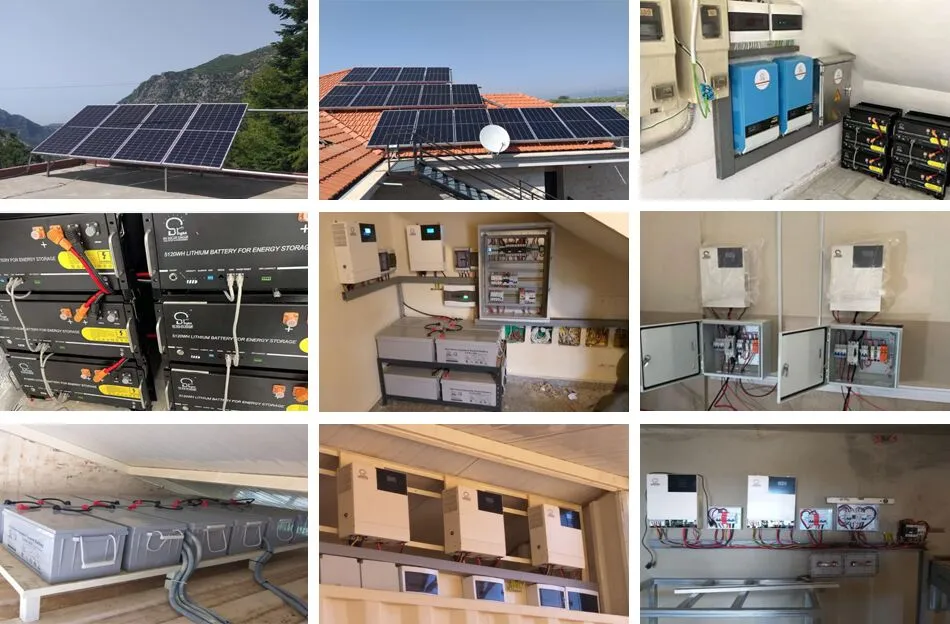

Global Projects & Certification
We choose quality materials; quality is our culture. Our solar products have been successfully applied in more than 128 countries including international NGO projects.
Exclusive One-Stop Service
⭐ Fantastic Services
Fast response, professional design solutions, and perfect after-sales support.
⭐ Diverse Cooperation
OBM, OEM, and ODM cooperation modes available.
⭐ Fast Delivery
Standardized products within 7 days; conventional products within 15 days.
⭐ Certified Quality
ISO 9001, CE, RoHS, TUV, and many more international certifications.
⭐ Experience
14 years of manufacturing and exporting experience globally.
⭐ Installation Support
Site guiding and video installation services are available for container orders.
Frequently Asked Questions
Can I have a sample order for solar products?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What about the lead time for production?
Samples need 5-7 days. Mass production time depends on the specific order quantity.
Are you a factory or a trading company?
We are a factory with high production capacity and a wide range of solar products in China.
How do you ship the goods and how long does it take?
Samples are shipped by DHL, UPS, FedEx, or TNT and usually take 7-10 days. Airline and sea shipping are also options.
What is your Warranty Policy?
We offer 3 to 5 years warranty for the entire system and replace parts for free in case of quality problems.
Do you provide installation guidance?
Yes, installing videos and site guiding installation services are available for container orders.
