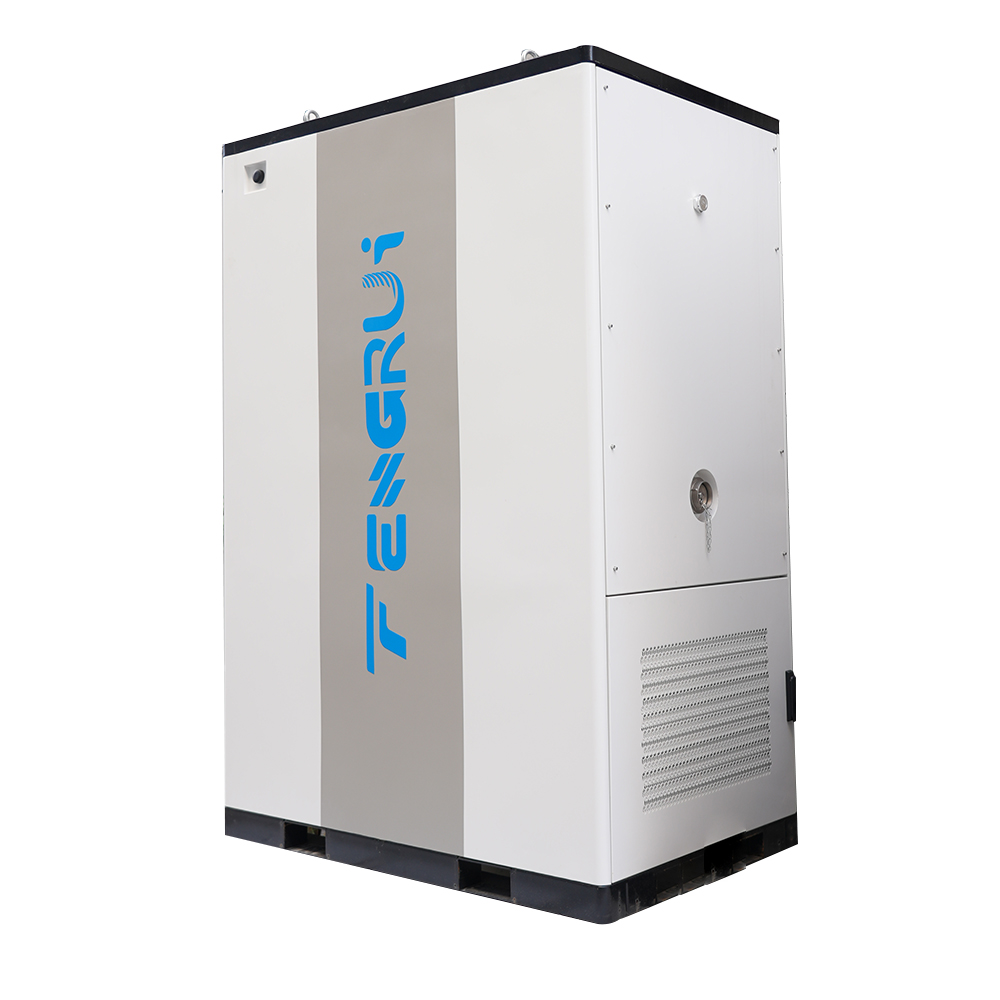

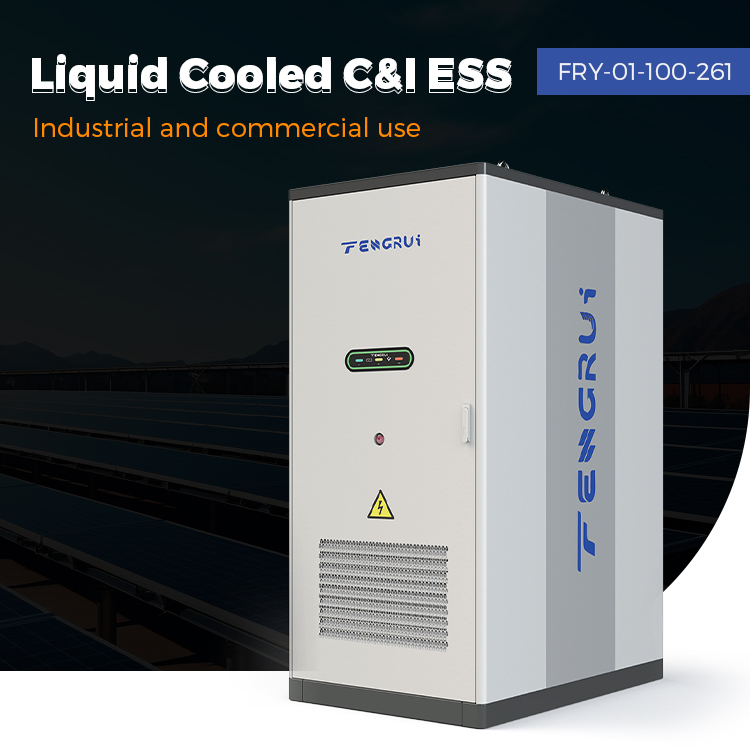

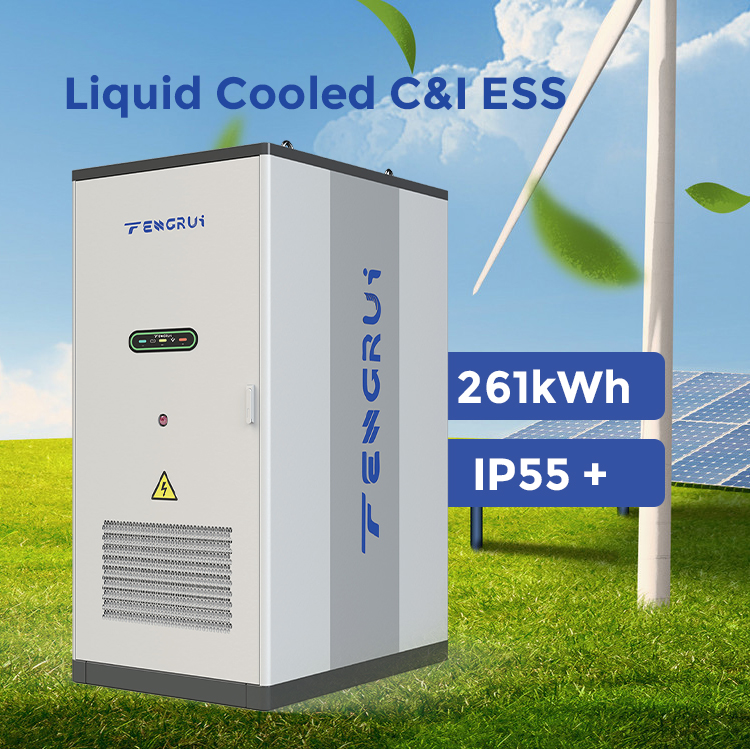

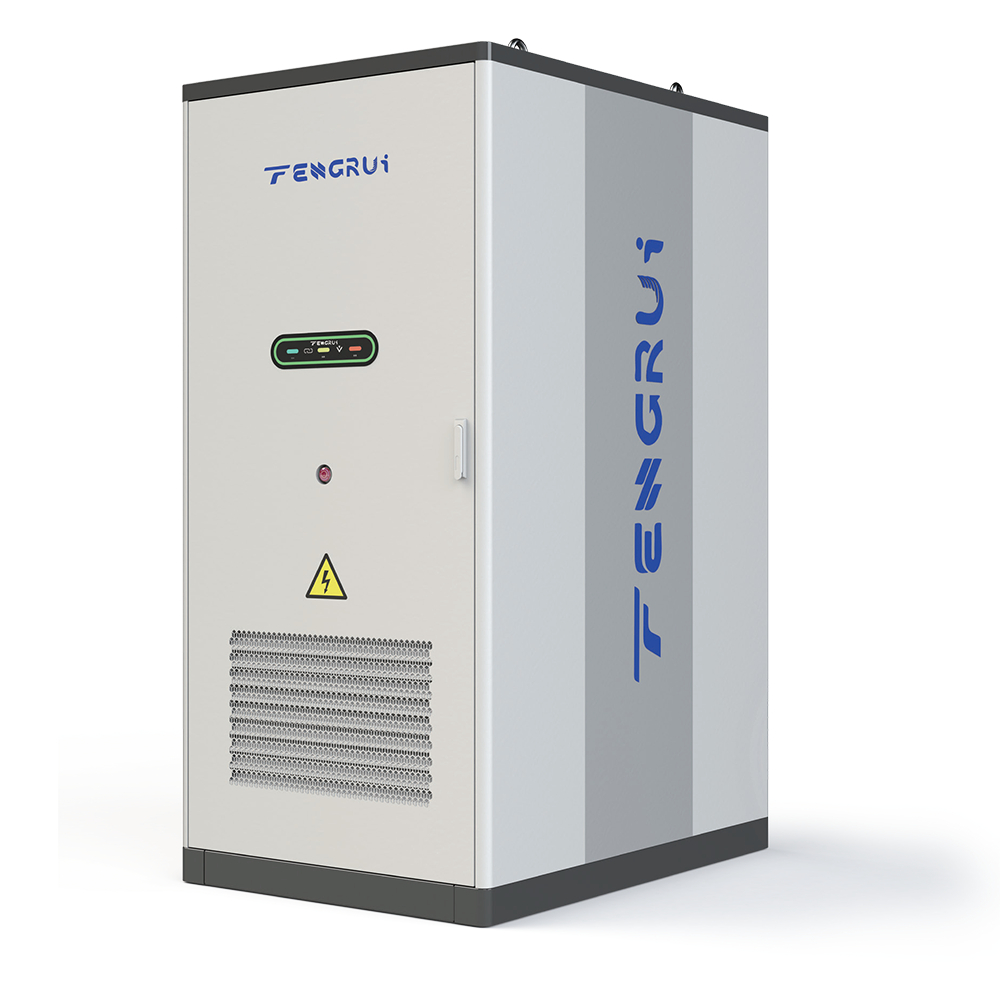

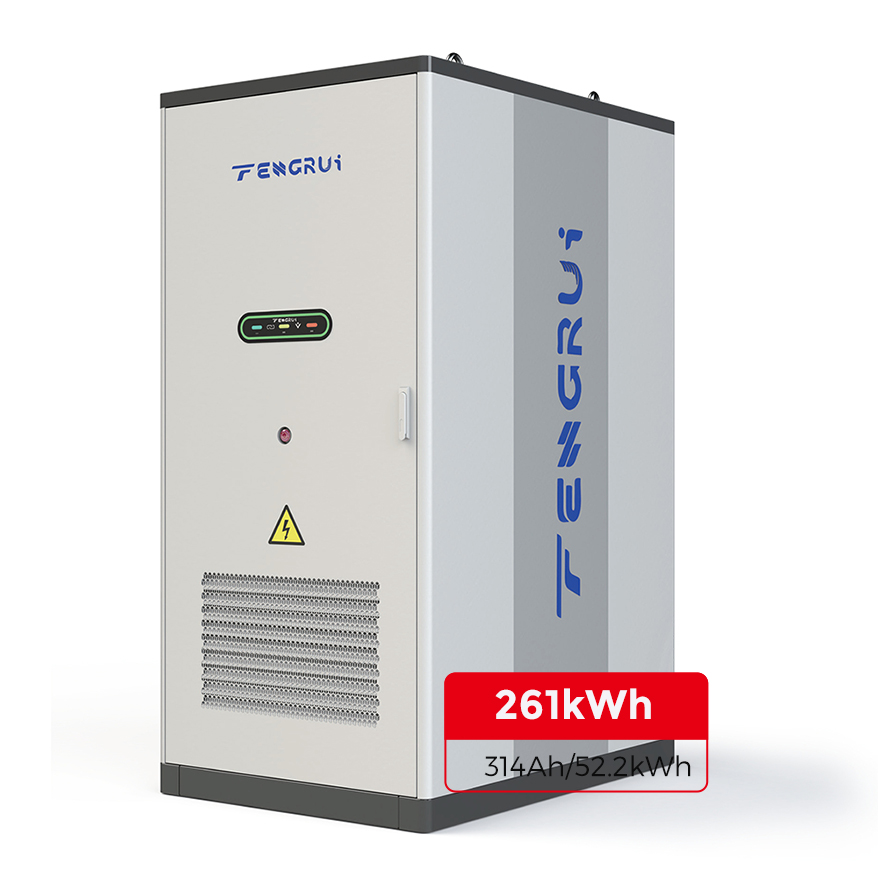

Product Specifications
| Model | FRY-01-100-261 |
| Cell Capacity | 314Ah |
| Battery Pack | 52S |
| Nominal Capacity | 52.2kWh |
| Nominal Voltage | 166.4V |
| Cooling Method | Coolant: 50% Ethylene Glycol Aqueous Solution, -35°C |
| Fire Suppression | Aerosol Fire Suppression |

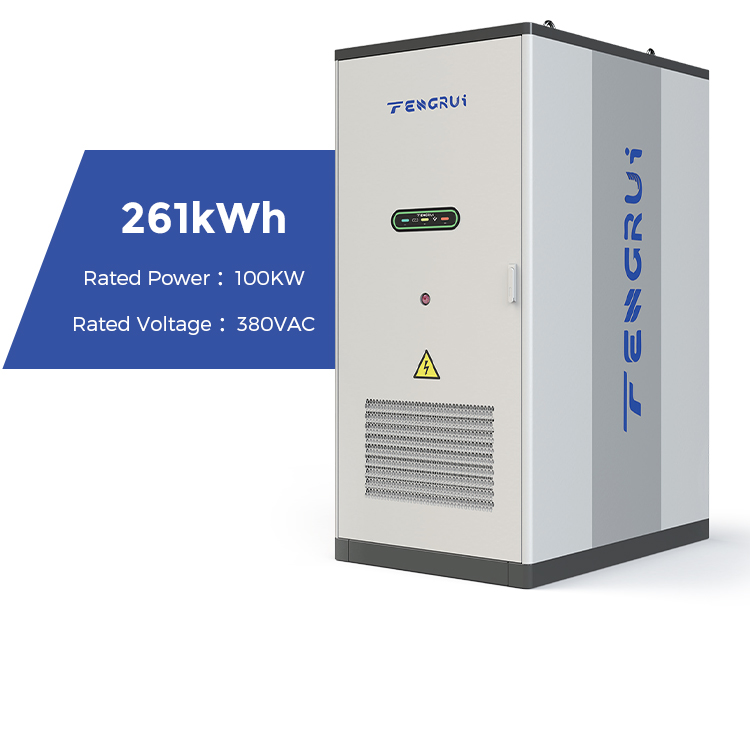

| Rated Power | 100kW |
| Max. Power | 110kW |
| Rated Voltage | 380VAC |
| Frequency | 50/60Hz |
| Grid Frequency Range | 45-55Hz / 55-65Hz |
| Voltage Tolerance | ±15% |
| THD | <3% |
| System Capacity | 261kWh |

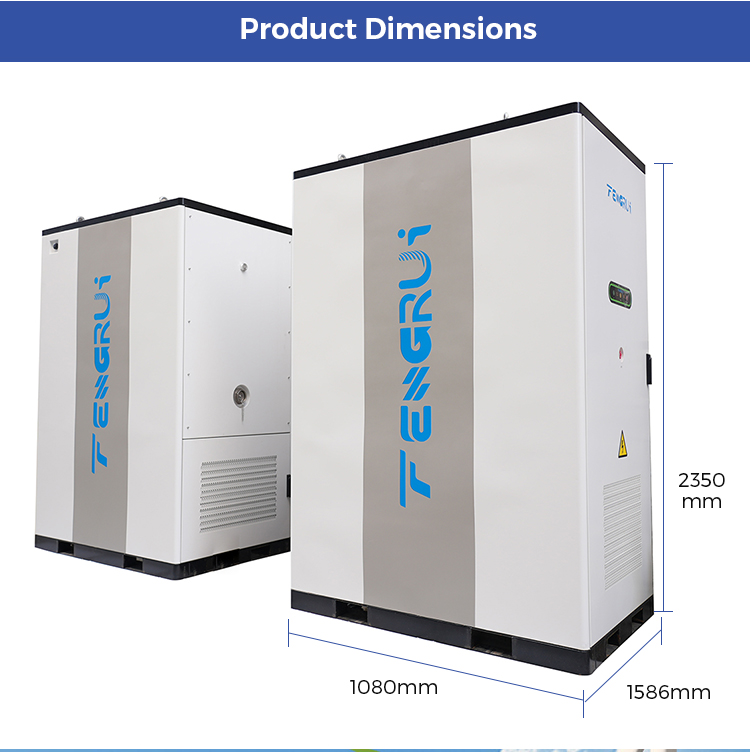

| Dimensions (L*D*H) | L1080×D1586×H2350mm |
| Weight | 2.8T |
| Protection Class | IP55 |
| Operation Temperature | -20°C ~ 50°C |
| Max. Altitude | 3000m |
| Communication | RS485/CAN/4G |

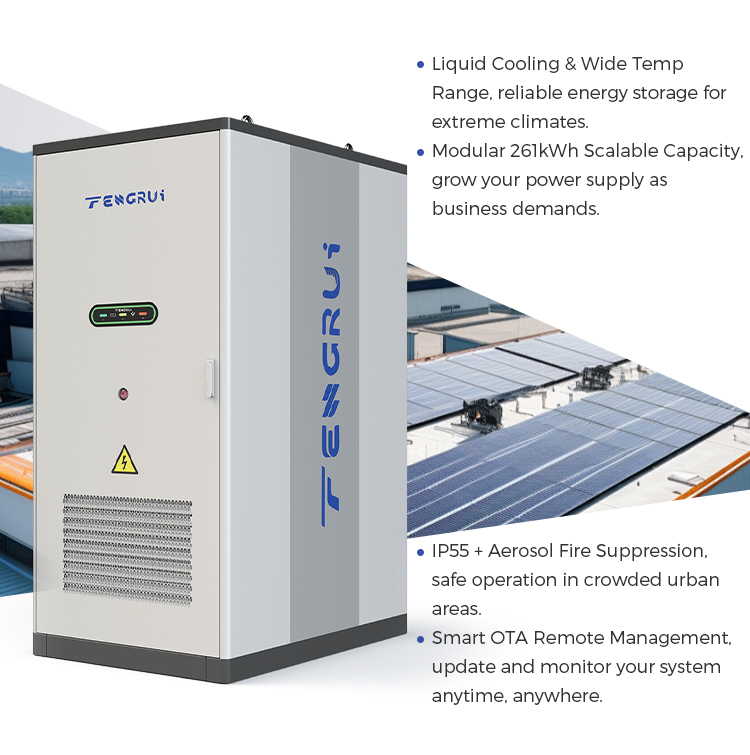

Core Features & Benefits
✓ Liquid Cooling & Wide Temp Range, reliable energy storage for extreme climates.
✓ Modular 261kWh Scalable Capacity, grow your power supply as business demands.
✓ IP55 + Aerosol Fire Suppression, safe operation in crowded urban areas.
✓ Smart OTA Remote Management, update and monitor your system anytime, anywhere.
System Integration & Design
Applications & Efficiency
Frequently Asked Questions
What applications is this 261kWh energy storage system suitable for?
This system is ideal for industrial and commercial energy storage, renewable energy integration, and providing backup power for urban or extreme climate environments.
How does the liquid cooling system improve performance?
The liquid cooling system uses a 50% Ethylene Glycol solution to maintain optimal battery temperatures, ensuring high efficiency, extended cell life, and reliable operation between -20°C and 50°C.
What safety measures are integrated into the unit?
Safety is prioritized with an IP55 protection rating and an advanced Aerosol Fire Suppression system, making it suitable for high-density areas.
Is the system scalable for larger power needs?
Yes, the modular design allows for scalable capacity, enabling you to expand your energy storage as your operational demands grow.
Can I monitor the battery system remotely?
Absolutely. The system supports Smart OTA (Over-the-Air) management and utilizes RS485, CAN, and 4G communication for real-time remote monitoring and updates.
What is the minimum order quantity (MOQ)?
There is no strict limit on the order quantity. We welcome small orders and provide competitive pricing for larger volume requirements.
