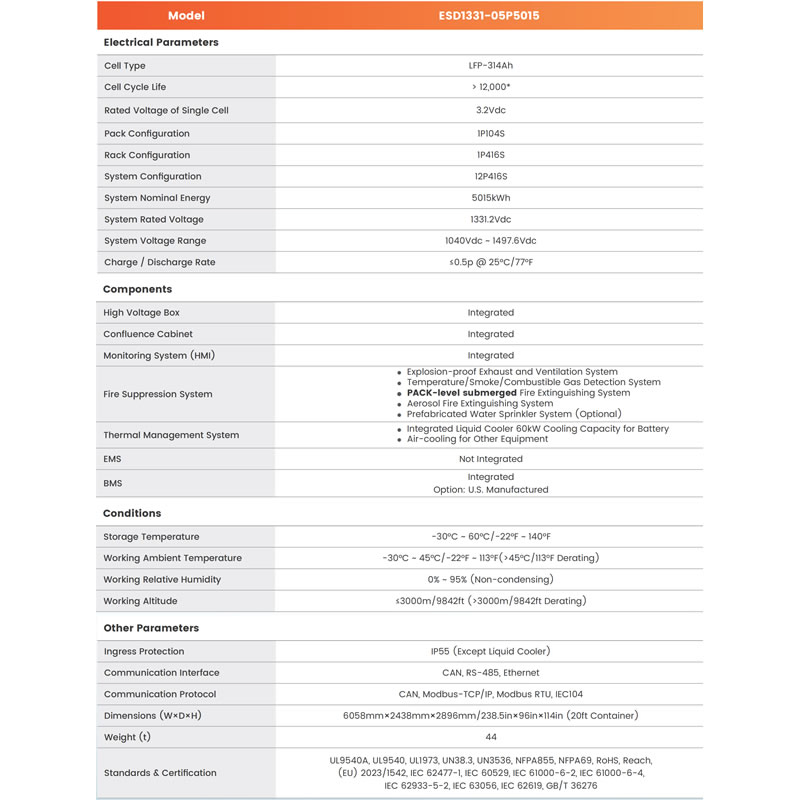

| Electrical Parameters | |
|---|---|
| Cell Type | LFP-314Ah |
| Cell Cycle Life | > 12,000* |

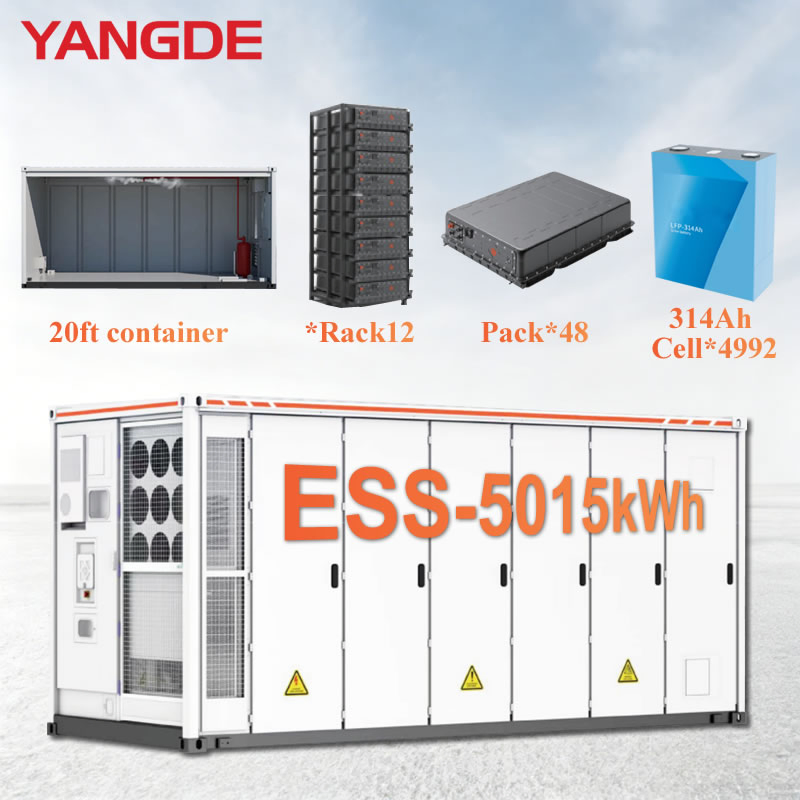

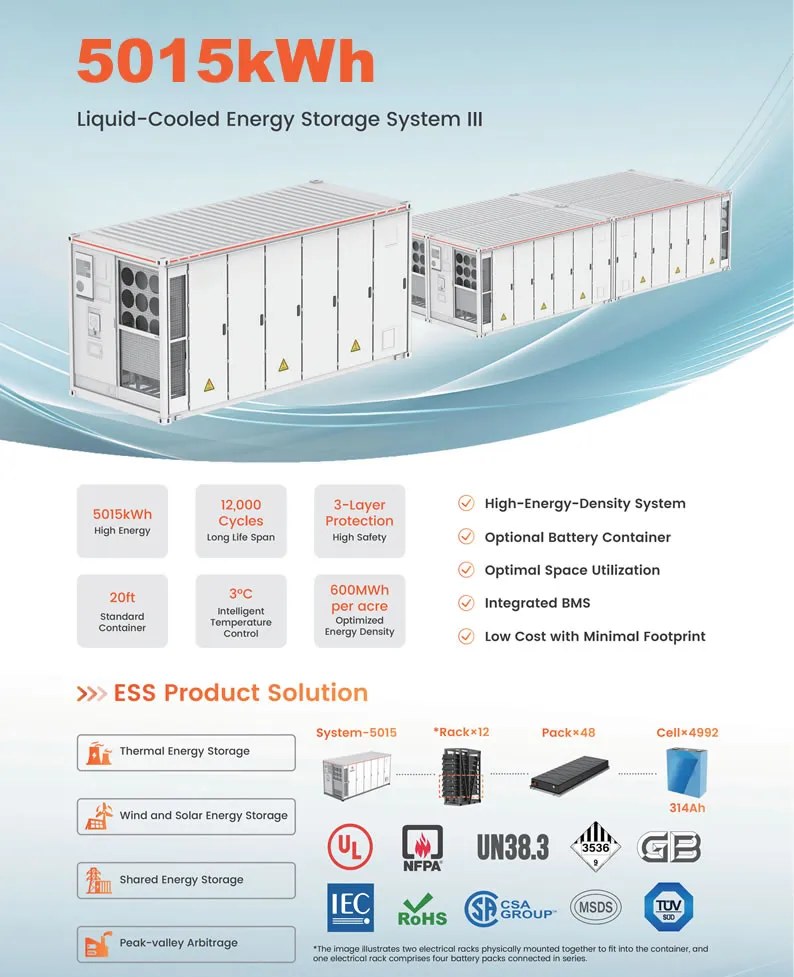

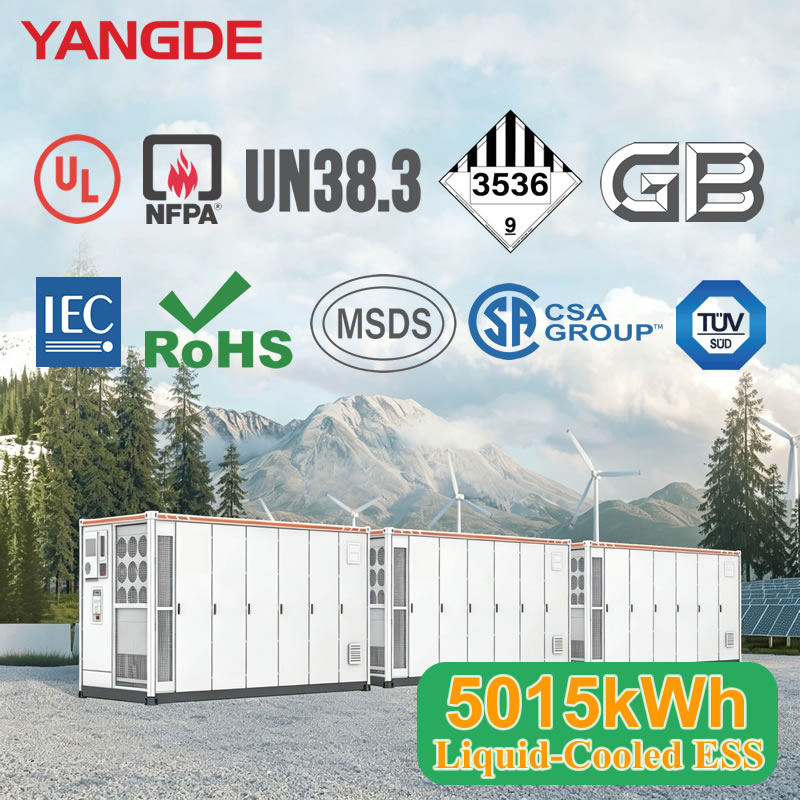

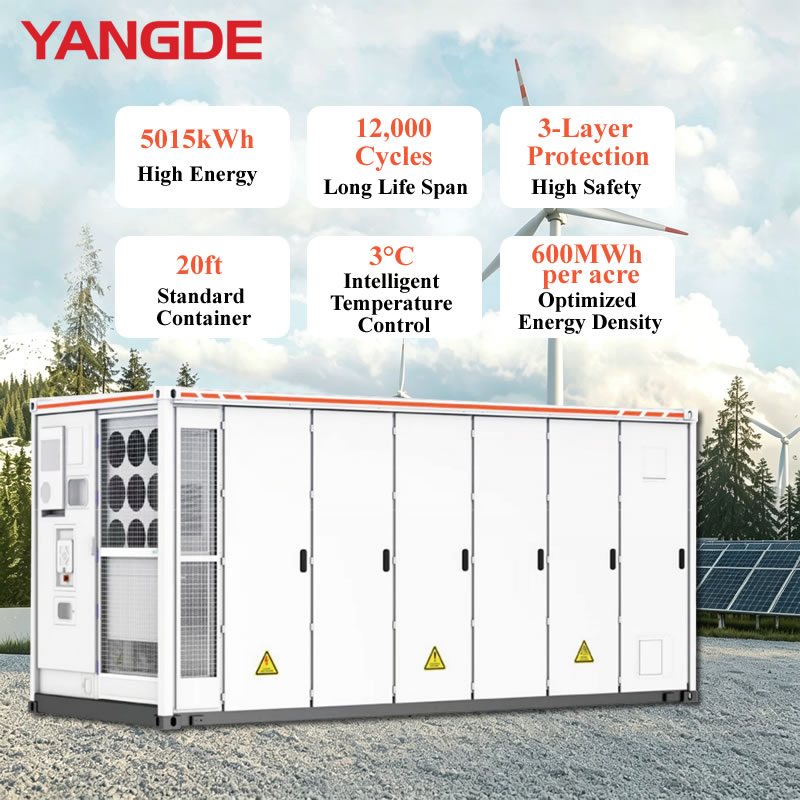

| System Nominal Energy | 5015kWh |
| System Rated Voltage | 1331.2Vdc |
| System Voltage Range | 1040Vdc ~ 1497.6Vdc |
| Charge / Discharge Rate | ±0.5p @ 25ºC/77ºF |
| System Components | |
|---|---|
| High Voltage Box | Integrated |
| Monitoring System (HMI) | Integrated |
| Fire Suppression | Explosion-proof Exhaust, Temp/Smoke Detection, PACK-level Submerged System, Aerosol Fire Extinguishing |

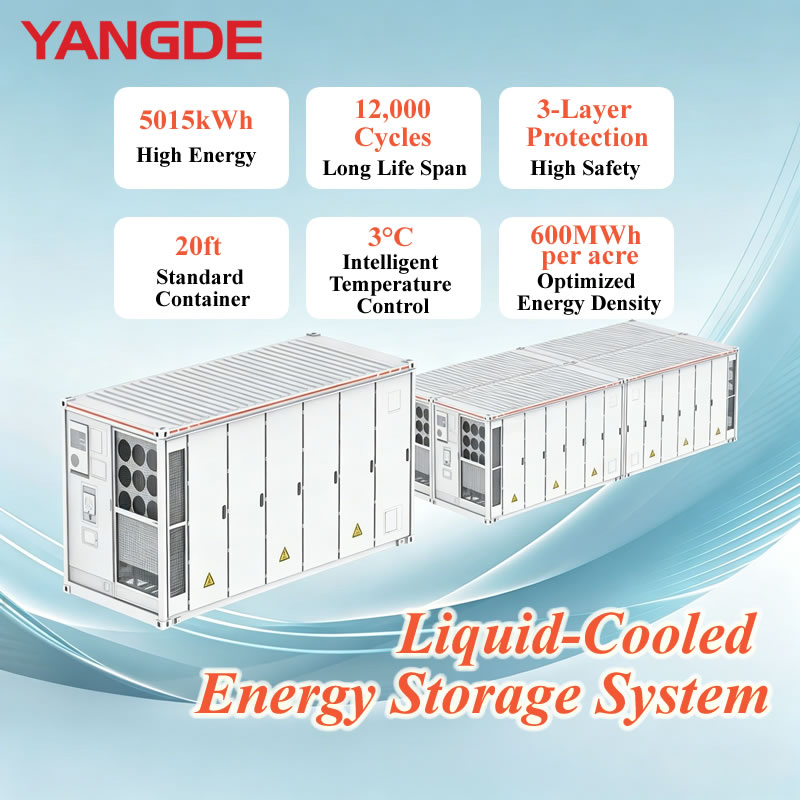

| Thermal Management | Integrated Liquid Cooler 60kW Cooling Capacity |
| BMS | Integrated Option |
We provide complete solutions for PV power plants and energy storage systems, covering solar PV modules, storage batteries, PCS, BMS, EMS, and all related electrical equipment. By designing and supplying core components ourselves, we eliminate the complexity of coordinating multiple vendors.
We manufacture most core components in-house. Customers enjoy one-stop system-level service combined with the cost advantages and quality assurance of working directly with the original factory, avoiding middleman markups.
With over a decade of experience in power electronics and battery engineering, our R&D team of over 60 engineers holds more than 20 national patents. Our expertise covers battery thermal management, system protection strategies, and energy scheduling algorithms.

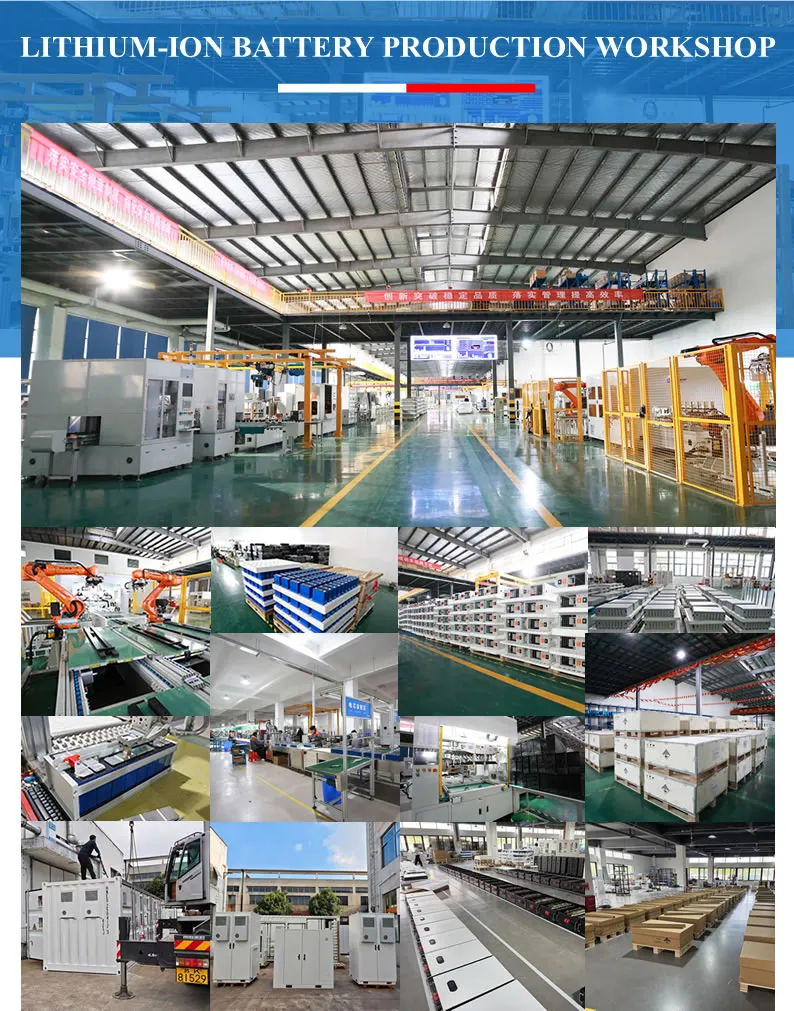

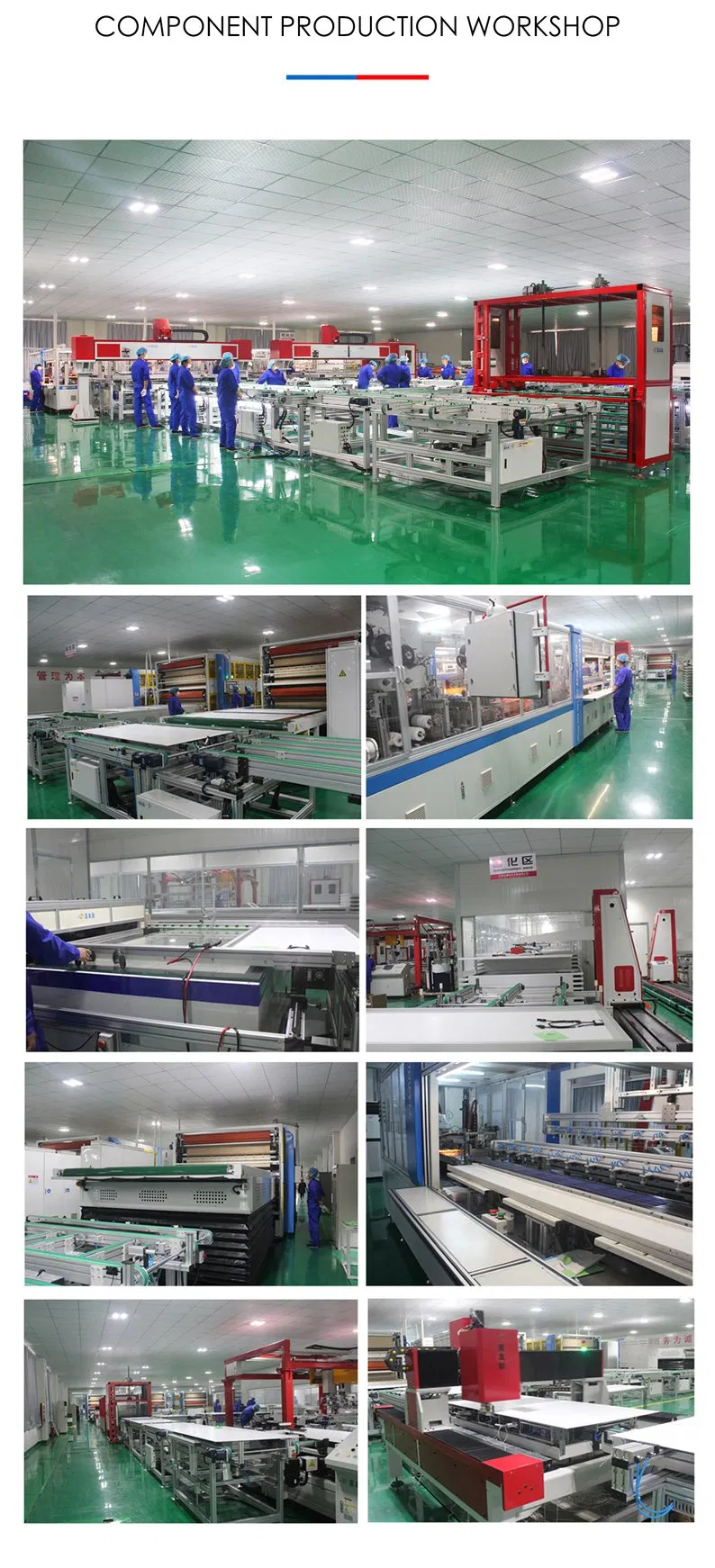

Our facility is equipped with battery pack assembly lines, PCS test benches, aging test systems, and insulation withstand voltage testers. Every step from cell sorting to final assembly is rigorously tested in-house.
We guarantee PV modules and storage systems to be free from defects for two years, with extended cycle-life based warranty terms available for batteries.
Customized capacity planning and equipment selection based on irradiation conditions and application scenarios (Residential / C&I / Utility).
Detailed wiring diagrams, commissioning videos, and on-site technical guidance for large-scale projects to ensure smooth deployment.
Built from the ground up, we help customers create differentiated and cost-effective energy storage products with full customization.
