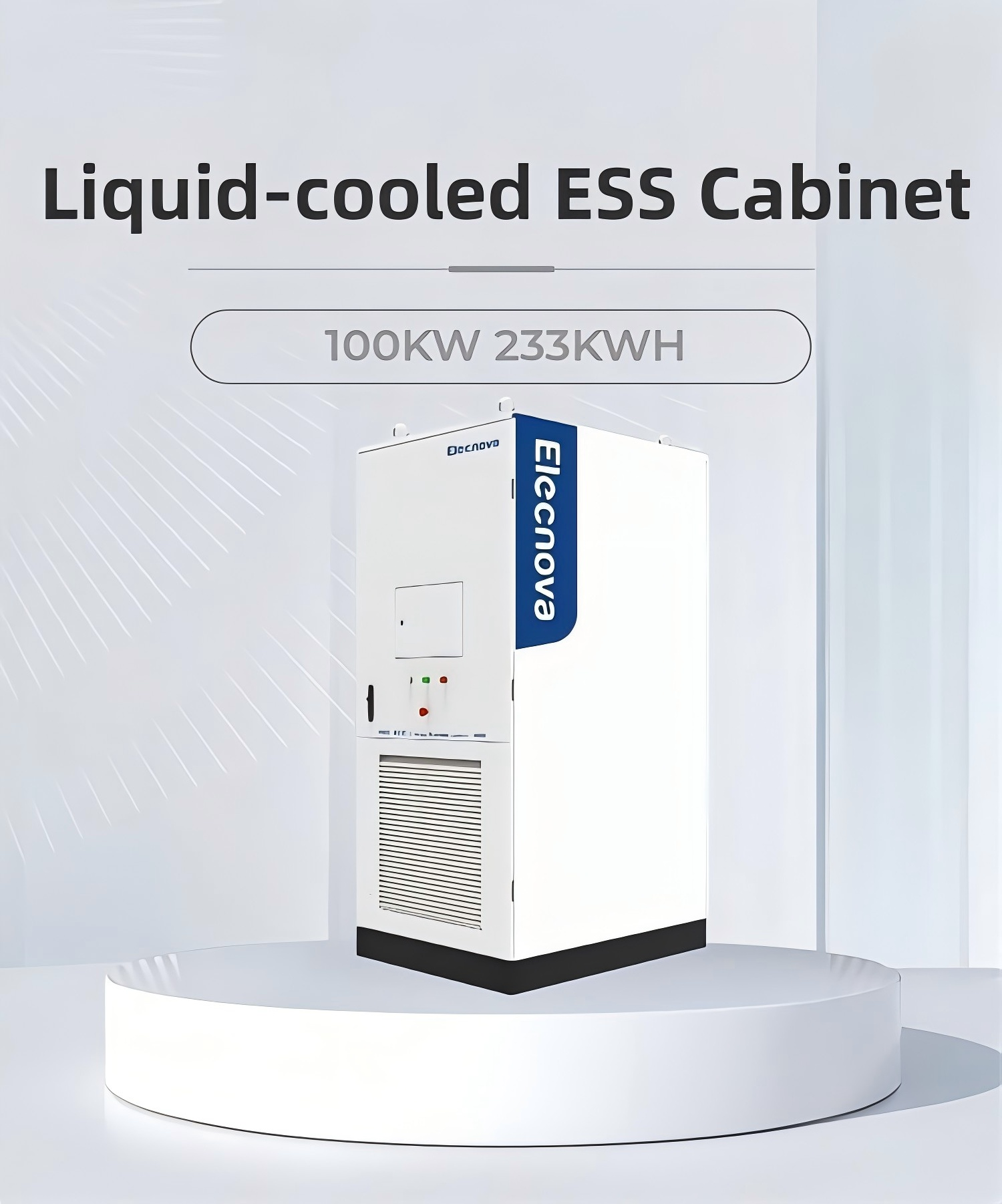

| Parameter | Specifications | |
|---|---|---|
| DC Side | ||

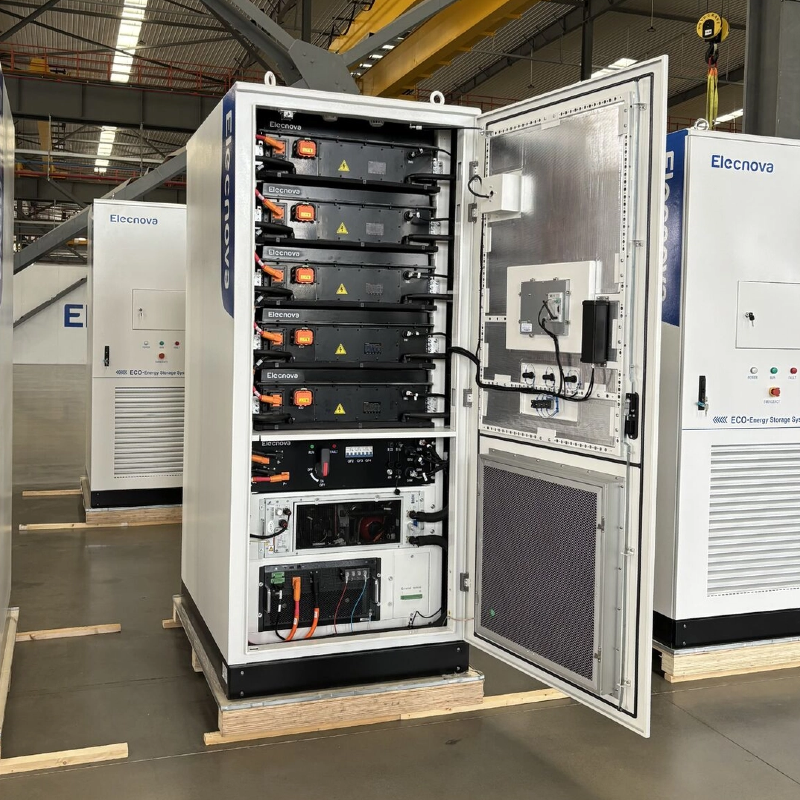

| Cell Type | LFP280Ah | |

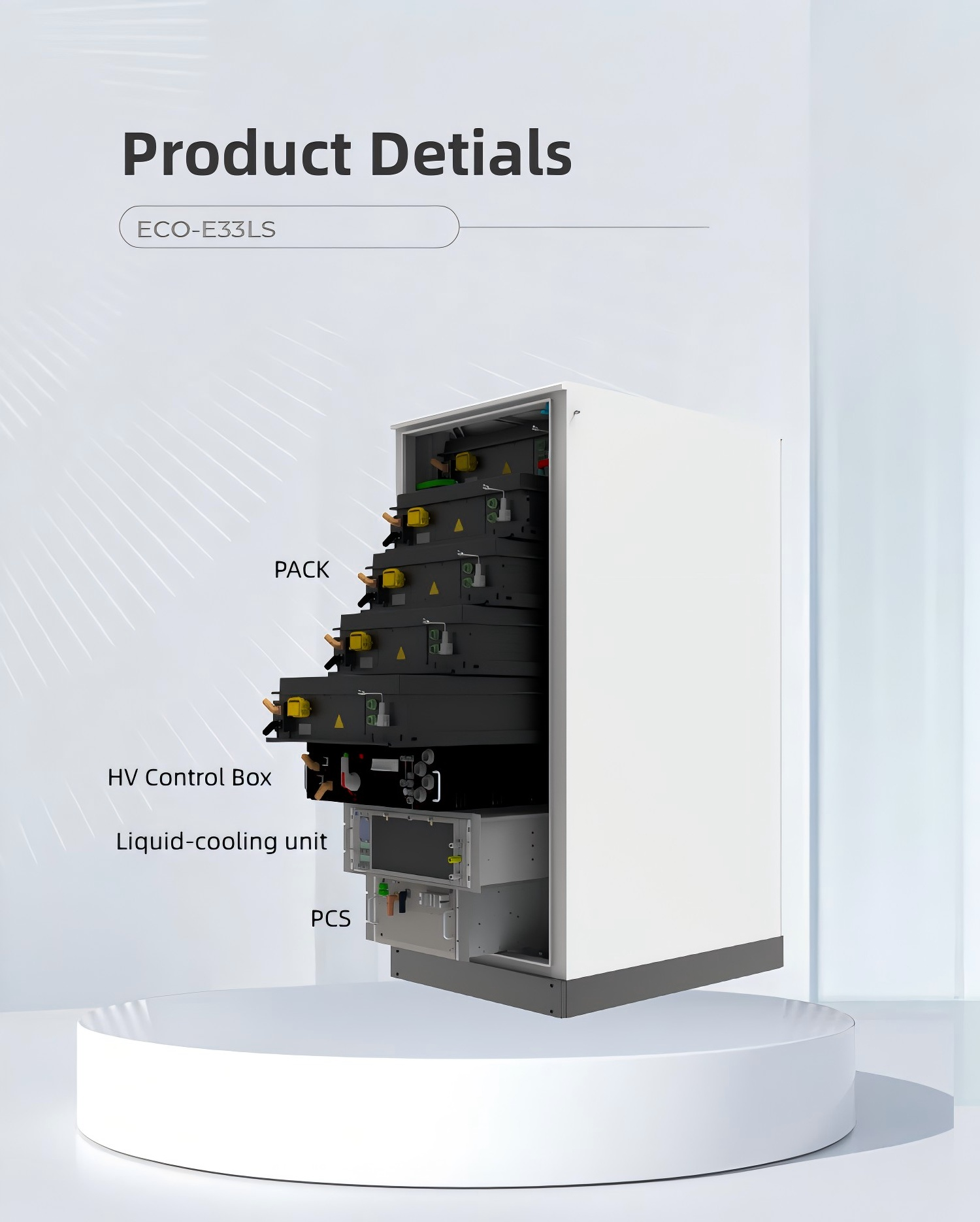

| PACK | 46.592kWh/1P52S | |
| Battery System | 232.96kWh/1P260S | |
| Voltage Range | 728~936Vdc | |
| PACK Ingress Rating | IP65 | |
| AC Side | ||
| Rated Power | 100kW | |
| Max. Power | 110kW | |
| THDi | ＜3% | |
| DC Ratio | ＜0.5%Ip | |
| Nominal Voltage | 400Vac/3P+N+PE | |
| Nominal Frequency | 50/60 Hz | |
| General Information | ||

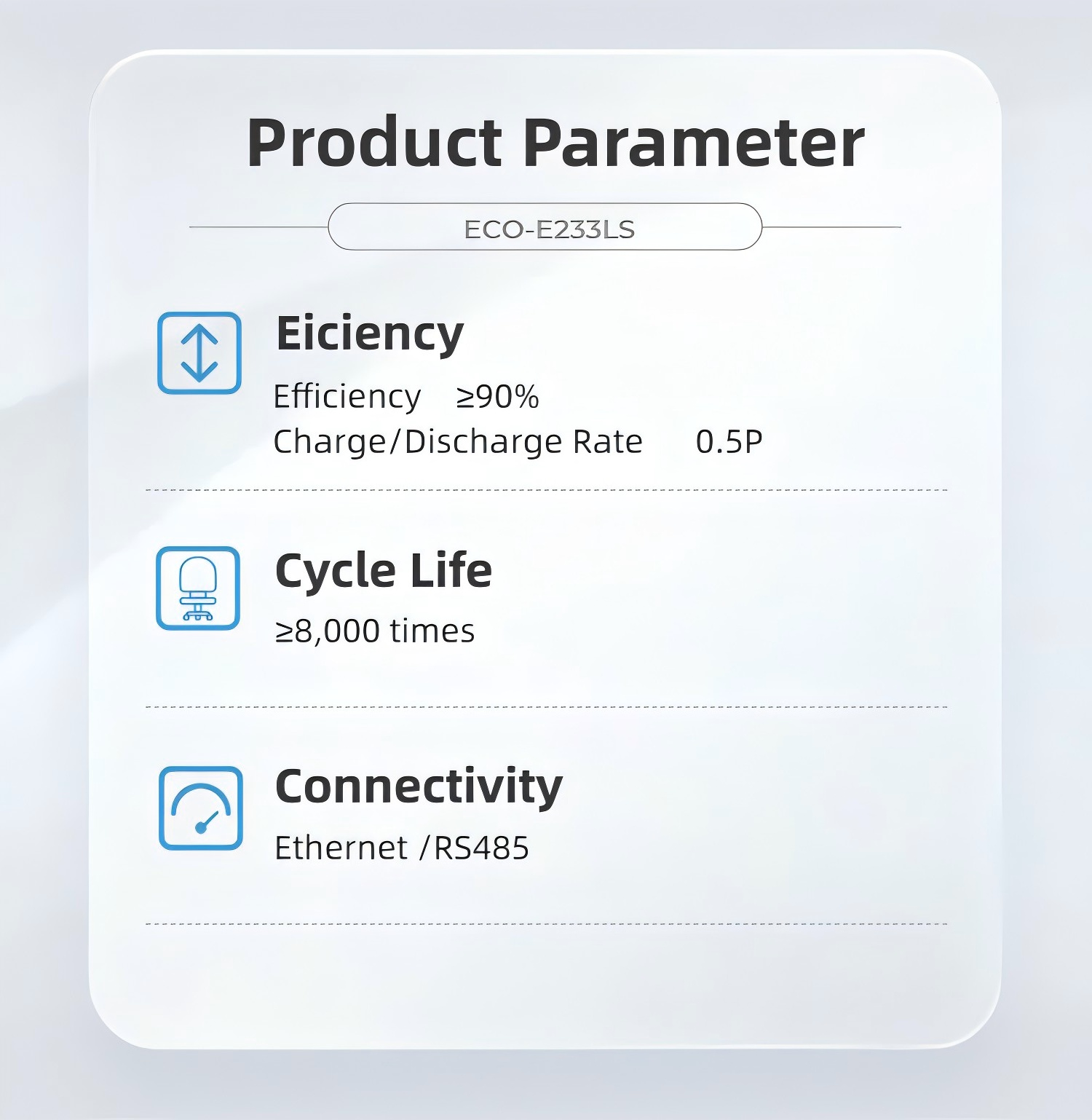

| System Efficiency | ≥90% | |
| Charge/Discharge Rate | 0.5P | |
| DoD | 95% | |
| SOC Accuracy | ＜3% | |
| Cycle Life | ≥8,000 times | |
| Switching Time | ＜100ms | |
| Connectivity | Ethernet /RS485 | |
| Ingress Rating | IP55 | |

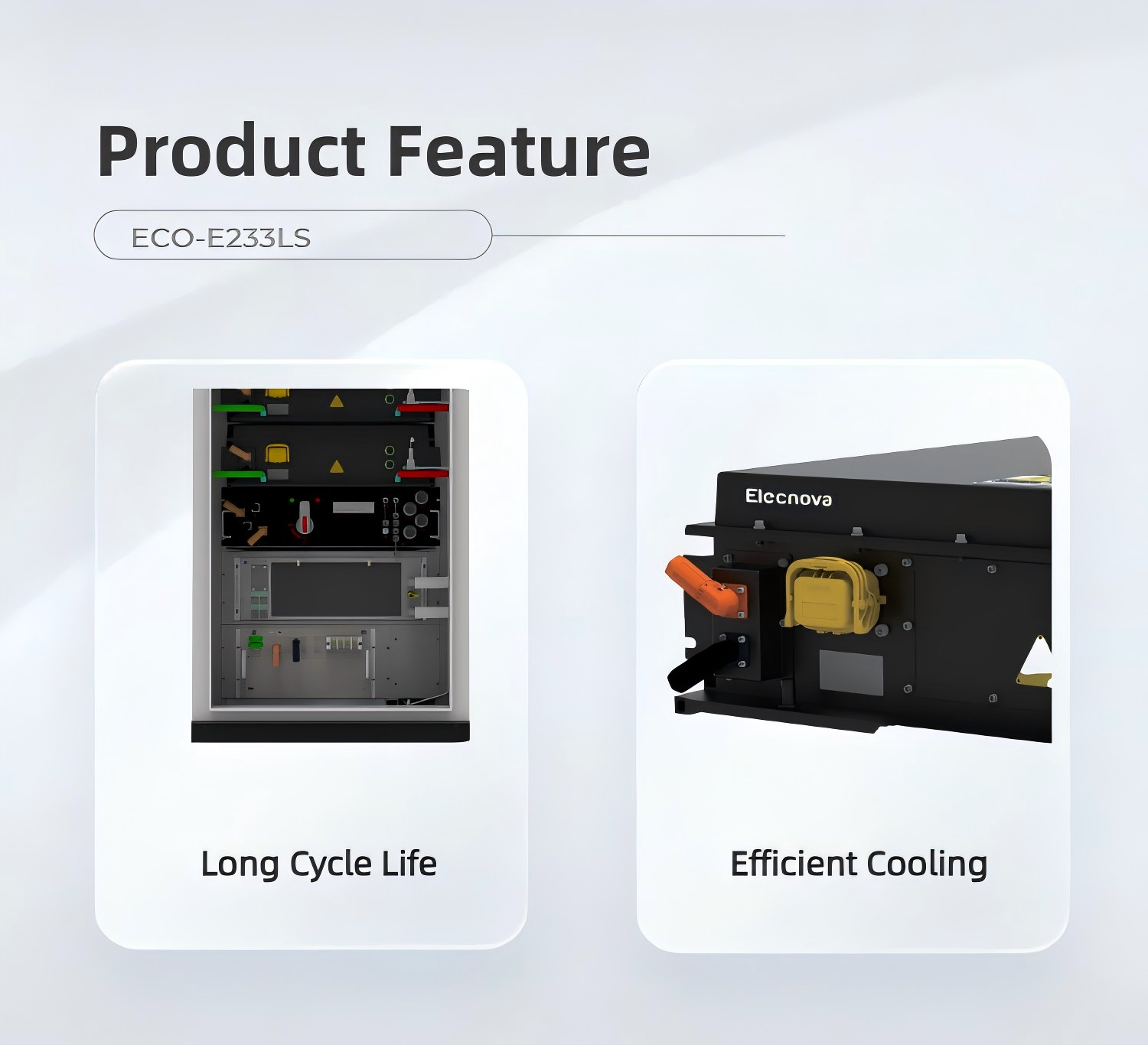

| Cooling | Active liquid cooling | |
| Operating Temperature | -25℃~55℃ | |
| Humidity | 5-95%RH, non-condensing | |
| Noise | ≤75dB | |
| Altitude | ≤2,000m (derating above 2,000m) | |
| Fire Safety | Aerosol | |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) | |

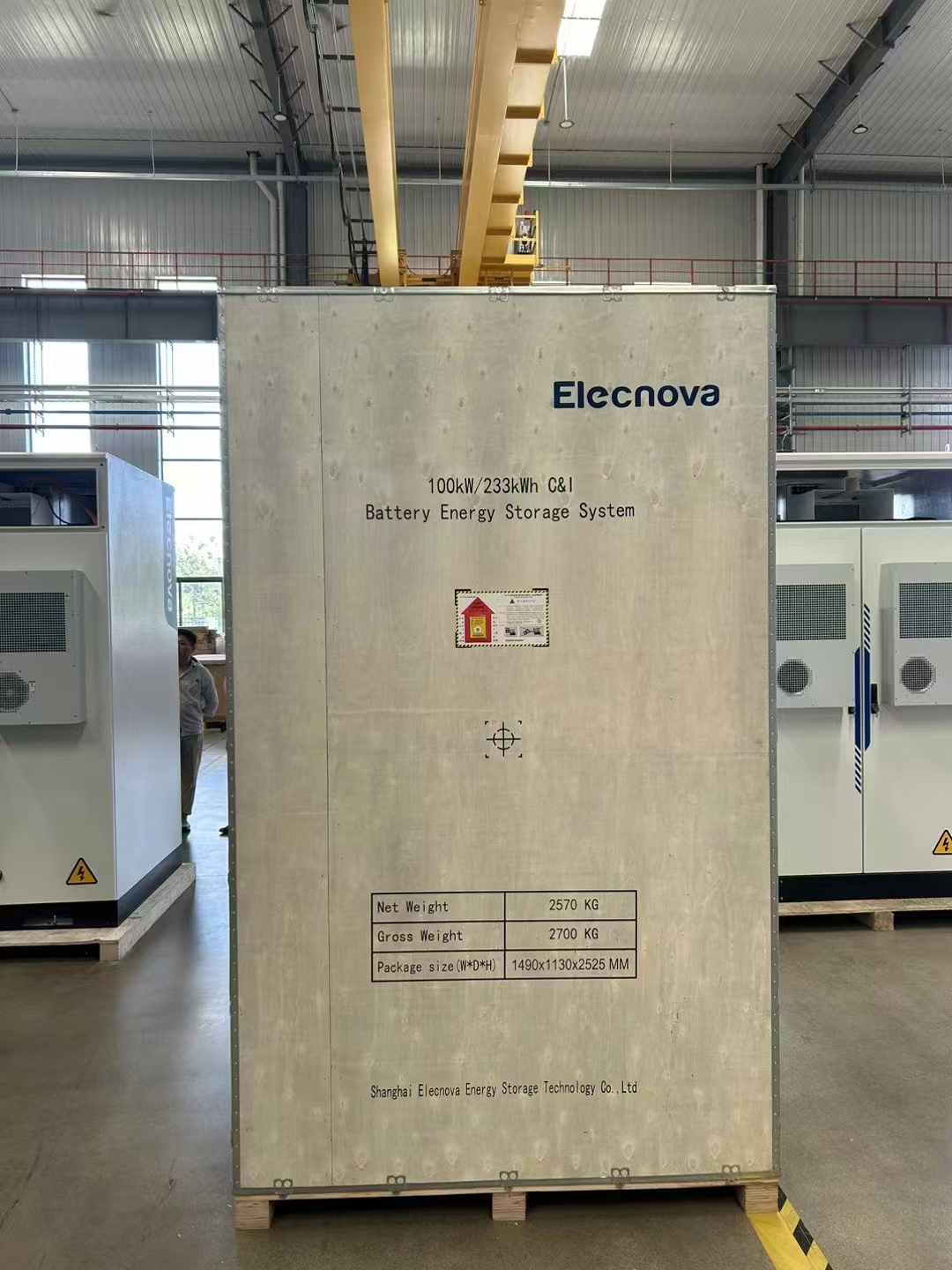

| Weight | 2,570kg | |

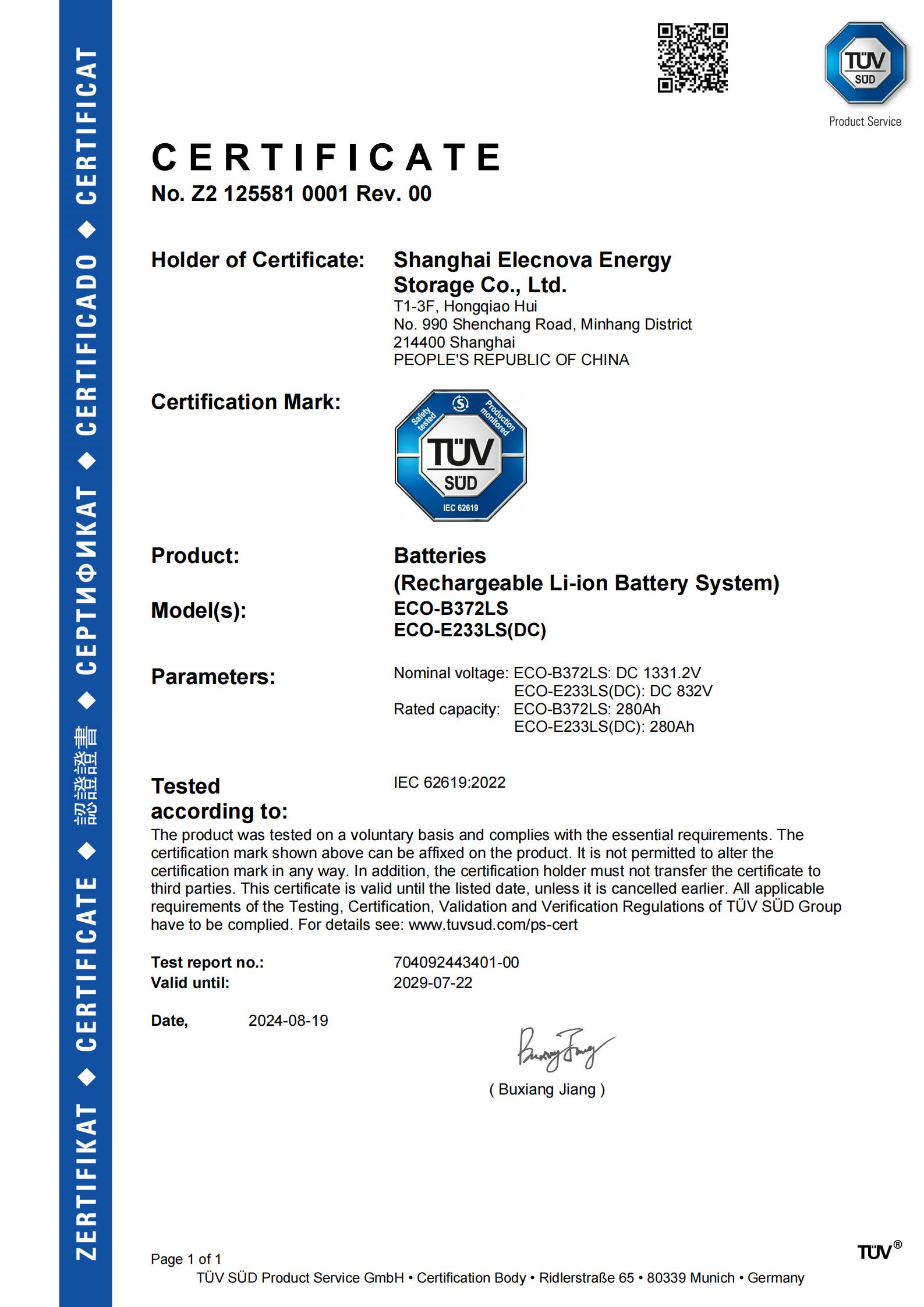

| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549 | |

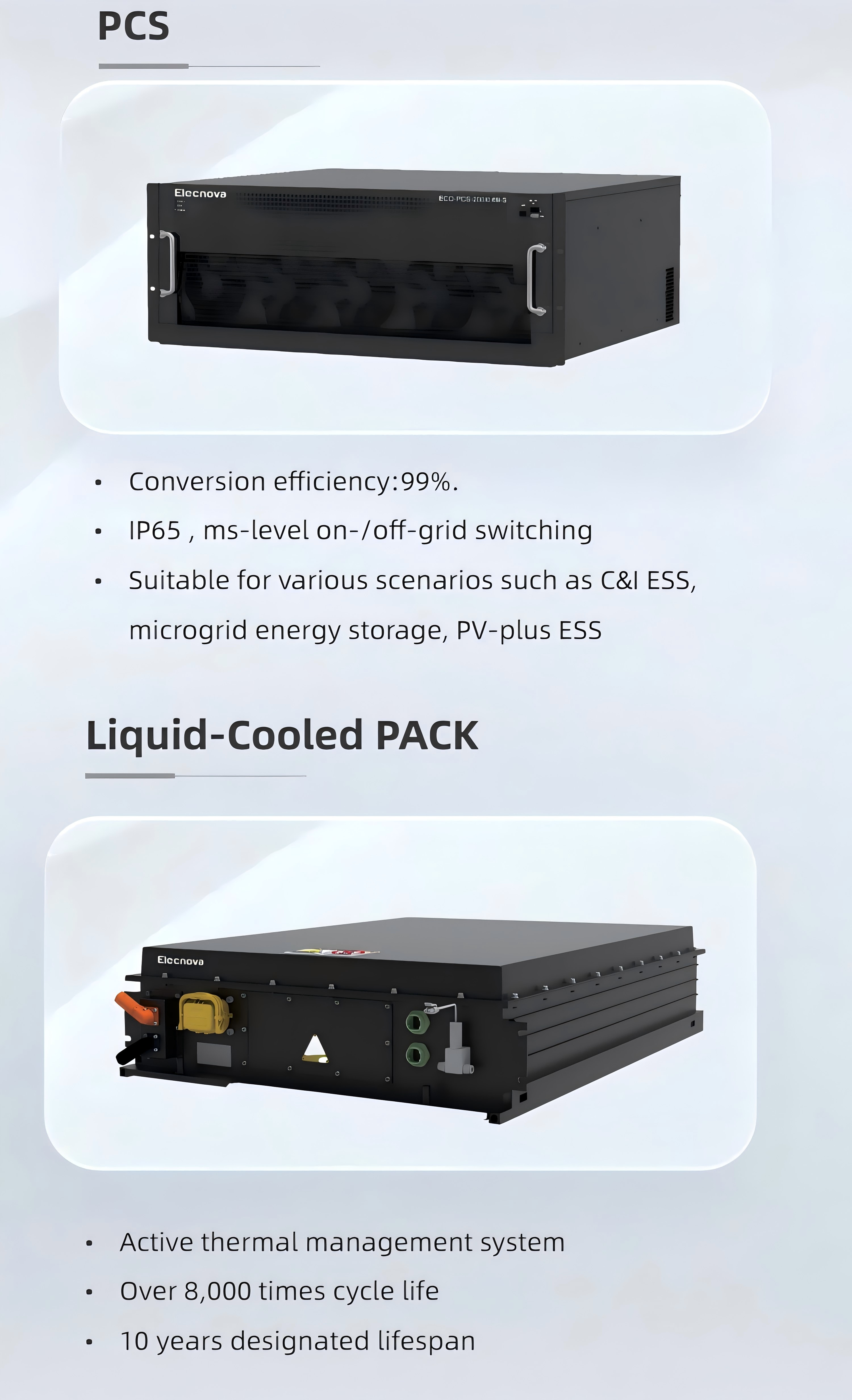

We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our team possesses comprehensive supporting capabilities for the system integration of PACK, PCS, BMS, and EMS.
We aim to meet the diversified energy requirements of segmented markets and customers, with products as the core and quality as the cornerstone. We are committed to providing high-quality customized products and services for various energy consumption scenarios on the power generation side, grid side, and user side.
