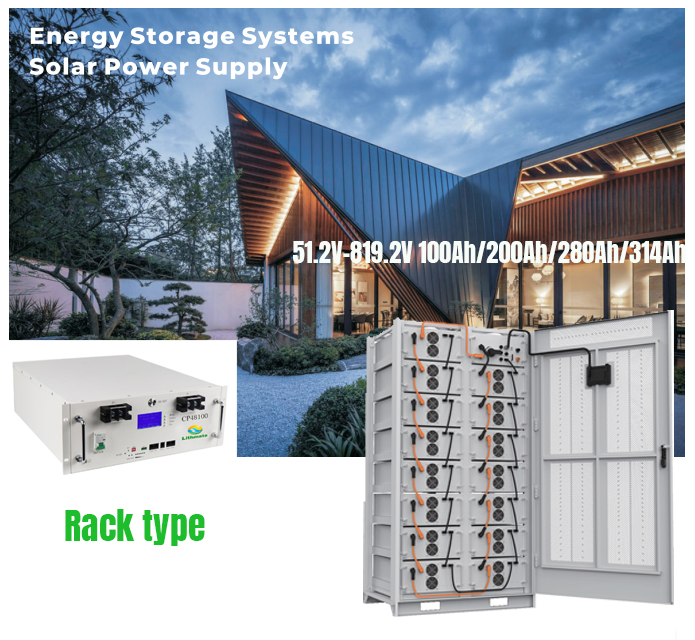

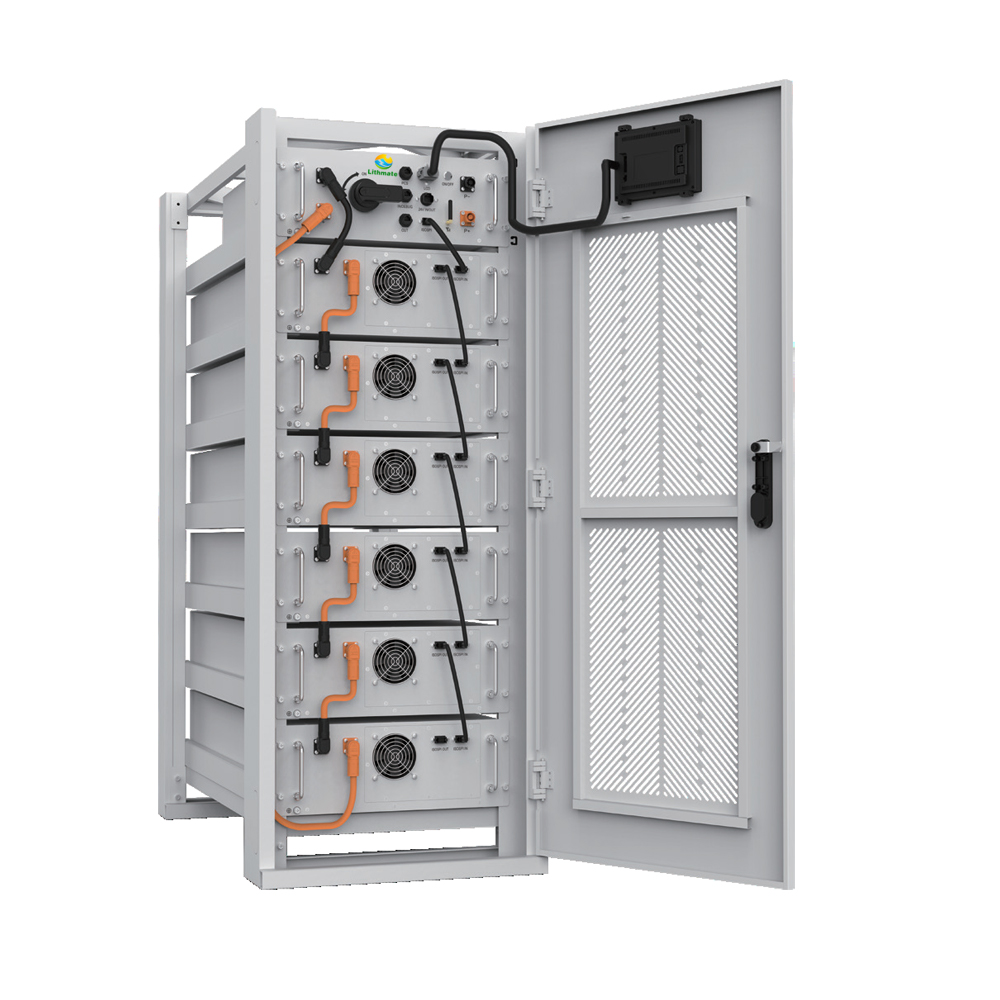

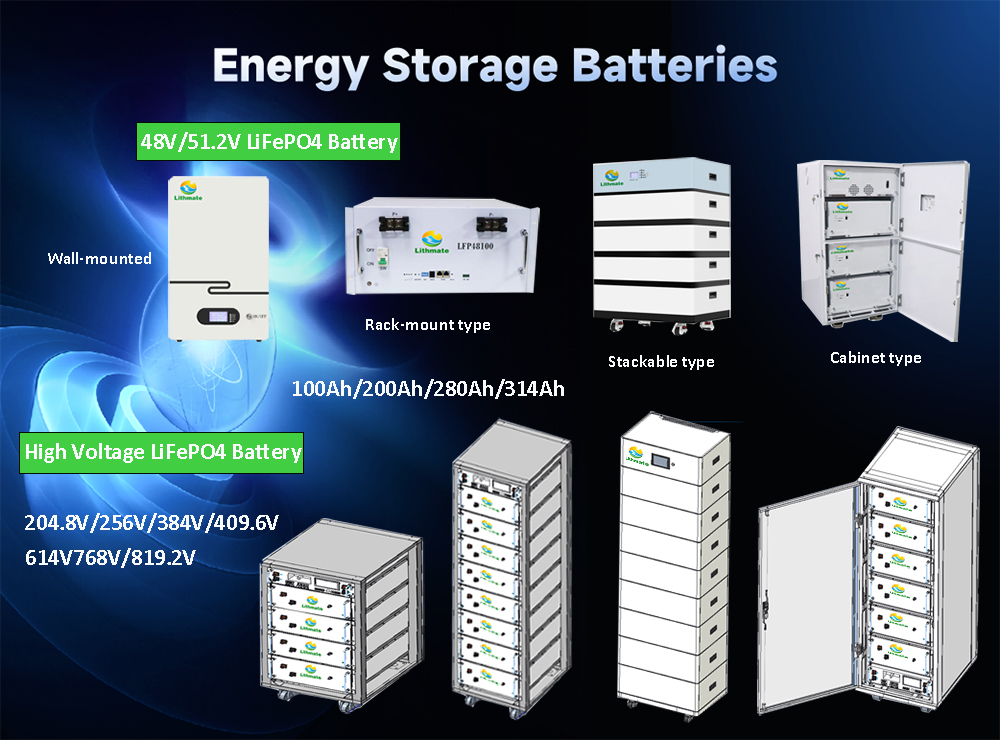

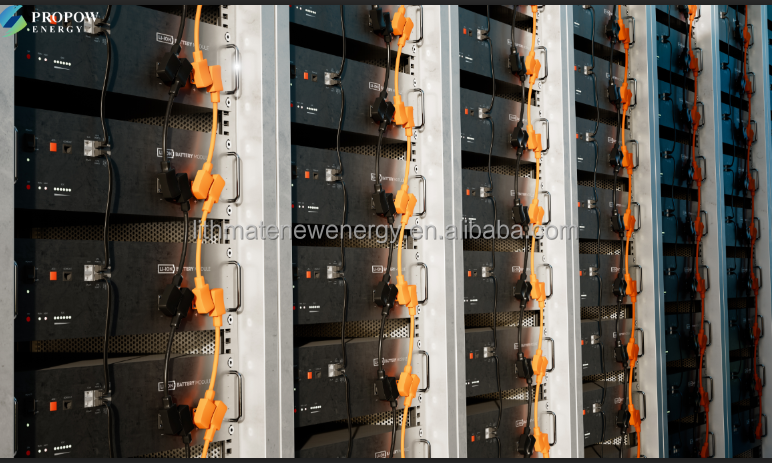

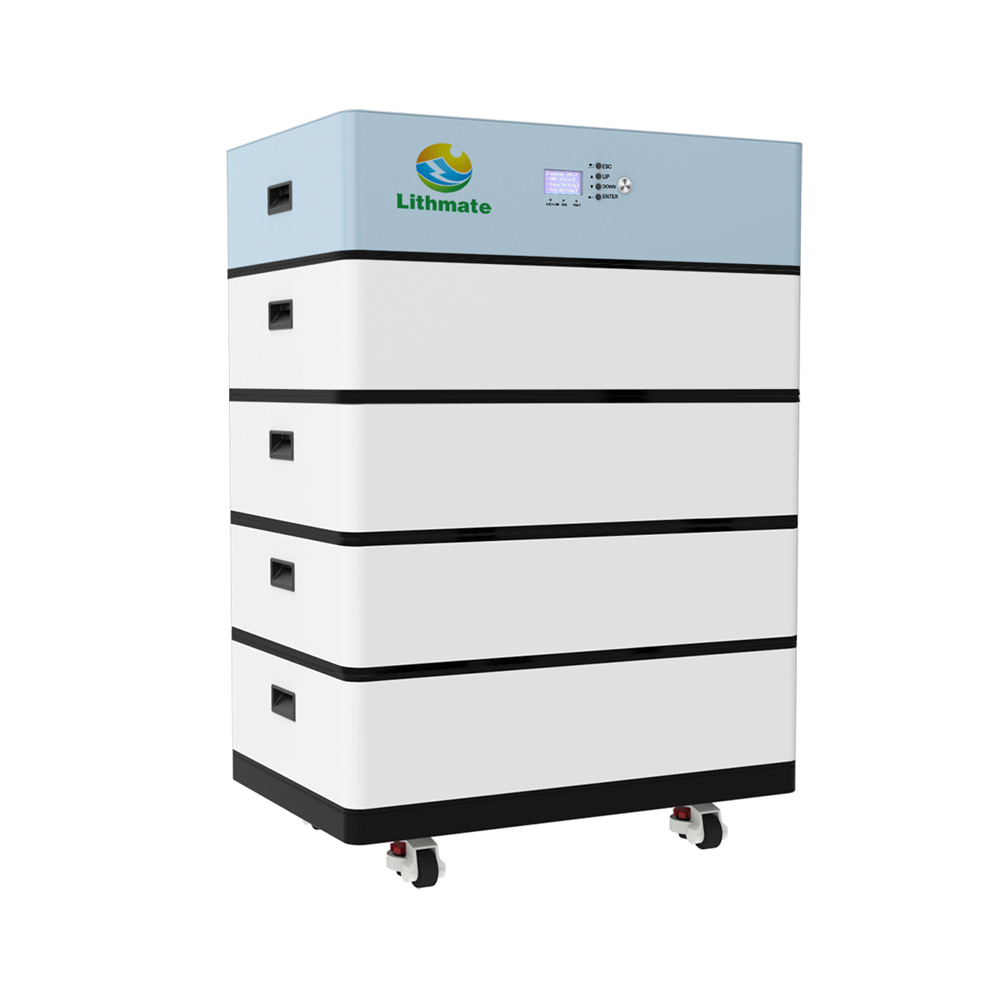

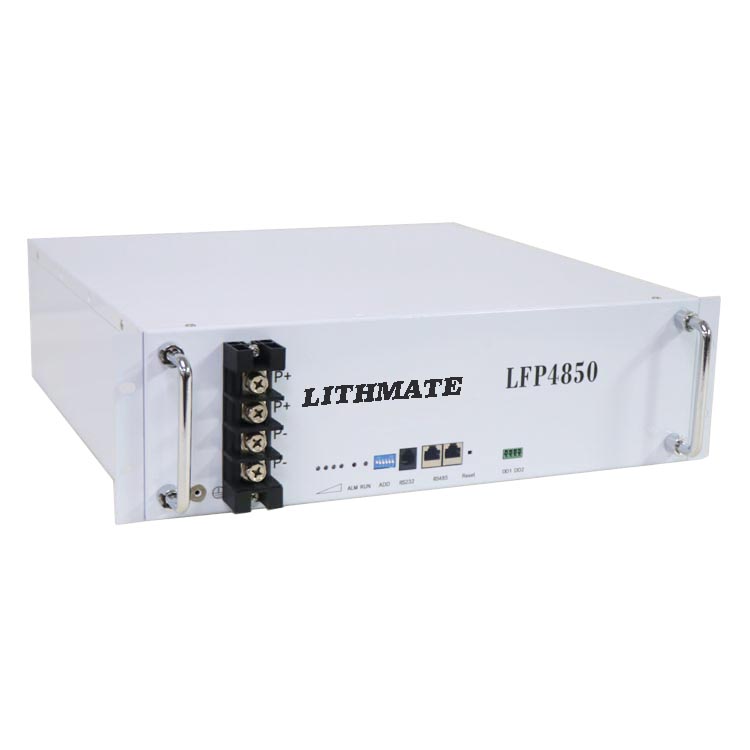

Specializing in advanced energy storage systems designed for residential, commercial, and industrial applications. The product lineup includes wall-mounted, stackable, cabinet-style, and rack-mounted battery types, available in both low-voltage and high-voltage configurations.

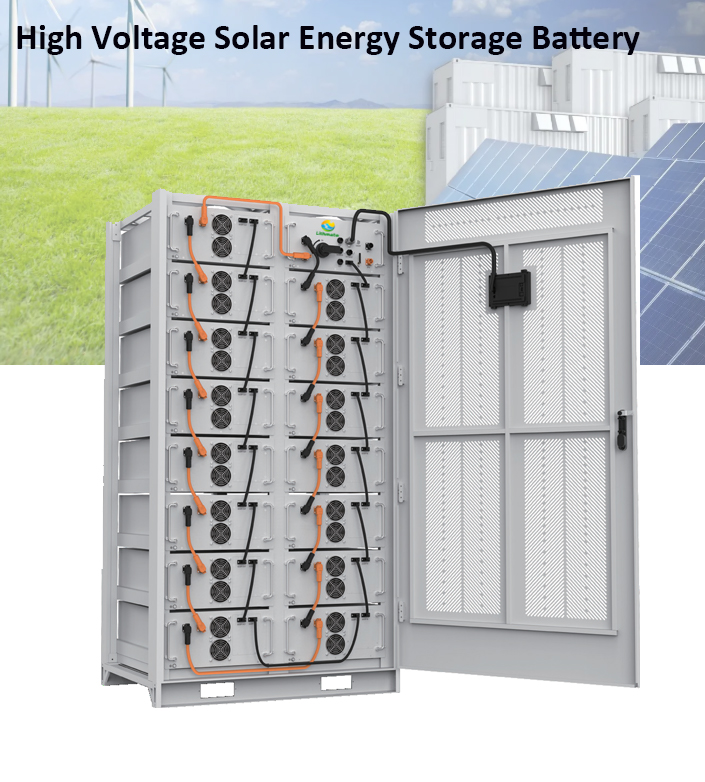

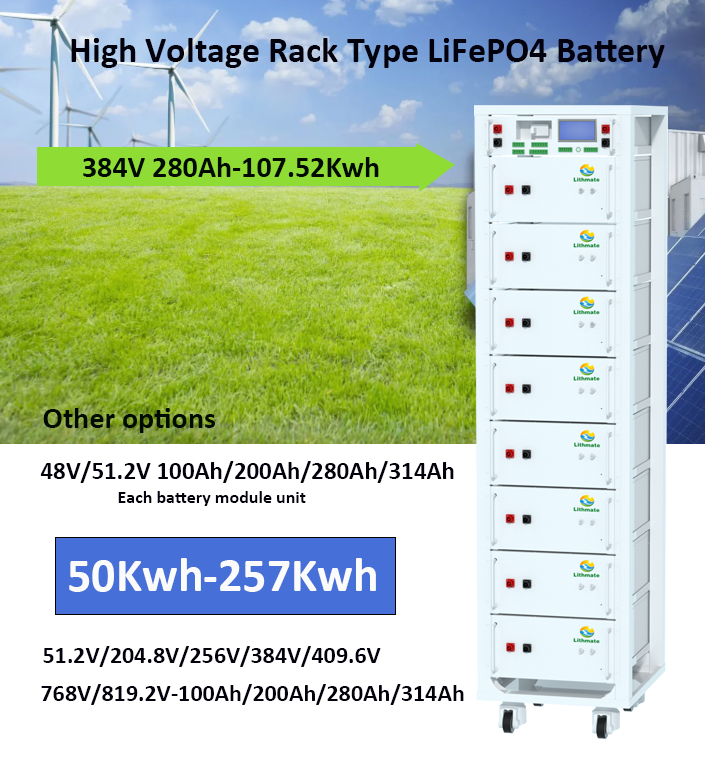

Energy Storage Batteries Range: From 48V/51.2V to 819.2V, Capacity range from 50Ah to 314Ah.

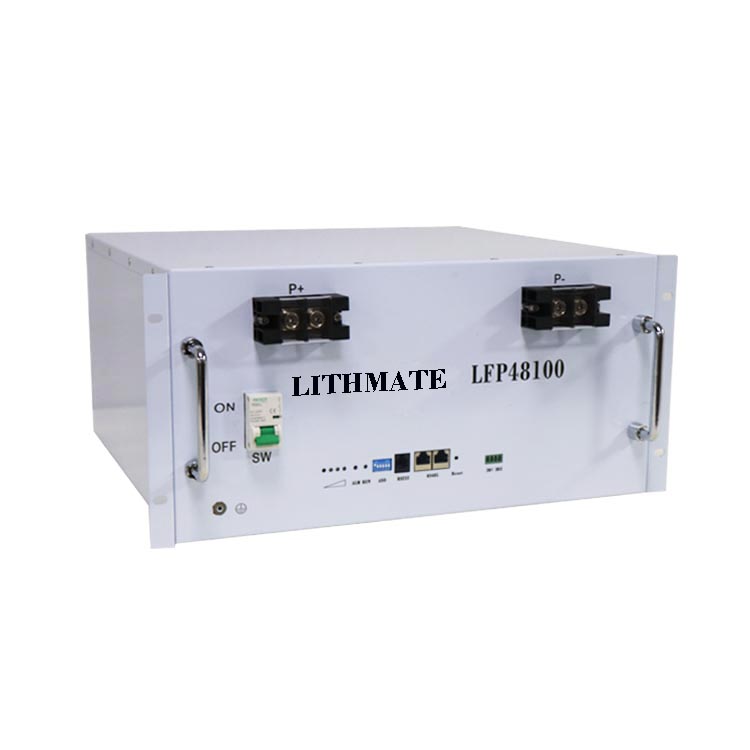

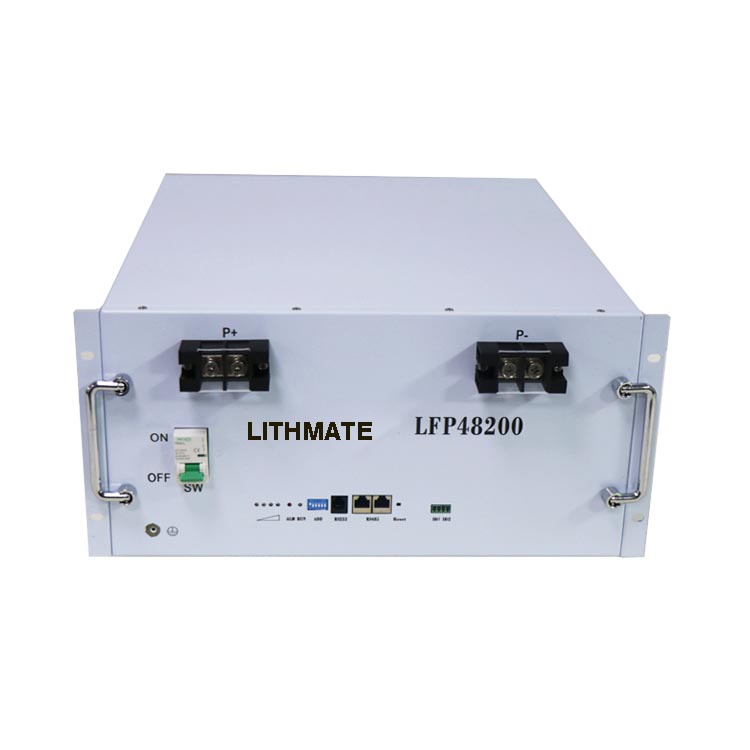

| Battery Module Unit Specifications | |||||
|---|---|---|---|---|---|
| Rated Voltage | 51.2V | ||||
| Capacity | 50Ah | 100Ah | 200Ah | 280Ah | 314Ah |
| Energy | 2.56kwh | 5.12Kwh | 10.24Kwh | 14.33Kwh | 16.07Kwh |
| Discharge Current | 50A | 100A | 150A | 150A | 150A |
| Size | 482.6*430.2*132.5mm | 482.6*555.2*177mm | 482.6*600.2*225mm | 482.6*610*221.5mm | 482.6*610*221.5mm |
| Weight | 40KG | 46.72KG | 85Kg | ~135KG | 135KG |

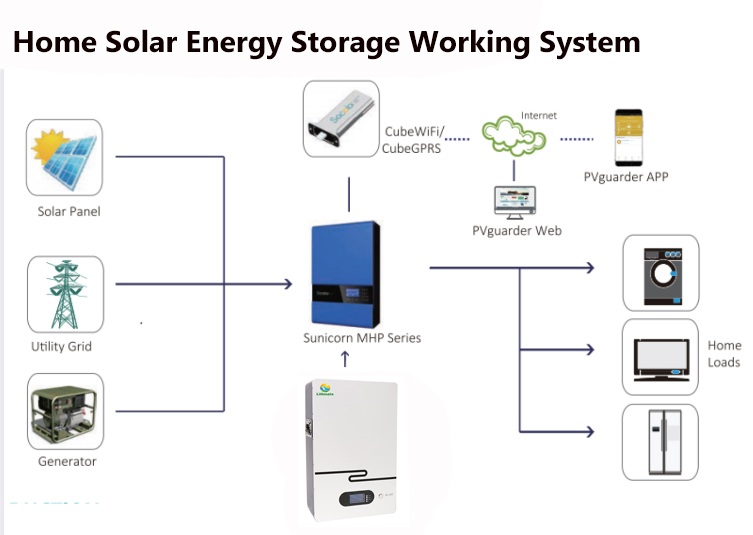

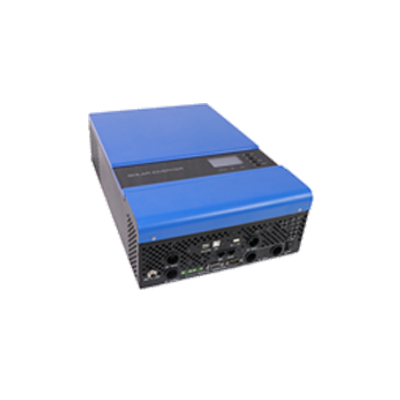

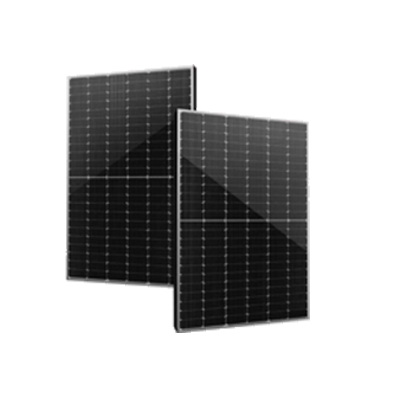

Integrated Components: Solar Panels | Energy Storage Battery | Inverter (Built-in for stackable types)
