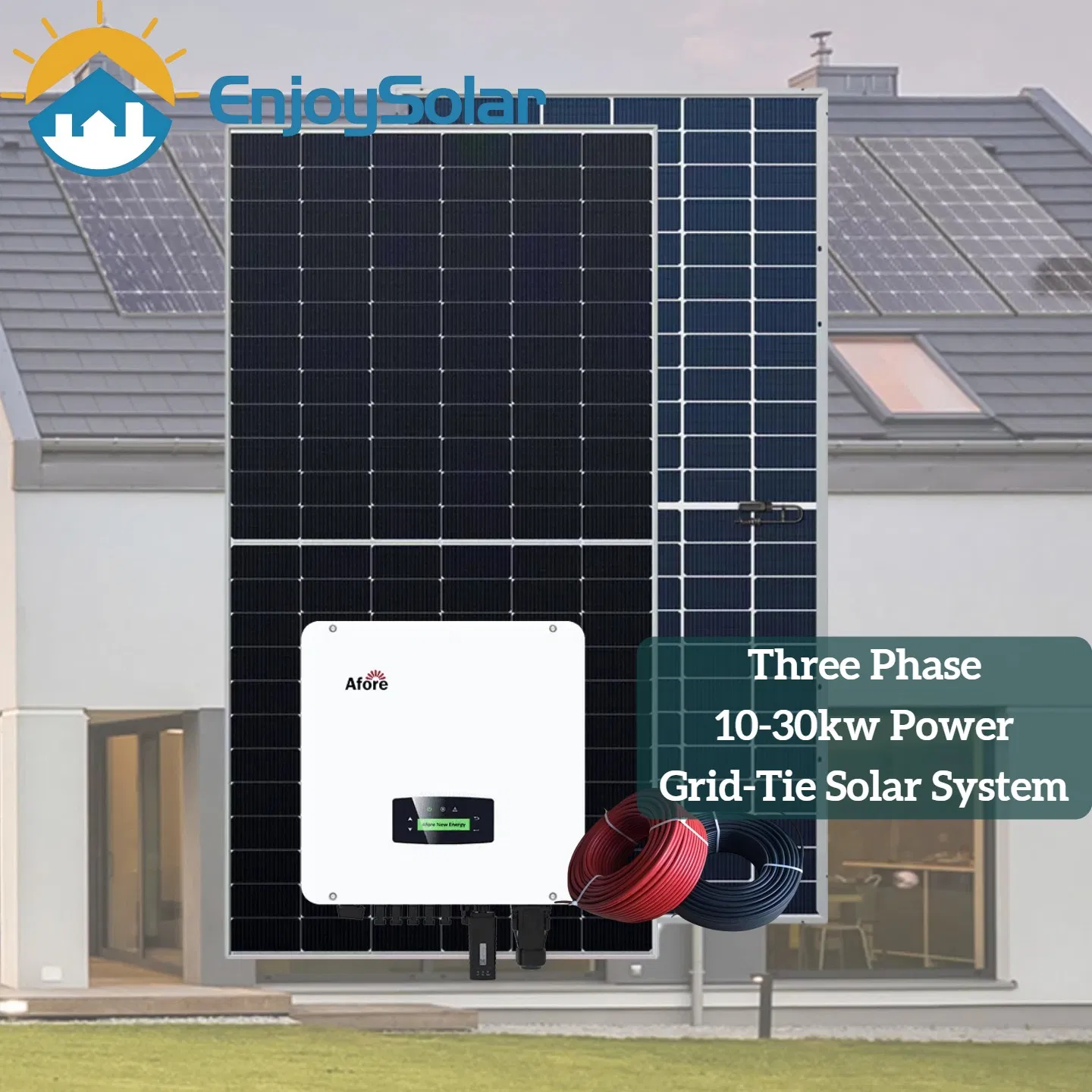

High Quality 10/12/14kw Grid-Tied Solar Energy System for Home Storage System

1 / 5

High Quality 10/12/14kw Grid-Tied Solar Energy System for Home Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ES10K-ON

Condition

New

Certification

ISO, CE, TUV

Application

Home, Industrial, Commercial

Product Name

Grid-Tie Solar System

Output Power

10kw

Output Voltage

220V/280V; 230V/300V; 240V/415V

Solar Panel Type

Mono Perc, Topcon, Hjt

Inverter Type

Grid-Tied

Design Life

30 Years

Monitor

WiFi, Bluetooth, RS485, Can

Origin

China

Product Description

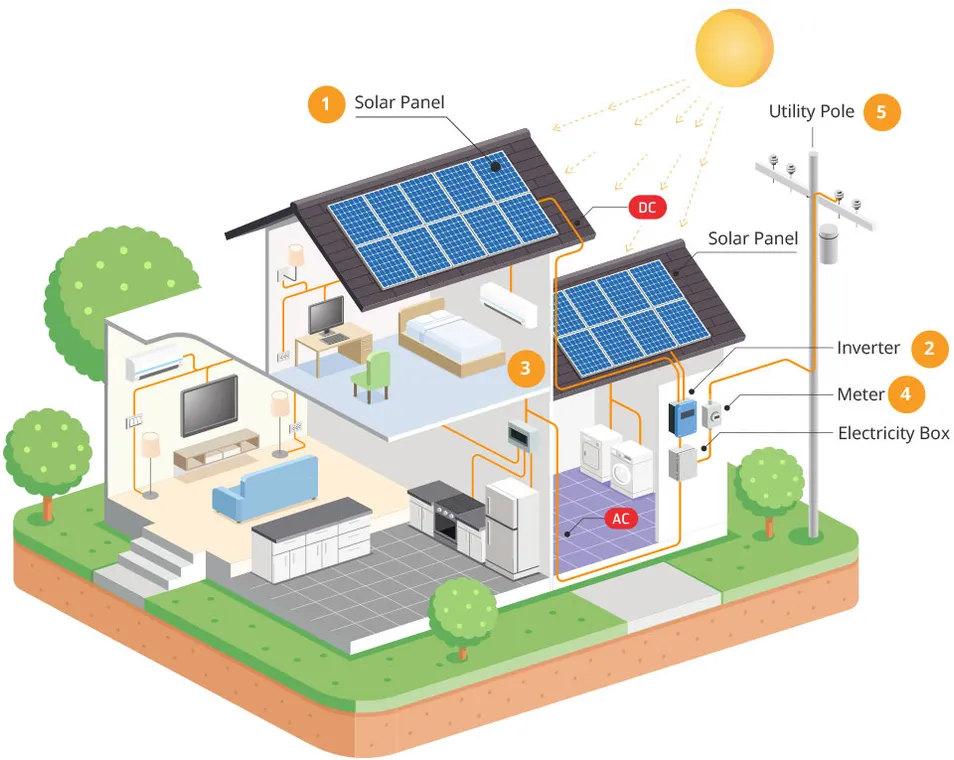

How an On-Grid Solar System Works?

Solar Panel Generation: Solar panels convert sunlight into direct current (DC) electricity.

Inverter: An inverter converts DC electricity into alternating current (AC) for home use.

Grid Connection: AC electricity is fed into the home system; excess is sent to the utility grid.

Net Metering: Tracks energy used vs. energy sent back, allowing for credits.

System Specifications

System Configurations for 10KW-30KW Grid-Tie Solutions
Model	ES10KW-ON	ES20KW-ON	ES30KW-ON
AC Output Power	10KW	20KW	30KW
Solar Panels	610W * 18Units	610W * 34Units	610W * 50Units
Inverter	10KW 3P	20KW 3P	30KW 3P
PV Cables	100M * 2 Units	100M * 4 Units	100M * 6 Units

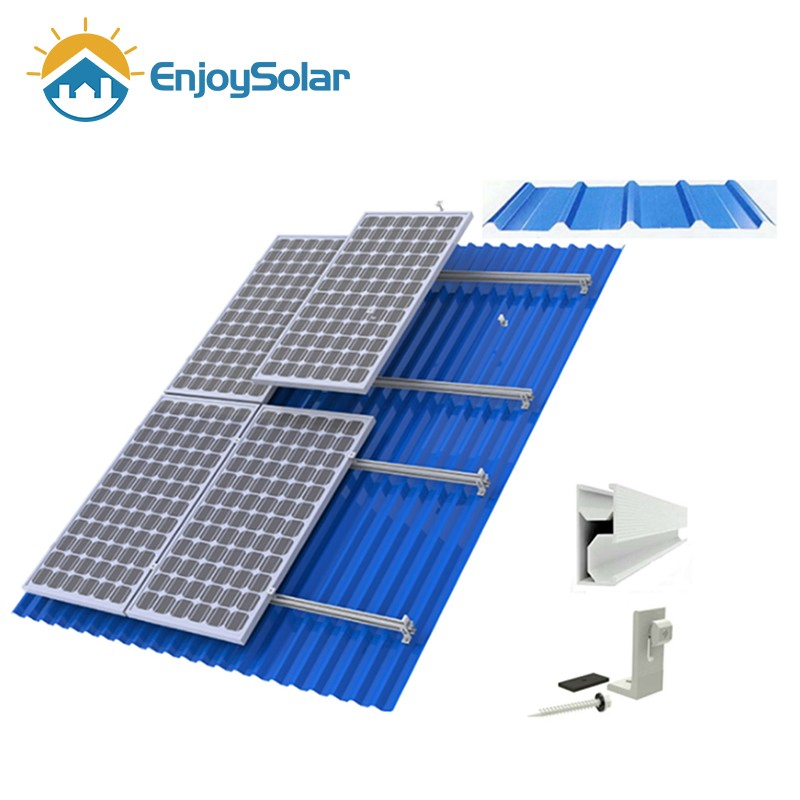

Mounting Kits	Customized based on installation Site

Remarks: These are typical configurations. Customized solutions are available upon request.

Main Components

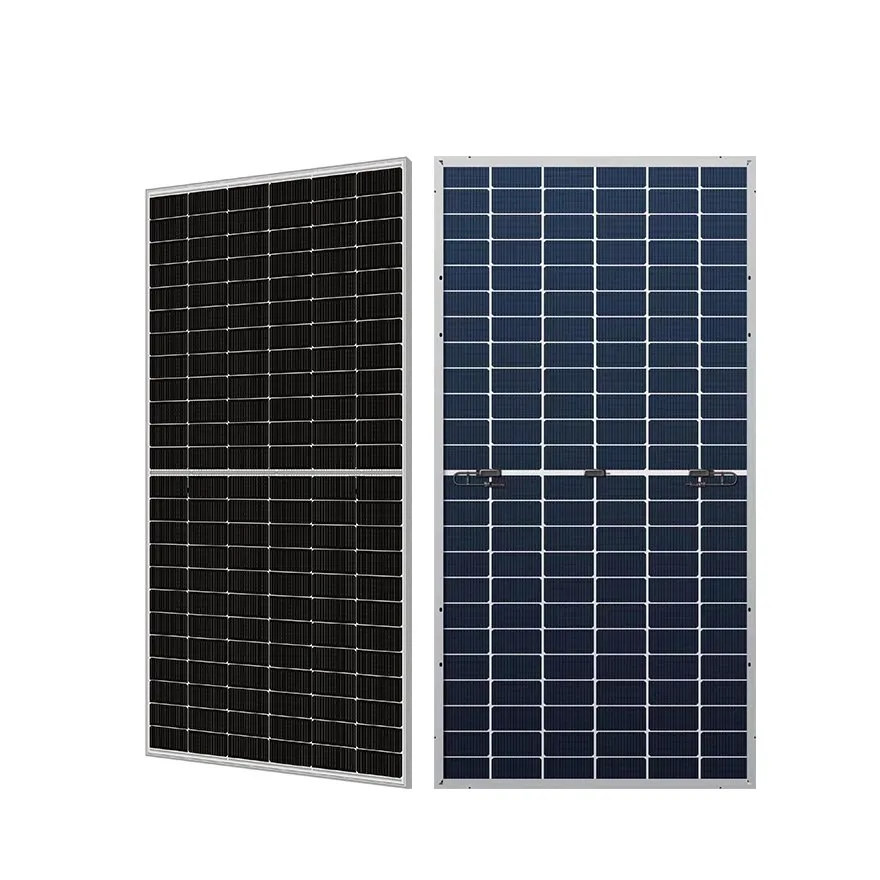

High Efficiency Topcon Solar Panel

Model: ES610M-72PH
Peak Power: 610Wp
Dimensions: 2278*1134*30mm
Weight: 31.5kg

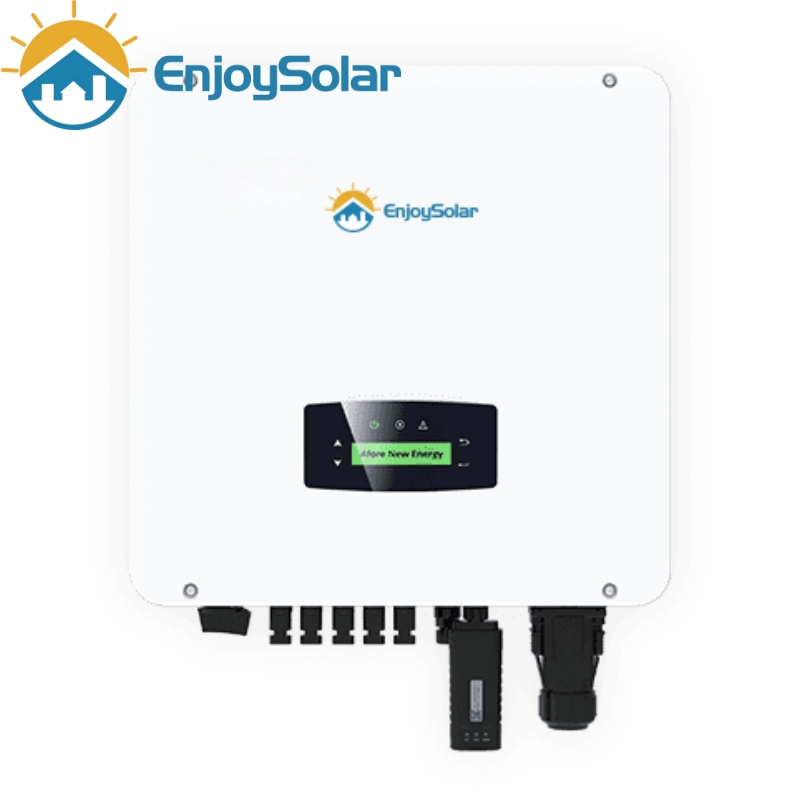

Advanced Grid-Tie Inverter

Max. Efficiency: 99.75%
Up to 10 MPPTs
Wide voltage range & low startup voltage
Remote firmware upgrade support

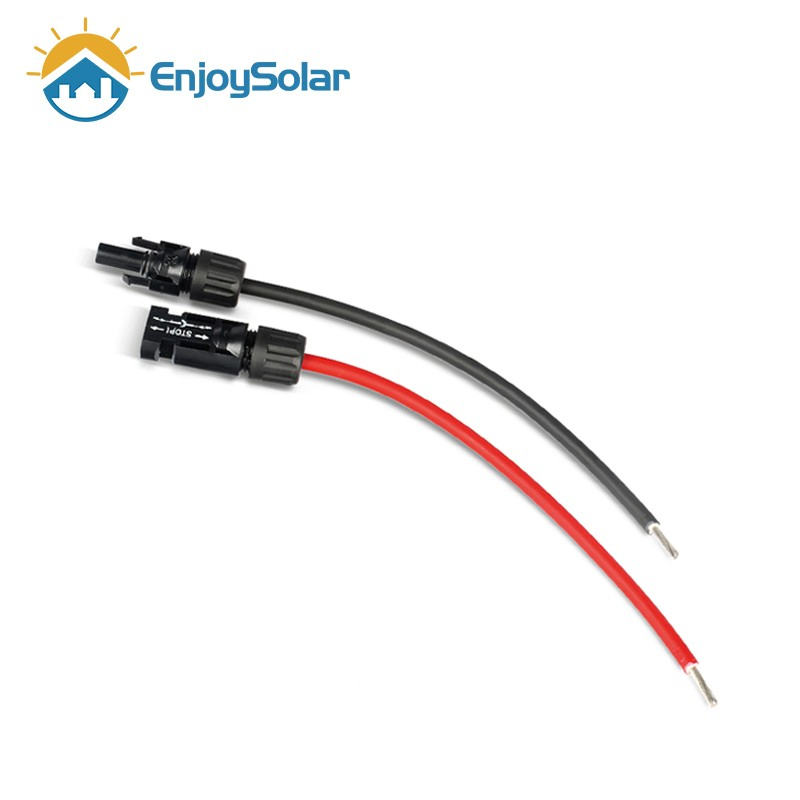

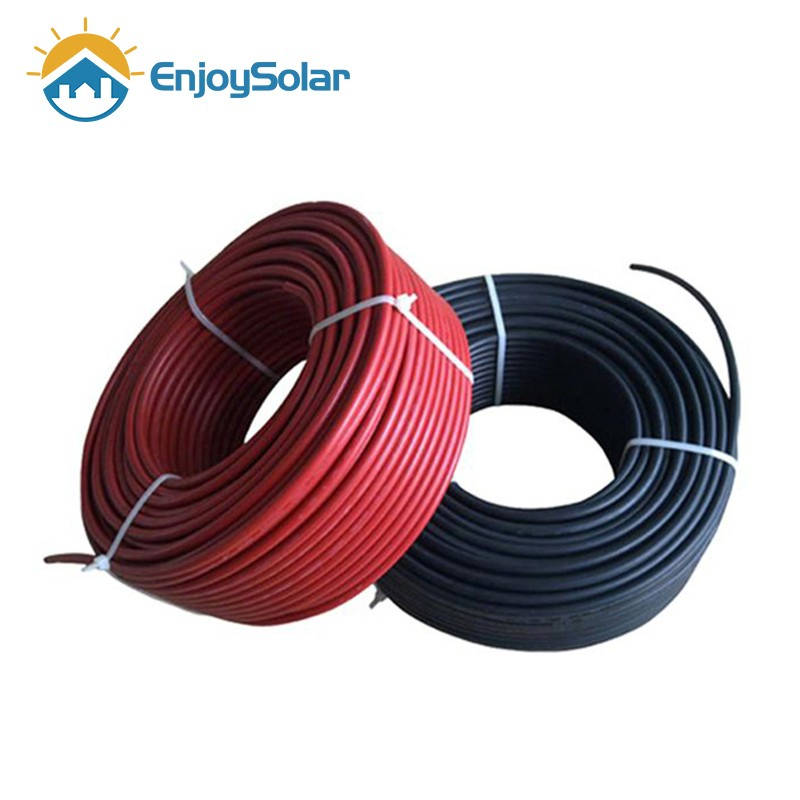

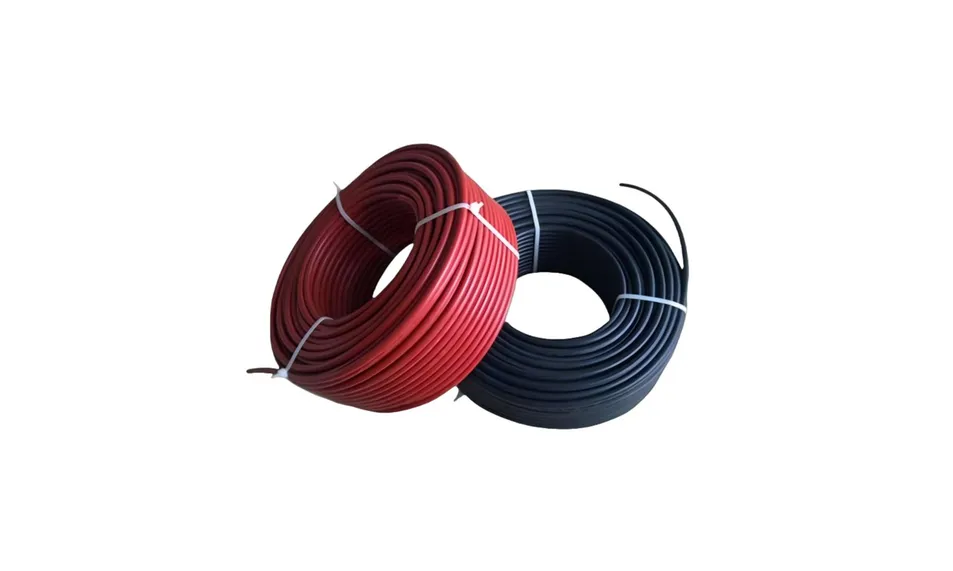

Solar PV Cables

Cross Section: 4mm², 6mm² optional
Rated Voltage: 600VDC/1000VDC (TUV)
Lifetime: ≤25 Years

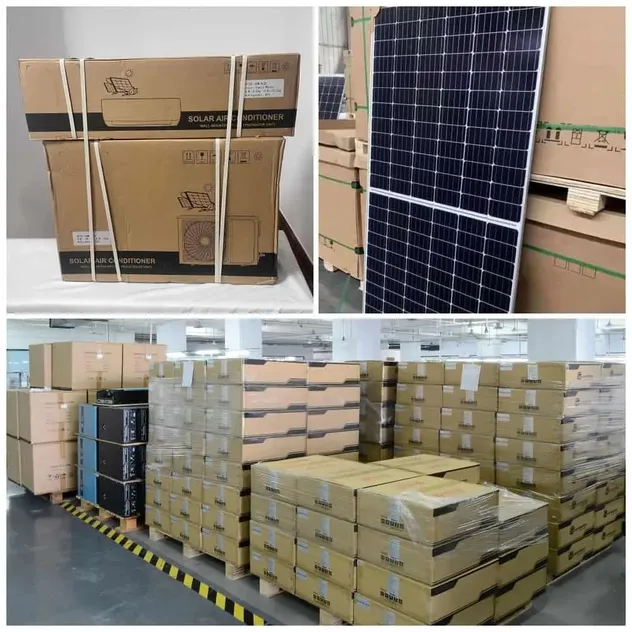

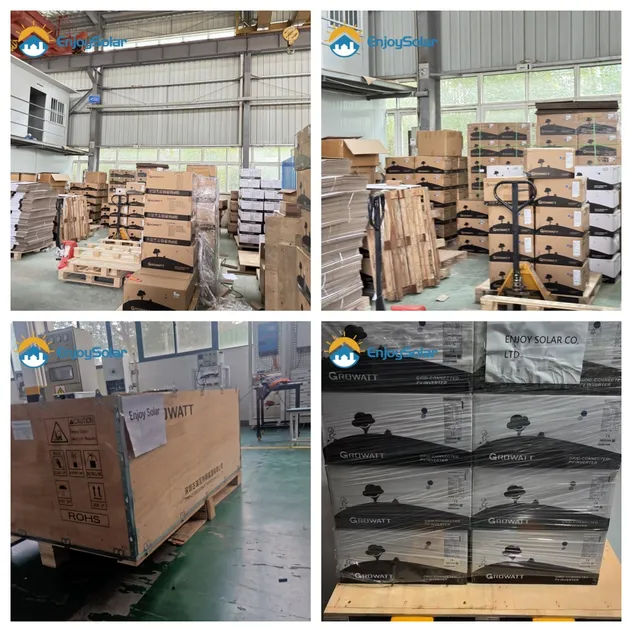

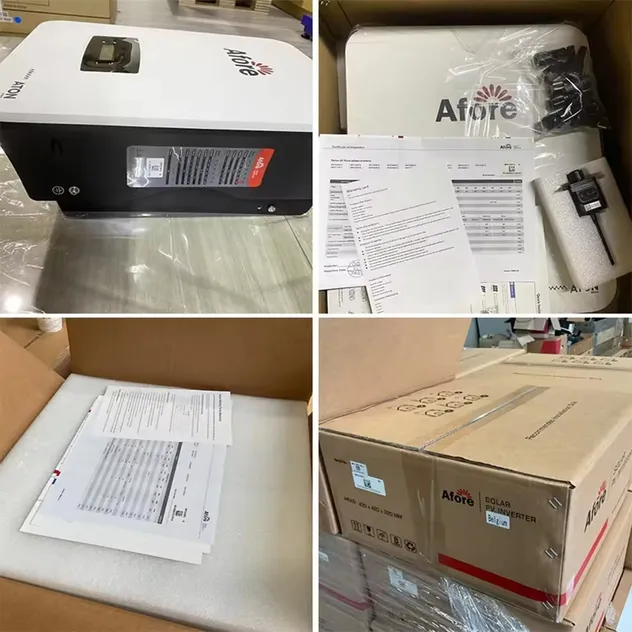

Packaging & Shipping

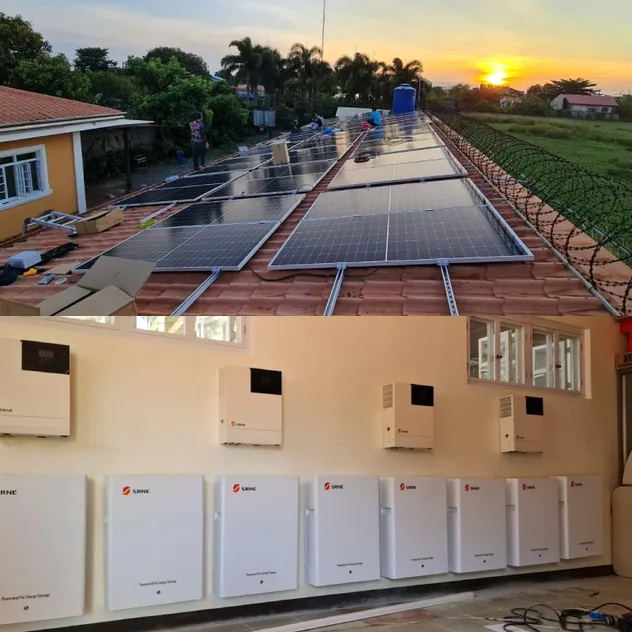

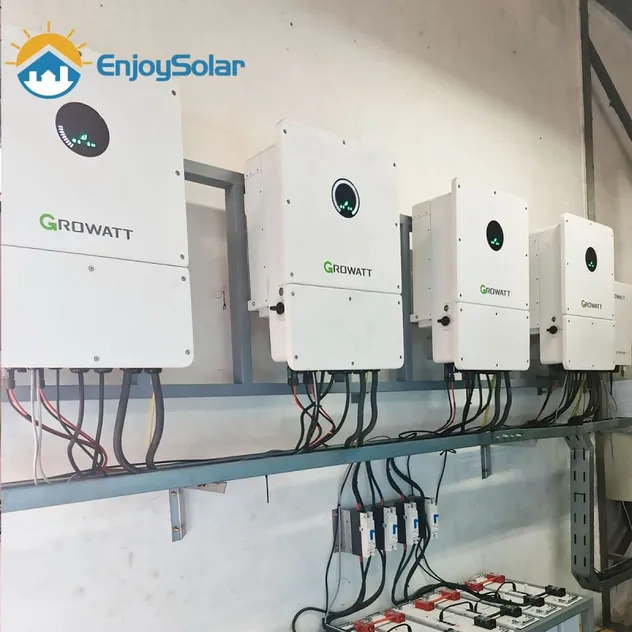

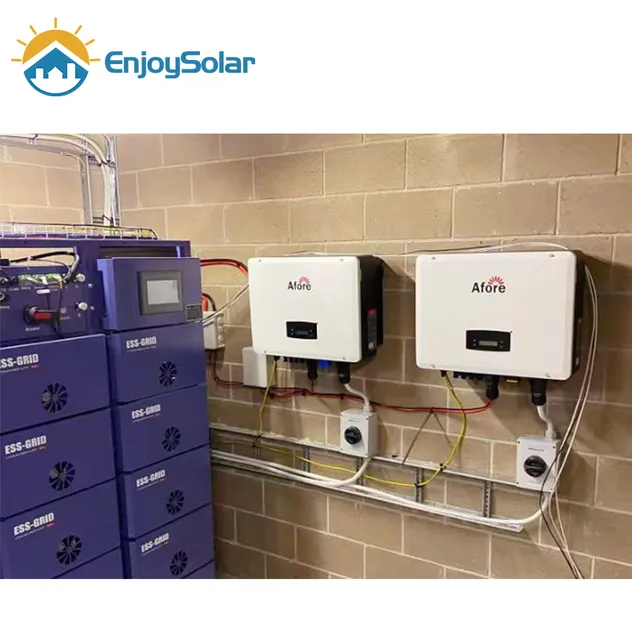

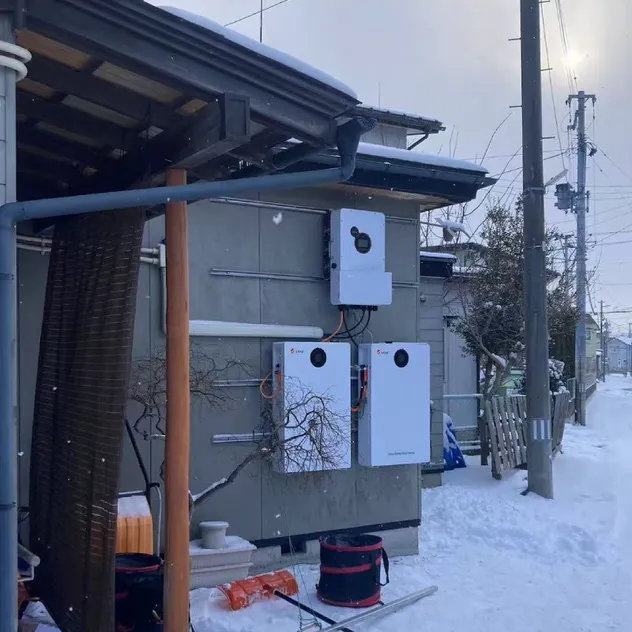

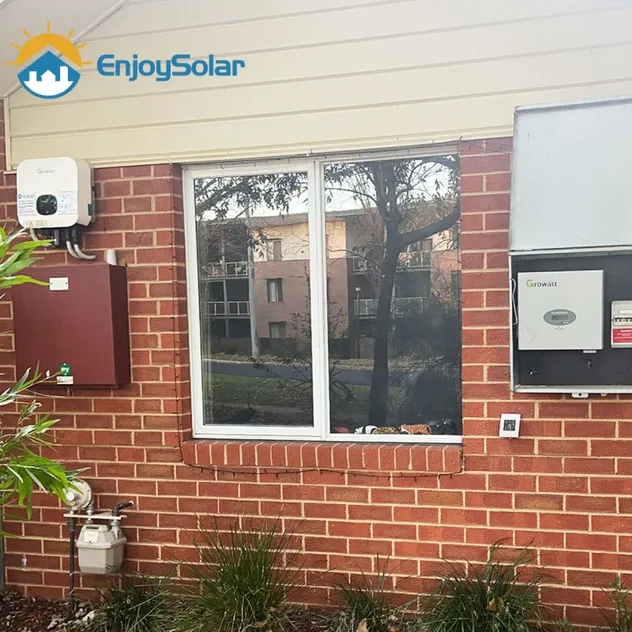

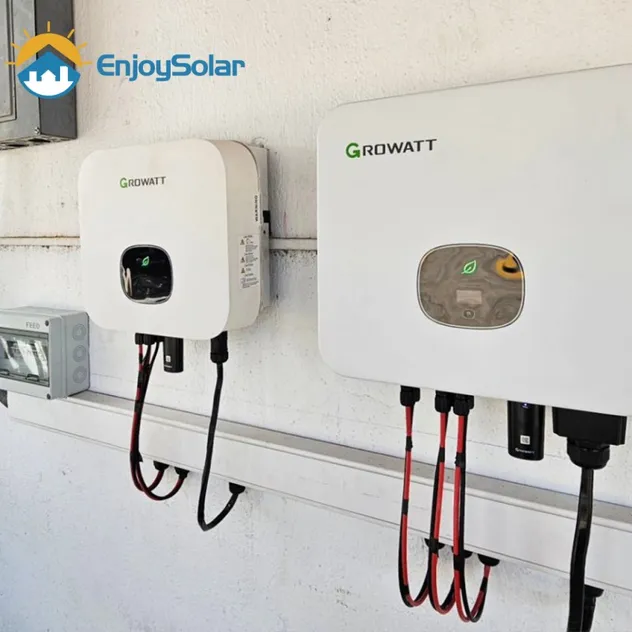

Global Projects

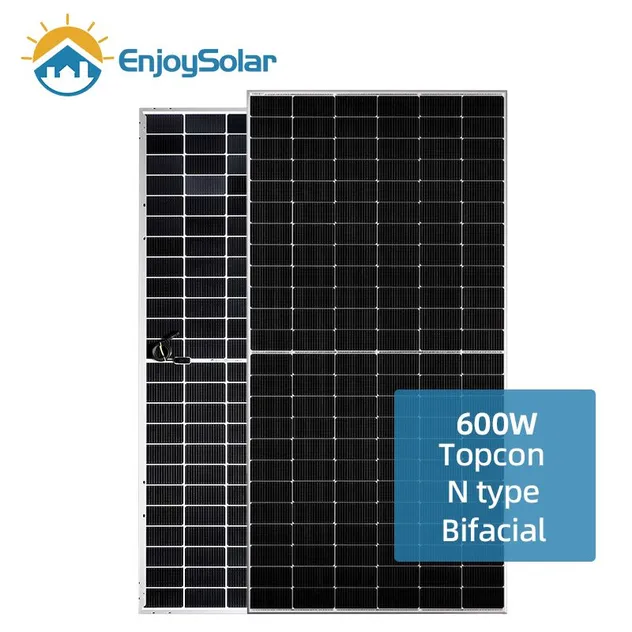

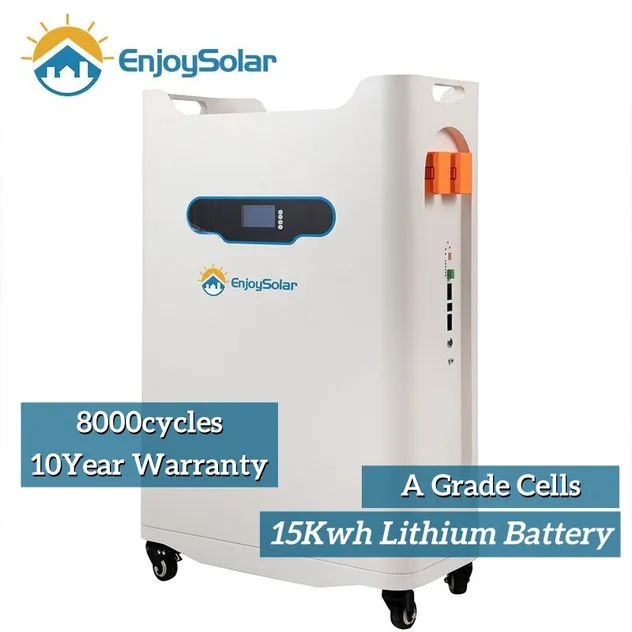

Hot Sale Products

Frequently Asked Questions

What is a grid-tie solar system?

A grid-tie solar system is connected to the local utility grid. It allows you to use solar power when available and pull from the grid when needed, while sending excess energy back to the utility company.

Can I sell excess electricity back to the grid?

Yes, most regions support net metering where you receive credits or payments for the surplus energy your system generates and feeds back into the power grid.

What is the expected lifespan of the system?

The system is designed for a long service life, with solar panels typically lasting over 25-30 years and inverters engineered for high reliability with remote monitoring capabilities.

Does the system work during a power outage?

Standard grid-tie systems are designed to shut down during a power outage for safety reasons (anti-islanding) to protect utility workers. For backup during outages, a hybrid system with batteries would be required.

Are the solar panels resistant to extreme weather?

Yes, the panels are manufactured with high-quality tempered glass and aluminum frames, certified to withstand high wind loads and heavy snow pressure.

How can I monitor my system's performance?

The system includes smart monitoring options via WiFi, Bluetooth, or RS485, allowing you to track energy production in real-time through a mobile app or web portal.
