We are committed to using freshly produced LiFePO4 cells, ensuring that the entire process from cell production to assembly into battery PACKs is strictly controlled within 90 days. This approach consistently maintains the cells at their best in terms of performance, reliability, and long-term stability.

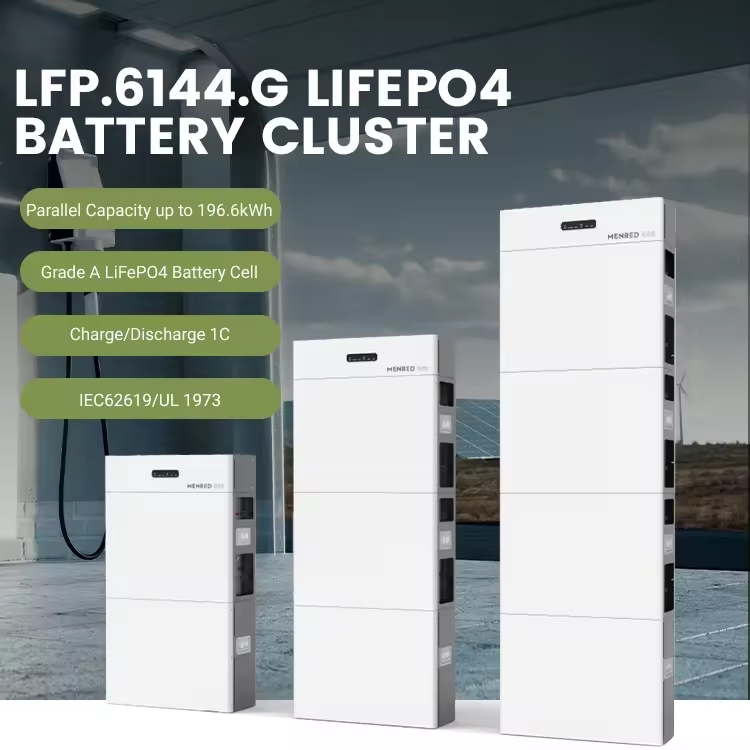

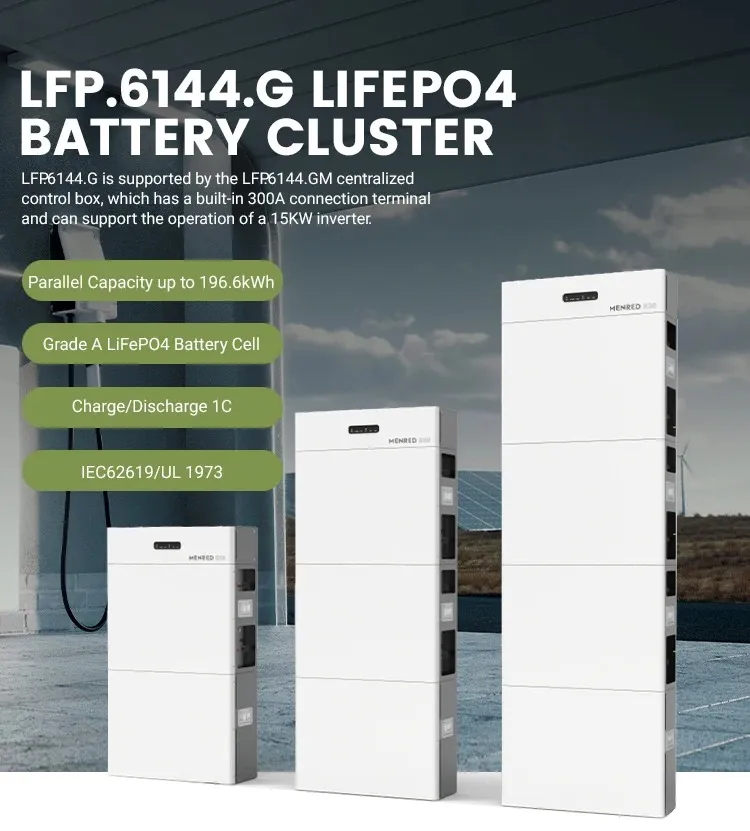

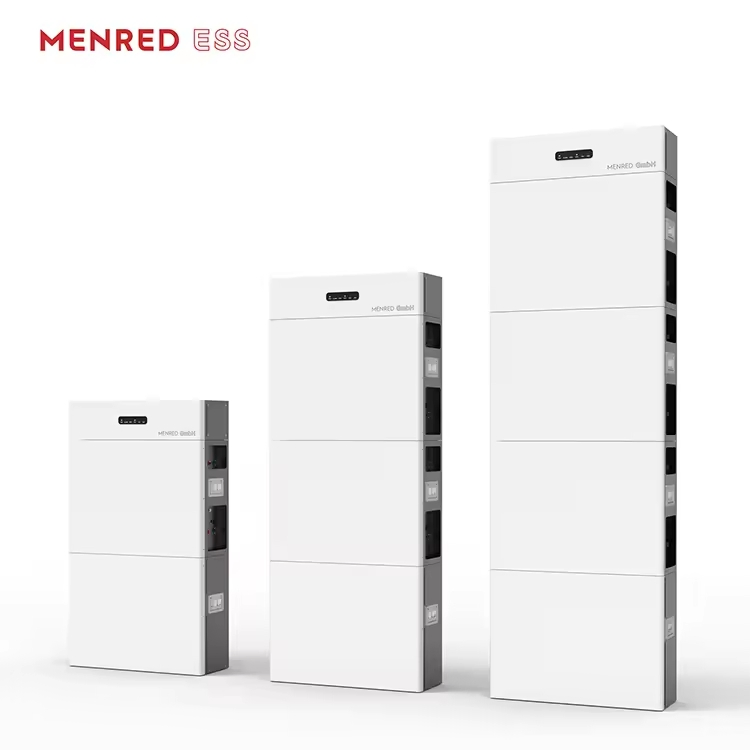

| Model | LFP.6144 .G2 | LFP.6144 .G3 | LFP.6144 .G4 |
| Battery Cell | Lithium Iron Phosphate (cobalt-free)-LiFePO4 | ||

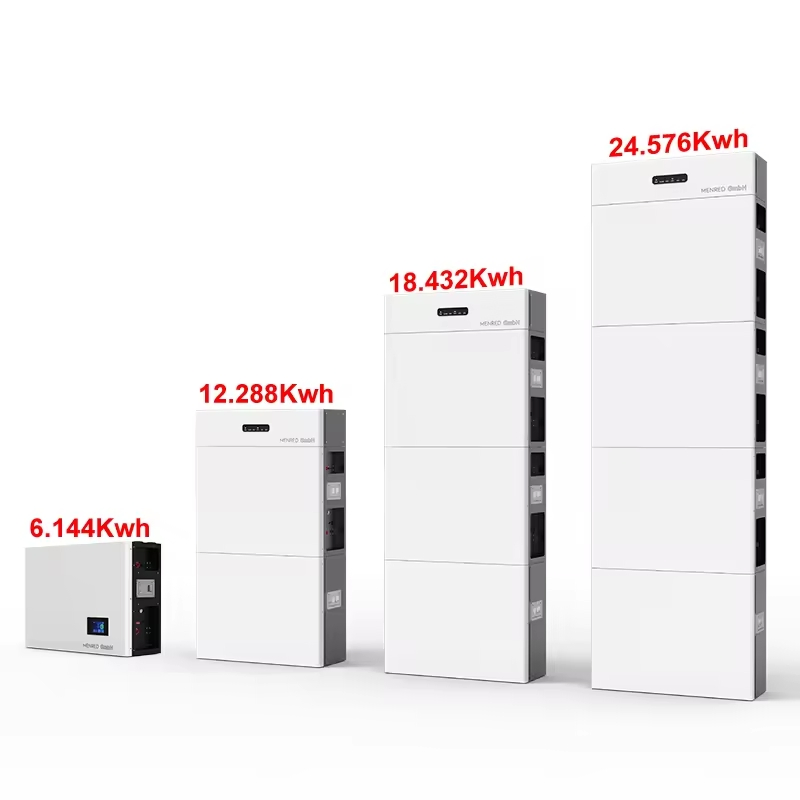

| Energy Capacity | 12.28kWh | 18.43kWh | 24.57kWh |
| Usable Capacity | 11.66kWh (DoD 95%) | 17.50kWh (DoD 95%) | 23.34kWh (DoD 95%) |
| Assembly Method | 1 Parallel Control Box and 2 Battery Packs | 1 Parallel Control Box and 3 Battery Packs | 1 Parallel Control Box and 4 Battery Packs |
| Nominal Voltage | 51.2Vdc | ||
| Voltage Range | 44.8Vdc-57.6Vdc | ||
| Max Charge Current | 300Amp Max @ 15kW inverter | ||
| Cycle Life | ≥6000 times @ 1C 0.5C & 25±2°C | ||
| Warranty | 5 Years / 10 Years (Optional) | ||
| IP Grade | IP21 (Indoor) | ||
| BMS Monitoring | SOC, System Voltage, I/O Current, Cell Voltage, Cell Temp, Battery Status, Fault code | ||

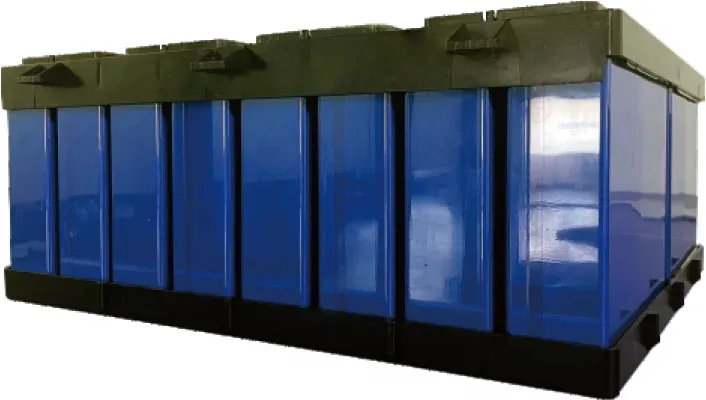

The unique design of integrated plastic fixed modules ensures a gap of 7mm between battery cells. This ensures sufficient and uniform heat dissipation during full load operation, reducing risks of short circuits and overheating.

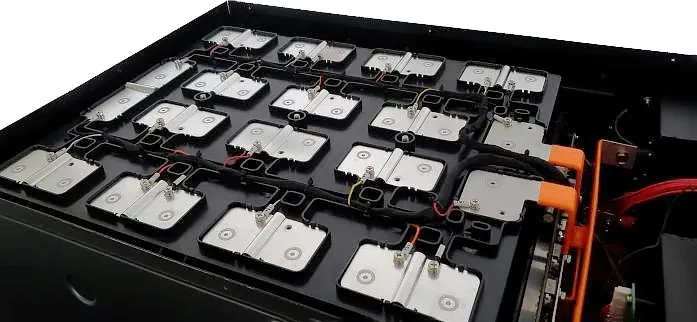

Using aluminum connection straps three times the rated current to reduce losses. Laser seamless automated production ensures reliable connections and avoids risks of detachment or false welding.

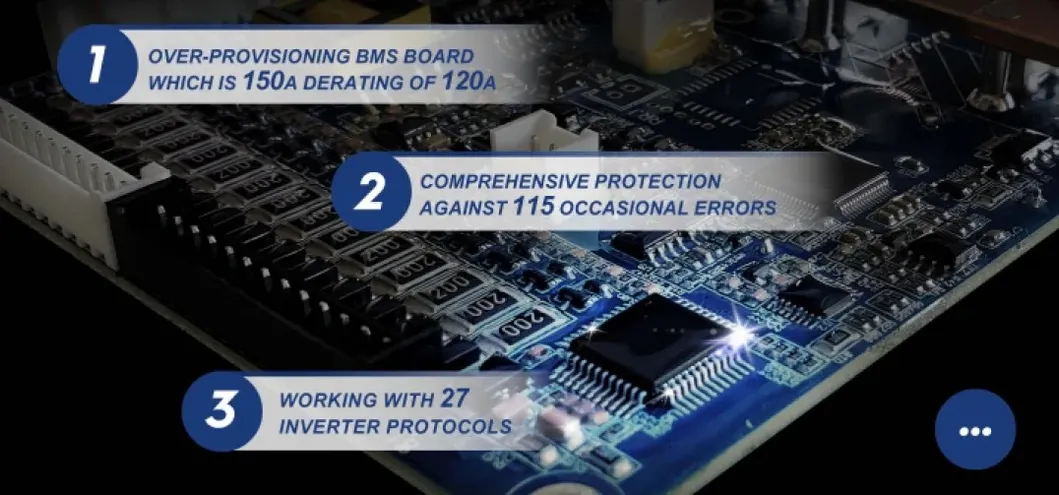

The protection system features 115 sensing points. It includes passive balancing to ensure high cell consistency and minimize degradation over long-term use.

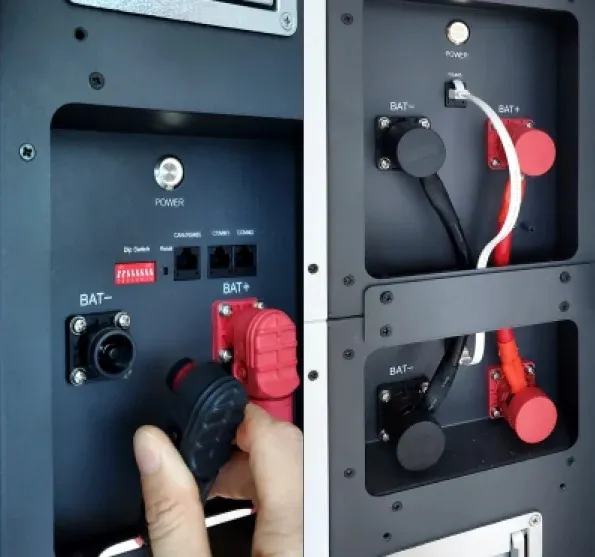

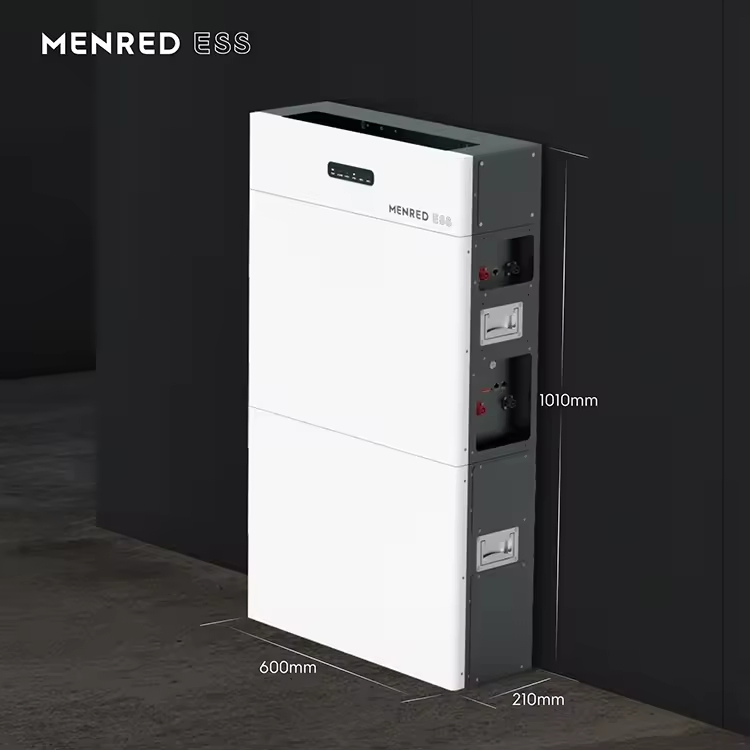

Hot-pluggable interfaces with concealed entry/exit terminals. Supports both wall mounting and stacking. Scalable up to 16 modules for a total capacity of 98.3 kWh.
Our systems are compatible with a wide range of industry-leading inverters via CAN and RS485 communication protocols:

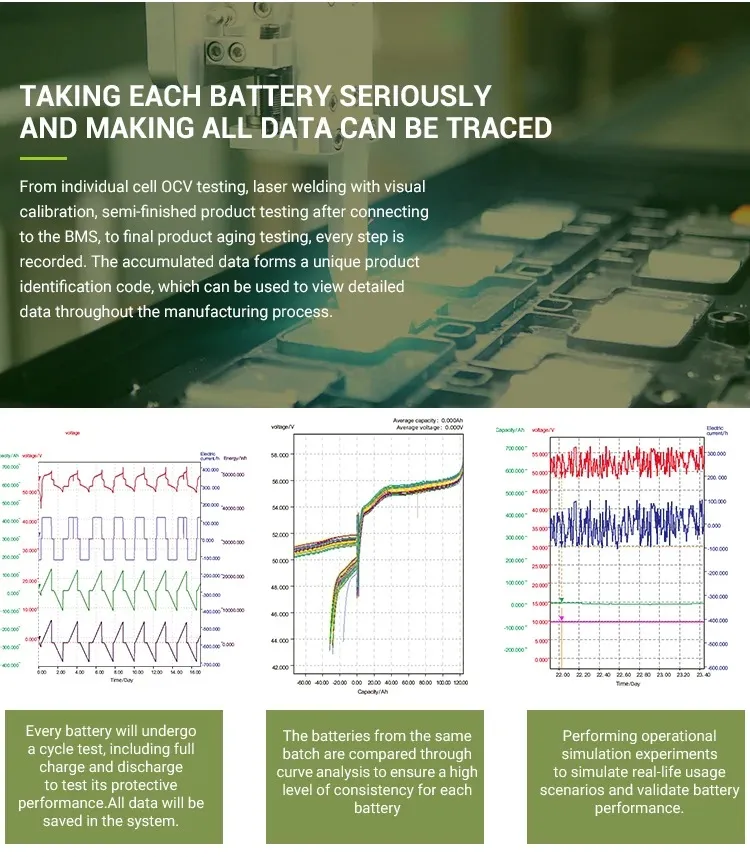

EVERY battery undergoes a full cycle test, including complete charge and discharge to validate protective performance. All data is logged in our system.
CURVE ANALYSIS is performed on every batch to ensure consistency across all battery units produced.

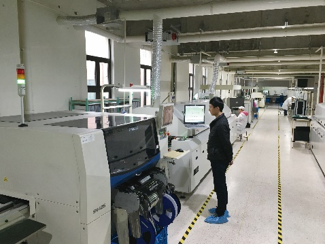

Electronics Workline

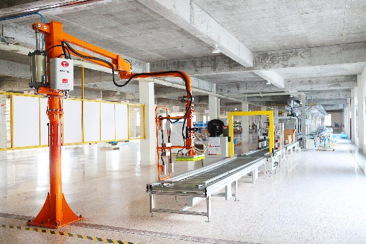

Advanced Production Line

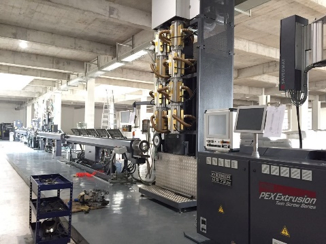

Automated Extrusion Line
