Factories, Retail & Parks • Peak-Valley Arbitrage • Grid Compliant • 3-Year ROI
Turn Energy Costs into Profit: The Smart C&I Storage Solution
Stop losing money to volatile energy prices. Our Liquid-Cooled BESS cuts bills and generates new revenue streams with a fast, predictable ROI.
Whether you are in Frankfurt, London, or Milan, the system adapts to local electricity market rules, transforming static storage into a dynamic profit-generating asset.
| Key Indicator | Value | Description |
|---|---|---|
| System Config | 105kW / 233kWh | Optimal ratio, balancing power and capacity |
| Annual Net Revenue | €22,000+ | Estimated comprehensive revenue based on stacked strategies |
| Static Payback Period | 3 - 3.5 Years | Highly competitive payback period in the European market |
| Lifecycle Revenue | Approx. €500,000 | Long-term asset appreciation over 25 years |

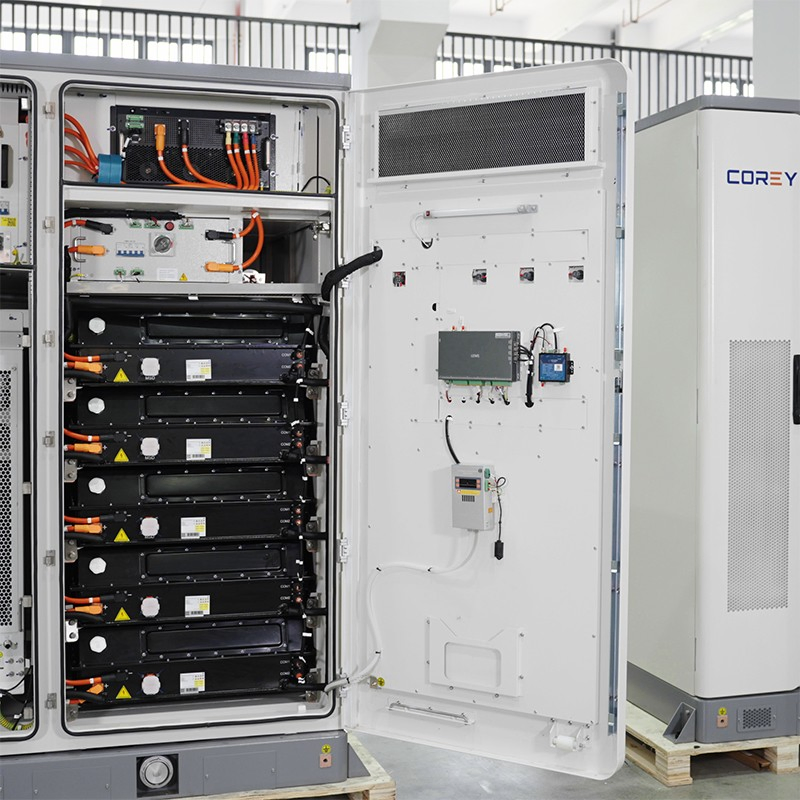

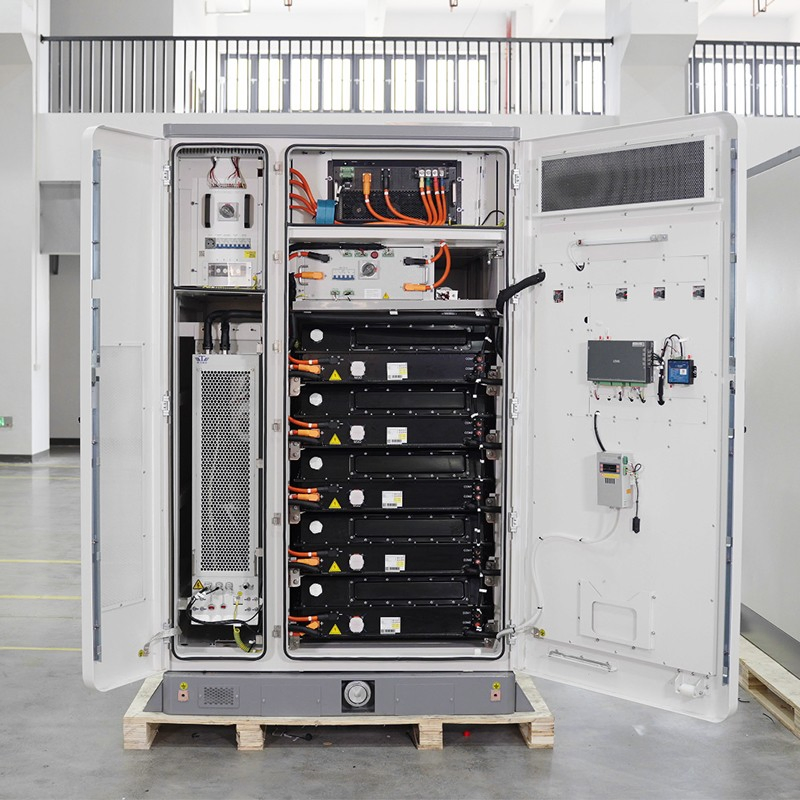

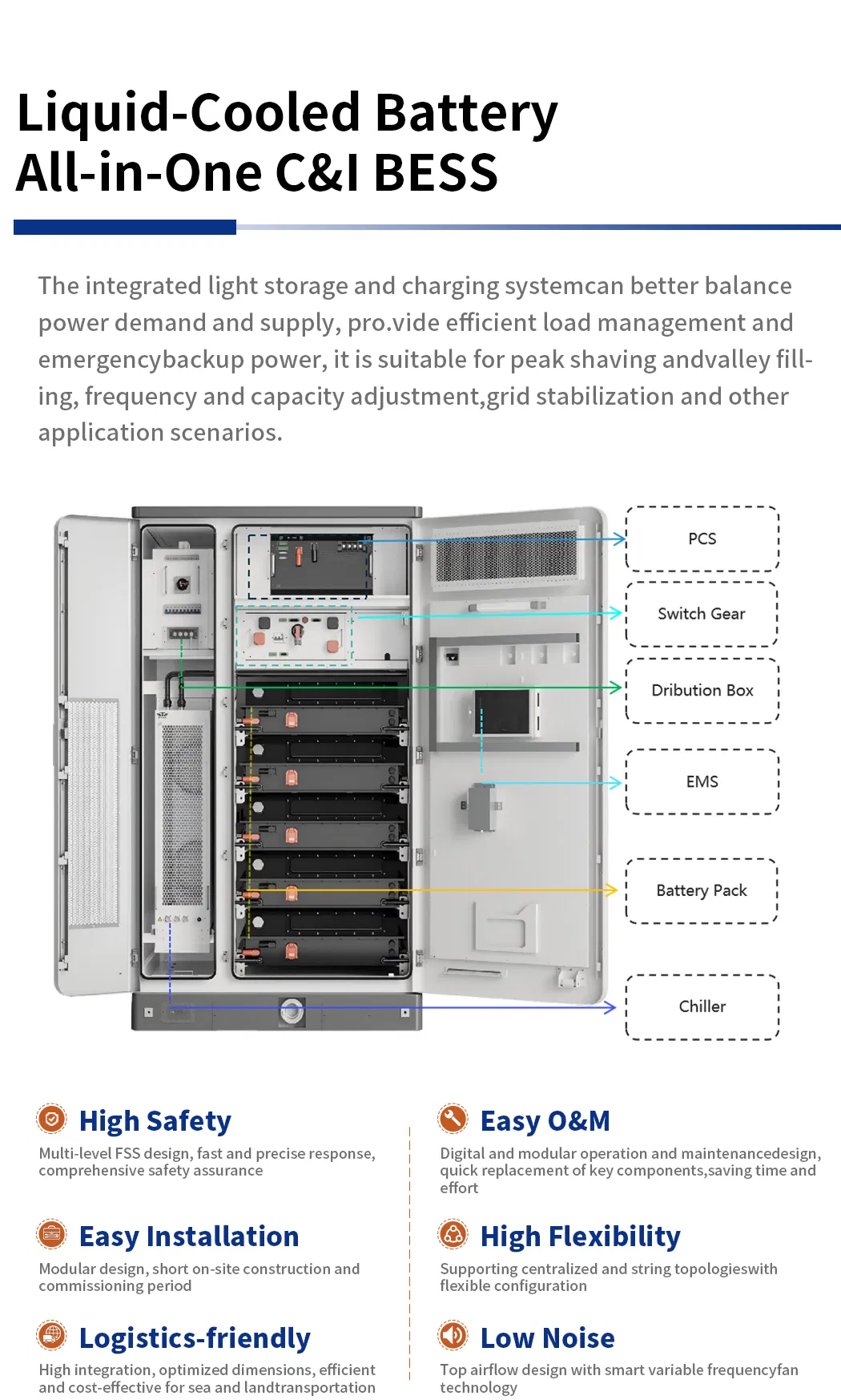

The commercial and industrial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. The three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.

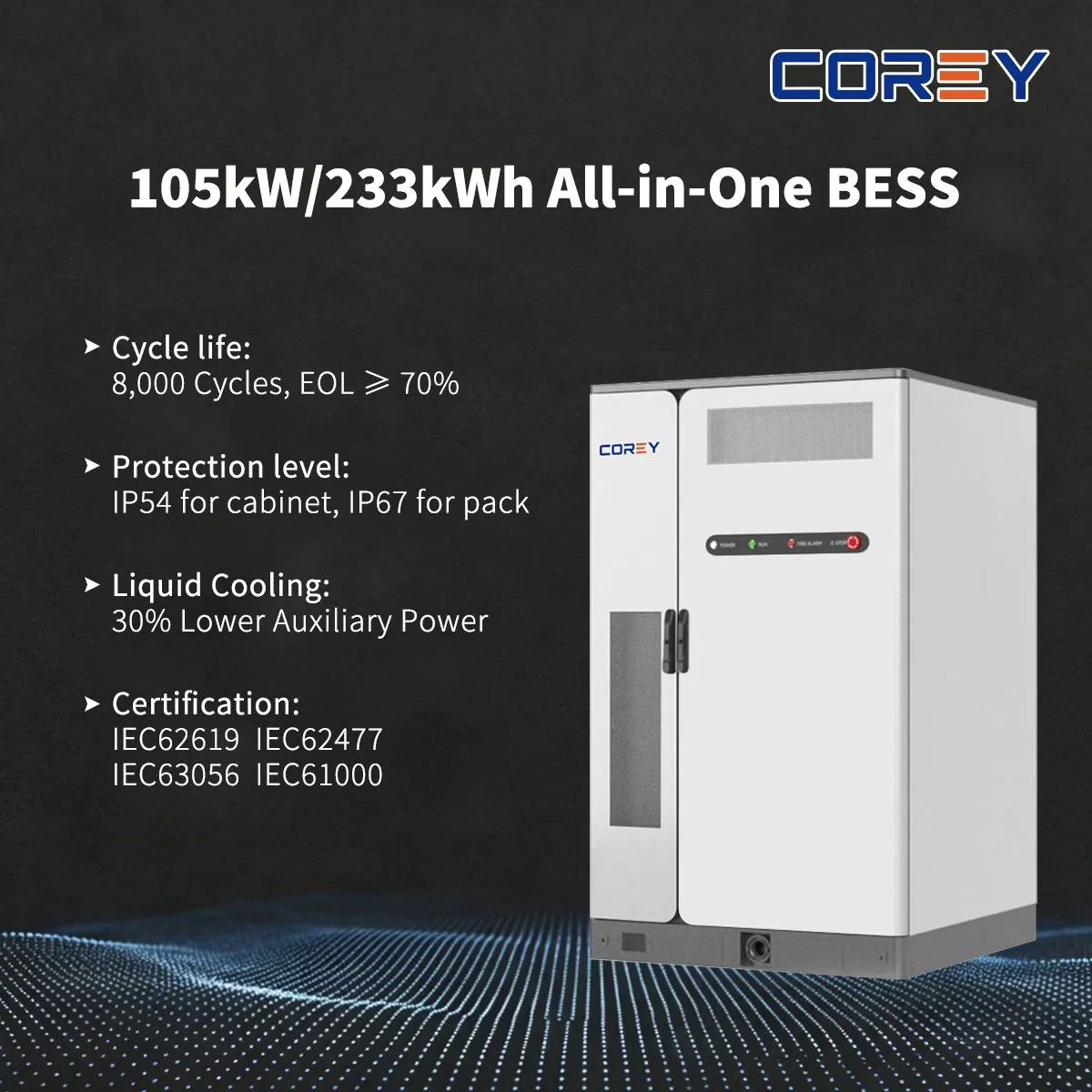

| Technical Parameters (Corey 233CE) | |
|---|---|
| Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh |
| Rated Power | 105kW |
| AC Side Rated Voltage | 230V/400V (±15%) |
| Max AC Current | 167A |
| Communication | CAN / RS485 / Ethernet / 4G |
| Fire Fighting | Aerosol + Water Fire Protection |
| Noise Level | ≤75dB |
| Dimensions | L1560 * D1380 * H2385 mm |

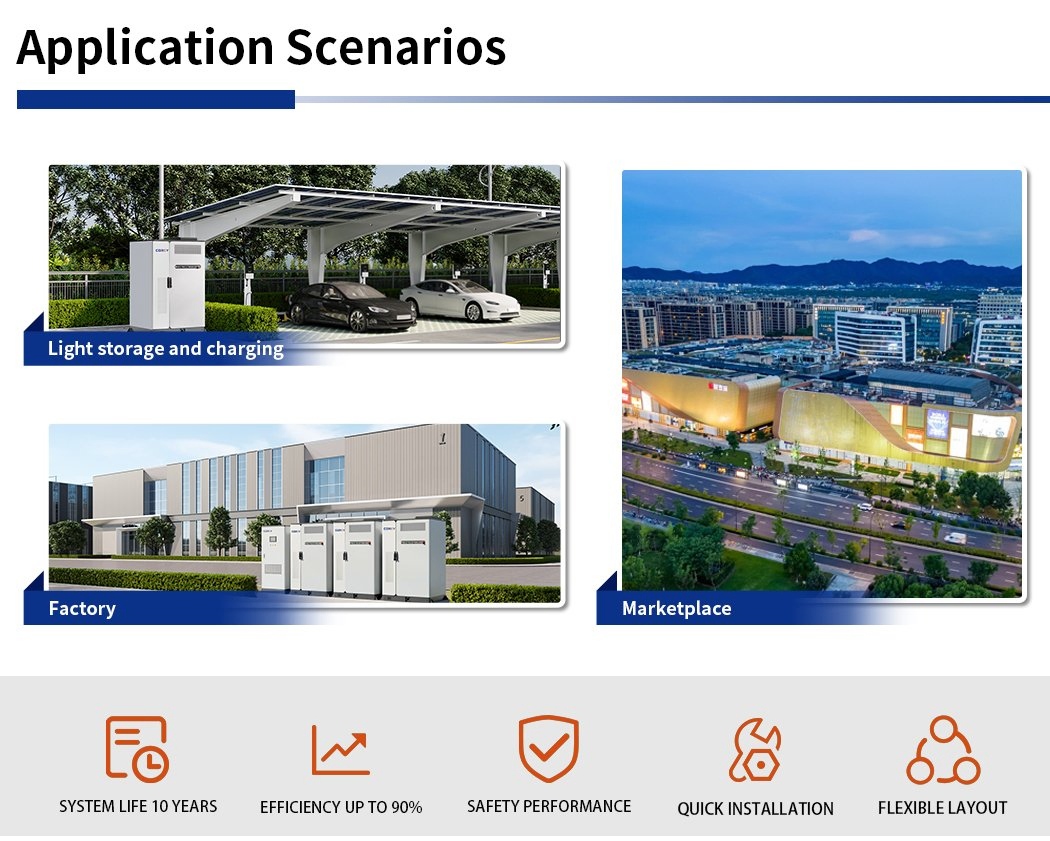

Ideal for commercial buildings, factory buildings, remote areas, and regions with power shortages.
A: Based on typical European electricity market environments, the static payback period is approximately 3 to 3.5 years through peak-valley arbitrage and demand charge management.
A: The liquid cooling keeps the temperature difference within ≤3°C, which significantly extends the battery lifecycle (up to 9000 cycles) and maintains high efficiency compared to traditional air cooling.
A: Yes, it is fully certified with CE, IEC 62477, EN 50549, VDE 4105, and UN38.3, ensuring safety and legality for grid connection across the EU.
A: Absolutely. It supports both grid-connected and off-grid switching with an optional automatic switching time of less than 20ms, making it ideal for backup power.
A: We utilize a three-tier safety design including Aerosol fire suppression at both pack and cluster levels, plus cabinet-level water fire protection interfaces.
A: The system is designed for a 25-year lifespan, providing over two decades of pure profit after the initial payback period.
