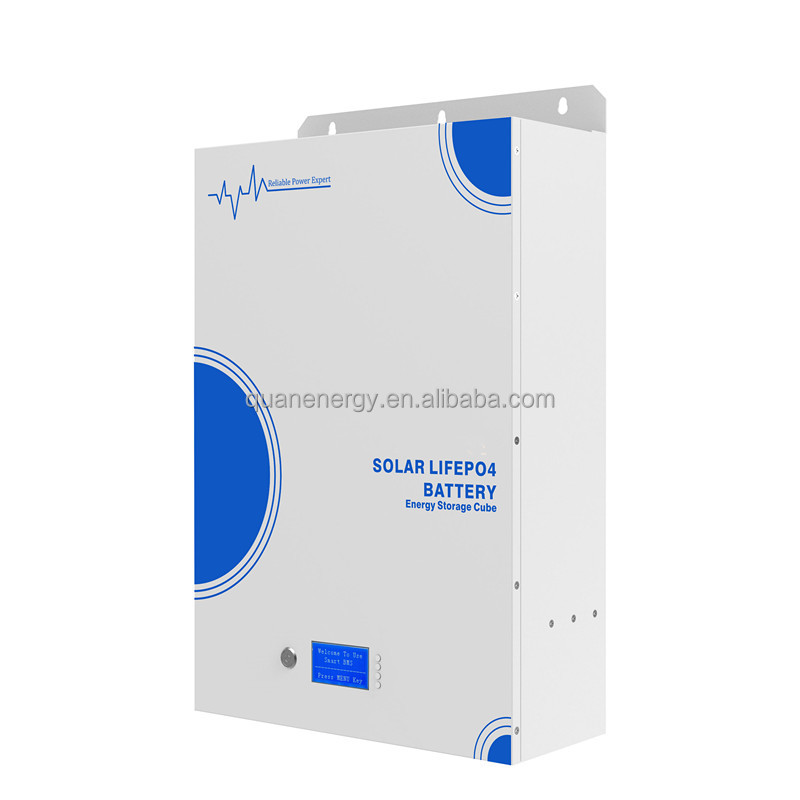

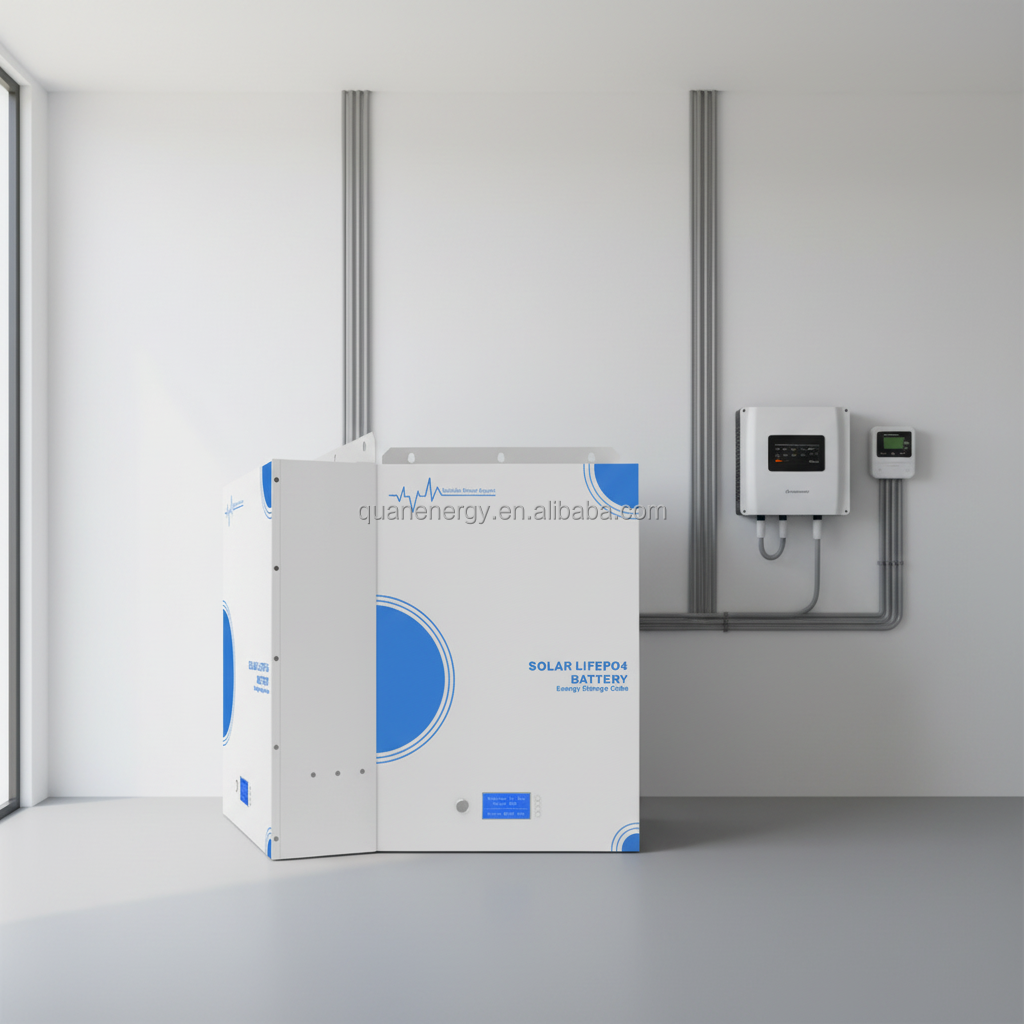

48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
1 / 5
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One
48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One

48V200Ah Smart Home Energy Storage System 48V200Ah LFP Lithium Ion Battery 6000 Cycles 80% DoD CAN Wall-Mounted All-In-One

Send Inquiry

Product Description

Product Description

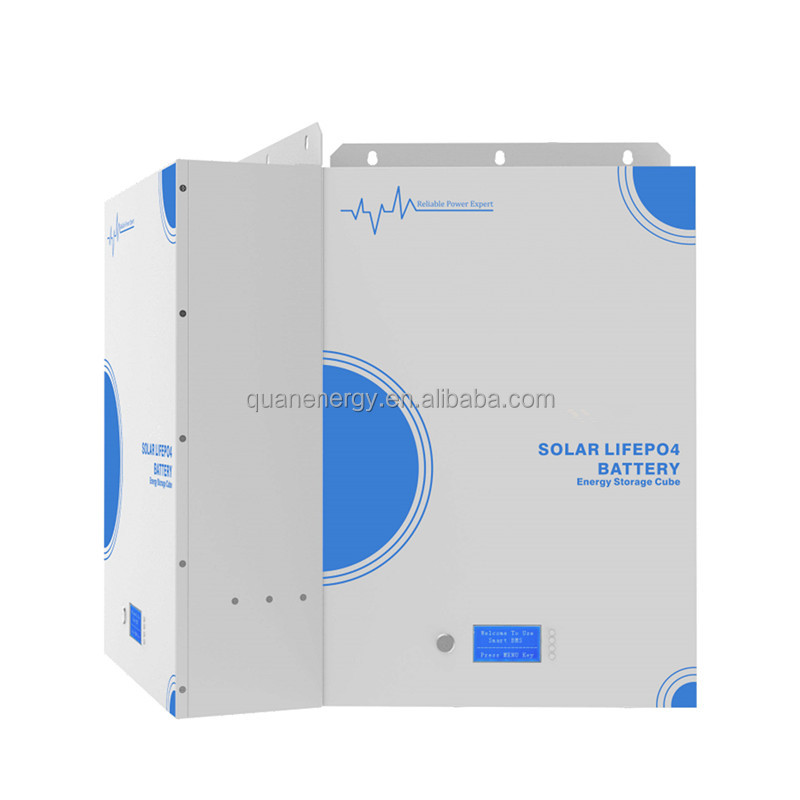

Product Description Image
Specification
Basic Parameters Rated Voltage 48V
Rated Capacity 200Ah
Rated Energy 9600Wh
Operating Parameters Output Voltage Range 42V~54V
Charging Voltage 52.5-54 (recommend 56V)
Cut-off Voltage 42V
Max. Charging Current 100A
Recommended Charging Current 50A
Max Discharging Current 100A
Efficiency >98%
Environment Humidity 5%~95% Relative humidity
Charging Temperature 0°C~60°C
Discharging Temperature -20°C~60°C
Storage Temperature -10°C~30°C
Service Life Cycle Life >6000 times (0.2C, @25°C, 80%DOD)
Design Life >10 years
Physical Product Dimension 640*400*223mm
Product Weight 85KG
✔ Supports parallel expansion up to 16 units in parallel.
✔ Compatible with many mainstream inverter brands in the market.
✔ Flexible installation: Wall hanging or floor-mounted.
✔ Built-in BMS system for optimized battery life protection.
✔ Excellent safety: Lithium iron phosphate (LiFePO4) chemistry eliminates explosion or combustion risks.
✔ Acceptable customization services.

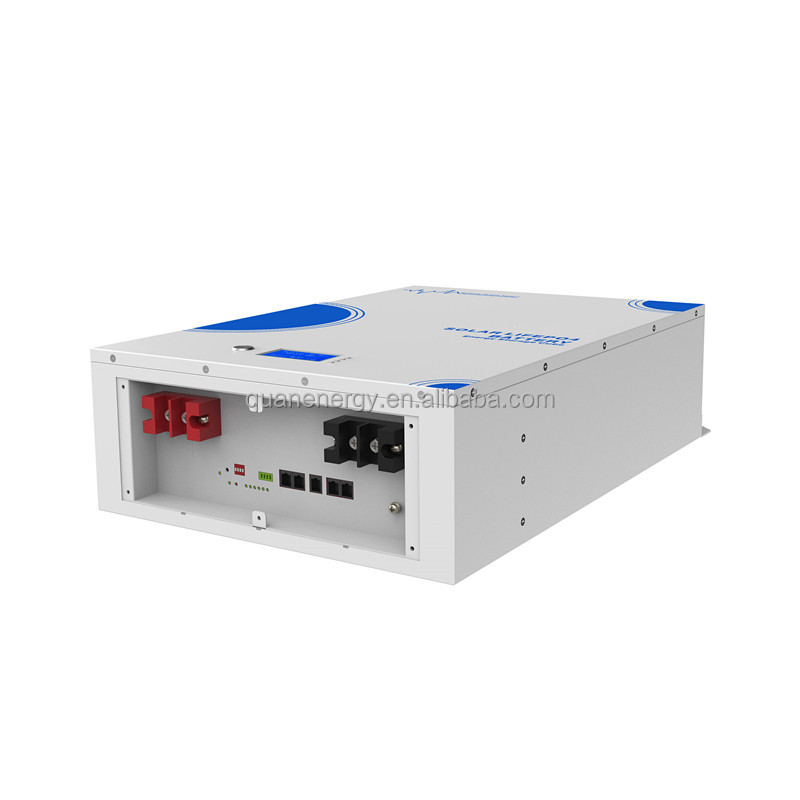

Battery Detail 1

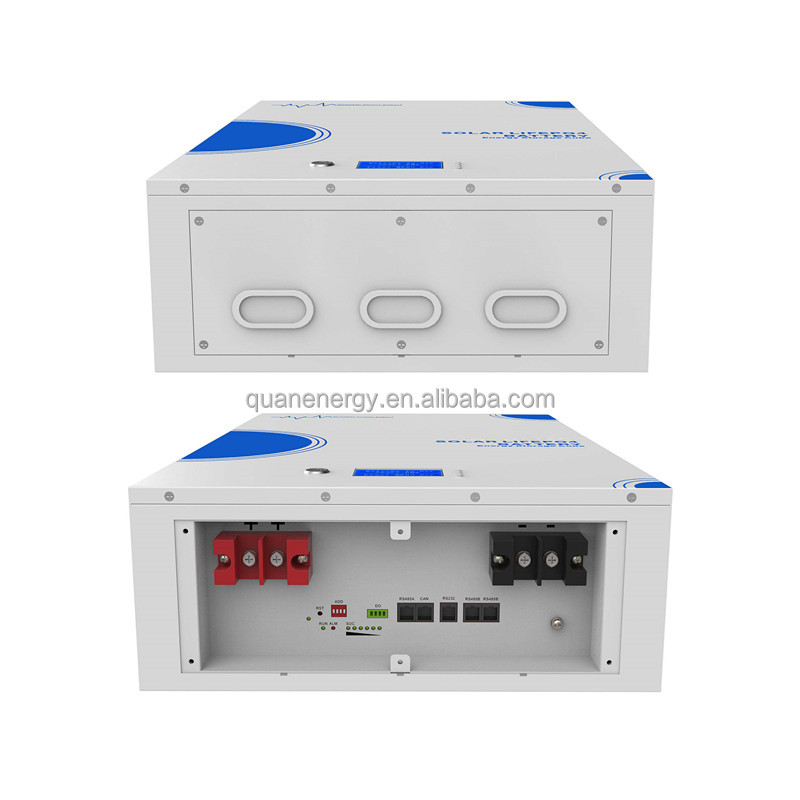

Battery Detail 2
Internal Structure

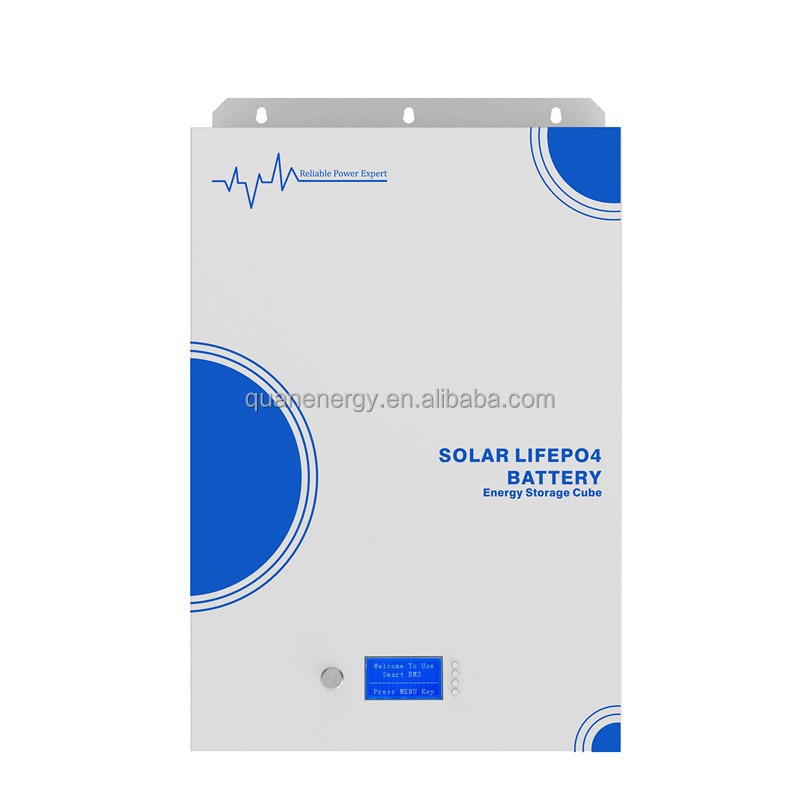

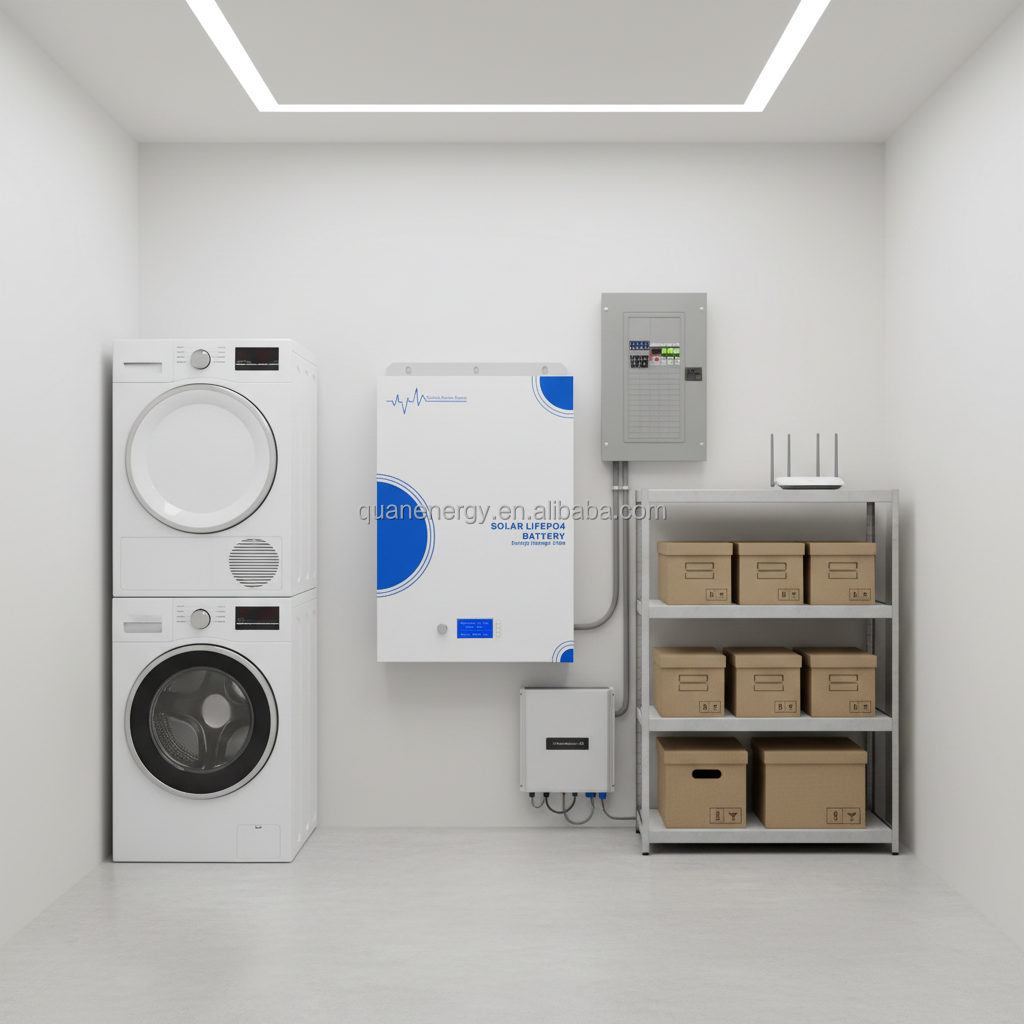

Application Scene
Applications:
• Solar/Wind Energy Storage System
• Communication Equipment
• Emergency Power System
• Medical Equipment
• UPS Backup Power
• Electric Vehicles/Electric mobility
• Fire And Security System
• Home Lighting

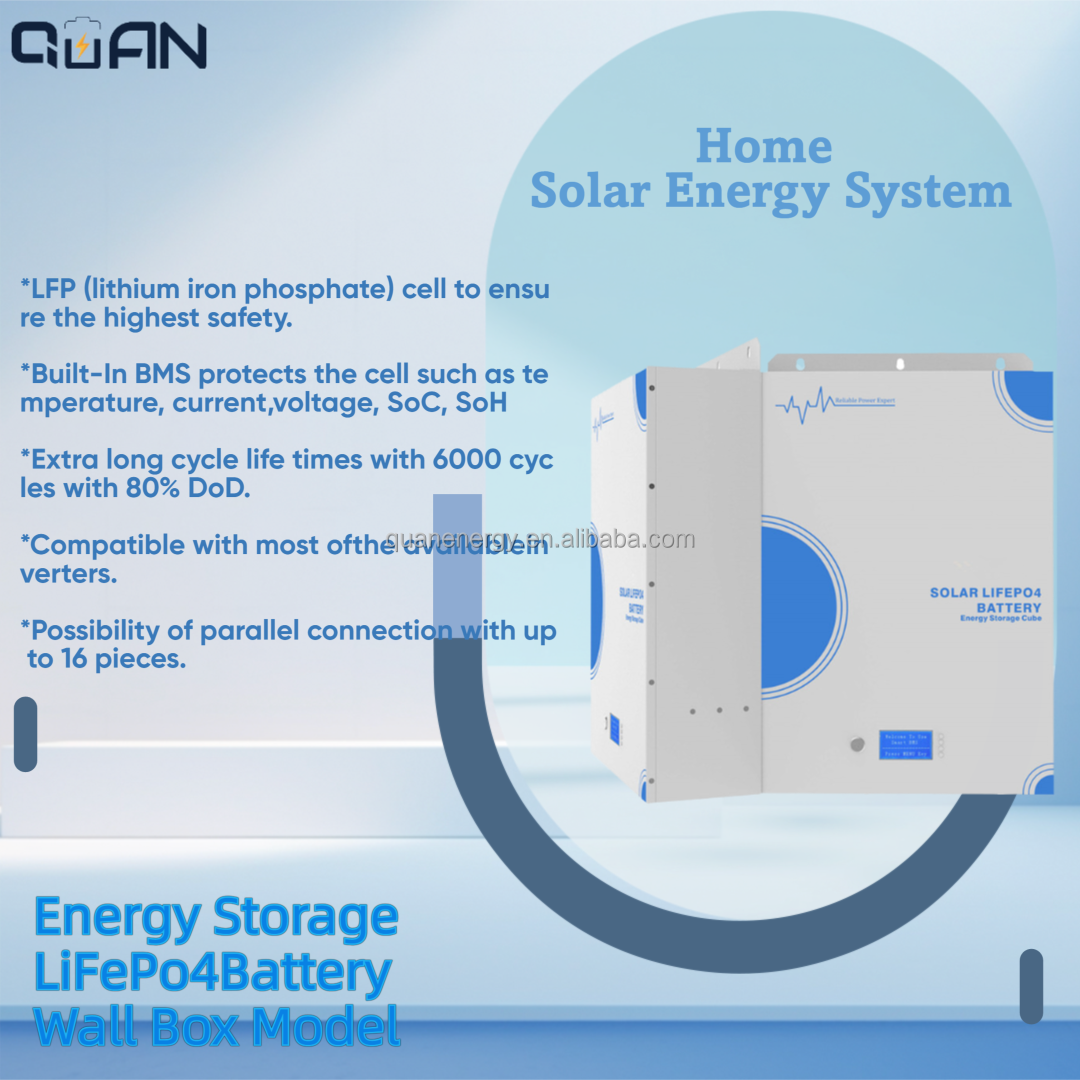

Technical Chart 1
Technical Chart 2
Certificate 1
Certificate 2
Certificate 3
Factory Overview

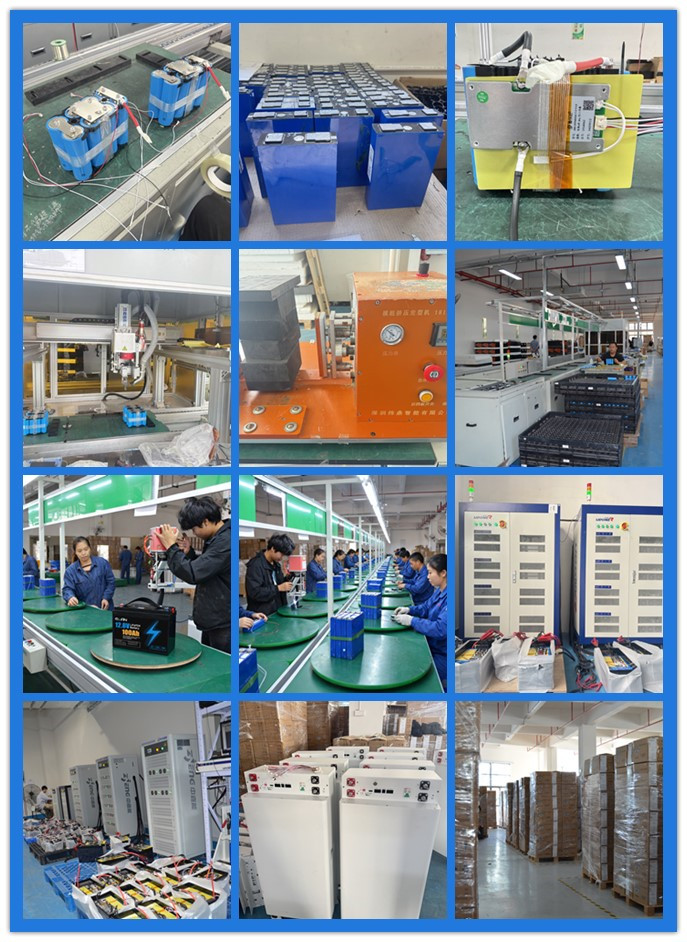

Production Line

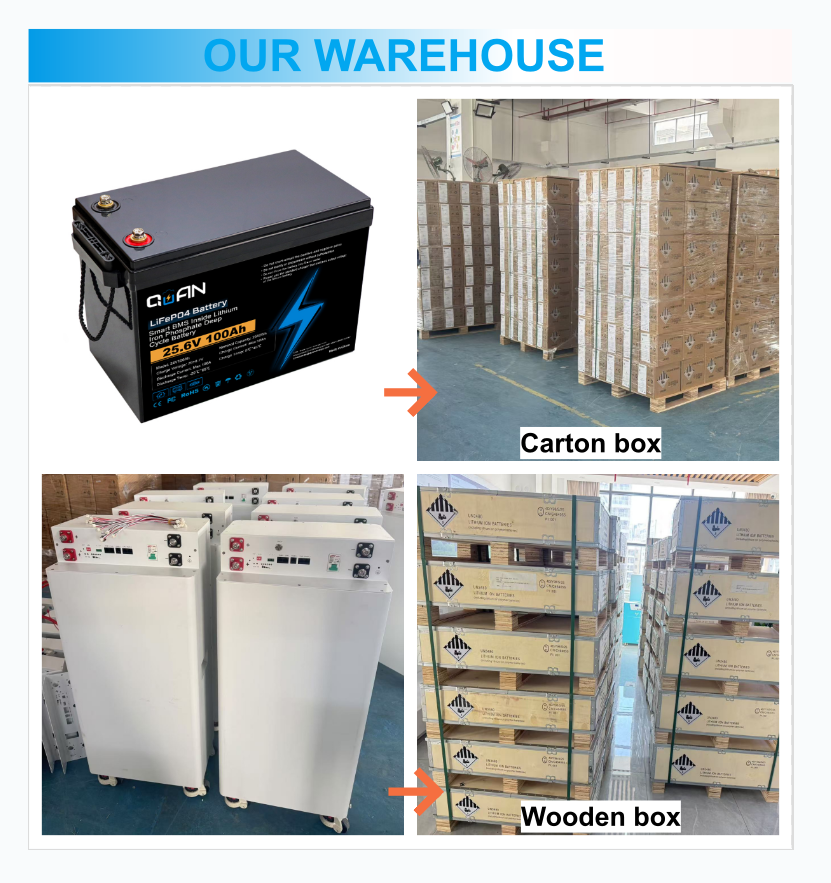

Packing Info
Shipping Logistics
Frequently Asked Questions
How many units can be connected in parallel?
The system supports easy expansion, allowing up to 16 units to be connected in parallel to increase your total energy capacity.
What is the expected lifespan of this battery?
It is designed with LiFePO4 chemistry providing over 6000 cycles at 80% DOD, with a total design life of more than 10 years.
Is this battery compatible with my existing solar inverter?
Yes, our battery system is designed to be compatible with most mainstream inverter brands available in the market today.
Can I install the battery on the wall?
Absolutely. The product supports both wall-hanging and floor-mounted installation modes to suit your space requirements.
How does the BMS protect the battery?
The built-in Battery Management System (BMS) monitors cells in real-time, protecting against overcharge, over-discharge, over-current, and temperature extremes.
Is Lithium Iron Phosphate (LiFePO4) safe for home use?
Yes, LiFePO4 is one of the safest lithium technologies available, significantly reducing the risk of combustion or thermal runaway compared to other chemistries.
